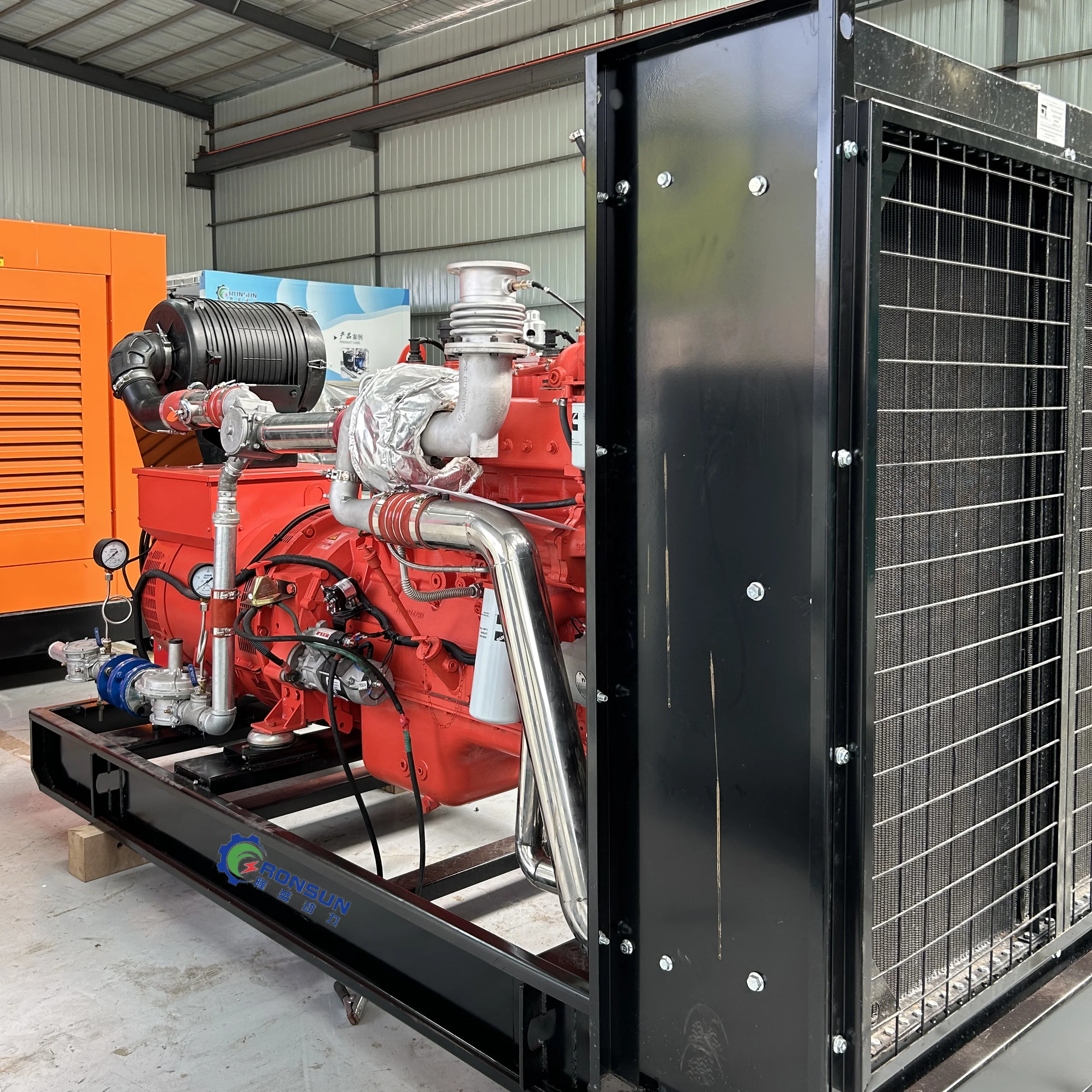

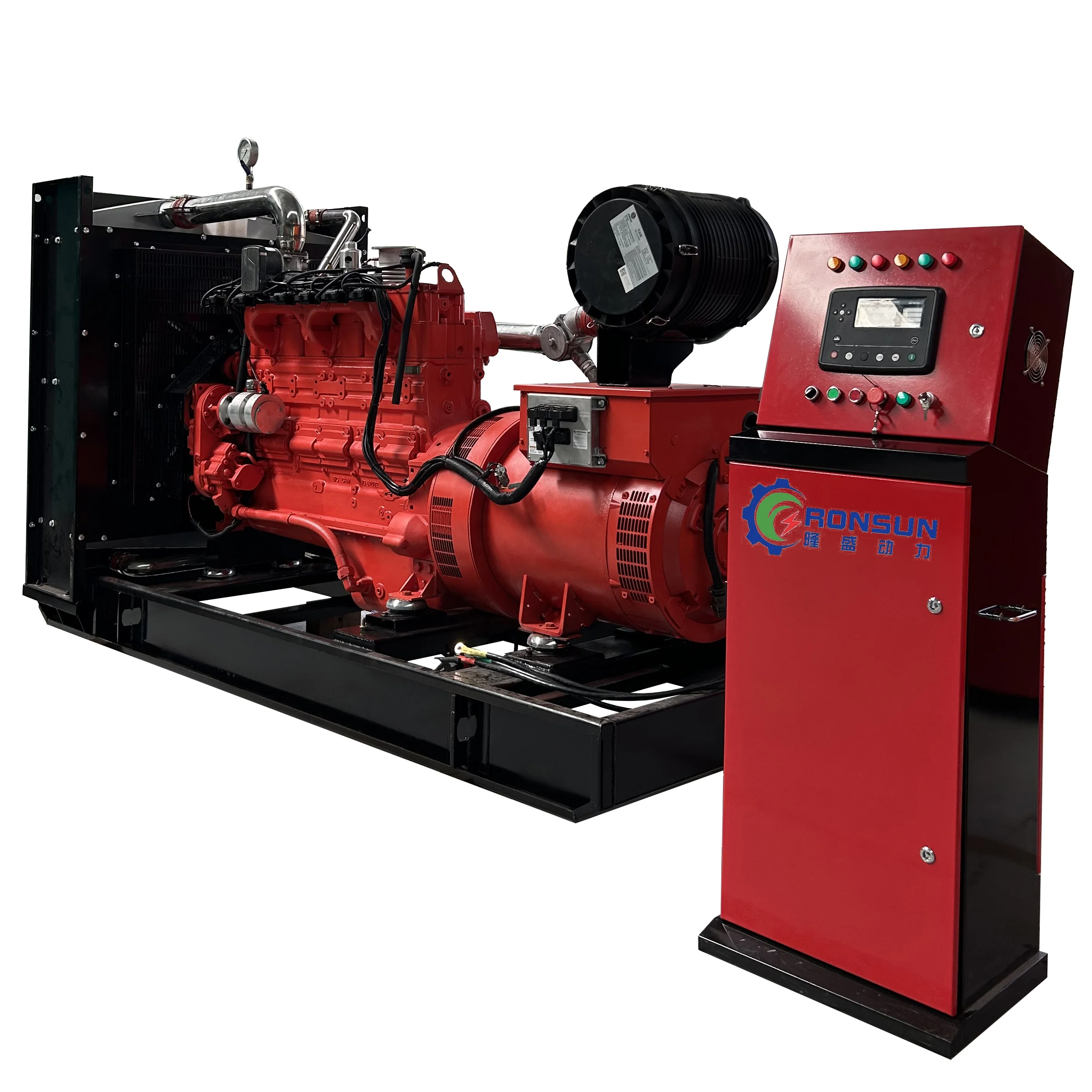

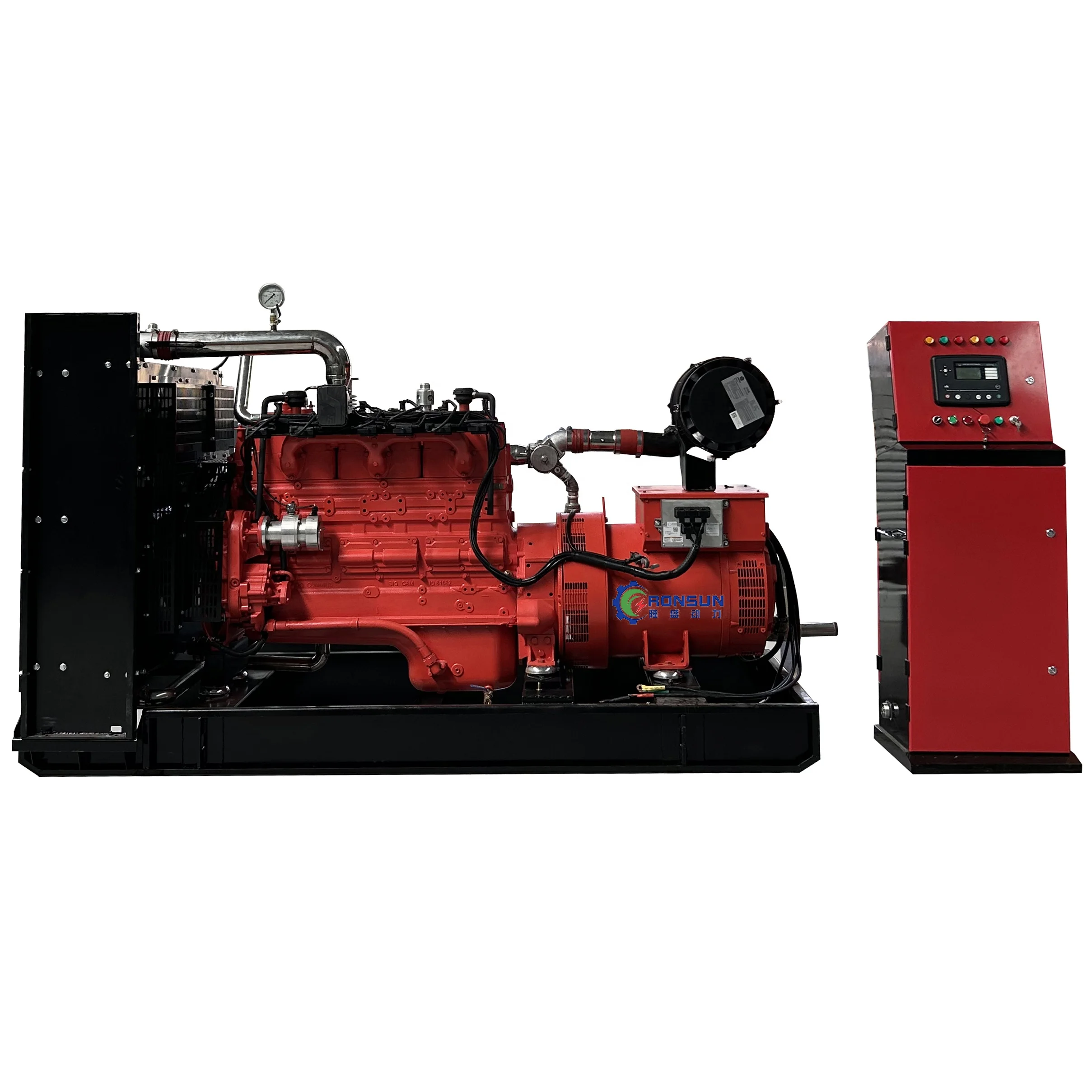

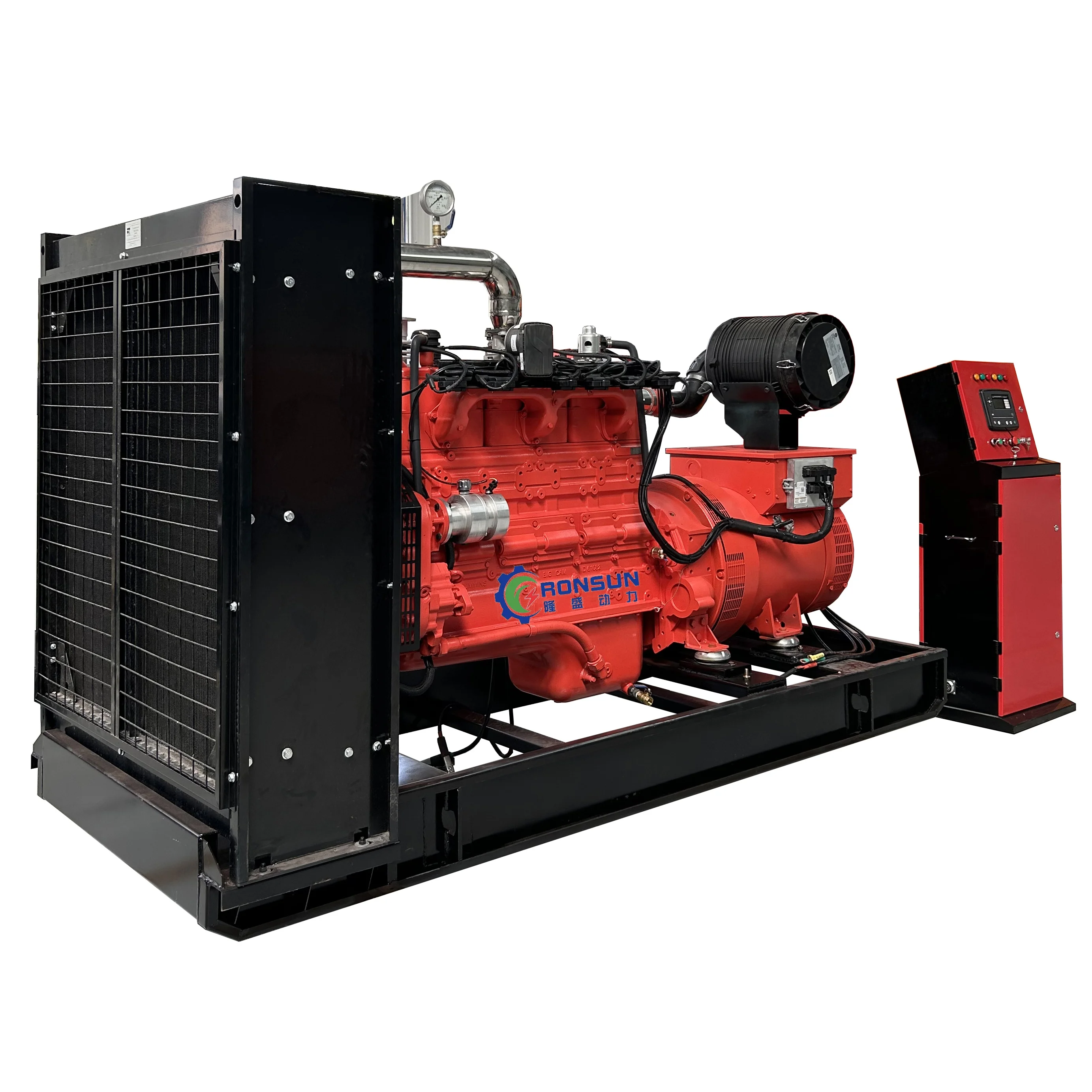

Factory price high power 200kw natural gas generator turbine generator 250kVA with cummins engine
- Category: >>>
- Supplier: Weifang Ronsun Power Technology Co. Ltd.
Share on (1601206830802):
Product Overview
Description
Factory price high power 200kw natural gas generator turbine generator 250kVA with cummins engine
>>> Gen-set
Model | LS-200GF |
Rated Power (KW/KVA) | 200/250 |
Standby Power (KW/KVA) | 220/275 |
Rated Voltage (VAC) | 230/400 |
Rated Current (A) | 360 |
Rated Speed (RPM) | 1500/1800 |
Rated Frequency (HZ) | 50/60 |
Output Type | 3 Phase 4 Wire |
Voltage Adjustment Range | ≥±5% |
>>> Engine
Brand/Manufacturer | CUMMINS | ||||||
Engine Power | 220/275 | ||||||
Speed (r/min) | 1500/1800 | ||||||
Number of cylinders | 6 | ||||||
Cylinder arrangement | Vertical in-line | ||||||
Induction system | Naturally aspirated | ||||||
Fuel supply method | Electrical regulator | ||||||
Cooling method | Water cooled | ||||||
Intercooled method | After cooled | ||||||
Direction of roration | Anti-clockwise viewed from flywheel | ||||||
Cooling system | Dual thermostats, water pump, radiator | ||||||
Induction system | Embedded air filter | ||||||
Start system | DC 24V start motor and alternator for battery charge | ||||||
Sensors | Water temperature sensor, oil pressure sensor, speed sensor and fuel level sensor | ||||||
>>> Alternator
Model | LSA-44.3 VL14 | ||||||
Brand/Manufacturer | Leroy Somer/Stamford/Marathon | ||||||
Voltage (V) | 380/220 | 400/230 | 415/240 | 440/254 | |||
Capacity (kVA) | 250 | 410 | 410 | 385 | |||
Power (kW) | 200 | 328 | 328 | 308 | |||
Power factor | 0.8 | ||||||
Protection Degree | IP 23 | ||||||
Altitude | ≤1000 m | ||||||
Excited method | Brushless self-excited | ||||||
Insulation/temperature rise class | H/H | ||||||
Telephone Harmonic Factor | ＜2% | ||||||

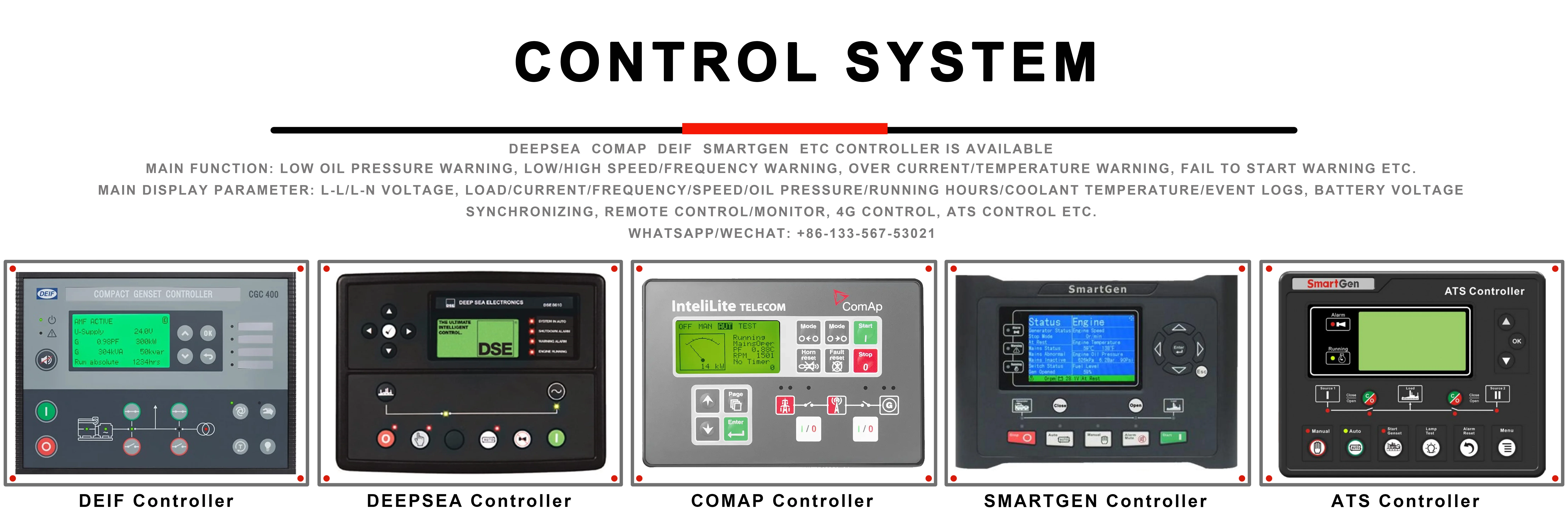

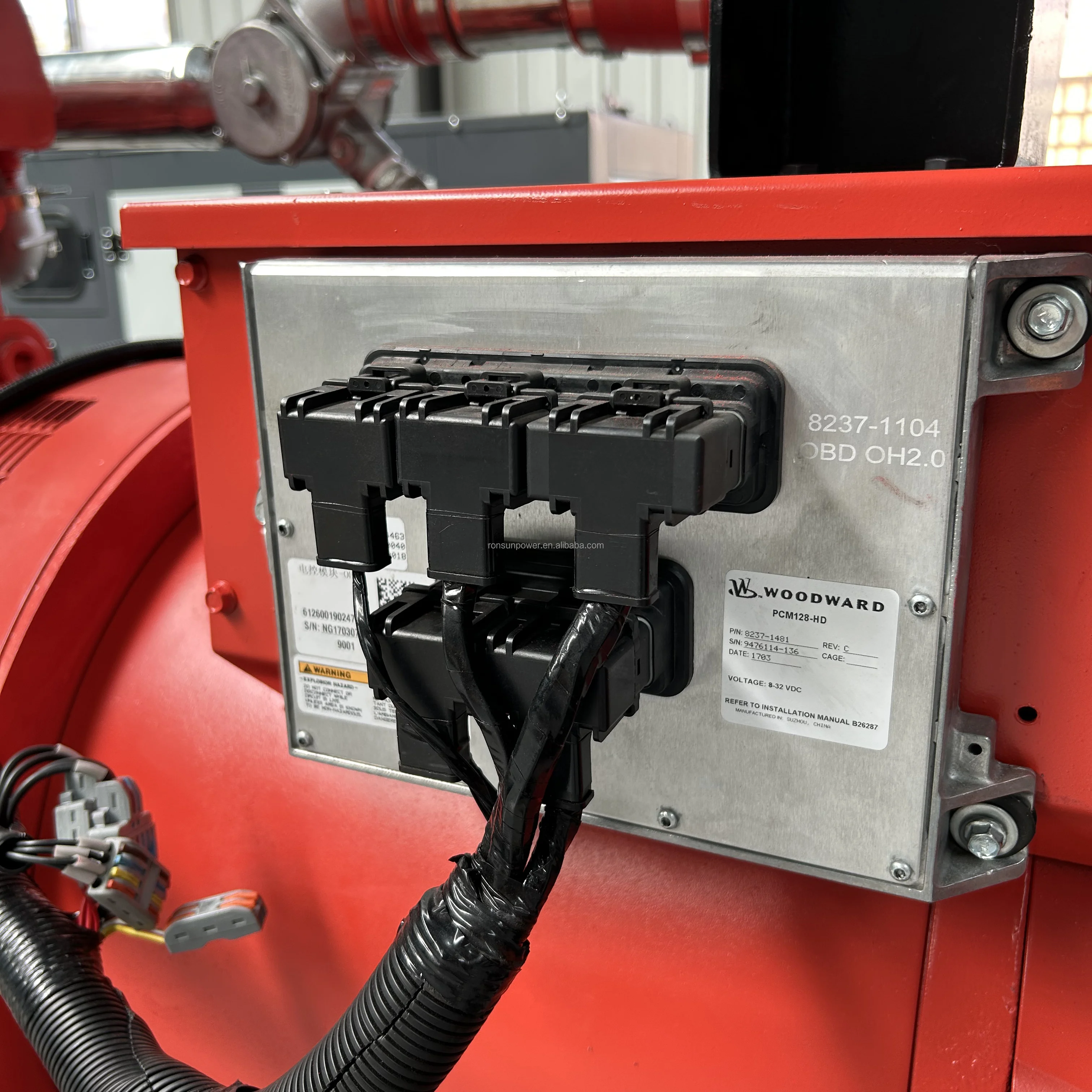

>>> Control System
Automatic control system
>>We use domestic and foreign famous brands stand-alone/synchronizing control system like DEIF, Deepsea, ComAp, SmartGen.
>>The automatic control system can realize the most basic requirements of the unattended automatic gen-set
>>Remote control
>>Large-screen LCD display, Multiple languages operation and display menu
>>It has control functions such as automatic model, manual model, shutdown, emergency stop, etc., rich programmable output, input interface and humanized interface, multi-functional liquid crystal display, and simultaneously displays the detected parameters through data, symbols, and bar graphics
>>Standard communication interface: RS-232 (Modbus communication protocol), which meets the needs of users to realize monitoring functions such as "remote control", "telemetry" and "remote reporting" on the unit through communication (network) or central monitoring system (host computer), and can meet The needs of various automation units
>>> Pictures
Certification & Partner
_________________________________________________________________________________________________________________
Power Range
_________________________________________________________________________________________________________________
Engine | Alternator | Power Range | Voltage | Frequency | Speed | Type |
Standard Supply Scope
_____________________________________________________________________________________________________________________________________
Optional Supply Scope
_________________________________________________________________________________________________________________

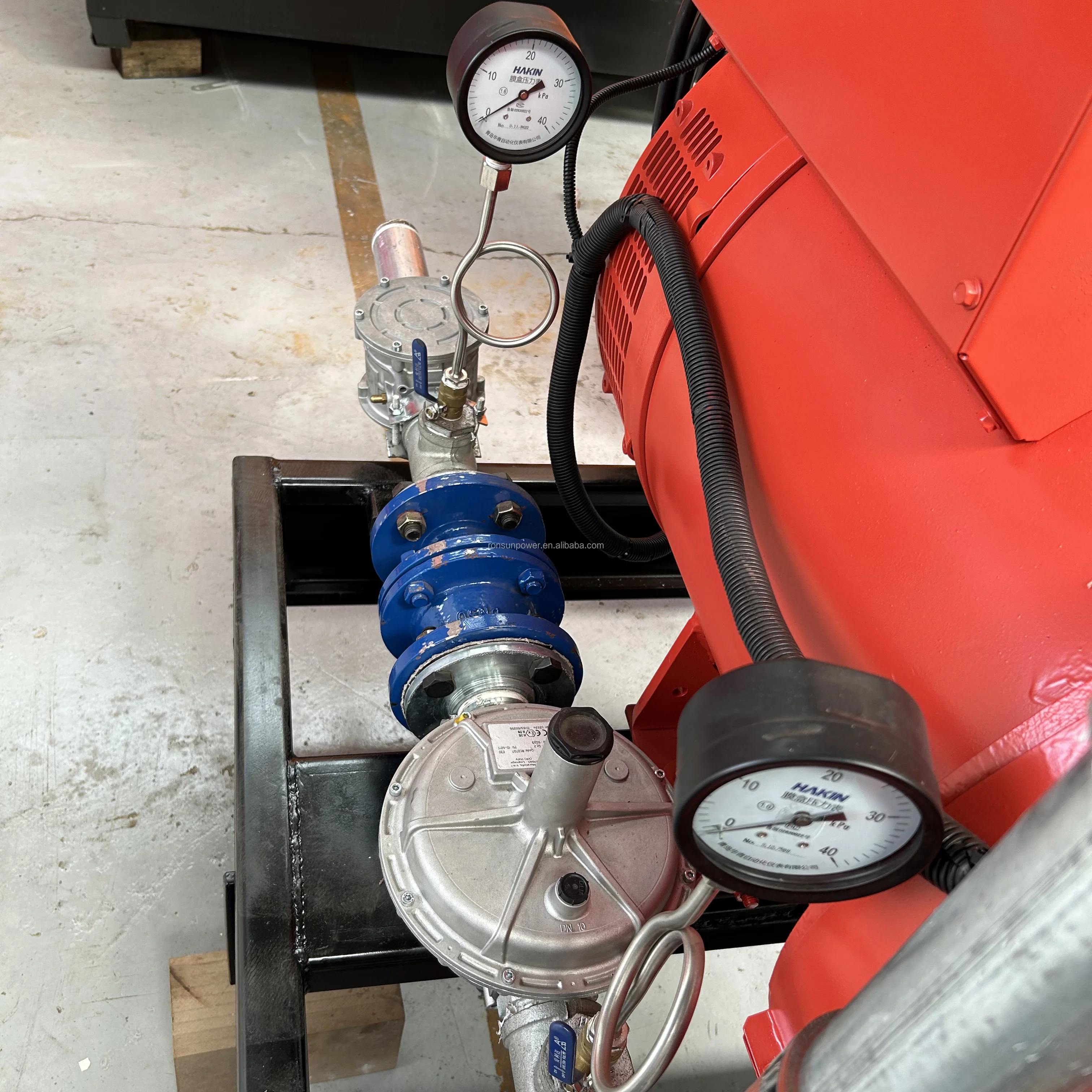

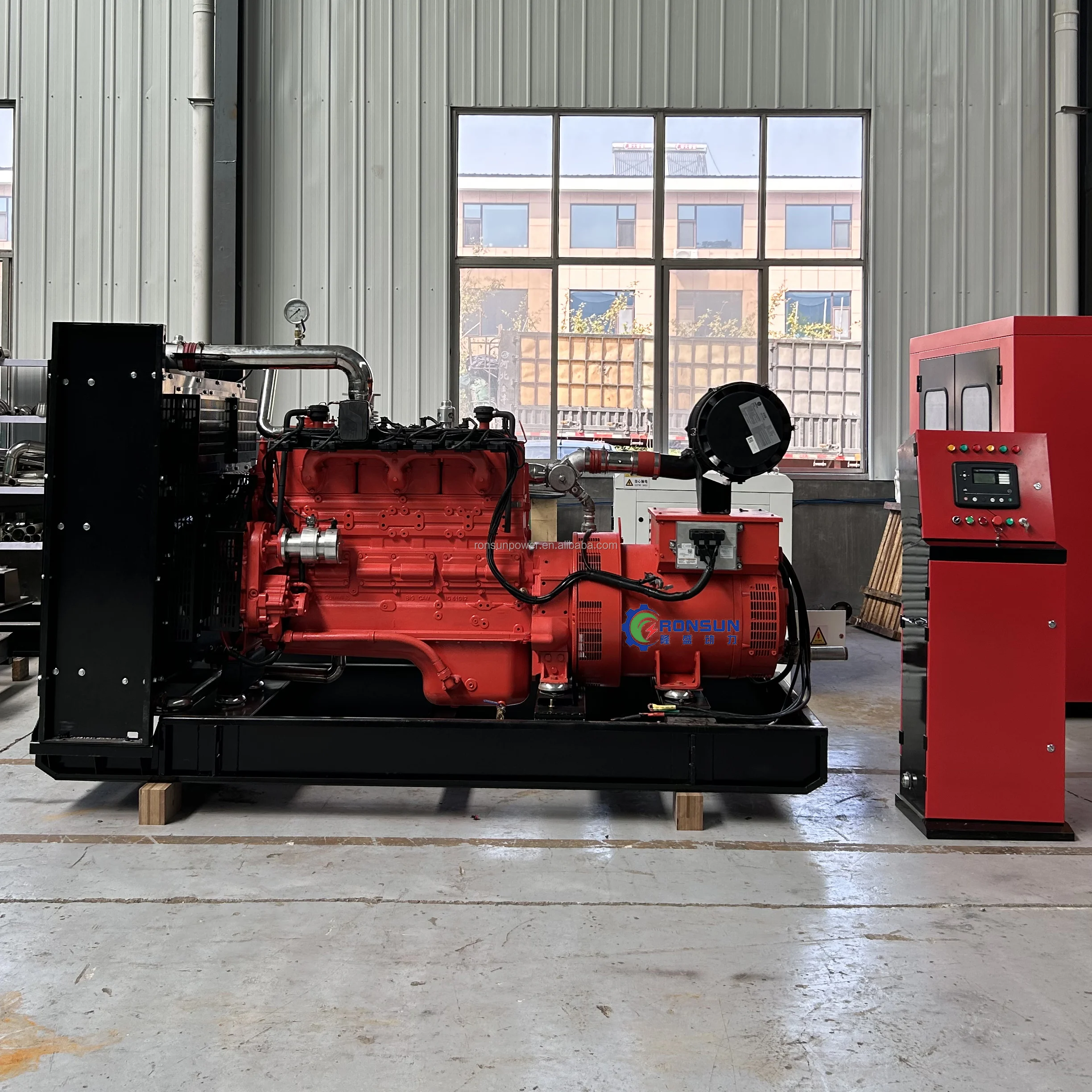

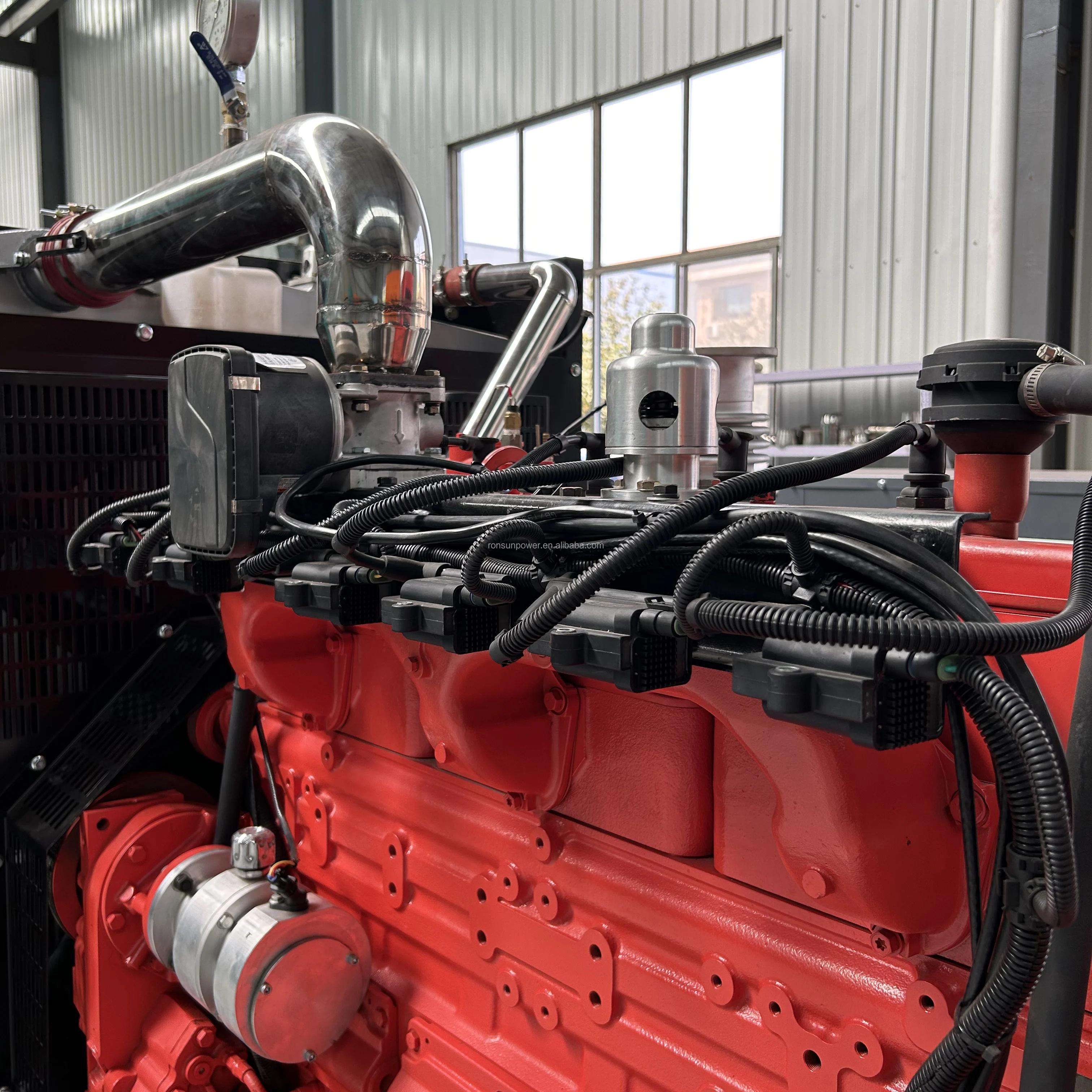

Photo Of Details
_________________________________________________________________________________________________________________
Exhibitions & Photos Of RONSUN
_________________________________________________________________________________________________________________
Why Us?
_______________________________________________________________________________________________________________________________________
<<<<Weifang RONSUN Power Technology Co., Ltd.>>>>
1. RONSUN located in Weifang City, it is famous as "Power City of China" and “Kate Capital of the World”.
2. RONSUN have almost 10 years experience in R&D and manufacturing of Diesel and Gas generator sets.
3. RONSUN have a professional after-sales service team with more than 15 technicians.
4. RONSUN factory covers an area of 14,000 square meters. There are 122 skilled workers.
5. RONSUN is maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures like
CUMMINS, Perkins, Weichai, Yuchai, Deutz, Stamford, Leroy Somer, NENJO etc.
6. We have wide power range products from 10kVA to 3750kVA for diesel generator sets and from 12.5kVA to 1250kVA
for gas generator sets.
7. Multi-types for choose like Rainproof/Soundproof type, container type, trailer type, light tower generator sets.
Regarding to the electrical control systems, it covers Auto control panel, Synchronization panels, ATS etc.

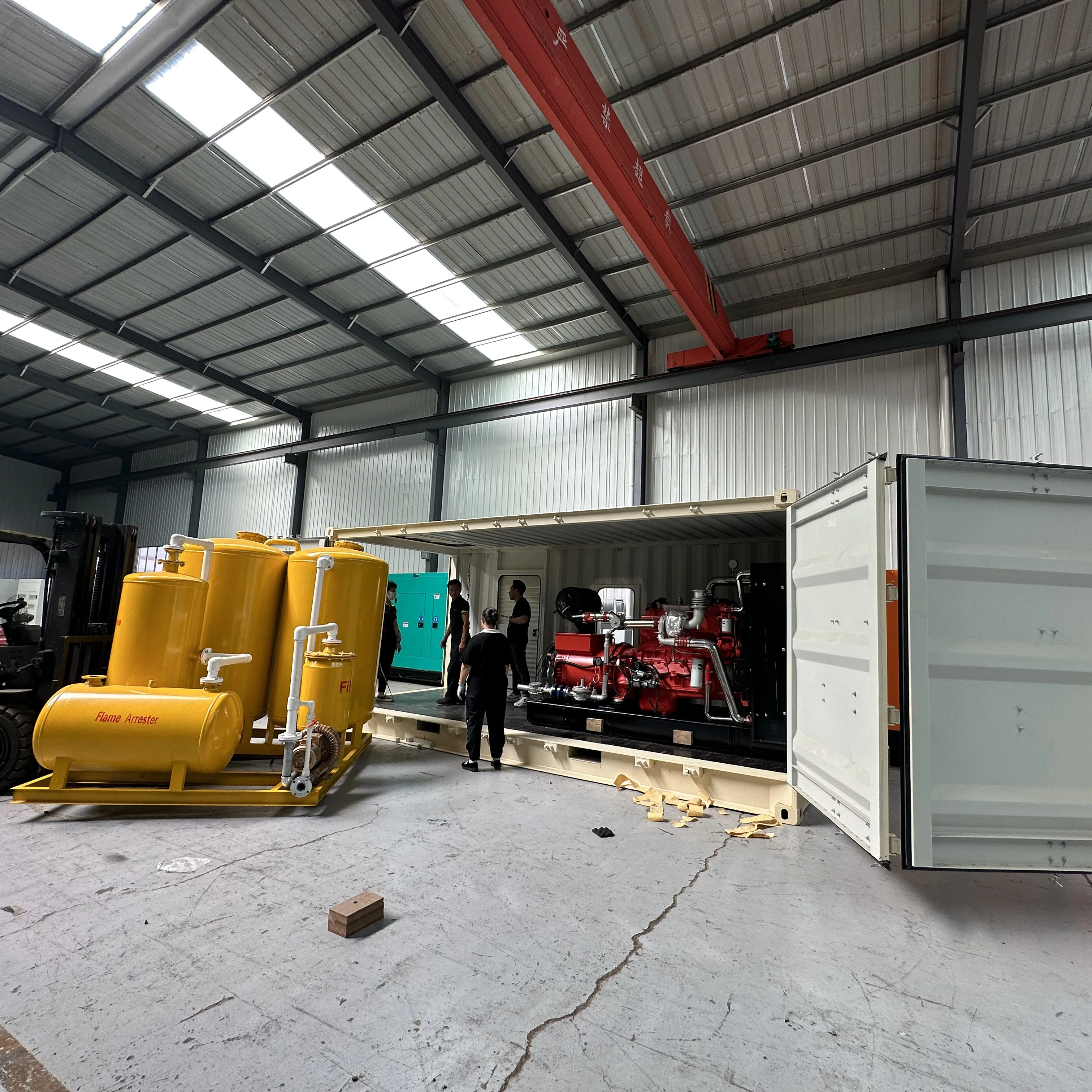

Package and Delivery
_________________________________________________________________________________________________________________
RONSUN Promise
_______________________________________________________________________________________________________________________
1. All RONSUN generator sets will be strickly tested before delivery, only qualified products are allowed to be delivered to
clients.
2. Warranty of all our generator sets is 12 months from BL date or 1,000 running hours, whichever comes first.
3. Service and parts are available from RONSN distributors in your location. RONSUN also provide globle service and spare
2. Warranty of all our generator sets is 12 months from BL date or 1,000 running hours, whichever comes first.
3. Service and parts are available from RONSN distributors in your location. RONSUN also provide globle service and spare
parts supply.
4.All the products from RONSUN is CE marked.
4.All the products from RONSUN is CE marked.
FAQ
__________________________________________________________________________________________________________________________________________
Q1: Are you factory or manufacturer?
A: We are factory.
Q2: How can you guarantee quality?
A: All our gen-sets were tested according to national standards before delivery. All our gen-sets were certificated by CE
Q5: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, Credit Card, Western Union, Cash;
Language Spoken: English, Chinese, Spanish, Russian, Burmase.
A: We are factory.
Q2: How can you guarantee quality?
A: All our gen-sets were tested according to national standards before delivery. All our gen-sets were certificated by CE
and ISO.
Q3: How long is your delivery time?
Q3: How long is your delivery time?
A: Around 2-6 weeks.
Q4: Do you offer OEM service?
A: Yes.
Q4: Do you offer OEM service?
A: Yes.
Q5: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, Credit Card, Western Union, Cash;
Language Spoken: English, Chinese, Spanish, Russian, Burmase.
Q6: What is your warranty peroid?
A: It's 12 Months from BL or 1500 running hours, whichever comes first.
