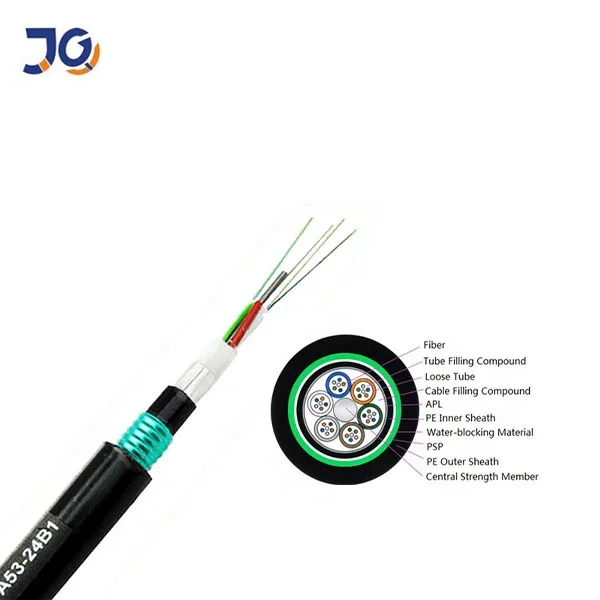

Outdoor Underwater GYTA33 GYTA53 submarine fiber optical cable price per meter 12 24 48 Core Direct Buried Optical Fiber Cable
- Category: >>>
- Supplier: Guangzhou Jiqian Fiber Optic Cable Co. Ltd.
Share on (1601207200653):
Product Overview
Description
Product Description

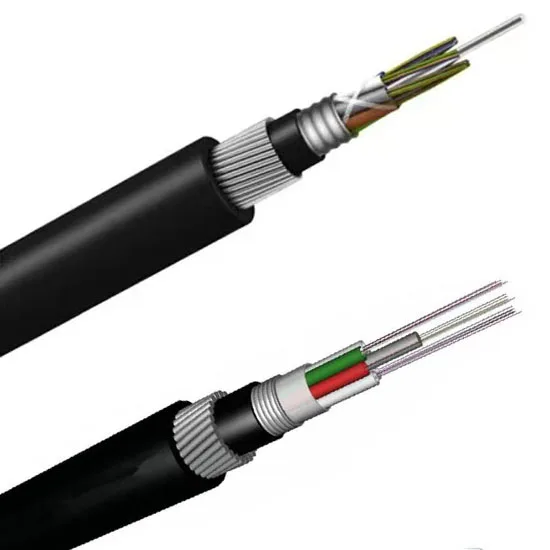

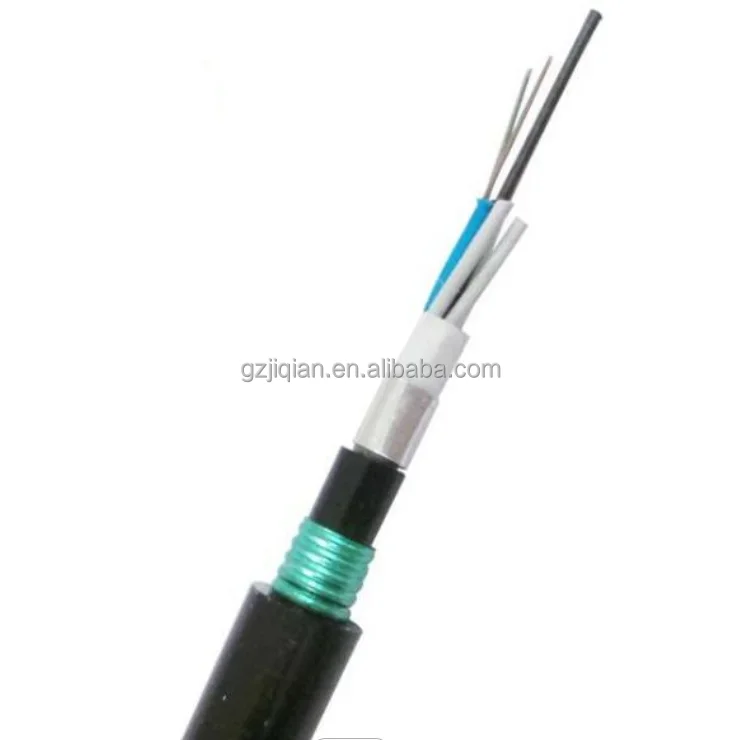

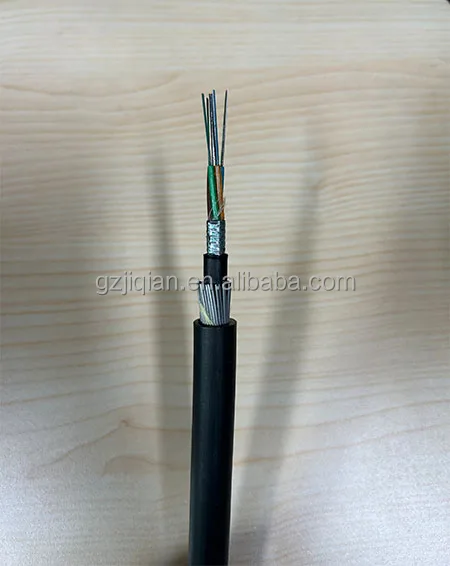

GYTA33 Underwater underground fiber optic cable 1000 strong thick Armoured direct burial fiber cable

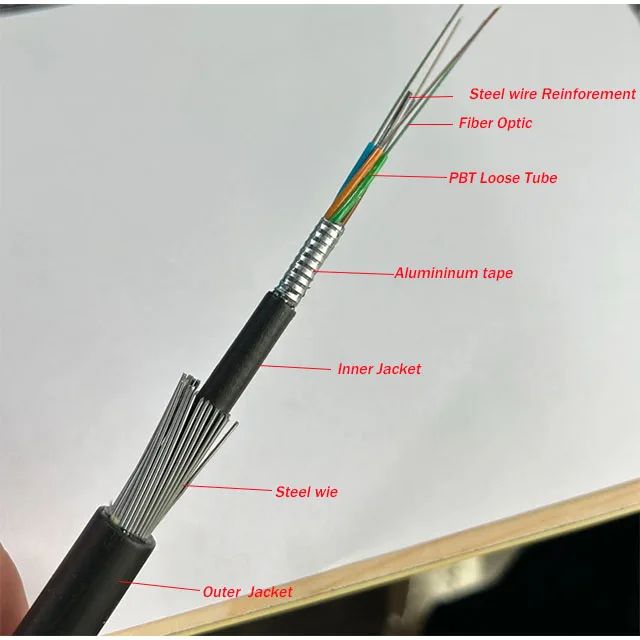

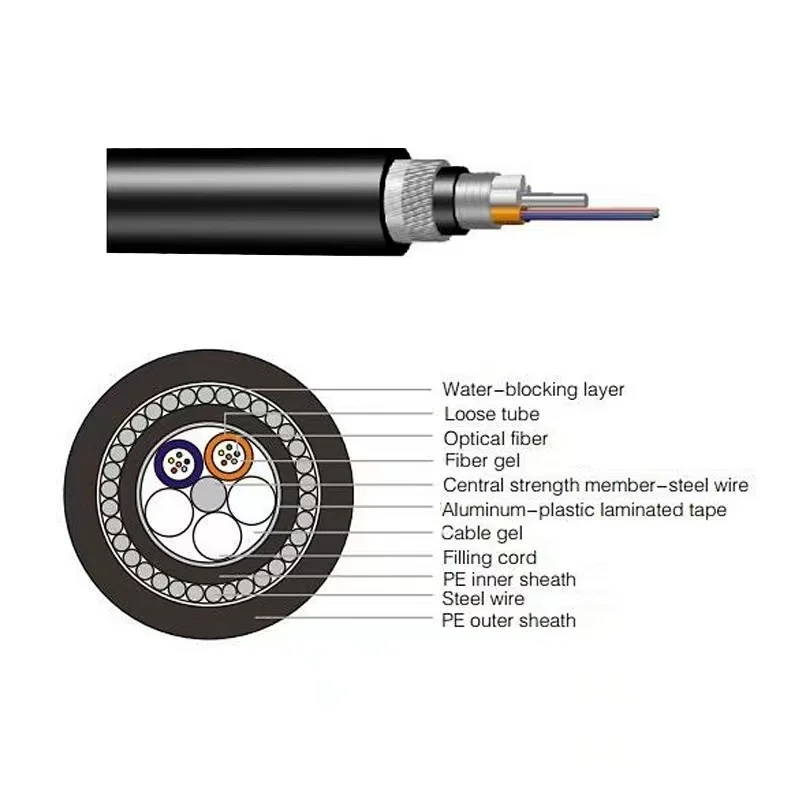

Fiber optic cable GYTA33, 2-144 cores fibers, central strength member (steel), jelly filled, fiber contained loose tube and pp filler(if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, pe inner sheath, armored by a layer of steel wires,pe outer sheath. G652d sm fiber, detailed specification on your request.
Characteristics:
1.Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable
3.The armoring of steel wire and double-jacket structure make cable have excellent tensile strength and nice properties of
water-proof and crush resistance.
Application:
1.Laying modes: direct buried & under-water.
2.Applications: Long-distance communication, local trunk line, catv & computer networks system.
1.Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable
3.The armoring of steel wire and double-jacket structure make cable have excellent tensile strength and nice properties of
water-proof and crush resistance.
Application:
1.Laying modes: direct buried & under-water.
2.Applications: Long-distance communication, local trunk line, catv & computer networks system.
Application:
(1) Wile area network system
(2) Junction communications system
(3) Adopted for outdoor backbone cable, distribution cable
(4) Long distance and local area network communications
(5) Suitable for severe environment like underwater,steep slope,river etc
(1) Wile area network system
(2) Junction communications system
(3) Adopted for outdoor backbone cable, distribution cable
(4) Long distance and local area network communications
(5) Suitable for severe environment like underwater,steep slope,river etc
Specification
Product Name | Fiber Optic Cable |
Fiber Count | 2-144 Fibers,can be customized according to customers' requirement |
Construction | multi-layer Armored structure,layer steel wire for strengthen |
Fiber Type | Singlemode G.652D / G.657A1 |
Outer Jacket Material | usually PE,plastic,LSZH,can be customized |
Application | underwater,direct buried,severe environment |
Jacket Diameter | 19-28mm |
Cable Length | 1km,2km,3km,5km per drum,can be customized |
Test Wavelength | 1310/1550nm |
Operation Temperature | -20℃ to +60℃ |
Strengthen | multi layers with metal structure |
Color | usually black,can be customized |

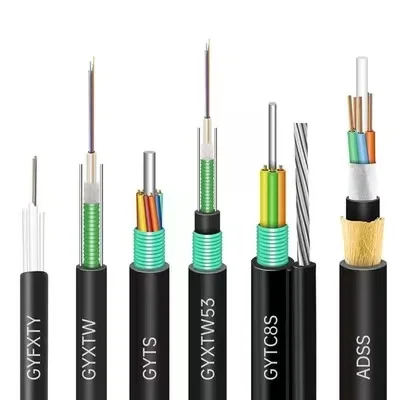

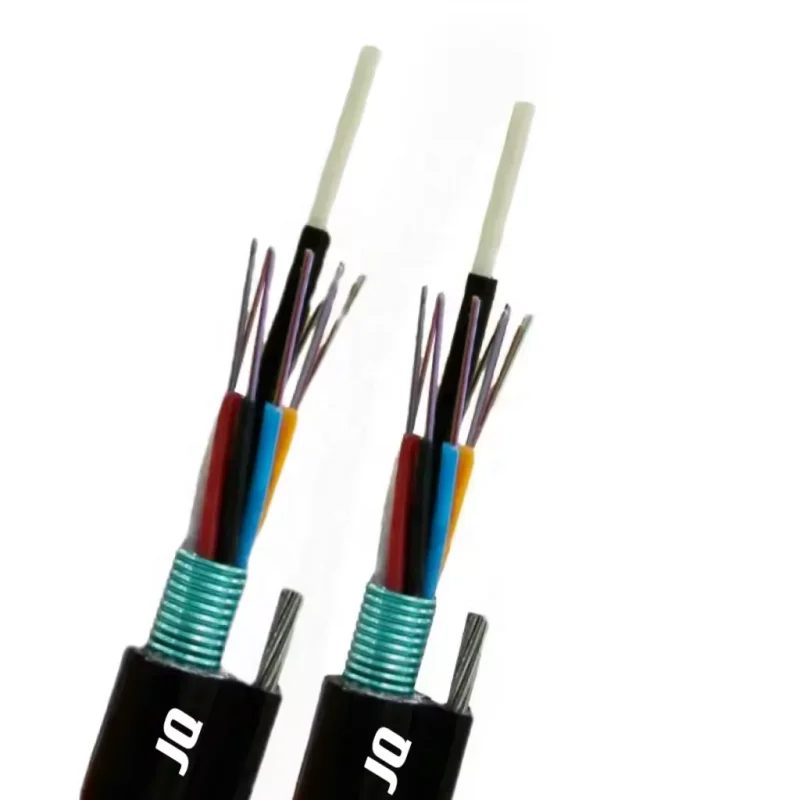

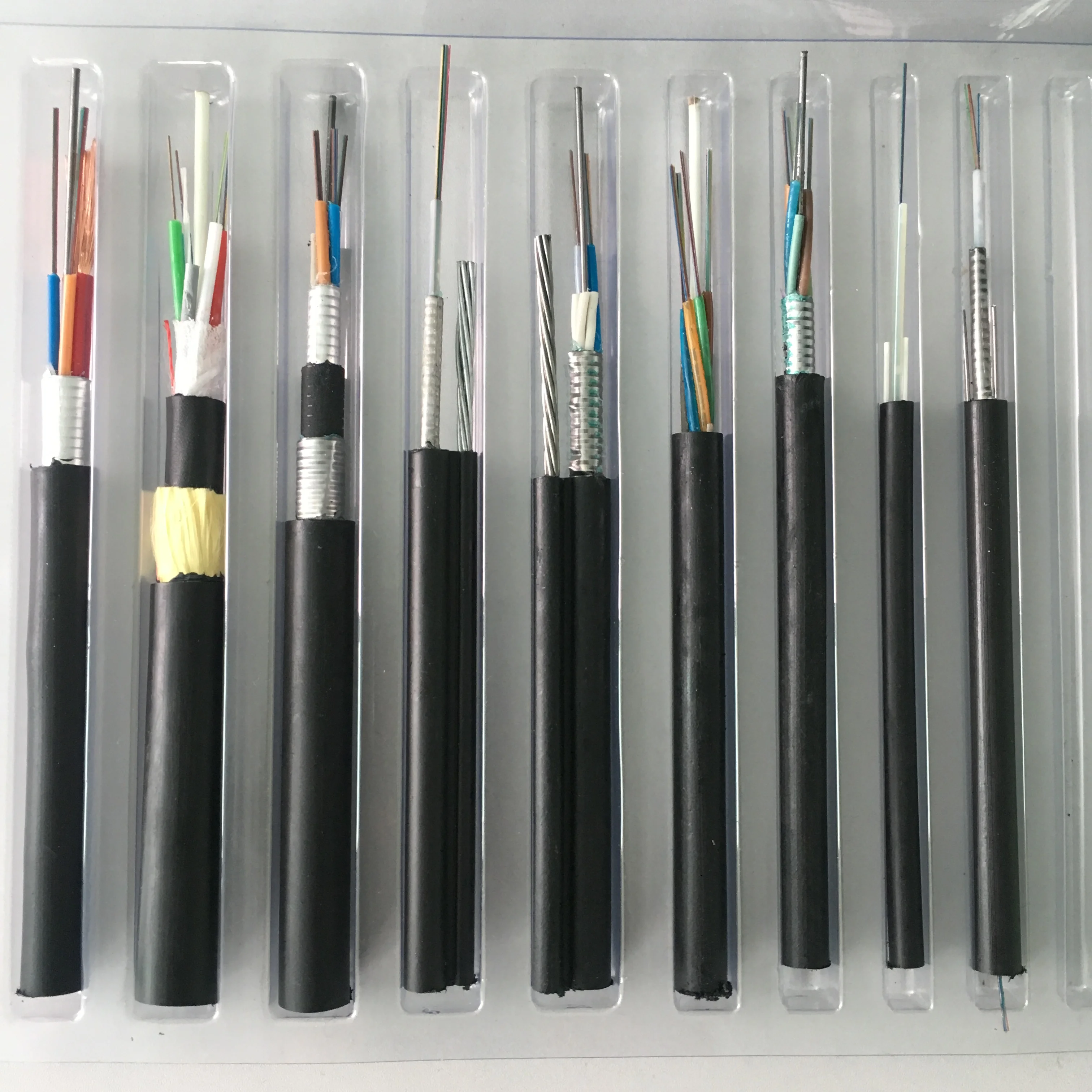

Related Products
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

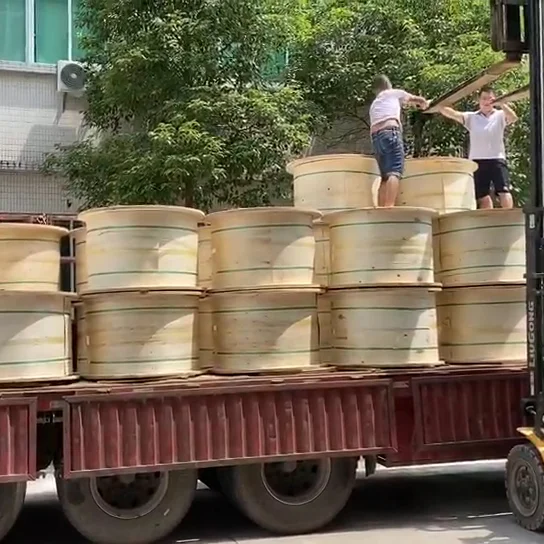

Packing & Delivery
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum
Shipping:
By sea/by air or express delivery,it depends on the order quantity
1km/ 2km/3km/4km 5km per plywooden drum
Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
