DELLEMC 64G DDR5 800G intel4416 2U computer Server Rack PowerEdge R760xs supply for Enterprise
- Category: >>>
- Supplier: Xiamen Dongchengxing Information Technology Co. Ltd.
Share on (1601207677965):
Product Overview
Description
Product Description
Your innovation engine

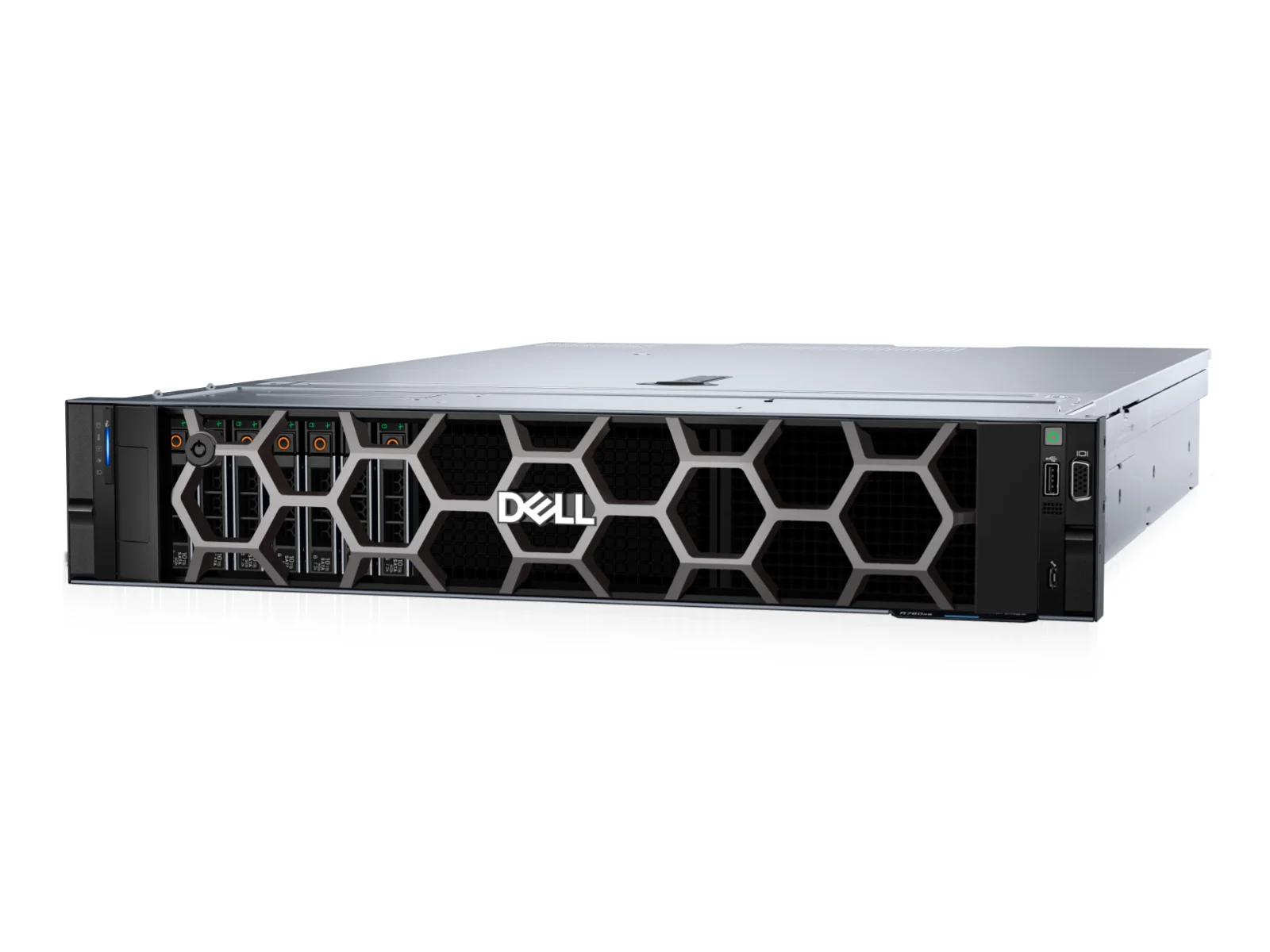

The Dell PowerEdge R760xs is thoughtfully crafted to fit in your current infrastructure and deliver the right performance features to support your demanding enterprise applications.
Just right
Strike the right balance between performance and flexibility with this air-cooled solution designed for the most popular IT applications.
* Add up to two 5th Generation Intel® Xeon® Scalable processors with up to 28 cores per socket for faster performance
* Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
* Improve data throughput and reduce latency with support up to 8 I/O devices
* Up to 6 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot
* Storage options include up to 12 x 3.5” HDDs/SSDs; or up to 16 x 2.5” HDD/SSDs, plus up to 8 x NVMe drives
* Add up to two 5th Generation Intel® Xeon® Scalable processors with up to 28 cores per socket for faster performance
* Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
* Improve data throughput and reduce latency with support up to 8 I/O devices
* Up to 6 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot
* Storage options include up to 12 x 3.5” HDDs/SSDs; or up to 16 x 2.5” HDD/SSDs, plus up to 8 x NVMe drives
OpenManage systems management
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.
Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
Specification
Feature | Technical Specification | ||
Processor | Up to two 5th Generation Intel Xeon Scalable processor with up to 28 cores and 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor | ||
Memory | • 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s, supports registered ECC DDR5 DIMMs only | ||
Storage controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e; Software RAID: S160 | ||

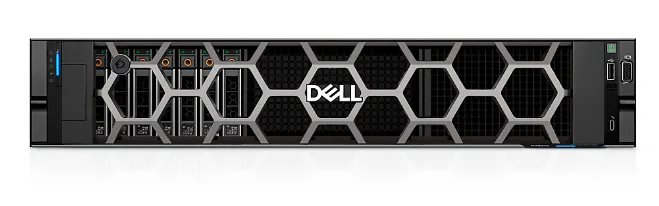

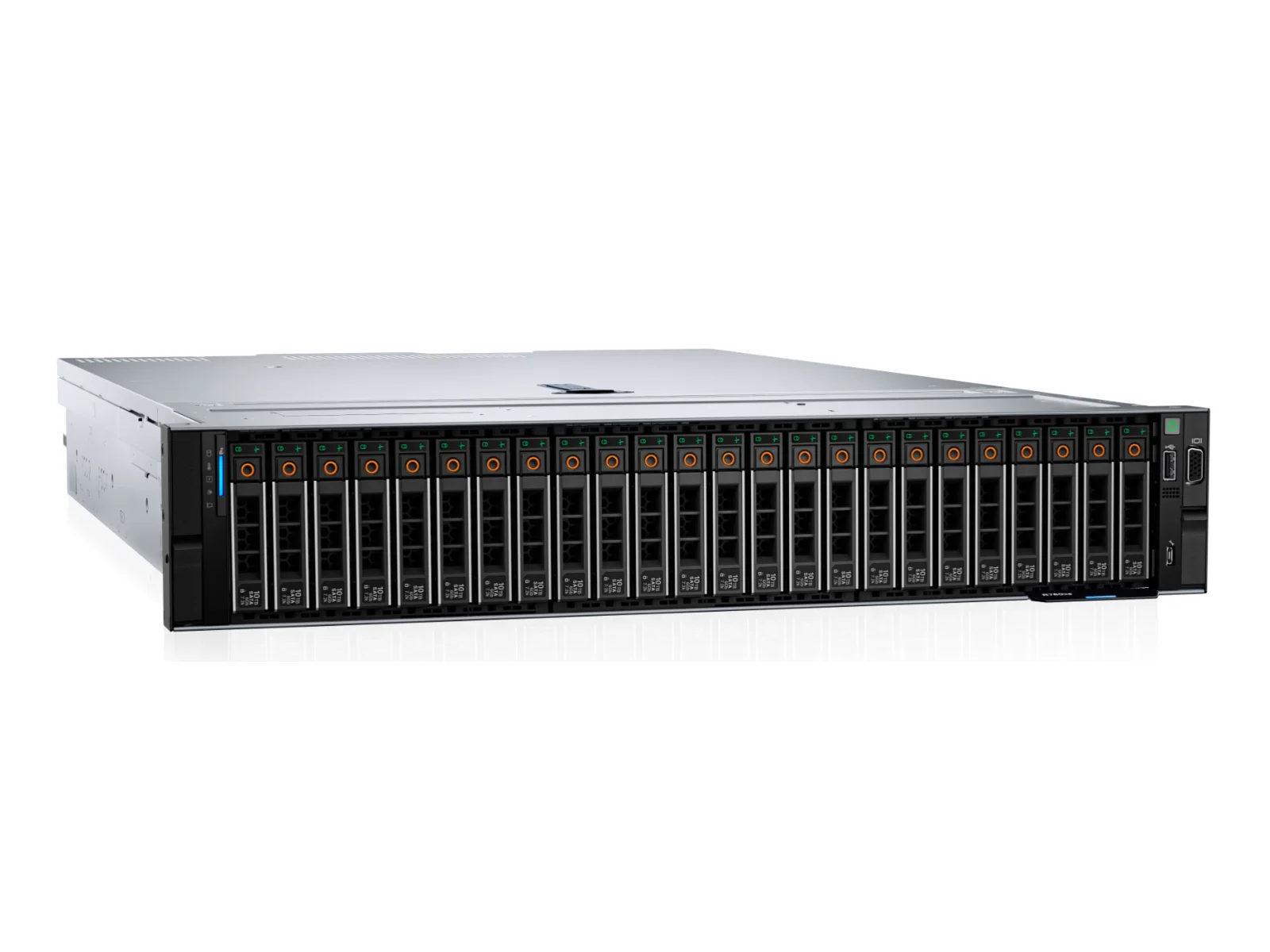

Drive Bays | Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 244.48 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB (supported only with 12 x 3.5-inch SAS/SATA HDD/SSD configuration) | ||
Hot swap Redundant Power Supplies | • 1800 W Titanium 200—240 VAC or 240 VDC • 1400 W Platinum 100—240 VAC or 240 VDC • 1400 W Titanium 277 VAC or HVDC (HVDC stands for High Voltage DC, with 336V DC) • 1100 W Titanium 100—240 VAC or 240 VDC • 1100 W -(48V — 60V) DC • 800 W Platinum 100—240 VAC or 240 VDC • 700 W Titanium 200—240 VAC or 240 VDC • 600 W Platinum 100—240 VAC or 240 VDC | ||
Cooling Options | • Air cooling | ||
Fans | • Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans | ||
Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 707.78 mm (27.85 inches) – without bezel 721.62 mm(28.4 inches) – with bezel • Weight – Max 28.6 kg (63.0 lbs.) | ||
Form Factor | 2U rack server | ||
Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module | ||
Bezel | Optional LCD bezel or security bezel | ||
OpenManage Software | • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin •OpenManage Service plugin • OpenManage Update Manager plugin | ||
Mobility | OpenManage Mobile | ||
OpenManage Integrations | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager | ||
Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | ||
Embedded NIC | 2 x 1 GbE LOM | ||
Network options | • 1 x OCP card 3.0 (optional) | ||

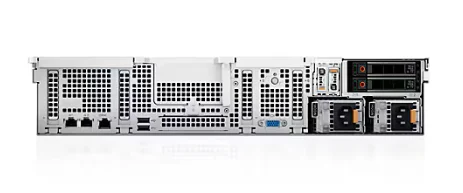

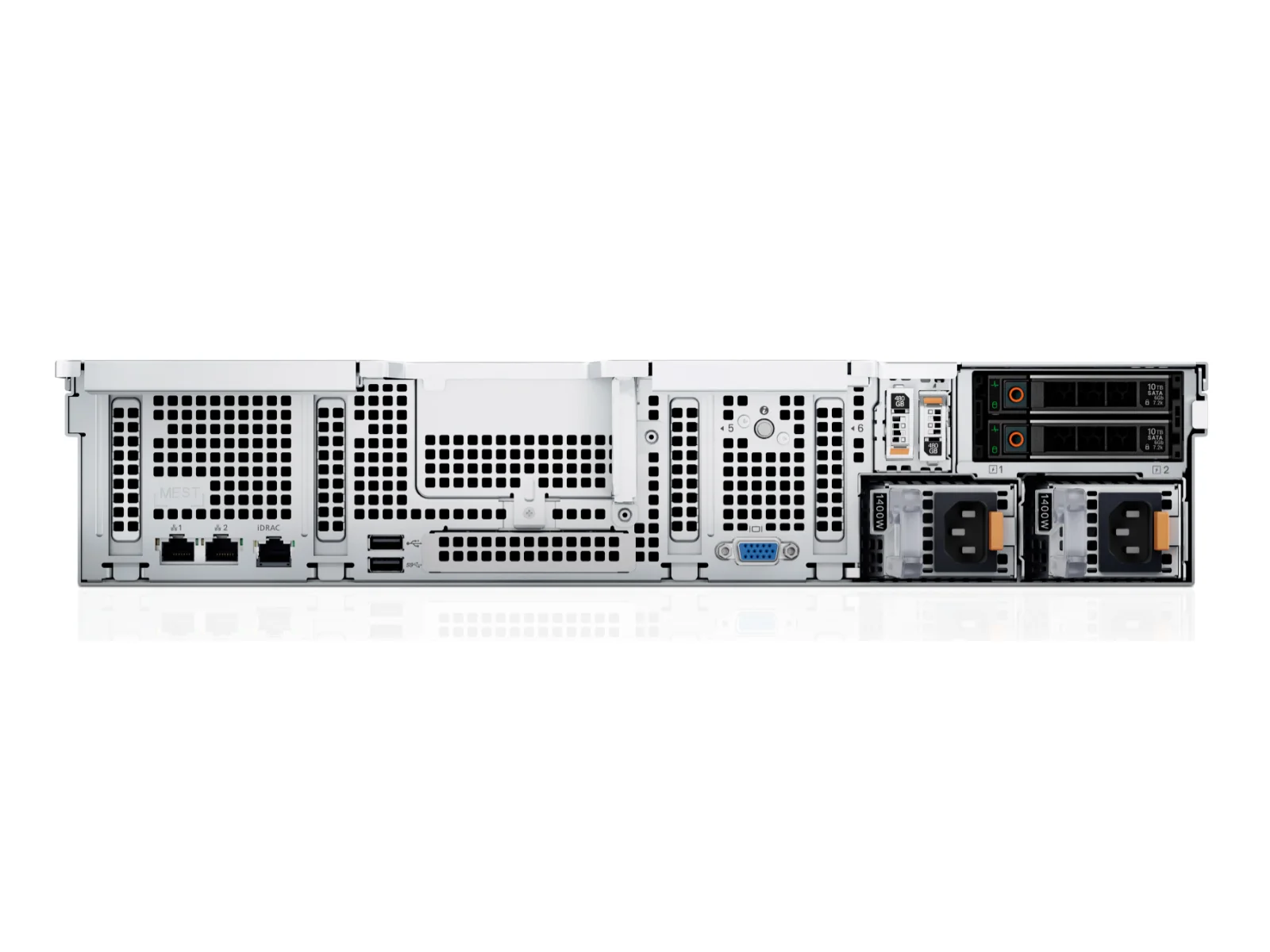

Ports | Front Ports: • 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA Internal Ports: 1 x USB 3.0 (optional) | Rear Ports • 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional) | |
PCIe | • 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4) • 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4) | ||
Operating System and Hypervisors | • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi • Canonical Ubuntu Server LTS For specifications and interoperability details, see Dell.com/OSsupport. | ||
OEM-ready version available | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com -> Solutions -> OEM Solutions. | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Xiamen DongChengXing Information Technology Co., Ltd., established in 2019, provides various computer and server hardware, IT products import and export trade! Our core business is supply hardware and software, such as DELL, EMC, Inspur, Lenovo switches, servers, storage, routers, network modules, firewalls, wireless ap, memory, providing intelligent overall solution for the engine room to customers. We provide higher and better IT services for users of different groups. 24-hour service: in order to support the work and daily use of customers, and provide free remote assistance, telephone support. Our goal is to become the most satisfied it service provider for all users. Our philosophy: "Honesty, Mutual development, wholeheartedly for the customers", our company adhering to the customer first, service first business philosophy, with excellent quality of it services, exquisite technology, customer service team, to ensure the customer on the highway in the information age, make the customer while enjoy the latest achievements of information technology to develop continuously to obtain the biggest benefit.
