Efficient real time monitoring with low error rate grouting automatic recorder for construction
- Category: >>>
- Supplier: Henan Wode Heavy Industry Co. Ltd.Henan Ltd.
Share on (1601208208783):
Product Overview
Description
Product Description
The HW3 grouting recorder, as an innovation in the field of grouting operations, deeply combines advanced PC technology with an intuitive touchscreen operation interface. Its built-in high-performance PC processor drives the equipment to process data at high speed and accurately, ensuring that the data of each grouting operation can be recorded and analyzed most accurately. The 7-inch high-definition touch screen not only provides a clear and delicate visual experience, but also greatly simplifies the on-site operation process with its intuitive operation
The highlight of the HW3grouting recorder is the highly automatic data collection, which automatically records key parameters such as flow rate and pressure to ensure the integrity and continuity of the data. The on-site printing function can output reports in real time to improve efficiency. It adopts high-reliability design to adapt to complex environments. Rich configuration options and expansion interfaces can meet diverse operational needs, and flexibly match sensors, printers and other accessories.
Product Parameters
Model | HW3 grouting recorder for sle |
Precision of L3 grouting recorder | 0.5% |
Standard pressure | range 0-60Mpa, precision 0.5% |
Standard output | range 0-150L/min, precision 0.5% |
Standard density | range 0-2.5g/cm3, precision 0.5% |
Standard depth | range 0-35m, precision 0.5% |
Favorable temperature | -40 degree to 60 degree |
Product details and features
Feature：
1. Integrated design, fully utilized, with the most cost-effective.

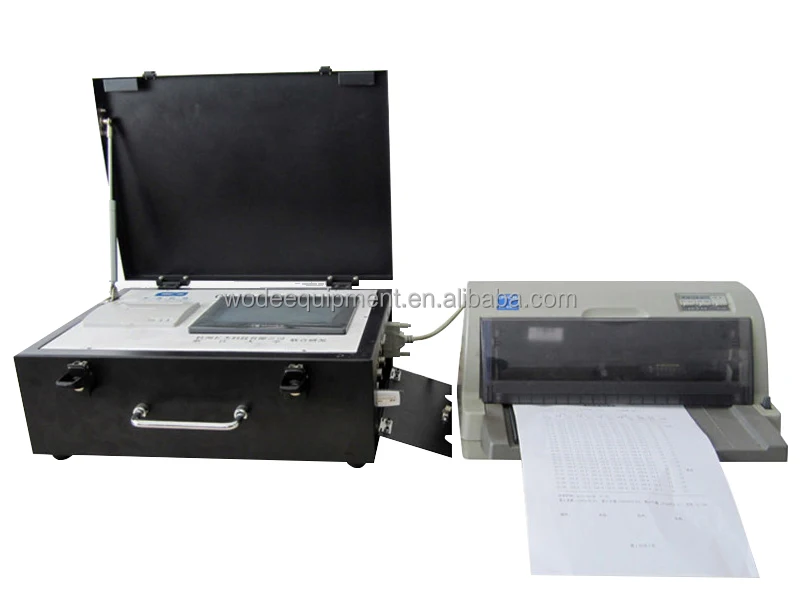

2. Combines computer technology, touch panel, parameter display, setup and print, it is unnecessary to use keypad and mouse, simple and visualized, data can be transferred from computer to computer, and printed on A4 paper.
3. Digital display is visualized and simplified operating, and can records flow, pressure, density, depth and time during grouting, which can be guarantee construction quality, reduce the labor intensity of the manual operation and reduce the material waste.

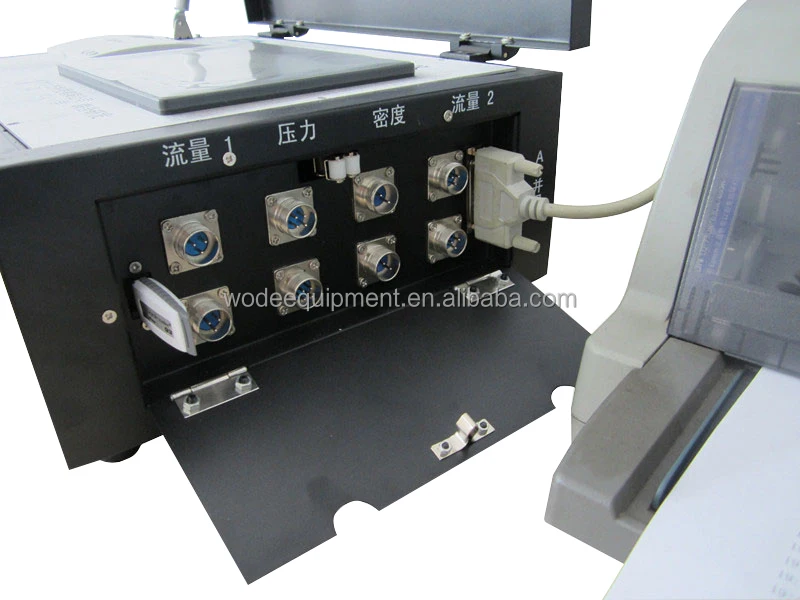

4. Has two types: one-driven-one and one-driven-two, it could collect three parameter data of single-hole and double-holes major cycle grouting, flow, pressure, density instrument of all channels. Customers could according to demands to choose different configuration.
5. The 32 bit high-precision acquisition card with low error rate and precision at grade 0.005 has far exceeded 12 bit acquisition card from companies. It has powerful software, highly simulation interface and real-time display data during grouting pressure water.
6. It is tested by domestic authoritative measuring institution, and the measure results are internationally agreed. It has measuring precision and good resolution even if when the injection rate is lower than 0.4L/min.

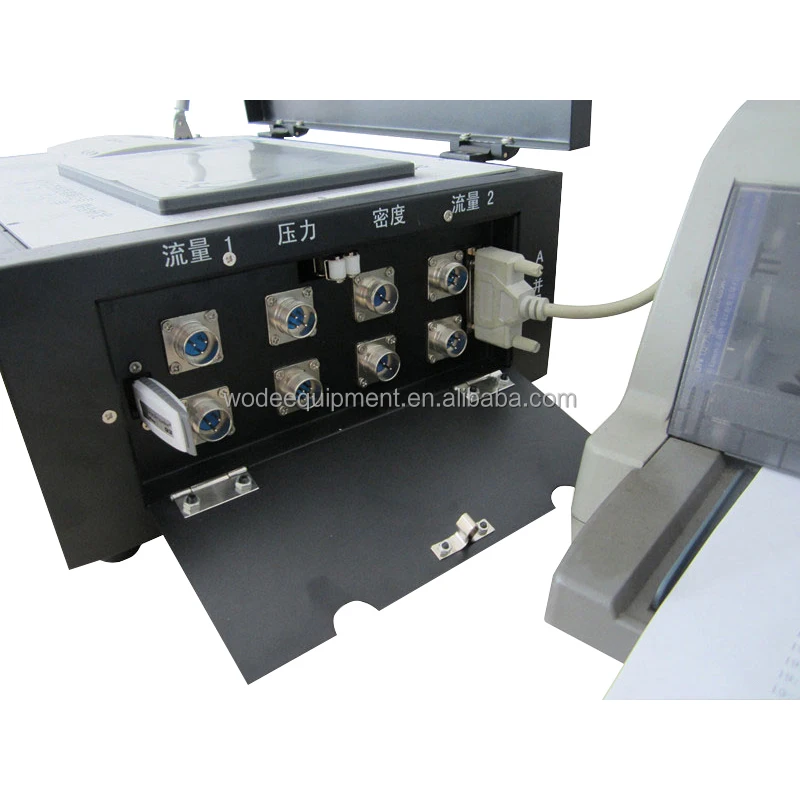

7. Adopts touch panel technology, USB interface, and parallel interface. Data could be saved in flash disc, avoid data missing.
2. Combines computer technology, touch panel, parameter display, setup and print, it is unnecessary to use keypad and mouse, simple and visualized, data can be transferred from computer to computer, and printed on A4 paper.
3. Digital display is visualized and simplified operating, and can records flow, pressure, density, depth and time during grouting, which can be guarantee construction quality, reduce the labor intensity of the manual operation and reduce the material waste.
4. Has two types: one-driven-one and one-driven-two, it could collect three parameter data of single-hole and double-holes major cycle grouting, flow, pressure, density instrument of all channels. Customers could according to demands to choose different configuration.
5. The 32 bit high-precision acquisition card with low error rate and precision at grade 0.005 has far exceeded 12 bit acquisition card from companies. It has powerful software, highly simulation interface and real-time display data during grouting pressure water.
6. It is tested by domestic authoritative measuring institution, and the measure results are internationally agreed. It has measuring precision and good resolution even if when the injection rate is lower than 0.4L/min.
7. Adopts touch panel technology, USB interface, and parallel interface. Data could be saved in flash disc, avoid data missing.
Recommend Products
Application

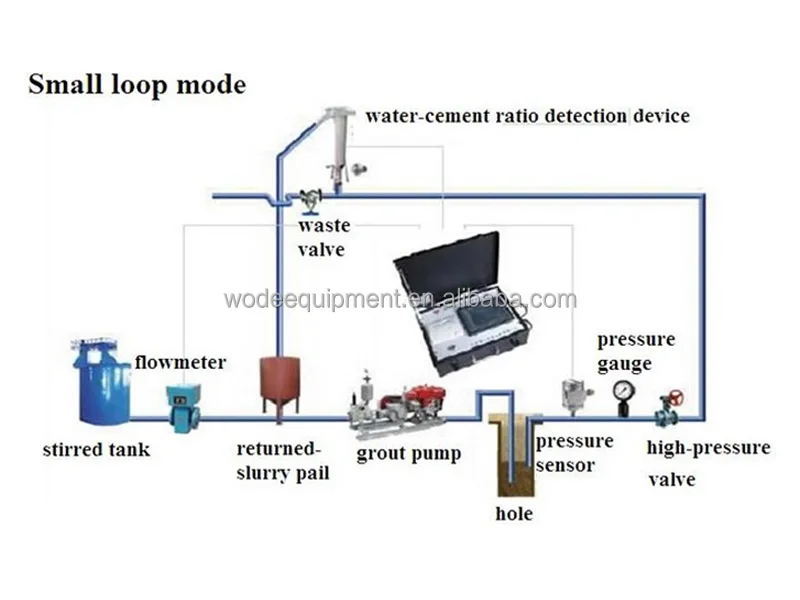

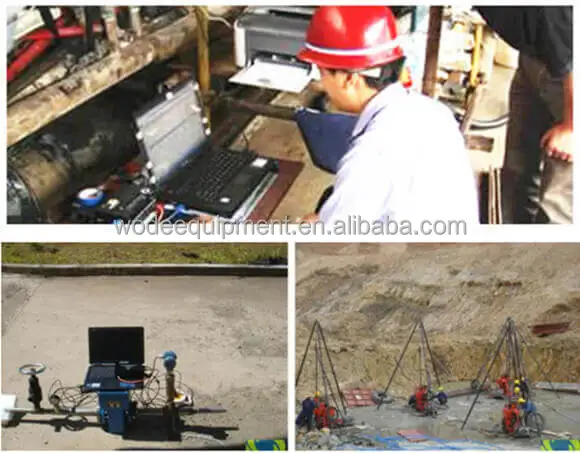

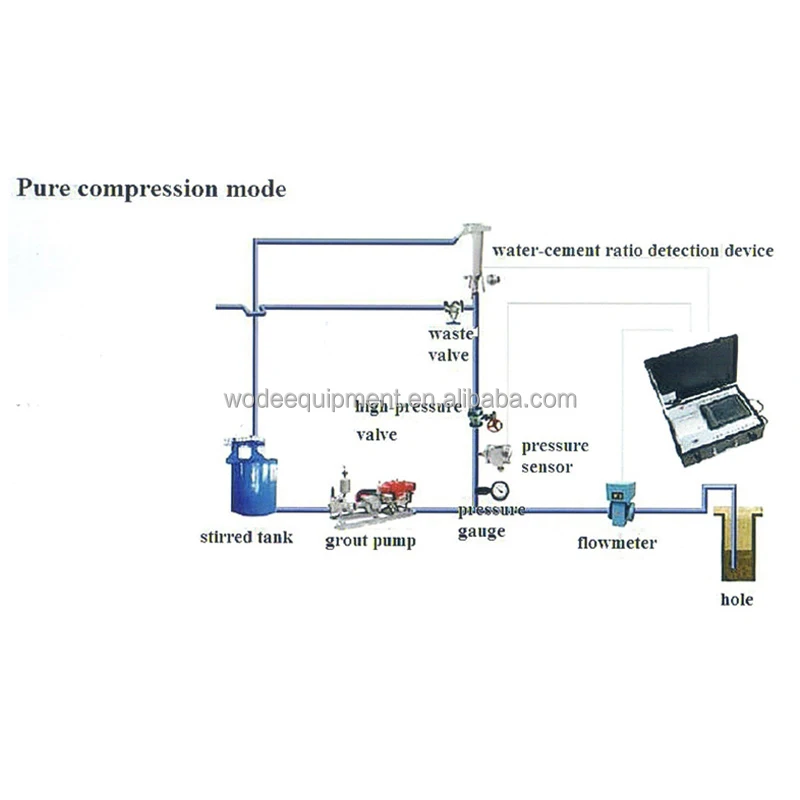

The grouting automatic recorder is applied to curtain grouting, consolidation grouting, high pressure jet grouting, Karst grouting, GIN grouting, deep mixing cement pile, bridge prestressed grouting, highway maintenance grouting etc.

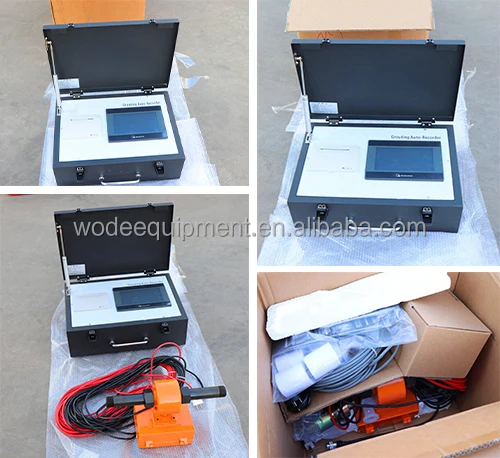

Package and delivery
