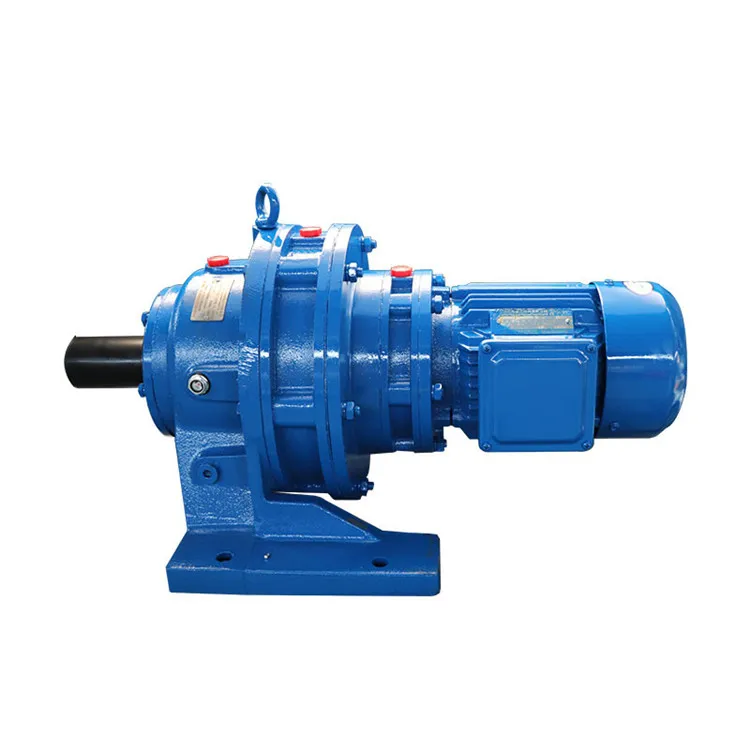

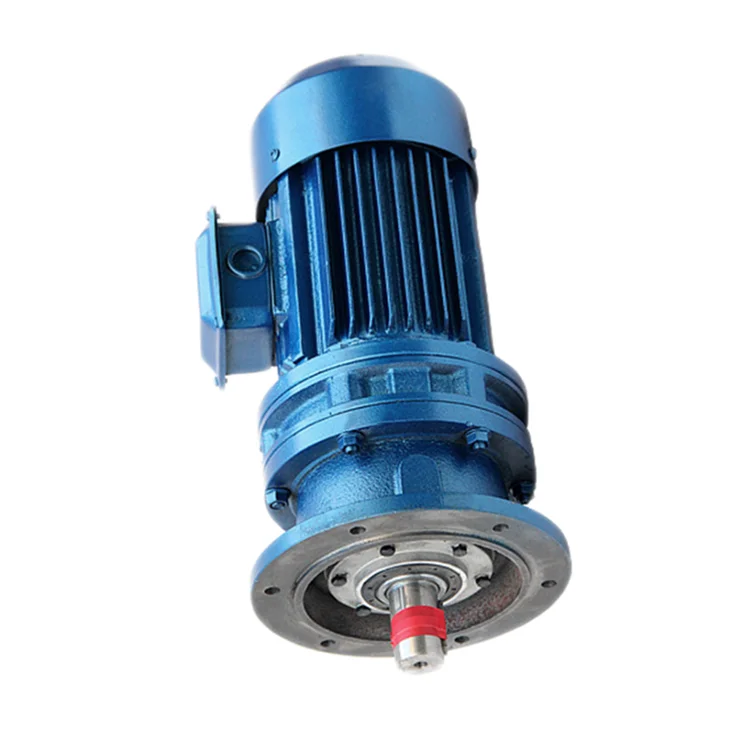

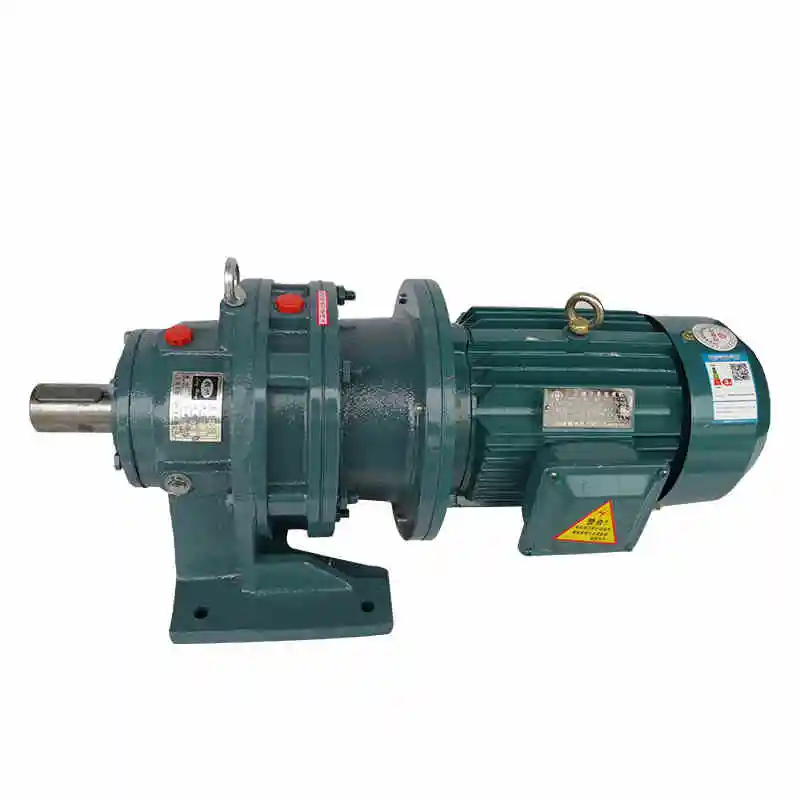

AC motor Cycloid Gearbox Drive Customizable ODM Planetary GearReducer Cycloidal Reducer
- Category: >>>
- Supplier: Jiangsu Devo Gear Technology Co. Ltd.
Share on (1601208366332):
Product Overview
Description
Products Description

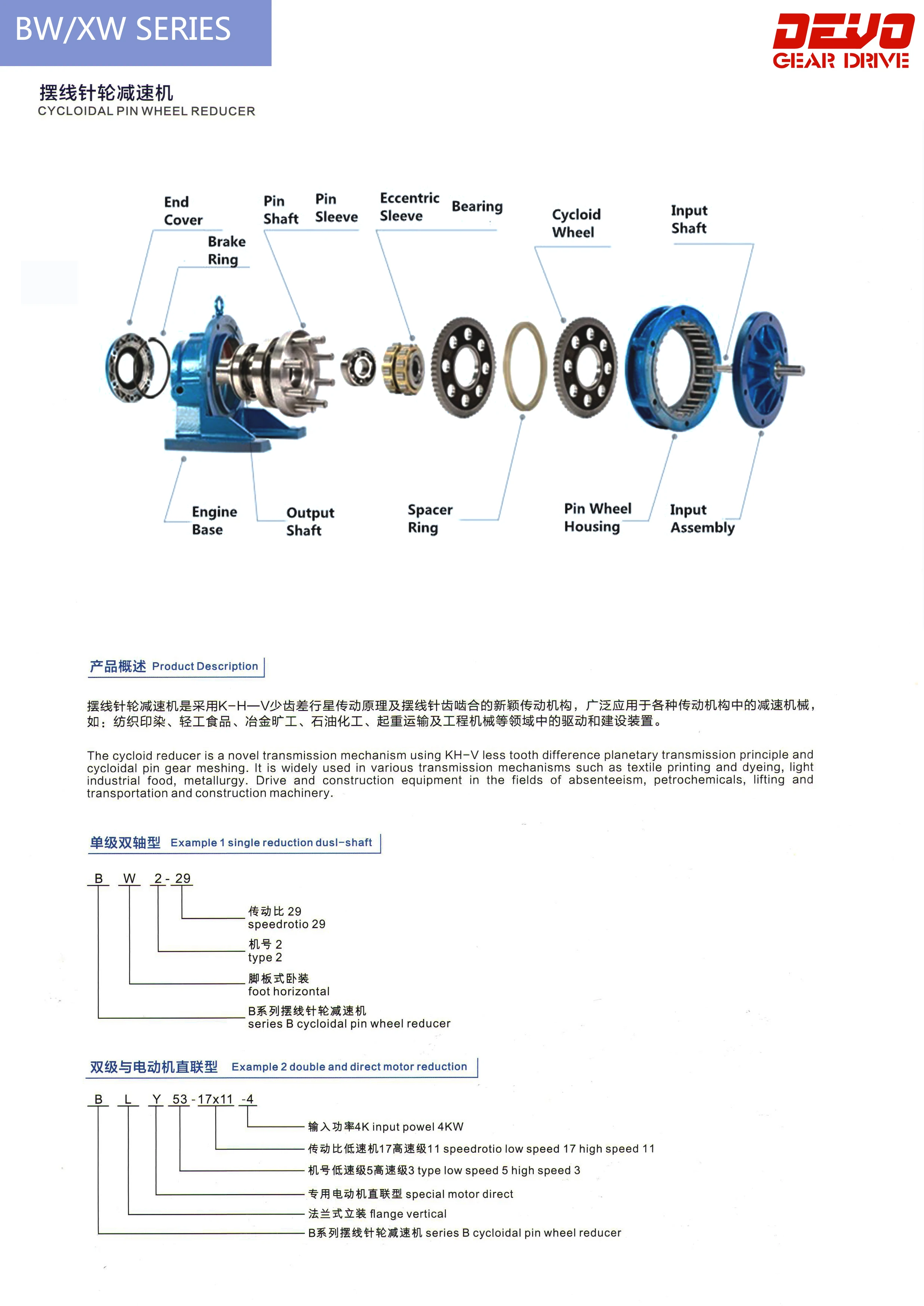

What is cycloid gear reducer：
Cycloid gear reducer is a new transmission device which adopts cycloid gear meshing with planetary transmission principle. The whole transmission device of cycloid gear reducer can be divided into three parts: input part, deceleration part and output part.
Working principle：
When the input shaft with eccentric sleeve rotation for a week, because of the characteristic of the cycloid gear tooth profile curve and its restricted by needle on the gear teeth, the movement of the cycloid gear becoming both revolution and rotation of the plane movement, turn on the input shaft is week, eccentric sleeve also turn the week, cycloidal wheel turned a gear reduction is obtained in the opposite direction, and then with the help of W output mechanism, the cycloid gear rotates at low speed movement through the pin shaft, passed to the output shaft, low output speed can be achieved.
When the input shaft with eccentric sleeve rotation for a week, because of the characteristic of the cycloid gear tooth profile curve and its restricted by needle on the gear teeth, the movement of the cycloid gear becoming both revolution and rotation of the plane movement, turn on the input shaft is week, eccentric sleeve also turn the week, cycloidal wheel turned a gear reduction is obtained in the opposite direction, and then with the help of W output mechanism, the cycloid gear rotates at low speed movement through the pin shaft, passed to the output shaft, low output speed can be achieved.
Details Images
Practical and reliable, high efficiency, long life The single-stage(one-stage) transmission speed ratio is from 1:9to 1:87, and the efficiency is over 92.5%. The double-stage(two-stage) transmission speed ratio is from 1:121 to1:1003, and the efficiency is over 85%. | ||||||||

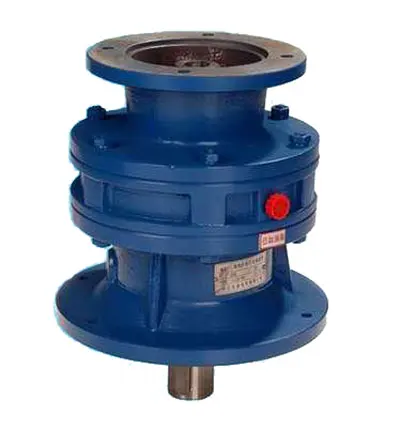

Compact structure and small volume of Cycloid gear reducer Because the use of planetary transmission principle, the input shaft and output shaft are on the same shaft, resulting in a compact structure and small volume. | ||||||||

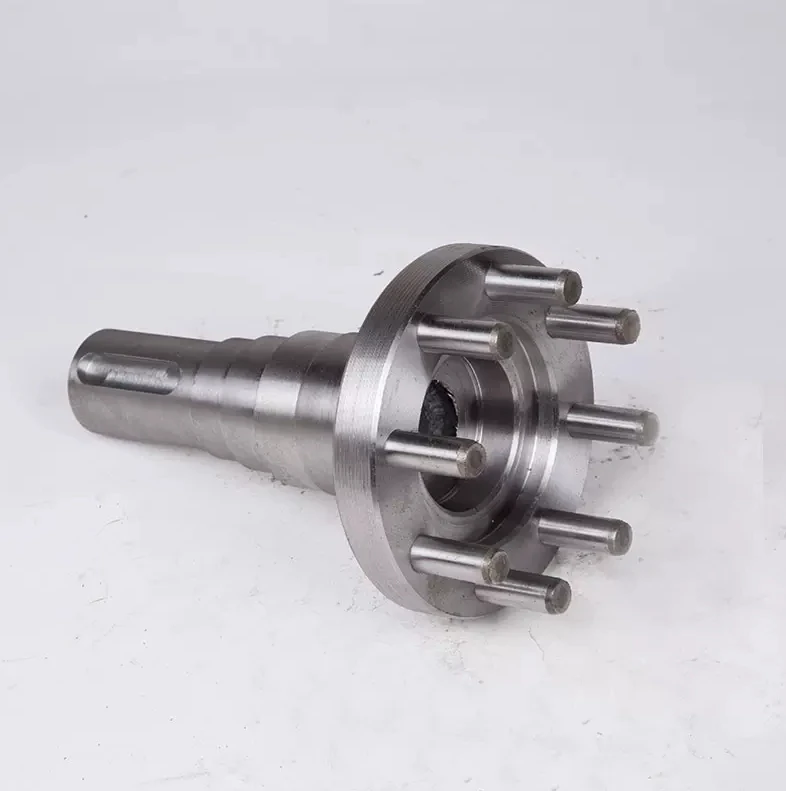

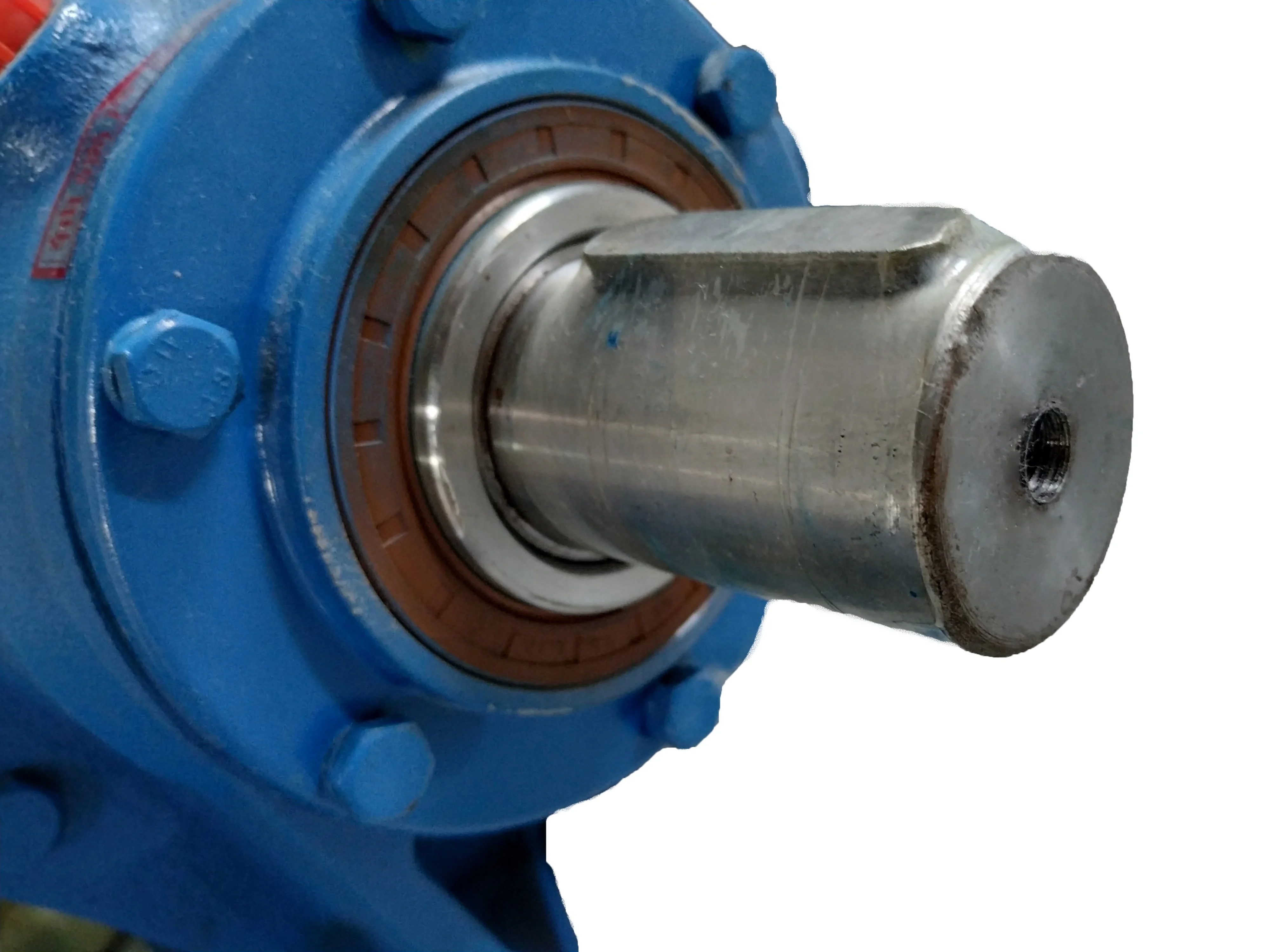

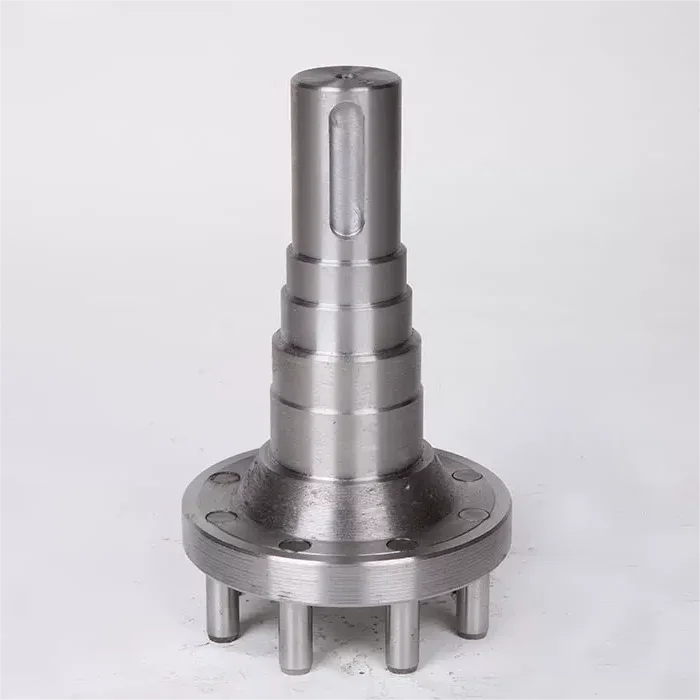

Cycloid gear reducer output shaft

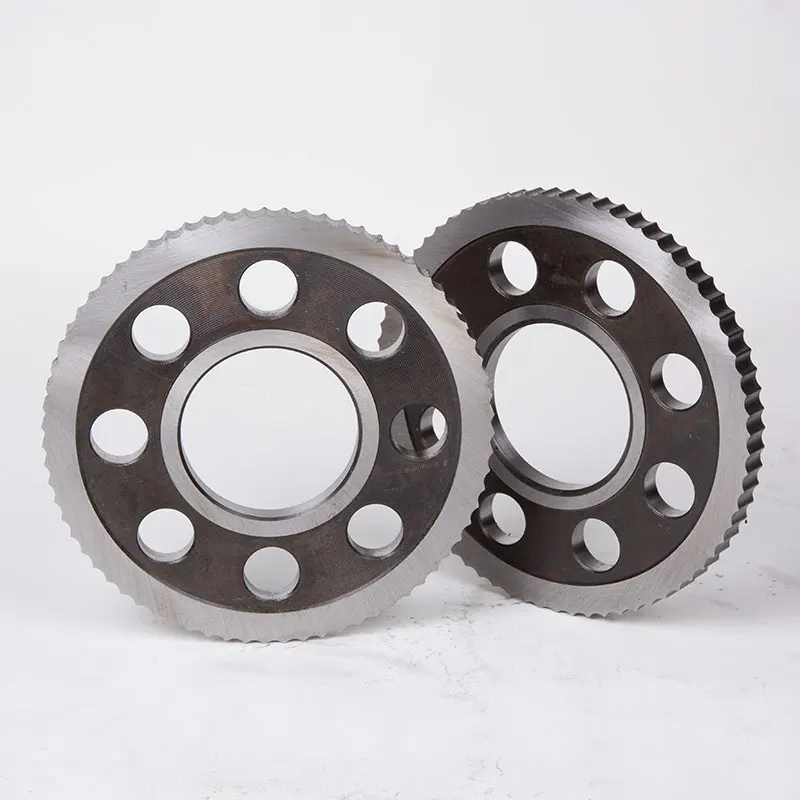

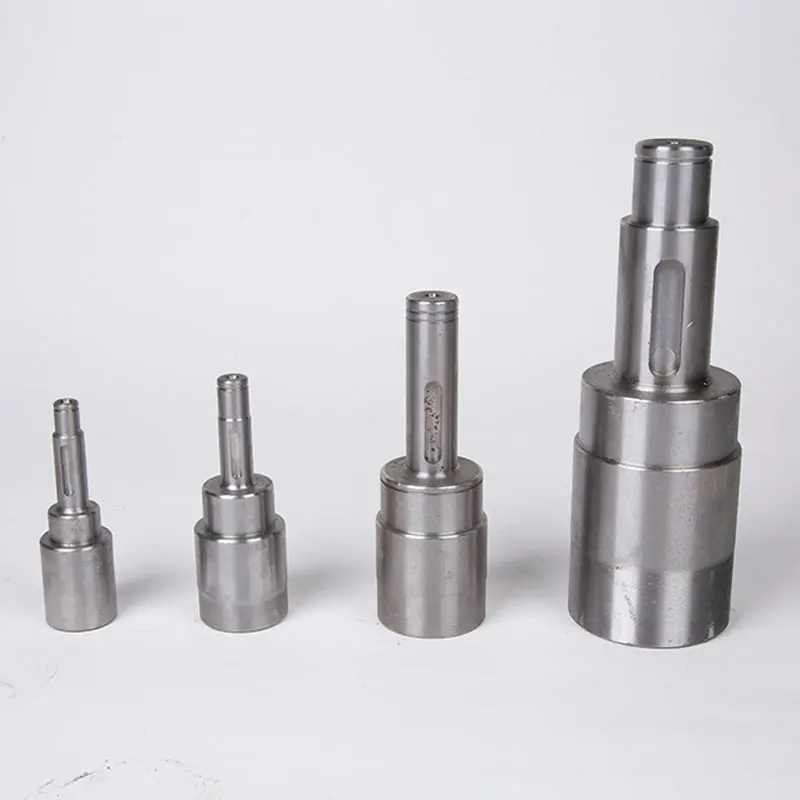

Cycloidal gear Cycloid gear reducer Input shaft

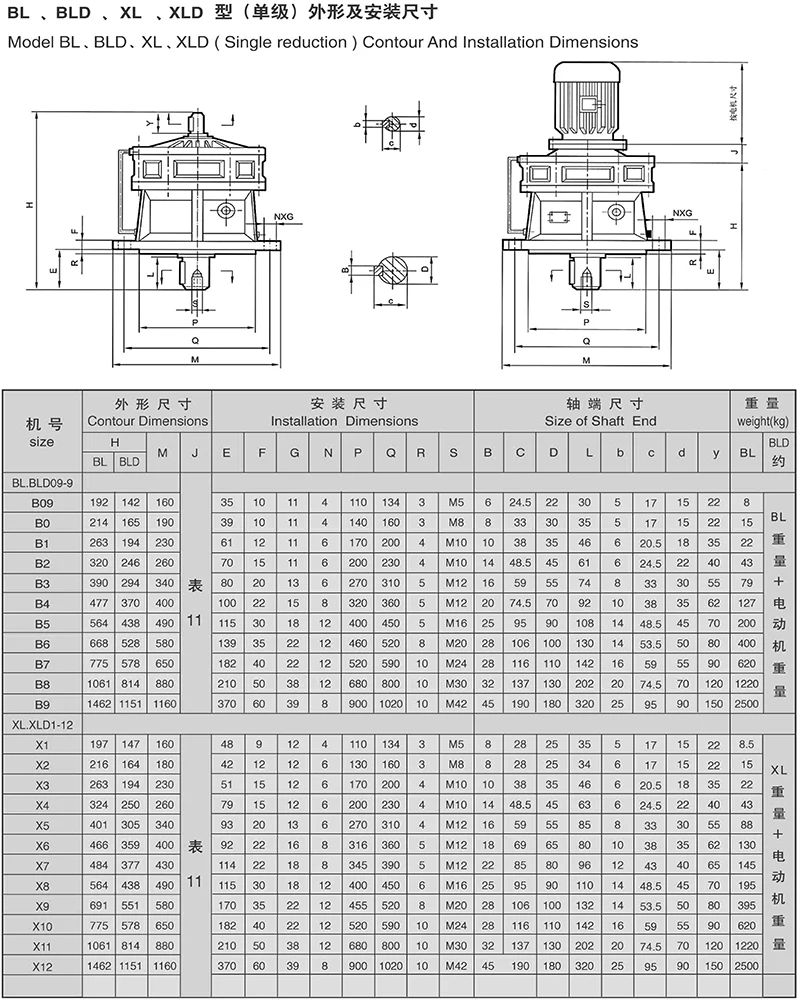

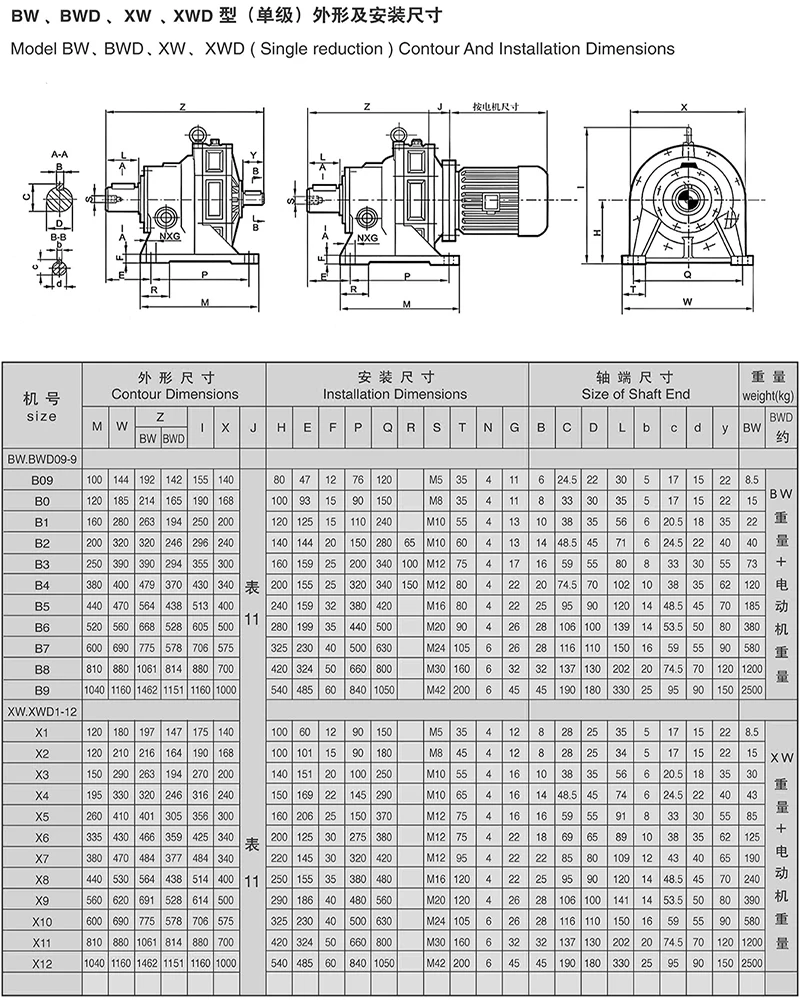

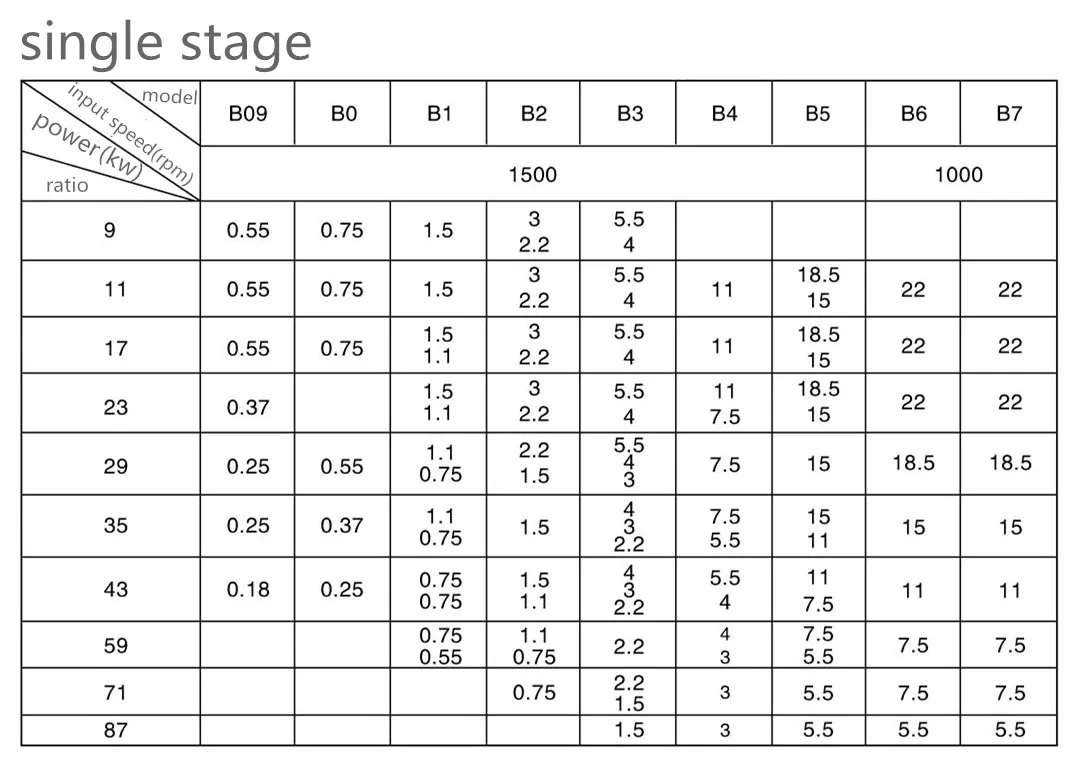

Product Paramenters
Company Profile

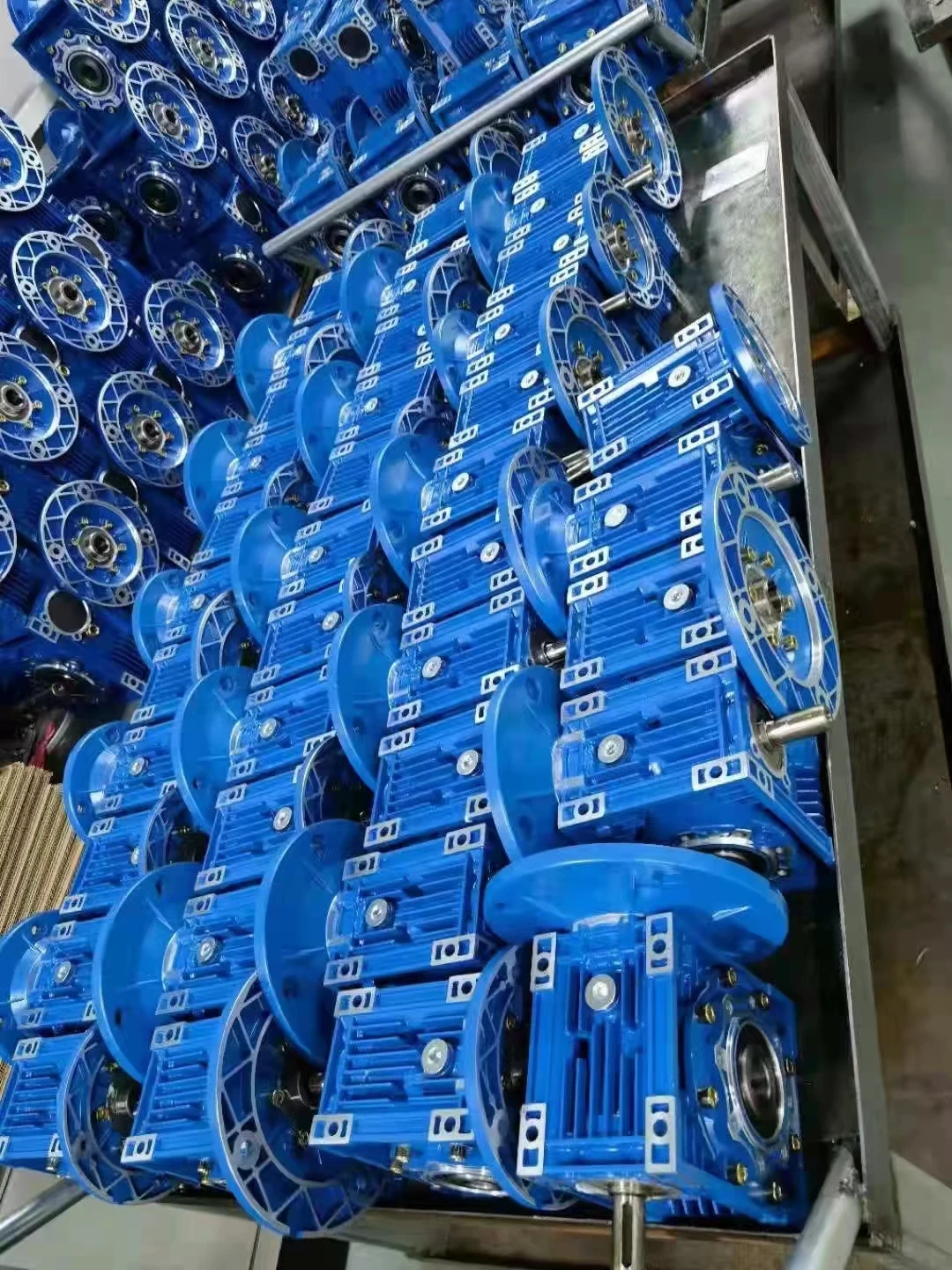

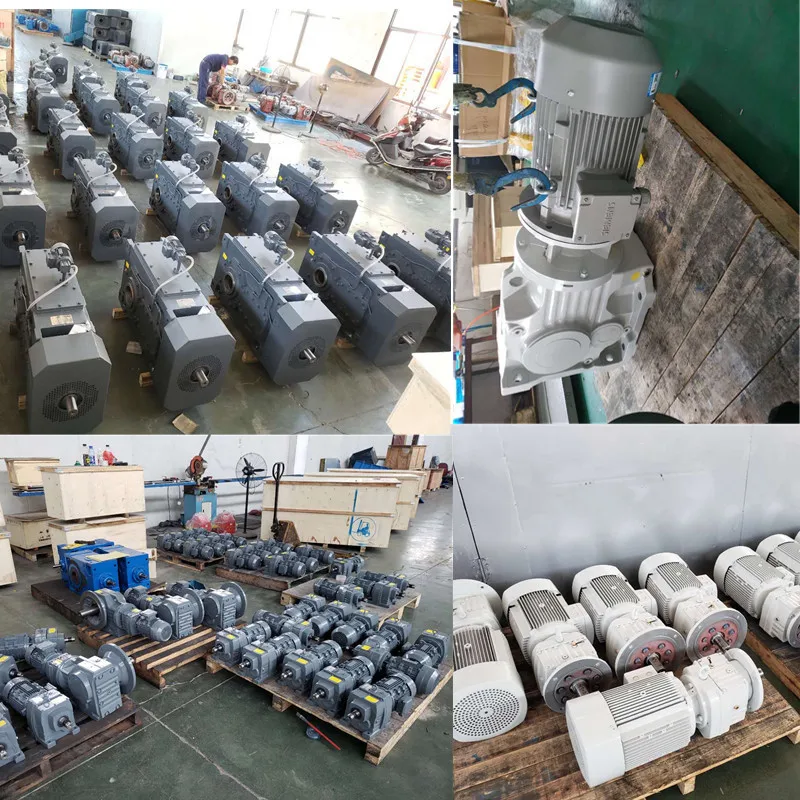

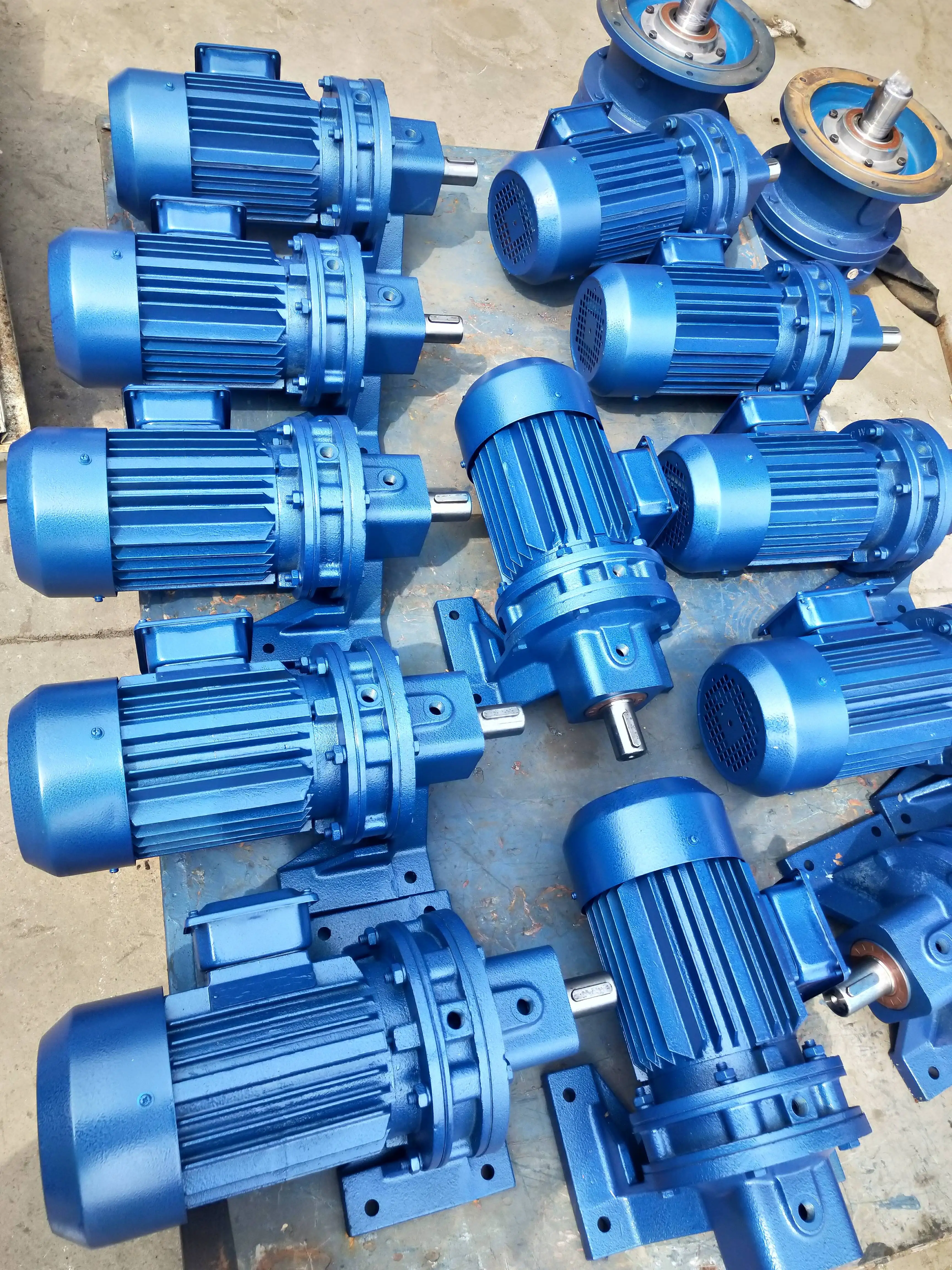

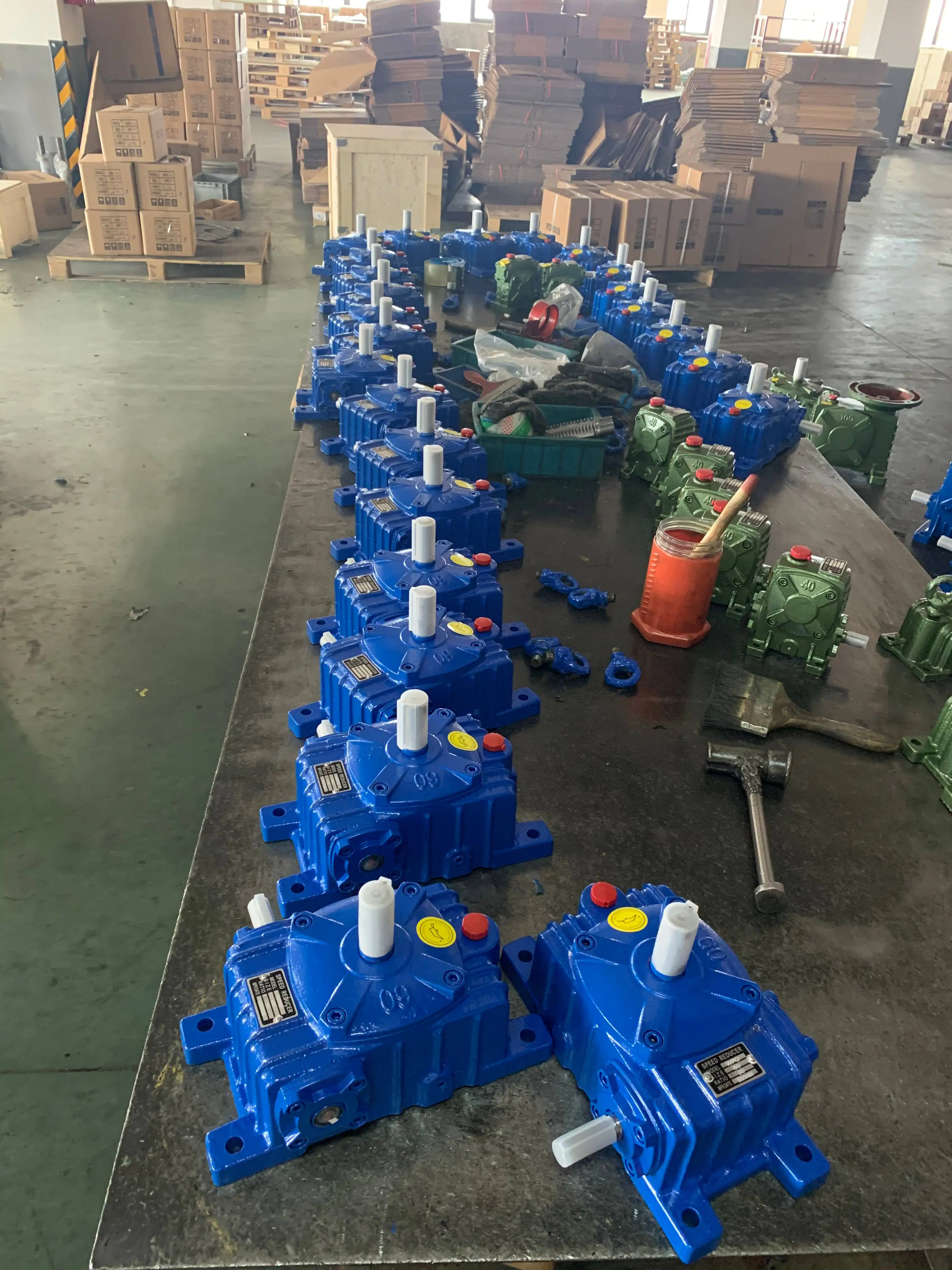

We have many kinds of Geabox, reducer,motor(AC motpr ,DC motor)
Jiangsu Devo Gear Technology Co., Ltd.
It was founded in 2018. It was founded by a group of young people with enterprising spirit. It is determined to make a good gearbox in 100 years. The company is 50-100 people, with professional R&D, design,sales team, products sell well at home and abroad, the market is mainly concentrated overseas.Provide customers with personalized solutions.On the basis of reciprocity and mutual benefit, the company insists on meeting customers'needs with high quality and efficient service. We have professional engineers who can provide you with personalized solutions to meet specific needs.Products can meet the needs of multiple application areas.Silk and titanium products can meet the needs of many application fields. They have been successfully applied in meat, seafood and aquatic products processing industry, baking industry, canning industry, beverage and dairy products processing industry, fruit and vegetable processing industry, pharmaceutical and cosmetics industry and battery manufacturing, corrugated paper production, tire production and other production fields.
Professional people do professional work.
Packing & Shipping

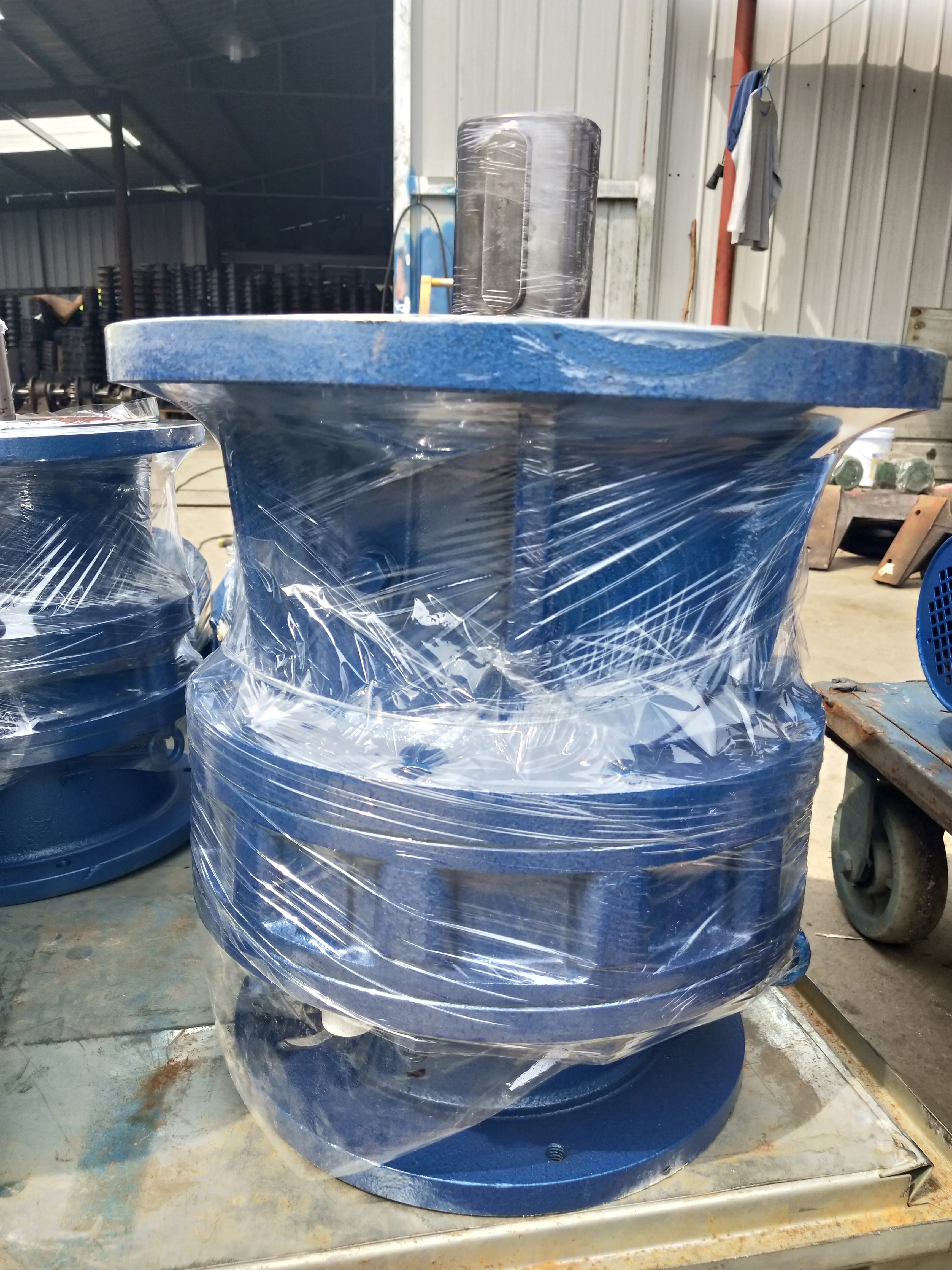

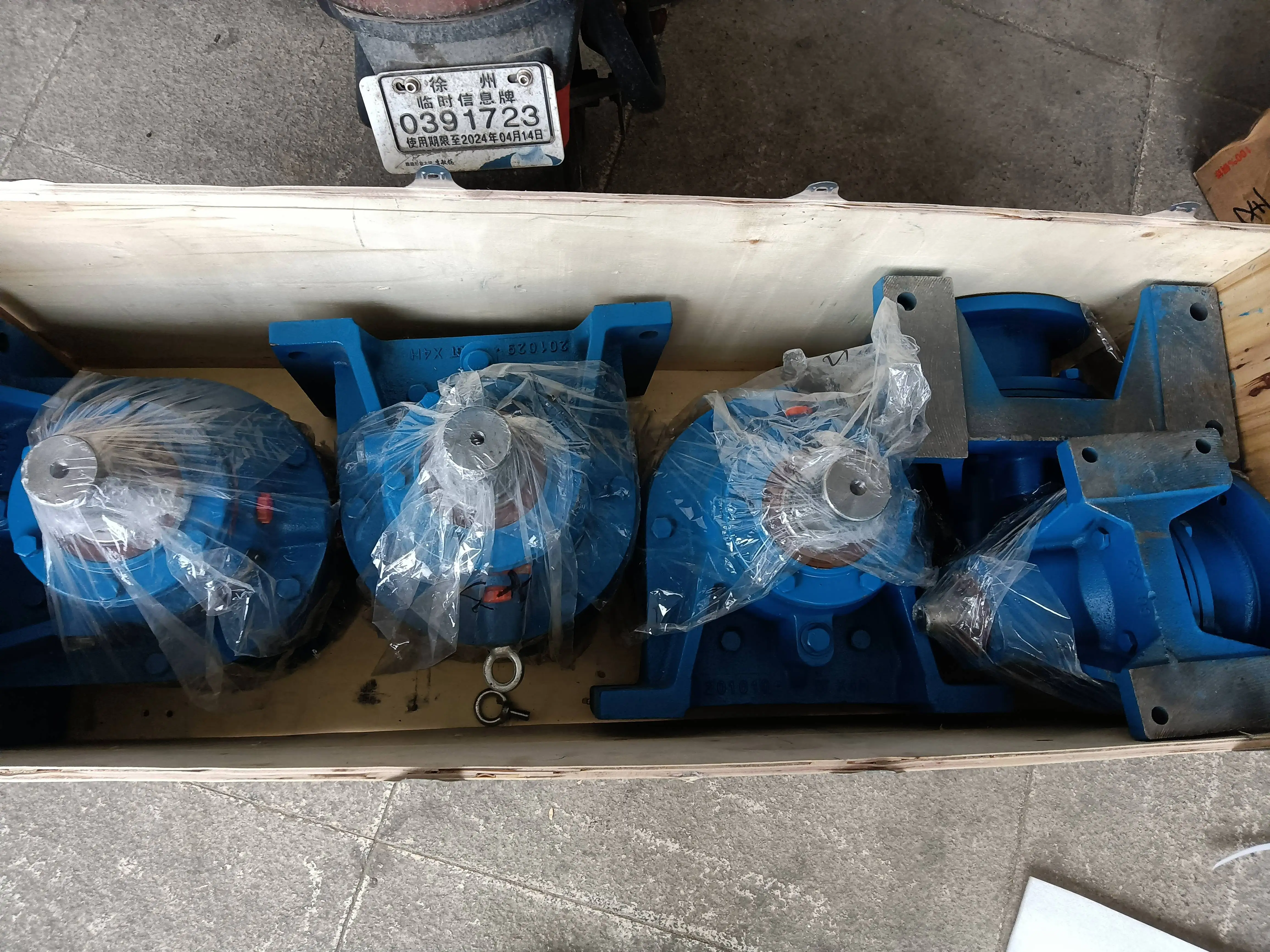

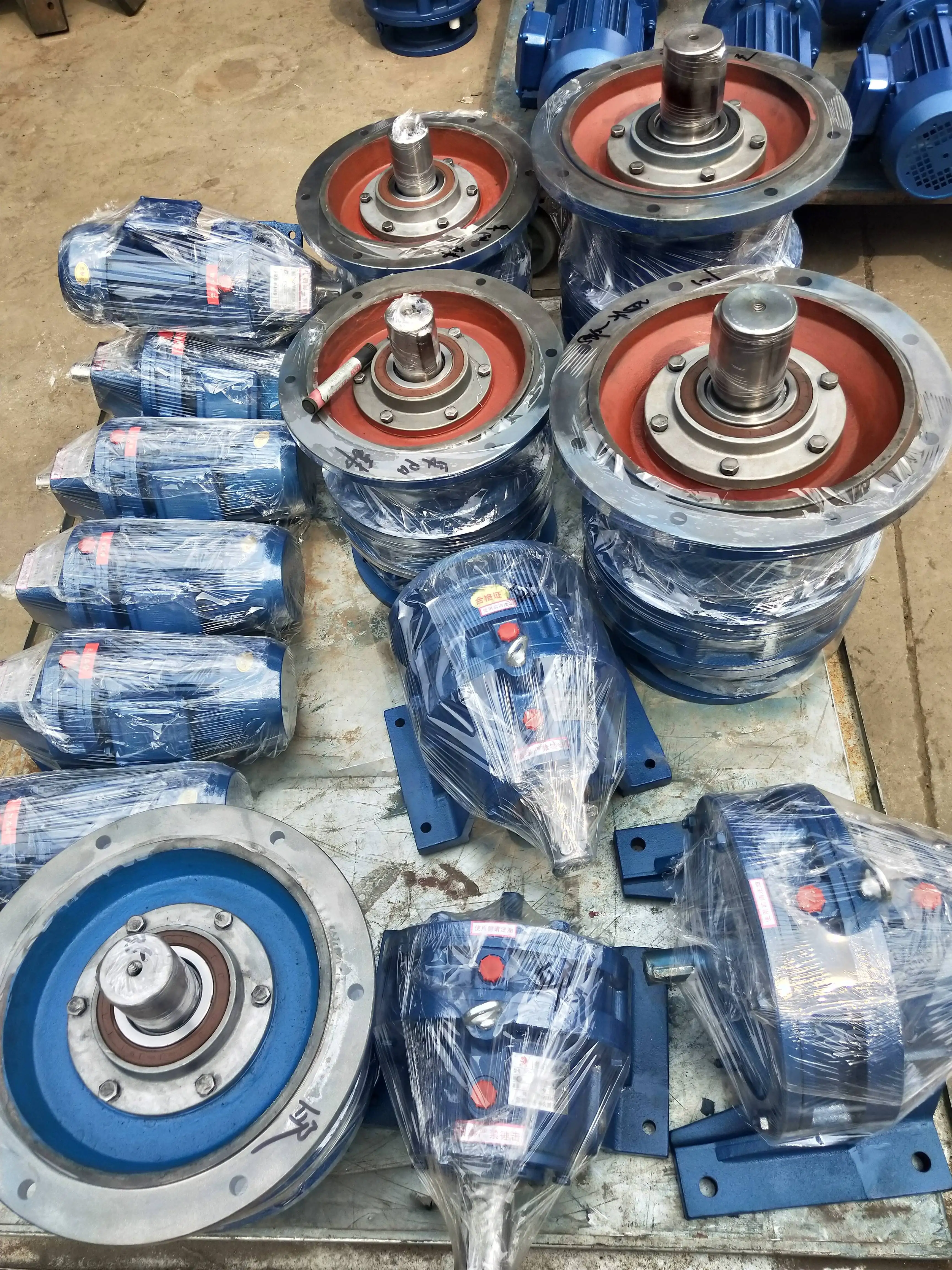

Cycloid gear reducer paking type
We will choose waterproof film to protect the gearbox and prevent the gearbox shell from being soaked by water vapor during sea transportation .
We will definitely choose wooden box packaging for sea transportation.
Air transportation or express delivery,We will consider whether to choose wooden boxes based on the size and weight of the cycloidal reducer, because considering product and transportation costs for customers is also something we need to do.
Strive to achieve high-quality products with minimal cost as much as possible
Shipping type
There are three modes of transportation, sea, land, and air, which can be chosen freely. Our old customers often request us to help them transport goods according to these international trade terms (DDP, DAP,FCA,EXW,FOB）， If you have better ideas, you can also contact us, and we will arrange suitable transportation methods according to your requirements as much as possible.
FAQ
Q1: Are you a trading company or a manufacturer ?
A: We are manufacturers and we can also help customers purchase alternative products
Q2: How we select models and specifications?
A: motor power( kilowatt）， speed ratio(i) , output speed(rpm)
Q3: How is your price? Can you offer any discount?
A: We retail and also offer bulk orders with discounts based on the quantity purchased
Q4: How to pay？
A: International bank transfer, Alibaba payment（Credit/debit cards ，Apple Pay ，Google Pay ，PayPal ，T/T etc.）
Q5: What is your delivery method?
A: We can find a freight forwarder to inquire about sea freight, air freight, door-to-door delivery, and arrival at the port
DDP , DAP ,CFR , CIF ,EXW etc.
Q6: What industries are your gearboxes being used?
A: Our gearboxes are widely applied to metallurgical equipment, mining
equipment, automation equipment, food machinery, packaging equipment,
tobacco equipment and so on.
