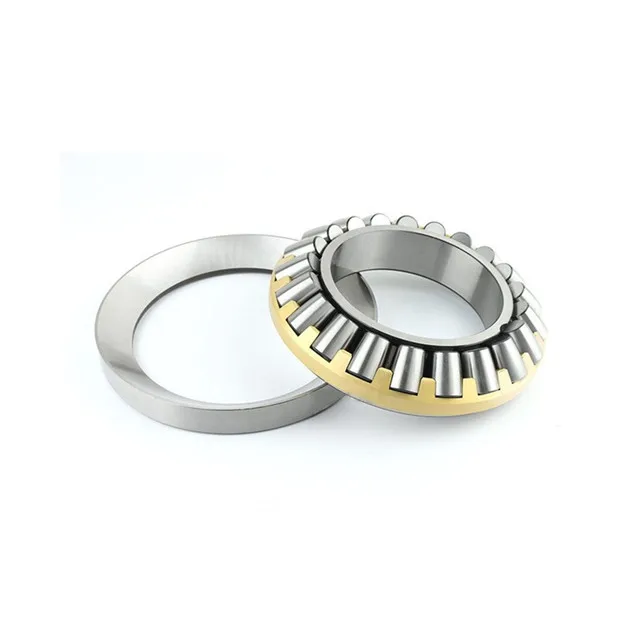

germany thrust roller bearing 29426-E1 29426E axial spherical roller thrust bearing 29426
Spherical roller thrust bearings are extremely well suited for heavy-duty applications, with axial loads or combined axial and radial loads. They are self-aligning and can accommodate low as well as high speeds. Due to their design, various degrees of stiffness can be arranged. Versatility is a characteristic of spherical roller thrust bearings as they can contribute to space saving and cost-effective designs.
Principal Dimensions: thrust spherical roller bearing 29426 29426-E1 | |
d | 130mm |
D | 270mm |
H | 85mm |
Basic Load Ratings: | |
Dynamic | 1560kN |
Static | 4050KN |
Fatigue Load Limit | 430kN |
Minimum Load Factor | 1,6A |
Speed Ratings: | |
Reference speed | 1300 r/min |
Limiting speed | 2400 r/min |
| Bearing No. | Size(mm) | installation dimension(mm) | ||||||
| New | Old | d | D | T | E | da | Da | ra |
| min | max | max | ||||||
| 29318 | 9039318 | 90 | 155 | 39 | 52 | 118 | 135 | 1.5 |
| 29418 | 9069418 | 190 | 60 | 56 | 135 | 158 | 2.1 | |
| 29320 | 9039320 | 100 | 170 | 42 | 58 | 132 | 148 | 1.5 |
| 29420 | 9039420 | 210 | 67 | 62 | 150 | 175 | 2.5 | |
| 29322 | 9039322 | 110 | 190 | 48 | 64 | 145 | 165 | 2 |
| 29422 | 9039422 | 230 | 73 | 69 | 165 | 192 | 3 | |
| 29324 | 9039324 | 120 | 210 | 54 | 70 | 160 | 182 | 2.1 |
| 29424 | 9039424 | 250 | 78 | 74 | 180 | 210 | 3 | |
| 29326 | 9039326 | 130 | 225 | 58 | 76 | 170 | 195 | 2.1 |
| 29426 | 9039426 | 270 | 85 | 81 | 195 | 227 | 3 | |
| 29328 | 9039328 | 140 | 240 | 60 | 82 | 185 | 208 | 2.1 |
| 29428 | 9039428 | 280 | 85 | 86 | 205 | 237 | 3 | |
