Product Overview
Description
Product Description
If the servo does not match your requirements , please do not hesitate to contact with us,
we have hundreds of servos for optional, and we are professional servo manufacturer since 2011,
customizing servo as per requirements is our advantage.
1.Your Logo label or print
2.Servo Wire:length,wire core,wire color.
3.Packing:PE Bag,Color Box,plastic box with your Logo
4.Cable connector:1-4 pin JR,JST, XH
5.Output Gear:
The material:Plastic,Copper,steel,aluminium.
Output teeth:25 T Spline,hexagonal,and so on
6.CNC case:Case structure,color
7.Electronic function More......
We offer customized services. Please let us know your requirements.
Contact us
Skype: Jenny-fitec
Whats App: 0086 13686413808
WeChat: 0086 13686413808
The advantage of Serial bus servo:
1.Beautiful wiring structure,
2.Easy to control signal,
3.real-time feedback of position,tempreture,speed,voltage,Current data,
4.Less occupied port.
5.Digital transmission signal is
Flexible, convenient, reliable and good compatibility
6.intercommunication;
Now PWM is Simulate Transmission,Pulse width variation stand for control vector,so easily interfered by the outside world.
The SM160BL Robot Servo Actuator is the newest generation of FEETECH SM Serial actuator; equipped with an signal convert FE-URT-1,
a contact-less magnetic encoder with 4x the resolution over the scs series, and up to 3mpbs using the new TTL 2.0 bus.
Each servo has the ability to track its speed, temperature, shaft position, voltage, and load.
As if this weren't enough,the newly implemented PID control algorithm used to maintain shaft position
can be adjusted individually for each servo, allowing you to control the speed and strength of the motor's response.
All SM Series servos use 24v nominal voltage,
so FEETECH SM Servo can be mixed without having to worry about separate power supplies.
All of the sensor management and position control is handled by the servo's built-in microcontroller.
This distributed approach leaves your main controller free to perform other functions.
Every FEETECH SM Serial servo is compatible with wide variety of horns, idlers and frames to help you easily build your robotic project.
This hardware connects directly to your SM servo, allowing you to mount it to your project or to other SM servos.
Some robots can be built almost completely from SM servos and frames.
You can see a full list of frames that are compatible with this servo on our SM Compatibility Chart
To control this SM servo from an Arduino Compatible microcontroller, check out the FE-URT-1.
The FE-URT-1 was designed to take all the guesswork out of controlling SM servos from the Arduino Envinroment.
We have Arduino libraries for the SM servos and and 3-pin TTL SCS servo will plug directly into the
FE-URT-1. For tips on getting everything you need to get your FE-URT-1/SM project off the ground,
see out our FE-URT-1/SM Servo Buying Guide.
24V 160kg 24V serial RS485 servo
Product Model No：SM-160B-C001
Structure Size：62*34*47mm
Product Weight：211± 3g
The Maximum Speed：0.181sec/60°@24V
The Stall Torque：160kg.cm@24V
The Rotation Degree：(360°/4095)
SM160BL is 24V serial port smart bus servo，all aluminum alloy shell、brushless motor、
steel gearbox、Feetech self researched and developed RS485 control board，
12 bit high precision magnetic coding sensor，external connect stainless steel main servo horn.
The stall torque is 160kg.cm，can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，
it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，
can feedback position、speed、voltage、current、temperature、load parameters，
thus, overload and over-current protection can be realized.
It is suitable for application in industrial equipment, robot and other industries.
Model：SM-160B-C001
Product Name:24V 160kg.cm Serial bus servo
Storage Temperature Range：-30℃～80℃
Operating Temperature Range:-20℃～60℃

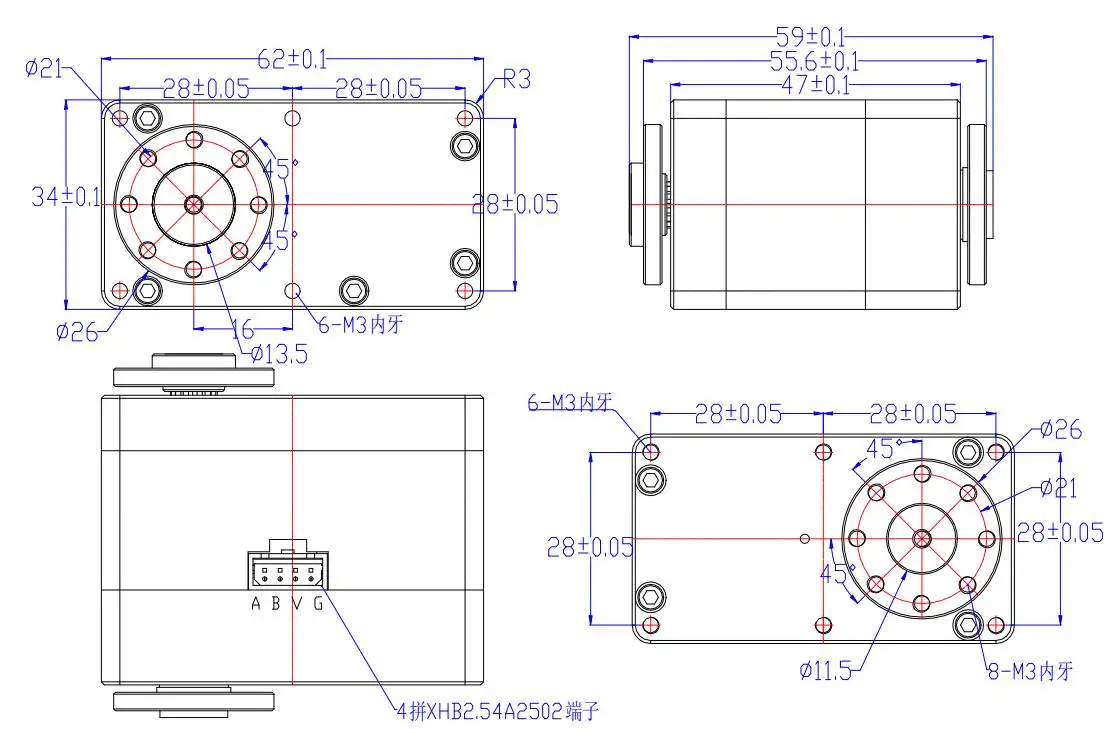

Size:A：62mm B：34mm C：47mm
Weight:211± 3g
Gear type:Steel
Limit angle:No limit
Bearing:Ball bearings
Horn gear spline:15T/OD7.6mm
Back Lash:≦0.5°
Case:Aluminium
Connector wire:40CM
Motor:4 Pole Brushless Motor
Operating Voltage Range:16.8V-25.2V
No load speed:0.181sec/60°@24V
Runnig current(at no load) :250mA@24V
Peak stall torque:160kg.cm@24V
Rated torque:40kg.cm@24V
Idle Current (at stopped)：25mA@24V
Stall current:9A@24V
Command signal:Digital Packet
Protocol Type:Half Duplex Asynchronous Serial Communication
ID range:\t0-253
Communication Speed:38400bps ~ 1Mbps
Running degree:360° (when 0~ 4096)
Feedback:Load, Position,Speed, Input Voltage，Current,Temperature。
we have hundreds of servos for optional, and we are professional servo manufacturer since 2011,
customizing servo as per requirements is our advantage.
1.Your Logo label or print
2.Servo Wire:length,wire core,wire color.
3.Packing:PE Bag,Color Box,plastic box with your Logo
4.Cable connector:1-4 pin JR,JST, XH
5.Output Gear:
The material:Plastic,Copper,steel,aluminium.
Output teeth:25 T Spline,hexagonal,and so on
6.CNC case:Case structure,color
7.Electronic function More......
We offer customized services. Please let us know your requirements.
Contact us
Skype: Jenny-fitec
Whats App: 0086 13686413808
WeChat: 0086 13686413808
The advantage of Serial bus servo:
1.Beautiful wiring structure,
2.Easy to control signal,
3.real-time feedback of position,tempreture,speed,voltage,Current data,
4.Less occupied port.
5.Digital transmission signal is
Flexible, convenient, reliable and good compatibility
6.intercommunication;
Now PWM is Simulate Transmission,Pulse width variation stand for control vector,so easily interfered by the outside world.
The SM160BL Robot Servo Actuator is the newest generation of FEETECH SM Serial actuator; equipped with an signal convert FE-URT-1,
a contact-less magnetic encoder with 4x the resolution over the scs series, and up to 3mpbs using the new TTL 2.0 bus.
Each servo has the ability to track its speed, temperature, shaft position, voltage, and load.
As if this weren't enough,the newly implemented PID control algorithm used to maintain shaft position
can be adjusted individually for each servo, allowing you to control the speed and strength of the motor's response.
All SM Series servos use 24v nominal voltage,
so FEETECH SM Servo can be mixed without having to worry about separate power supplies.
All of the sensor management and position control is handled by the servo's built-in microcontroller.
This distributed approach leaves your main controller free to perform other functions.
Every FEETECH SM Serial servo is compatible with wide variety of horns, idlers and frames to help you easily build your robotic project.
This hardware connects directly to your SM servo, allowing you to mount it to your project or to other SM servos.
Some robots can be built almost completely from SM servos and frames.
You can see a full list of frames that are compatible with this servo on our SM Compatibility Chart
To control this SM servo from an Arduino Compatible microcontroller, check out the FE-URT-1.
The FE-URT-1 was designed to take all the guesswork out of controlling SM servos from the Arduino Envinroment.
We have Arduino libraries for the SM servos and and 3-pin TTL SCS servo will plug directly into the
FE-URT-1. For tips on getting everything you need to get your FE-URT-1/SM project off the ground,
see out our FE-URT-1/SM Servo Buying Guide.
24V 160kg 24V serial RS485 servo
Product Model No：SM-160B-C001
Structure Size：62*34*47mm
Product Weight：211± 3g
The Maximum Speed：0.181sec/60°@24V
The Stall Torque：160kg.cm@24V
The Rotation Degree：(360°/4095)
SM160BL is 24V serial port smart bus servo，all aluminum alloy shell、brushless motor、
steel gearbox、Feetech self researched and developed RS485 control board，
12 bit high precision magnetic coding sensor，external connect stainless steel main servo horn.
The stall torque is 160kg.cm，can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，
it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，
can feedback position、speed、voltage、current、temperature、load parameters，
thus, overload and over-current protection can be realized.
It is suitable for application in industrial equipment, robot and other industries.
Model：SM-160B-C001
Product Name:24V 160kg.cm Serial bus servo
Storage Temperature Range：-30℃～80℃
Operating Temperature Range:-20℃～60℃
Size:A：62mm B：34mm C：47mm
Weight:211± 3g
Gear type:Steel
Limit angle:No limit
Bearing:Ball bearings
Horn gear spline:15T/OD7.6mm
Back Lash:≦0.5°
Case:Aluminium
Connector wire:40CM
Motor:4 Pole Brushless Motor
Operating Voltage Range:16.8V-25.2V
No load speed:0.181sec/60°@24V
Runnig current(at no load) :250mA@24V
Peak stall torque:160kg.cm@24V
Rated torque:40kg.cm@24V
Idle Current (at stopped)：25mA@24V
Stall current:9A@24V
Command signal:Digital Packet
Protocol Type:Half Duplex Asynchronous Serial Communication
ID range:\t0-253
Communication Speed:38400bps ~ 1Mbps
Running degree:360° (when 0~ 4096)
Feedback:Load, Position,Speed, Input Voltage，Current,Temperature。
Specification
item | 24V 160kg 24V serial RS485 servo |
Type | Batteries, Gyros, Motor Components, MOTORS, Radio Systems, Charging Components, Engine, FPV System, Receiver Systems, GPS Receiver, GPS Module, GPS Amplifiers, Rotor, CHARGE, Tools & Bags & Storage, Connector & Cable & Wire, RC Quadcopter Parts, RC Helicopter Parts, RC Airplane Parts, RC Car Parts, RC Boat Parts, RC Servos, RC Tank Parts, RC Drone Spare Parts |
Gender | BOYS, GIRLS, Unisex |
Age Range | 0 to 24 Months, 2 to 4 Years, 5 to 7 years, 8 to 13 Years, 14 Years & up |
Use | Vehicles & Remote Control Toys |
Place of Origin | China |
Chongqing | |
Brand Name | Feetech |
Model Number | SM160BL |
large 160kg | robot SERVO |
metal gears | for robot wheel |
use | Small humanoid robot |
fit | Track drive |
rotation range | 0-360 |
Certificate | ROHS |
control system | digital |
type | DYNAMIXEL smart actuator system |
link | daisy chained |
Feature | high performance actuator |
