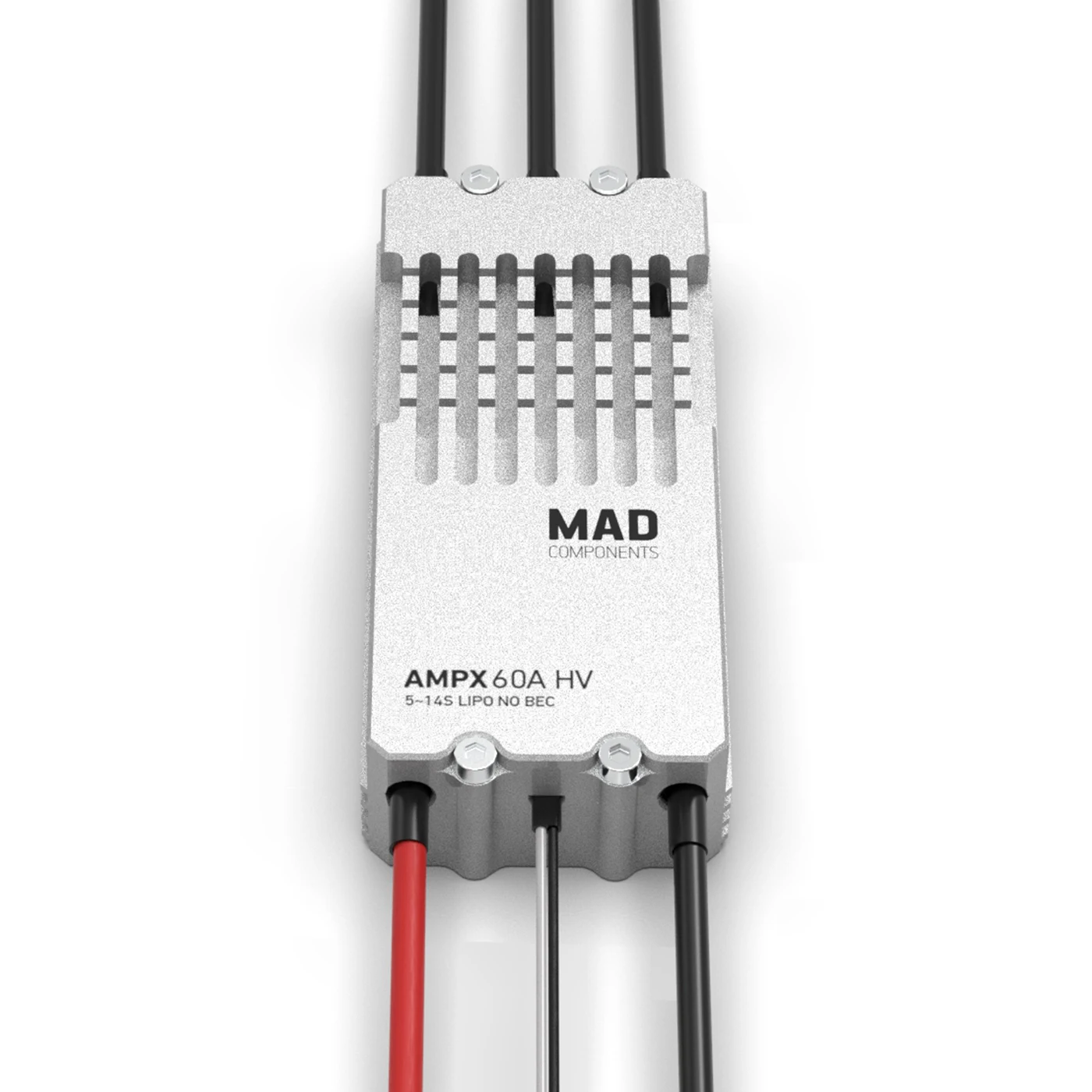

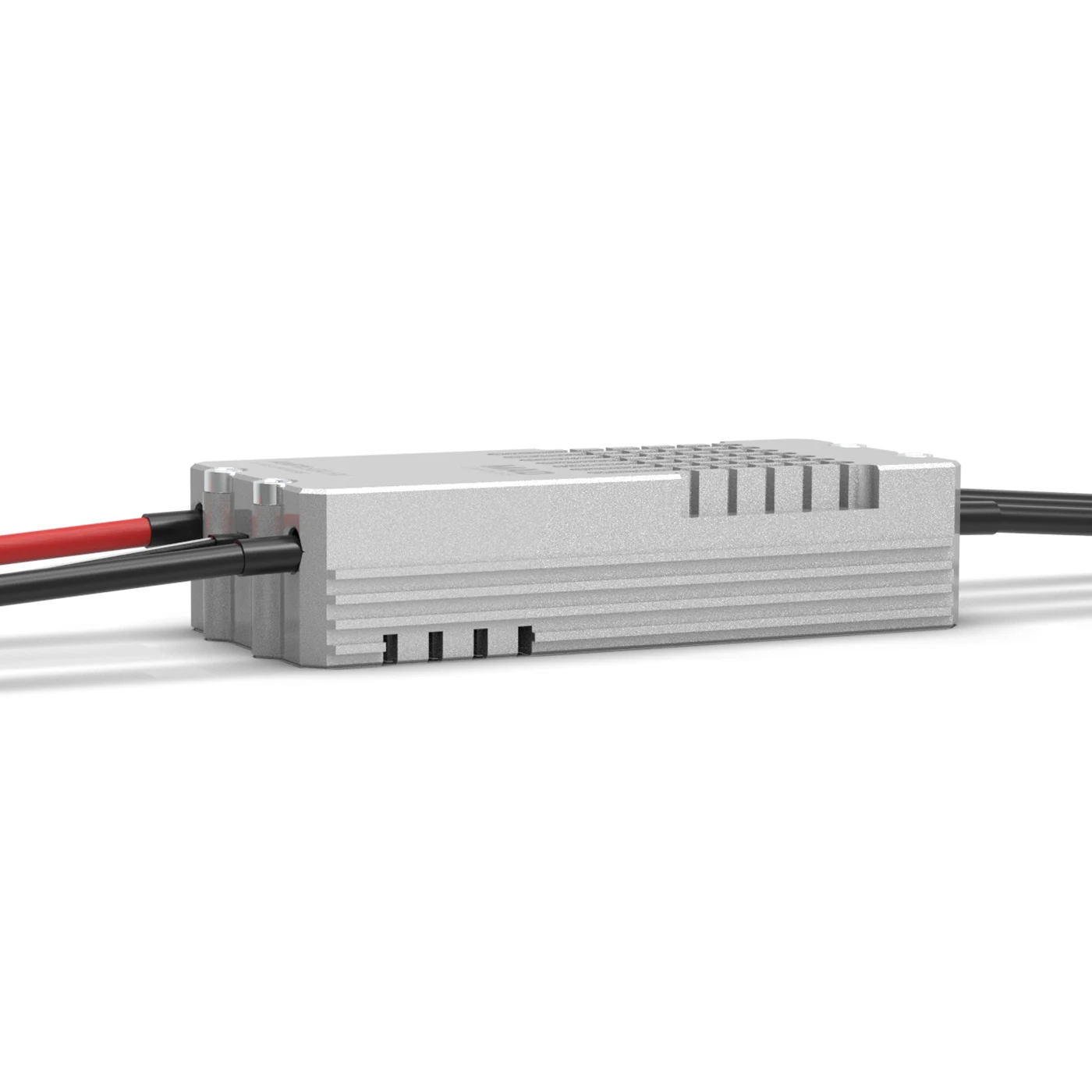

Efficiency ESC MAD AMPX 60A 5 14S WBOX ESC DC brushless Motor Speed Controller For Big Thrust Big Drone
- Category: >>>
- Supplier: Nanchang HSD Machinery Co. Ltd.
Share on (1601211531552):
Product Overview
Description

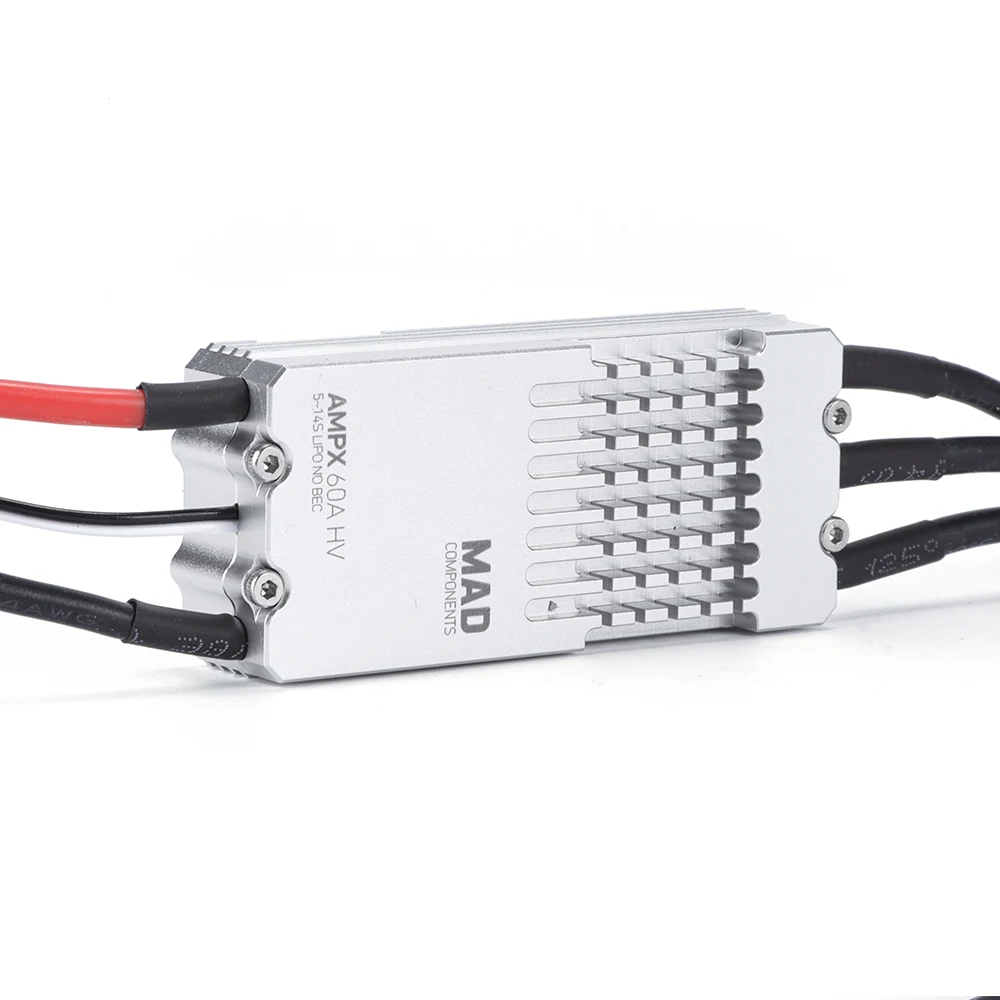

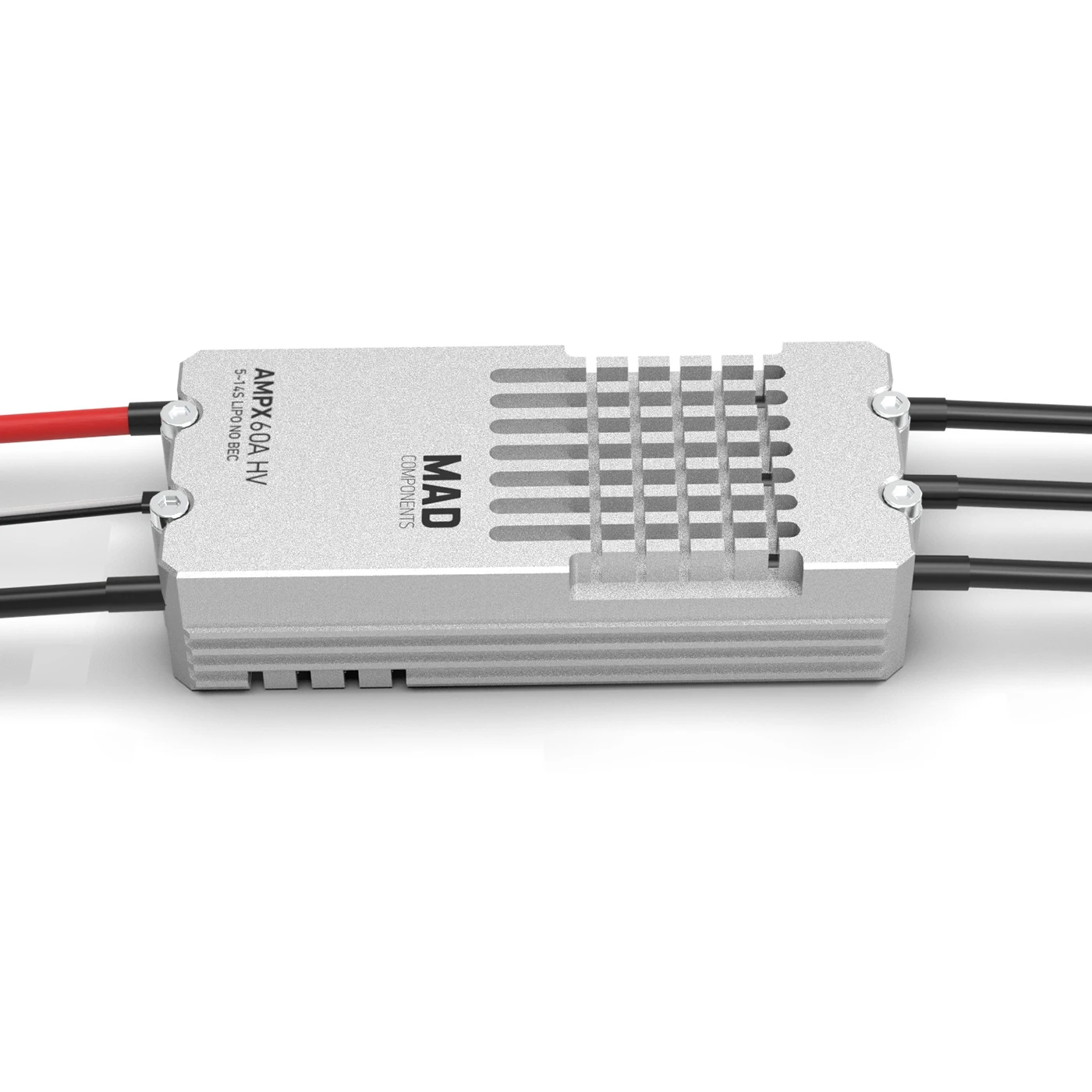

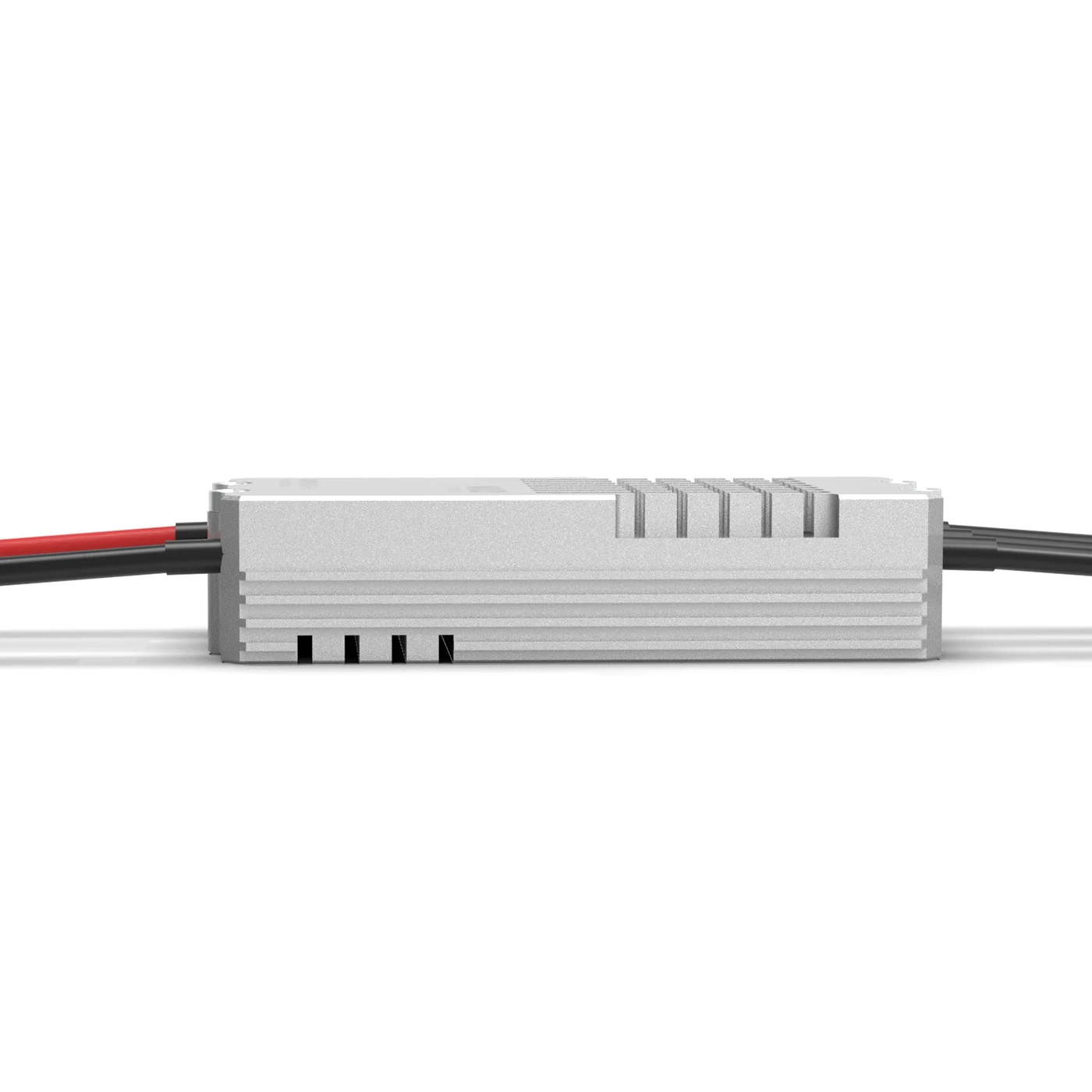

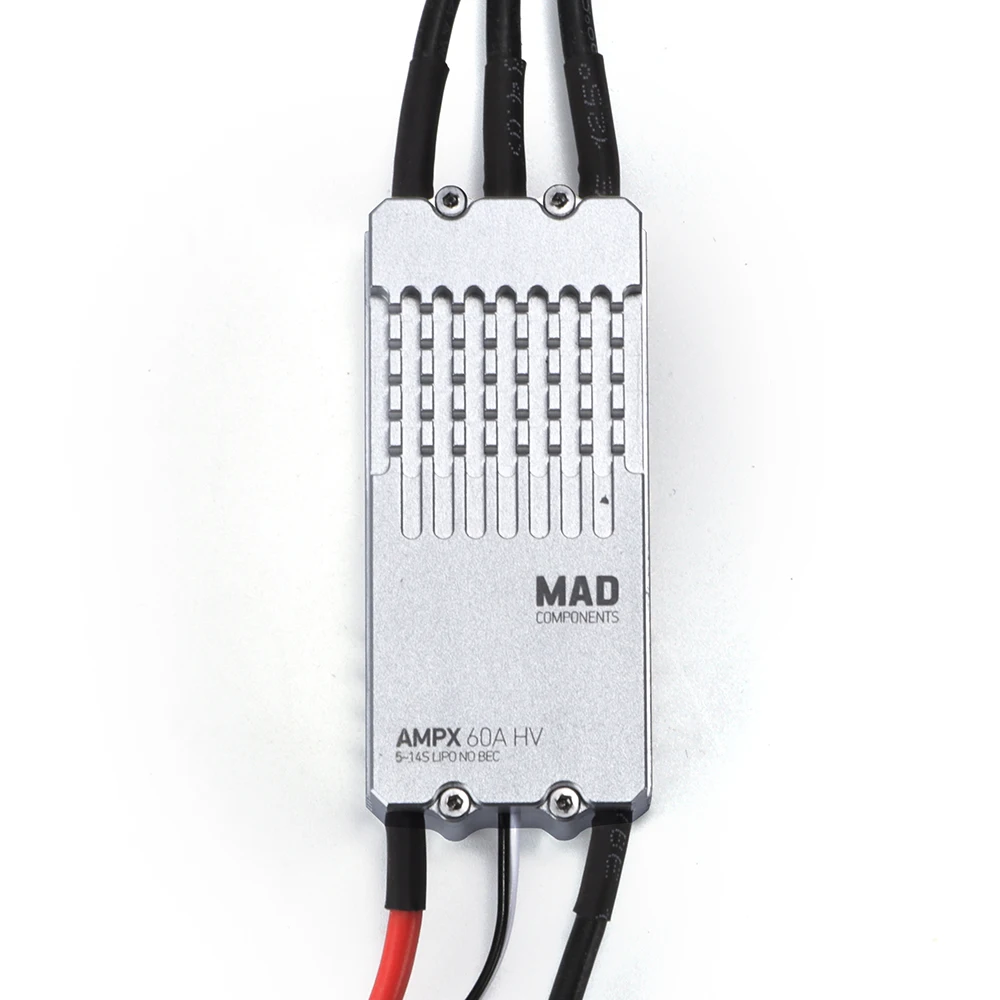

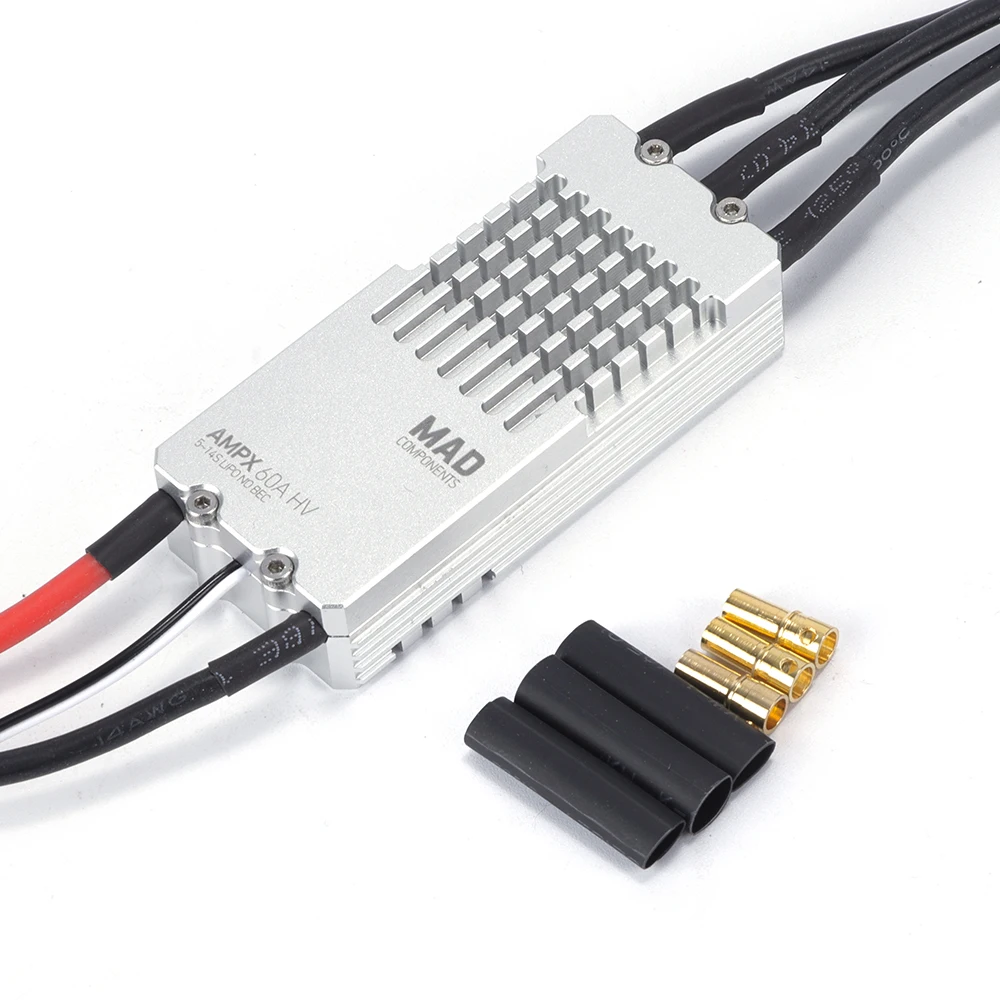

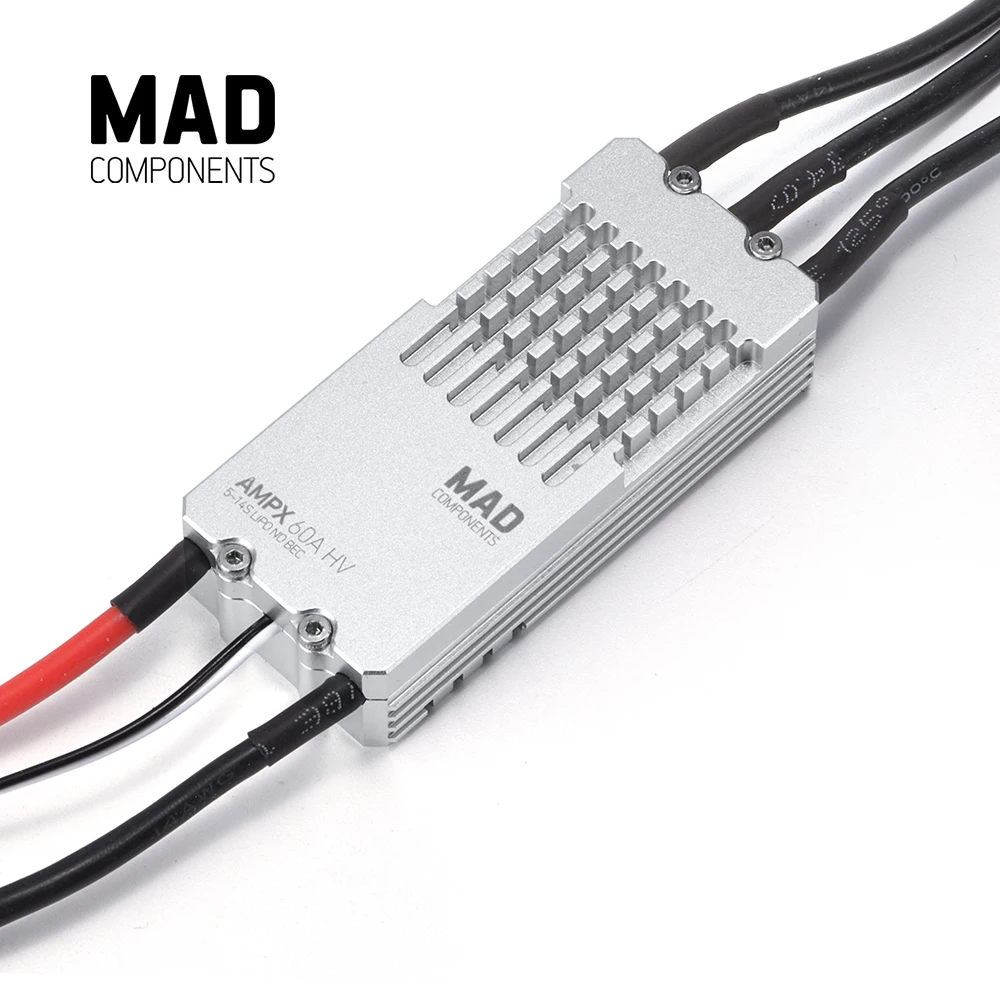

MAD AMPX 60A 12S 48V DC Motor Speed Controller
Product Description
Features
- Quick response. it will take only 0.25 seconds from starting motor to full speed running.
- Good compatibility and stability with special control algorithm for disc motors.
- Synchronous freewheeling technology can bring better throttle linearity, driving efficiency and automatic energy recovery when lowering motor speed.
- Have output interfaces of RPM and error signal.
- IP67 waterproof grade with sealing, fireproof and waterproof process, and packaging with anti-corrosion shell.
Model | AMPX 60A |
BEC | No |
PWM Input Signal Voltage | 3.3V/5V(compatible) |
Online Update | not available |
Throttle Loss Protection | available |
Phase Short Circuit Protection | available |
Size(L*W*H) | 79.6*36*23.5mm |
Power Line | 12AWG |
Battery Section | 5-14S |
Recommended Battery | 12S |
Compatible Signal Frequency | 50-500Hz |
Current Protection | available |
Stall Protection | available |
Error Signal Output | available |
Protection Grade | IP67 (sealing with resin) |
Motor Line | 14AWG |
Continuous Current | 60-80A (under good cooling conditions) |
Instant Current | 120A (under good cooling conditions) |
Throttle Pulse Width | default 1050us-1940us, throttle adjustment is available |
Voltage Protection | available |
Temperature Protection | available |
Speed Signal Output | available |
Weight(without lines) | 90g |
Working Environmental Temperature | -20 ~ 65℃ |
Trouble Shooting | |||
Problem | Alarm | Cause | Solution |
Motor can't start after powering on. | Quick noise of beep beep beep... | Throttle is not made zero. | Adjust throttle bottom |
Motor can't start after powering on. | Beep, beep, beep... every 1 second. | Receiver has not throttle output signal. | Check sender and receiver co-work condition, check throttle control lines. |
Voltage is less than 16V. | Beep beep, beep beep... every 1 second. | Battery voltage is too low. | Change full power battery. |
Voltage is more than 64V. | Beep beep, beep beep... | every 1 second. | Change proper full power battery. |
Temperature is higher than 110 centigrade degree. | Beep beep, beep beep... every 1 second. | ESC temperature is too high. | Make ESC cooling. |
PRECAUTIONS
We strongly recommend reading through this user manual before use. We have no control over installation, usage or maintenance of this product. Any improper use may cause personal injury and damage to the product and related devices. Brushless power systems can be very dangerous. We do not assume responsibility for any losses caused by unauthorized modifications to the product and no liability may be assumed for any damage or losses resulting from the improper use.

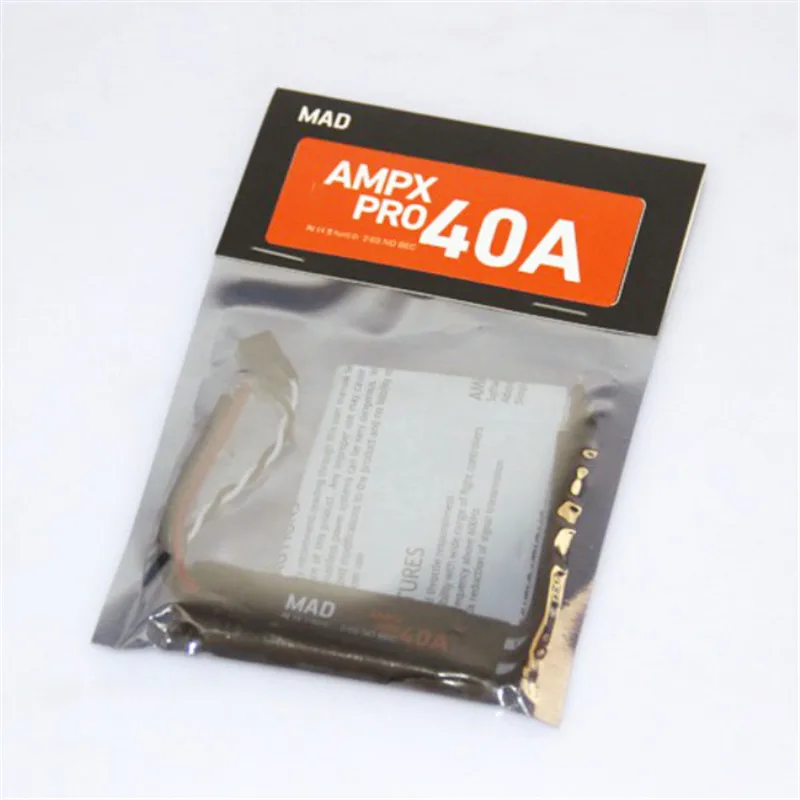

Packaging
Production Showcase
Who We Are
MAD Components is technology division of Magneto Aero Dynamics, newly established innovative company, designing, developing and manufacturing propulsion systems for wide range of multirotor aerial vehicles (UAVs, drones, etc.).
Our Research and Development team provides new concepts of building efficient propulsion systems, motors, ESCs, and propellers to meet the unique needs of clients from around the world. Experience, motivation and perfect engineering stay behind reliability and effectiveness of propulsion systems we offer.
Now, we are focused on even more reliable and efficient motors and propellers for professional, industrial or military use.
We do not forget about demanding enthusiasts and hobbyists. Wide range of our products is made for them and is commercially available.
Our offices and stores are located in Warsaw, Poland and Hong Kong.
We dispatch orders to EU zone countries from Poland - no customs procedure in recipients country and no customs fees.
For other countries shipment is made from Hong Kong and occasionally from Poland. Local customs fees can be expected.
What We Do
INDUSTRY SOLUTIONS
MAD offer made-to-order products as well as designing and developing motors, propellers and ESCs from scratch according clients requirements and demands.
We are open for cooperation, our Research and Development team provides new concepts of building efficient propulsion systems, motors, ESCs, and propellers to meet the unique needs of clients from around the world.
Our focus is to maximize efficiency and reliability of the products we offer with caring of highest possible quality.
The R&D teams work in Warsaw, Poland and Hongkong. Manufacturing facilities are located in Shenzhen, China.
Our Quality Control is strict.
If you need propulsion system for your platform, please fill in form below with your requirements. Please give us as many details as you can and estimated required quantity. We respond ASAP, usually withing 3 working days, and present you options of our offer.
