Flier Factory Multirotor Drone UAV Plane 380A brushless ESC paramotor
US $108.00-$168.00
Feetech SM70BL 70KG Slim Thin Smart Robot Servo Robotic Industrial Logistics Equipment Dynamixel Transport Servo Systems
- Category: >>>
- Supplier: Shenzhen Feite Model Co. Ltd.Shenzhen Ltd.
Share on (1601212285218):
Product Overview
Description
Product Description

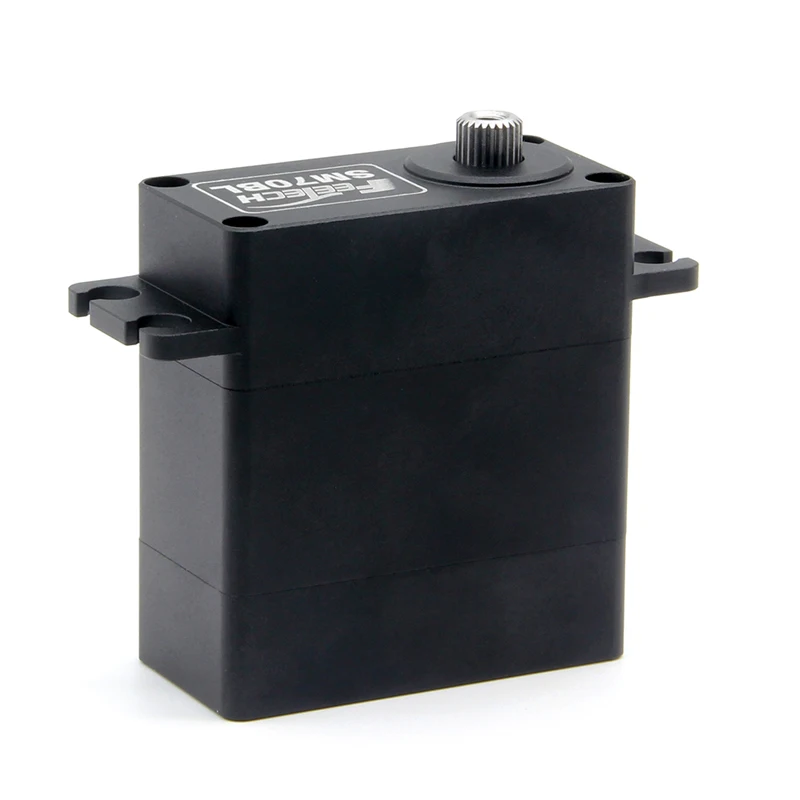

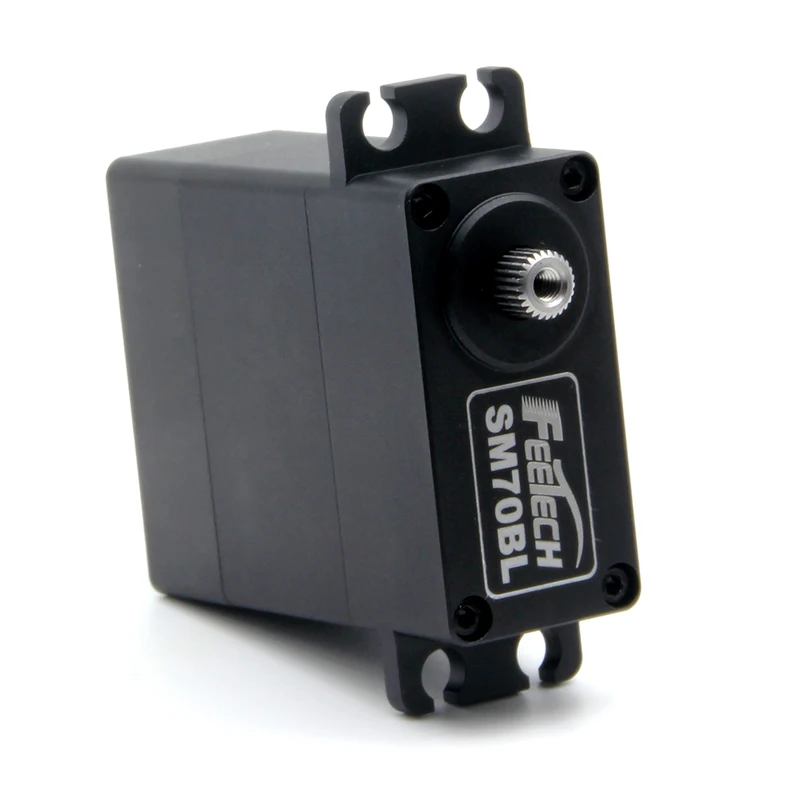

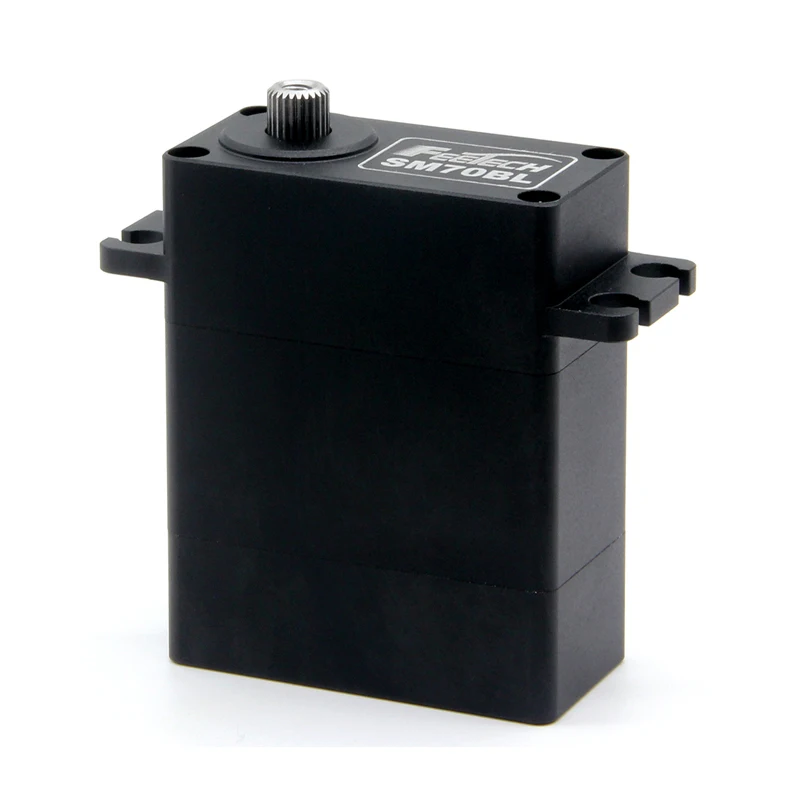

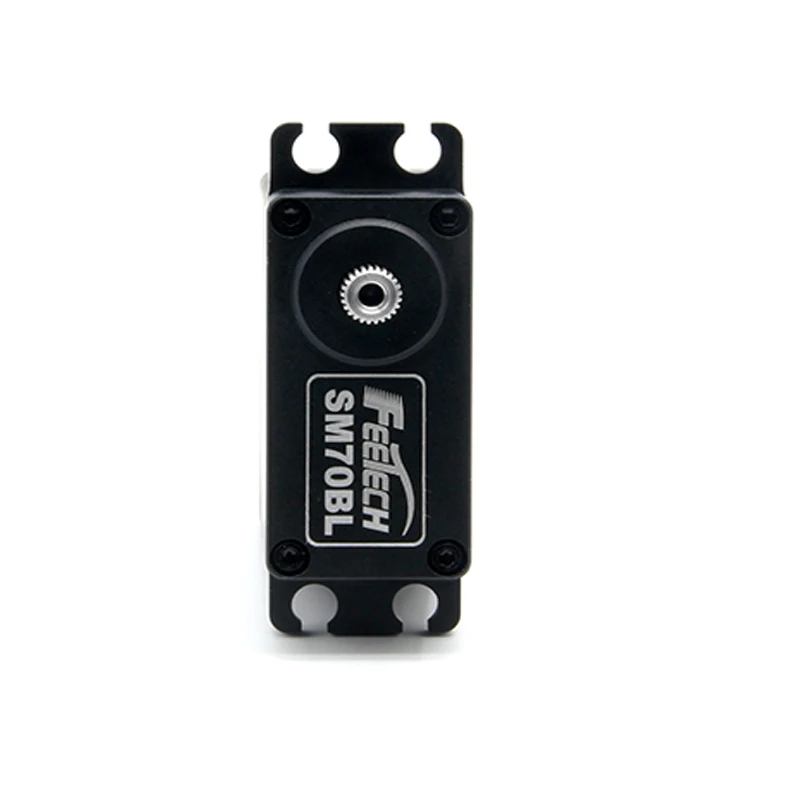

24V 70kg RS485 serial bus servo
Product Model No：SM-70BL-C001
Structure Size：40*20*47.8mm
Product Weight：91.6±1g
The Maximum Speed：78RPM
The Stall Torque：70kg.cm@24V
The Rotation Degree：(360°/4096)
SM-70BL-C001 is compatible 12V/24V serial port smart bus servo，all aluminum alloy shell、brushless motor、steel gearbox、
Feetech self researched and developed RS485 control board，
12 bit high precision magnetic coding sensor，25T output shaft.
The stall torque is 70kg.cm can achieve 0-360 degrees any angle controllable，
multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，
acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，
thus, overload and over-current protection can be realized.
It is suitable for application in industrial equipment, logistics, robot and other industries.
Model：SM-70BL-C001
Product Name:24V 70kg RS485
Storage Temperature Range\t-40℃～70℃
OperatinTemperatureRange:\t-40℃～70℃
Size:A：40mm B：20mm C：47.8mm
Weight:91.6±1g
Gear type:Steel
Limit angle:No Limit
Stall Torque (at locked)：70Kg.cm
Input Voltage：16.8V-25.2V
±10% No Load Speed：0.13sec/60°(78RPM)@24V
±10%Running Current ：180mA@24V
Stall Current (at locked)：3.5A@24V
Rated Torgue：17.5kg.cm@24V
Rated Current：870mA@24V
Terminal resistance：4.55 Ω
Command Signal：\tDigital Packet
Protocol Type：Half Duplex Asynchronous SerialCommunication
Communication Baud：38400bps ~ 1 Mbps
Running degree：360°(when 0～4095)
Rotating Direction：Clockwise(0→4095）
Feedback：Load, Position,Speed, Input Voltage，Current,Temperature。
Product Model No：SM-70BL-C001
Structure Size：40*20*47.8mm
Product Weight：91.6±1g
The Maximum Speed：78RPM
The Stall Torque：70kg.cm@24V
The Rotation Degree：(360°/4096)
SM-70BL-C001 is compatible 12V/24V serial port smart bus servo，all aluminum alloy shell、brushless motor、steel gearbox、
Feetech self researched and developed RS485 control board，
12 bit high precision magnetic coding sensor，25T output shaft.
The stall torque is 70kg.cm can achieve 0-360 degrees any angle controllable，
multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，
acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，
thus, overload and over-current protection can be realized.
It is suitable for application in industrial equipment, logistics, robot and other industries.
Model：SM-70BL-C001
Product Name:24V 70kg RS485
Storage Temperature Range\t-40℃～70℃
OperatinTemperatureRange:\t-40℃～70℃
Size:A：40mm B：20mm C：47.8mm
Weight:91.6±1g
Gear type:Steel
Limit angle:No Limit
Stall Torque (at locked)：70Kg.cm
Input Voltage：16.8V-25.2V
±10% No Load Speed：0.13sec/60°(78RPM)@24V
±10%Running Current ：180mA@24V
Stall Current (at locked)：3.5A@24V
Rated Torgue：17.5kg.cm@24V
Rated Current：870mA@24V
Terminal resistance：4.55 Ω
Command Signal：\tDigital Packet
Protocol Type：Half Duplex Asynchronous SerialCommunication
Communication Baud：38400bps ~ 1 Mbps
Running degree：360°(when 0～4095)
Rotating Direction：Clockwise(0→4095）
Feedback：Load, Position,Speed, Input Voltage，Current,Temperature。
Specification
item | Brushless 70kg.cm Serial Control BUS Servo RS485 70KG for Industrial Equipment, Robot and Household Application |
Type | Batteries, Gyros, Motor Components, MOTORS, Radio Systems, Charging Components, Engine, FPV System, Receiver Systems, GPS Receiver, GPS Module, GPS Amplifiers, Rotor, CHARGE, Tools & Bags & Storage, Connector & Cable & Wire, RC Quadcopter Parts, RC Helicopter Parts, RC Airplane Parts, RC Car Parts, RC Boat Parts, RC Servos, RC Tank Parts, RC Drone Spare Parts, Robotics/Industry |
Gender | BOYS, GIRLS, Unisex |
Age Range | 0 to 24 Months, 2 to 4 Years, 5 to 7 years, 8 to 13 Years, 14 Years & up |
Use | Vehicles & Remote Control Toys |
Place of Origin | China |
Guangdong | |
Brand Name | FEETECH |
Model Number | SM70BL |
Product name | 360 degree rotation servo |
Torque | 70kg |
Function | Magnetic Encoder TTL 485 available |
Description | Potentionmeter 360° |
Feature | TTL Level Multi Drop/485 |
voltage | 6V~12V |
Color | Black |
Certificate | ROHS,CE |
Product size | 40*20*47.8mm |
Application | Robotics |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Our company is specialized in researching, developing, manufacturing and selling the top quality RC servos to all over the world. We have a professional R&D team devoted to pursuing the utmost usage of RC servos for the RC robot and RC car/ helicopter / airplane / boat, and industrial application products.
Our products have passed CE and RoHS standards. Each single product is checked and tested through a series of strict and accurate QC (Quality Control) process by leading edge technology facilities.
We also provide ODM and OEM services, and offer the lowest price with the highest quality, the best manufacture process and the ideal products to you.
The brand of "FEETECH" is based on the concepts of "Flying, Excellent, Efficient and Technology".
Our mission is to be a provider of the products with best quality and best service.
We are looking forward to our cooperation and mutual development.
Our products have passed CE and RoHS standards. Each single product is checked and tested through a series of strict and accurate QC (Quality Control) process by leading edge technology facilities.
We also provide ODM and OEM services, and offer the lowest price with the highest quality, the best manufacture process and the ideal products to you.
The brand of "FEETECH" is based on the concepts of "Flying, Excellent, Efficient and Technology".
Our mission is to be a provider of the products with best quality and best service.
We are looking forward to our cooperation and mutual development.
