Product Overview
Description

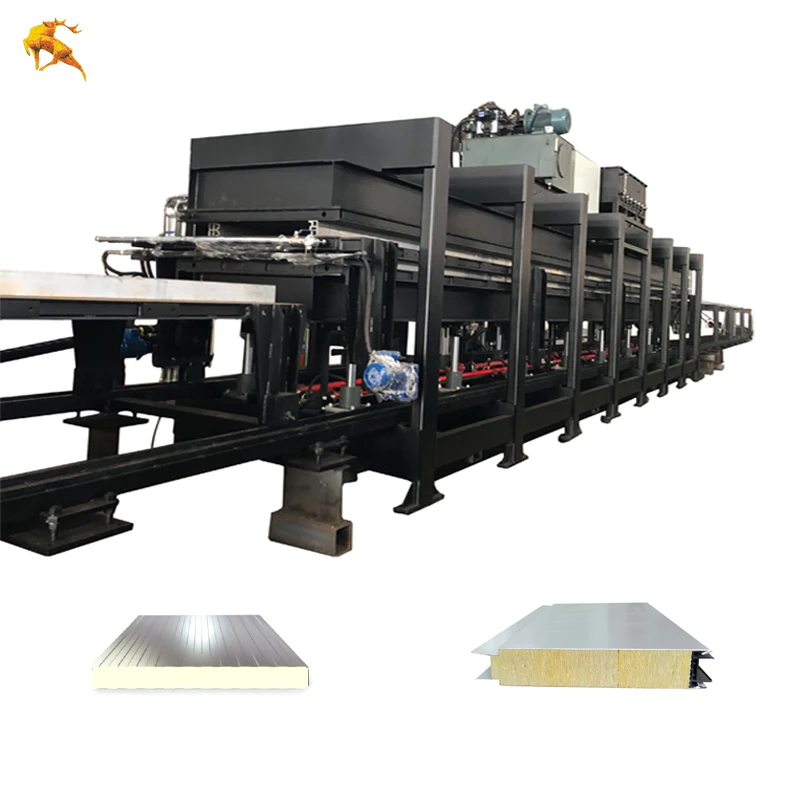

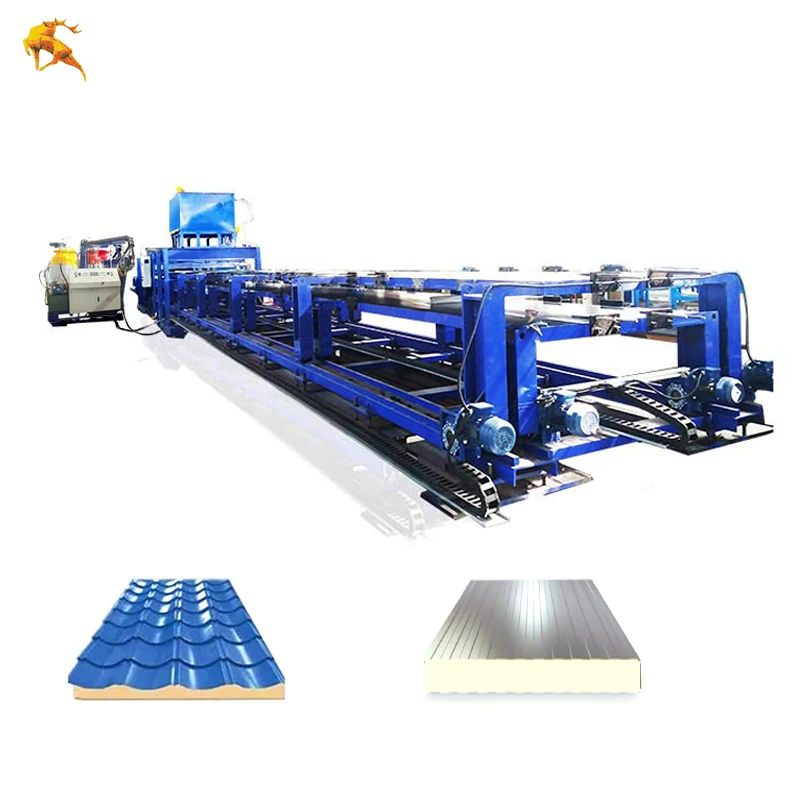

Discontinuous sandwich PU panel machine PU rigid panel line PU sandwich panels production machine
Product Description
* Discontinuous PIR PUR PU sandwich panel production line can be customized |

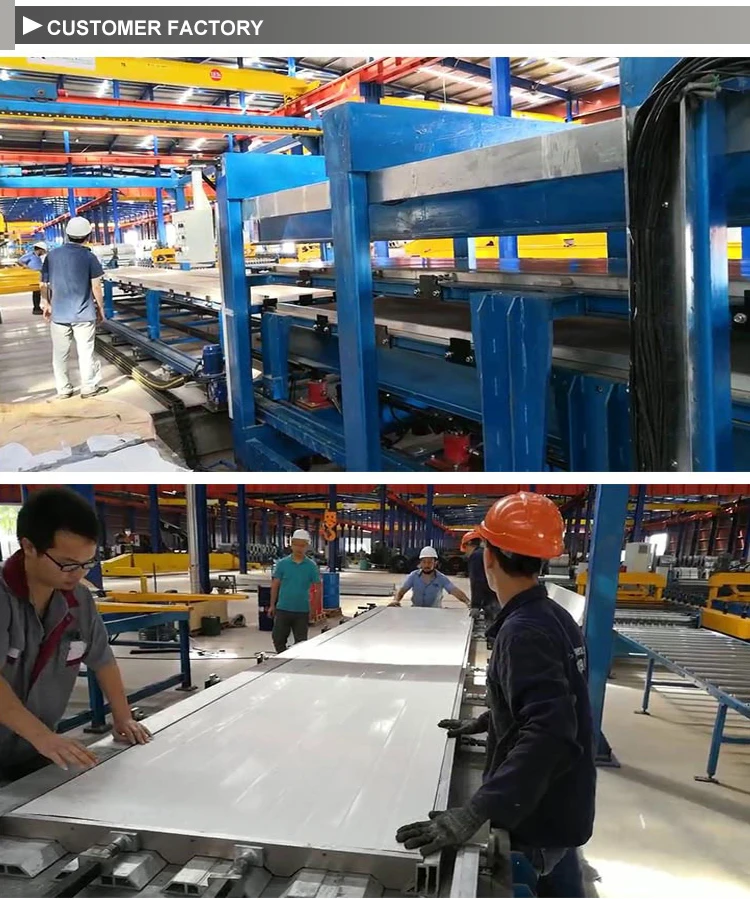

Client's Plant
Machine Features
Features of Widely Used Discontinue PU Sandwich Insulated Panel Roll Forming Machine

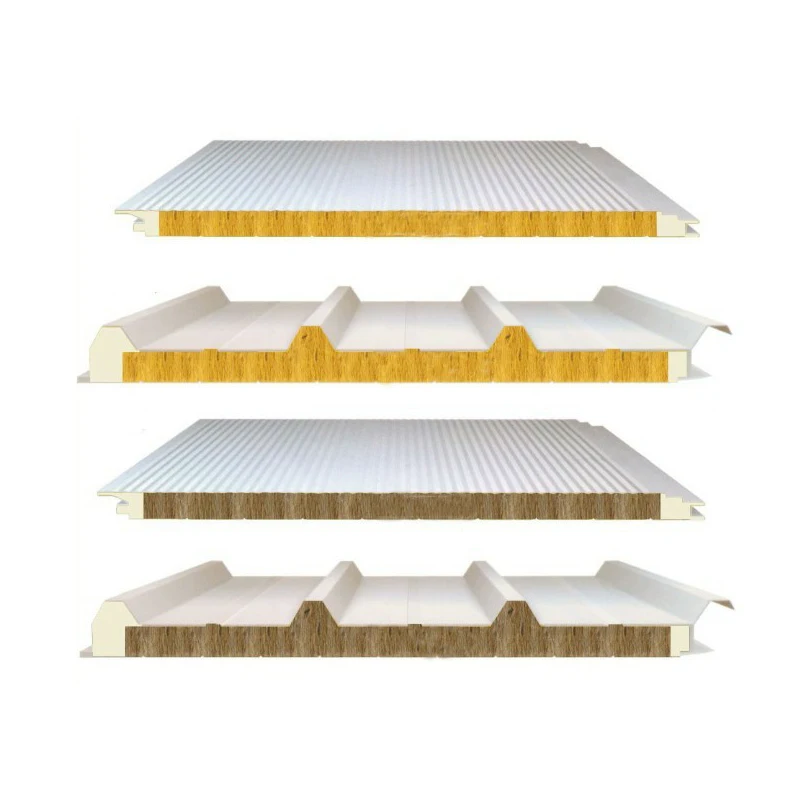

1. Machine is to produce the sandwich panel with the color steel sheet or galvanized sheet (PPGI) on upper and lower sides and the core of polyurethane (PU) or Polyisocyanurate (PIR) insulated material.
Application for : insulated wall and roof panels , garage doors, entry doors, and refrigeration coolers.

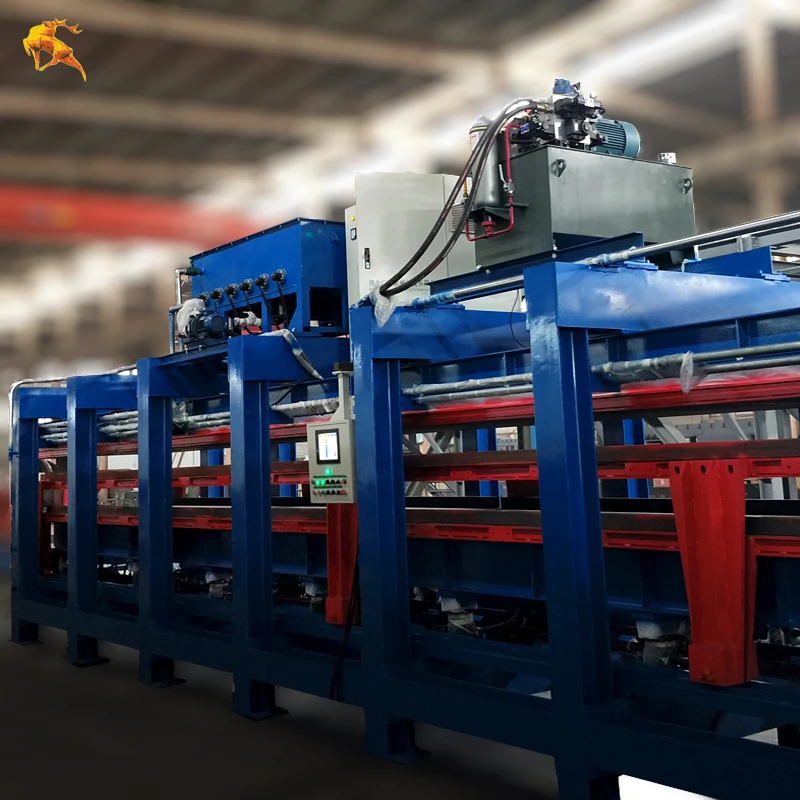

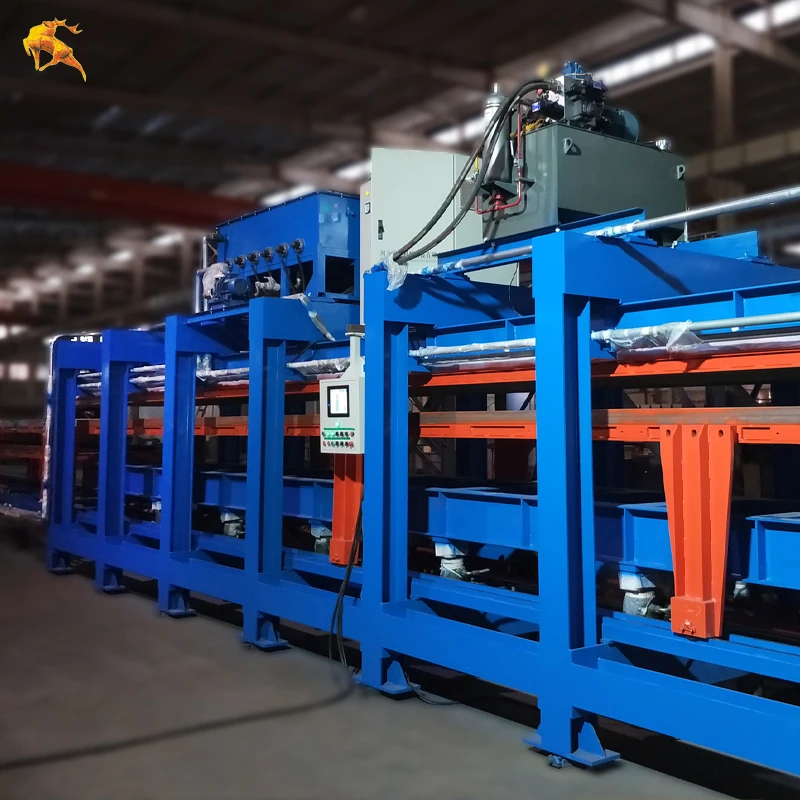

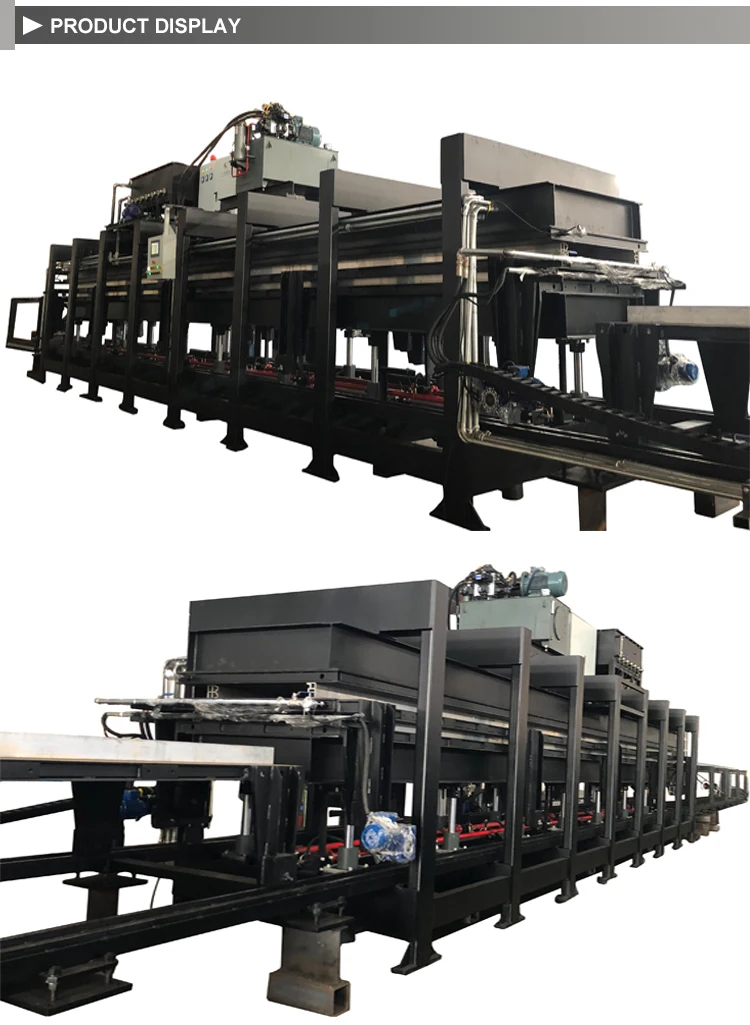

2. The main press machine is consisted of the multi-layers of working tables and the rail stands.
During actual production , after roll forming the sheets profile , the top and bottom metal sheets will be installed on the
working tables of the main press machine, seal with mould frames . Working tables will take them and move into the main press machine .Injecting mixed PU or PIR raw material . Meanwhile the material start foaming and curing . When the time is up , working table moves out , moulds frames are moved out for taking out the finished sandwich panels. Then the machine is ready for next production cycle .

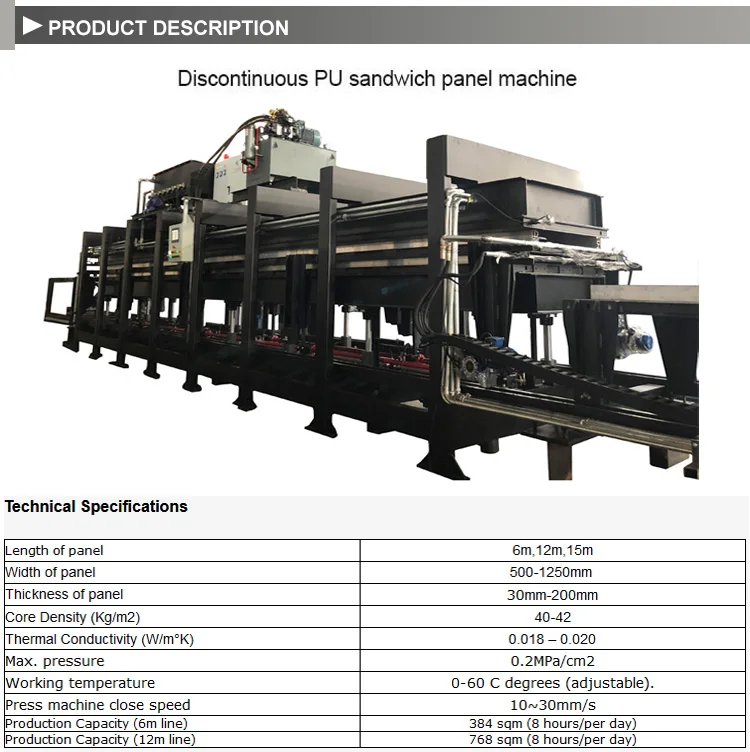

3. The main press machine produces PU or PIR sandwich panel for
Max. Panel Length 6m, 8m, 9m, 10m, 12m, 16m...
Adjustable Panel Width less than 1.2m,
Different Thickness 30~200mm.
Application for : insulated wall and roof panels , garage doors, entry doors, and refrigeration coolers.
2. The main press machine is consisted of the multi-layers of working tables and the rail stands.
During actual production , after roll forming the sheets profile , the top and bottom metal sheets will be installed on the
working tables of the main press machine, seal with mould frames . Working tables will take them and move into the main press machine .Injecting mixed PU or PIR raw material . Meanwhile the material start foaming and curing . When the time is up , working table moves out , moulds frames are moved out for taking out the finished sandwich panels. Then the machine is ready for next production cycle .
3. The main press machine produces PU or PIR sandwich panel for
Max. Panel Length 6m, 8m, 9m, 10m, 12m, 16m...
Adjustable Panel Width less than 1.2m,
Different Thickness 30~200mm.
