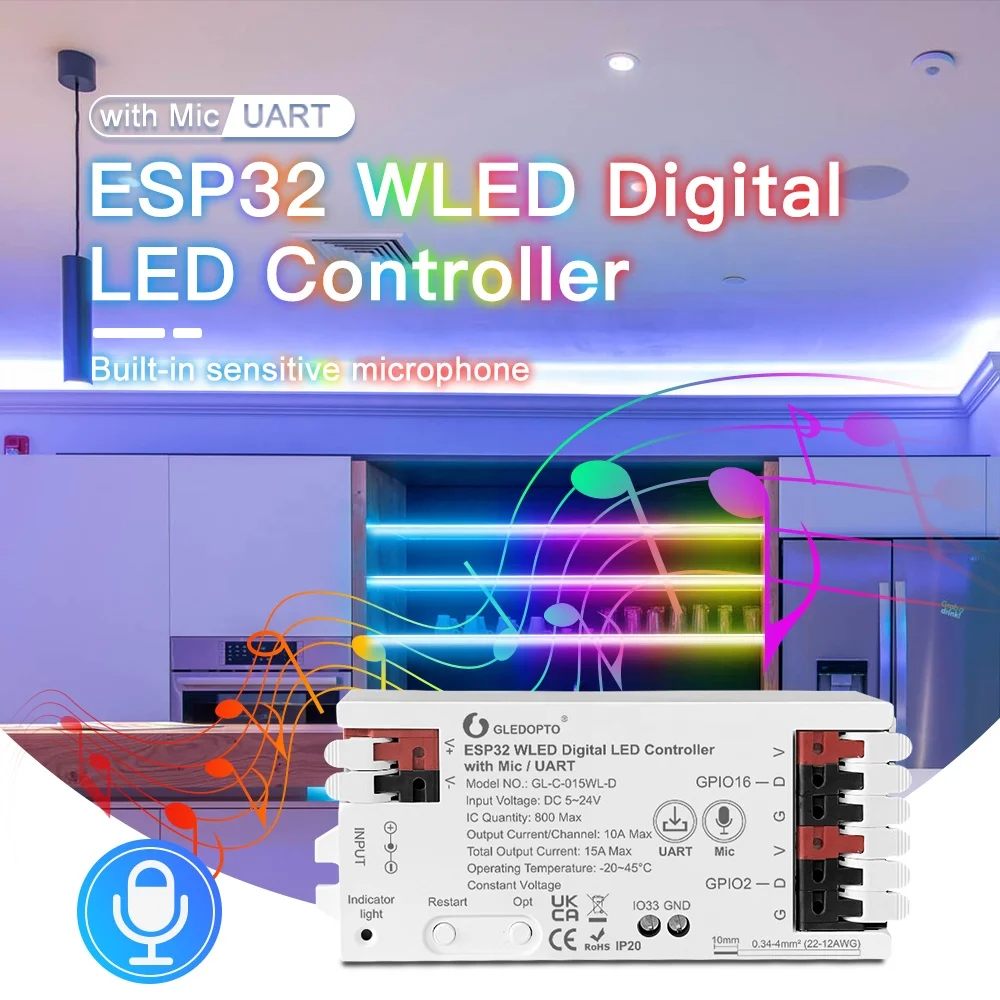

Gledopto 2024 New ESP32 WLED Digital LED Controller GL C 015WL D Microphone function Uart download suit for TM1814 light strip
- Category: >>>
- Supplier: Shenzhen Gledopto Co. Ltd.
Share on (1601215768470):
Product Overview
Description
Product Description

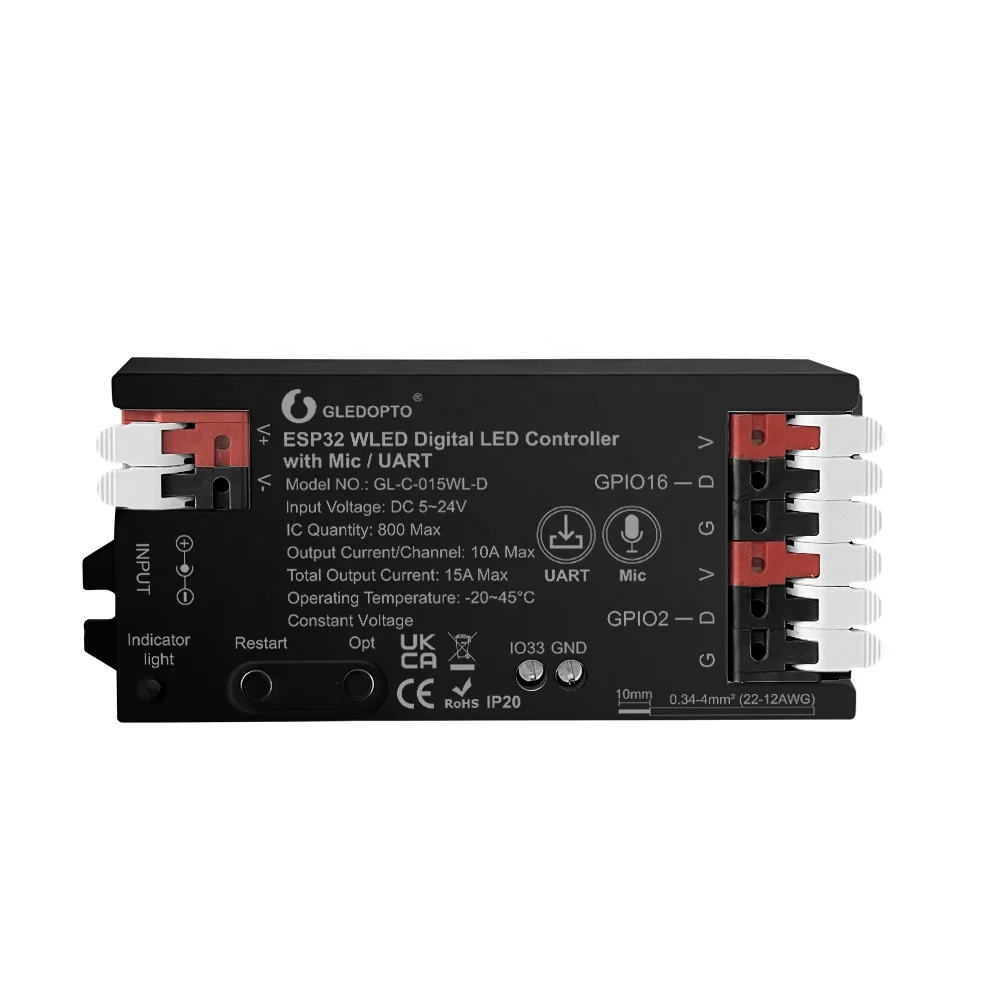

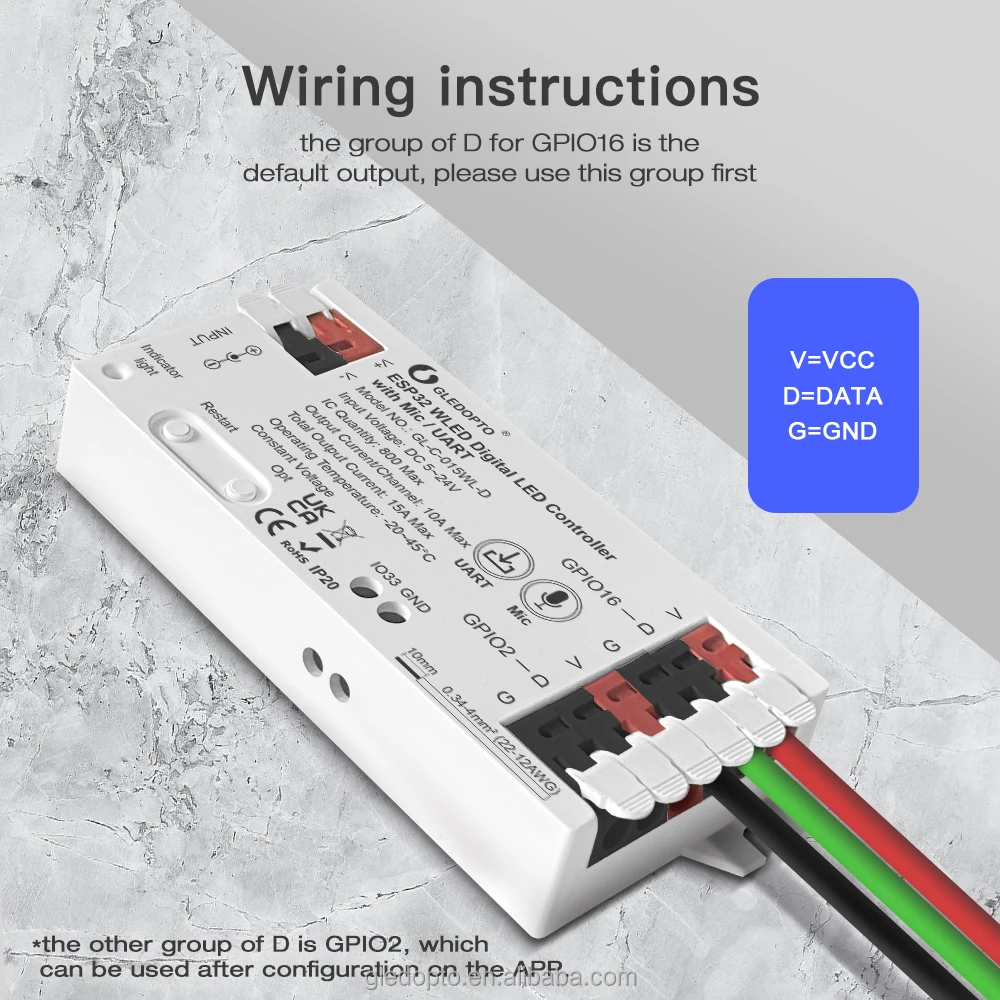

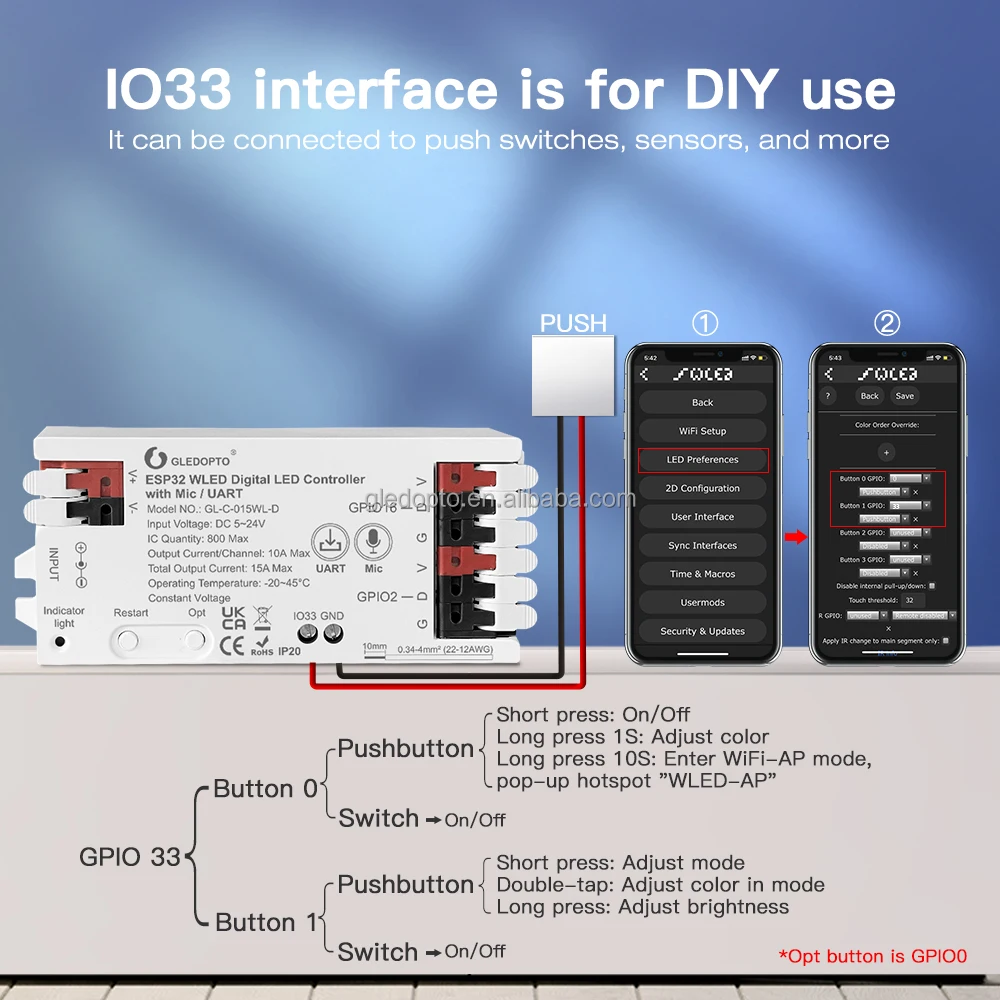

Wiring Terminal Instructions
①Enter the WLED control page, click "Config", select "Usermods", find "Digitalmic" after entering, configure according to the configuration information, click "Save" after configuration is complete, and then power off the controller.
②Enter the WLED control page, click"Info" at the top, click "AudioReactive" to use the Mic.
Configuration Information:
1.Microphone type: Generic 12S 2. 12S SD pin: 26
3.12S WS pin: 5 4.12S SCK pin: 21
Note: After configuring the microphone parameters, you need to power off and on the controller once to use the microphone function.
②Enter the WLED control page, click"Info" at the top, click "AudioReactive" to use the Mic.
Configuration Information:
1.Microphone type: Generic 12S 2. 12S SD pin: 26
3.12S WS pin: 5 4.12S SCK pin: 21
Note: After configuring the microphone parameters, you need to power off and on the controller once to use the microphone function.
Specification
item | value |
Warranty(Year) | 2-Year |
Lighting solutions service | Lighting and circuitry design |
Luminous Efficacy(lm/w) | 0 |
Product Weight（kg） | 0.0572 |
Place of Origin | China |
Guangdong | |
Brand Name | Gledopto |
Type | LED Controller |
Max. Load Power | 360 |
Product name | ESP32 WLED DigitalLED Controller |
Certificates | ROHS CE |
Color | White Black |
Input Voltage | 5V-24V DC |
Output Current | 15A MAX |
Function | Color Adjust |
Size | 108*45*18 |
Working temperature | -20~45℃ |
Application | Digital LED Light |
Packing & Delivery

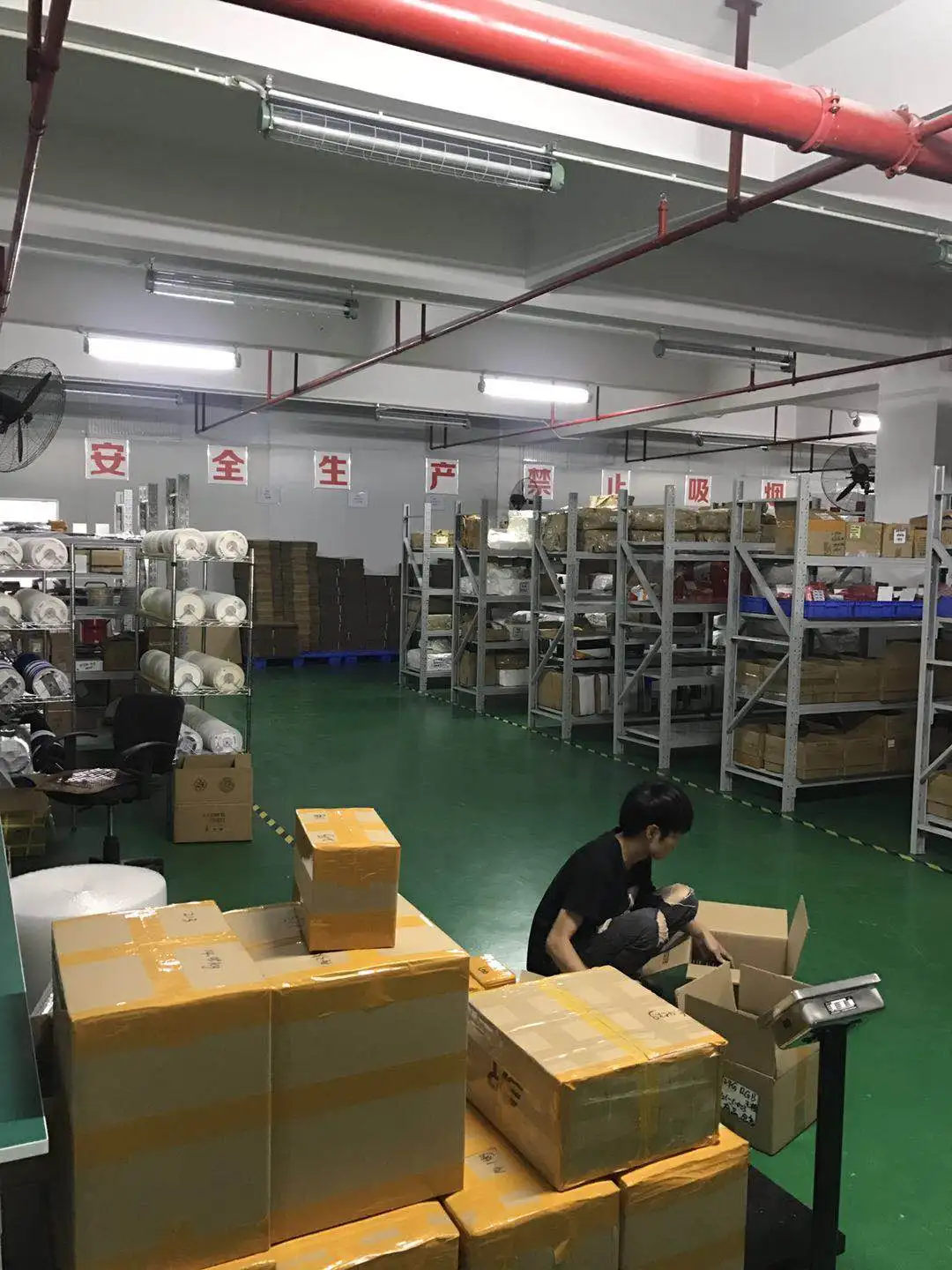

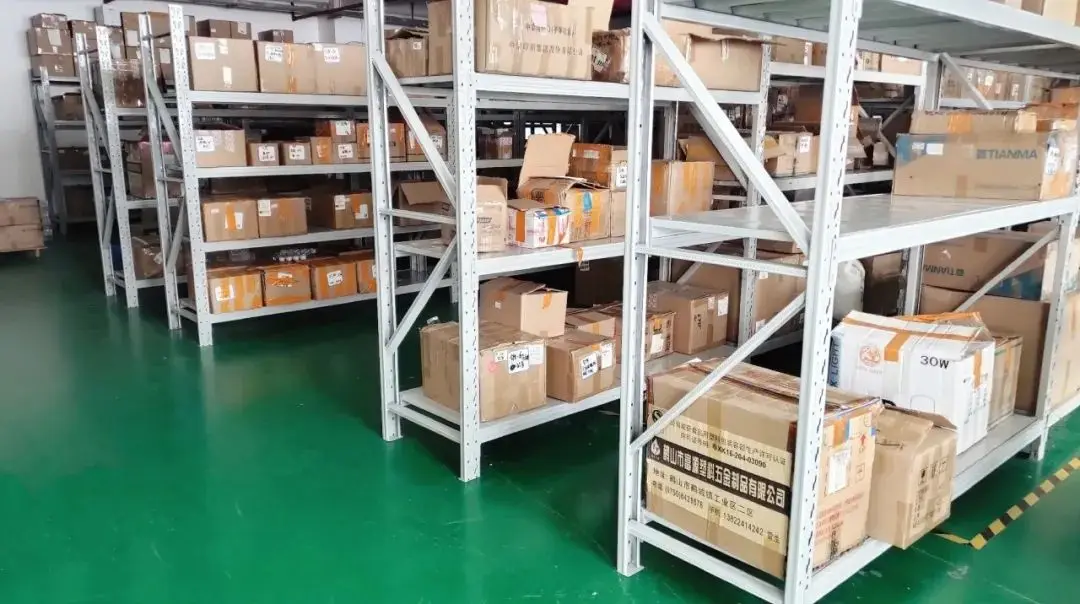

Company Profile
Gledopto Co.,Ltd. is the professional manufacturer of smart lighting products in Shenzhen, China,Our factory is located in Shenzhen city near Hong Kong. with our plant in Long Gang District, close to Shenzhen Pingshan Railway Station. We re specializing in the designing & producing wirelessly controlled LED lighting products,e.g. ZigBee 3.0 and WiFi smart LED lights and controllers and 2.4GRF controlled LED products.Our smart LED products are widely used for indoor & outdoor lightingprojects.
Our products have passed the CE, RoHS & ErP testing，100% QC tested and approved to ensure high quality standards before delivering from factory. We insist on "good quality is our responsibility tocustomers, good quality is the only sustainable condition" to provide customers with first-classproducts, first-class technical support service.
We hope can be your best partner of smart lighting products in China, we are looking fonward to the cooperation with customers globally.
Our products have passed the CE, RoHS & ErP testing，100% QC tested and approved to ensure high quality standards before delivering from factory. We insist on "good quality is our responsibility tocustomers, good quality is the only sustainable condition" to provide customers with first-classproducts, first-class technical support service.
We hope can be your best partner of smart lighting products in China, we are looking fonward to the cooperation with customers globally.

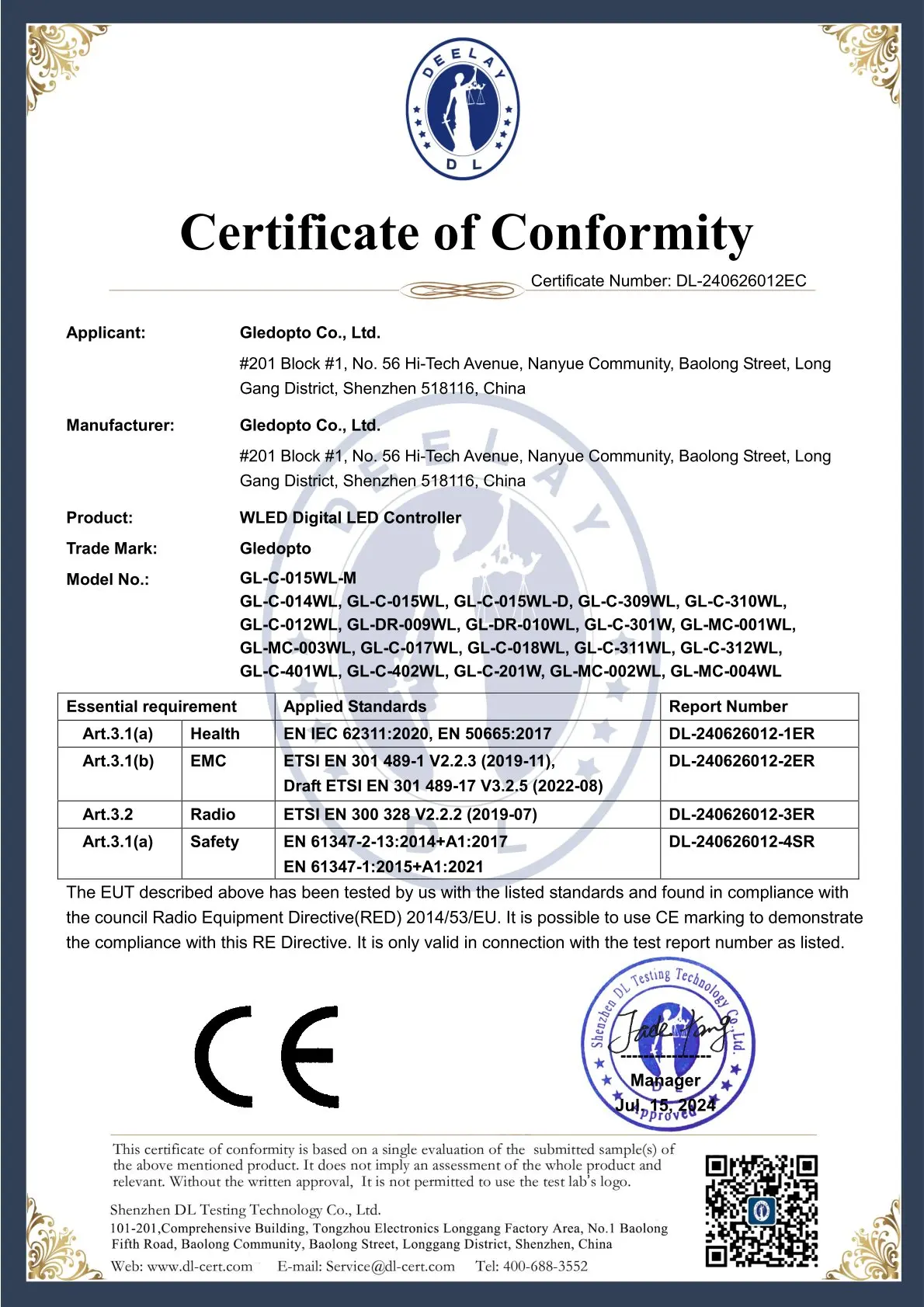

certificate
