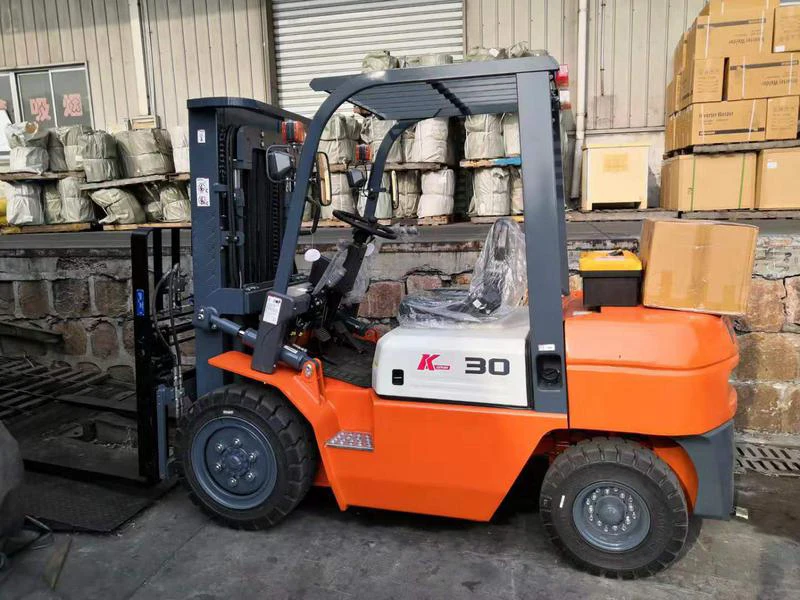

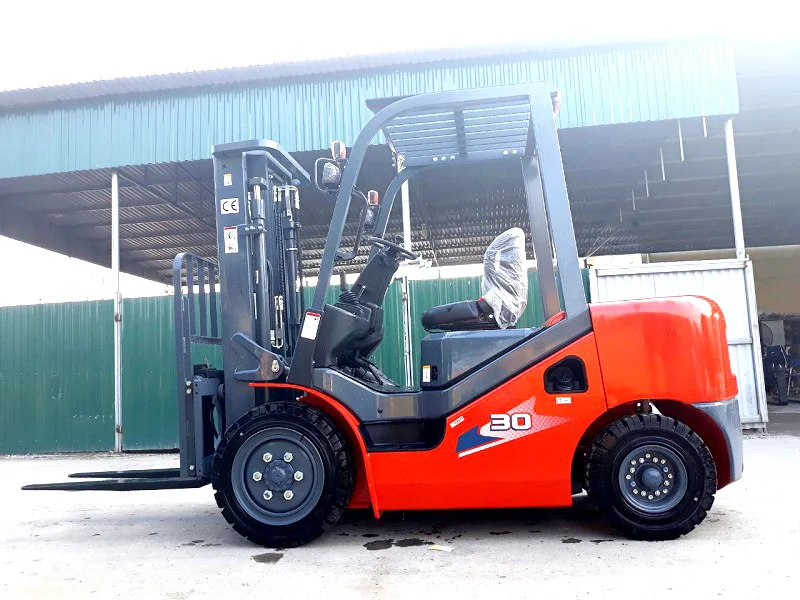

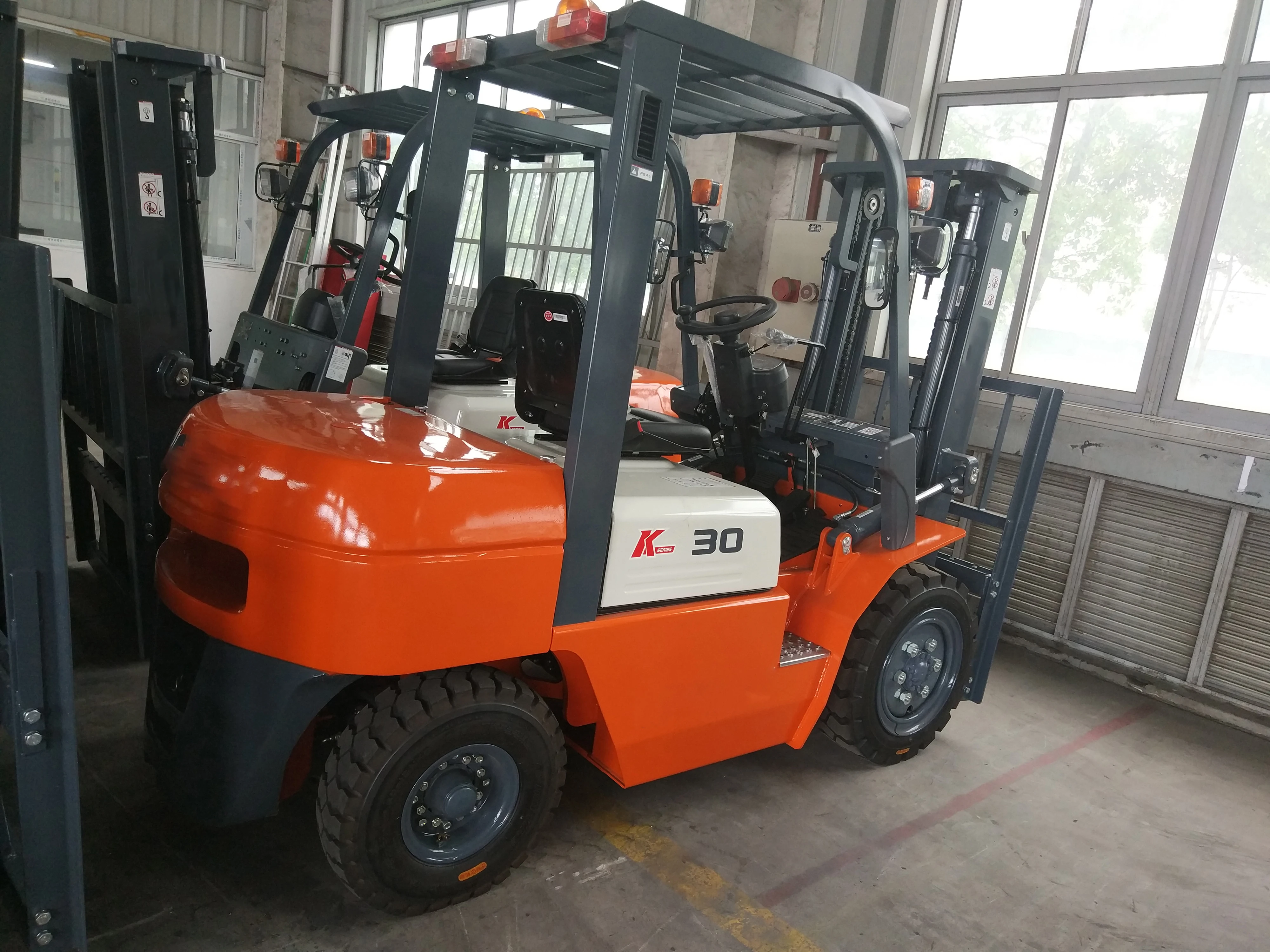

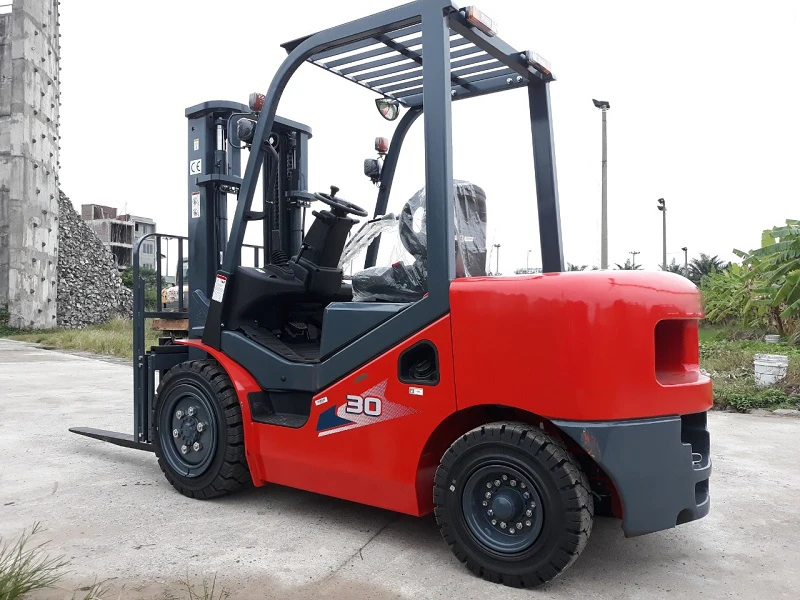

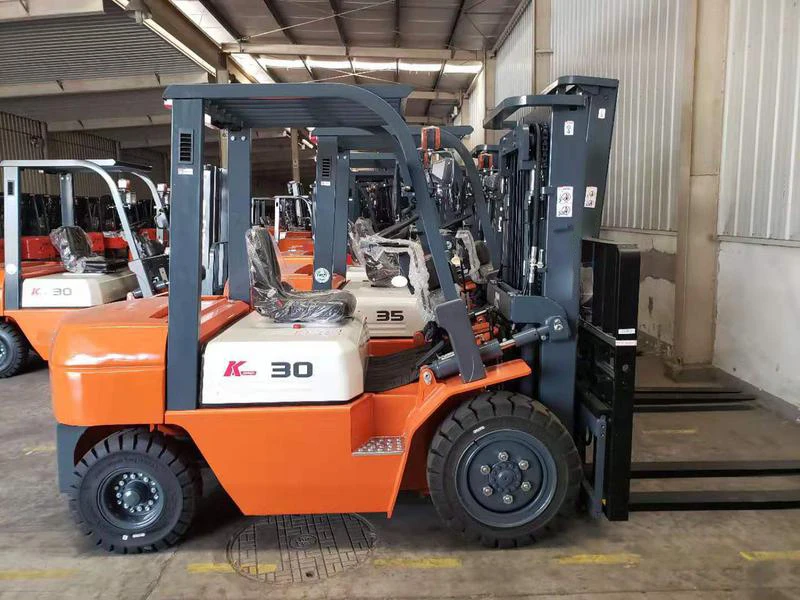

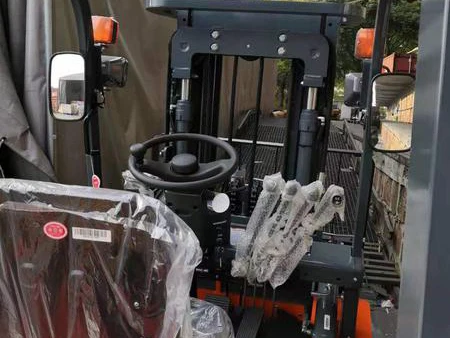

Heli CPCD30 3 Ton Forklift Truck with Diesel Engine
General | 1 | Model | CPCD30 | |||||||
2 | Power type | Diesel | ||||||||
3 | Rated capacity | kg | 3000 | |||||||
4 | Load center | mm | 500 | |||||||
5 | Operator type | Seated | ||||||||
6 | Tyre type | Front/Rear | Pneumatic | |||||||
7 | Number of wheels(X=driven)) | Front/Rear | 2 X /2 | |||||||
Dimensions | 8 | Lifting height | mm | 3000 | ||||||
9 | Free lift height | mm | 145 | |||||||
10 | Fork size | LxWxT | mm | 1070x125x25 | ||||||
11 | Mast tilt range | F/R | 6/12 | |||||||
12 | Overall Length(Without fork) | mm | 2698 | |||||||
13 | Overall width | mm | 1225 | |||||||
14 | Mast lowered height | mm | 2070 | |||||||
15 | Mast extended height | mm | 4250 | |||||||
16 | Overhead guard height | mm | 2090 | |||||||
17 | Turning radius(Outside) | mm | 2400 | |||||||
18 | Fork overhang(Wheel center to fork face) | mm | 498 | |||||||
19 | Min.right angle stacking aisle width (Add load length and clearance) | mm | 2885 | |||||||
20 | Wheelbase | mm | 1700 | |||||||
21 | Tread | Front | mm | 1000 | ||||||
22 | Rear | mm | 970 | |||||||
23 | Ground clearance | Lowest | mm | 135 | ||||||
24 | Wheel base center | mm | 140 | |||||||
Our Advantages
After-sale Service
Exporting Case

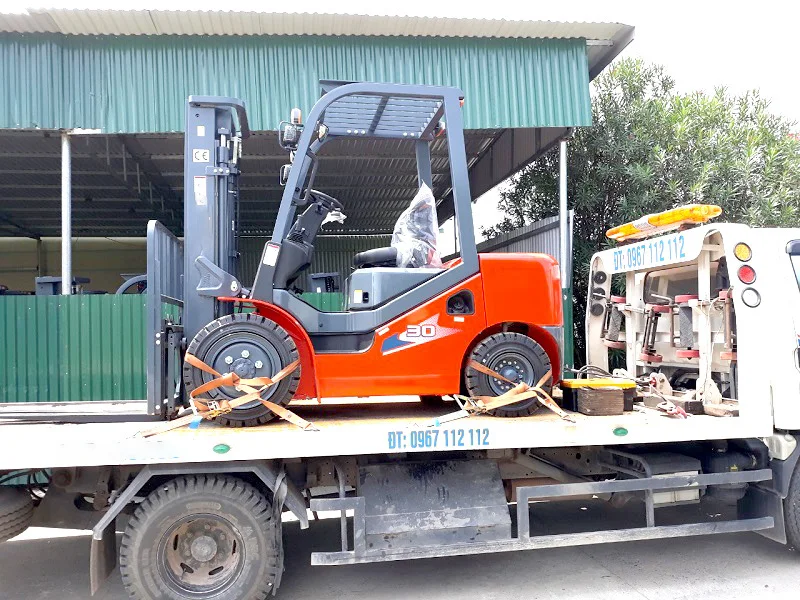

Packing&Shipping
