laser tools level outdoor construction level machine motor grader 140k
- Category: >>>
- Supplier: Zhengzhou Dream Machinery Co. Ltd.
Share on (1601217020029):
Product Overview
Description

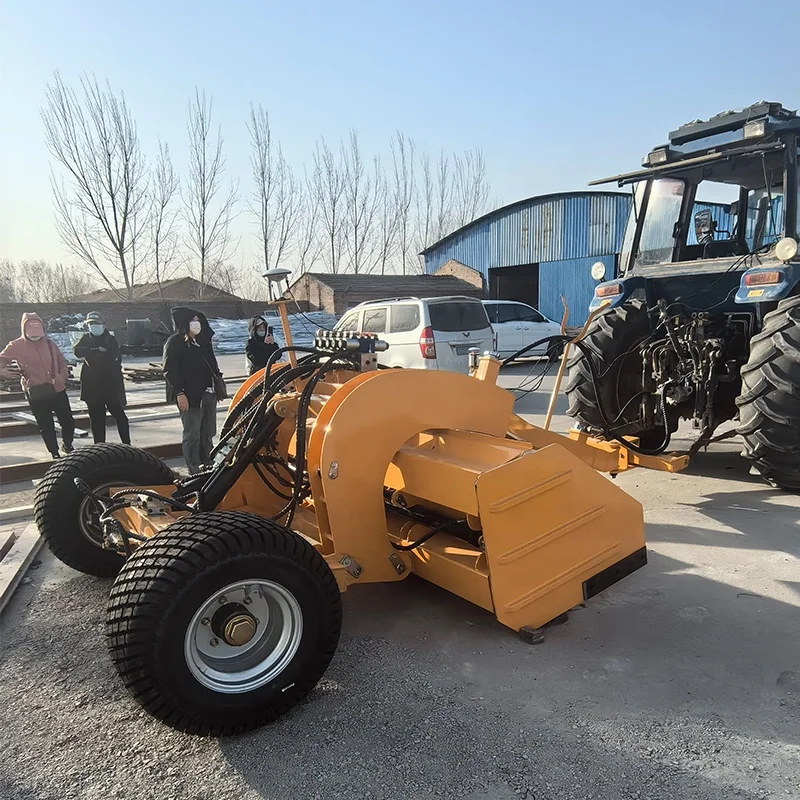

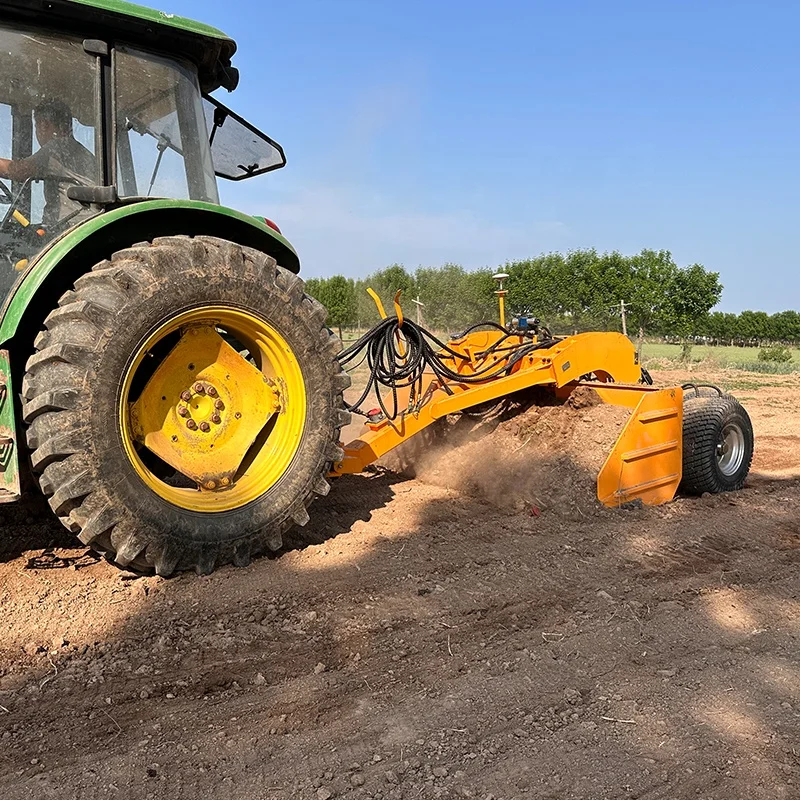

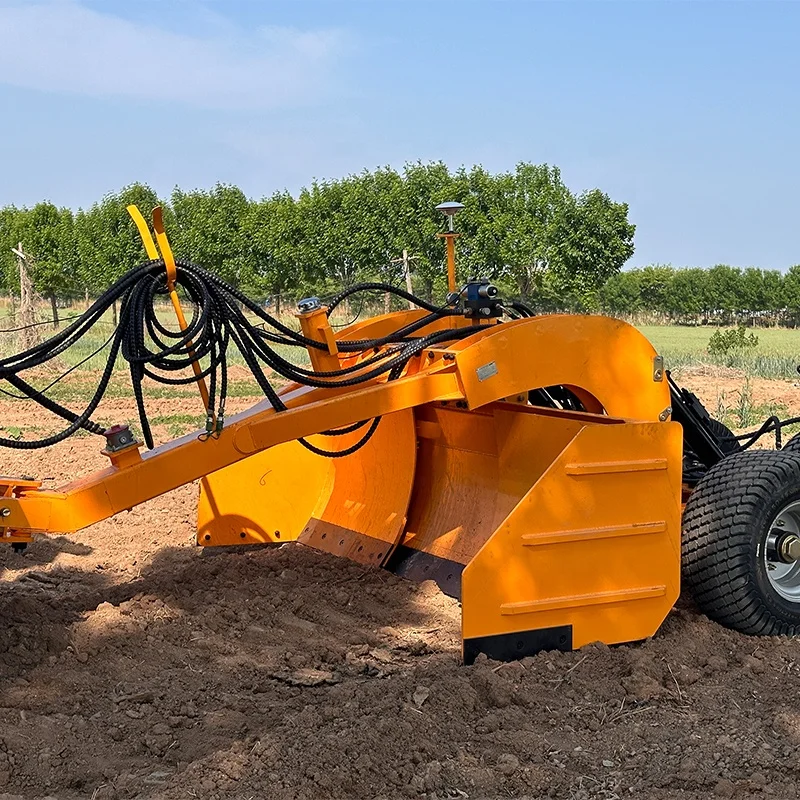

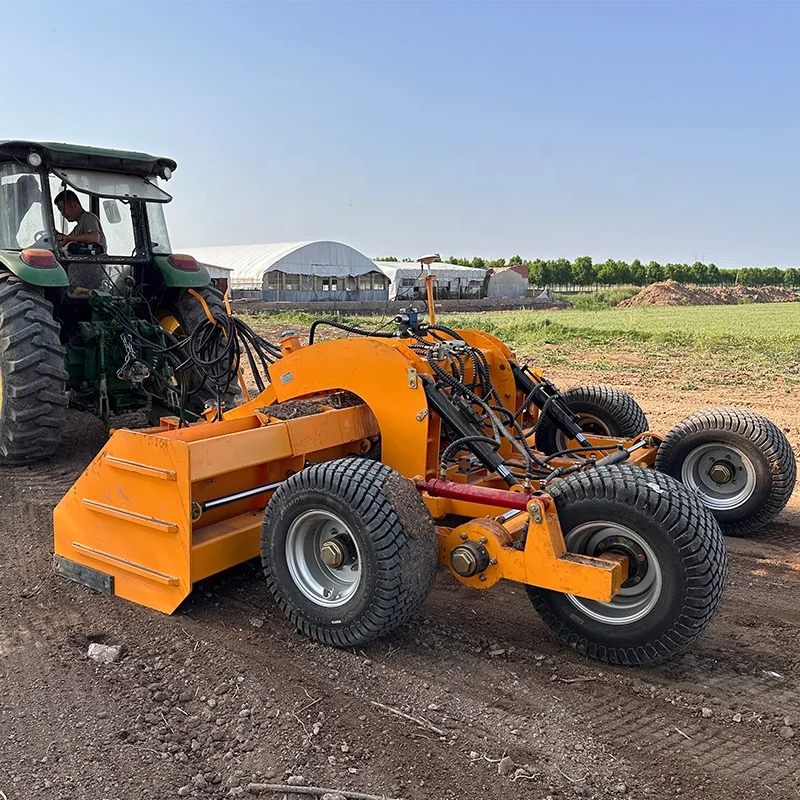

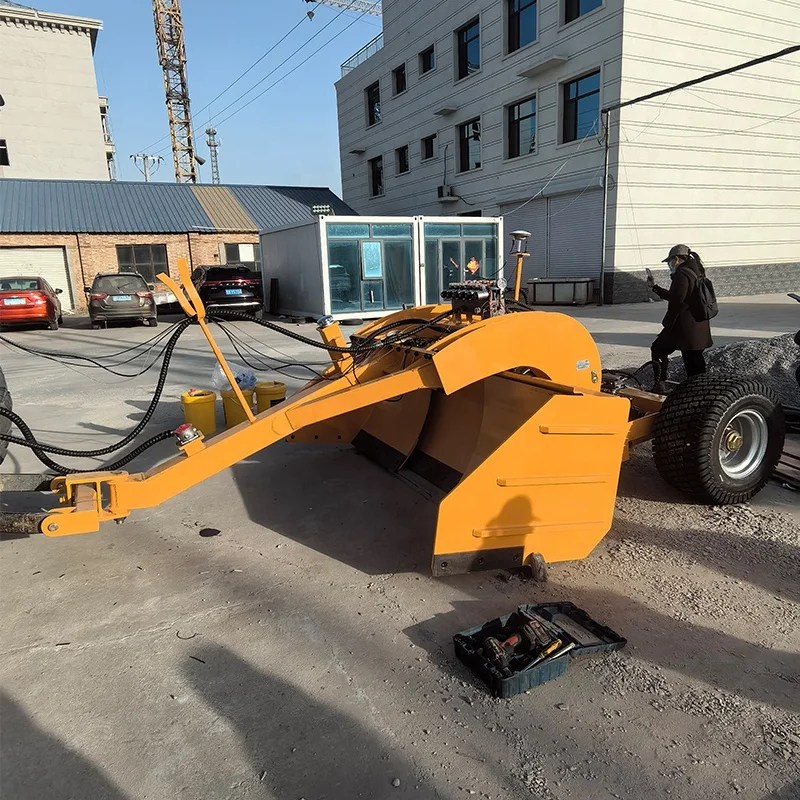

road leveling machine soil leveler mini motor grader screed leveling machine
A land grader is also known as a road grader or an automatic land grader. A land leveler is an earth-moving machine that uses a scraper to level the ground. The scraper is installed between the front and rear axles of the machine and can be raised, lowered, tilted, rotated and extended. It is flexible and accurate in movement, easy to operate, and has a high degree of precision in leveling the site. It is suitable for building roadbeds and pavements, building slopes, and digging ditches. It can also mix pavement mixtures, remove snow, push bulk materials, and maintain dirt and gravel roads.
Features: The machine is equipped with a satellite system for higher precision leveling.
Features: The machine is equipped with a satellite system for higher precision leveling.
Machine model | Large curved beam satellite land grader | ||||
Requires power | 150-200hp | Tire model | 31*15.5-15 | ||
Machine weight | 2300 kg | Hydraulic input | 4 set | ||
Working width | 2.5-4 M adjustable | Work efficiency | 5-8 acres / hour | ||
Shovel volume | 2.5-4 m³ | Horizontal error | ± 2 cm | ||
Plate thickness | Side plate 14MM+bottom plate 10MM | Cylinder Model | Main cylinder 80*450+tilt cylinder 63*450 | ||
Side plate 14MM+bottom plate 10MM | 12VDC36W for tractor traction, special solenoid valve group for forklift traction | Satellite system | Tianchen Beidou (can be installed according to customer requirements) | ||
Motor | Multi-circuit synchronous motor | Oil filter | RFA-63*20L | ||
Overall size | 4500* (2600-4100 )* 1200 mm | ||||
