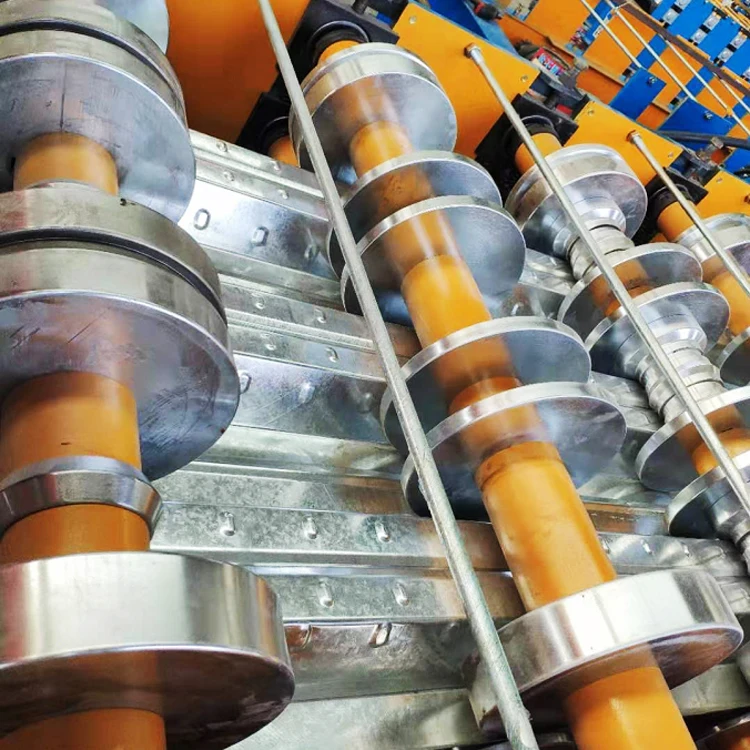

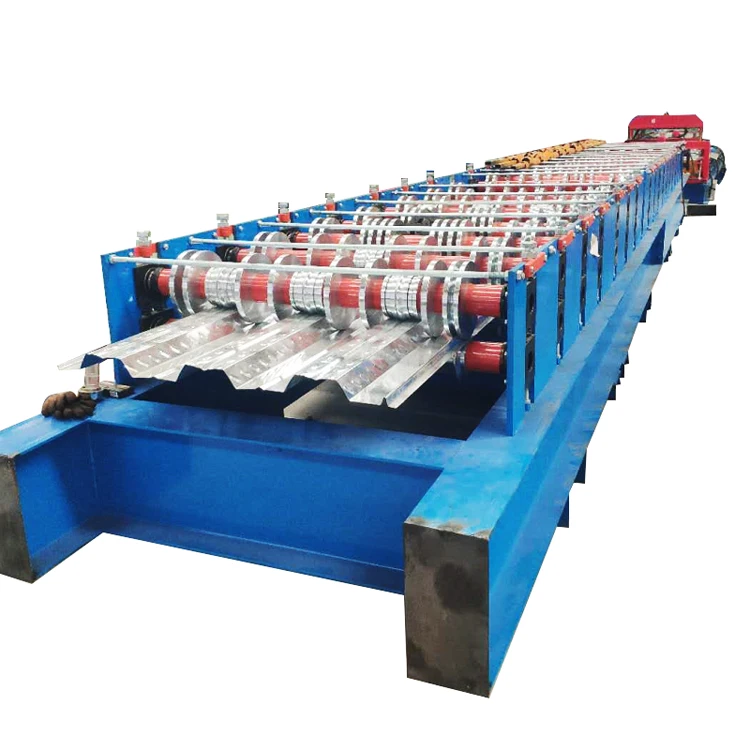

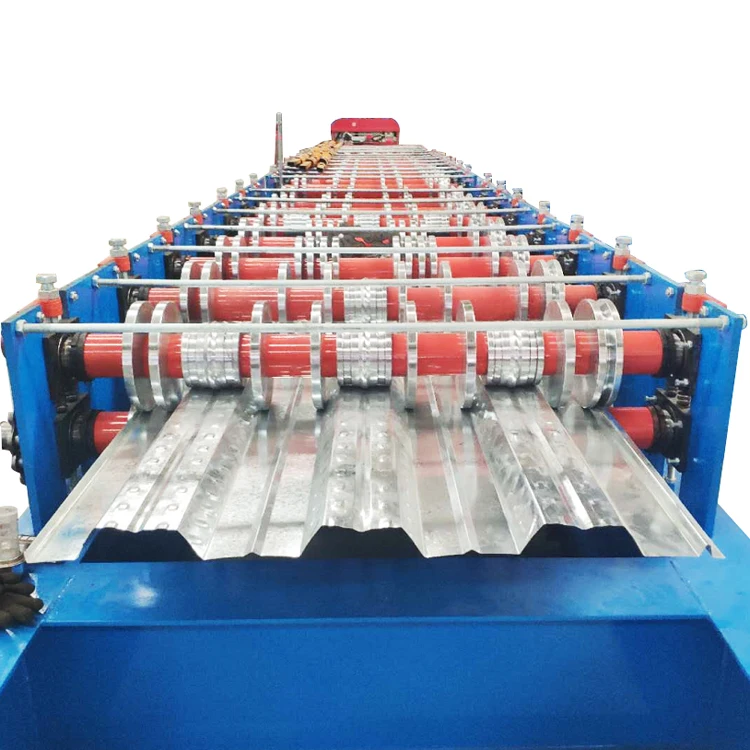

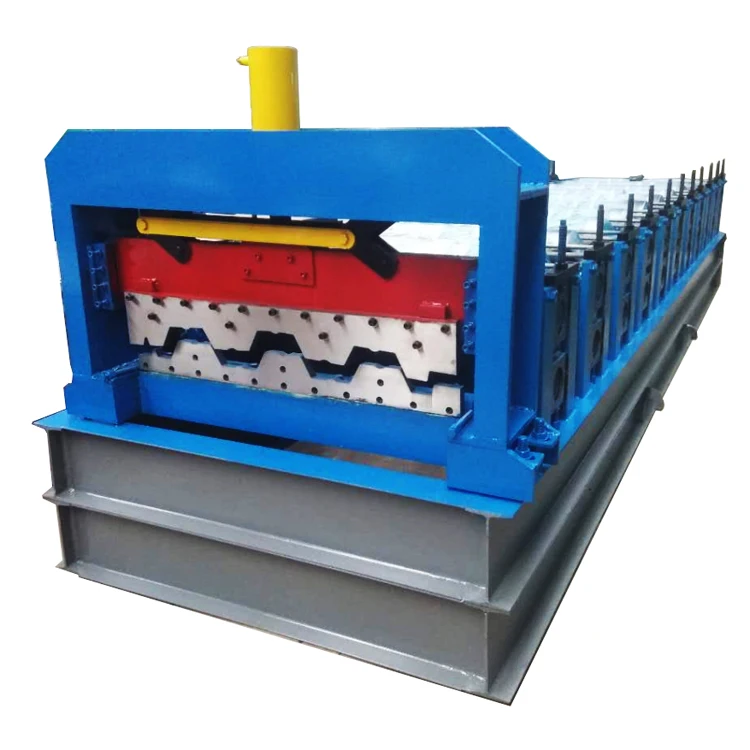

Steel Structure Metal 688 Deck Roll Forming Machine floor decking Steel Galvanized Floor Decking Roll Forming

Share on (1601217894348):


Price:$14,000.00 - $14,500.00

Quantity:


Product Overview

Description



Company Information


 01_1001_0101_1102_09





Product Description





product  Specifications



































































































Roller steps12-28
Dimension9000*1500*1500mm
Weight4-7t
Feeding width1000mm
Forming thickness0.3-0.9mm
Large frame350mm H-Beam
Diameter of rollerΦ80mm
Middle plate18-20mm
Chain Size1-3inch
Voltage380V 50HZ 3 phases or customized
Motor power11kw
Pump station power7.5kw/(7.5kw hydraulic motor)
Transducer power380v
Cutting systemHydraulic cutting
Material of cuttingCr12
Control systemPLC brand :Panasonic
Length error : ±1mm
Production capacity12-15m/min
Warranty

1 year and we provide technical support for whole life, and overseas


service


Maintain Easily :Timely adding oil
Payment terms30%  in advance, the balance before delivery
Package Standard package
Delivery 40days after receiving the deposit




Related Products

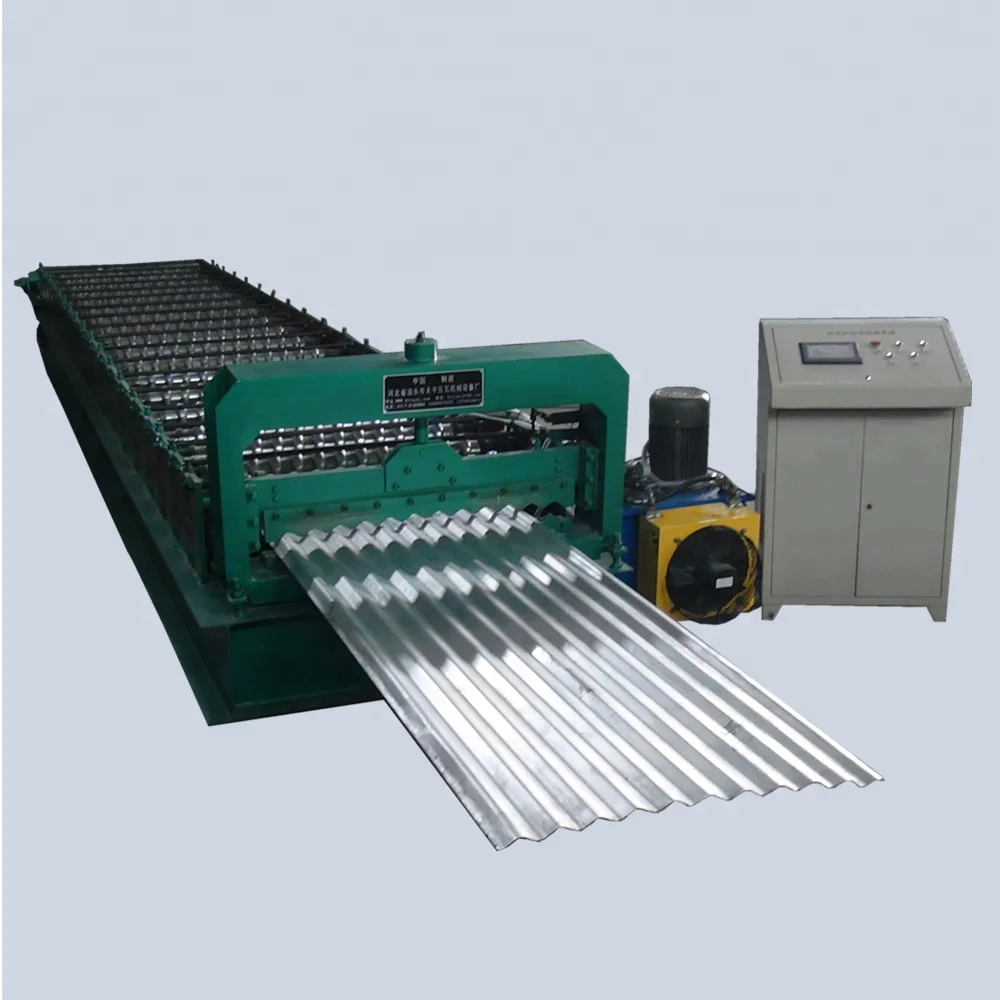

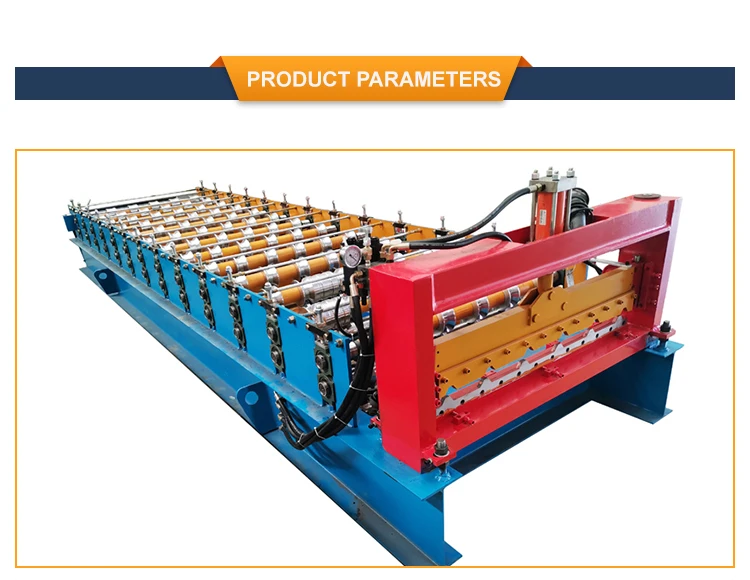

 IBR01(1)_0301_0201(1)_0309Corrugated-roof-sheet-making-machine-manual-roof.png6123





FAQ

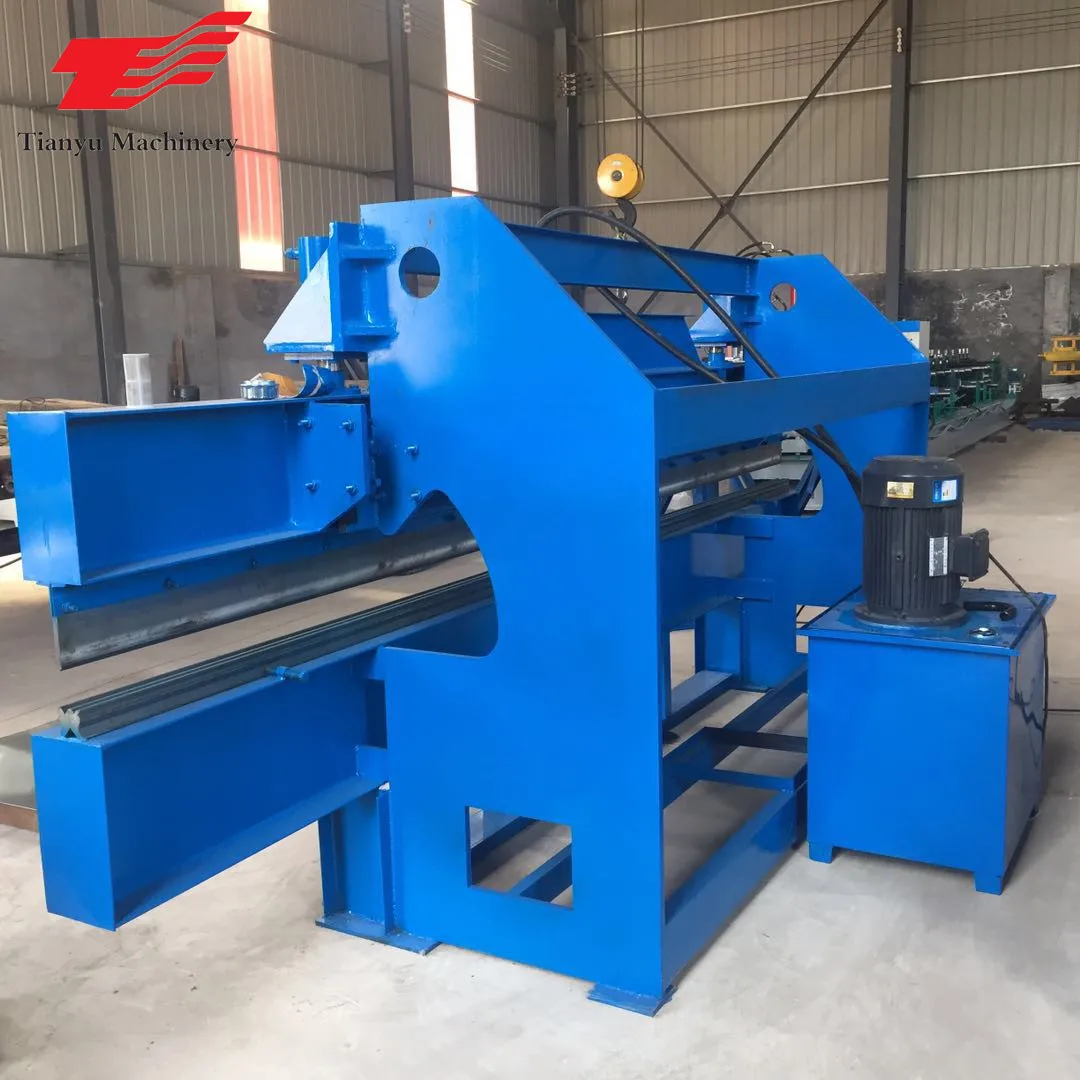

construction iron corrugation forming and bending machine for curving arches sheets


Q:Are you a manufactuer or trading company?
A:We are a manufacturer specialized in producing all kinds of roll forming machines.


 Q:Do you have after sales support?


A: Yes, we are happy to give advice and we also have skilled technicians available across the world.


Q:What is the payment terms?


A:T/T (30% by TT in advance, the rest 70% to be payed by TT after you inspect the machine in sell s factory before delivery)and T/C.


Q: What can you do if the machine broken?


A: Our machine's quality is very good. And we supply the technical support for the whole life. Because the warranty is one year, if the broken parts can't repair, we will send you the new parts freely. But you need pay the express cost yourself. Thanks for your understanding. If after the warranty period, we can solve the problems through negotiation.


 Q: Will you deliver the right goods as ordered? How can I trust you?


A: Yes, we will. The core of our company culture is honesty and credit. TY is ALIBAB’s Gold supplier with


BV assessment and CE certificate.


 Q: Do you sell only standard machines?


A: No, most of our machines are built according to customers’ specifications, using top brand name components.


 Q: How does your factory do regarding quality control?


A: Quality is priority. TY People always attach great importance to qulity control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment. Be reassured please.


 Q: Can you be responsible for transport?


A: Yes. Please tell me the destination port or address. We have rich experience in transport.


 Q: Can you supply the raw materials?


A: Yes. We can supply the color steel coil, galvanized steel coil, galvalume steel coil and aluminum coil.
