Product Overview
Description
Product Description

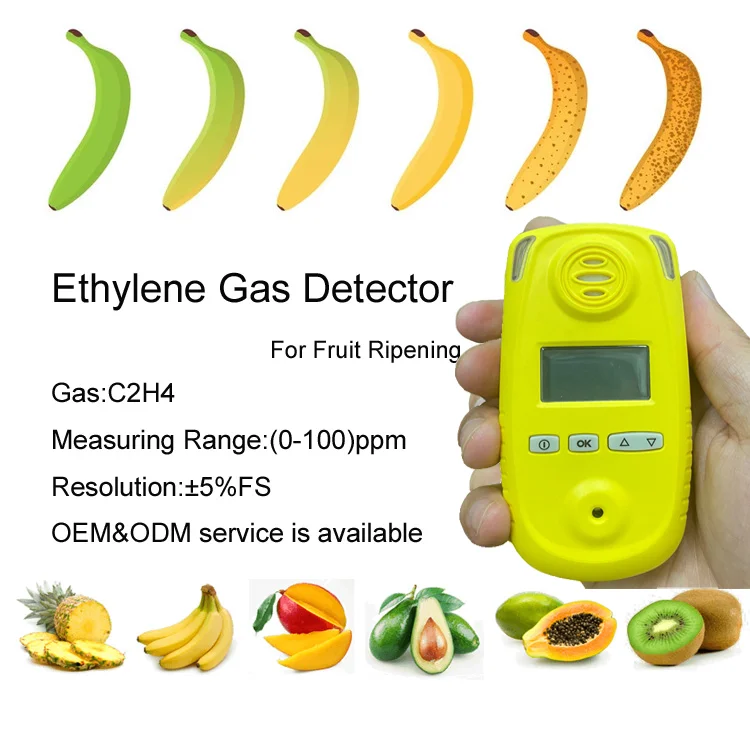

An ethylene C2H4 detector (C2H4 monitor) is used to control and measure concentrations of this gas in ambient air. Also known asethene, ethylene is a gas found in various industries such as plastics synthesis, climacteric plant development and fruit
ripening, or the refrigeration industry.
ripening, or the refrigeration industry.
It is a highly flammable volatile organic compound (explosive limits 2.70% - 36%)able to generate harmful effects on health during strong exposure (irritation of the respiratory tract, dizziness, etc.) hence the need to use an ethylene detector to precisely monitor the concentration of this gas.
The Portable Ethylene Gas Detectors can detect smallest leak of Ethylene (C2H4) gas with display of gas concentrations on LCD display. These detectors have the feature of easy handling and programming with 3 keys and power supply with rechargeable batteries and on/ off option. They have password protected function menu, plug-in sensor and built-in audio buzzer. These Portable Gas Detectors also have optional data logging facility with 50000 records which are visible in ASCII format while downloading to PC via USB interface.
SA-201 Personal Single Ethylene(C2H4) Gas Detector
This version is for the detection of flammable gases in the LEL range of 0-100% LEL
Portable, compact and lightweight
- ideal for use in multiple industries including oil and gas, steel works and chemical plants.Fully interchangeable intelligent sensor modules.

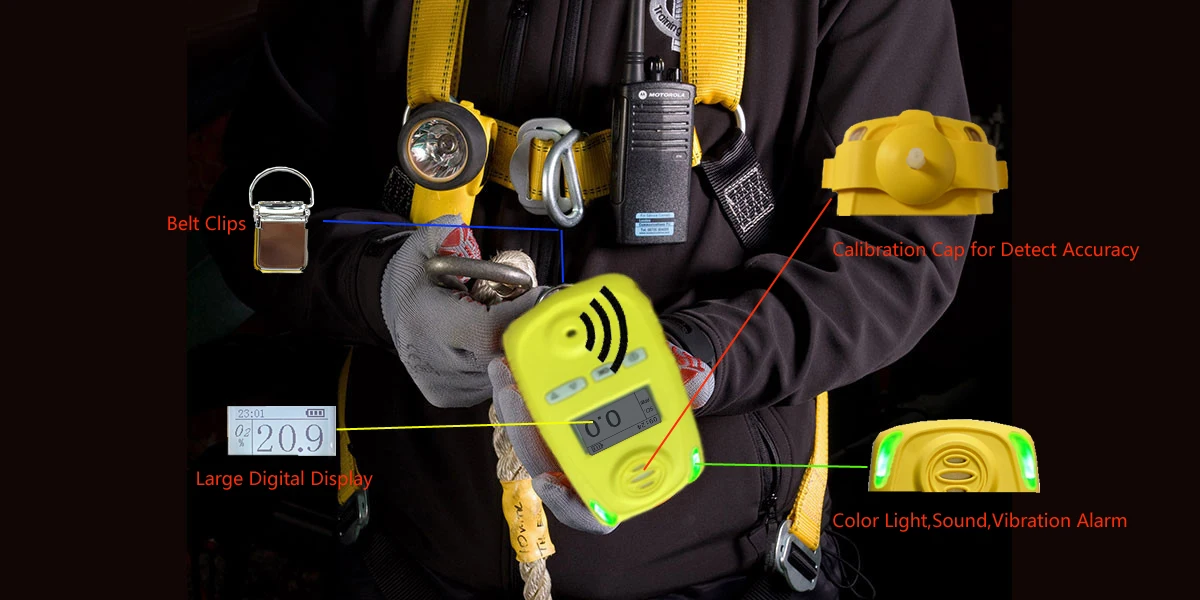

SA-201 portable methane/ethylene gas detector is a rugged, compact single gas personal safety monitor designed for use in the toughest environments. Its compact and lightweight design makes it ideal for use in industries such as oil and gas, chemical plants (with toxic gases), steel works (special CO sensor), hospitality (CO2) and waste and water works. Weighing just 134g, it is extremely durable, with high impact resistance and IP54 dust/water ingress protection, loud 75 dB alarms, a vivid red/ blue visual warning, single-button control and an easy-to-read, backlit LCD display to ensure clear viewing of gas level readings, alarm conditions and battery life. Data and event logging are available.SA Technology is also available in a safe area CO2 version offering (0.0-5.0)vol% carbon dioxide measurement.
Methane/ethylene gas detector Key features:
-Easy to operation
-Easy to read LCD display with back-light
-Clear indication of operating status
-75dBA audible alarm
-Striking twin red/blue visual alarm
-Internal vibrating alarm
-2 levels of instantaneous alarm
-Tough ABS plastic housing,instrinsically safe
-Full elastomeric overmoulding
-High impact resistance
-IP54 compliant
-Easy to operation
-Easy to read LCD display with back-light
-Clear indication of operating status
-75dBA audible alarm
-Striking twin red/blue visual alarm
-Internal vibrating alarm
-2 levels of instantaneous alarm
-Tough ABS plastic housing,instrinsically safe
-Full elastomeric overmoulding
-High impact resistance
-IP54 compliant

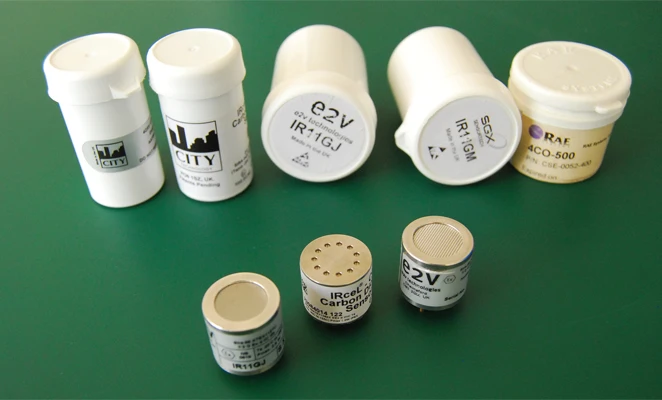

More brand sensors we provide.....
Like City,Honeywell,DD,Basic,Dynament,local brand high sensitive sensors
1.electrochemical sensor
2.catalytic combustion gas sensor

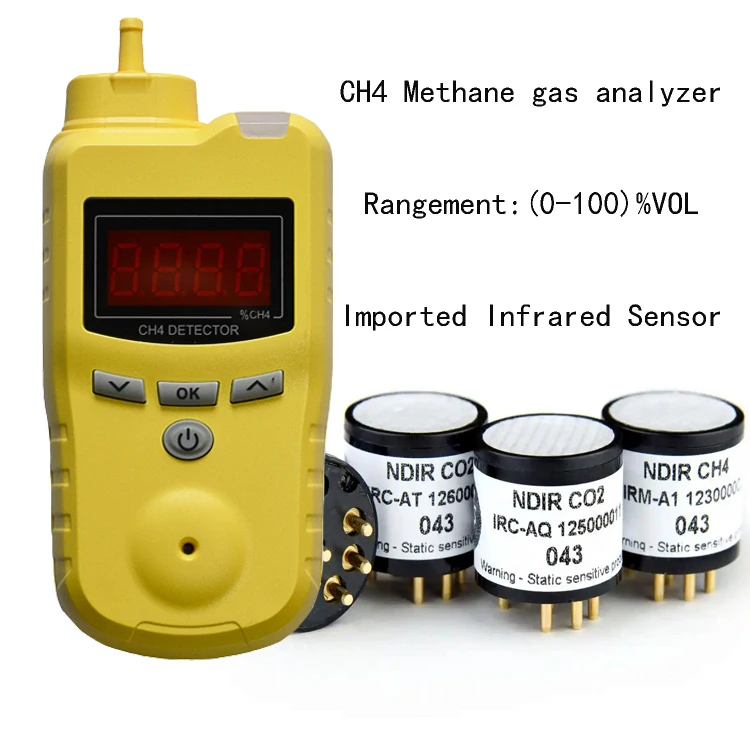

3.NDIR sensor
Specification
Ripening handheld pump C2H4 gas monitor electrochemical sensor 0-100ppm portable ethylene gas meter detector of fruits
Technical specification | Parameter |
Detecting gas | C2H4/CH4/LEL(optional) |
CH4 | |
Measurement range | (0.00～4.00)%Vol |
Measurement error | (0.00～1.00)%CH4:±0.10%CH4 (1.00～3.00)%CH4:true value±10% (3.00～4.00)%CH4:±0.30%CH4 |
Respond time | 20S(T90) |
Resolution | 0.01%vol |
Alarm point | 1.00%vol(can be adjusted in whole range) |
LEL | |
Measurement range | (0.00～100)%LEL |
Measurement error | (1～20)%LEL:±2%LEL (20～60)%LEL:true value±2% (60～100)%LEL:±6%LEL |
Respond time | 20S(T90) |
Resolution | 1%LEL |
Alarm point | Fully adjustable 20%LEL |
Alarm sound intensity | ≥75dB |
Alarm way | Sound,light alarm |
Alarm indicator light | can be visible in the distance of not less 20m |
Sensor life | ≥1 years(LEL,CH4) |
Working current | 95mA |
Continuous operating hours | ≥12 hours |
Battery item | Pl123450 3.7V/1500mA |
Battery short circuit current | 2A |
Charging time | 4-5 hours |
Protection level | IP54 |
Working temperature | -25℃～55℃;short time for -40℃～55℃ |
Size | 130*66*30mm |
Characters of SA-201 Methane/ethylene gas detector
Robust
Tough imported ABS materials housing – protects you in the harshest environments
Water and dust resistant to IP54
Full overmoulding – high impact resistance
Effective warning
Two levels of instantaneous alarm STEL and TWA alarms for toxic versions –
ensures prompt evacuation from hazardous zone
ensures prompt evacuation from hazardous zone
75dB audible alarm
red/blue visual alarm – can be customized Internal vibrating alarm
Flexible
Versions available for flammable gas, oxygen and toxic gases – gas detector can be customized according to your
requirements
requirements
Rechargeable Li-battery versions for all gas types
Real-time TWA and STEL alarm
Fully interchangeable intelligent catalytic combustion gas sensor modules
User friendly
button operation – quick and easy to use Back-lit display for gas
diagnostics and operating status – easy to read
diagnostics and operating status – easy to read
Ultra lightweight and back clip design – comfortable to wear

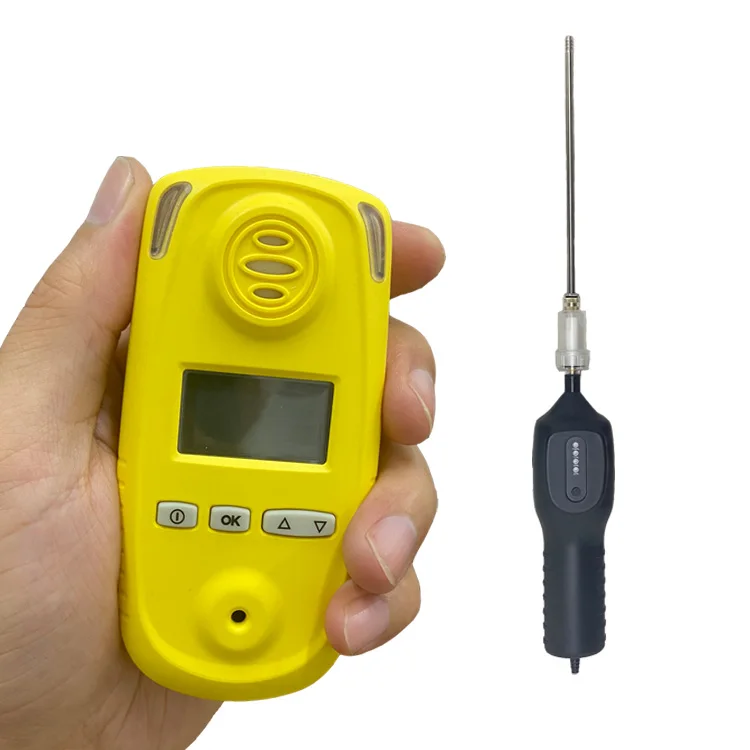

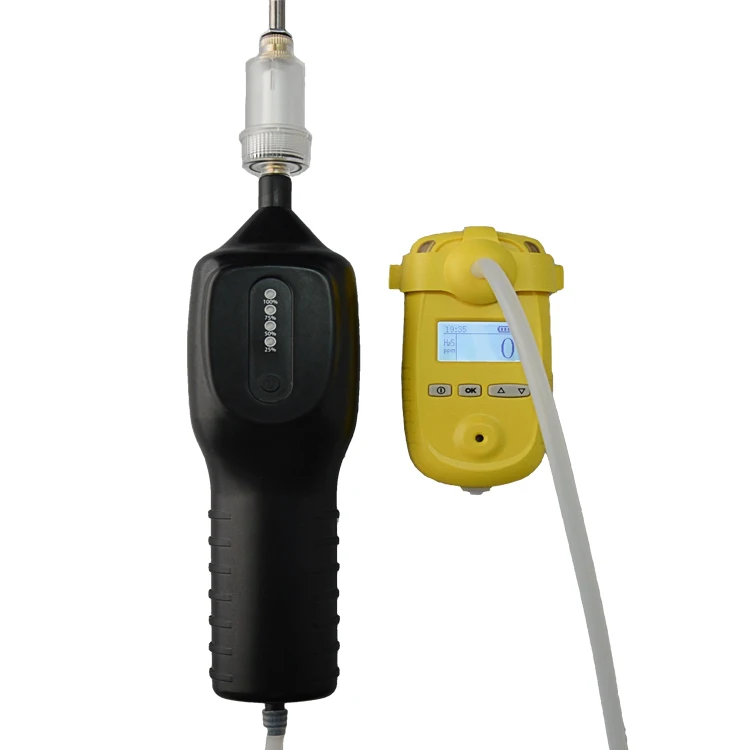

External pump or sniffer is available for gas leakage detection
Application
This SA-M201 single portable flammable gas detector is applied to underground coal mine,petrochemical industry, municipal, environmental protection and other spaces where multi gas may exist.This multi gas meter can be used for detecting methane(CH4) or combustible gas(LEL),oxygen(O2),carbon monoxide(CO) and hydrogen sulfide(H2S) gases simultaneously.When the concentration of any gas in the environment is higher or lower than that of set alarm point,this device with send out both sound and light alarms to warn users who wears it to take protective actions.
This SA-M201 single portable flammable gas detector is applied to underground coal mine,petrochemical industry, municipal, environmental protection and other spaces where multi gas may exist.This multi gas meter can be used for detecting methane(CH4) or combustible gas(LEL),oxygen(O2),carbon monoxide(CO) and hydrogen sulfide(H2S) gases simultaneously.When the concentration of any gas in the environment is higher or lower than that of set alarm point,this device with send out both sound and light alarms to warn users who wears it to take protective actions.
AVAILABLE PART NUMBERS AND CONFIGURATIONS
0-100% LEL methane (CH4), rechargeable
0-100% LEL ethylene (C2H4), rechargeable
0-100% LEL hydrogen (H2), rechargeable
Refineries & Petrochemical plant including offshore drilling and plant shutdowns
Waste water treatment plants
Steel mills
Pulp & Paper Industry
Personal Monitoring
Leak Detection
Incoming Cylinder inspection
Emergency response
Equipment maintenance
Pre-entry check quality control
Process or emission gas analysis
Waste water treatment plants
Steel mills
Pulp & Paper Industry
Personal Monitoring
Leak Detection
Incoming Cylinder inspection
Emergency response
Equipment maintenance
Pre-entry check quality control
Process or emission gas analysis
Packing & Delivery
Those portable lel flammable gas analyzer and accessories will be packed into carton box before shipping.

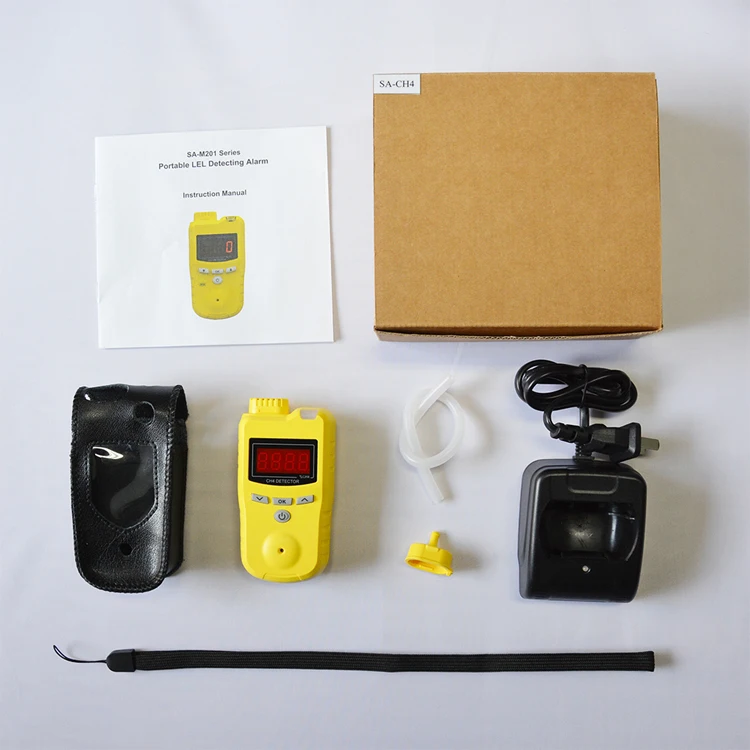

Our standard SA-201 Portable Methane/ethylene gas detector packing list as below:
1.LEL 0~100% methane/C2H4 ethylene gas detector x 1
2.Rechargeable plug x 1
3.Calibration tube&Caps
4.Leather cage
5.Manual instruction x 1
Company Profile
Beijing Shi'An Technology Instrument Co.,Ltd possesses the ability to design, manufacture and sell the gas detection instruments in the global market.
The gas detection instruments we designed are widely used in petrochemical, municipal environmental protection,coal
mine,residential places,and other natural and wide ranges of industrial environments.We can customize different gas detection instruments according to customers' requirements.
The gas detection instruments we designed are widely used in petrochemical, municipal environmental protection,coal
mine,residential places,and other natural and wide ranges of industrial environments.We can customize different gas detection instruments according to customers' requirements.
