Ideal BSS Series Flash Butt Welding machine for band saw blades up to 25 mm width
- Category: >>>
- Supplier: Guangzhou DuroWelder Limited
Share on (1601219611640):
Product Overview
Description

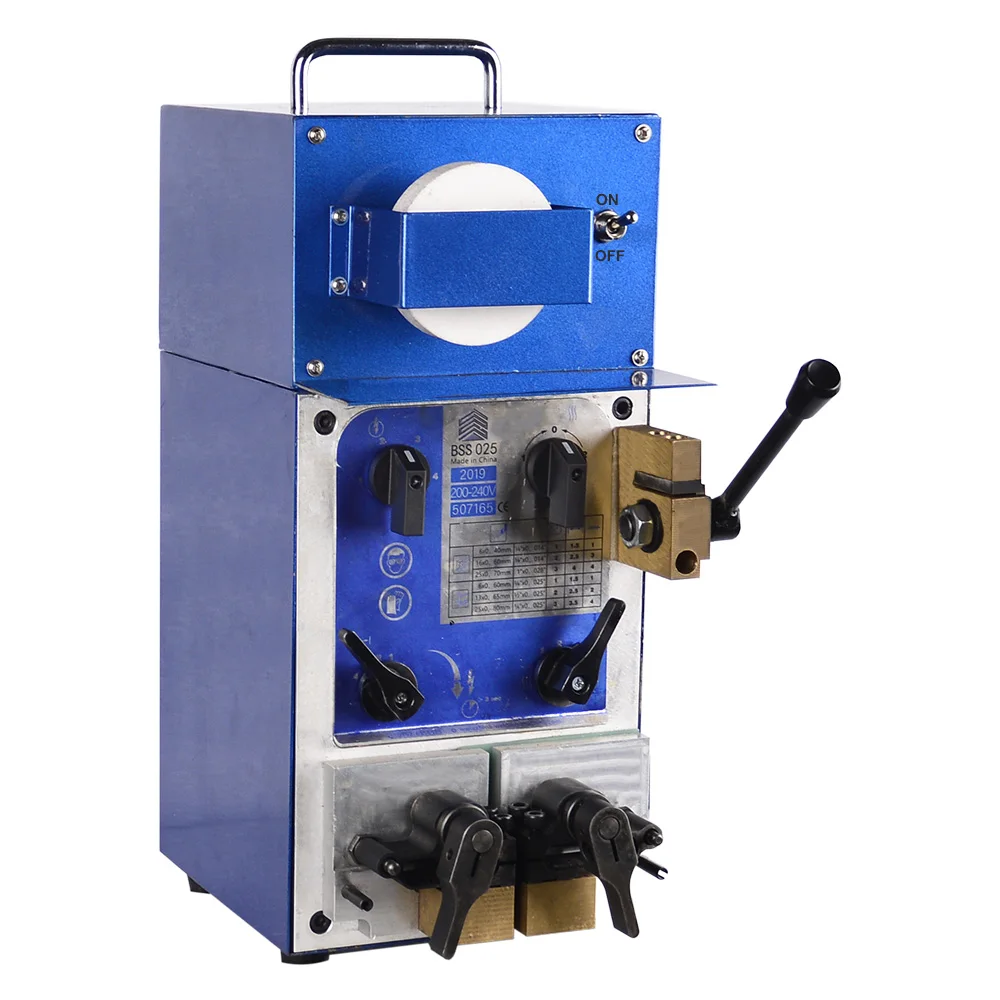

BSS 025 Bandsaw Butt Welding Machine
Main Description of the Butt Welder
The bandsaw butt welding machine can joint the cutting wood bandsaws and cutting metal bandsaws with the constant and perfect quality, which is designed and produced for industrial mass production.
The welder with the annealing function can anneal the workpiece precisely after butt welding, also fixed with the type AHM-025 Bandsaw Square Cutter, type ESM-025 Grinder for removal of weld burr is optional, too.
Technical Data
Machine | Type | Unit | BSS-025 |
Input Voltage | V | 110 / 220-240 | |
Welding Range - Band Saws / Band Knives
| Metal Band Saws
| mm | 6.0 x 0.6 - 20 x 0.8 |
Wood Cutting Band Saws
| mm | 6.0 x 0.4 - 25 x 0.7 | |
Band Knives | mm | 6.0 x 0.4 - 20 x 0.7 | |
Welding Range - Steel Strip | S235JR (St37-2) | mm² | 20 |
X5CrNi18-10 (1.4301) | mm² | 15 | |
Clamping System | Upset Pressure | N | 50 |
Clamping Width | mm | 25 | |
Thickness Range | mm | 0.4-1.5 | |
Performance | Output Capacity (50% Duty Cycle) | KVA | 3 |
Secondary Voltage Taps | steps | 4 | |
Dimensions & Weight | W x L x H | mm | 174×210×270 |
Weight | kg | 18 |
