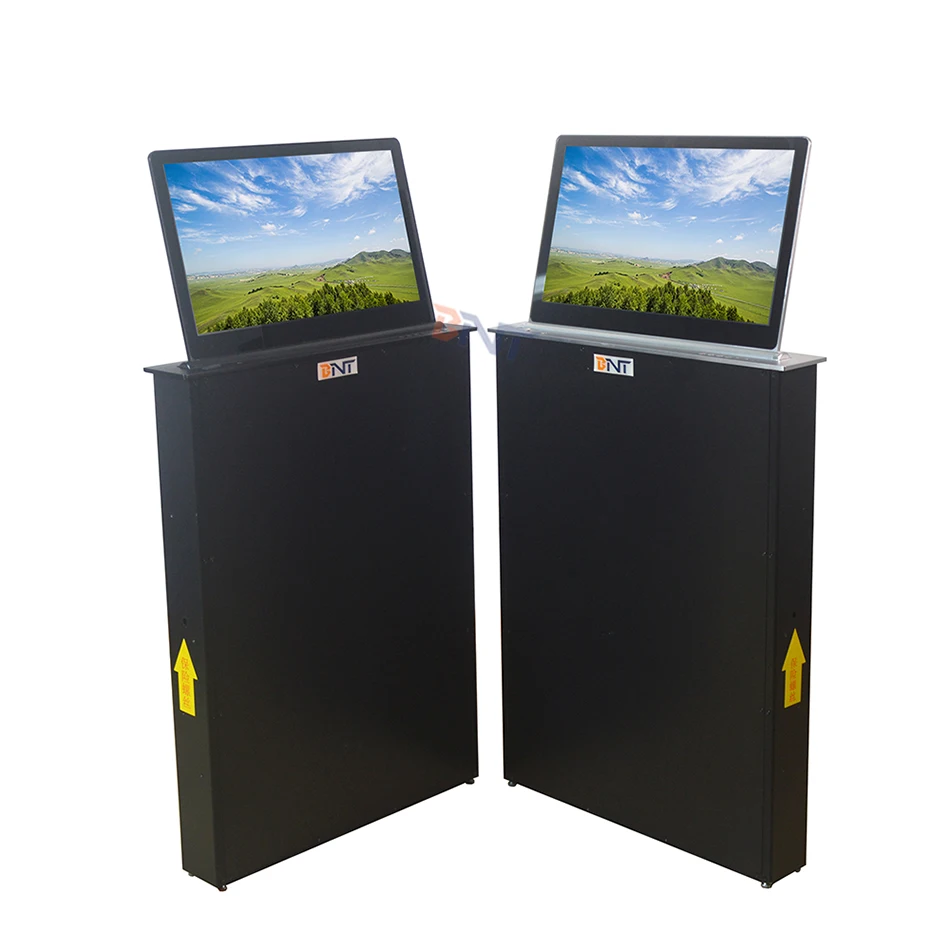

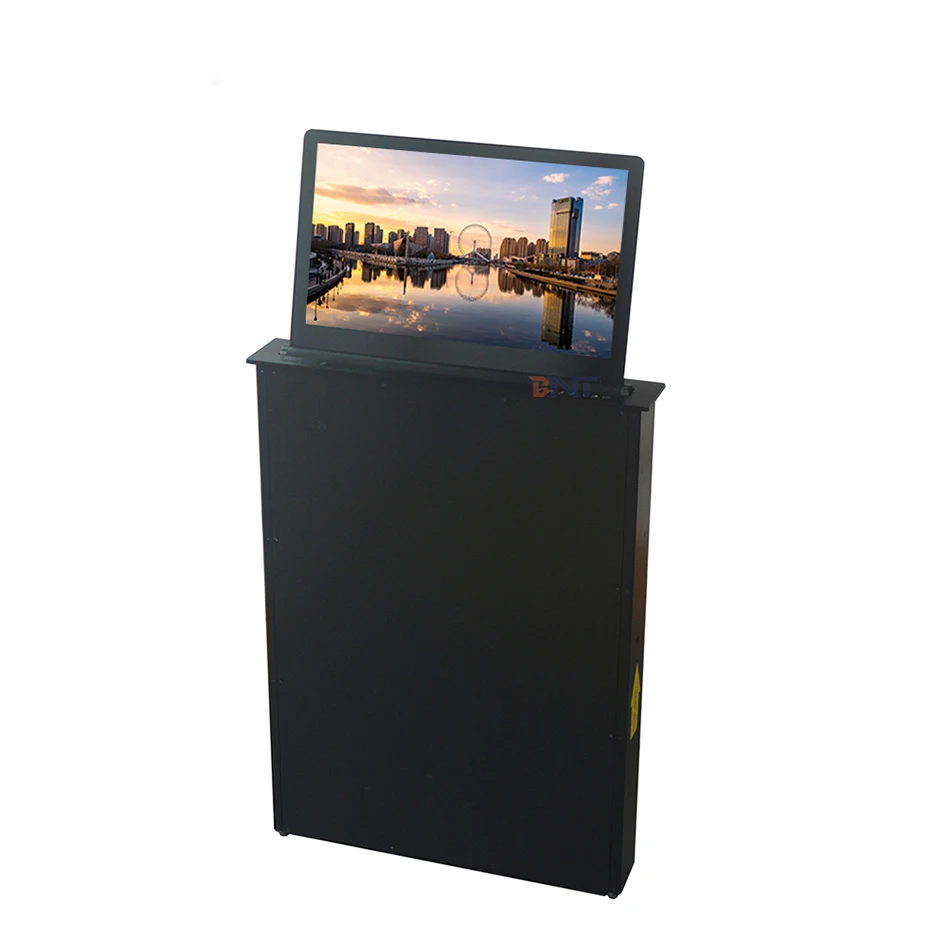

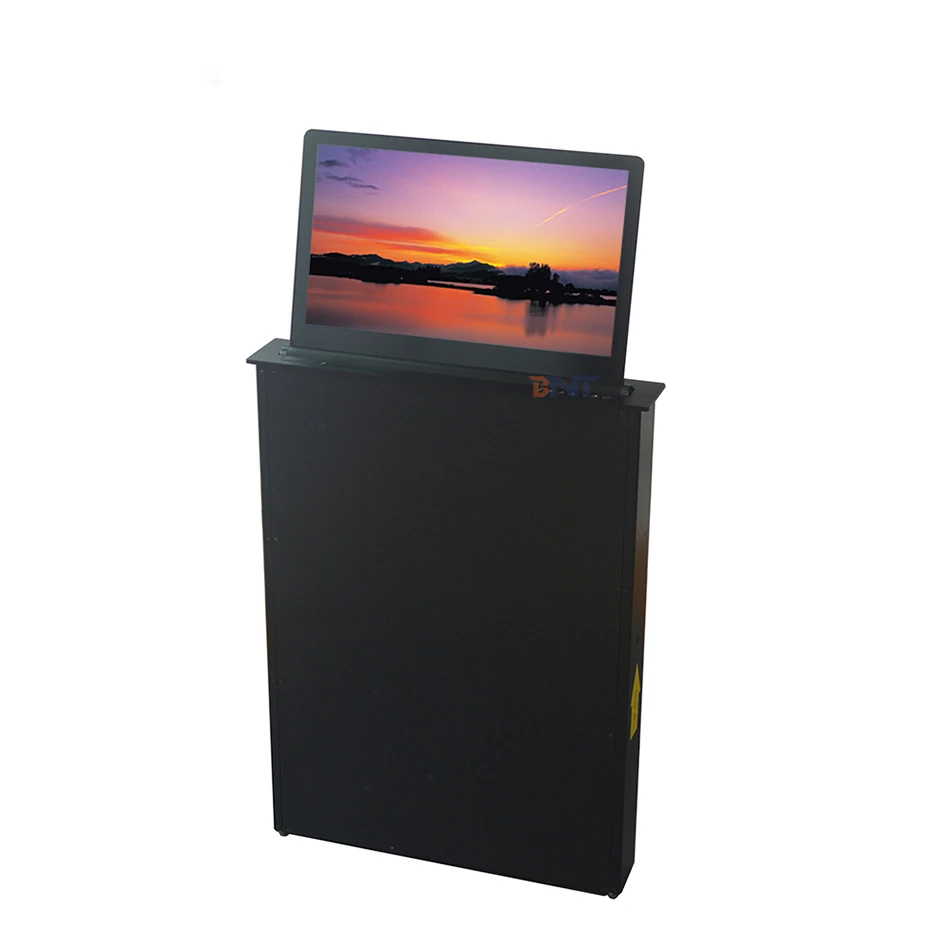

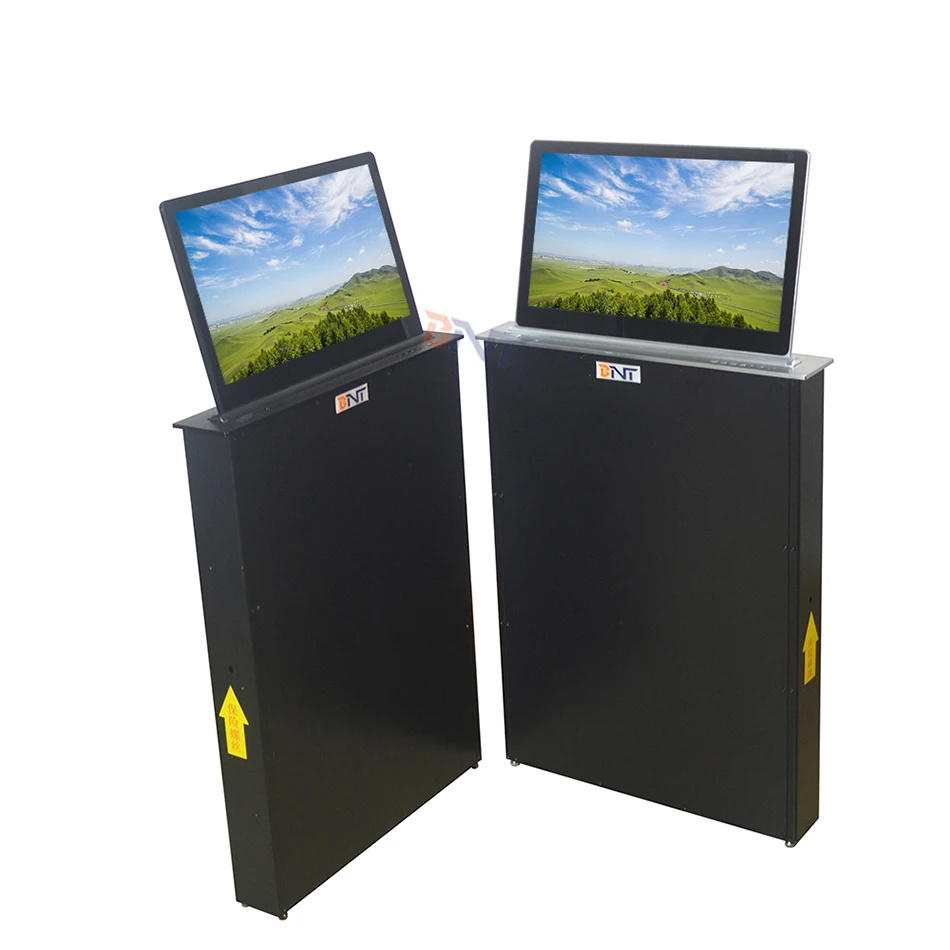

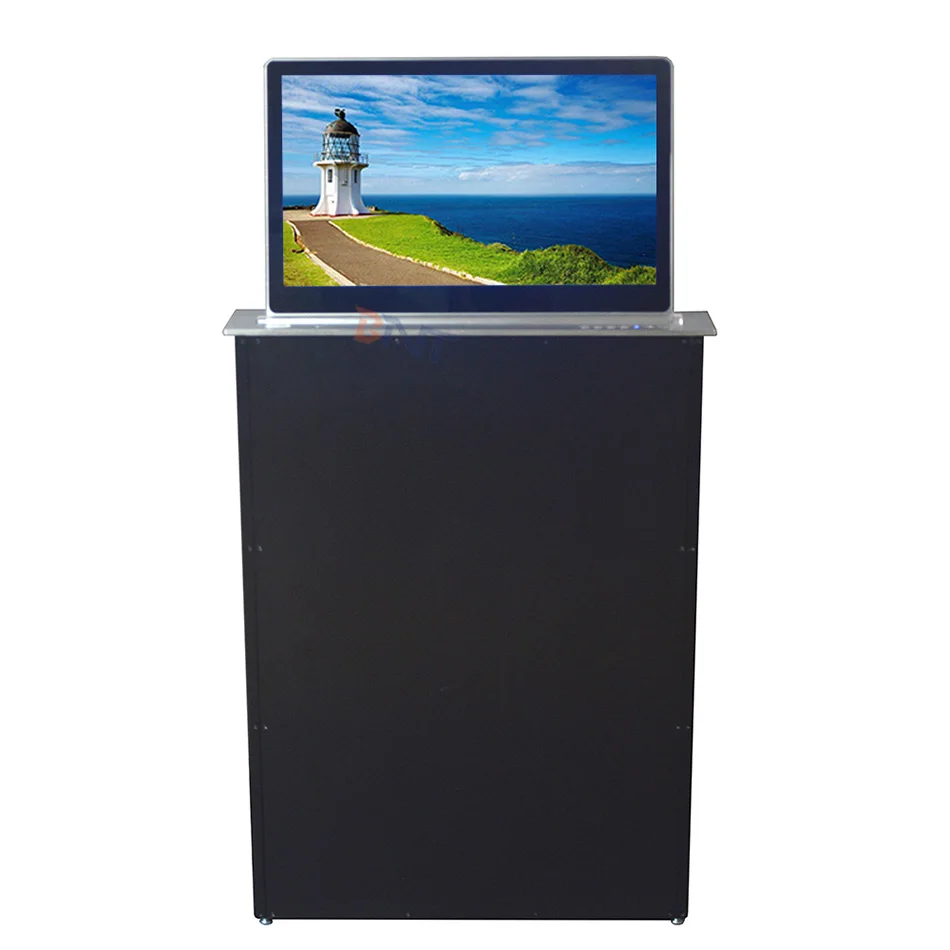

Conference Room Monitor Lift Hidden Desk Computer Equipment Conference System With Lcd
Conference Room Monitor Lift Hidden Desk Computer Equipment Conference System With Lcd
Conference Room Monitor Lift Hidden Desk Computer Equipment Conference System With Lcd
Conference Room Monitor Lift Hidden Desk Computer Equipment Conference System With Lcd
Conference Room Monitor Lift Hidden Desk Computer Equipment Conference System With Lcd
Conference Room Monitor Lift Hidden Desk Computer Equipment Conference System With Lcd
Conference Room Monitor Lift Hidden Desk Computer Equipment Conference System With Lcd

Conference Room Monitor Lift Hidden Desk Computer Equipment Conference System With Lcd

Share on (1601220113004):


Price:$230.00 - $320.00

Quantity:


Product Overview

Description





Description
Model No.
AML-15.6
Product Name
Retractable Monitor Lift
Meterial
Aluminum Alloy
Color
Black/Silver
Panel Size
450*80*5mm
Box Size
434*73*600mm
Cutout Size
434*73mm
Screen Size
377*238mm
Monitor
15.6 Inch FHD screen(16:9)
Resolution Ratio
1980*1080
Automatic Pitch Angle
20 degree
Interface
H-DMI+USB+RS232 I/O
Adjustable Angle
0-30 Degree
Protection System
With Anti-pinch Hand Protect
G.Weight
9.5kgs
Max Power
28W
Power Sipply
220V-50HZ,110V/60HZ
Working Sound
Less than 15 decibels
Control Way
Switch Button/Remote Control/Central Control


Panel Button Detial
UP/DOWNS/STOP For Monitor Operation
Titt/Bck For Angle Adjustable
Signal Switching For H-DMI To VGA
Adjust Brightness And Color For Screen



Integrated Item Selection
Full HD Touch Screen
Conference Syetem Discussion/Video/Voting Microphone
Full HD Camera
Smart AIO PC
Office Automatic Paperless System




All-aluminum structure chassis, small size, high-quality aluminum profile and CNC carved processing, elegant atmosphere.

The chassis is integrally formed, with fewer than four appearance screws, easy assembly, stable structure, and simple appearance.

Mechanical spring anti-pinch design, safety and humanization, and stable opening and closing of the door, avoiding the traditional
design of metal fatigue.


With finger protection function, when a person leaves their fingers inside it emits a beep sound and stops.
Full product made by aluminum alloy, super light and ultra thin design.

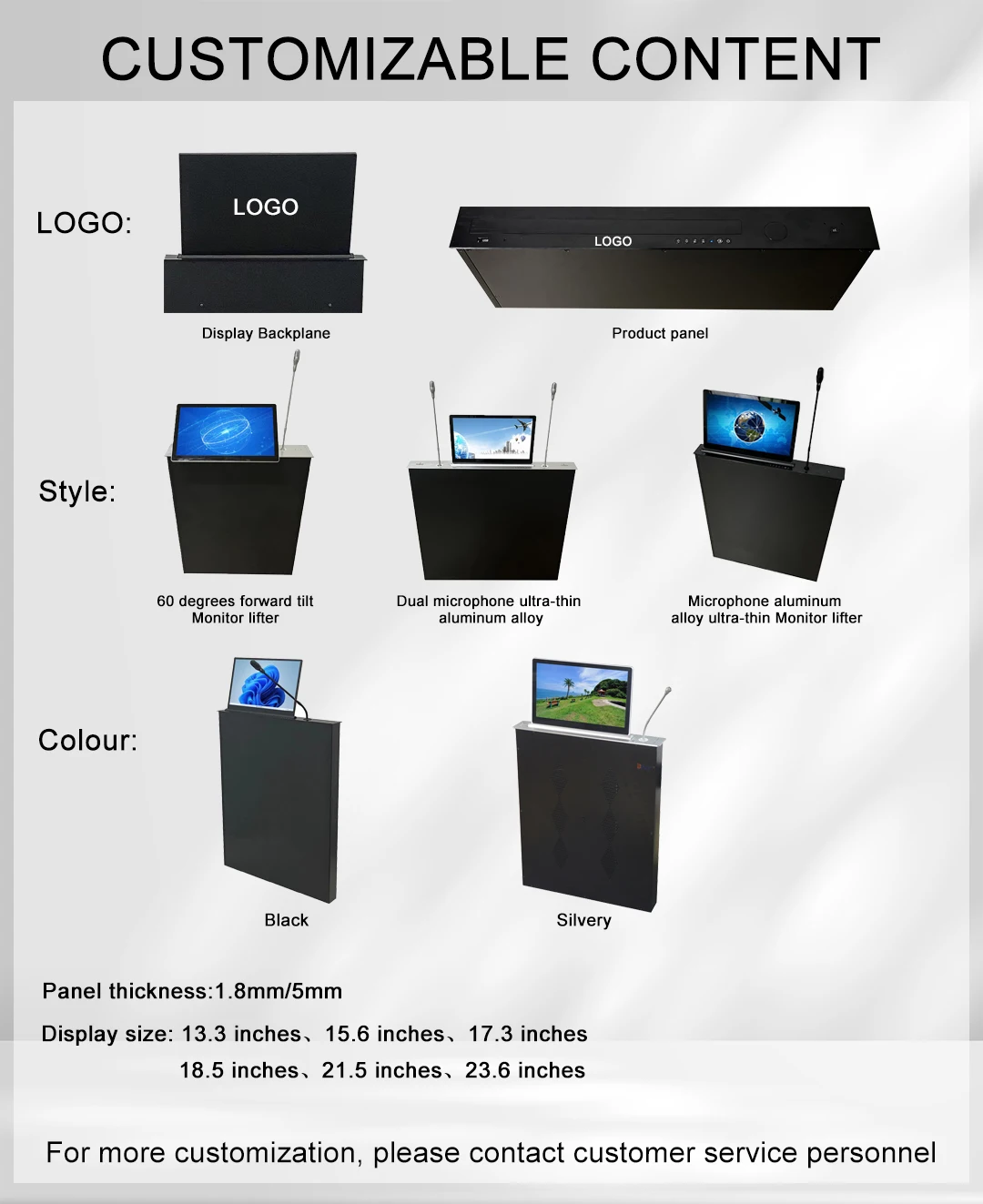

10.1, 13.3, 15.6, 17.3, 18.5, 21.5, 23.6 inch monitor size for selection, with name display screen(10.1") on the back of the monitor for conference system.

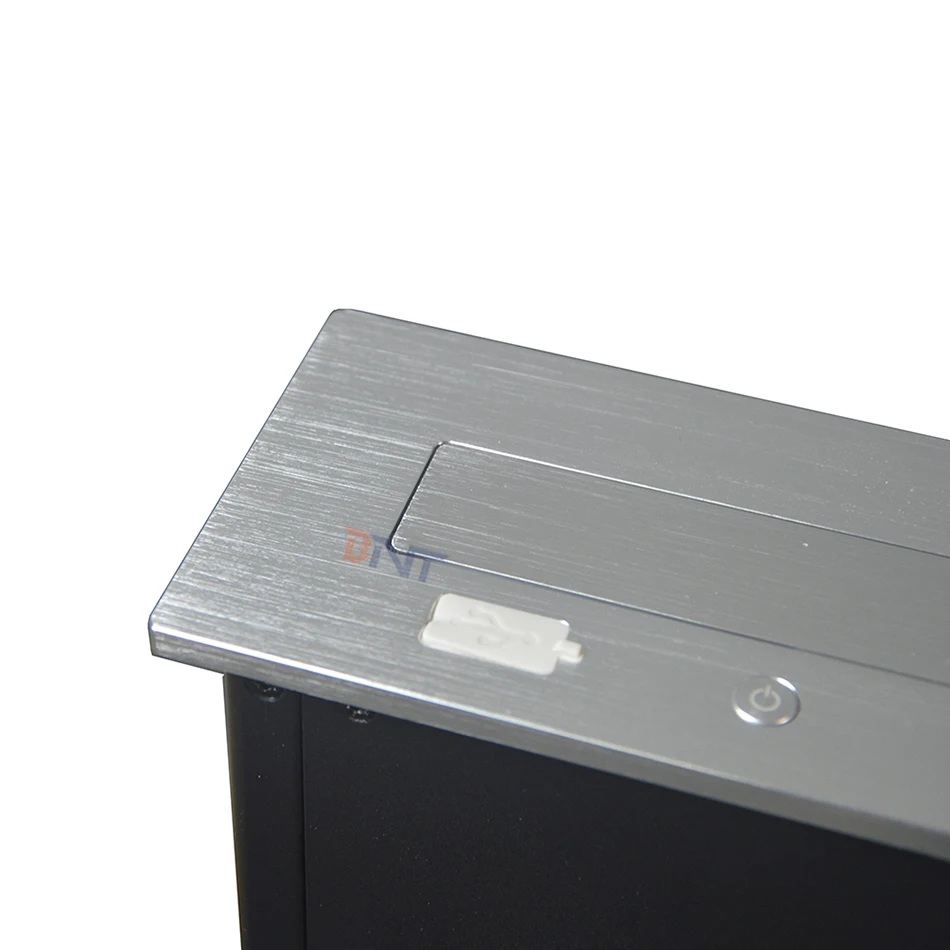

The panel is processed by advanced aluminum wire drawing process, which has strong corrosion resistance, delicate touch and durable, no burrs, beautiful atmosphere, brushed black, brushed silver, sanded silver and other processes.

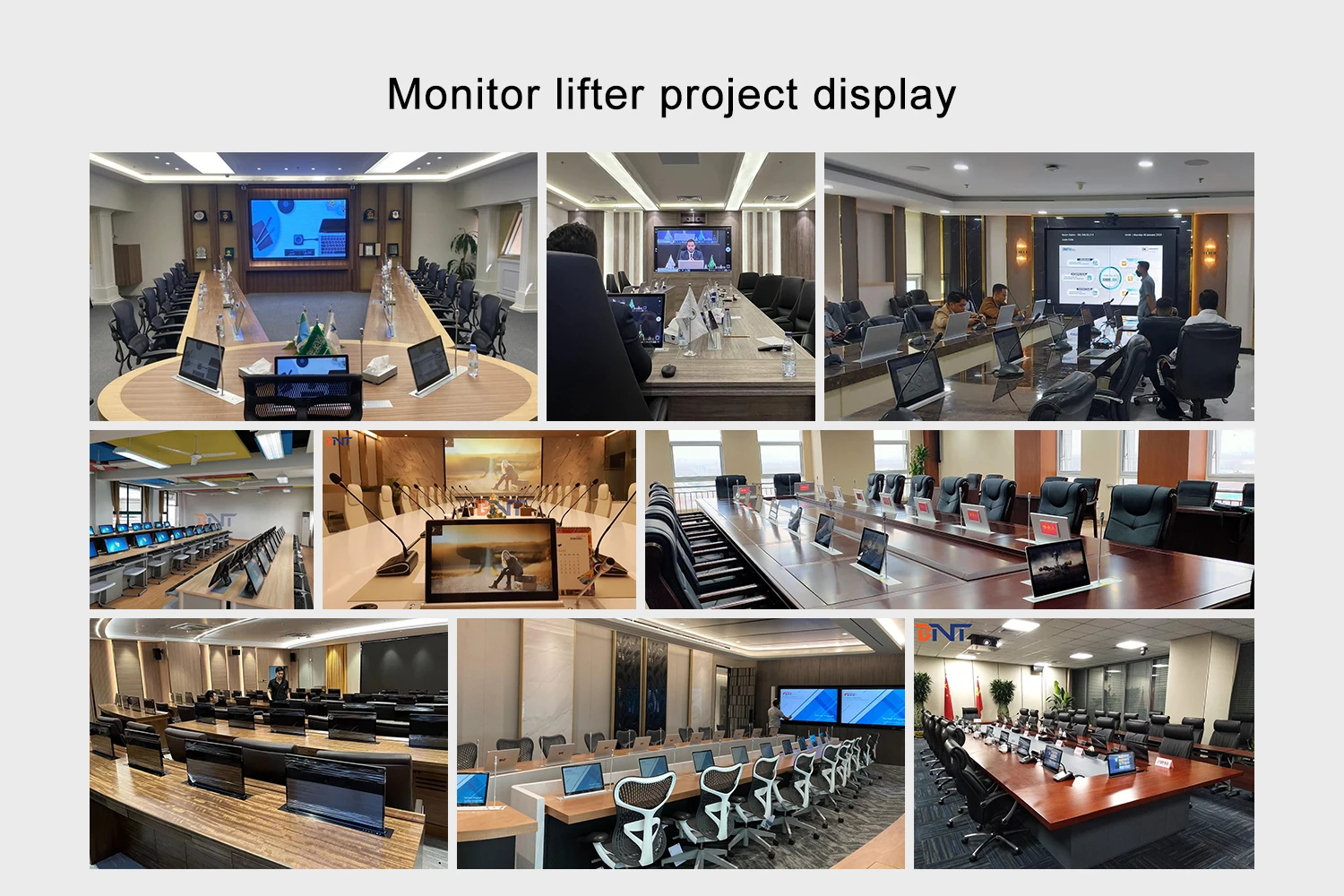

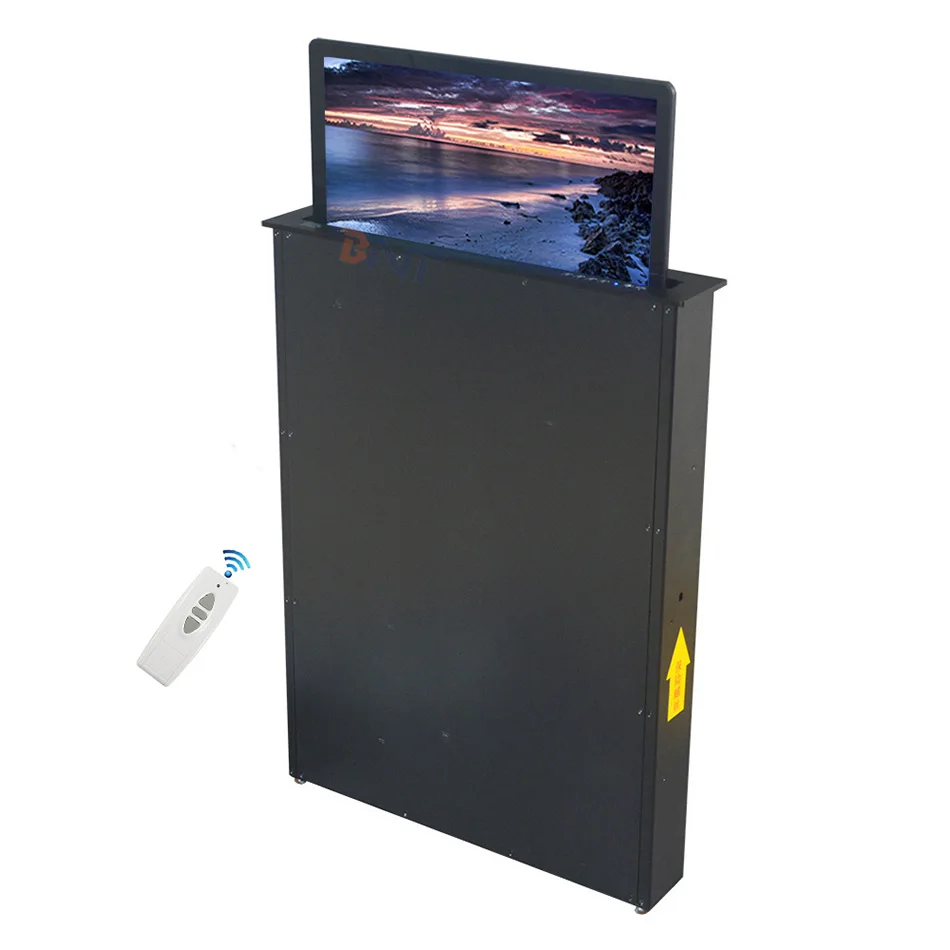

Smart hidden desk pop up monitor lift mechanism, Controlled by touch switch, remote control and RS232 central control system for video conference system, paperless conference system, conference AV solution.


The lifting system adopts special ultra-quiet gears, racks, and non-steel materials, which are quiet, stable and reliable.

After the screen rises, write vigorously on the screen without shaking to ensure the accuracy and continuity of touch positioning.
The internal structure adopts dust-proof and splash-proof design, which can prevent accidental splashing of water from the panel port or accidental damage to the circuit after falling into the chassis.
The elevation stroke is stable and trouble-free for life.


The circuit board is highly integrated, easy to use, and the circuitstructure is completely hidden, safe, and reduces operating failures.

The sinking design of the signal and control connection
port facilitates the installation of the connection line.

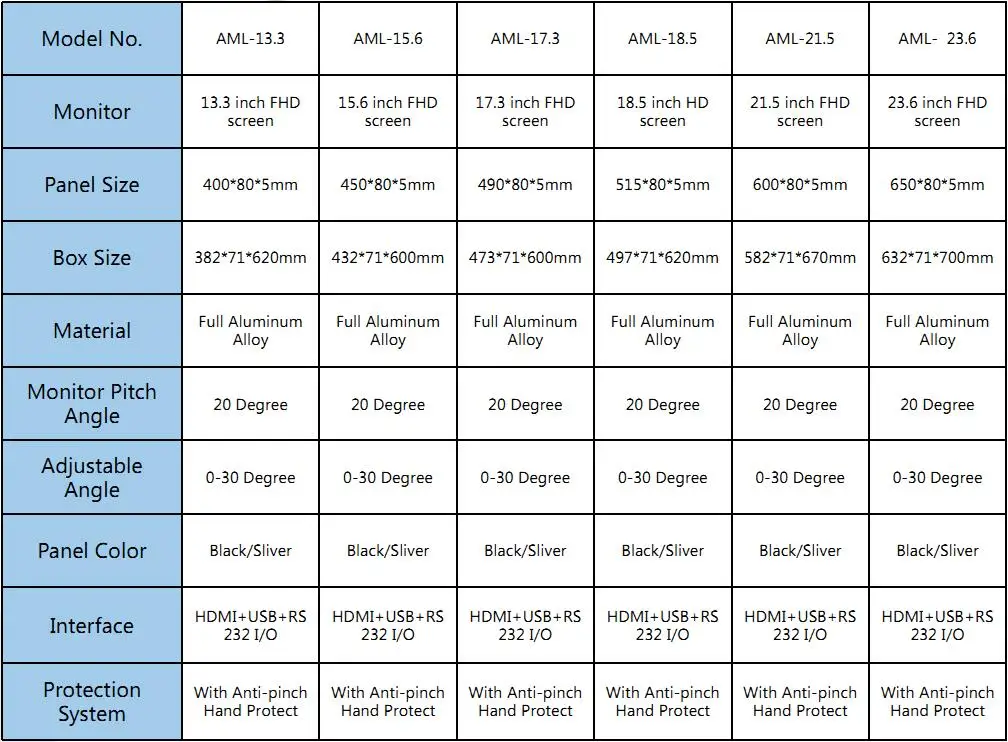

We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.






Company Profile
Guangzhou Boente Technology Co Ltd is an integrative high-tech enterprise which collects research, development, production, sale and service for desktop socket, pop up power socket, table power socket, LCD monitor lift, TV ceiling lift and projector accessories.Over 13+ years experience in OEM and customization manufacture, 1 set larger laser cutting machine, 10 sets stamping press machine, 2 sets larger bending 10 sets larger CNC machine tools, 2 sets laser making machine, 3 lines testing machine.
