HOT SALE SINOTRUK HOWO 8X4 Dump Truck howo dump truck
- Category: >>>
- Supplier: Jinan Sinotruk Sales Co. Ltd.
Share on (1601220186515):
Product Overview
Description
PRODUCT DISPLAY

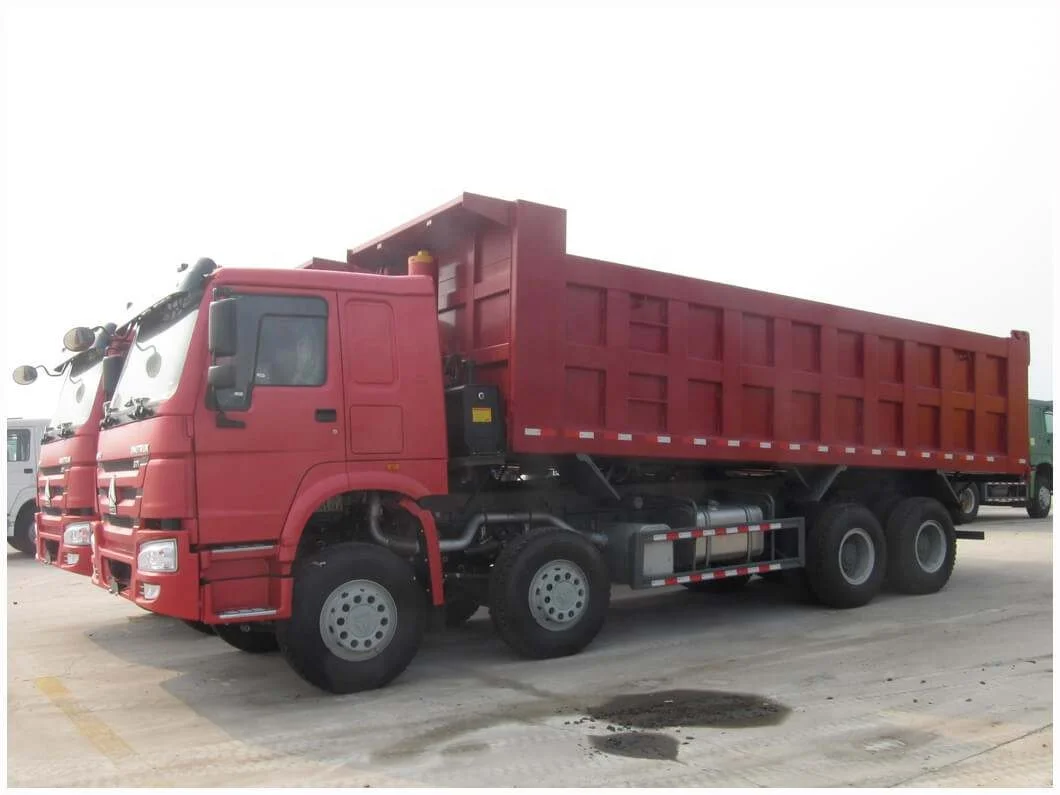

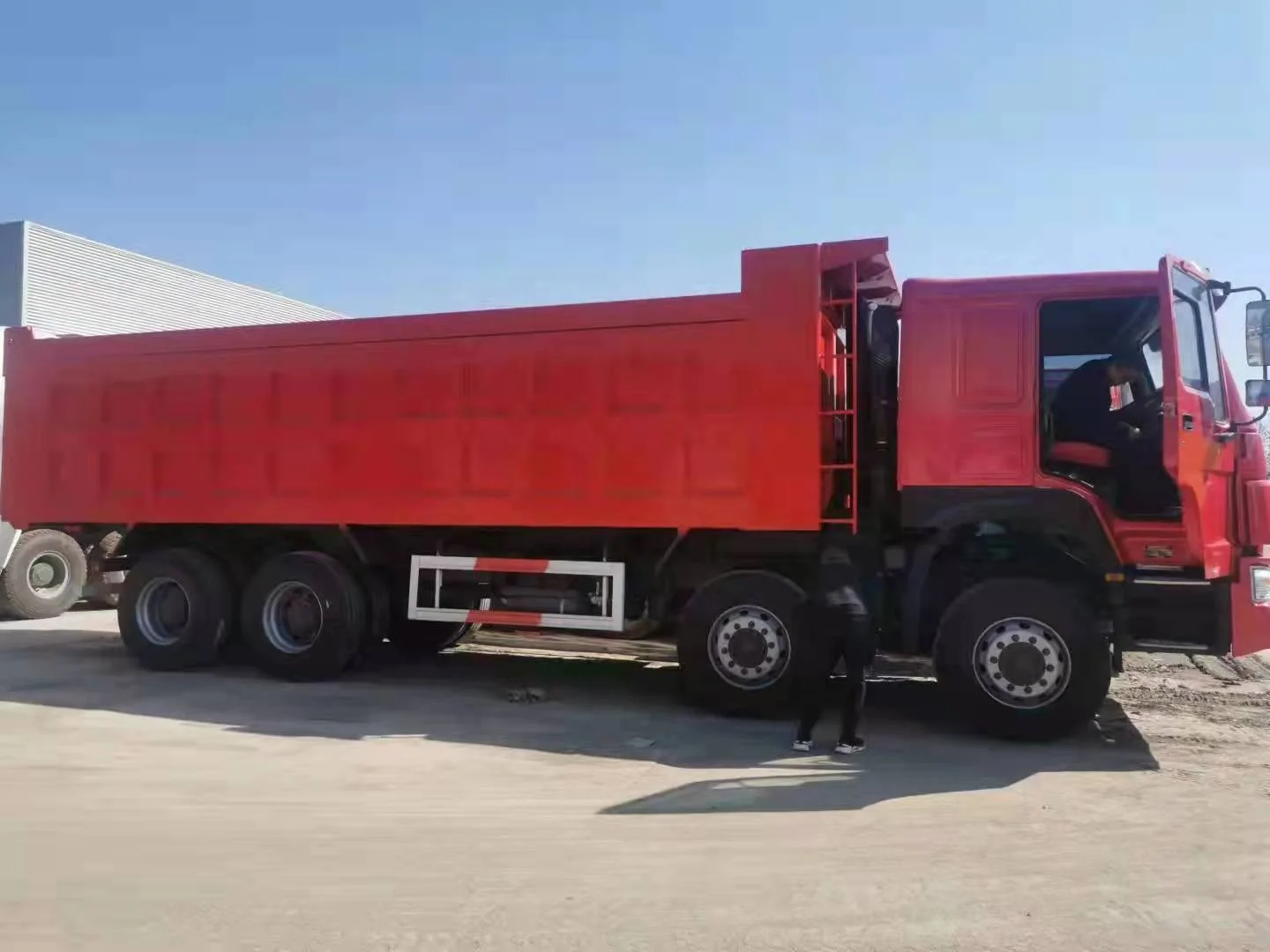

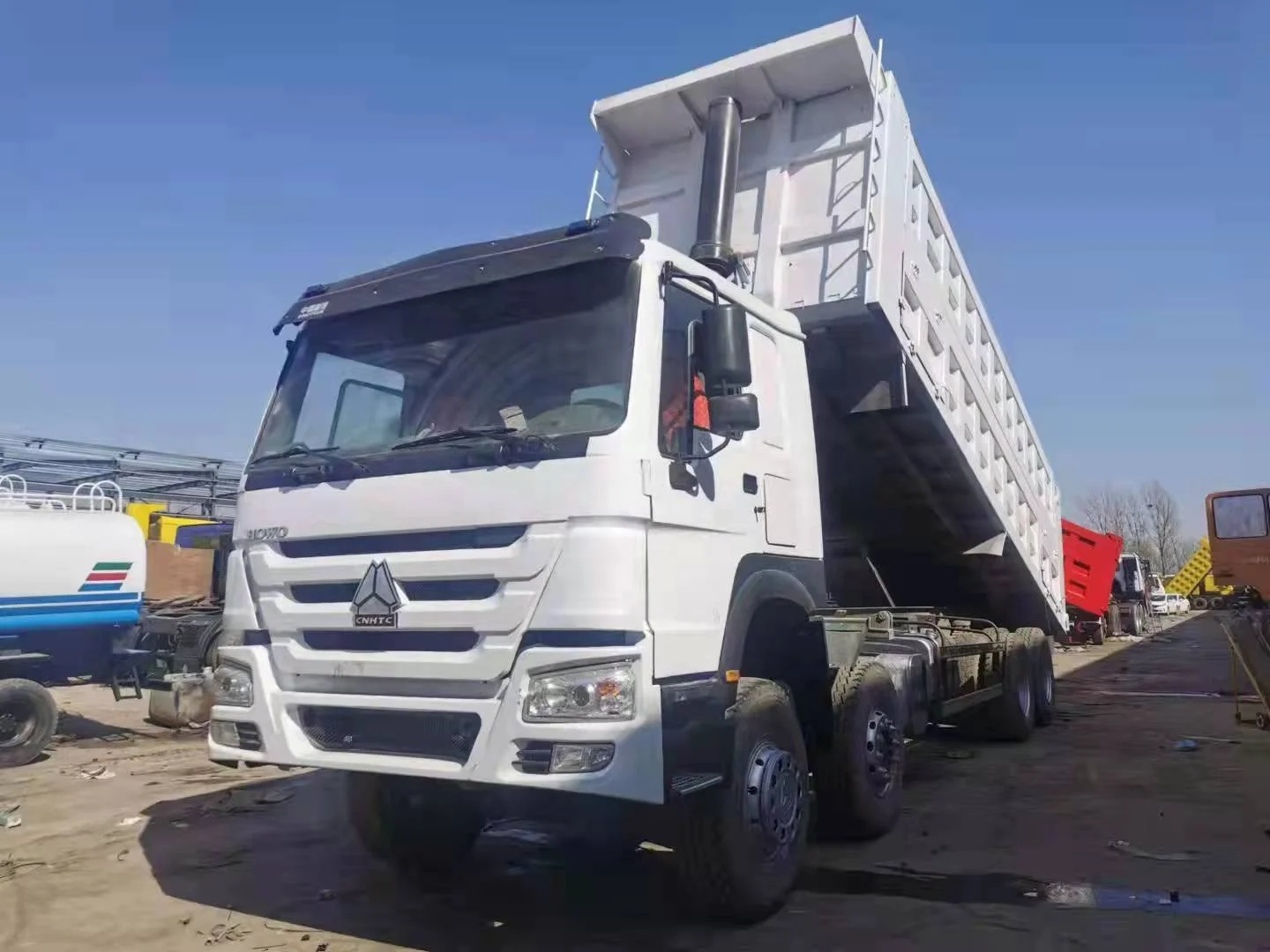

HOWO 8X4 Dump Truck
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

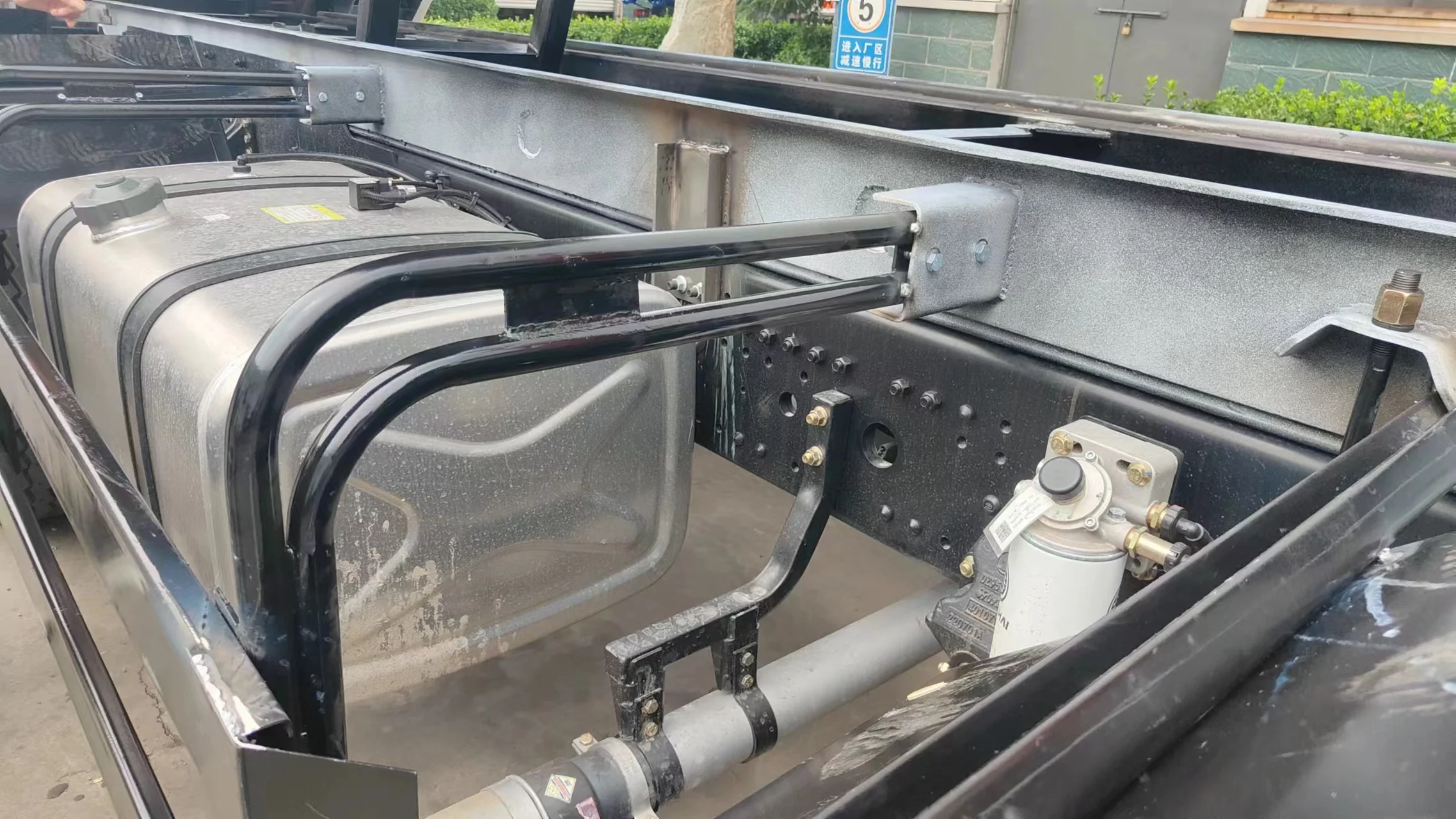

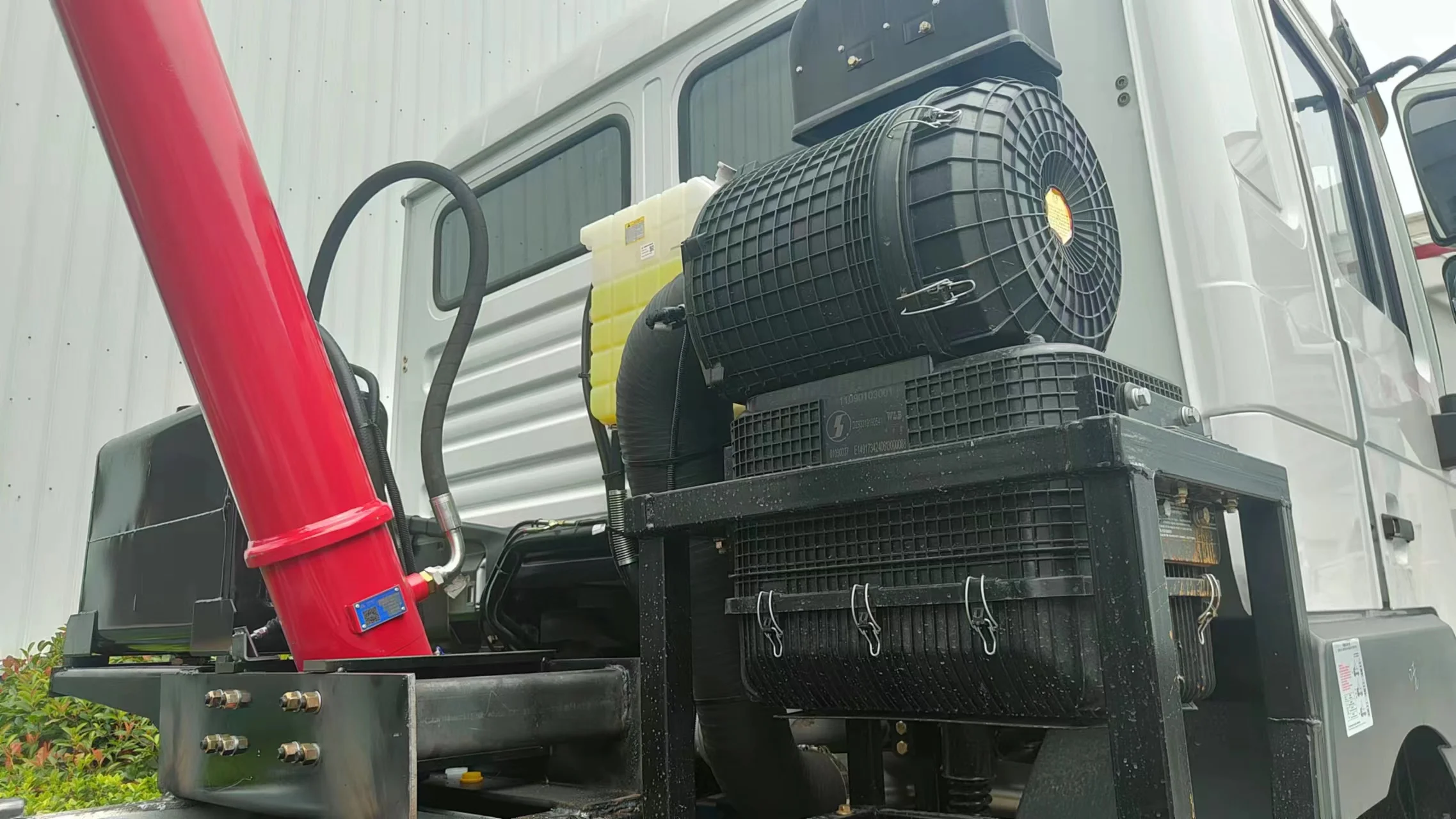

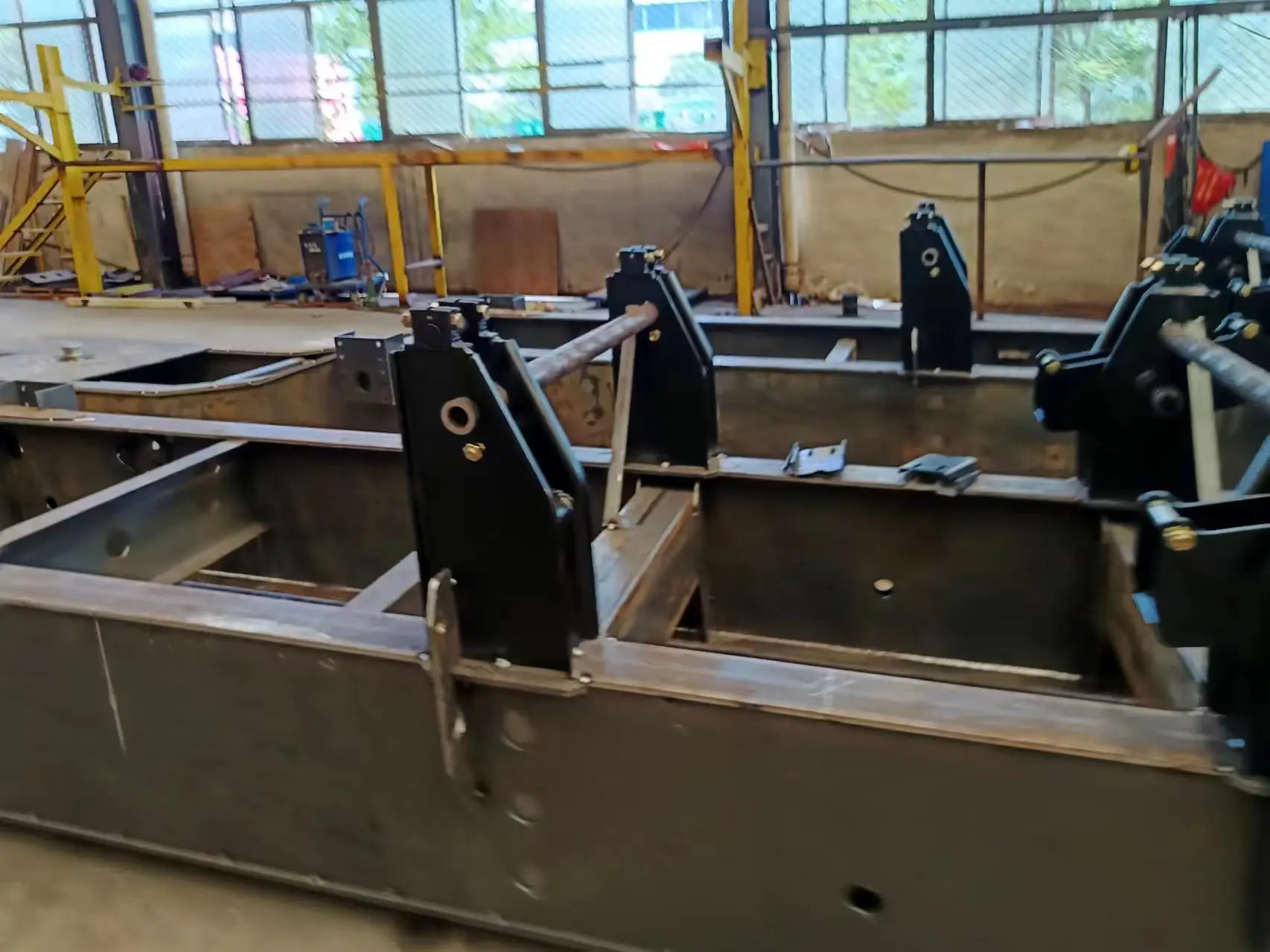

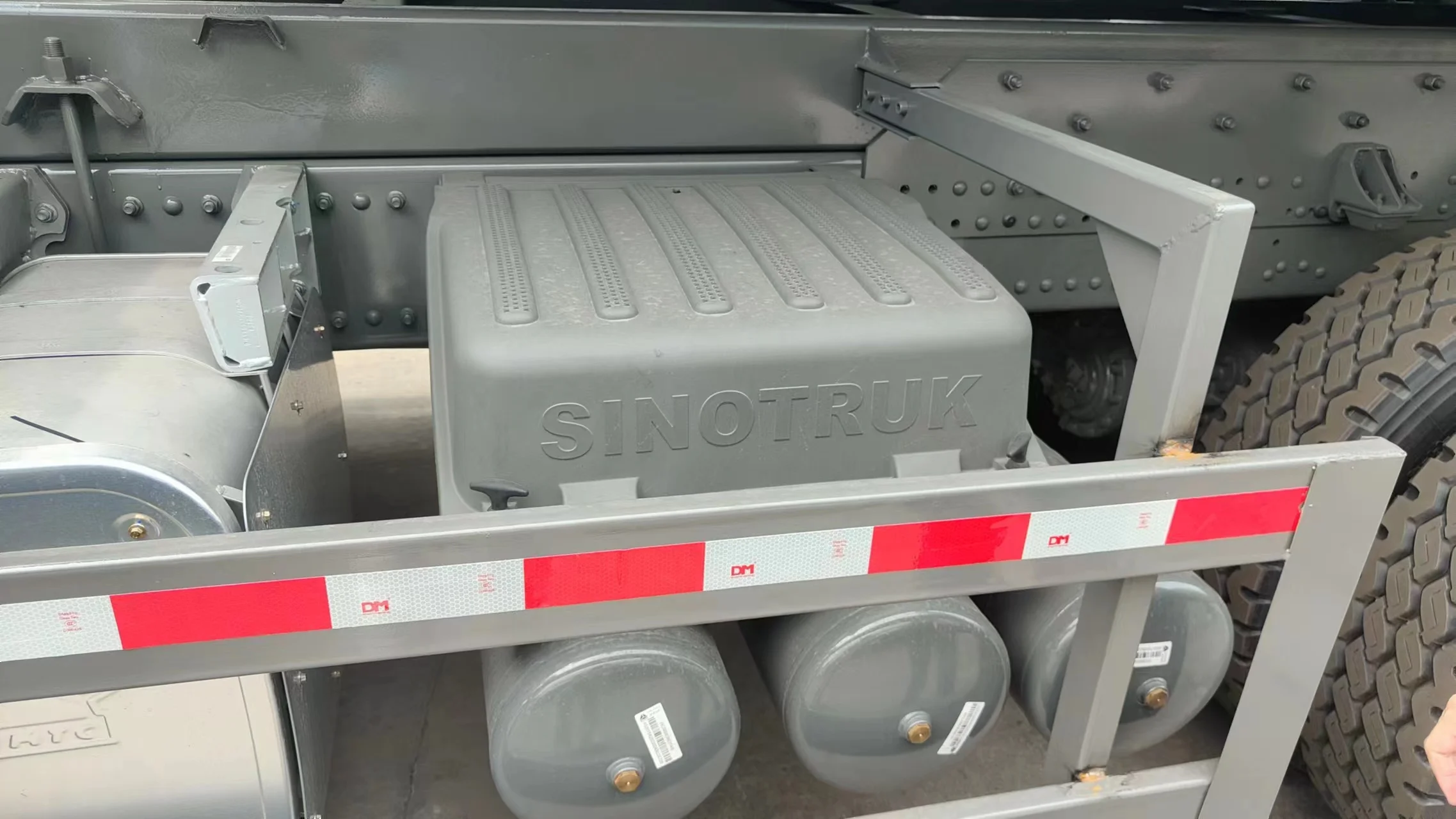

Details Images
Chassis Model | ZZ3317N3567W |
Driving Type | LHD (RHD is optional) |
Cabin | HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
Transmission | HW19710, 10F & 2R, with PTO Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
Front Axle | HF9,2x9000 KGS Steering with doubleT-cross section beam |
Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tyres | 12.00R20, radial tyres with one spare tyre |
Fuel Tank | 300L |
Cargo Body | 7300*2300*1700 mm, 28.5CBM, Floor 10mm Side 8mm |
Overall Dimension | 10750*2550*3450mm |

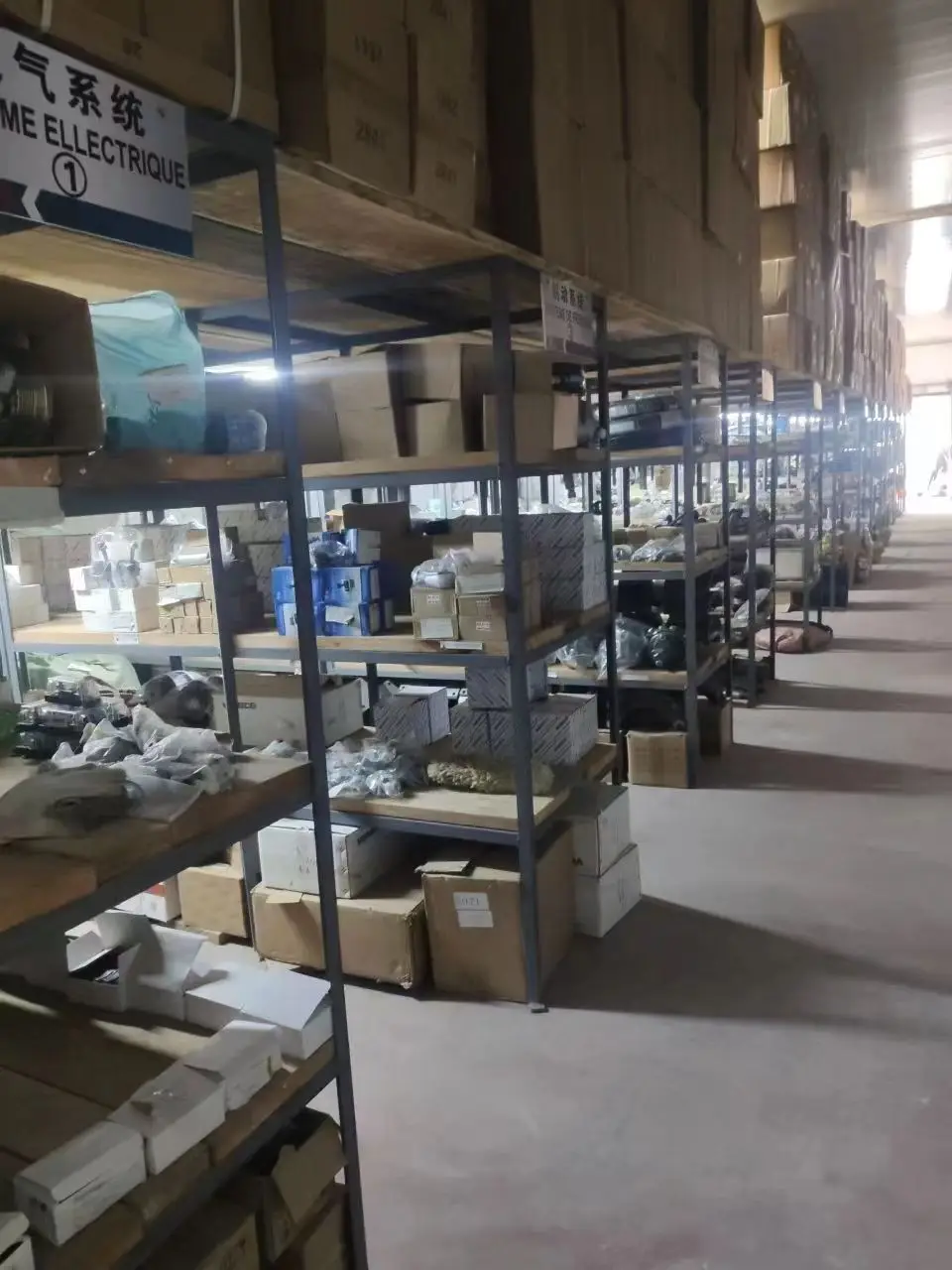

Overseas warehouse

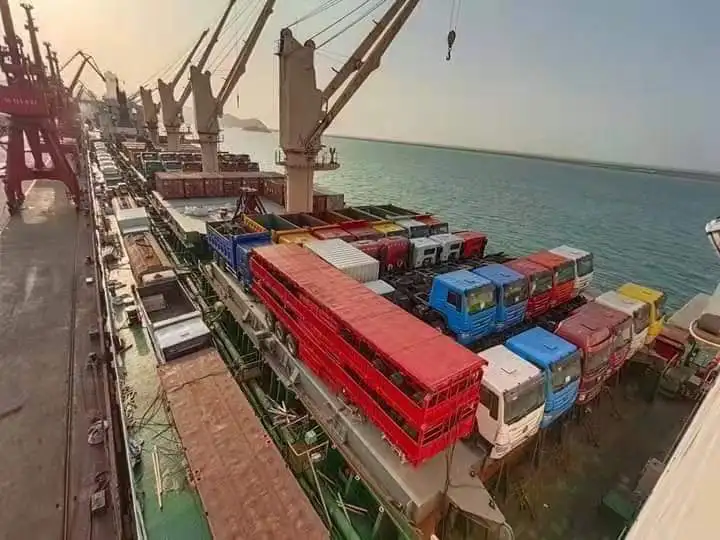

Product packaging
Certifications
Company Profile
China National Heavy Duty Truck Group Corp., Ltd. (SINOTRUK) is China’s first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China’s heavy duty truck industry. It once manufactured China’s first heavy duty truck – HUANGHE branded
JN150 8-ton truck in 1960; and successfully introduced the STEYR heavy duty truck project from Austria and became China’s first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle in 1983. In 2009,SINOTRUK formed its strategic partnership with German MAN Group, by which MAN held a 25%+1 stake in SINOTRUK (Hong Kong) Limited...
JN150 8-ton truck in 1960; and successfully introduced the STEYR heavy duty truck project from Austria and became China’s first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle in 1983. In 2009,SINOTRUK formed its strategic partnership with German MAN Group, by which MAN held a 25%+1 stake in SINOTRUK (Hong Kong) Limited...
