CTW501BH Wireless 0 10v Pwm Dimmer Iot Devices Sensor Nema Street Light Controller
- Category: >>>
- Supplier: Guangzhou Shuwang Technology Co. Ltd.
Share on (1601220382995):
Product Overview
Description
Product Description

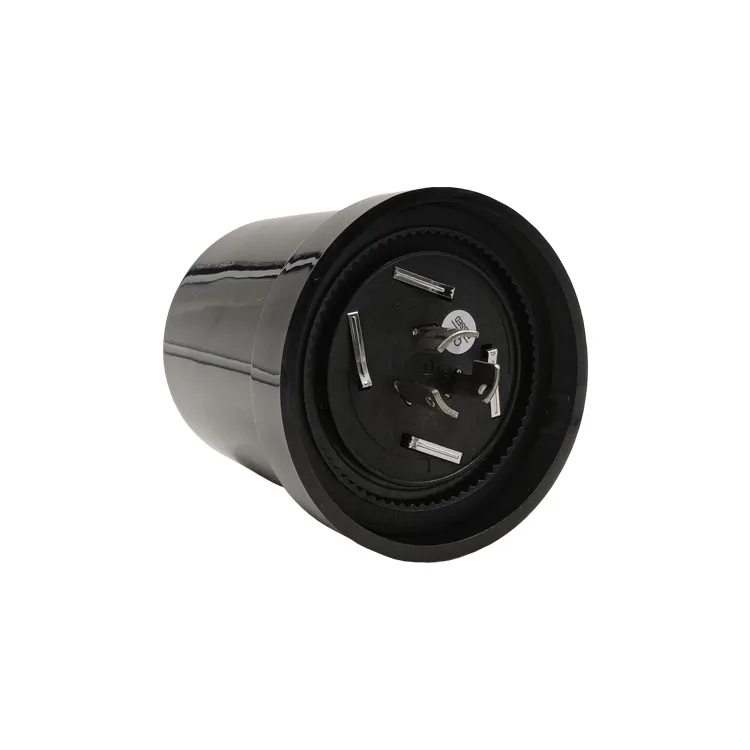

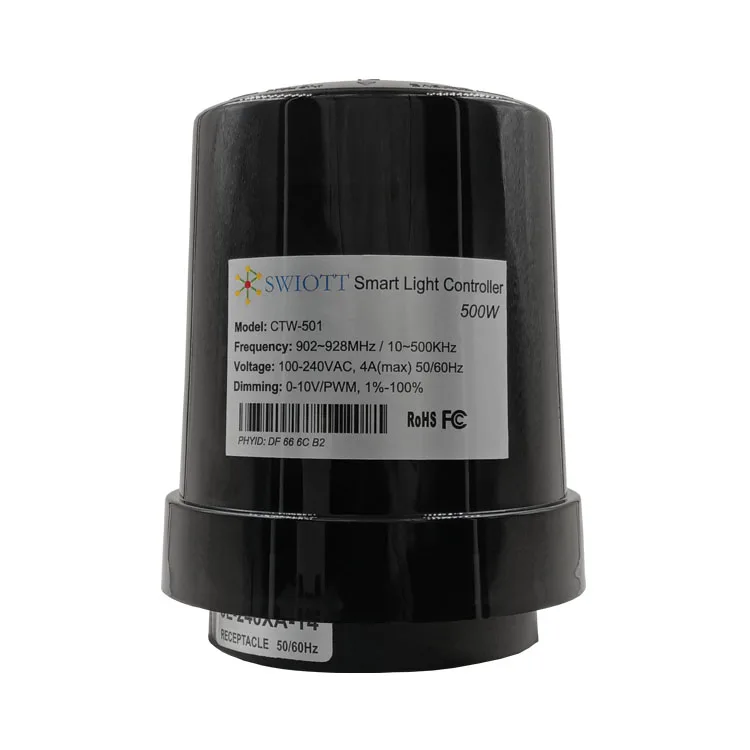

CTW-501-BH Smart Street Light NEMA Socket Controller
LoRaWan smart street light controller, compatible with C136.41 NEMA socket. Integrate metering chip, dimming, controlling, tilt sensor, light sensor, dimming schedule, GPS(optional) features. Can be management and control remotely realtime on a CMS platform via openAPI MQTT internet at every where. 0-10V/PWM/DALI dimming interface can be option. The input voltage can be choose 100Vac-240Vac or 100Vac-480Vac.
Specification
Input voltage | 100Vac~480Vac | Short circuit protection | No |
Rated voltage | 480Vac | Overheating protection | Yes |
input frequency | 47Hz to 63Hz | waterproof level | IP66 |
Max power | 500W | MTBF | >200khours |
Max current | 4A | Operating temperature | -40℃ to +60℃ |
Standby power | <2W | Storage temperature | -40℃ to +85℃ |
Lorawan frequency | EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865 | size packaging（L*W*H） | 90mm*90mm*115mm |
Dimming output | 0V-10V @ 27mA(max) | Weight | 0.3kg |
Measurement accuracy | <1.5% | case max temperature | 80℃ |
Harmonic content | <10% | Safety standards | CE、FCC、CB |
Overload protection | Yes | EMC | EN55015、EN55022 |
Company Profile
Guangzhou SWIOTT Technology Co., Ltd. is a company integrating the Internet of Things, communications, large-scale Data and other technological means are applied to enterprises in the field of lighting, and the team has many years of experience in the development and research of smart lighting solutions, dedicated to provide scientific overall solutions for customer lighting application scenarios.
At present, the company's urban smart lighting and industrial IoT related products have been widely used.It is distributed in dozens of countries around the world and a few provinces in China, and the products mainly include Including PLC (power line carrier communication) module, wireless LoRa self-organized network mode block, intelligent street light controller, intelligent LED power supply, multi-color temperature intelligence LED power supply, centralized controller and intelligent street light management system.
Our philosophy is to create a low-carbon life with the power of science and technology.
We are the source manufacturers with our own R & D team and factory for development and production of products to ensure that we
can respond to technical product issues in a timely manner.
We carry out meticulous quality checks on every product, and undergo strict screening and testing to ensure that the product is flawless.
Practical Application
Production Process

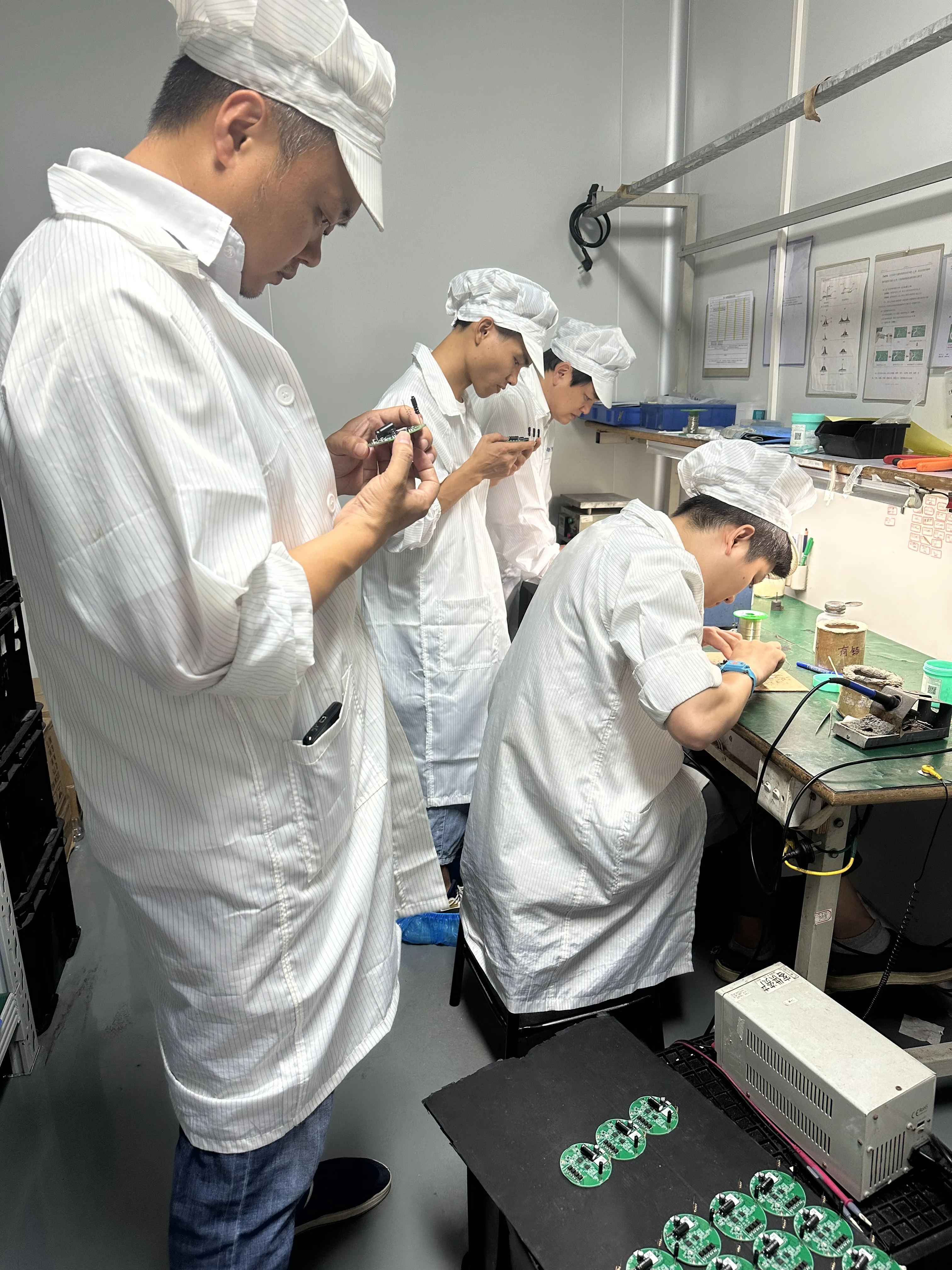

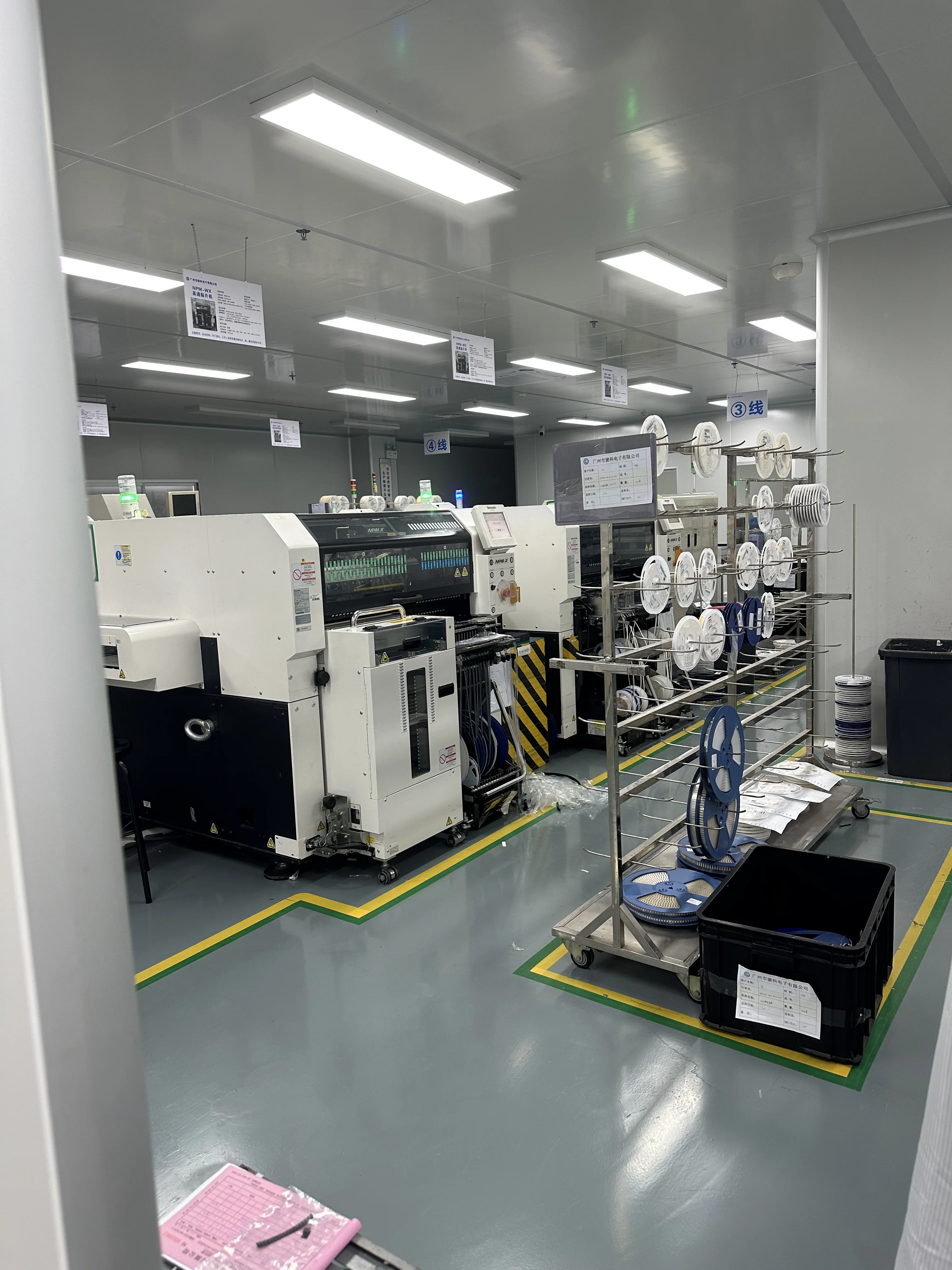

Manufacture
QC
Product aging
Packing
Certifications
Packing & Delivery
FAQ
Q1. Can the light controller be ordered as a sample?
A: Yes, we accept sample orders, welcome to order samples to test and check the quality.
Q2. Are you a trader or a manufacturer?
A: We are the source manufacturers with our own R & D team and factory for development and production of products to ensure that we can respond to technical product issues in a timely manner.
Q3.Do your products come with a guarantee?
A: Yes, we provide 3 years warranty on our products.
Q4. How many lighting controllers can a gateway usually control?
A: A gateway can control 200 pcs lighting controller.
Q5.What can you buy from us?
A: Smart street light controller,iot gateway,led dirver,iot module,solar street light controller,controller enclosure,mounting receptacle.
