BLS3325 Digital Servo 25KG All Metal High Speed Brushless Servos Motor for 1/8 1/10 1/12 RC Crawler Car Truck Boat Robotics
- Category: >>>
- Supplier: Shenzhen FlyFun Technology Co. Ltd.
Share on (1601220985380):
Product Overview
Description
Product Description

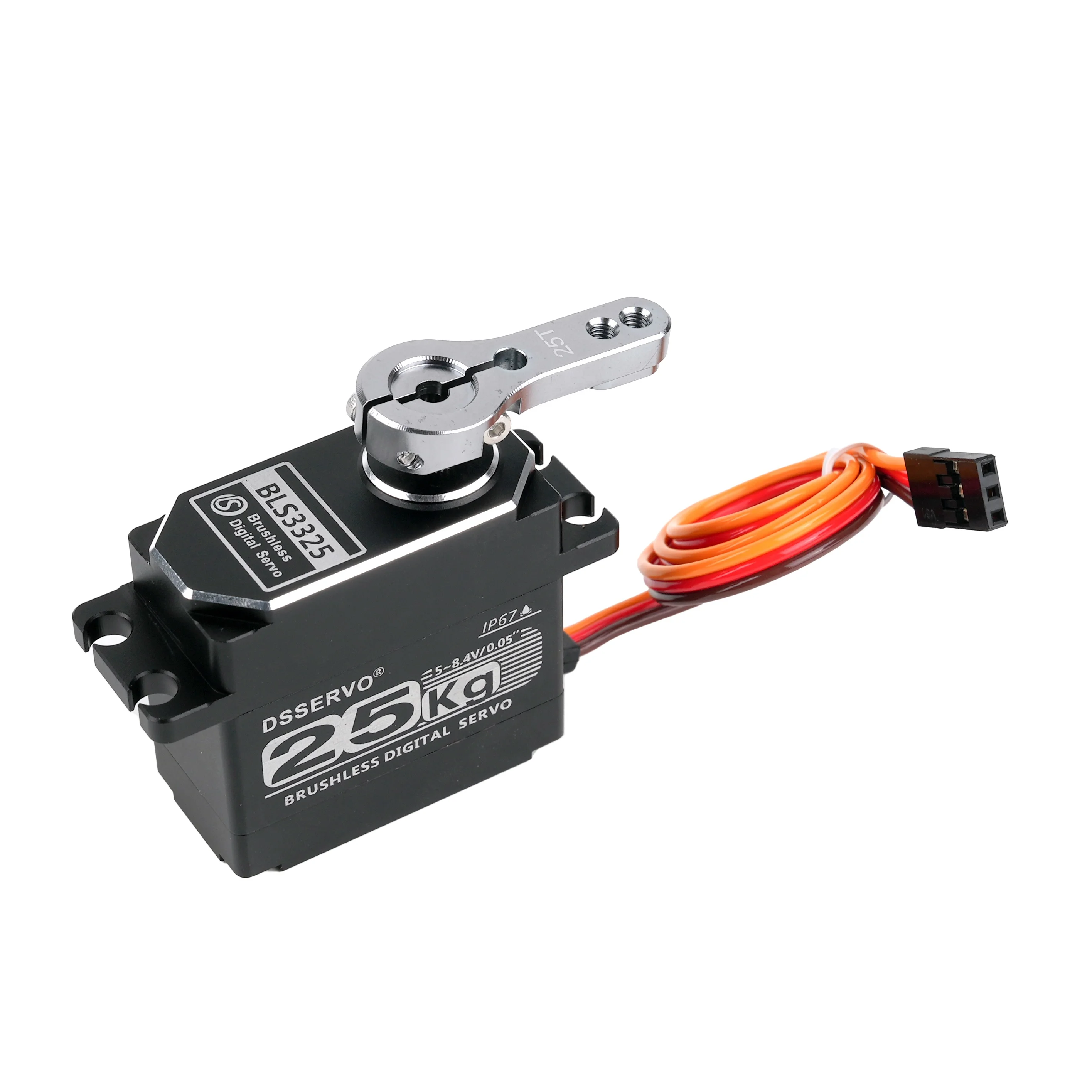

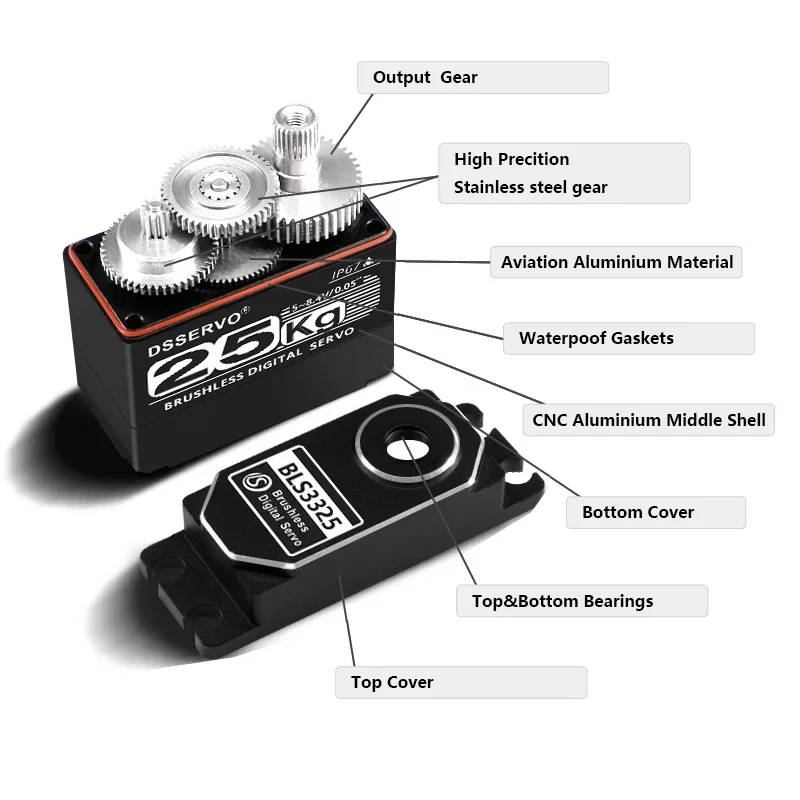

BLS3325 Digital Servo 25KG All Metal High Speed Brushless Servos Motor for 1/8 1/10 1/12 RC Crawler Car Truck Boat Robotics
Specification:
Operating Voltage Range: DC 4.8-8.4V
Operating Temperature Range: -15℃～70℃

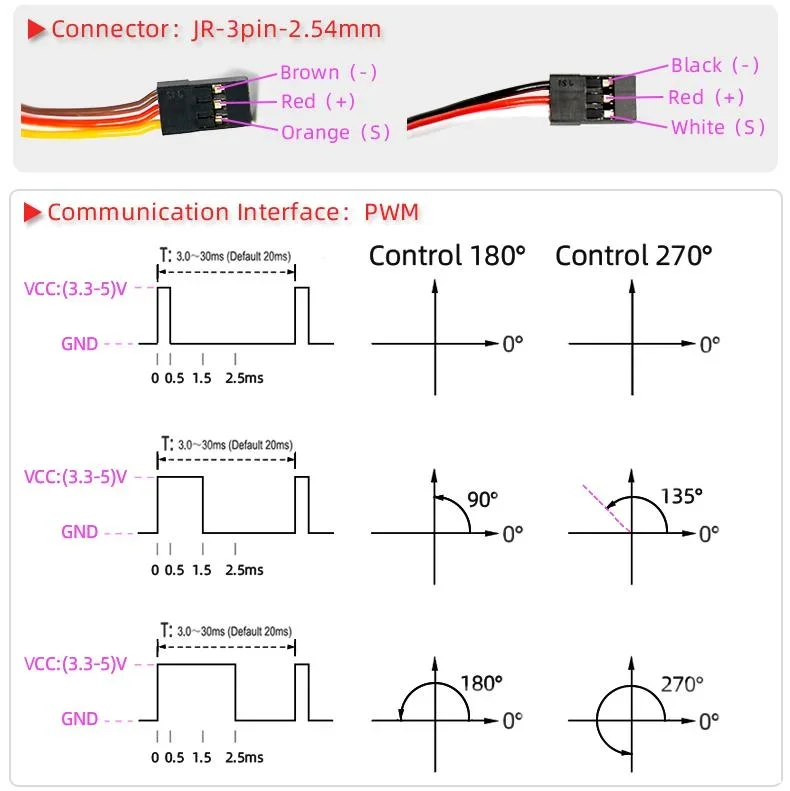

Control System: PWM(Pulse width modification)
Pulse width range: 500～2500μsec
Neutral position: 1500μsec
Running degree: 180° or 270° @ 500～2500 μ sec
Dead band width: 2 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise @ 500～2500 μsec
Package includeds:
1 X BLS3325 Brushless Digital Servo
1 X Metal Servo Arm
1 X Plastic accessories bag
Remarks: Kindly contact us if you purchase in mass quantity, also better to check with us for the shipping cost before you pay the order, thanks!
Operating Voltage | 4.8V | 7.4V | 8.4V |
Idle current(at stopped) | 5mA | 5mA | 5mA |
Operating speed (at no load) | 0.08 sec/60° | 0.055 sec/60° | 0.05 sec/60° |
Stall torque (at locked) | 18 kg-cm | 26 kg-cm | 30 kg-cm |
Stall current (at locked) | 3.2A | 5.2A | 6.2A |

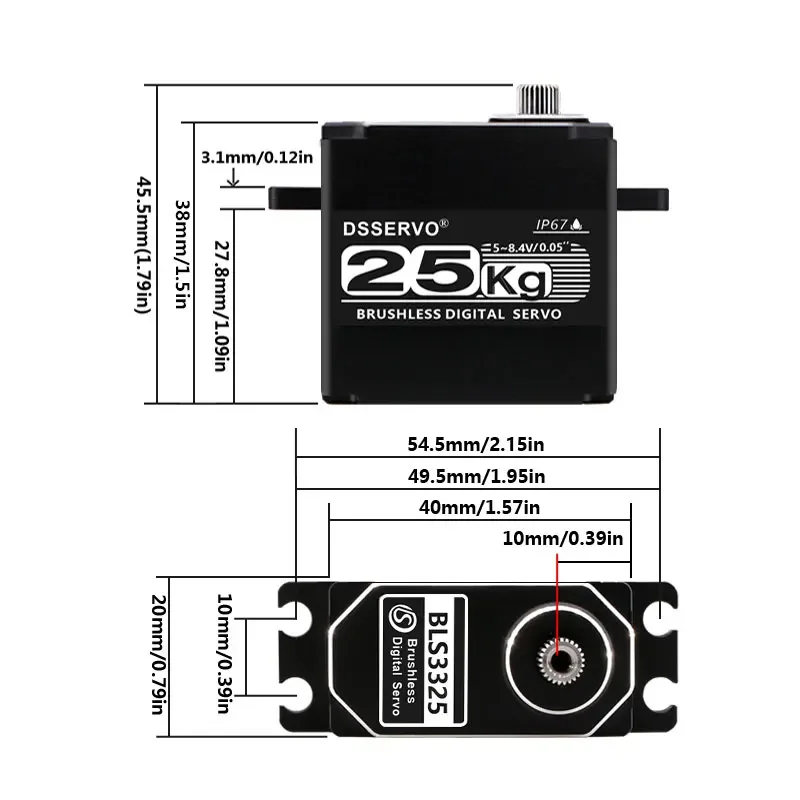

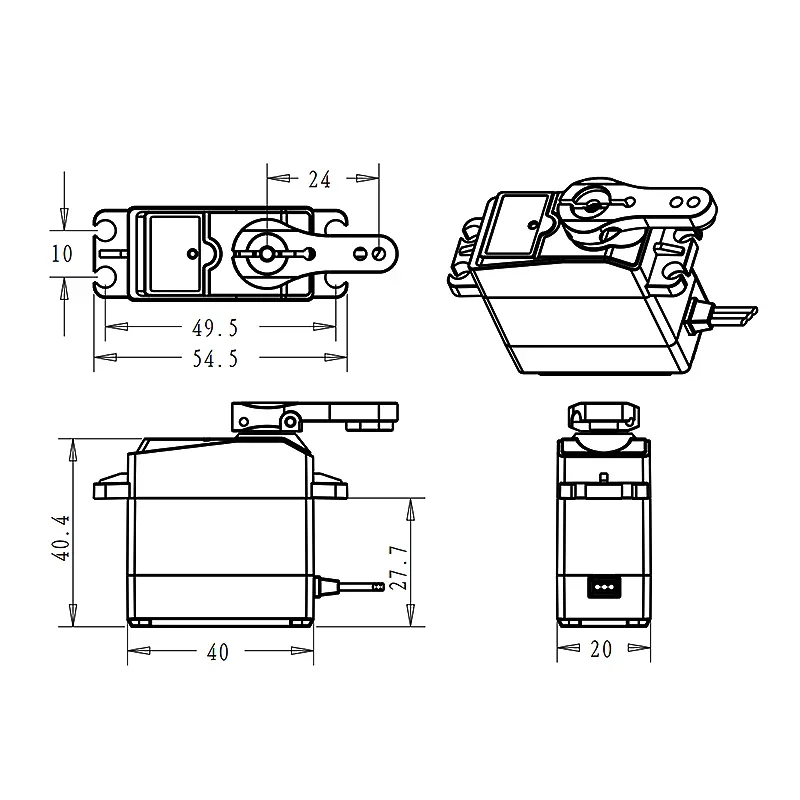

Details Images
