Customized rain drain water gutters making machine gutter moulding machine
- Category: >>>
- Supplier: Henan Wadley Cnc Machinery Co. Ltd.Henan Ltd.
Share on (1601221106024):
Product Overview
Description
Product Overview

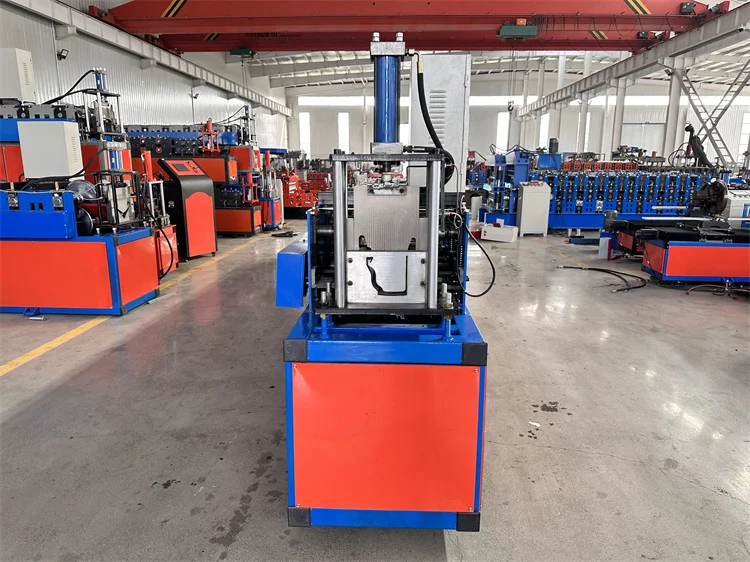

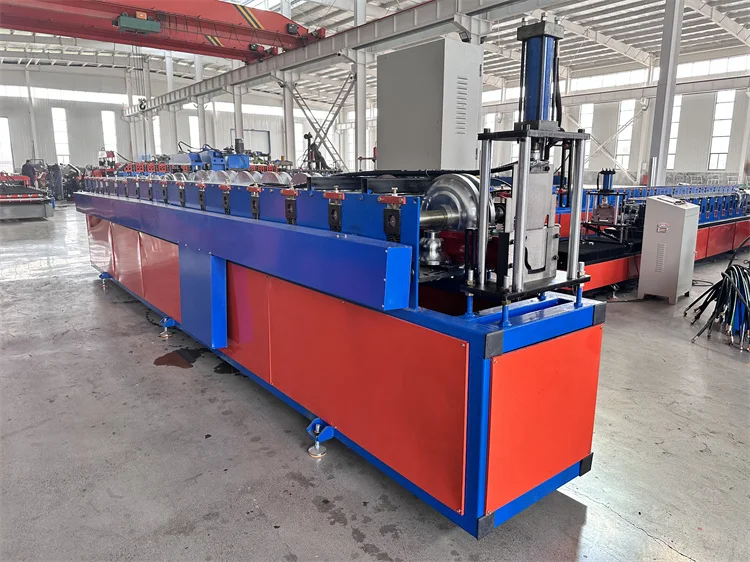

Rain Gutter Roll Forming Machine

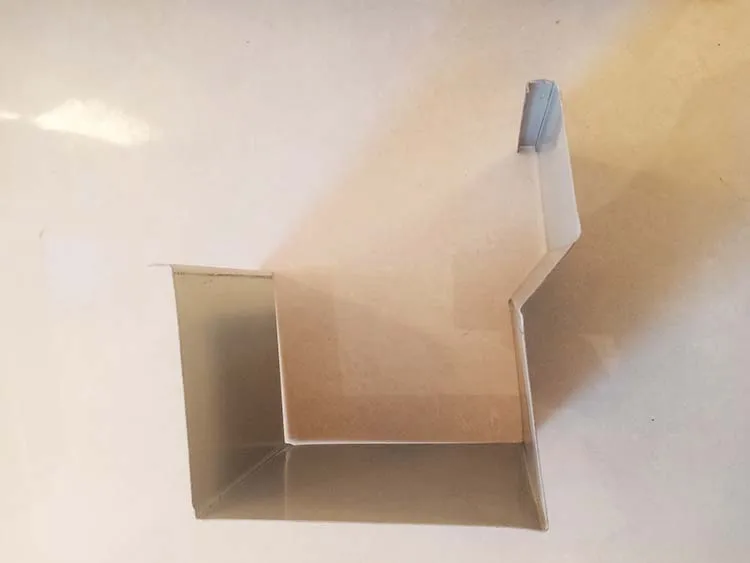

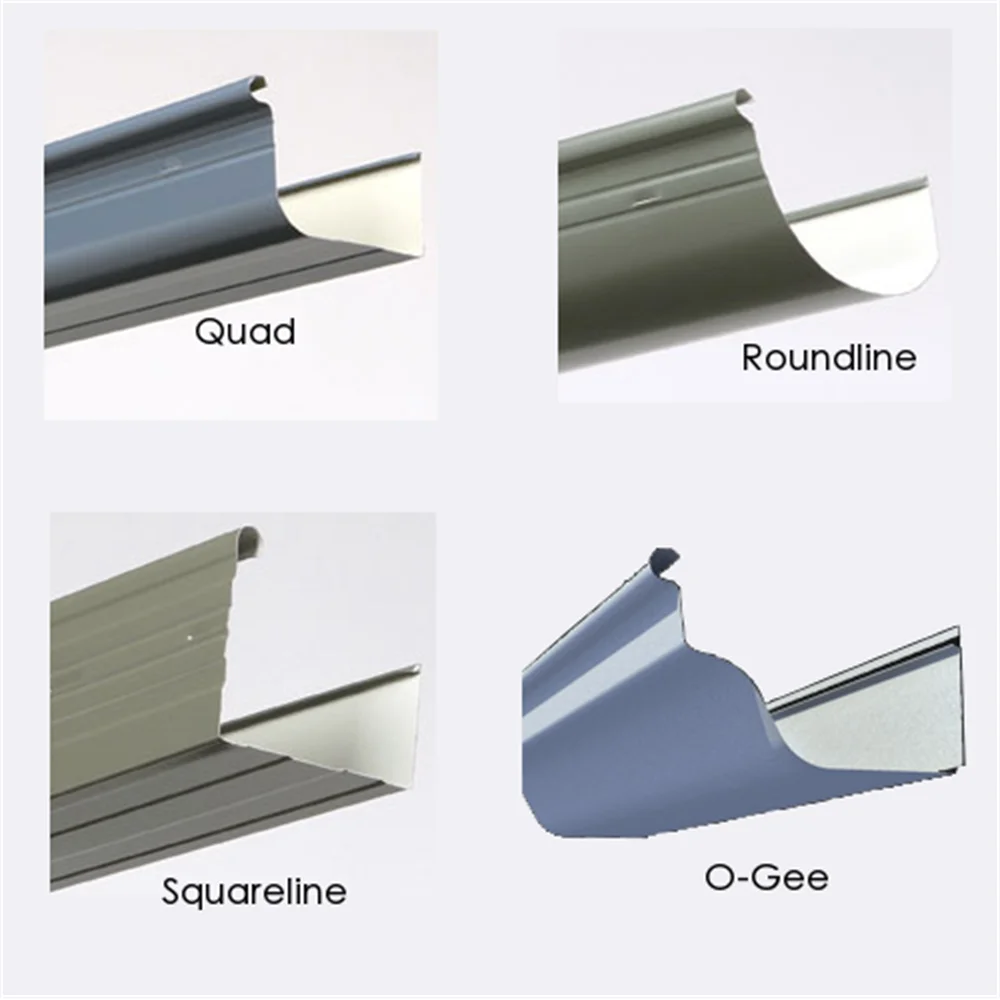

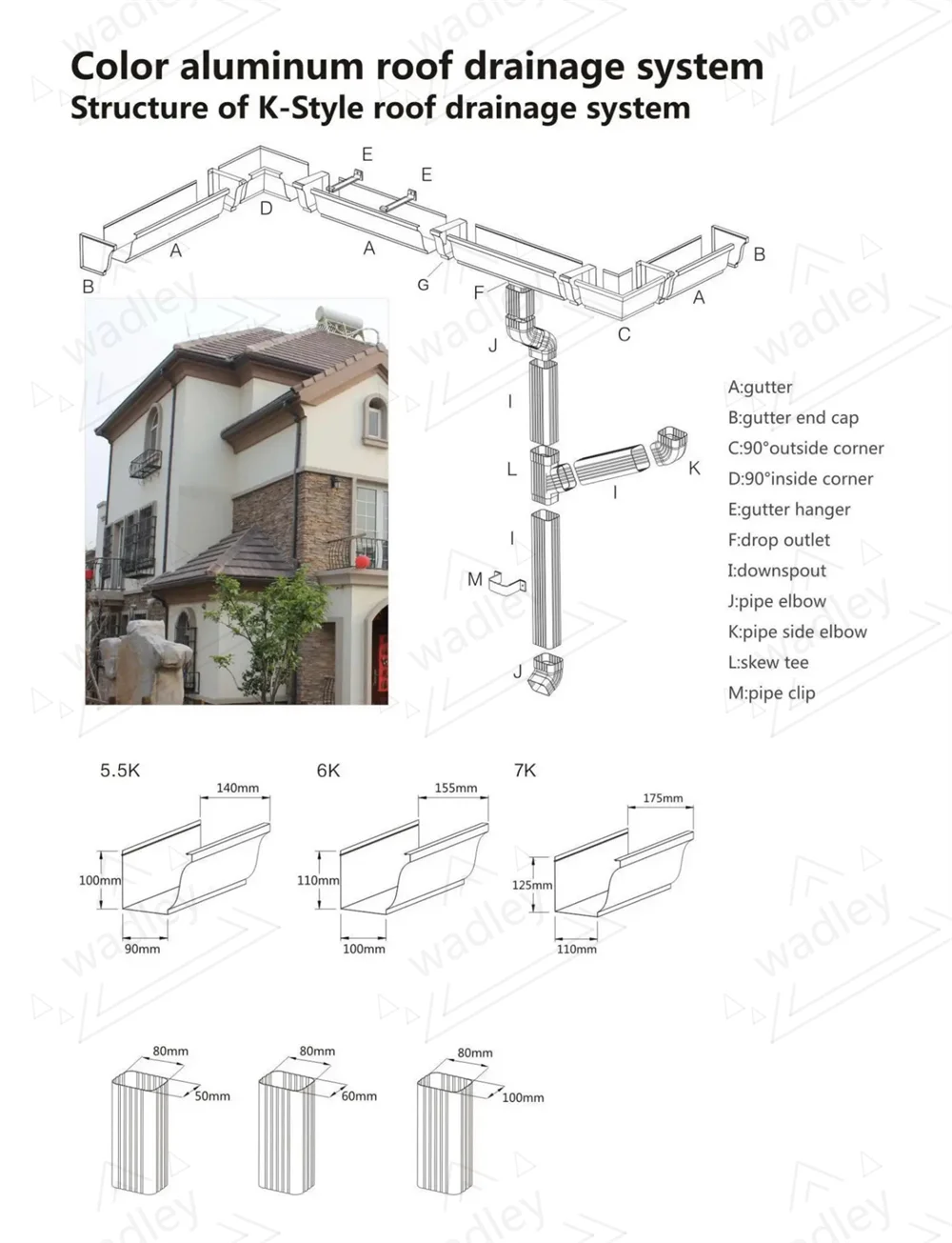

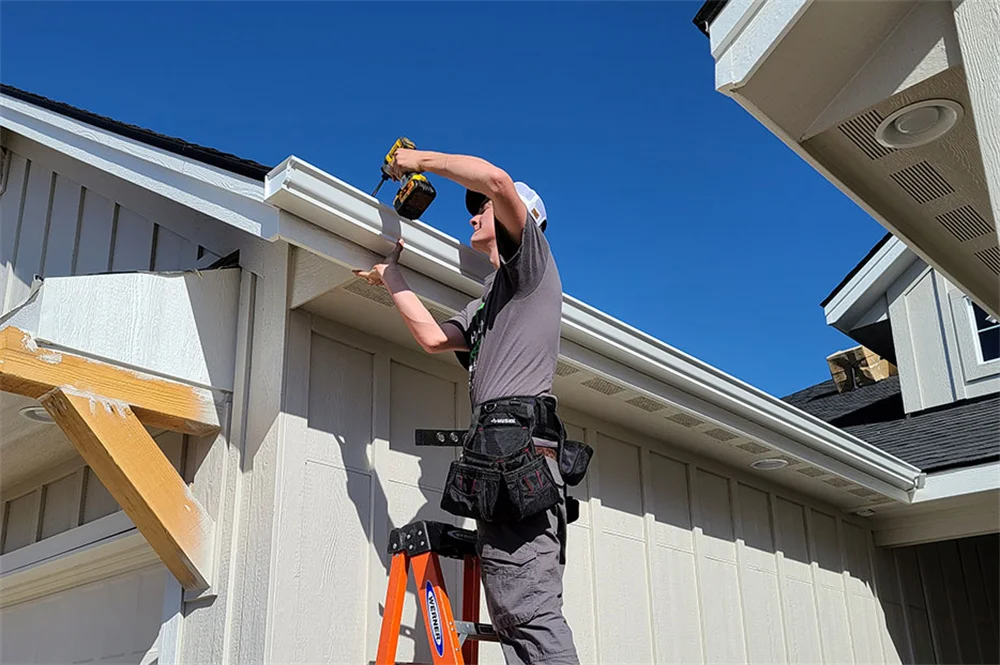

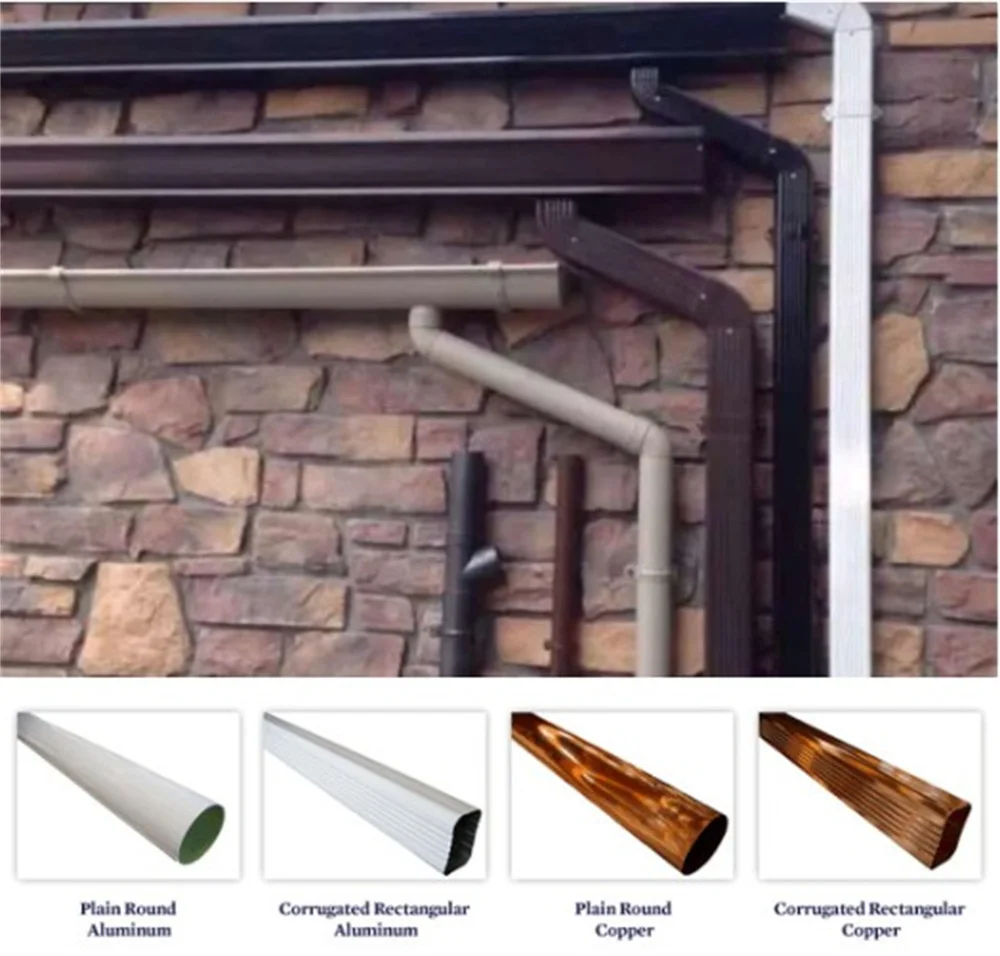

The gutter machine can use color steel or aluminum plate to make the gutter plate. The forming plate is rolled, closed, and then bent and narrowed by special equipment. It has good weather resistance, simple design, simple installation, safe and durable, and noble. Elegant. The gutter board can be sprayed with rich colors according to the individual needs of users, and its metal texture and beautiful shape can bring a strong expressive force to the building.
1. The whole machine is controlled by PLC, and multiple safety protections can be set to effectively avoid accidents;
2. The bed is made of steel plate welded parts and tempered to effectively eliminate internal stress and the body is not easy to deform;
3. The forming frame is welded by channel steel;
4. The roll shaft is made of 45# steel, which has been quenched and tempered;
5. The material of forming punching and shearing die is Gr12;
1. The whole machine is controlled by PLC, and multiple safety protections can be set to effectively avoid accidents;
2. The bed is made of steel plate welded parts and tempered to effectively eliminate internal stress and the body is not easy to deform;
3. The forming frame is welded by channel steel;
4. The roll shaft is made of 45# steel, which has been quenched and tempered;
5. The material of forming punching and shearing die is Gr12;
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Raw material width | 300-600 mm |
2 | Sheet effective width | 80-200 mm |
3 | Raw material | Color steel sheet , Stainless steel or galvanized steel sheet |
4 | Material thickness | 0.3-0.8 mm or customized |
5 | Forming roller material | 45# steel plated with chrome |
6 | Shaft diameter | 40 mm |
7 | Forming roll station | 8-16 steps |
8 | Main motor power | 3 KW 4 KW 5.5 KW(according to type) |
9 | Hydraulic power | 4 KW (according to type) |
10 | Control system | PLC control |
Rain Gutter Roll Forming Machine is made by cold-formed forming process. It is widely used by people for its energy-saving and environmentally friendly features. It uses less steel to complete the required specified load, and no longer depends on increasing the amount of plates or materials. The mechanical properties of the steel can meet the load requirements, but the mechanical properties of the steel can be improved by changing the cross-sectional shape of the steel product. Cold bending is a material-saving and energy-saving new metal forming process and new technology. Cold bending is a multi-pass forming and rolling that is arranged in sequence to continuously bend the coils and other metal plates and strips in the transverse direction. Make profiles of specific cross-sections
Details Images

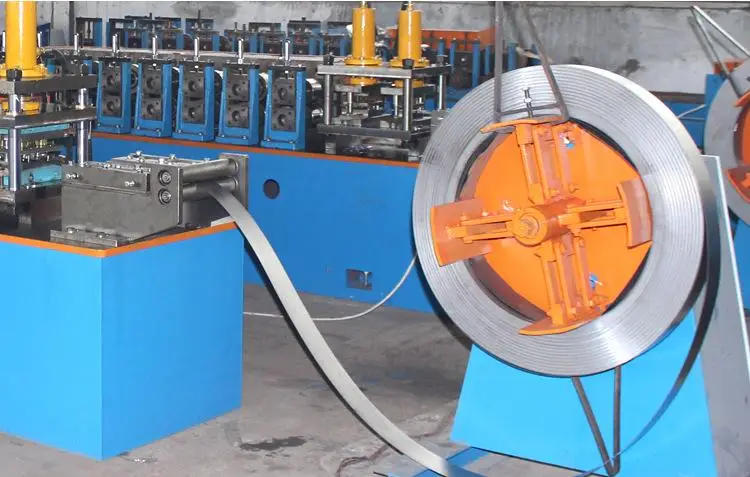

Decoiler
Rain Gutter Roll Forming Machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.
This loading frame decoiler also can use in other type machine, customer can buy it alone.

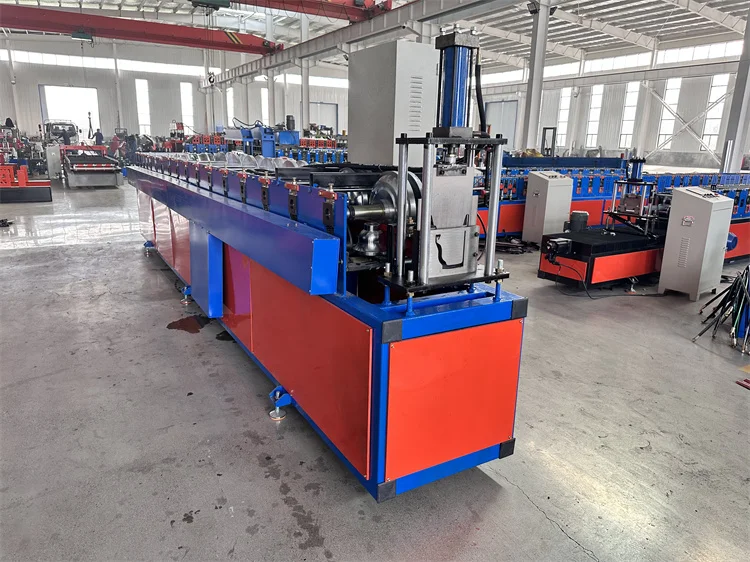

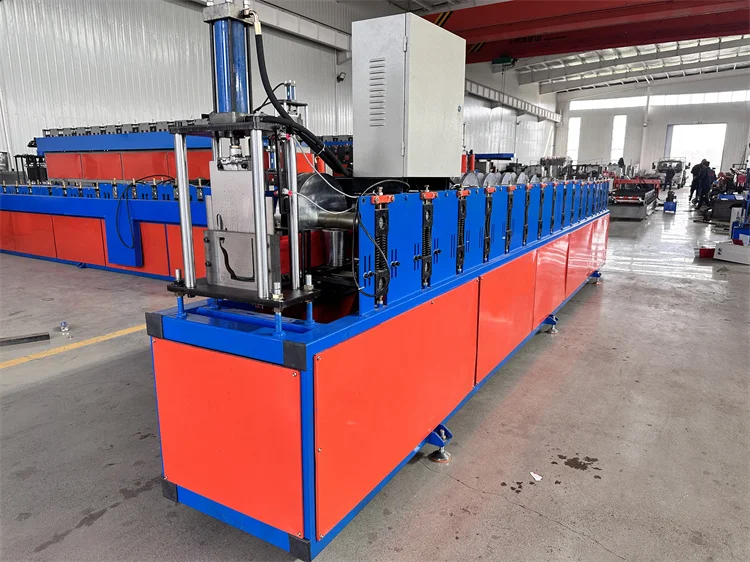

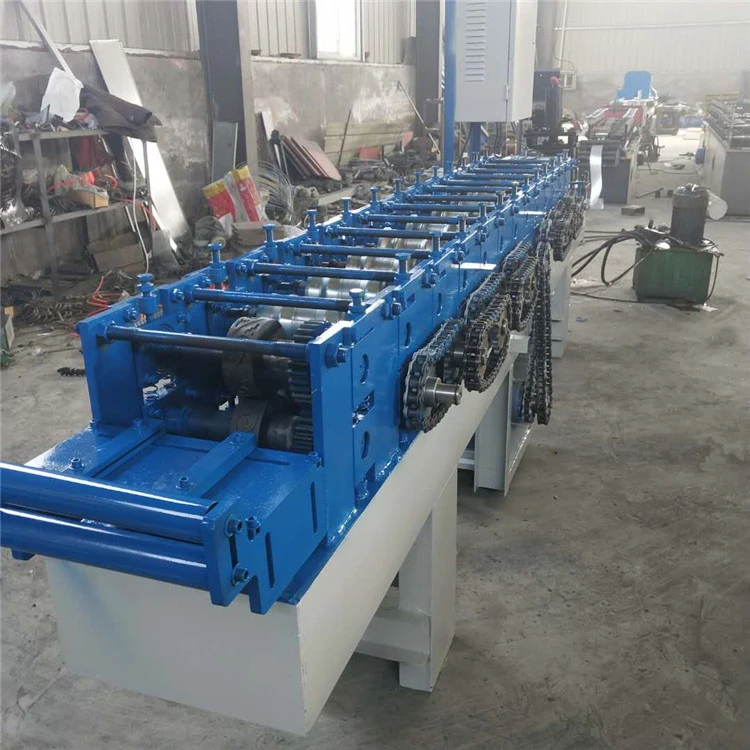

Machine frame
Rain Gutter Roll Forming Machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.

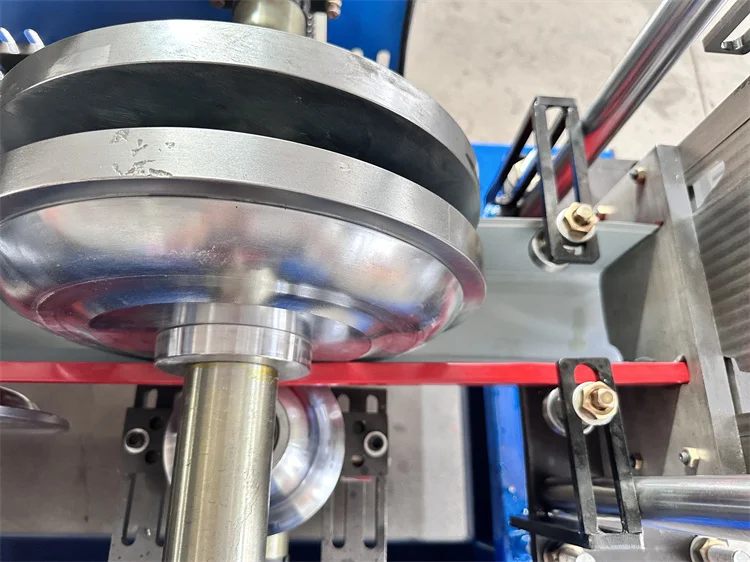

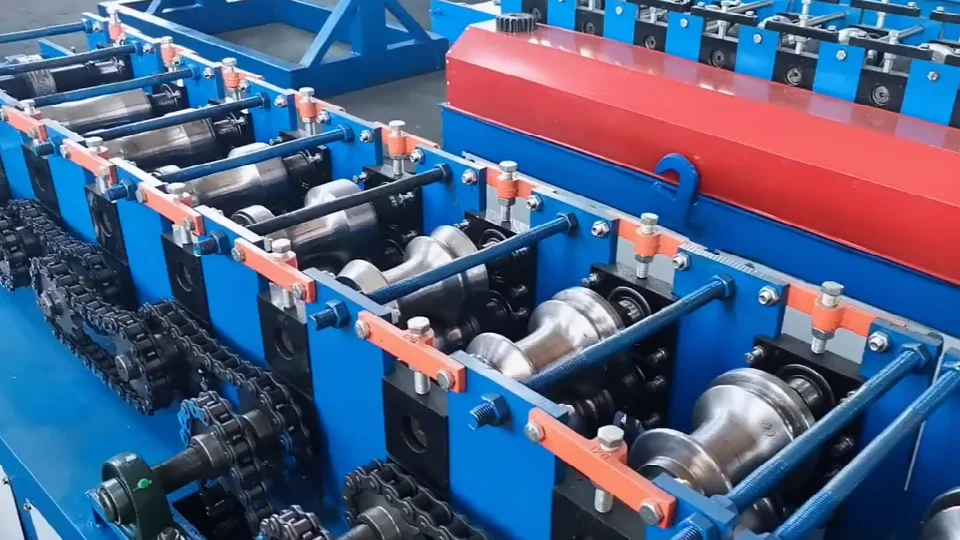

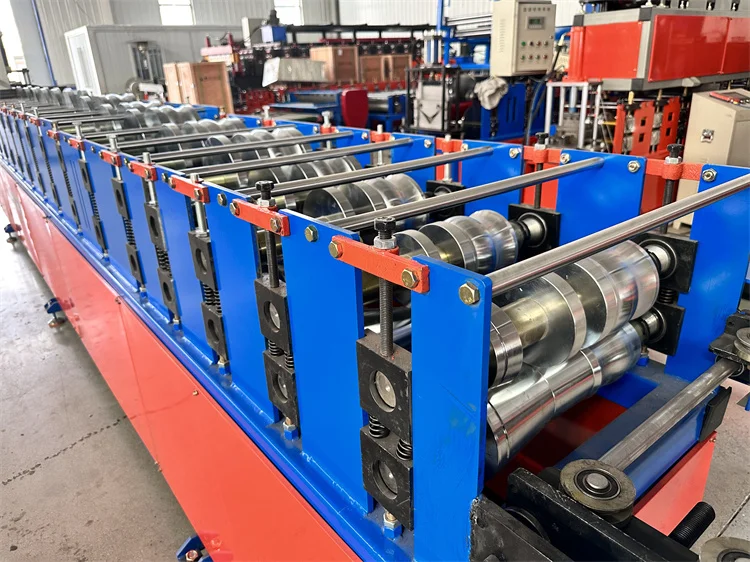

Forming roller
Rain Gutter Roll Forming Machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.

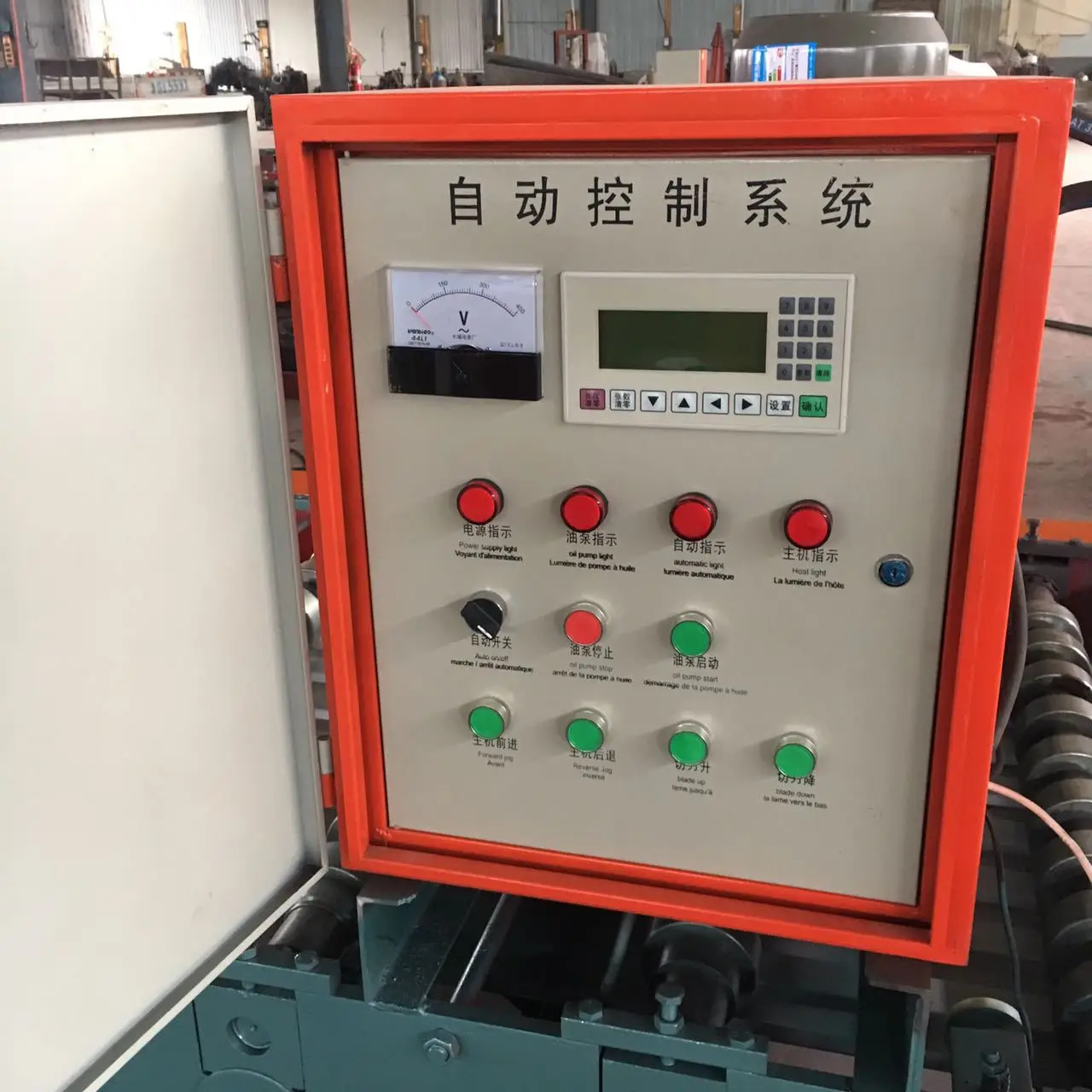

Control part
Rain Gutter Roll Forming Machine control parts have different types, standard type are button control, through press buttons to realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
Successful Project
Project in Thailand
Project in India
Project in Russia
Company Profile

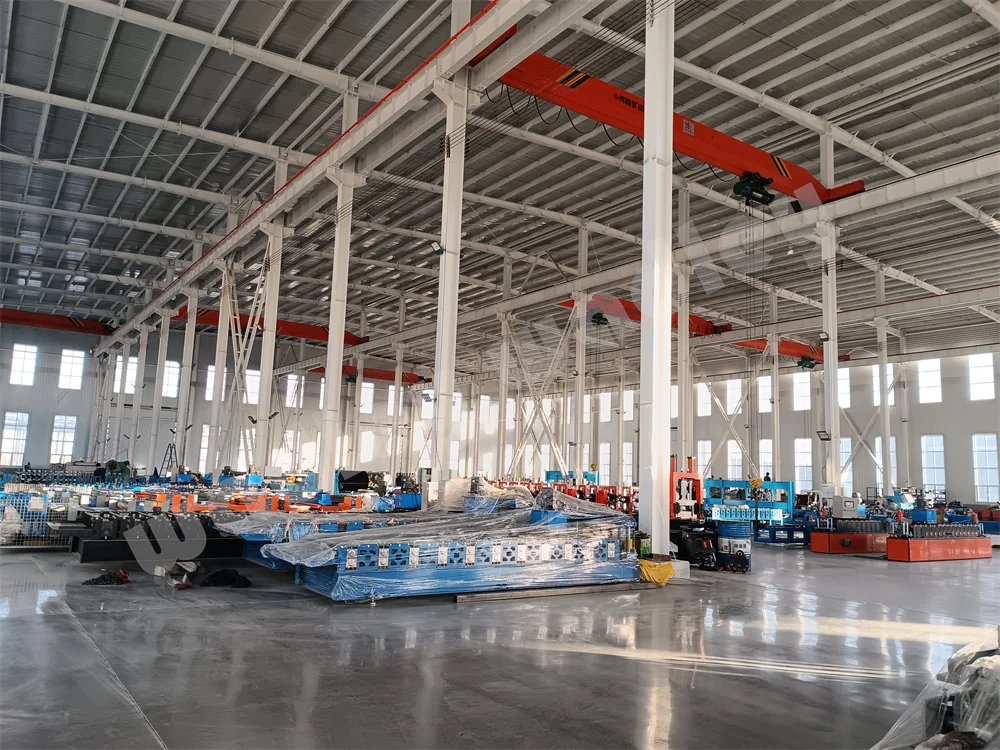

Henan Wadley CNC Machinery Co.,Ltd. is a manufacture specializing in custom cold roll forming equipment and automatic production lines,we can manufacture hundred types roll forming machines and all kinds of architecture profliles. Engineers and technicians are rich in experience of designing developing and manufacturing of machines to provied customers with customized designs.Our products and sold to many countries and regions around the world.and we have established long-term cooperative relationships with customers.
Main products: the company operates various types of products with various specifications, including cold bending forming equipment and other mechanical equipment, such as tile pressing machine, machine tool, tapping machine, slotting machine, boring machine, air hammer, gear hobbing machine, nail making machine, marking machine, etc. Wide range of products, welcome to inquiry.
Main products: the company operates various types of products with various specifications, including cold bending forming equipment and other mechanical equipment, such as tile pressing machine, machine tool, tapping machine, slotting machine, boring machine, air hammer, gear hobbing machine, nail making machine, marking machine, etc. Wide range of products, welcome to inquiry.
SIMILAR PRODUCTS
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name
for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name
for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
