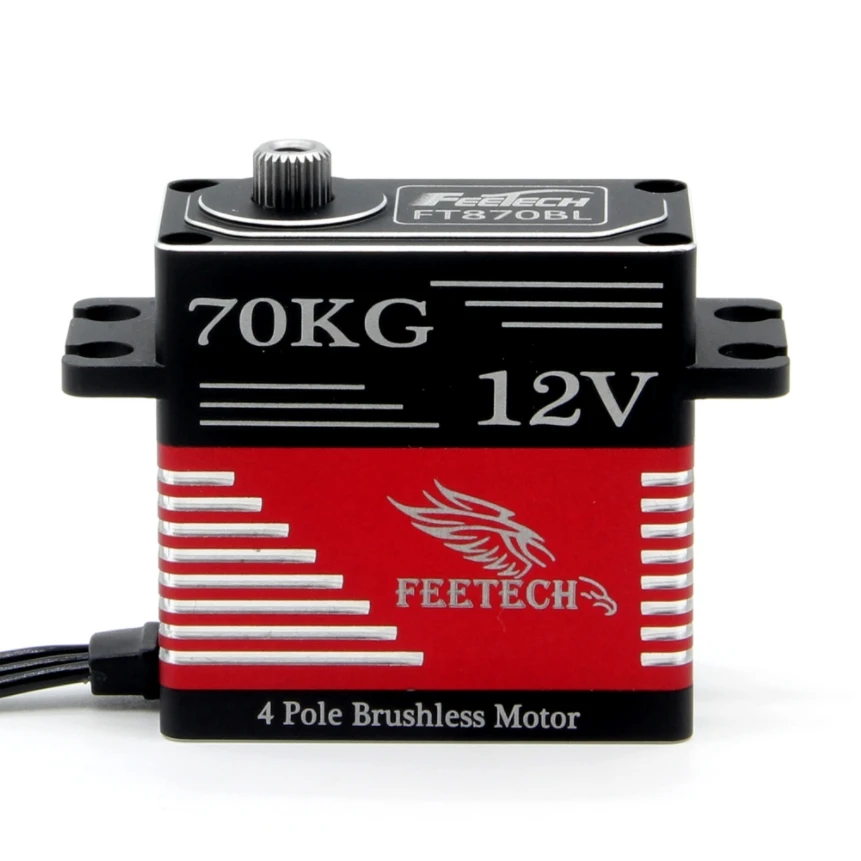

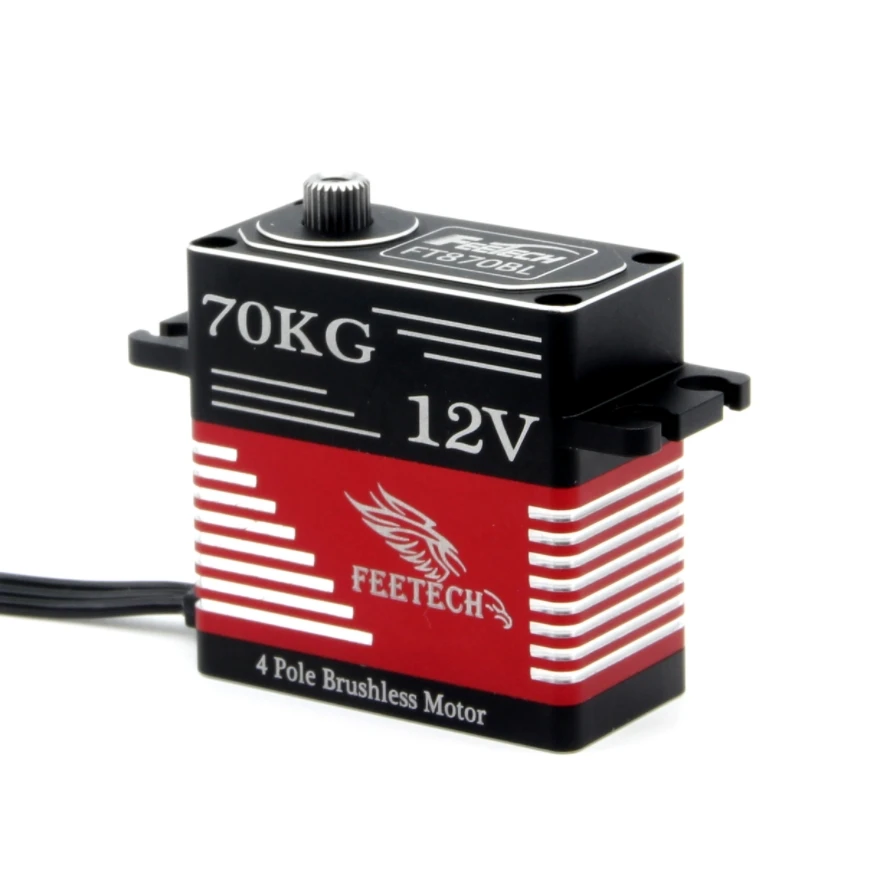

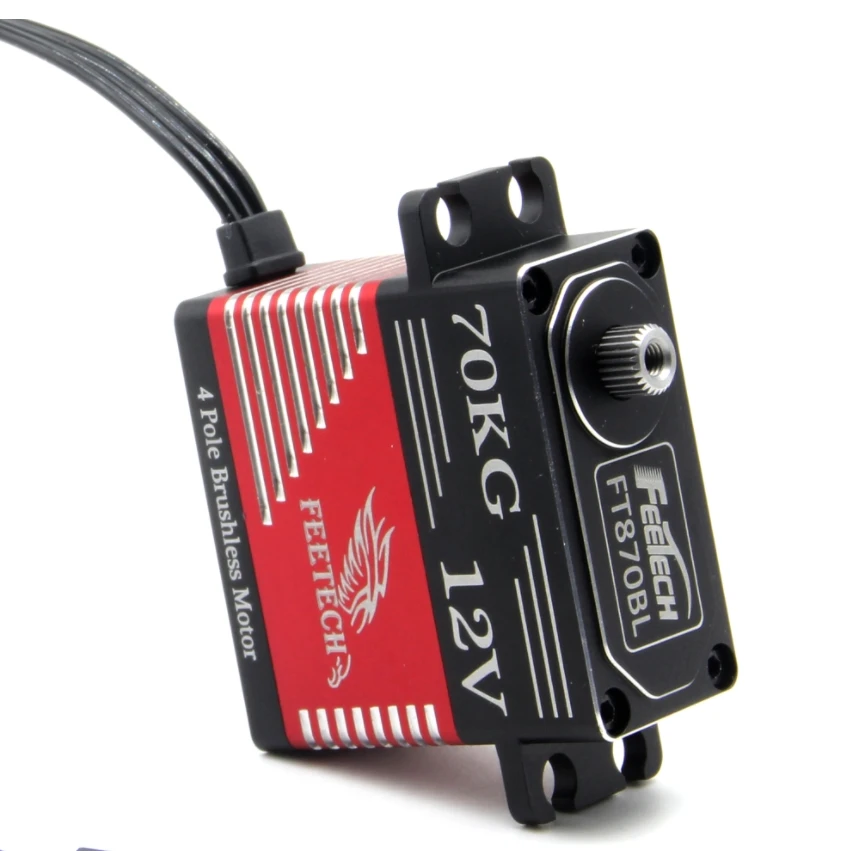

12V 70kg Xmaxx Crawler Robot Parts Brushless Digital Servo HV Large Torque Waterproof IPX8 Motor Steel Metal Gear RC Truck Car
- Category: >>>
- Supplier: Shenzhen Feite Model Co. Ltd.
Share on (1601221706951):
Product Overview
Description
Related Products
Control Specification
MODEL:FT870BL-C002
12V 70kg.cm Digital 180 degree Aluminium Case Steel Gear Brushless Motor Servo
Electrical Specification:Operating Voltage:12V\t\t\t\t
No Load Speed±10%：0.263sec/60°(70RPM)\t\t\t\t
Running Current ( no load)400mA\t\t\t\t
Stall Torque (at locked)：70kg.cm/973.8oz.in\t\t\t
Stall Current (at locked):5.2A\t\t\t\t
Idle Current (at stopped):26mA\t\t\t\t
Input Voltage Range:9V-12.6V\t\t\t\t
Rated Torgue:17.5kg.cm\t\t\t\t
Rated Current:1300mA\t\t\t\t
Kt constant:13.4kg.cm/A\t\t\t\t
Mechanical Specification：\t\t\t\t\t\t\t\t\t
Size:59X29X55mm\t\t\t
Limit Angle:No limit\t\t\t\t\t
Case material:Aluminum\t\t\t\t\t
Gear material:titanium alloy\t\t\t\t
Bearing type Ball bearings\t\t\t\t\t
Angle Sensor Type:Carbon-Film Potentiometer\t\t\t\t
Connector and Cable Type：JR\t\t\t\t
Material：PVC\t\t\t\t
Length：30±0.5CM\t\t\t\t
Pin Definition 1--Signal； 2---Vcc；3---GND。\t\t\t
The Weight：78.8g± 1g \t\t\t\t\t
Horn Type：25T/5.9mm\t\t\t\t\t
Gear Ratio：1/356\t\t\t\t\t
Back Lash\t≦0.5°\t\t\t\t\t
The rocker phantom：0°\t\t\t\t\t
The rocker screw：M3X6\t\t\t\t\t
Motor：4 Pole Brushless Motor\t\t \t\t
Control Specification：\t\t\t\t\t\t\t\t\t
Command Signal：Pulse width modulation \t\t\t\t
Control System Type：Digital comparator\t\t\t\t
Operating Travel：180±5°(at 500→2500μsec)\t\t\t\t
Left&Right Travelling Angledeviation≤ 5°\t\t\t\t
Centering Deviation\t≦1°\t\t\t\t
Neutral Position1500 μsec\t\t\t\t
Dead Band Width≤4 μsec\t\t\t\t
Rotating Direction ：Counterclockwise(在500→2500 μsec)\t\t\t\t
Pulse Width Range：500→2500 μsec\t\t\t\t
Electronic Protection：Stall 8sec，After the servo is blocked, the output torque exceeds
the overload torque and continues for more than 8 seconds
before automatically outputting the protection torque.
The overload torque, protection time, and protection torque can be modified. \t\t\t
\t\t\t\t\t\t\t\t\t
Reliability Testing\t\t\t\t\t\t\t\t\t
Life test＞100000 times,
Rotate forward at 60 degrees for 0.25S, stop for 0.5S, reverse at 60 degrees for 0.25S, stop for 0.5S once,
continuously cycle work, load 17kg - speed 0.526sec/60 °, test working voltage 12V. \t\t\t
The motor noises:50±5dB,Environmental noise 40-45 dB tested at a distance of 30cm from the noise meter\t\t\t\t\t
Steering gear noises:70±5dB,Environmental noise 40-45 dB,
tested at a distance of 30cm from the noise meter at -0.789sec/60 °, unloaded speed -12V\t\t\t
Waterproof performance:IP66\t
Product Description
Product Name | 12V 70kg.cm Digital 180 degree Aluminium Case titanium Gear Brushless Servo |
Material | Aluminium Case Steel Gear Core Motor |
Function | For 1:5 Traxxas arrma kraton baja RC Car Motor High Speed Servos |
Package | Seperate Colorbox with Metal servo horn and plastic accessory bag |
Product performance description
* Intelligent control: The servo digital servo hpi is equipped with an intelligent control panel, which can automatically adjust the temperature of the servo.
* Waterproof: The servo digital servo is waterproof, so you don't have to worry about getting wet while using it.
* Durable design: The servo digital servo hpi is made of high-quality aluminum alloy, which is durable and has a long service life.
* Waterproof: The servo digital servo is waterproof, so you don't have to worry about getting wet while using it.
* Durable design: The servo digital servo hpi is made of high-quality aluminum alloy, which is durable and has a long service life.
Product Usage
Packing&Shipping

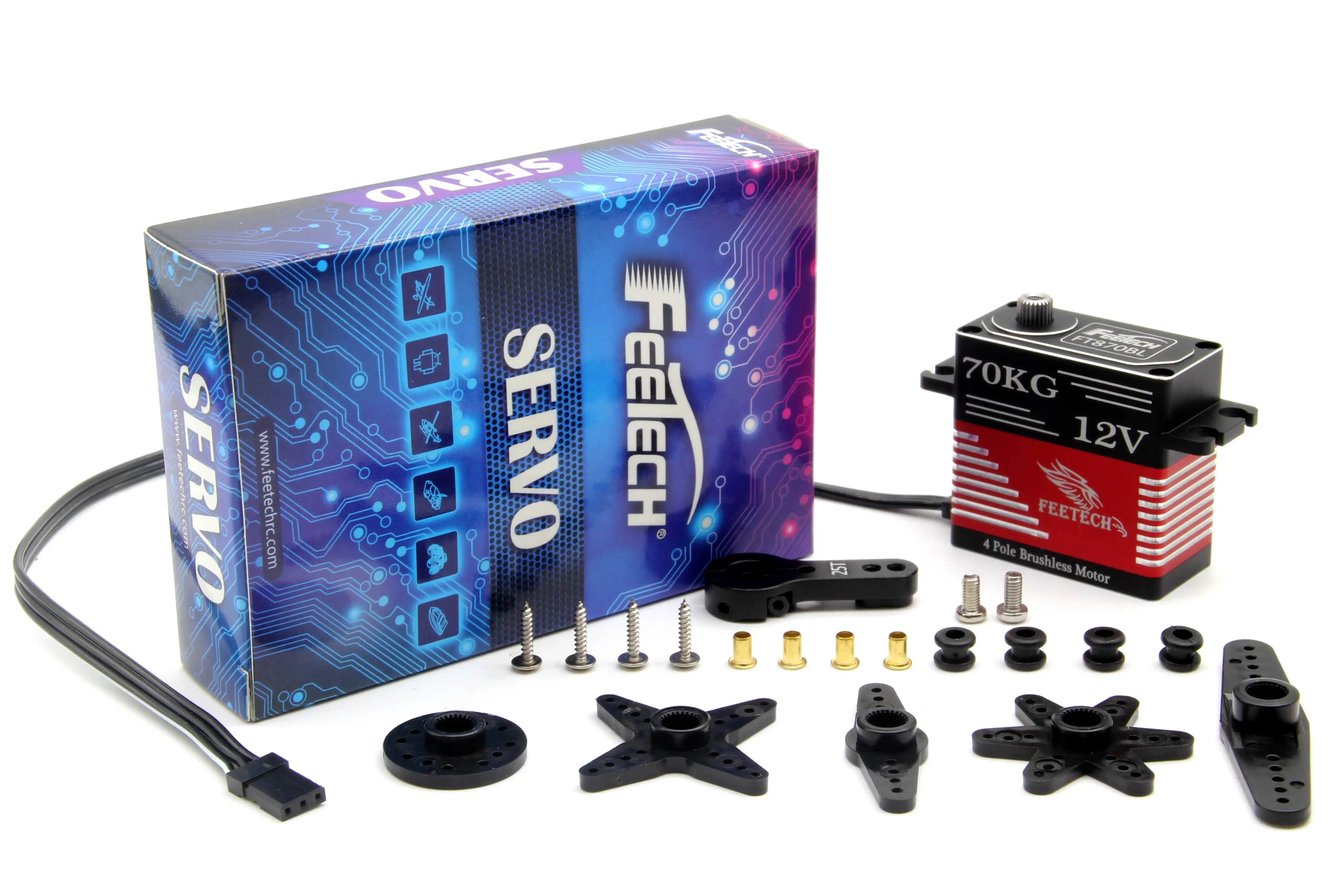

Package included:
