Window evaporative air cooler chargeable air cooler with Group control for Public buildings
- Category: >>>
- Supplier: Aolan (Fujian) Industry Co. Ltd.
Share on (1601222823950):
Product Overview
Description
Desert Evaporative Air Cooler , Outdoor Air Cooler , Evaporative Air Cooler
Characteristics:
1. Different fan speeds: inverter frequency control variable speed; 3-phase,2-speed.
2. different air discharges (top, down or side) meet different installation requirements.
3. Using standard controller, easy to operate.
4. Materials for casing are anti-UV, anti-corrosion, anti-aging, and no deformation.
5. Fan impeller is special designed to allow large airflow but lower noise.
6. Motor applied is moistureproof, waterproof with tiny temperature rise.
7. Using open type water distributor, water can flow smoothly and distributor is not easy to block.

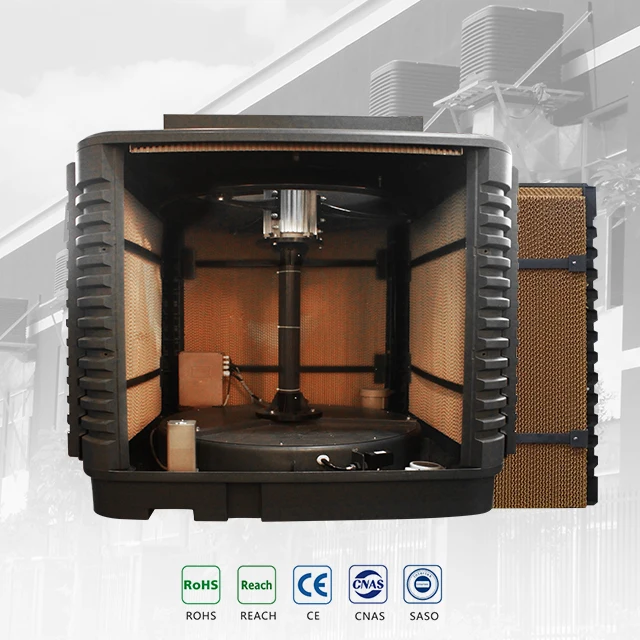

8. Using high efficient cooling pads with large evaporation capacity, good cooling efficiency and easy to clean.
Product Advantage:
1.In different climates, the supply air difference is 5-15℃.
2.Efficiency for cooling pads used is 90%.
3.Motor applied is moistureproof, waterproof with tiny temperature rise.
4.Fan impeller is special designed to allow large airflow but lower noise.
5.1-99 hours auto clean can be made to extend cooler's life.
6.Water lack protection allows long pump life.
1. Different fan speeds: inverter frequency control variable speed; 3-phase,2-speed.
2. different air discharges (top, down or side) meet different installation requirements.
3. Using standard controller, easy to operate.
4. Materials for casing are anti-UV, anti-corrosion, anti-aging, and no deformation.
5. Fan impeller is special designed to allow large airflow but lower noise.
6. Motor applied is moistureproof, waterproof with tiny temperature rise.
7. Using open type water distributor, water can flow smoothly and distributor is not easy to block.
8. Using high efficient cooling pads with large evaporation capacity, good cooling efficiency and easy to clean.
Product Advantage:
1.In different climates, the supply air difference is 5-15℃.
2.Efficiency for cooling pads used is 90%.
3.Motor applied is moistureproof, waterproof with tiny temperature rise.
4.Fan impeller is special designed to allow large airflow but lower noise.
5.1-99 hours auto clean can be made to extend cooler's life.
6.Water lack protection allows long pump life.
Specification
Model/Specs | AZL30-ZX32C | AZL30-ZX30C | |
AZL30-ZS32C | AZL30-ZS30C | ||
AZL30-ZC32C | AZL30-ZC30C | ||
X-down discharge,S-up discharge,C-side discharge | |||
Electrial Source(V/Hz) | 380-415/50-60(V/Hz) 3-phase | 380-415/50-60(V/Hz) 3-phase | |
Power(kw) | 3.0/1.0 | 3.0 | |
Rated Currency(A) | 7.1/3.5 | 7.1 | |
Airflow(m3/h) | 30000/20000 | 30000 | |
Fan Type | Axial | Axial | |
Fan speed | 3-phase,2-speed | Multi-speed,Inverter | |
Pressure(Pa) | 320/136 | 320 | |
Vent Size(L*W)(mm) | 765*765 | 765*765 | |
Noise (dBA) | ≤80 | ≤80 | |

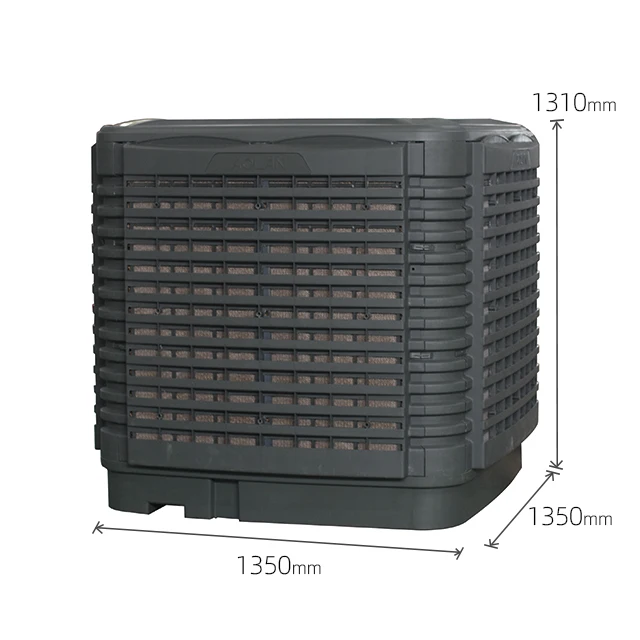

Dimension(L*W*H)(mm) | 1350*1350*1310(down/side) 1350*1350*1426(up) | 1350*1350*1310(down/side) 1350*1350*1426(up) | |
Pad Size(L*W*H)(mm) | 970*881*100 | 970*881*100 | |
Net Weight (±3kg) | 125(down) 152(up) 161(side) | 125(down) 152(up) 161(side) | |
Operation Weight (kg) | 180(down) 207(up) 216(side) | 180(down) 207(up) 216(side) | |
Controller | LED Control | LCD Control | |
Pre-dust Filter | Optional | Optional | |
Exhaust | Optional | Optional | |
Pre-cooling | Optional | Optional | |
Group- control | Optional | Optional | |
Damper | Optional | Optional | |
Tem&hum Control | Optional | Optional | |
QTY/FULL(40HQ) | 9 | 9 | |
QTY/SKD(40HQ) | 45(down)/39(up)/42(side) | 45(down)/39(up)/42(side) | |
