Building Material Aluminum Roof Ridge Capping Roll Forming Machine With Perforation Hole
- Category: >>>
- Supplier: Botou Ruichuang Cold Bending Machinery Co. Ltd.
Share on (1601224857561):
Product Overview
Description

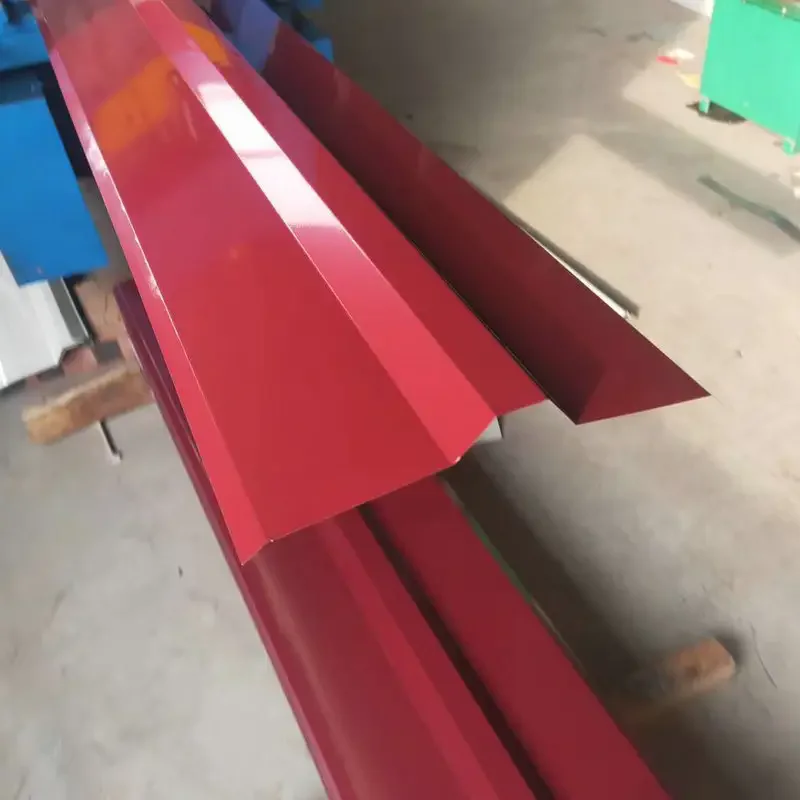

Roof ridge cap roll forming machine
What is a Roof ridge cap roll forming machine？

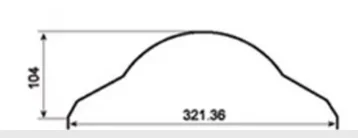

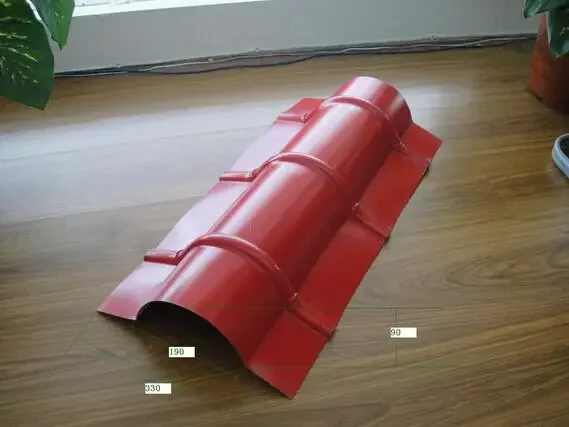

The ridge cap on a metal roof is the trim that runs along the apex of the roof, The peak or ridge is the point at the top of the roof where both slopes meet;
The most important stage in enclosing a steel structure roof system is in staling ridge tops. Metal roof ridge caps go along the peak of the roof, connecting the two adjoining steel roof panels on either side of the roof seam. To make metal roofing ridge cap we use metal roof ridge cap roll forming machine.

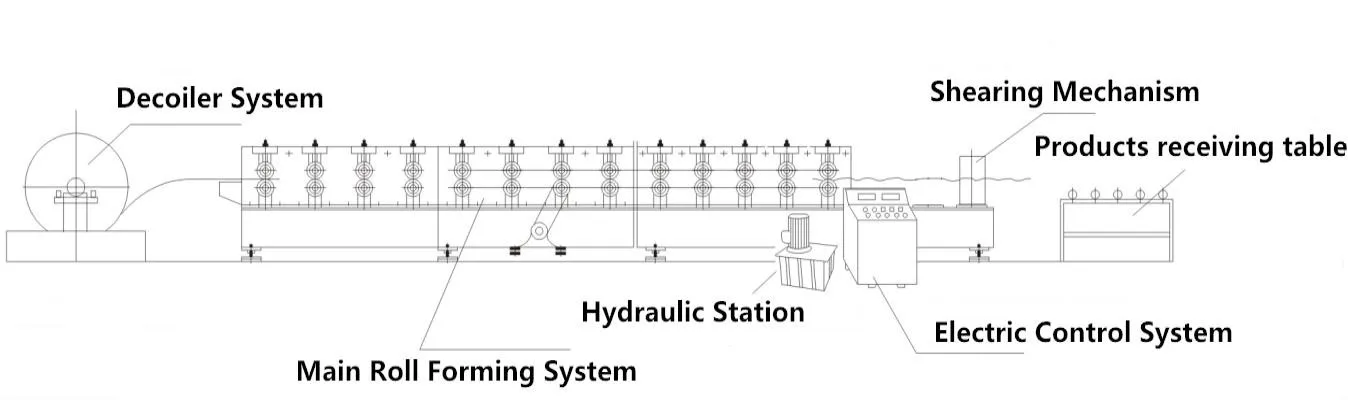

Introduction to each part of the machine
Feeding material
1. With several support rollers, to feed the material more smoothly.
2. Equipped with 2 groups nylon wheels in the middle of the platform, prevent the materialsurface from being damaged, and feed the material more easily and quickly .
3. Can be With hand wheels to adjust the feeding size, more conveniently.
4. Every layer with two gears on the outside, so that the upper axis of each layer runs passively to actively, with more power and faster.
5 Entry guides with vertical guide rolls & all lateral movement manual screw type.
4. Every layer with two gears on the outside, so that the upper axis of each layer runs passively to actively, with more power and faster.
5 Entry guides with vertical guide rolls & all lateral movement manual screw type.
Roll pressing system
Cr12 (also known as D3) steel is a high-carbon, high-chromium steel alloy used in the production of rollers for various
applications, including the manufacturing of asymmetrical sectional steel, round steel, and flat steel. Cr12 steel is known for its high wear resistance, toughness, and strength, making it an ideal material for roller production. used for roll forming
machine.
applications, including the manufacturing of asymmetrical sectional steel, round steel, and flat steel. Cr12 steel is known for its high wear resistance, toughness, and strength, making it an ideal material for roller production. used for roll forming
machine.

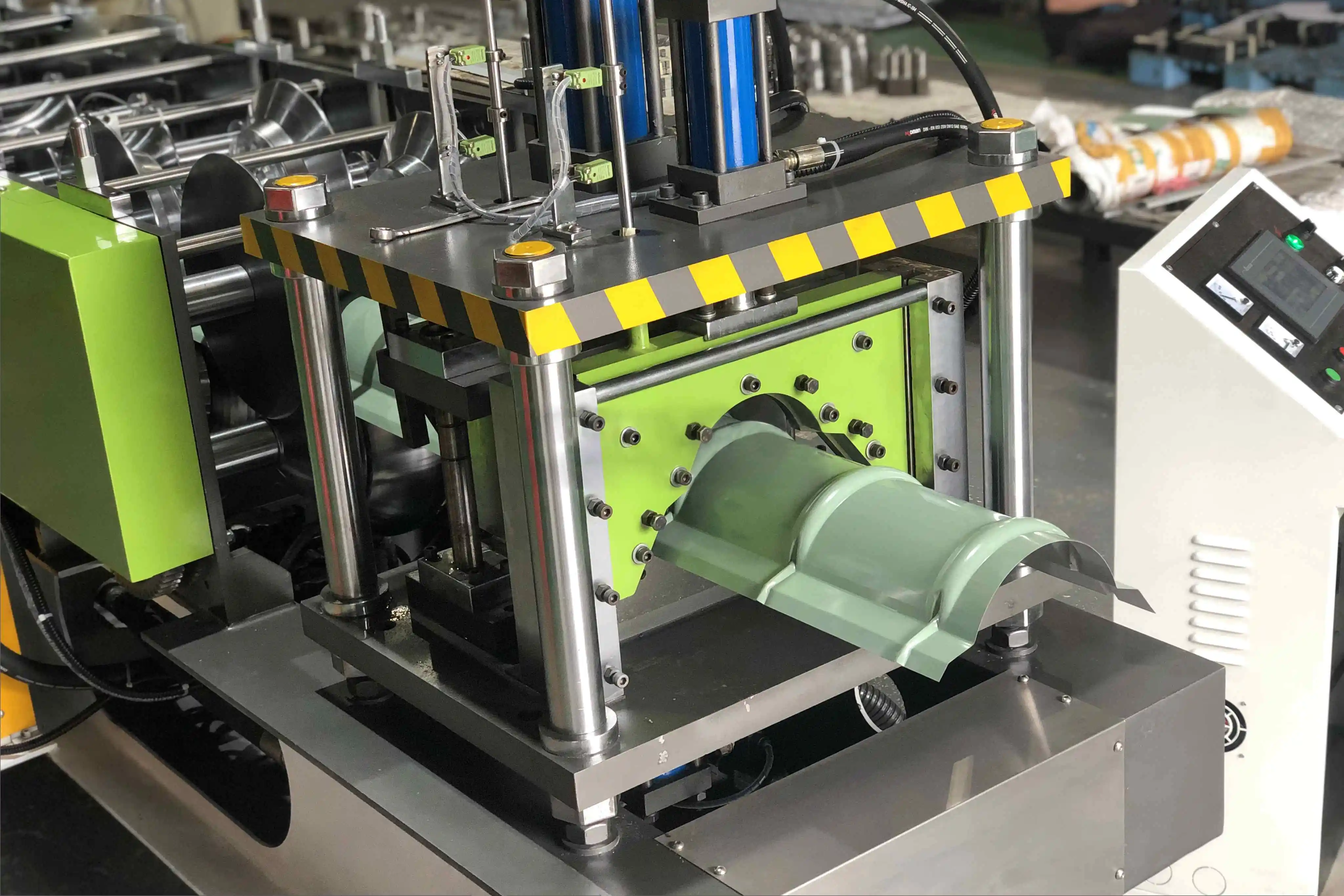

Cutting device
1.Our machine uses hydraulic shearing.
2.Cutting as stop forming line cuts length +/- 1 mm and very high line speed cuts the blank or profile single word. Press is
designed to accept type die or dropping die without slug while cutting.
2.Cutting as stop forming line cuts length +/- 1 mm and very high line speed cuts the blank or profile single word. Press is
designed to accept type die or dropping die without slug while cutting.
Technical Parameter
Roof ridge cap roll forming machine | ||||
ltems | STANDARD model | HIGH SPEED model | ||
Total power | 5.5-7.5KW | 11-15KW | ||
Speed | 4-6m/min | 6-8m/min | ||
Dimension (LxWxH) | (6-8)x(1.0-1.4)x1.4m | (6-8)x(1.0-1.4)x1.4m | ||
Weight of machine | 3.5-5Tons | 9-12Tons | ||
Roller station | 10-16 | 12-20 | ||
Material thickness | 0.25-0.5mm (G300-G450) | 0.25-0.5mm (G300- | ||
Material width | 300;304;400; 457mm | 300;304;400; 457mm | ||
Transmission system | Hydraulic motor | Servo motor with gear box | ||
Cutting system | Hydraulic cylinder(front cutting) | Hydraulic cylinder (front cutting) | ||
Control system | Automatic with PLC, HMI | Automatic with PLC, HMI | ||

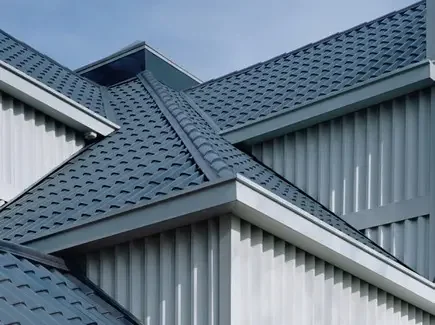

Usage scenario diagram
Other products produced by Botou Ruichuang Cold Bending Machinery Co., Ltd
About Botou Ruichuang Cold Bending Machinery Co., Ltd.
Botou Ruichuang Cold Bending Machinery Co., Ltd has been a leading supplier of Roll Forming Machinery since 2008 to a vast array of industries, providing roll-forming machinery. We can build a machine to fit any need!
Botou Ruichuang Cold Bending Machinery Co., Ltd. supplies many different types of metal roll forming machines. These include metal roofing machines, metal flooring machines, metal purlins, and metal waterproof boards.
We also provide equipment related to metal roll forming, including uncoiler decoiler uncoiler, coil car, discharge table, metal slitting machine, and metal embossing machine.
Our machine can also form single-layer and double-layer panels.
Our machines can be specified for rolling to form individual panel contours, or integrated with boxes that produce different panel contours.
We know well the requirements for the customers from different countries and have an outstanding export team who will take care of your requests.
Our products have been sold worldwide in over 90 countries including America, the UK, Australia,Argentina, Chile, Oman, India, Tanzania, South Africa, etc.
Botou Ruichuang Cold Bending Machinery Co., Ltd. supplies many different types of metal roll forming machines. These include metal roofing machines, metal flooring machines, metal purlins, and metal waterproof boards.
We also provide equipment related to metal roll forming, including uncoiler decoiler uncoiler, coil car, discharge table, metal slitting machine, and metal embossing machine.
Our machine can also form single-layer and double-layer panels.
Our machines can be specified for rolling to form individual panel contours, or integrated with boxes that produce different panel contours.
We know well the requirements for the customers from different countries and have an outstanding export team who will take care of your requests.
Our products have been sold worldwide in over 90 countries including America, the UK, Australia,Argentina, Chile, Oman, India, Tanzania, South Africa, etc.

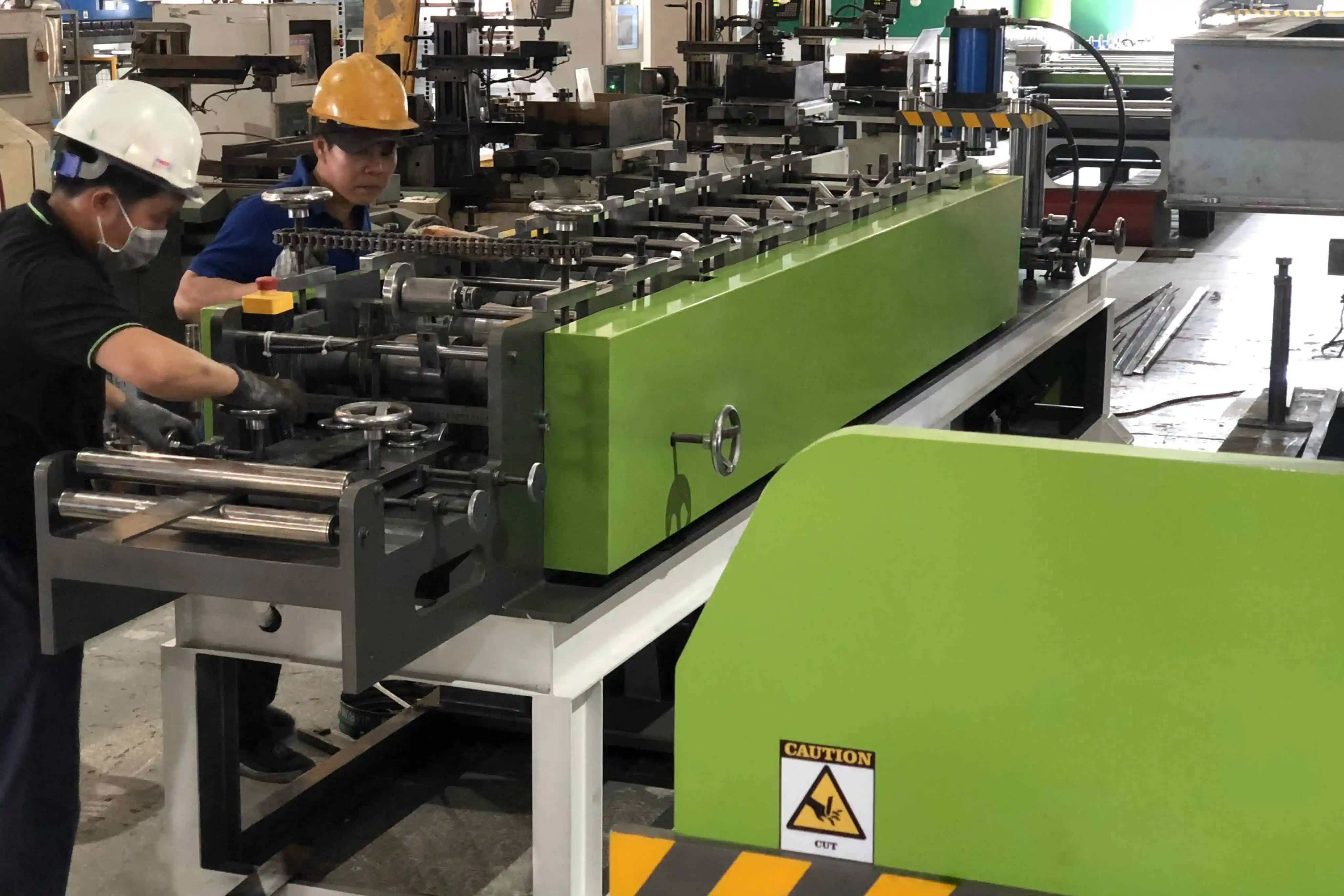

Botou RuiChuang Roll Forming Machine manufacturing process.
The advanced technology and machinery of Botou Ruichuang roll forming:
Botou Ruichuang factory is equipped with the latest technology and machinery to ensure that every roll forming machine produced is of the highest qualty. We takeoride in the ful range of metal processing machines,which includes aser cutting, plasma, CNC bending.wire cutting, CNC miling and drling, cuting pipe welding machines,and more.Each machine is designed and manufactured by a team of highly skilled engineers who are dedicated to delivering the best possible solutions to customers.
Botou Ruichuang factory is equipped with the latest technology and machinery to ensure that every roll forming machine produced is of the highest qualty. We takeoride in the ful range of metal processing machines,which includes aser cutting, plasma, CNC bending.wire cutting, CNC miling and drling, cuting pipe welding machines,and more.Each machine is designed and manufactured by a team of highly skilled engineers who are dedicated to delivering the best possible solutions to customers.
All Botou Ruichuang machines are professionally and reasonably made in China, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.
Our partners and the exhibitions we attend, our certificates.
Freight transportation and optional transportation methods.
FAQ
Q1. How long is your warranty period?
Within 18 months from the date of self loading, we guarantee that no malfunctions will occur due to manufacturing defects.
Q2. Do you provide training for my employees?
The machine has been installed and tested well before shipment. It is easy to operate.
Generally speaking, our customers can operate the machine well by following the instructions.You can also inspect the machine at our factory and learn how to operate it before shipping. It only takes 2 hours You can operate it well.
Q3. I am not familiar with this machine and do not know how to install it. Can you install this machine in my factory?
If you need us to send engineers to your factory.
Q4. How can I start working?
The machine test is good, and the wire connection is good.
When you bring the machine to the factory, you only need to do the following three things, and then you can start working.
a. Place the machine on a flat surface.
b. Inject gear oil and hydraulic oil.
c. Connect the three-phase wires.
Q5. Are we a factory or a trading company?
Our company has a 15 year history in the roller press industry. We integrate industry and trade to create a one-stop service
An industrial chain that integrates research and development, design, manufacturing, assembly, debugging, and maintenance.You can ask us any questions, and our company can perfectly solve any problem you encounter.
Q6. How can I trust the machine to paste and test before shipment?
1) We have recorded a test video for your reference. Alternatively.
2) We welcome you to visit our factory and personally test the machines.
Q7. Do you only sell standard machines?
A: No, most of our machines are customized according to customer specifications and use components from top brands.
Q8. What would you do if the machine broke down?
A: We offer a one-year free warranty and free technical support for the entire lifecycle of any machine. If the part breaks
Unable to repair, we can send new parts for free to replace damaged parts, but you will need to pay for the shipping cost yourself.
If it exceeds the warranty period, we can negotiate to solve the problem and provide you with technical support for the entire service life of the roller press.
Q9. Can you be responsible for transportation?
A: Yes, please tell me the destination port or address. We have extensive experience in transportation.
Q10. Will you deliver the correct goods according to the order? How can I trust you?
A: Yes, we will. We are a Chinese manufacturing gold medal supplier evaluated by SGS (audit reports can be provided).
Q11: Can we become your agent abroad?
A: Of course, if you have business on the rolling forming line, we welcome your strong cooperation.
Q12. How to visit your company?
A: 1) Fly to Beijing Airport and take the high-speed train from Beijing South to Cangzhou Xi (1 hour).
2) Fly to Tianjin Airport and take the high-speed train from Tianjin to Cangzhou Xi (0.5 hours).
3) Fly to Shanghai Airport: Take the high-speed train from Shanghai Hongqiao to Cangzhou Xi (4.5 hours), and then we can pick you up.
Within 18 months from the date of self loading, we guarantee that no malfunctions will occur due to manufacturing defects.
Q2. Do you provide training for my employees?
The machine has been installed and tested well before shipment. It is easy to operate.
Generally speaking, our customers can operate the machine well by following the instructions.You can also inspect the machine at our factory and learn how to operate it before shipping. It only takes 2 hours You can operate it well.
Q3. I am not familiar with this machine and do not know how to install it. Can you install this machine in my factory?
If you need us to send engineers to your factory.
Q4. How can I start working?
The machine test is good, and the wire connection is good.
When you bring the machine to the factory, you only need to do the following three things, and then you can start working.
a. Place the machine on a flat surface.
b. Inject gear oil and hydraulic oil.
c. Connect the three-phase wires.
Q5. Are we a factory or a trading company?
Our company has a 15 year history in the roller press industry. We integrate industry and trade to create a one-stop service
An industrial chain that integrates research and development, design, manufacturing, assembly, debugging, and maintenance.You can ask us any questions, and our company can perfectly solve any problem you encounter.
Q6. How can I trust the machine to paste and test before shipment?
1) We have recorded a test video for your reference. Alternatively.
2) We welcome you to visit our factory and personally test the machines.
Q7. Do you only sell standard machines?
A: No, most of our machines are customized according to customer specifications and use components from top brands.
Q8. What would you do if the machine broke down?
A: We offer a one-year free warranty and free technical support for the entire lifecycle of any machine. If the part breaks
Unable to repair, we can send new parts for free to replace damaged parts, but you will need to pay for the shipping cost yourself.
If it exceeds the warranty period, we can negotiate to solve the problem and provide you with technical support for the entire service life of the roller press.
Q9. Can you be responsible for transportation?
A: Yes, please tell me the destination port or address. We have extensive experience in transportation.
Q10. Will you deliver the correct goods according to the order? How can I trust you?
A: Yes, we will. We are a Chinese manufacturing gold medal supplier evaluated by SGS (audit reports can be provided).
Q11: Can we become your agent abroad?
A: Of course, if you have business on the rolling forming line, we welcome your strong cooperation.
Q12. How to visit your company?
A: 1) Fly to Beijing Airport and take the high-speed train from Beijing South to Cangzhou Xi (1 hour).
2) Fly to Tianjin Airport and take the high-speed train from Tianjin to Cangzhou Xi (0.5 hours).
3) Fly to Shanghai Airport: Take the high-speed train from Shanghai Hongqiao to Cangzhou Xi (4.5 hours), and then we can pick you up.
