Model number: FT-Nano01

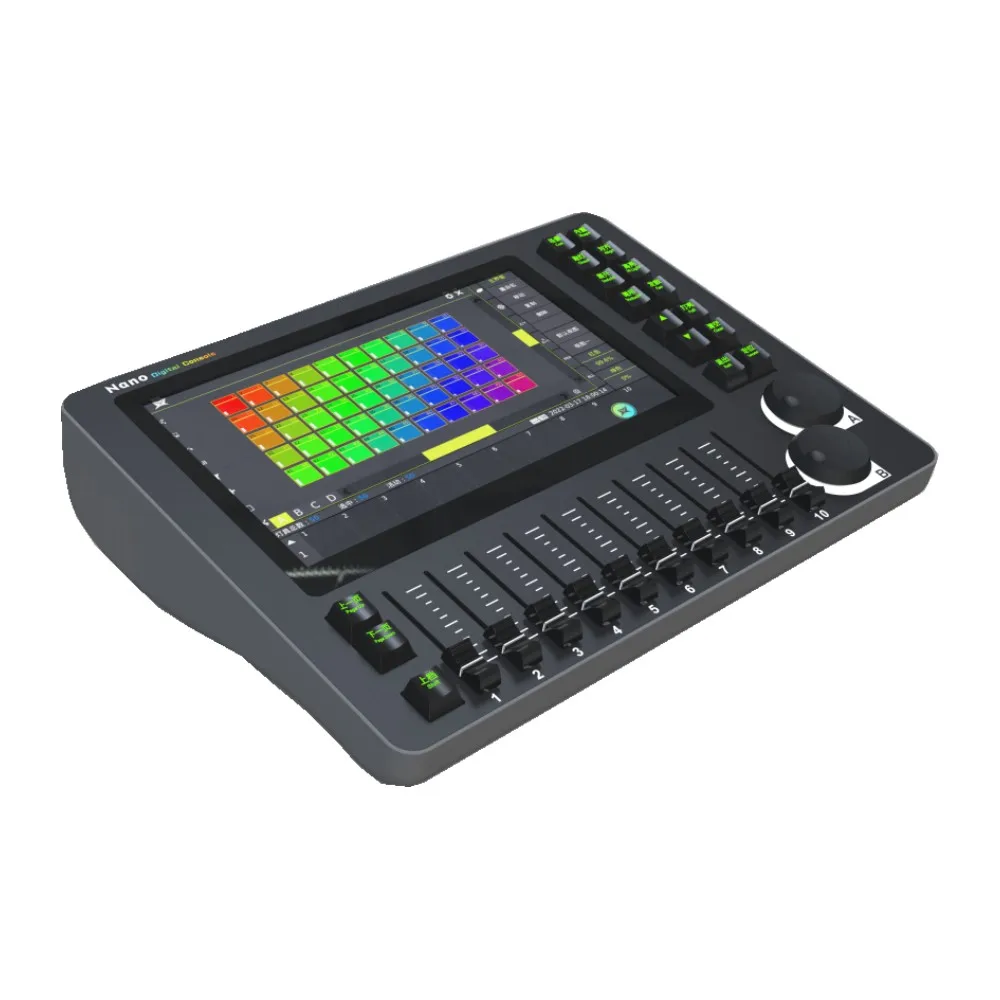

Nano 1024 controller 2 ways:

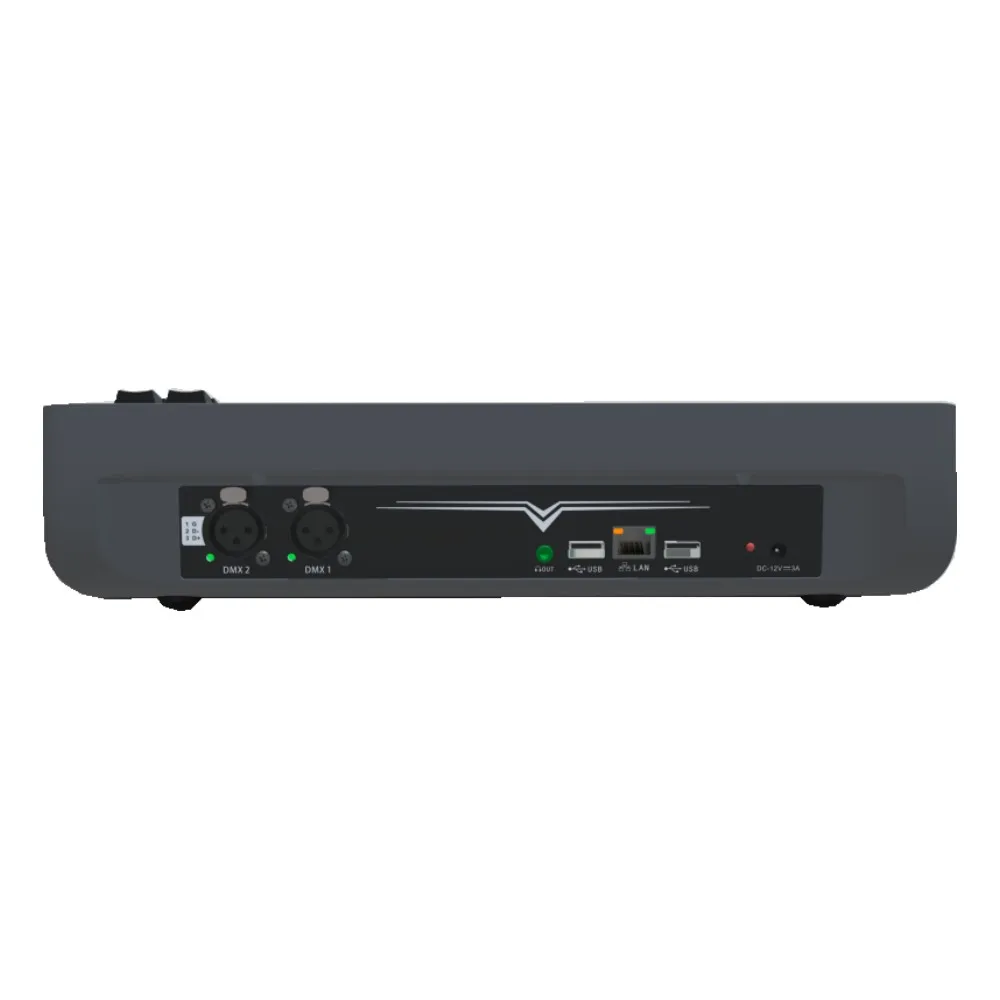

Output circuit: one standard Art Net output port, two optoelectronic isolation standard DMX output ports.
RDM bidirectional communication: supports
Number of channels: 2 * 512 DMX channels, capable of controlling up to 64 computers with 16 channels simultaneously
Control lamp positions: Built in 600 lamp positions, up to 600 computer lamps can be connected simultaneously for control
Lamp Library Support: Built in over 7000 commonly used lamp libraries, supporting the storage of 100000 internal lamp libraries, supporting direct compatibility with four formats: r20, d4, dk, mxl, and built-in intuitive and fast lamp library writing software
Lamp attribute control: intelligent attribute pagination, a single computer lamp supports up to 512 channels
Materials and groups: up to 1000 materials and 200 light groups can be stored
Built in graphic effects: Built in rich classification of general and specialized channel graphic effects, supporting self drawn graphics and keyframe graphics, innovative graphic effects, powerful pixel mapping function, independent user graphic window, providing unlimited number of graphics, and can be run with multiple overlay effects
Graphic interface: Full Chinese graphic interface, supports custom workspace and windows, workspace windows can be freely adjusted in size and position, workspace layout can be saved, window icons and fonts can be resized, supports image naming and graffiti effect naming
Language switching: Supports switching between Simplified Chinese, Traditional Chinese, and English languages
Advanced control: Built in RGB/CMYK color palette, supports custom lighting order, replays global and single attribute time, supports lighting overlap
Playback storage: 10 playback sticks, 50 playback pages, independent playback window, up to 1000 replays can be stored
Playback playback: Supports both occupied and unoccupied playback modes, with a maximum of 10 replays played simultaneously
Number of program steps: A single playback supports storing up to 100 program steps
Centralized control conversion: The panel is equipped with 2 centralized control encoder wheels
Control System: Fully self-developed software control system based on Linux
Display screen: 10.1-inch display screen
Touch screen: Multi point capacitive touch screen
Power input: DC12V 3A
Product size: 34 * 26 * 8cm

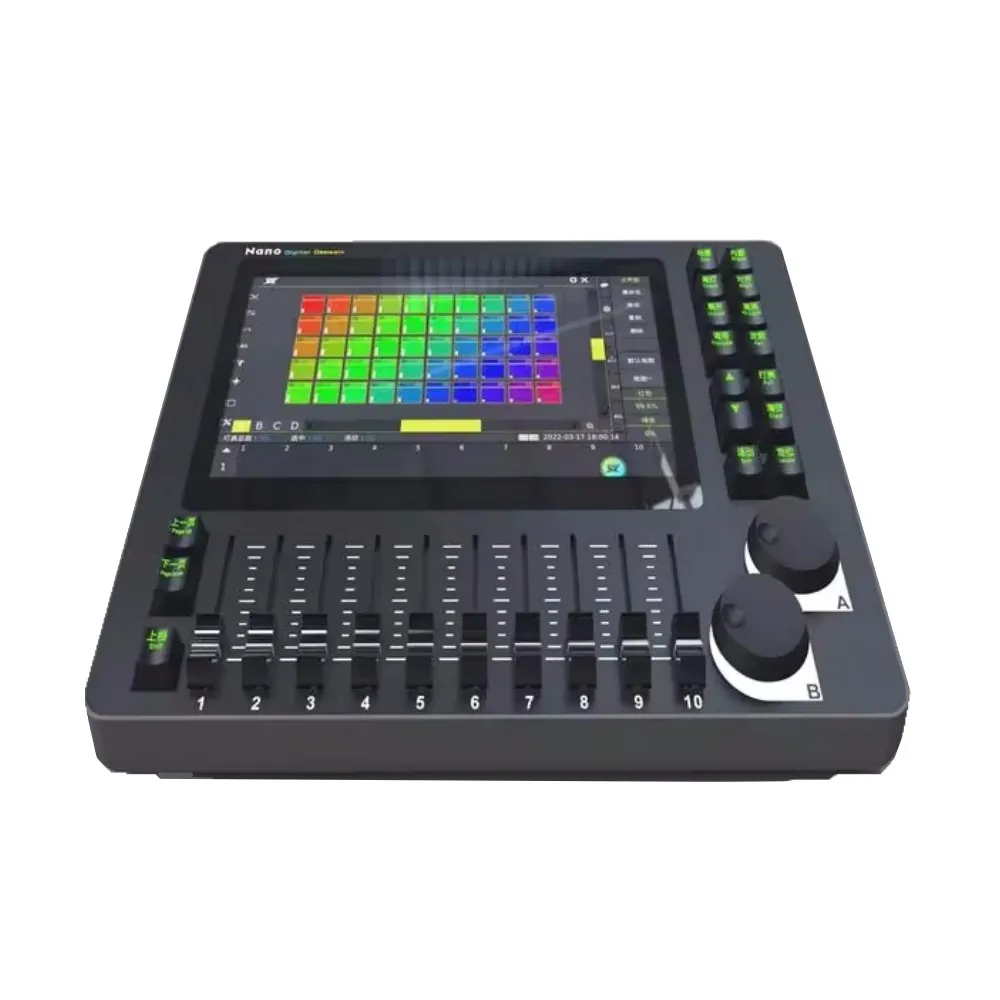

Nano Pro 2048 controller 4 ways:

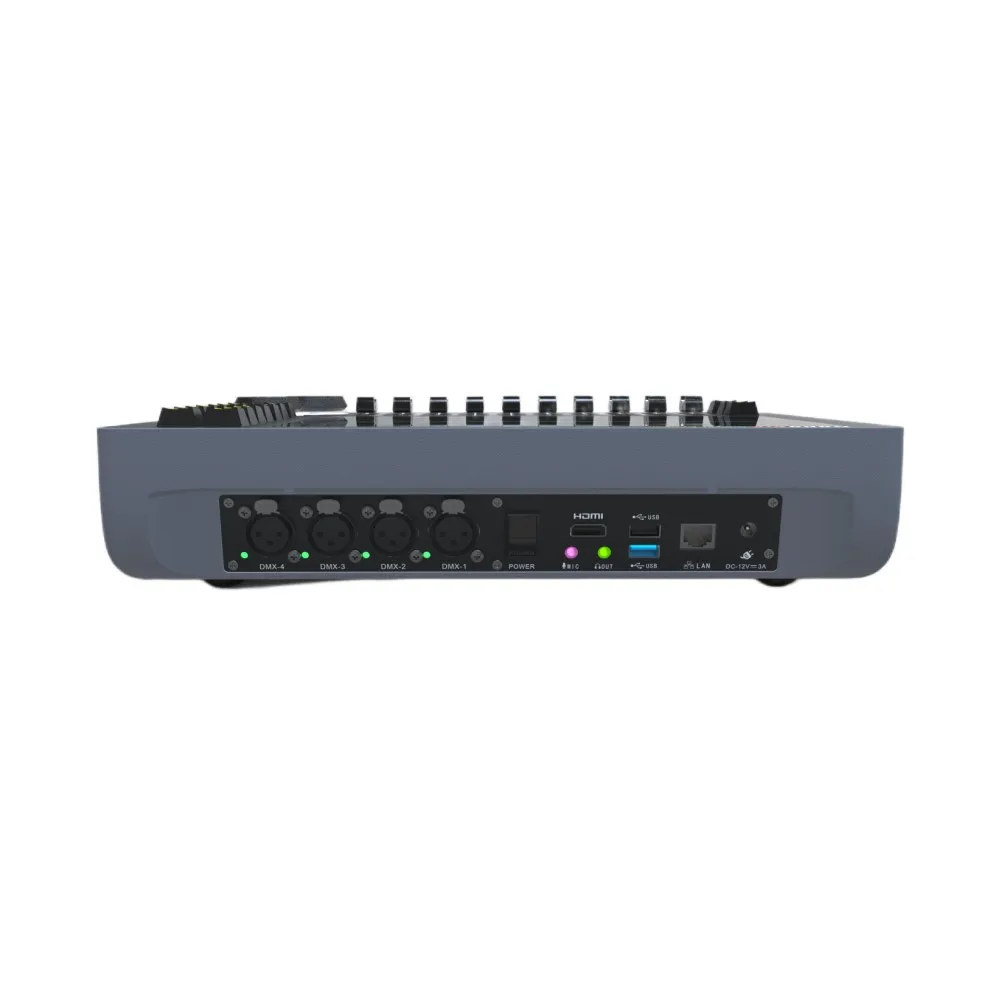

Output line: Supports 8 Art Net output ports and 4 standard DMX output ports with optoelectronic isolation.
RDM bidirectional communication: supports
Number of channels: 4 * 512 DMX channels, capable of controlling up to 128 16 channel computer lights simultaneously
Control lamp positions: Built in 600 lamp positions, up to 600 computer lamps can be connected simultaneously for control
Lamp Library Support: Built in over 7000 commonly used lamp libraries, supporting the storage of 100000 internal lamp libraries, supporting direct compatibility with four formats: r20, d4, dk, mxl, and built-in intuitive and fast lamp library writing software
Lamp attribute control: intelligent attribute pagination, a single computer lamp supports up to 512 channels
Materials and groups: up to 1000 materials and 200 light groups can be stored
Built in graphic effects: Built in rich classification of general and specialized channel graphic effects, supporting self drawn graphics and keyframe graphics, innovative graphic effects, powerful pixel mapping function, independent user graphic window, providing unlimited number of graphics, and can be run with multiple overlay effects
Graphic interface: Full Chinese graphic interface, supports custom workspace and windows, workspace windows can be freely adjusted in size and position, workspace layout can be saved, window icons and fonts can be resized, supports image naming and graffiti effect naming
Language switching: Supports switching between Simplified Chinese, Traditional Chinese, and English languages
Advanced control: Built in RGB/CMYK color palette, supports custom lighting order, replays global and single attribute time, supports lighting overlap
Playback storage: 10 playback sticks, 50 playback pages, independent playback window, up to 1000 replays can be stored
Playback playback: Supports both occupied and unoccupied playback modes, with a maximum of 10 replays played simultaneously
Number of program steps: A single playback supports storing up to 100 program steps
Centralized control conversion: The panel is equipped with 2 centralized control encoder wheels
Control System: Fully self-developed software control system based on Linux
Display screen: 10.1-inch display screen.
Support expansion; 1 external screen
Touch screen: Multi point capacitive touch screen
Power input: DC12V 3A
Product size: 34 * 26 * 8cm
Pictures:
Trade Term
1. Price term: EXW price or FOB
2. MOQ: 1PCS
3. Payment: T/T, Western Union, Paypal, Cash
4. Delivery time: 1-5days after the payment
5. Shipping: By air, by sea, by DHL/Fedex/UPS/EMS
6. Guarantee period: 2 years
7. Packing: Standard export cartons or flight case
8. After sells service:If there has problem with the product, pictures or videos are necessary for us to check carefully for you, we will offer you the replace parts for free , if within 2 year's warranty.
Payment
Why choose us?
1.We are manufacturer, 2 year guarantee time.
2. All of our salesmen know the products well,we can provide you a good inquiry service.
3. My factory have the professional man to guarantee the good after-sale service, and the professional engineers and QC to make sure the light will work properly.Strictly test before shipment.
4. We can arrange the shipment for you and help you to settle any shipping difficulty, including DHL,FEDEX,UPS,TNT,By Air or By Sea.
5. Short delivery time: 2-5days,according to the quantity, the sample can be delivered in only 1 day.
Thank you for viewing our website and welcome to visit our factory.
