2024 very popular TEVO VHD630A KB200PRO 30x optical zoom USB 3.0/HDMI/RJ45/SDI PTZ camera video conference system
- Category: >>>
- Supplier: Sz Tenveo Video Technology Co. Ltd.
Share on (1601228969329):
Product Overview
Description
Product Description
The camera:
* FHD PTZ Conference Camera. Capture every detail and provide an immersive experience, 30x optical zoom with USB 3.0, HDMI, RJ45, SDI
* Smooth PTZ rotation. 350(±175) horizontally and 180(±90) vertically

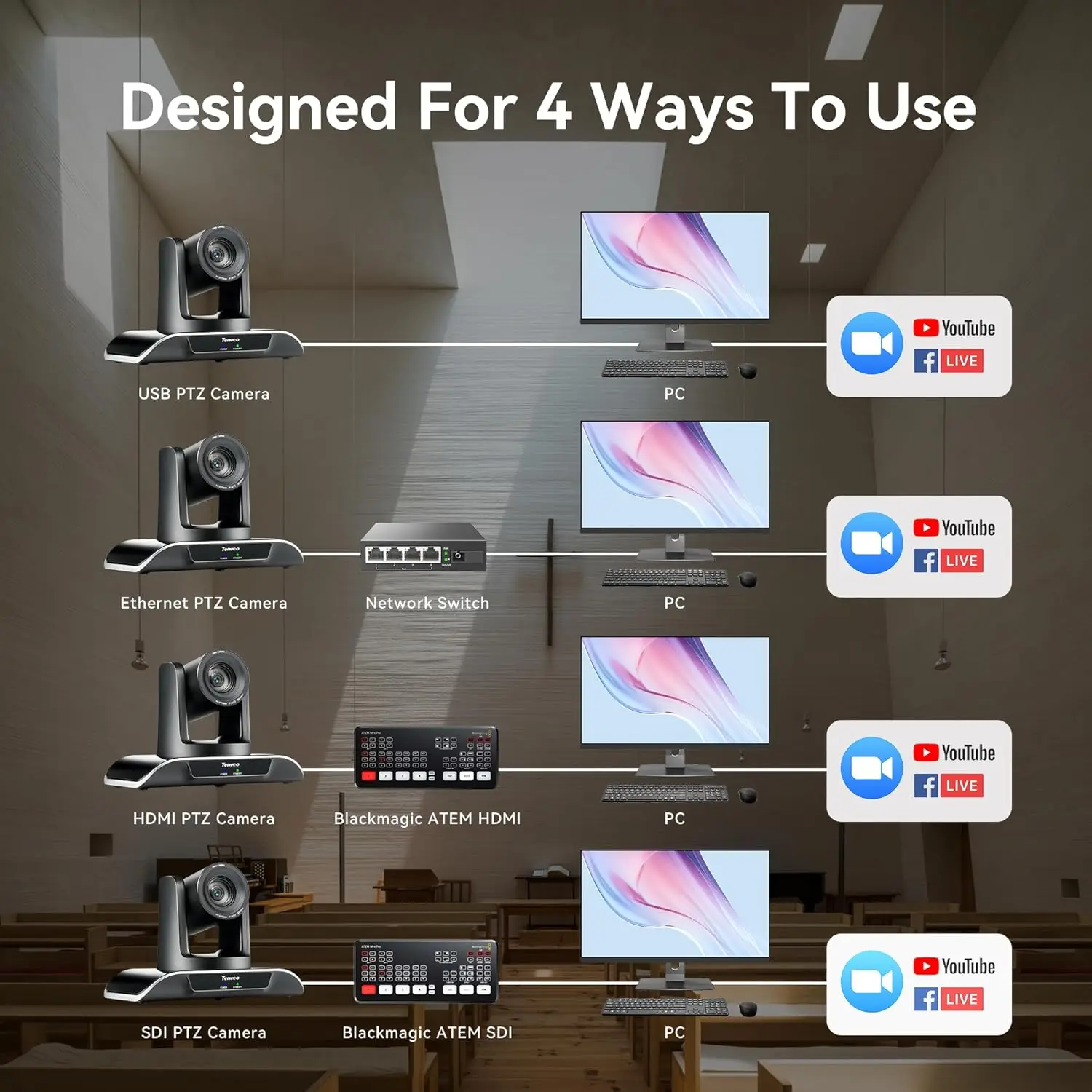

* Multiple connections choices-USB 3.0, HDMI, RJ45, SDI . Effective distance-using recommended: USB-15m/49.21ft, HDMI-30m/98.42ft.
*Auto-tracking and auto-framing function: To locate the person in the image quickly.
*Optional NDI
The KB200PRO keyboard controller

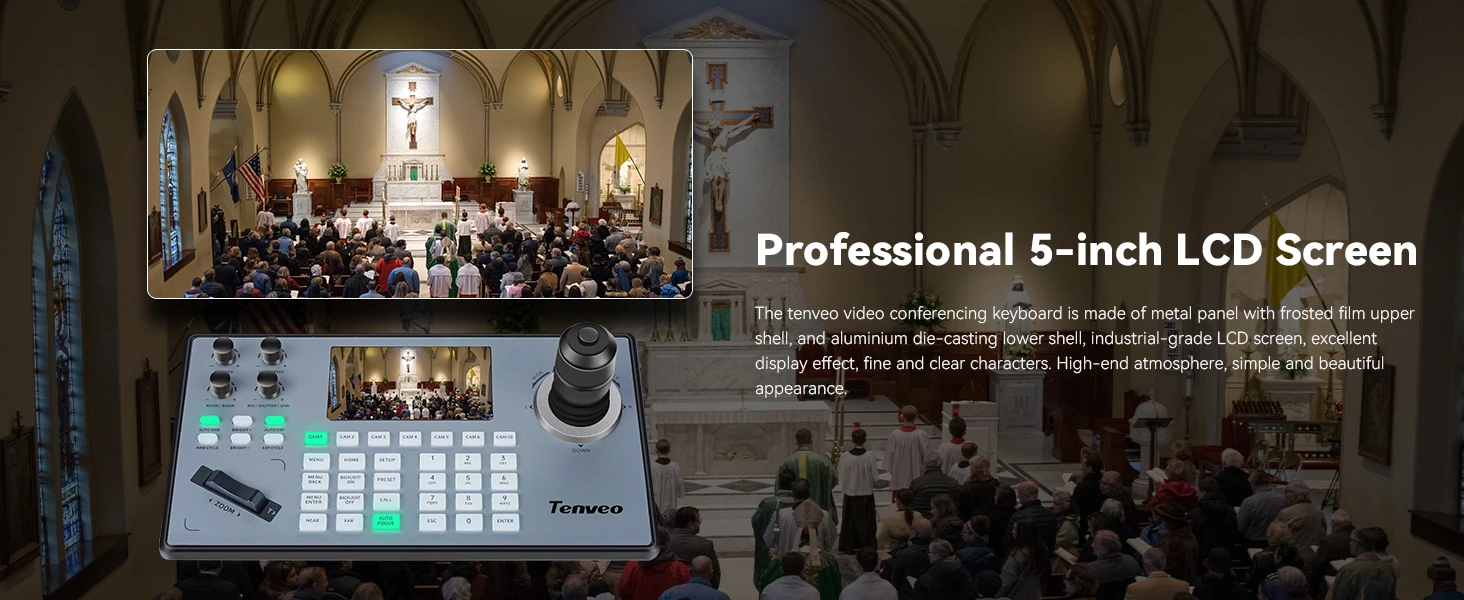

*Joystick Controller 4D joystick and 5'' LCD screen preview, supporting real-time preview of current viewing, allowing you to effortlessly control and adjust your camera angles with utmost precision, resulting in smooth and professional live streaming experiences. You can easily pan, tilt, zoom, focus, Iris, backlight, presets, PTZ Speed, and quick PTZ Camera select according to your needs.

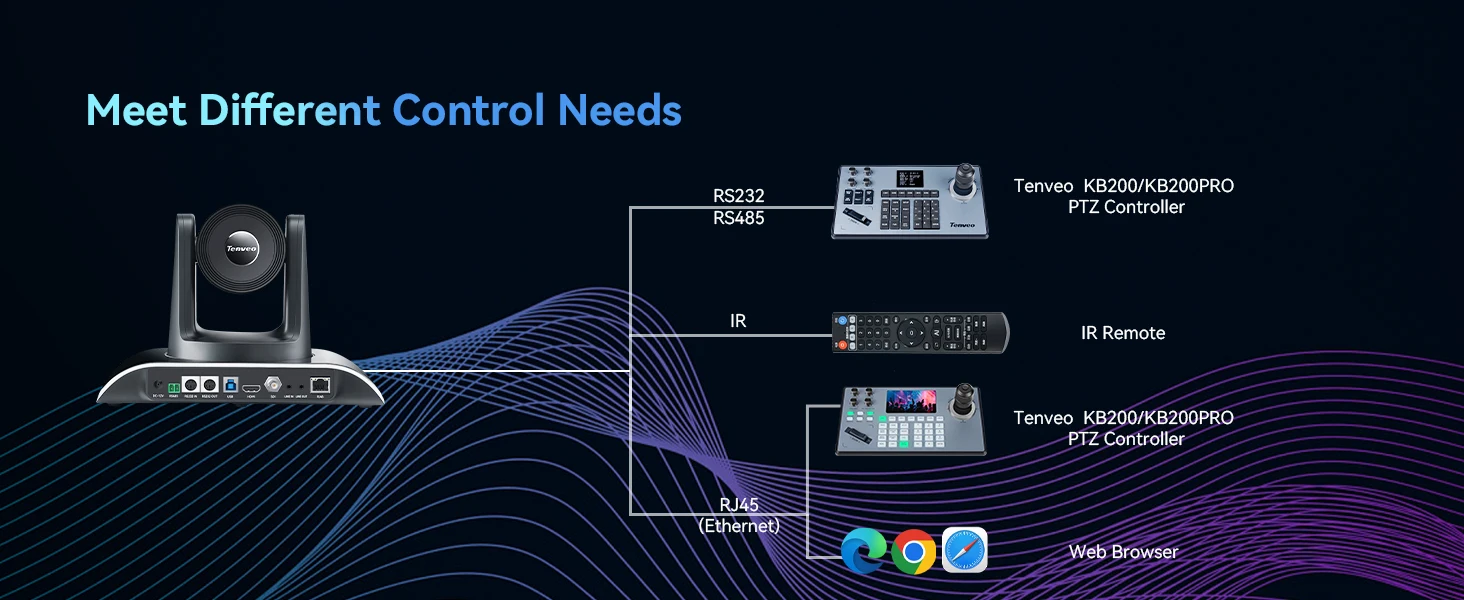

*Compatibility The PTZ Controller support network and analog two control modes. With support for a wide array of protocols including Visca UDP, Visca TCP, Sony Visca, Pelco-D/P, NDI(Partially compatible), this joystick controller seamlessly integrates with a variety of cameras and equipment, making it suitable for Large Conferences, church events, live streaming, OBS, vMix, Skype, Zoom, Teams, Fackbook, Youtube and much more.

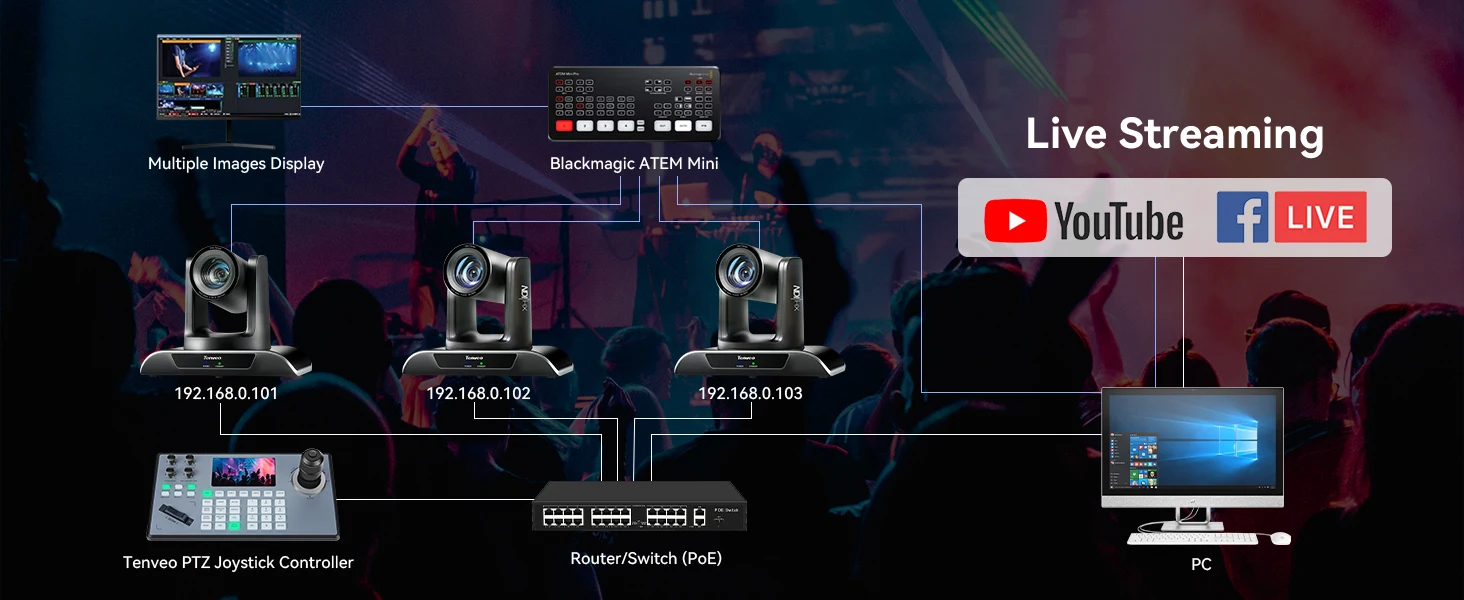

*The Joystick Controller supports IE browser to add configuration front-end device parameters, and supports 7 cameras quick select, controling up to 255 PTZ cameras, easy and fast operation of the conference video camera, greatly improving the speed of multiple cameras to switch back and forth control. These features make it easy to achieve the exact shot you want, without any hassle.
Advantages
Product Parameters
Model No. | The camera TEVO-VHD630A | |
Image Sensor | 1/2.8''SONY CMOS | |
Effective pixels | 2.07MP | |
Lens | f=4.6mm ~ 138mm | |
Aperture | F1.8 ~ F3.6 | |
Video Format | 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97 | |
Optical zoom | 30X optical zoom | |
Horizontal Angle | 62.3° ~ 2.31° | |
Vertical Angle | 36.1° ~ 1.29° | |
Diagonal Angle | 69.5° ~ 2.63° | |
Backlight Compensation | Support | |
White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR | |
Digital Zoom | 8X | |
PTZ Parameter | ||
Pan/Tilt Rotation | ±175°， -90°~+90° | |
Pan Control Speed | 0.1°/s～100°/s | |
Tilt Control Speed | 0.1-80°/Sec | |
Preset Number | 255 presets by Pelco D, 32 presets by Pelco-P, 7 presets by Visca(10 presets by remote controller) | |
SNR | >50dB | |
Focus | Auto/Manual | |
General Parameter | ||
Operation Systems | Windows 7/8.1/10/11; Andriod, Mac OS 10.10 or higherLinux(Require to support UVC) | |
Input Voltage | DC 12V | |
Input Current | 1.0A(max.) | |
Power Consumption | 13W(max.) | |
Store Temperature | -10℃~+60℃ | |
Store Humidity | 20%~90% | |
Working Temperature | -10℃~+50℃ | |
Working Humidity | 20%~80% | |
Dimension | 260*217*197mm(After Packing) | |
N.W./G.W. | 1.5kg/2.5kg | |
Accessory | 1*camera, 1*USB cable, 1* powder adapter, 1*wall mount, 1* manual | |
Warranty | 3 years | |
I/O Interface | ||
Video interfaces | USB 3.0, HDMI, RJ45, SDI | |
Video Compression Format | H.264, H.265, MJPG, YUV2 | |
Control Protocol | VISCA/Pelco-D, Pelco-P; Baud Rate: 9600/4800/38400/2400 | |
Control Interface | RS232(Input & Output), RS485, Type-C(UVC1.1) | |
Digital Noise Reduction | 2D&3D Noise Reduction | |
Exposure | Auto/Manual | |
PoE | Support | |
IPC Features | ||
Video Encoding Format | H.264/H.265/MJPG | |
Video Stream | Main Stream, Sub Stream | |
Main Stream Resolution | 1920x1080, 1280x720, 1024x576 , 940x540,etc. | |
Sub Stream Resolution | 1280x720, 1024x576, 720x480, 720x408,etc. | |
Video Bit Rate | 32Kbps ~ 102400Kbps | |
Bit Rate Type | Variable Rate, Fixed Rate | |
Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps | |
Audio Compression | AAC | |
Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps | |
Network Protocol | NDI |HX2,SRT,TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. | |
Model No. | The keyboard KB200PRO | ||||||
CHIP | HIS3536DV100 | ||||||
SYSTEM | Linux | ||||||
Decoding | H.265, H.264 | ||||||
RESOLUTION | MAX 1080P for 1 channel:1920*1080@30fps | ||||||
Max equipment | 999 | ||||||
PROTOCOL | VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF | ||||||
Camera Control | Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES | ||||||
User Interfaces | Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6 | ||||||
Joystick | 4D | ||||||

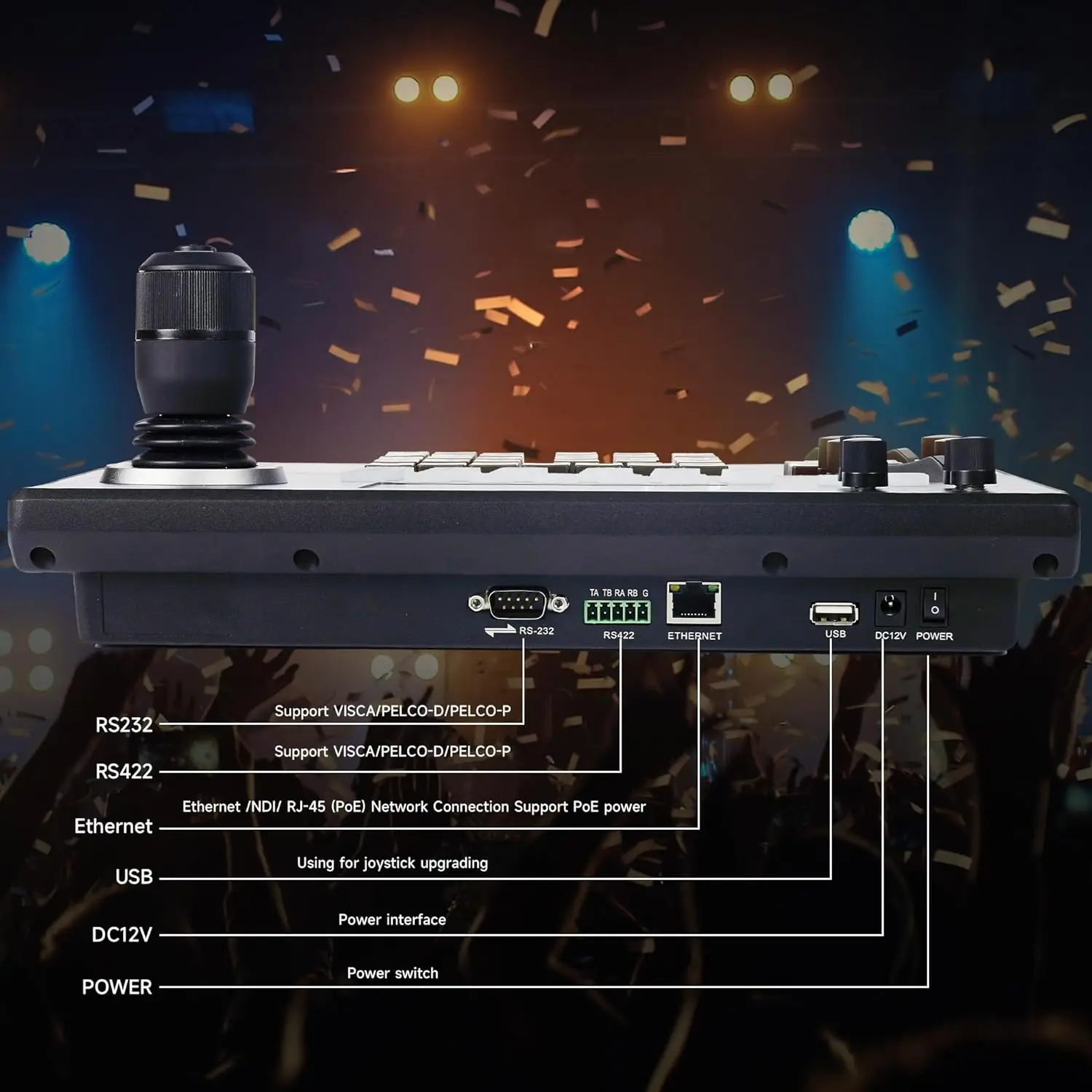

Output | RS422(Reserved), RS232(Development port), RJ45 | ||||||
Accessories | Knob, Silicone button | ||||||
Beep | On/off | ||||||
Display | TFT LCD 720*1280 | ||||||
Max camera control | Max 255 with multiple protocols including NDI/IP | ||||||
Power consumption | ≤5W | ||||||
Application Scenarios & Installations
Product Packaging & Shipping
Company Profile
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 2 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 2 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
