High Quality IBR Sheet Roll Forming Machine PPGI Zinc Roofing Color Steel PLC Control System
- Category: >>>
- Supplier: Botou Golden Integrity Roll Forming Machine Co. Ltd.Botou Ltd.
Share on (1601229839669):
Product Overview
Description
Product Description

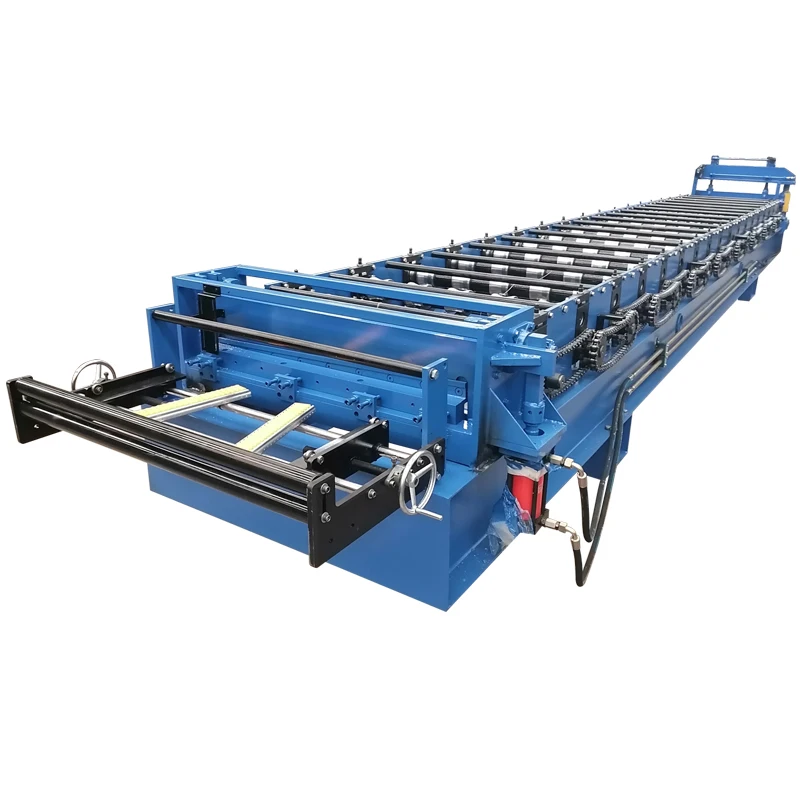

South Africa IBR 686 roofing corrugated roof sheet roll forming machine

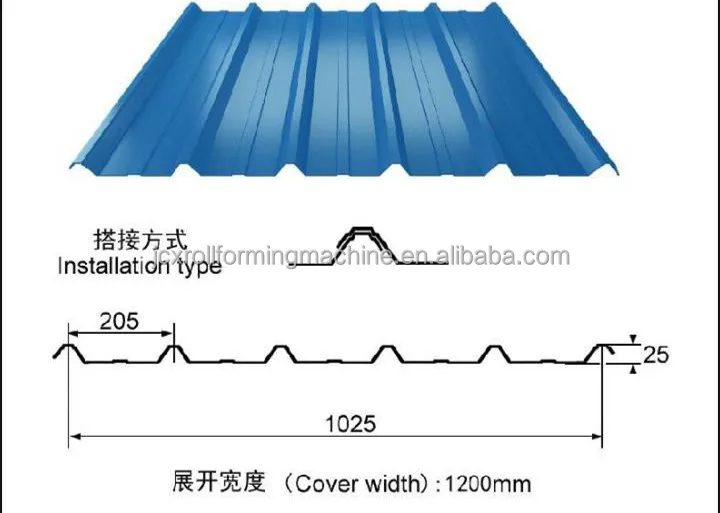

Profile drawing for reference:
Trapezoidal roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand.
Specification
No | Item | Parameter |
1 | Decoiler | 5tons electric decoiler (Hydraulic decoiler optional), manual one free |
2 | Forming speed | 12-18m/min |
3 | Material | G235grade steel or galvanized coil |
4 | Thickness | 0.3-0.7mm |
5 | Forming steps | 13 forming steps |
6 | Shaft | Diameter 75mm, all solid |
7 | Rollers | High grade 45# steel with heat treatment and hard chrome coating 0.04-0.05 |
8 | Main frame system | H350 steel. By blasting |
9 | Motor brand | shanghai lichao motor |
10 | Main forming power | 5.5kw. |
11 | Pump Station Power | 4Kw, or electric cutting for 3kw |
12 | Cutting Type | hydraulic cutting or electric cutting |
13 | Cutting Blade | Cr12Mov with hard treatment, HRC52-68 |
14 | Control System | Delta PLC, Touch screen, Frequency converter |
15 | Measuring accuracy | Precision +/-1.5mm,with frequency converter |
16 | Transmission | By single chain 1’ |
17 | Machine Dimensions | About 7.5*1.5*1.7m |
18 | Machine weight | About 5500 kgs |
19 | Voltage | 380V,50hz, 3phase, as per request |
MACHINE COMPONENT
Decoiler
1. Capacity: it bears 5tons .
2. Material coil inner diameter: 450mm-550mm
3. Max width: 1250mm
3. Max width: 1250mm
Guiding device
1. Advanced guiding device, ensure the steel roll in correct direction.2. Two layers all equip with pre cutting, save steel roll, no waste
Main forming machine
Refer to machine parameters

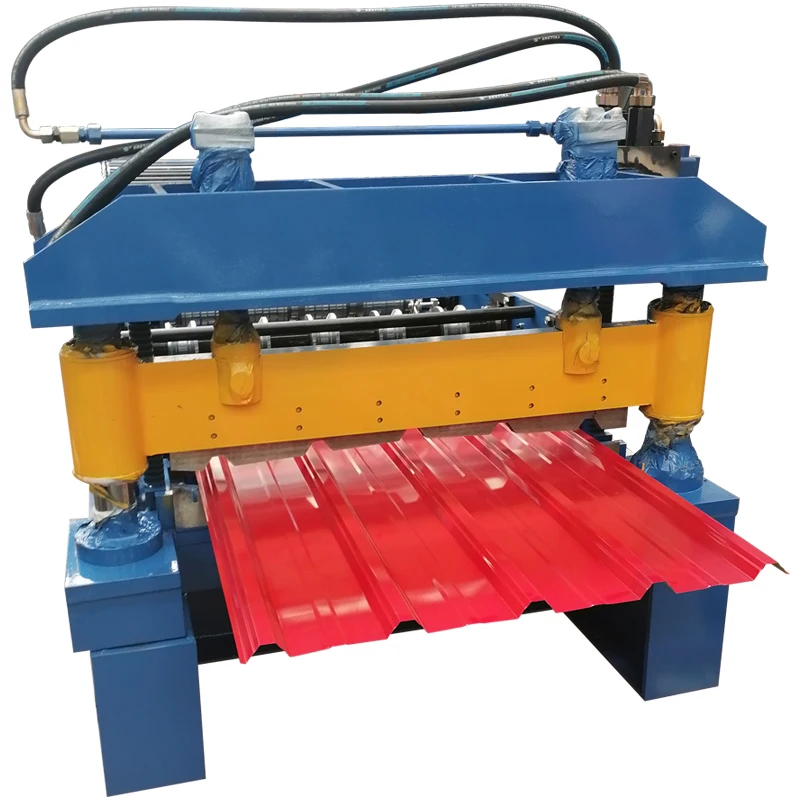

Hydraulic cutting
Hydraulic cutting system--Guide pillar type or Electric cutting. Speed more faster
Control system
1). Screen:Delta
2). PLC: Delta
3). Automatic length measurement
4). Automatic quantity measurement
2). PLC: Delta
3). Automatic length measurement
4). Automatic quantity measurement
Hydraulic station
1).Adopt advanced hydraulic system , with cooling fan.
2).Motor:4kw
3).Hydraulic oil: 46#
2).Motor:4kw
3).Hydraulic oil: 46#
