Paint Machinery 1.5KW 7.5KW Movable Electric Lifting High Shear Disperser Paint Mixing Machine For Ink
- Category: >>>
- Supplier: Shandong Hongming Machinery Co. Ltd.
Share on (1601231301614):
Product Overview
Description
Small high-speed disperser Paint Machinery 1.5KW-7.5KW Movable Electric Lifting High Shear Disperser Paint Mixing Machine For Ink
Product Description

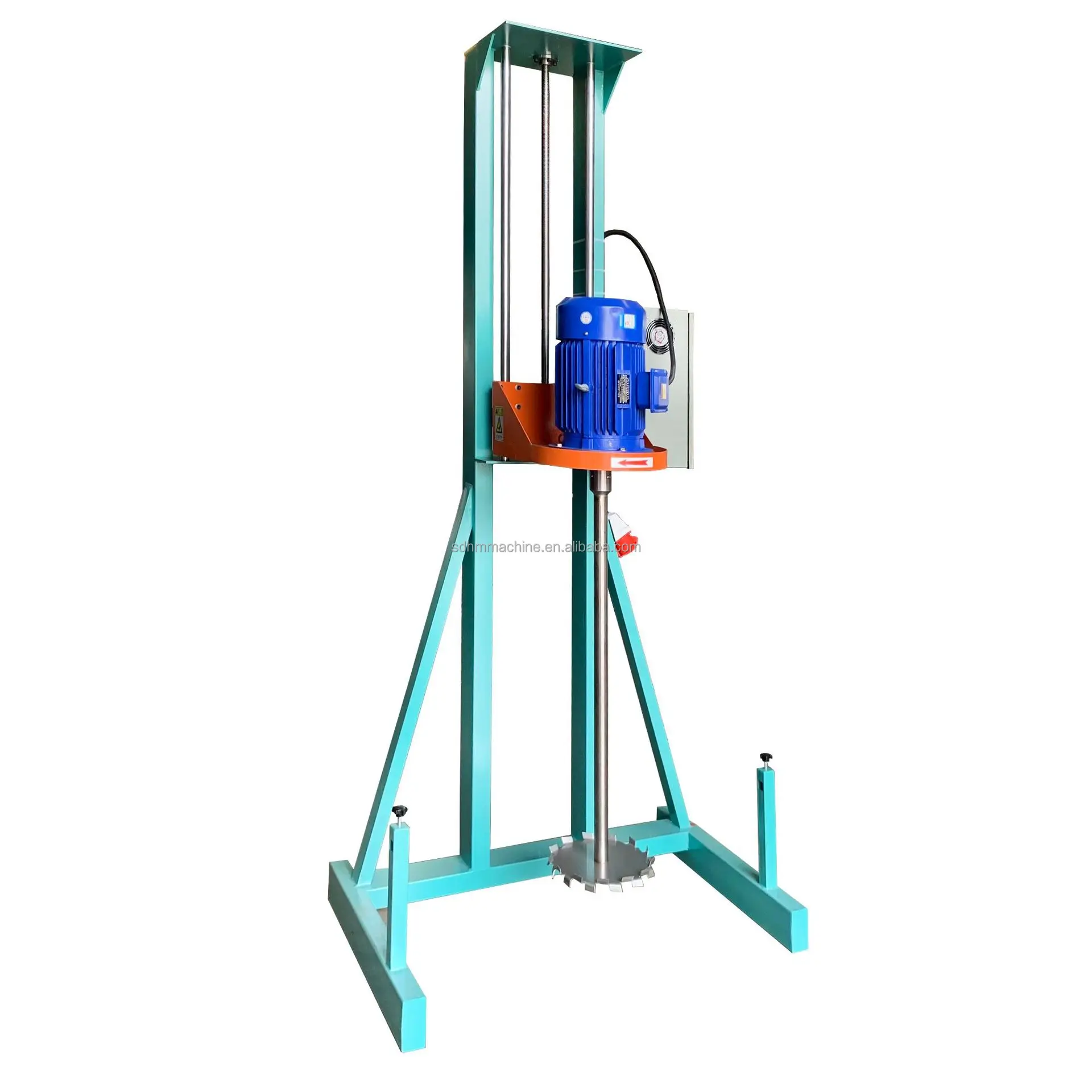

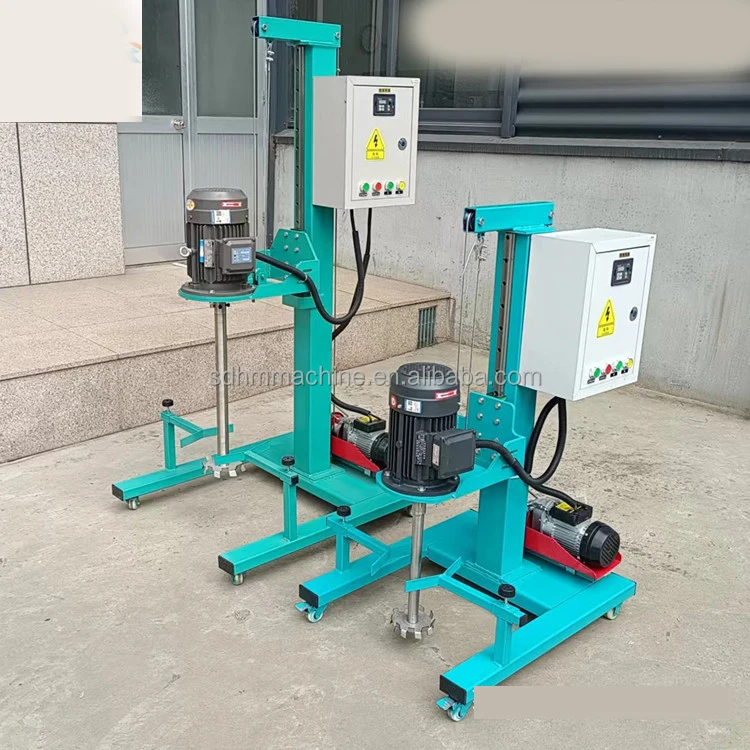

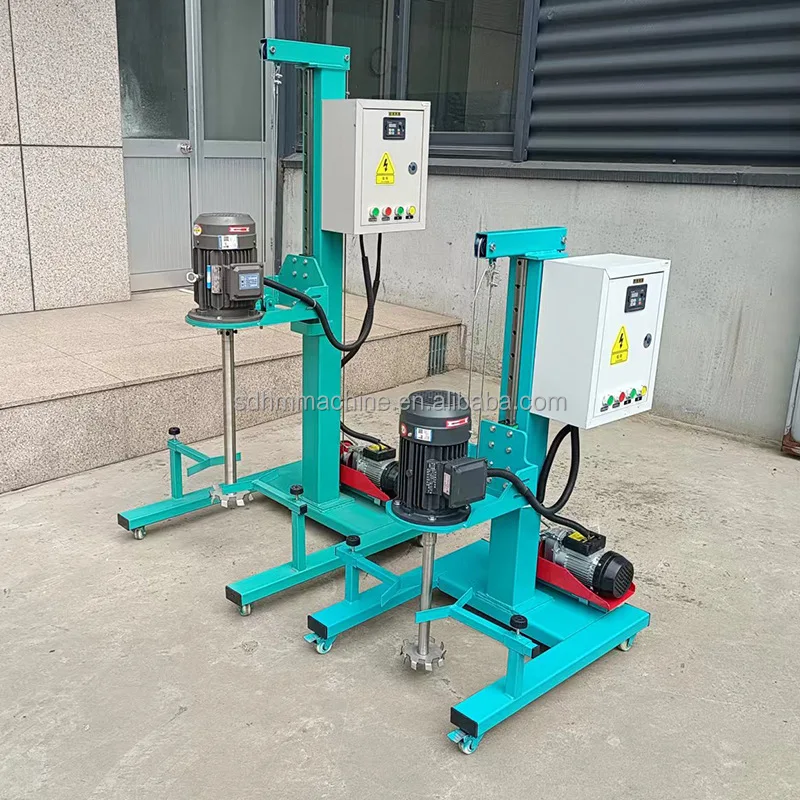

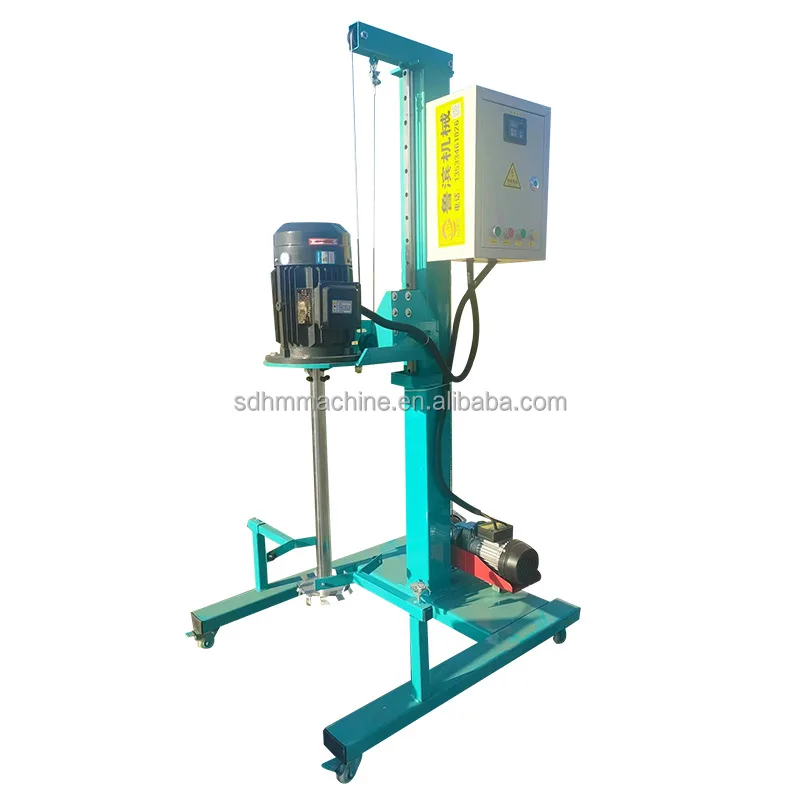

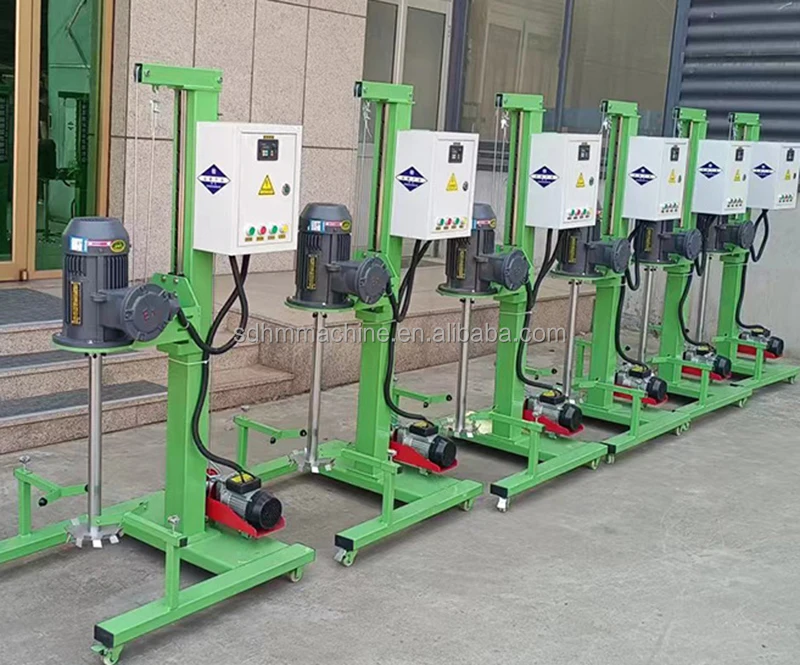

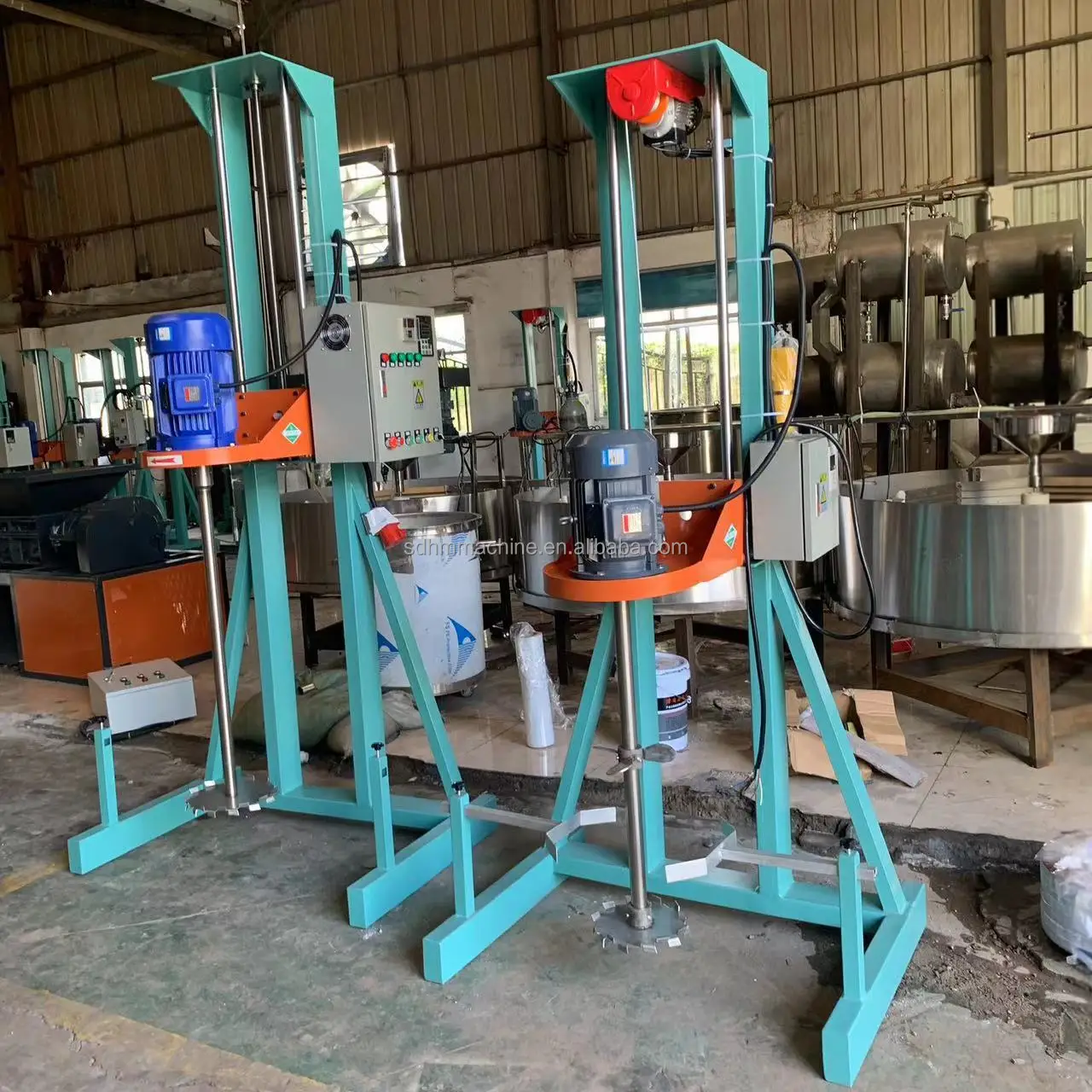

The small high-speed disperser is a new product designed with the latest technology. It has electric lifting, frequency conversion speed regulation, wheels at the bottom, and brakes. It can disperse and mix 10L-200L of materials according to specifications. It is the most economical and practical equipment in the small mixer industry.
Main technical parameters:
1. Model: GFJ1.5KW-5.5kw
2. Motor power: 1.5KW-5.5kw (explosion-proof motor can be configured)
3. Voltage: 220V/380V (optional)
4. Speed regulation range: variable frequency speed regulation, adjustable speed: 0-1450r/min
5. Mixing/dispersing impeller diameter: Φ150mm -Φ180mm-Φ200mm
6. Lifting stroke: 600mm
7. Recommended container configuration 50-100L-200L
8. Overall dimensions: 920mmx760mmx1600mm (length×width×height)
9. Select equipment according to material viscosity.
| Technical Parameter | |||||
| Model | Material | Dispersion disc(mm) | Speed(min) | Lifting stroke(mm) | Overall Dimension(L*W*H) |
| HZ-1.1 | 304 Stainless steel | 150 | 1450 | 500 | 750*600*800mm |
| HZ-1.5 | 304 Stainless steel | 150 | 1450 | 500 | 750*600*800mm |
| HZ-2.2 | 304 Stainless steel | 200 | 1450 | 1050 | 750*600*800mm |
| HZ-3.0 | 304 Stainless steel | 230 | 1450 | 1050 | 1100*800*2300mm |
| HZ-4.0 | 304 Stainless steel | 230 | 1450 | 1050 | 1100*800*2300mm |
| HZ-5.5 | 304 Stainless steel | 250 | 1450 | 1050 | 1100*800*2300mm |
| HZ-7.5 | 304 Stainless steel | 280 | 1450 | 1050 | 1100*800*2300mm |
