HLS3955 C001 12V 55kg TTL Metal Shell Coreless Motor with Force Control for Raspberry Pi Arduinos STM32 Development Kit RobotDIY
- Category: >>>
- Supplier: Shenzhen Feite Model Co. Ltd.Shenzhen Ltd.
Share on (1601233610490):
Product Overview
Description
Feetech HLS3955M 12V 55KG.CM Double Shaft Constant Force TTL Serial Bus Servo Half Duplex Asynchronous Serial Communication
Specification
item | 12V 55KG Magnetic Encoder Double Shaft TTL All-Metal 360 Degree Servo HLS3955M Half Duplex Asynchronous Serial Communication |
Size | 40X20X40MM |
Weight | 85g |
Horn gear spline: | 25T |
Wire Length | 15CM |
Operating Voltage Range: | 6-12V |
Stall Torque | 55kg.cm@12V |
Protocol Type: | Half Duplex Asynchronous Serial Communication |
ID range: | 0-253 |
Brand Name | fitec/FFEETECH |
Model Number | HLS3955M |
Communication Speed: | 38400bps ~ 1 Mbps |
Gear materials | Steel gears |
Running degree: | 360° (when 0~4096) |
Feedback: | Load, Position,Speed, Input Voltage, Temperature |
Command signal: | Digital Packet |
Rated torque: | 17kg.cm@12V |
Runnig current(at no load) : | 800mA@12V |
No load speed: | 0.182sec/60°@12V |
Motor | Coreless Motor |
Case | Aluminium |
Product Description
Product Parameter
Product SKU:HLS-3955-C001
Product Size:40X20X40mm
Stall Torque:55kg.cm@12V
Rotation Degree:360°(0-4095)
Sensor Resolution:0.088°(360°/4096)
Structural limit Angle:No timted
Working Voltage:6-12.6V(Typical value 12V)
Gear Type:High Precision Steel Gear
No-load speed:0.182sec/60degree 55RPM@12V
Encoder Type:360°Magnetic Encoder
ID Range:0-253
Baud rate:38400bps~1Mbps(Factory default 1Mbps)
Reduction Ratio 1:378
No-Load Current:27mA
Stall Torque:3A
Kt Constant:18.5kg.cm/A
Feedback:Load,Position,Speed, Input Voltage,Current,Temperature
Main Use:
The servo can provide various feedback information, including position, speed, torque lock,
and operating mode (servo mode, servo motor mode, etc.),
which can be used for advanced projects that require closed-loop automatic control.
It can also be used for building robot projects that require multiple servos,
such as quadrupeds, hexpods, and robotic arms.
Advantage:
1.Durable and Sturdy Exterior Design:
All Aluminum Alloy Shell+CNC Precision Manufacturing，Improve the Servo Case
Heat Resistance, Dimensional Stability, Rigidity, and Mechanical Properties;
2.Core Power 35kg Large Torque:
When the voltage is 12V, the stall torque can reach 35kg.cm, which can be used to
build quadrupeds, hexpods, and machinery
Multiple axis small volume turning projects such as arms,
humanoid robots, and simple industrial equipment give your project more degrees of freedom.
3.High Precision 360 ° Magnetic Encoder:
Adopting a 12 bit high-precision magnetic encoding angle sensor。Compared to carbon film potentiometers，
The usable angle of the magnetic encoder is expanded to 360 °，
4x increase in resolution，Can achieve a maximum of 7 turns in both forward and reverse directions，
Due to the gap between the magnetic encoder component and the radial magnet, there is no friction,
which effectively extends the service life of the servo.
4.Constant Force Control, Gripper Flexible Gripping:
Adopting innovative servo direct drive design, force position control, and setting output torque value，
The servo can maintain this torque, whether it is hard or soft, without damaging objects
Surface and precise gripping.
5.Daisy Chain Connection:
Up to 253 servos can be connected in series simultaneously,
achieving a simple wiring structure and occupying fewer ports.
6.Acceleration Start Stop Function:
Speed and acceleration values can be set for a softer motion effect,
reducing the impact force caused by inertia.
7.Closed Loop Feedback Real-time Protection:
The servo can provide real-time feedback on position, load, speed, input voltage, current, and temperature information,
When the environment changes, such as stalling or exceeding the temperature limit, unloading protection will be activated.
8.Multiple operating modes,More diverse usage scenarios:
Angle servo mode:efault this mode，0~360°Controllable angle and position;
Motor constant speed mode:Motor constant speed mode,As the load increases,Maintain speed without slowing down;
Stepping mode:Can perform step motion relative to the current position;
9.Open source control process:
Synchronous writing
Asynchronous writing
Synchronous reading
Single read
360°Full angle control
±7 Turns Anglecontrol
Stepping modecontrol
Closed loop modecontrol
Torquee limiting function
Constant force mode control

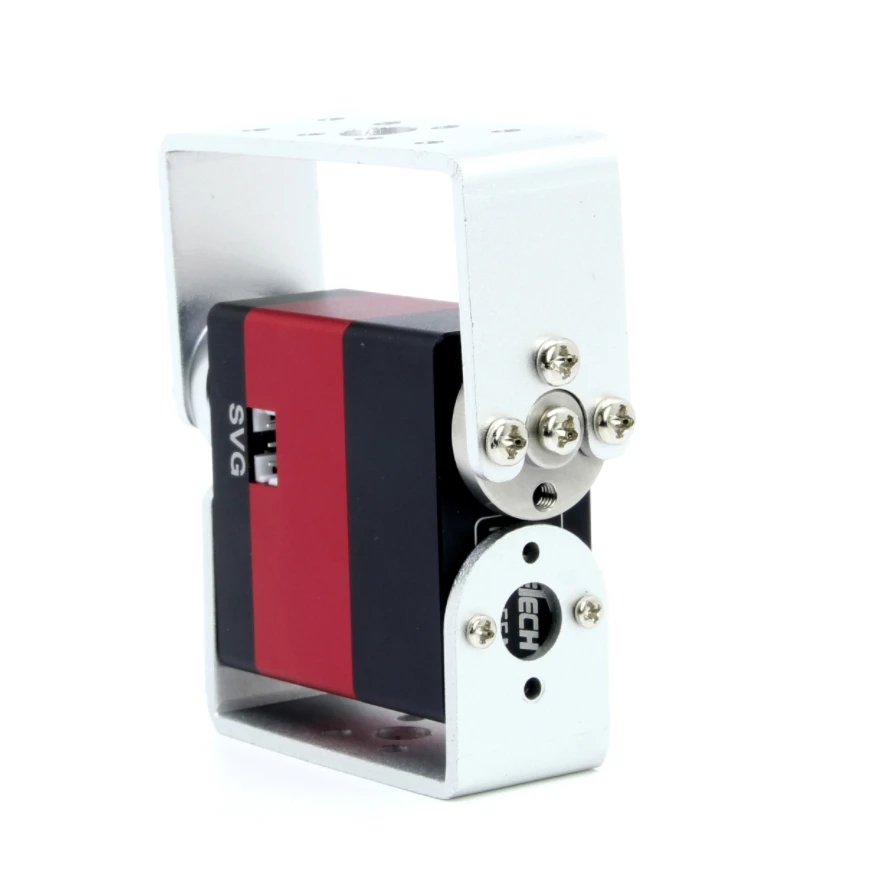

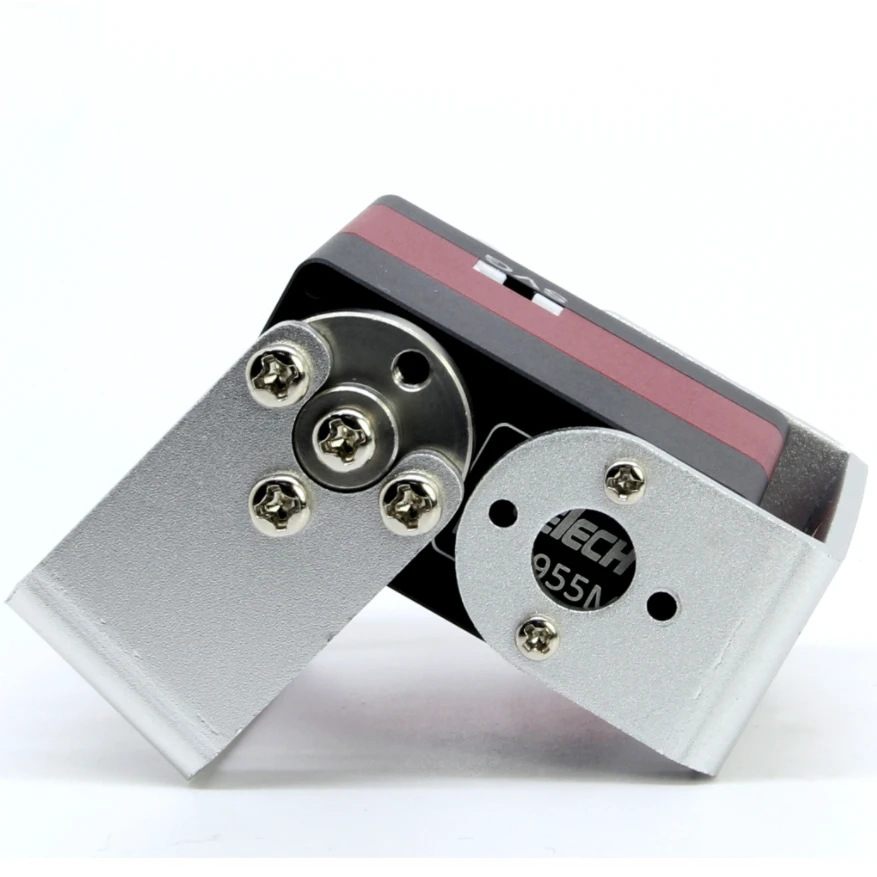

10.Full Metal Brackets:
All Aluminum Alloy Shell+CNC Precision Manufacturing,
Simplified structural development, More flexible combination use
Note:
One UART can control 253 bus servos, but due to the high power of the servos,
When using too many servos, it is necessary to consider
whether the power supply scheme can meet the requirements.
Product Feature:
Serial bus interface
Metal bearings
High strength aluminum alloy disc
Full Metal Brackets
Application Filed:
Industrial Automation
Biomedical
Consumer Electronics
Aerospace
Educational Research
Automated production line material cutting
Sorting
Assembling
Unmanned Retail
Research Experiments
Product SKU:HLS-3955-C001
Product Size:40X20X40mm
Stall Torque:55kg.cm@12V
Rotation Degree:360°(0-4095)
Sensor Resolution:0.088°(360°/4096)
Structural limit Angle:No timted
Working Voltage:6-12.6V(Typical value 12V)
Gear Type:High Precision Steel Gear
No-load speed:0.182sec/60degree 55RPM@12V
Encoder Type:360°Magnetic Encoder
ID Range:0-253
Baud rate:38400bps~1Mbps(Factory default 1Mbps)
Reduction Ratio 1:378
No-Load Current:27mA
Stall Torque:3A
Kt Constant:18.5kg.cm/A
Feedback:Load,Position,Speed, Input Voltage,Current,Temperature
Main Use:
The servo can provide various feedback information, including position, speed, torque lock,
and operating mode (servo mode, servo motor mode, etc.),
which can be used for advanced projects that require closed-loop automatic control.
It can also be used for building robot projects that require multiple servos,
such as quadrupeds, hexpods, and robotic arms.
Advantage:
1.Durable and Sturdy Exterior Design:
All Aluminum Alloy Shell+CNC Precision Manufacturing，Improve the Servo Case
Heat Resistance, Dimensional Stability, Rigidity, and Mechanical Properties;
2.Core Power 35kg Large Torque:
When the voltage is 12V, the stall torque can reach 35kg.cm, which can be used to
build quadrupeds, hexpods, and machinery
Multiple axis small volume turning projects such as arms,
humanoid robots, and simple industrial equipment give your project more degrees of freedom.
3.High Precision 360 ° Magnetic Encoder:
Adopting a 12 bit high-precision magnetic encoding angle sensor。Compared to carbon film potentiometers，
The usable angle of the magnetic encoder is expanded to 360 °，
4x increase in resolution，Can achieve a maximum of 7 turns in both forward and reverse directions，
Due to the gap between the magnetic encoder component and the radial magnet, there is no friction,
which effectively extends the service life of the servo.
4.Constant Force Control, Gripper Flexible Gripping:
Adopting innovative servo direct drive design, force position control, and setting output torque value，
The servo can maintain this torque, whether it is hard or soft, without damaging objects
Surface and precise gripping.
5.Daisy Chain Connection:
Up to 253 servos can be connected in series simultaneously,
achieving a simple wiring structure and occupying fewer ports.
6.Acceleration Start Stop Function:
Speed and acceleration values can be set for a softer motion effect,
reducing the impact force caused by inertia.
7.Closed Loop Feedback Real-time Protection:
The servo can provide real-time feedback on position, load, speed, input voltage, current, and temperature information,
When the environment changes, such as stalling or exceeding the temperature limit, unloading protection will be activated.
8.Multiple operating modes,More diverse usage scenarios:
Angle servo mode:efault this mode，0~360°Controllable angle and position;
Motor constant speed mode:Motor constant speed mode,As the load increases,Maintain speed without slowing down;
Stepping mode:Can perform step motion relative to the current position;
9.Open source control process:
Synchronous writing
Asynchronous writing
Synchronous reading
Single read
360°Full angle control
±7 Turns Anglecontrol
Stepping modecontrol
Closed loop modecontrol
Torquee limiting function
Constant force mode control
10.Full Metal Brackets:
All Aluminum Alloy Shell+CNC Precision Manufacturing,
Simplified structural development, More flexible combination use
Note:
One UART can control 253 bus servos, but due to the high power of the servos,
When using too many servos, it is necessary to consider
whether the power supply scheme can meet the requirements.
Product Feature:
Serial bus interface
Metal bearings
High strength aluminum alloy disc
Full Metal Brackets
Application Filed:
Industrial Automation
Biomedical
Consumer Electronics
Aerospace
Educational Research
Automated production line material cutting
Sorting
Assembling
Unmanned Retail
Research Experiments

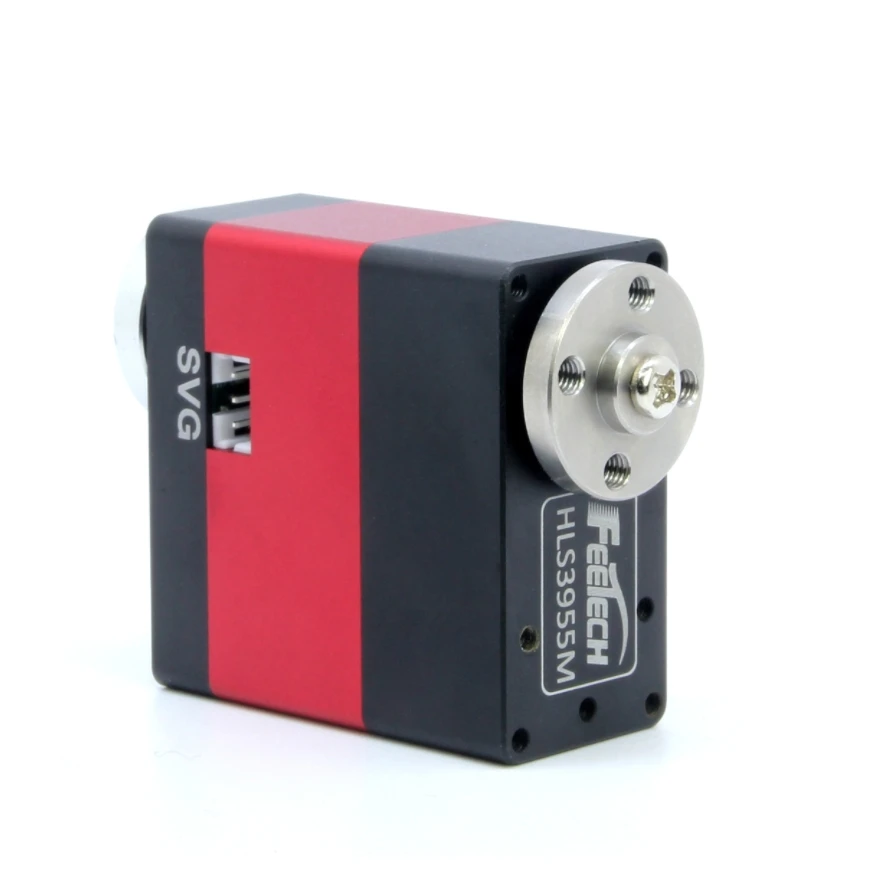

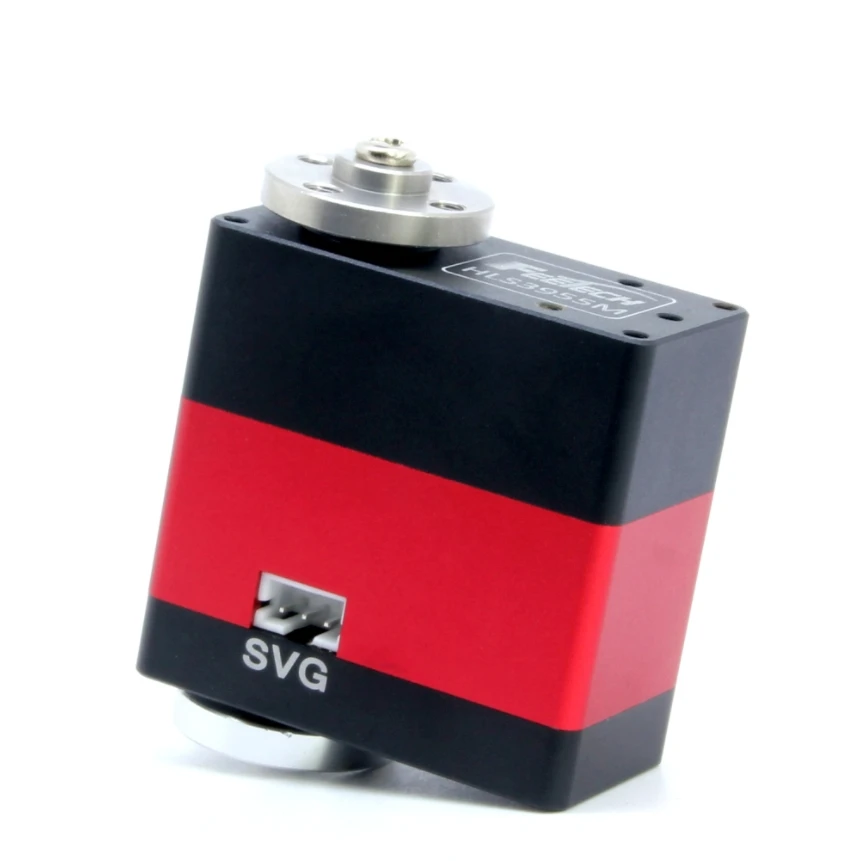

Detailed Images
Contact Us
Packing & Delivery

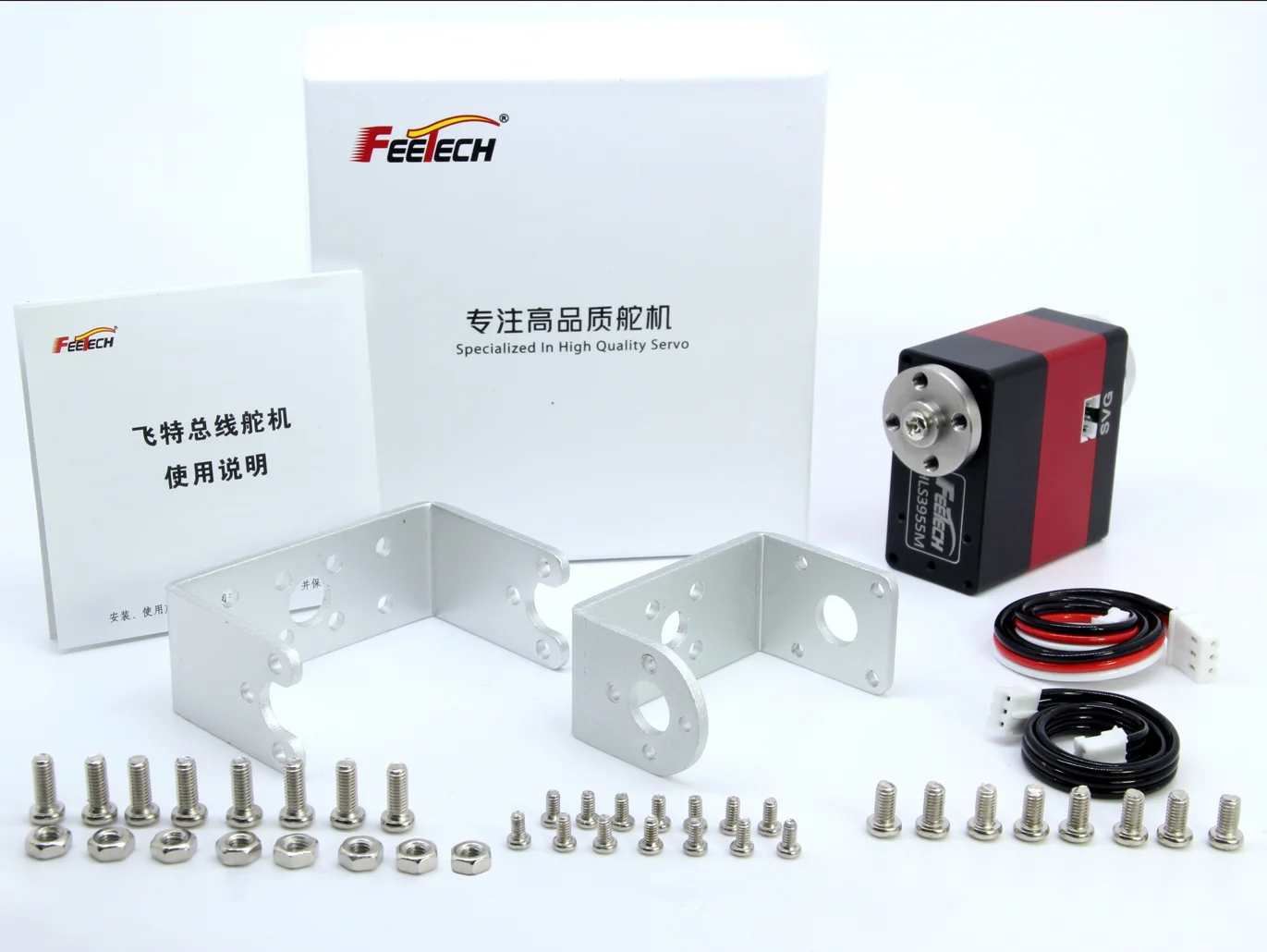

1.servo*1pcs 2.servo arm*1 bag 3.carton box
