machine to make metal curtains for rolling shutter door
- Category: >>>
- Supplier: Botou Kaiyite Cold Bending Machinery Co. Ltd.Botou Ltd.
Share on (1601233665358):
Product Overview
Description

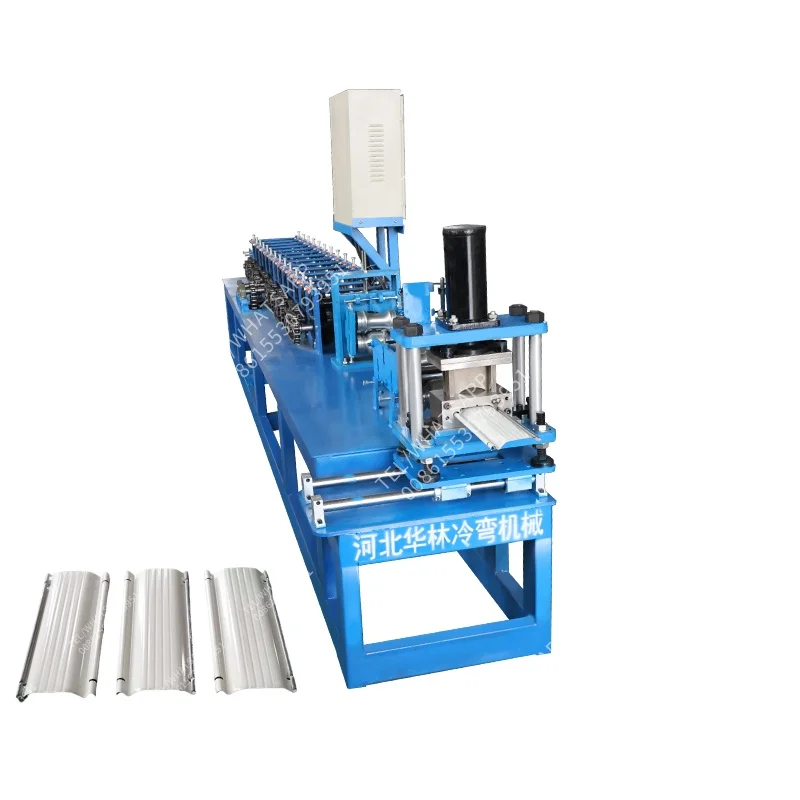

PU Foam slat shutter door roll forming machine
Applicable Industries | Manufacturing Plant, Construction works |
Use | door |
Production Capacity | 8-20 M/MIN |
Brand Name | Kaiyite |
Voltage | 380V 50HZ 3P |
Weight | 1500kg |
Key Selling Points | Easy to Operate |
Rolling thinckness | 0.8-1.2 mm |
Feeding width | customize according to demand |
Warranty of core components | 2 years |
Core Components | Engine, PLC |
Roller station | 12 steps |
Cutting type | hydraulic cutting |
Shaft material | 45#steel |
This machine adopts coil metal as raw material,and makes particular shapeand specification after uncoiling,continuous roll forming and fixed lengthcutting .The whole machine use PLC control and AC variable frequencyspeed regulation technology to realize continuous automatic production,it isan ideal equipment in steel structure machinery

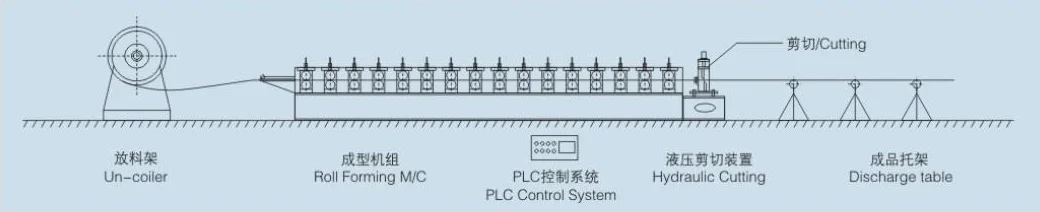

Decoiler------Feeding table ------Rolling device------hydraulic cutting------receive table------Plc control box-------oil pump
All pictures below are from customer feedback
Kaiyite roll forming machine

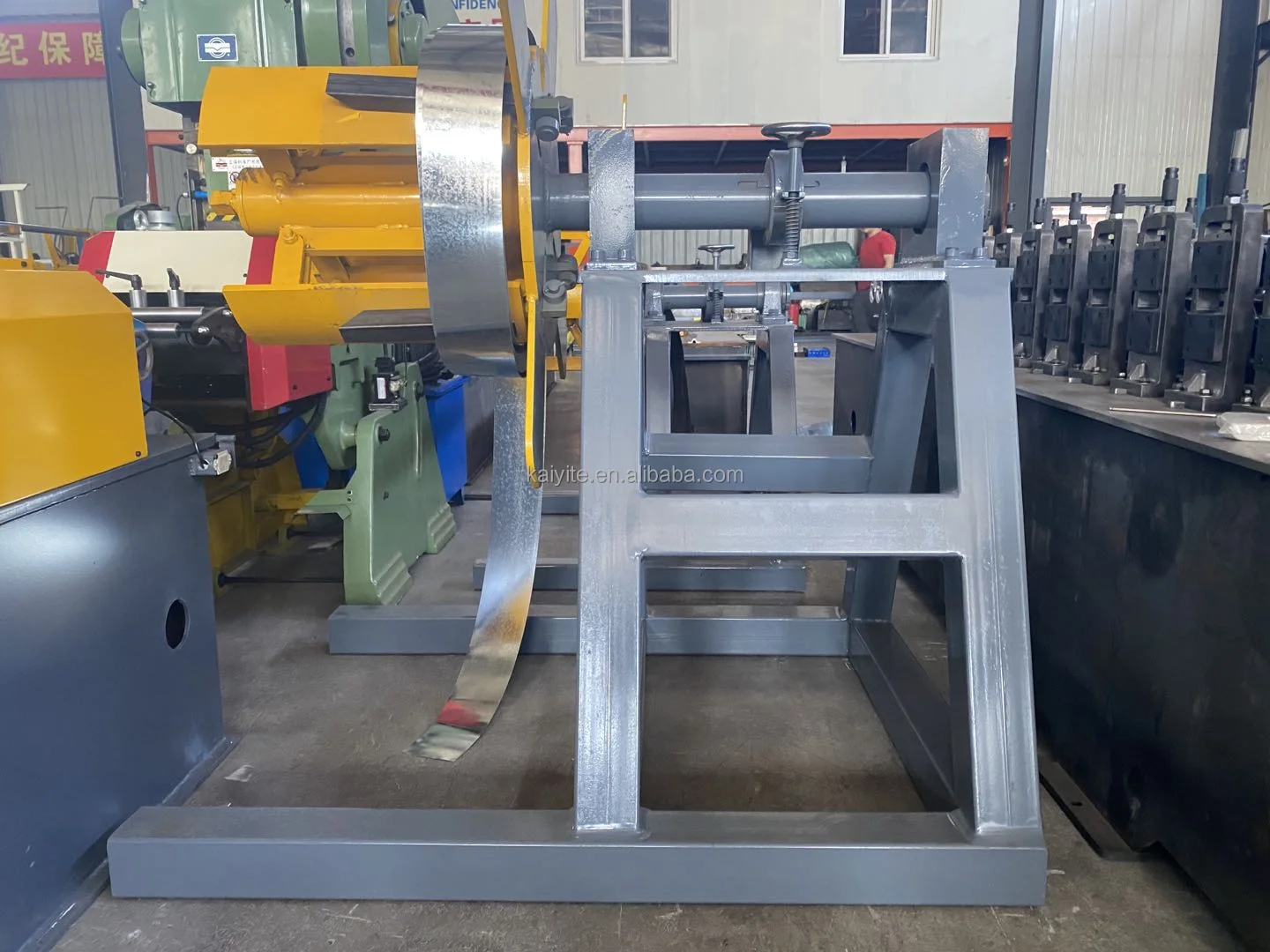

Decoiler
Work type：Passive type Loading capacity：3 Tons Coil inner diameter：450-550 mm (adjustable) Quantity：1 set
Kaiyite roll forming machine
Feeding table
The feeding width can be manually adjusted according to the width of the raw material. The upper and lower circular rollers are designed to make the feeding process more stable. The raw material (steel plate) is processed and manufactured by this machine to ensure that the product is neat, parallel and uniform.
Kaiyite roll forming machine

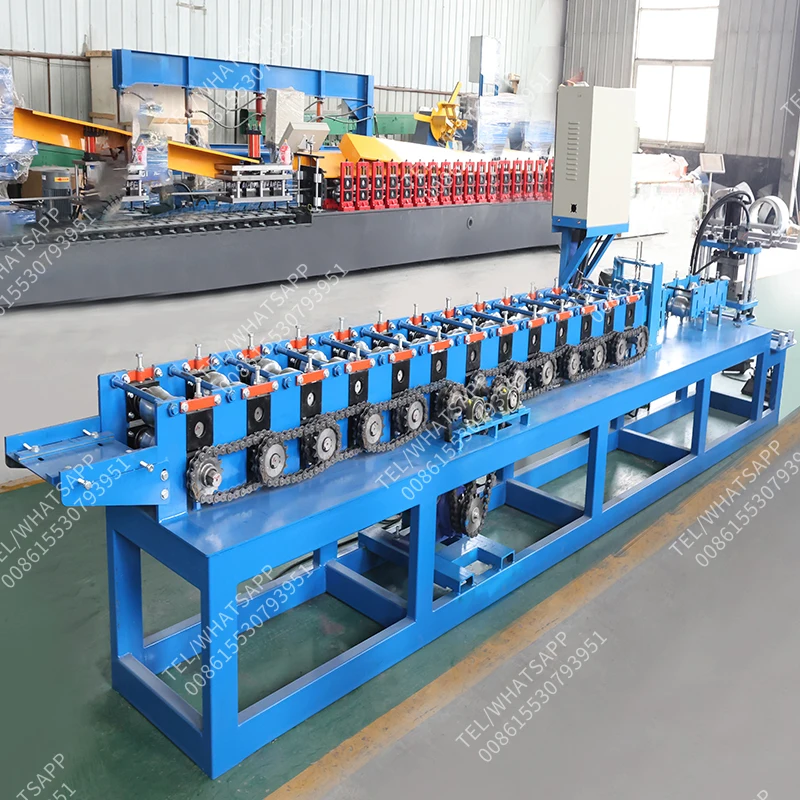

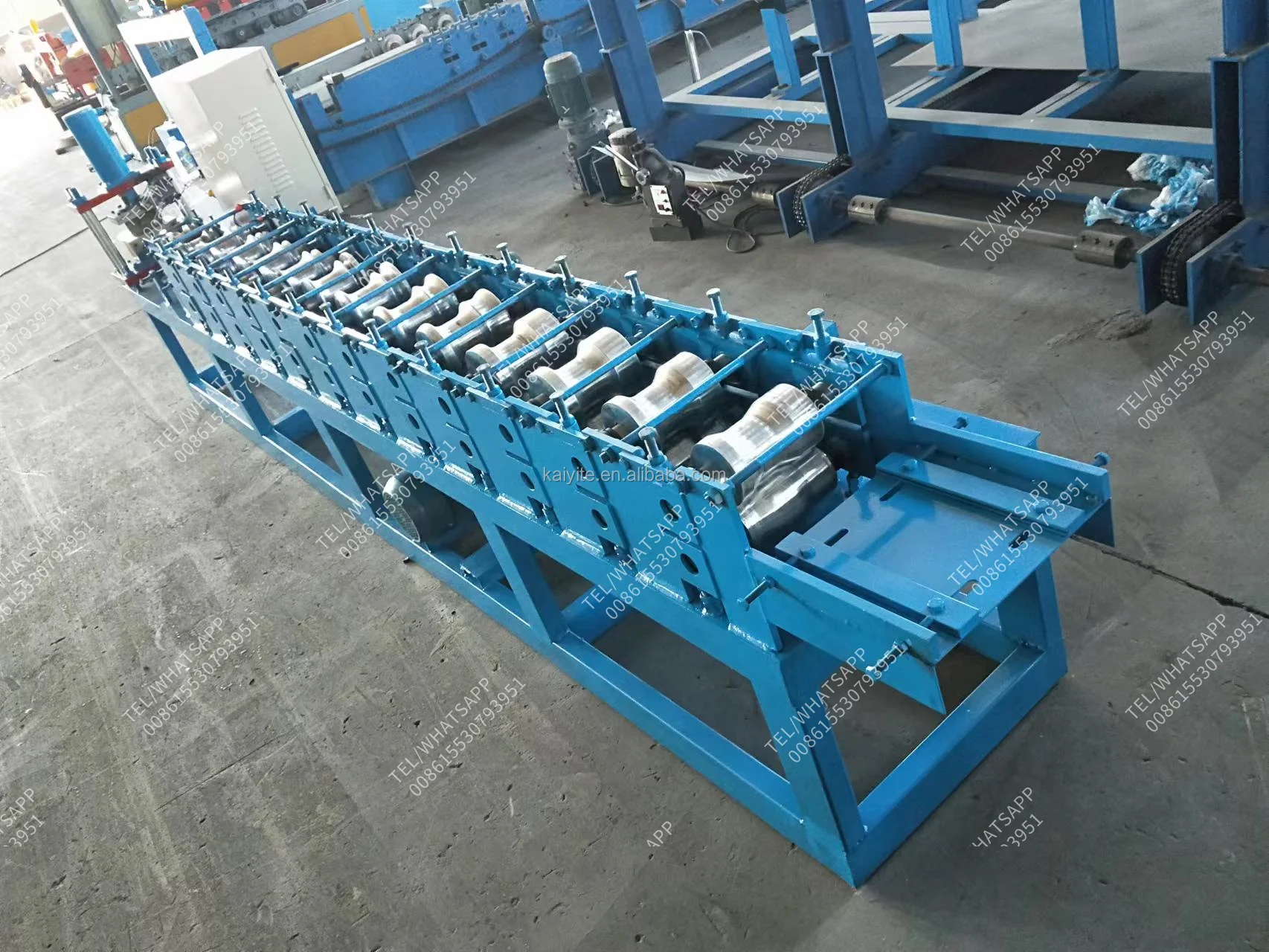

Rolling device
Number of forming steps: 12 stations
Shaft material: 45# steel with quenched treatment precision machined outer diameter: 50 mm

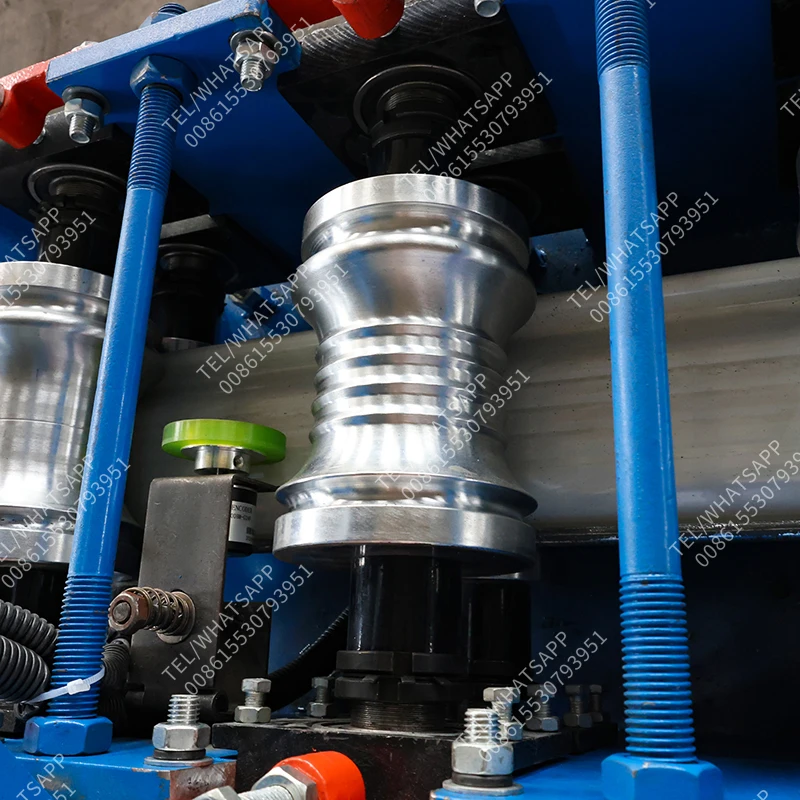

Roller material: Cr 12 with quenched treatment Transmission type: By chains
Drive motor power: 4 kw
Voltage: 380 v 50 hz 3 phase (based on customer's needs)
Forming speed: 12 m /min
Structure: Independent stand (cast steel)
main body:Square tube
Kaiyite roll forming machine

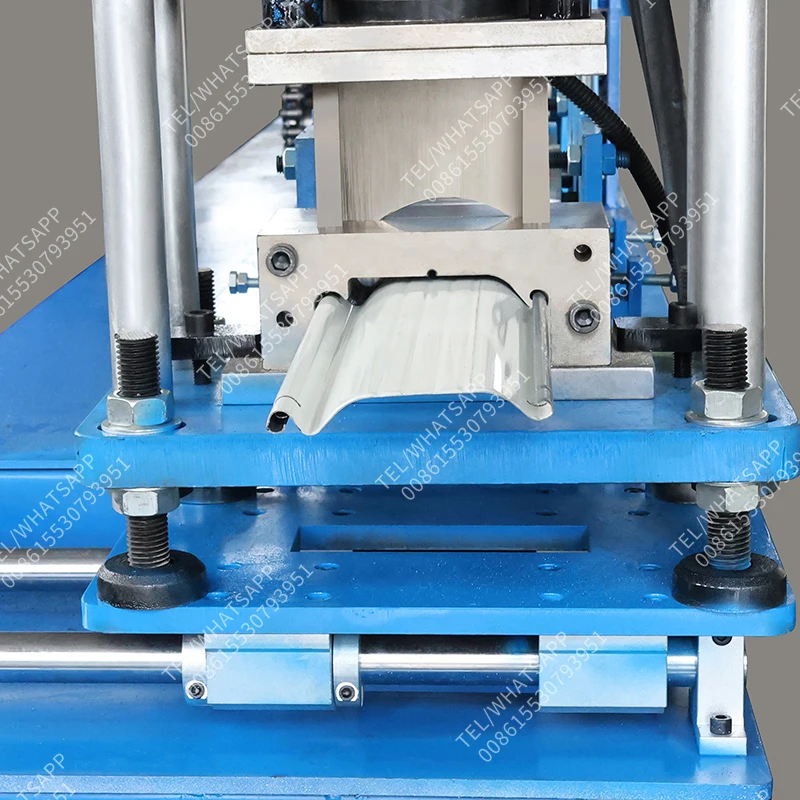

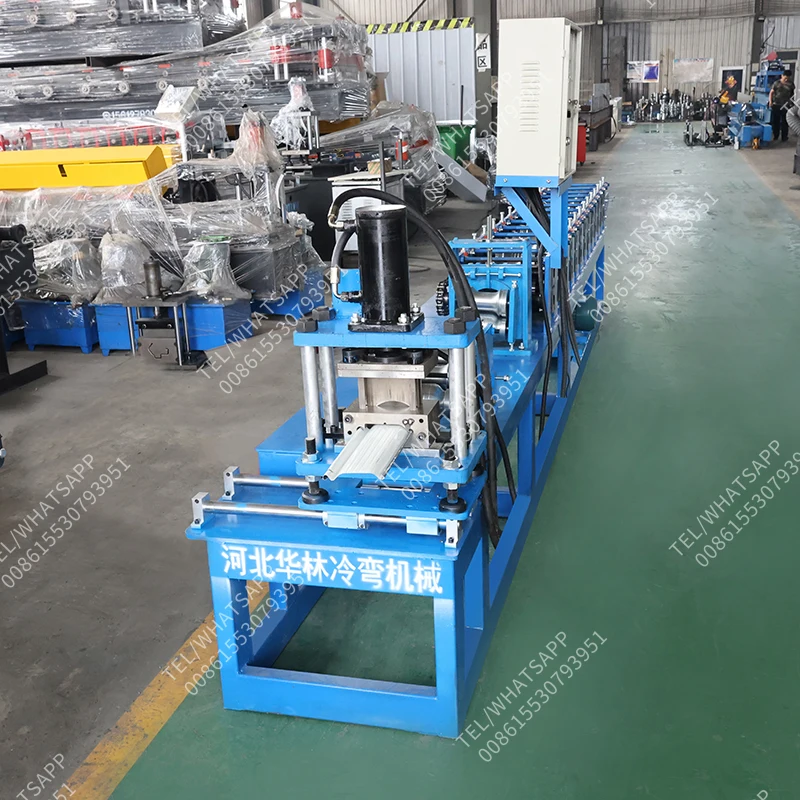

hydraulic cutting
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Cutting type: sawing cutting
Power supply: 3 kw hydraulic power
Material of blades: Gcr12 mov quenched
Components: It contains one set of cutting tools with one hydraulic tank and one cutter machine.
Components: It contains one set of cutting tools with one hydraulic tank and one cutter machine.
Kaiyite roll forming machine
PlC control box
Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime.
Language: Chinese or English (based on customer's needs)
Automatic length and quantity measurement
operating panel: touching screen and button together
operating panel: touching screen and button together
Botou Kaiyite Cold Bending Machinery is a manufacturer dedicated to the design and manufacture of different types of cold roll forming machines. We have been engaged in the machine export industry for 10 years and have reached cooperation with customers from more than 70 countries around the world. . We are committed to establishing long-term and stable cooperative relationships with our customers.
1. After strict testing and certification, the product has passed strict testing, and the quality and safety of the product are guaranteed.
2. Obtain multiple certifications
3. Comply with international standards: products are sold and used worldwide
4. Pass inspections by multiple agencies: Gain recognition and trust from different agencies.
5. Obtain authoritative certification in the industry: the product is in a leading position and has a professional level in the industry.
6. Recognized by multiple countries: The product has been recognized by multiple countries, and its quality and safety are recognized globally.
2. Obtain multiple certifications
3. Comply with international standards: products are sold and used worldwide
4. Pass inspections by multiple agencies: Gain recognition and trust from different agencies.
5. Obtain authoritative certification in the industry: the product is in a leading position and has a professional level in the industry.
6. Recognized by multiple countries: The product has been recognized by multiple countries, and its quality and safety are recognized globally.
shutter door roll forming machine
shutter door roll forming machine with punching
shutter door roll forming machine with embossing
PU foam shutter door roll forming machine
Australia type shutter door roll forming machine
shutter door roll forming machine with punching
shutter door guide rail roll forming machine
shutter Door Bottom Rail Guide roll forming machine
door frame roll forming machine
Octagon Shaft Pipe Roll Forming Machine
With 18 years of production experience, factory direct sales
Can be customized according to needs
With CE certificate certification
All machine accessories are from well-known manufacturers
The entire after-sales team provides after-sales service
The machine can achieve fully automated production Use durable rollers and equipped with intelligent frequency converter
Can be expedited for production and quick delivery
All machine accessories are from well-known manufacturers
The entire after-sales team provides after-sales service
The machine can achieve fully automated production Use durable rollers and equipped with intelligent frequency converter
Can be expedited for production and quick delivery
FAQ
1. A machine doesn't just provide a few photos to prove what they can produce 2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Q2. You don't show the product I need, can you manufacture it?
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important. 2. If you have requirements for production speed, power, voltage and brand, please explain in advance. 3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
