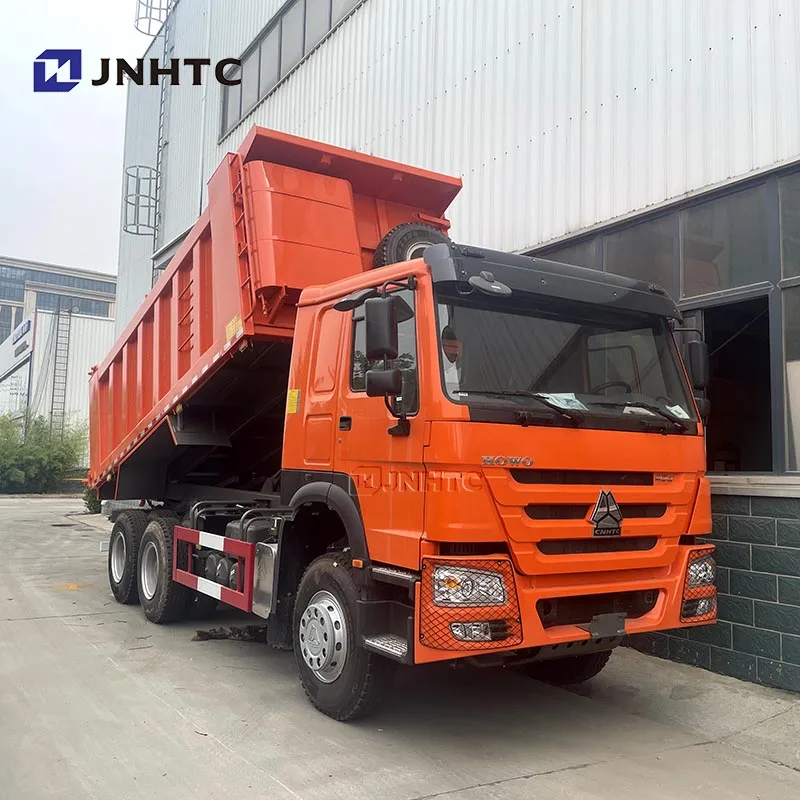

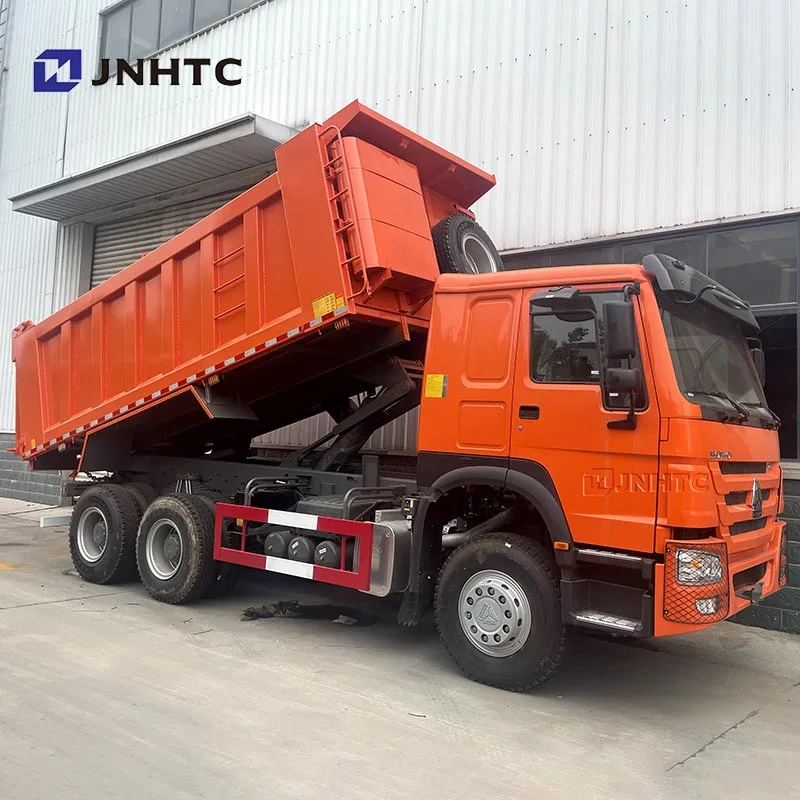

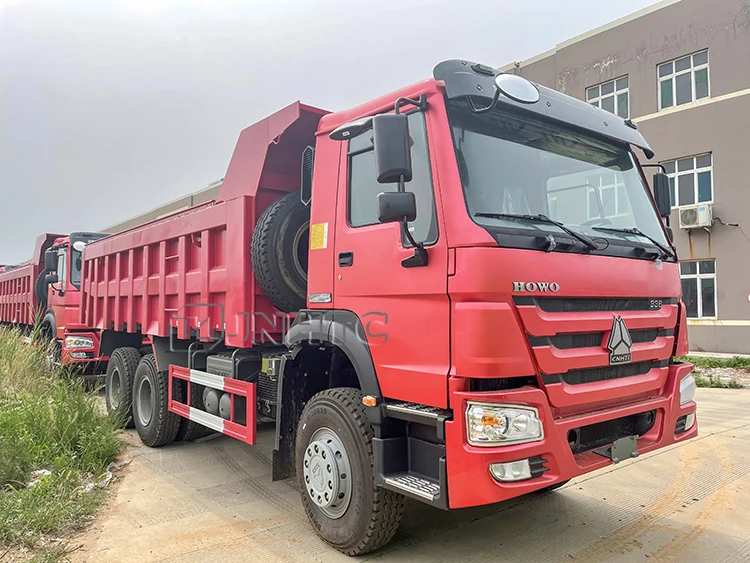

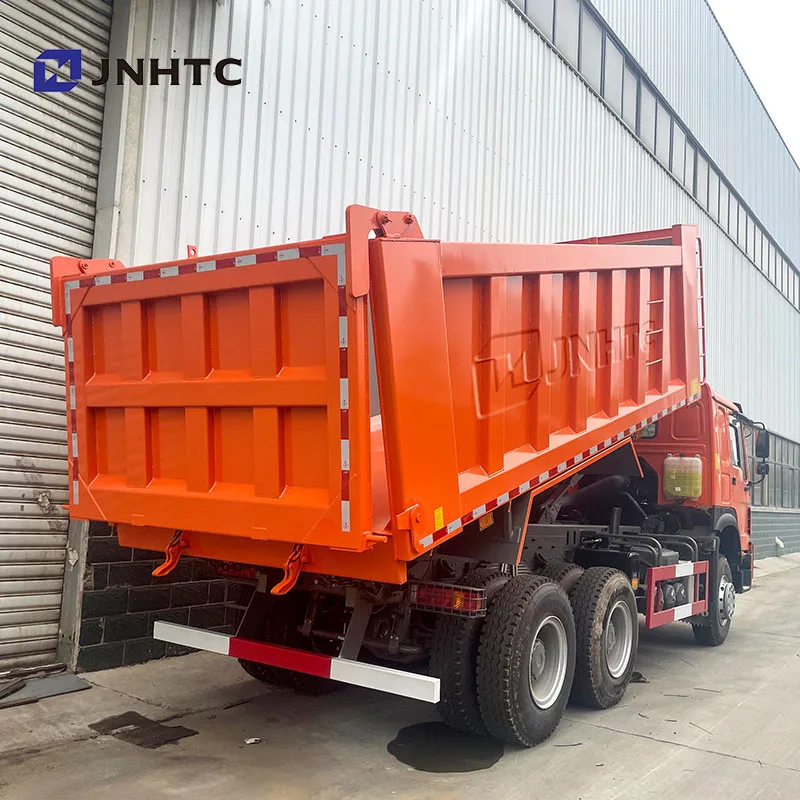

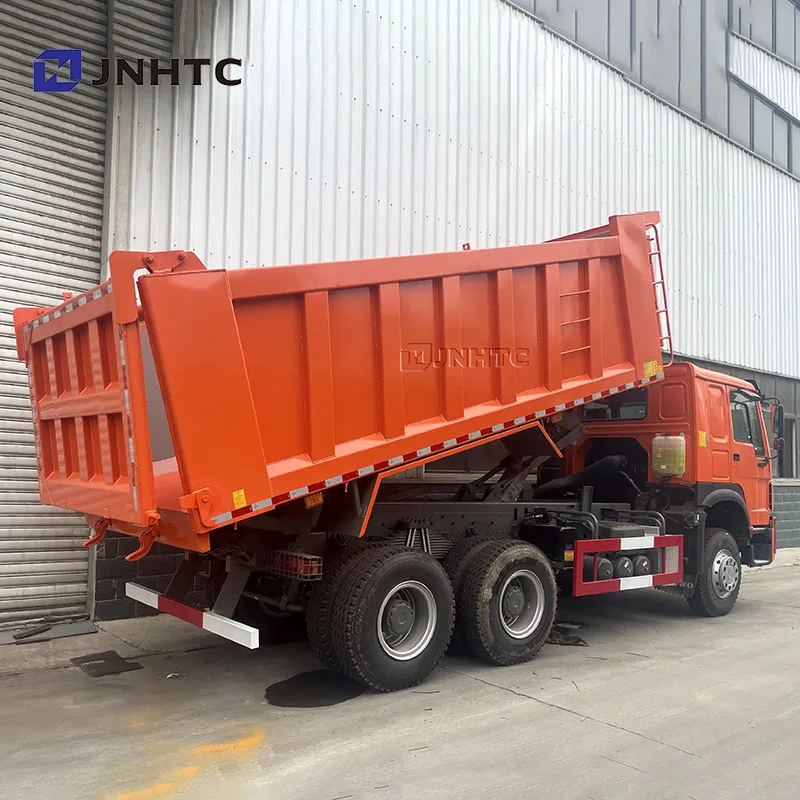

New/Used HOWO Dump Truck 6x4 340hp 400hp Cheap Price Hot Sale 6x4 8x4 Sinotruck Tipper Dump Truck

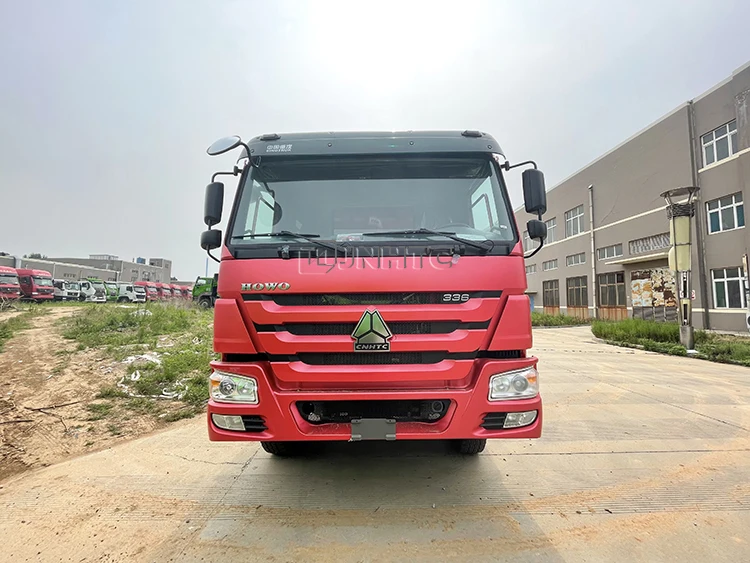

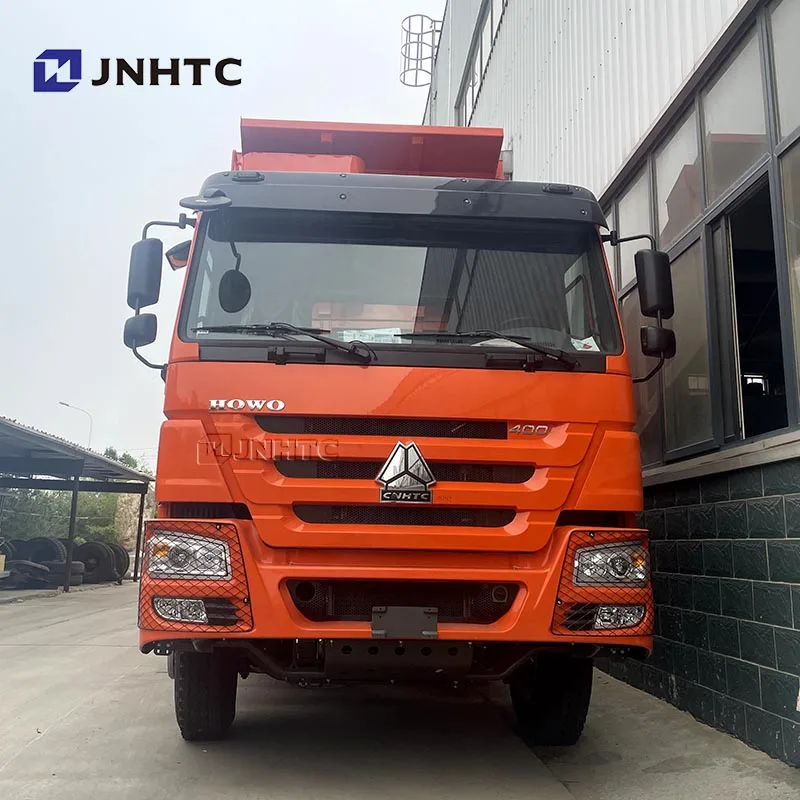

Cabin

HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating
and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse
stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler

Engine

Model

WD615.47

Horse Power (Hp/rpm)

371/2200

Max.Toruqe(Nm/rpm)

1820/1100-1500

Displacement (L)

9.726

Type

DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic
controlled diesel engine

Clutch

Φ430 Diaphragm spring clutch, hydraulic operating with air assistance

Transmission

HW19712, 12 speeds forward and 2 speeds reverse.

Front Axle

HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs.

Driving Axle

HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42,
4.8)

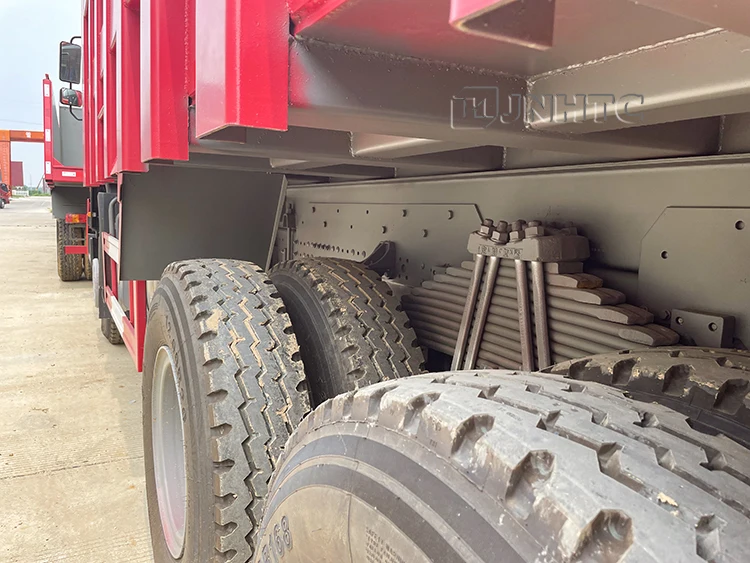

Suspension

Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs,
bogie spring and stabilizer

Steering System

ZF power steering, model ZF8118, hydraulic steering with power assistance

Brake System

Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating;
Auxiliary brake: Engine exhaust brake

Electrics

Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah

Tire

12.00R20

Fuel Tank(Gas Tank) Capacity (L)

400L Diesel Tank

Dead Weight (kg)

15230

Gross Vehicle Weight (kg)

33000

Gross Combination Weight (kg)

80000

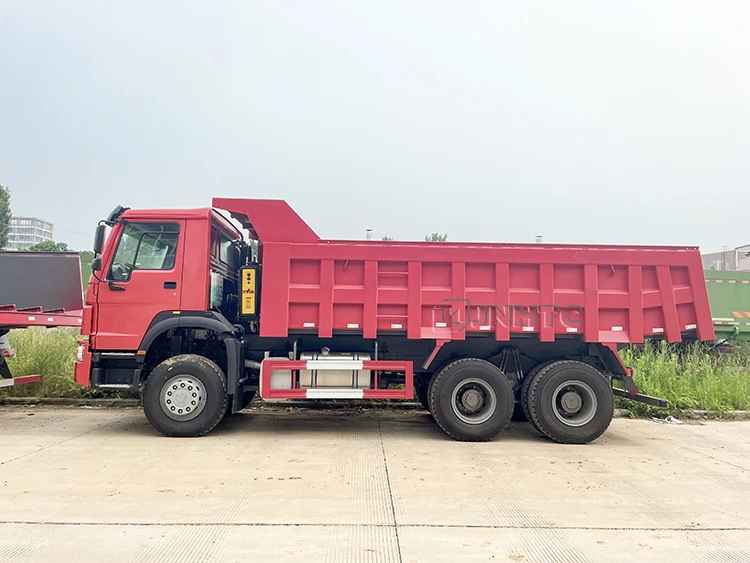

Wheelbase(mm)

3625+1350

Front/Rear Overhang( mm)

1500/725

Wheel Track(Front/Rear)(mm)

2022/1850

Min. Ground Clearance(mm)

314

Approach/Departure Angle( °)

16/70

Max. Speed (km/h)

102

Max. Gradebility (%)

≥40
