JJTS Hot Selling KT S10DH Live Streaming 20X Optical Zoom 4K 60fps USB3.0 PTZ Full HD Broadcast Camera for sport event
- Category: >>>
- Supplier: Shenzhen Jinjiutianshi Industry Co. Ltd.
Share on (1601235586908):
Product Overview
Description
1.4K Ultra-high-definition:
Applied SONY 1/2.8-inch 8.5 million high-quality CMOS image sensor with 8.29 million effective pixels, it can realize the maximum 4K30（3840x2160 ）ultra-high-definition resolution image output.
2.20x Optical Zoom:
Equipped with a 20x optical telephoto lens, supports the mainstream horizontal viewing angle of 58.7°, satisfying video
conferencing in large halls, blackboard writing in lecture halls.

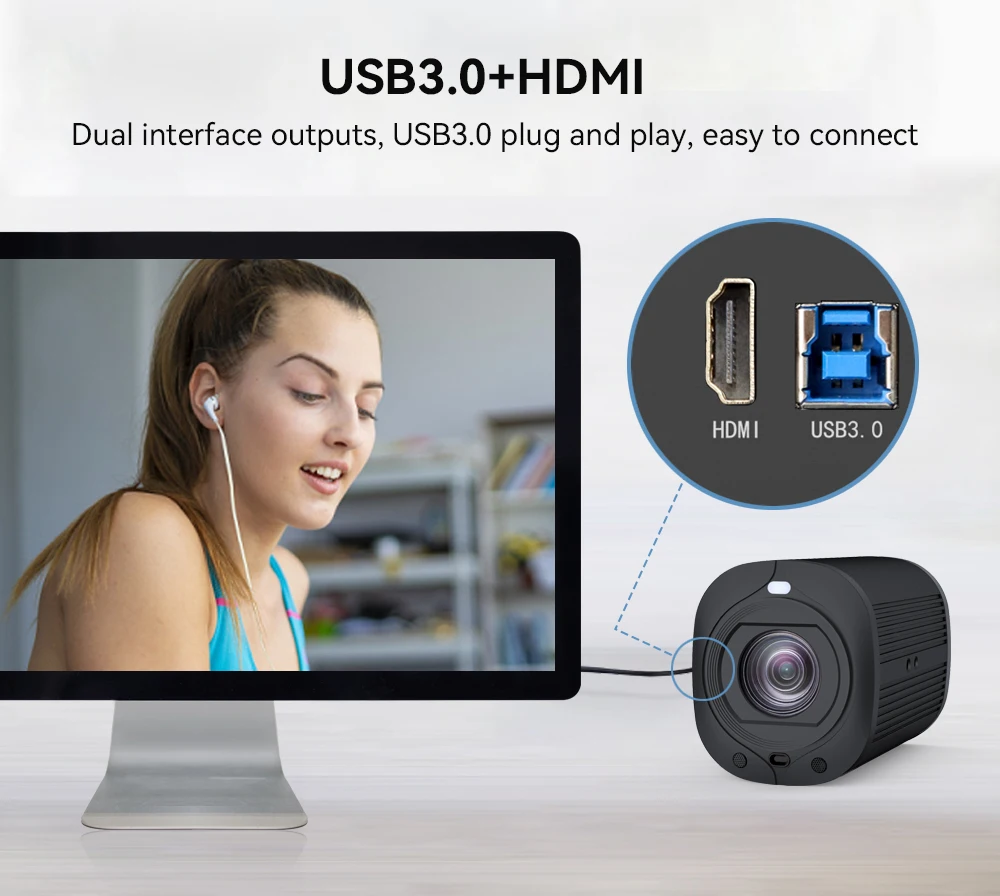

3.USB3.0+HDMI+IP+3G-SDI Full Interfaces:
Compatible with mainstream video output interfaces.
Default version: HDMI+LAN can output 4K30 resolution at the same time.
Optional version: HDMI+USB3.0 can output 4K30 resolution at the same time.

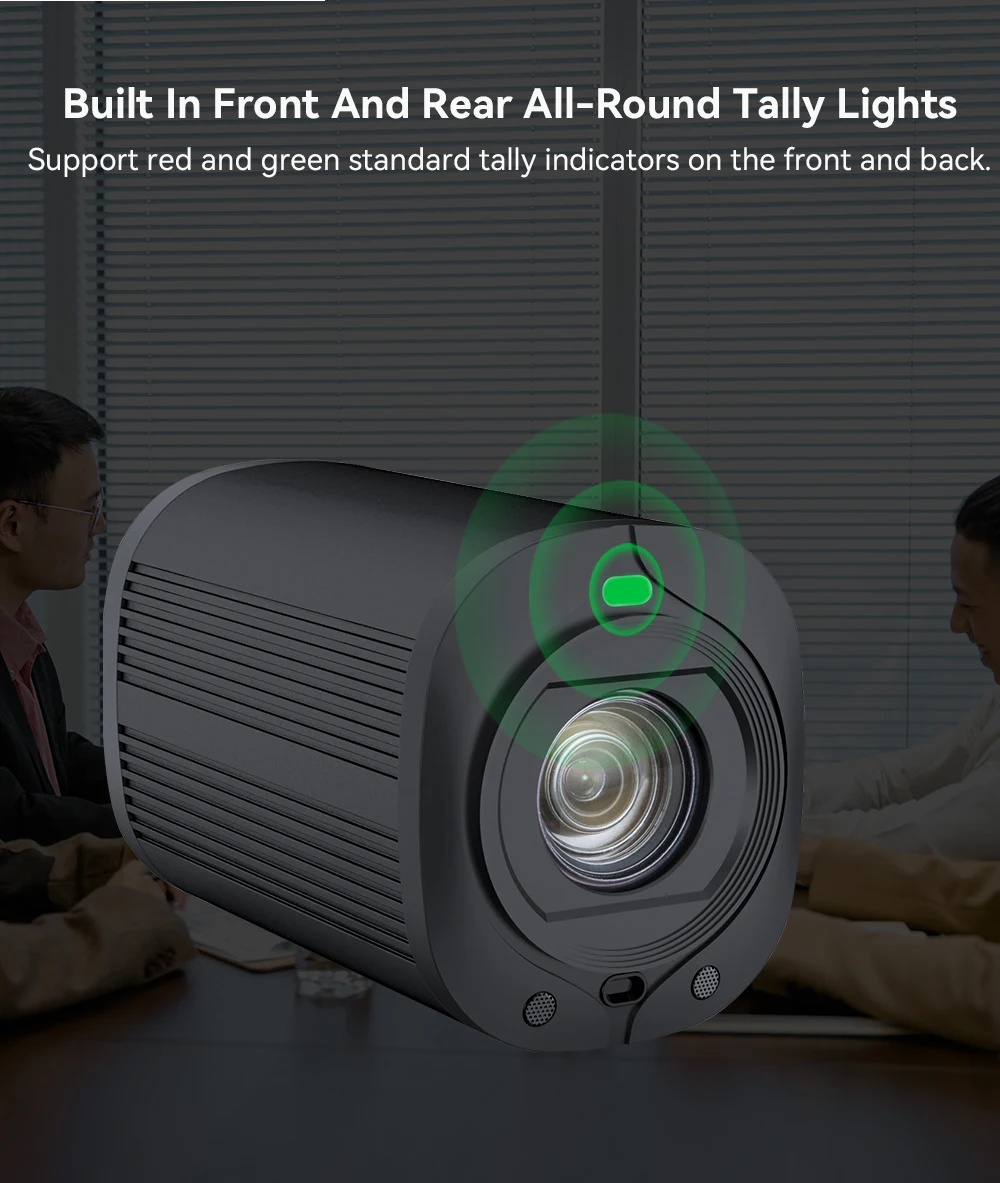

3.Built-in Front and Rear All-round Tally Lights:
Supports red and green standard tally indicators on the front and back.
4.Low Light:
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. 2D&3D digital noise reduction reduces image noise. In ultra-low light conditions, the picture can still be clean and clear, S/N Ratio of the image is higher than 50dB.
5.2.4g Remote Control Signal:
2.4g remote control signal, achieves ultra-long-distance control.
6.Various Video Compression Standards:
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
7.Various Network Protocols:
Supports ONVIF, SRT, RTSP, RTMP and NDI® HX2 ect.
8.Multiple Control Protocols:
Supports VISCA (including VISCA Over IP), PELCO P/D protocol, NDI®; automatically identify protocols.
9.Rear Multi-dimensional Remote Control 5D Small Joystick:
Supports menu selection, zoom and other functions.
Applied SONY 1/2.8-inch 8.5 million high-quality CMOS image sensor with 8.29 million effective pixels, it can realize the maximum 4K30（3840x2160 ）ultra-high-definition resolution image output.
2.20x Optical Zoom:
Equipped with a 20x optical telephoto lens, supports the mainstream horizontal viewing angle of 58.7°, satisfying video
conferencing in large halls, blackboard writing in lecture halls.
3.USB3.0+HDMI+IP+3G-SDI Full Interfaces:
Compatible with mainstream video output interfaces.
Default version: HDMI+LAN can output 4K30 resolution at the same time.
Optional version: HDMI+USB3.0 can output 4K30 resolution at the same time.
3.Built-in Front and Rear All-round Tally Lights:
Supports red and green standard tally indicators on the front and back.
4.Low Light:
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. 2D&3D digital noise reduction reduces image noise. In ultra-low light conditions, the picture can still be clean and clear, S/N Ratio of the image is higher than 50dB.
5.2.4g Remote Control Signal:
2.4g remote control signal, achieves ultra-long-distance control.
6.Various Video Compression Standards:
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
7.Various Network Protocols:
Supports ONVIF, SRT, RTSP, RTMP and NDI® HX2 ect.
8.Multiple Control Protocols:
Supports VISCA (including VISCA Over IP), PELCO P/D protocol, NDI®; automatically identify protocols.
9.Rear Multi-dimensional Remote Control 5D Small Joystick:
Supports menu selection, zoom and other functions.
Product Parameters
Image Parameters | ||
Resolution | HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 SDI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 | |
Image Sensor | SONY 1/2.8" CMOS | |
Pixels | 8.50 Megapixels, 8.29 Effective Megapixels | |
Scan Mode | Line by line | |
Lens | 20X Optical Zoom, f=5.2mm(W)~104mm(T), F1.55~F3.13 | |
Digital Zoom | 16X | |
Horizontal View Angle | 58.7°(W)~3.2°(T) | |
Vertical View Angle | 32.2°(W)~1.8°(T) | |
Focus System | Auto, Manual | |
Shutter Speed | 1/25s ~ 1/10000s | |
Minimum Illumination | 0.1 Lux @ (F1.5, AGC ON) | |
Exposure | Auto, Manual, Iris Priority, Shutter Priority, Brightness priority | |
White Balance | Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual | |
Backlight Compensation | Support | |
Digital Noise Reduction | 2D&3D Digital noise reduction | |
S/N Ratio | ≥50dB | |
Pan/Tilt | ||
Preset Positions | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC | |
Preset Accuracy | 0.1°±10% | |
Flip | Support | |
POE | 802.3af | |
USB | ||
Protocol | UVC 1.1 | |
Operating System | Window7 and above, MacOS, Linux, Android | |
Video Compression | YUY2, MJPEG | |
Resolution | 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 (USB defaults to 4K is optional) | |
Frame Rate | Max.30 | |
UVC Control | Support | |
LAN | ||
Protocol | TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) | |
Video Compression | H.264, H.265 | |
Code Stream | Main code stream*1, Sub code stream*1 | |
Main Stream Resolution | 3840*2160, 1920*1080 | |
Sub Stream Resolution | 640*480, 640*360, 352*288, 320*240, 176*144 | |
Bitrate Control | VBR, CBR | |
Audio | ||
Audio Compression | AAC | |
Audio Bit Rate | 128kbps | |

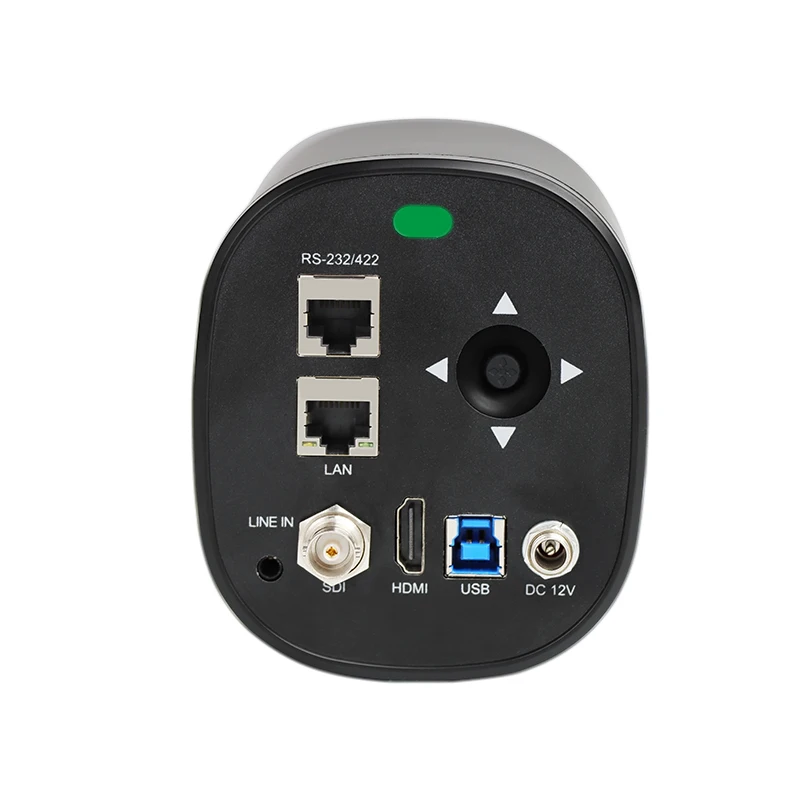

Interface | ||
HDMI Interface | 1 Line, HDMI: Version 1.4 | |
SDI Interface | 1 Line, 3G-SDI | |
USB Interface | 1 Line, USB3.0, Type-B Socket | |
Network Interface | 1 Line, RJ45: 10M/100M adaptive Ethernet port | |
Audio Interface | 1 Line, Line In, 3.5mm | |
Serial Interface | 1 Line RJ45 interface, support RS232/RS422/RS485: VISCA/Pelco-D/Pelco-P. | |
Power Interface | IEC 60130-10 Type A | |
General Specifications | ||
Tally Light | Support | |
Input Voltage | DC 12V | |
Input Current | Max.0.7A | |
Power Consumption | Max.8.4W | |
Operating Temperature | 0~40℃ | |
Storage Temperature | -10~60℃ | |
Color | Black | |
Dimension | (W)88*(D)167*(H)102mm | |
Weight | 1.5kg | |

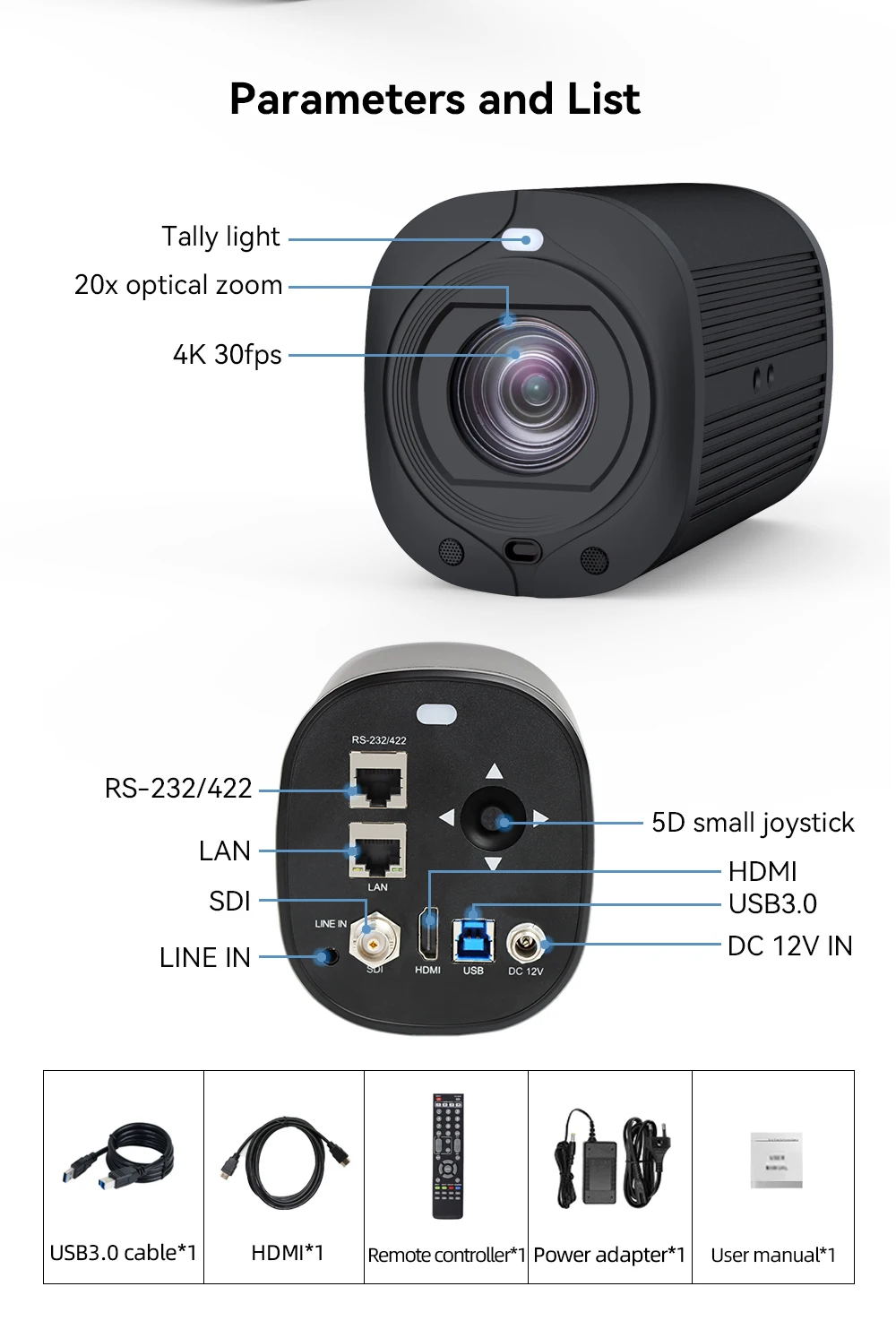

Accessories | DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, Serial port adapter cable, Bracket | |
