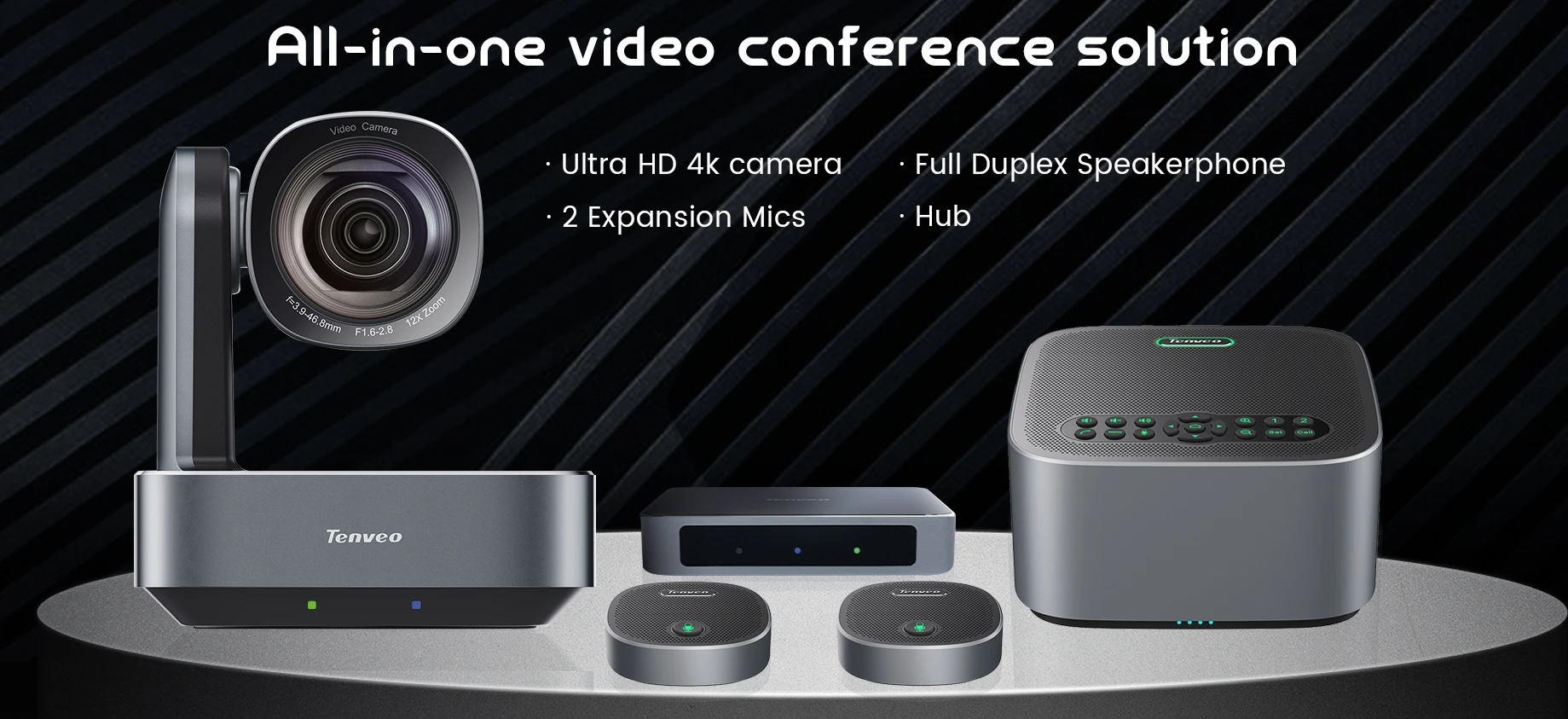

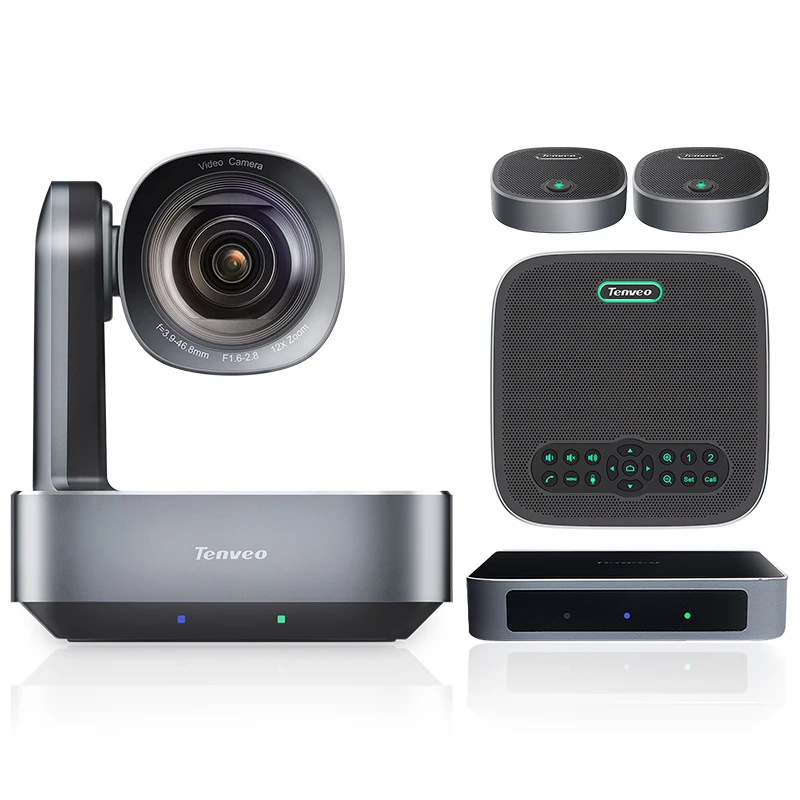

Tenveo VA612G EX 4k cam speakerphone hub extension mics conference PTZ conference video camera system
- Category: >>>
- Supplier: Sz Tenveo Video Technology Co. Ltd.
Share on (1601238484607):
Product Overview
Description
Product Description
4k30fps 12x zoom conference camera
* Crystal clear 4K image quality
* Accurate, smooth and silent PTZ Movement
* Accurate, smooth and silent PTZ Movement
* 1/2.8''SONY CMOS sensor, 8.29MP effective pixels
* 70.82° Field of view
Video conference speakerphone
* Bluetooth Wired connection, extension microphone support
* 8000mAh battery with DP charging
* Hub Connection, easy to have meetings by this group

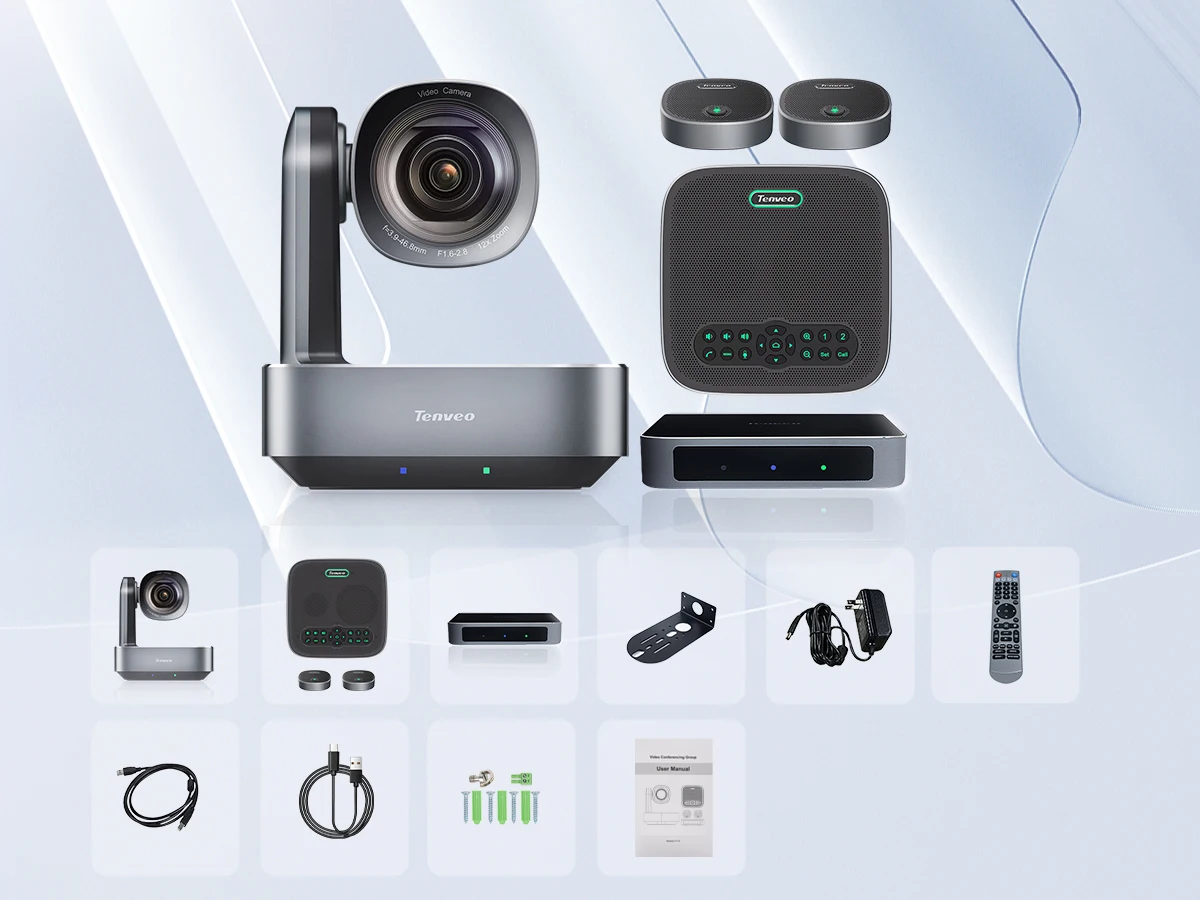

Detailed Images

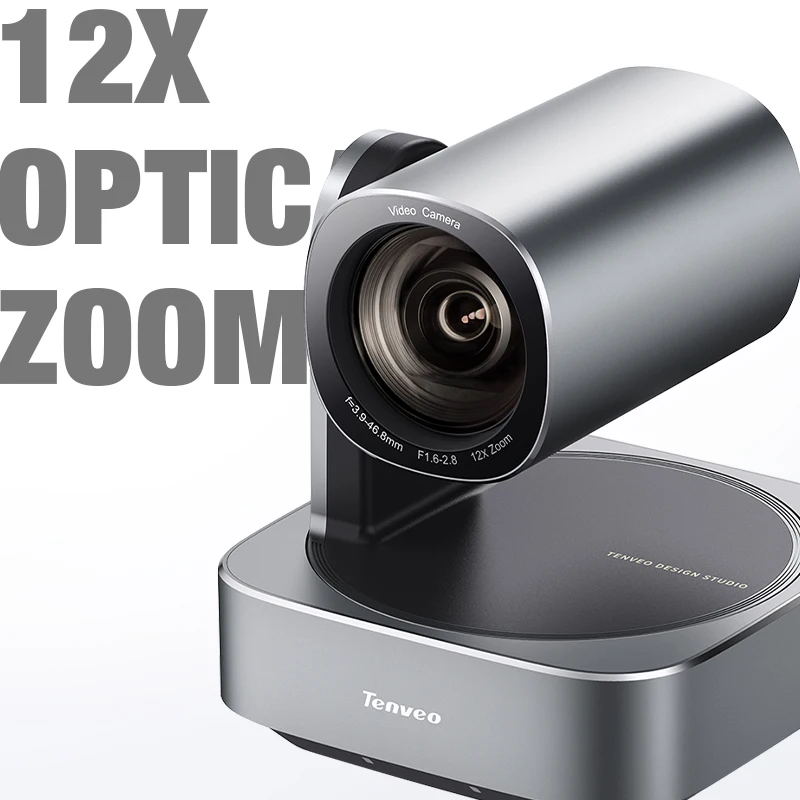

4k 12x optical zoom camera with HDMI and DP interfaces

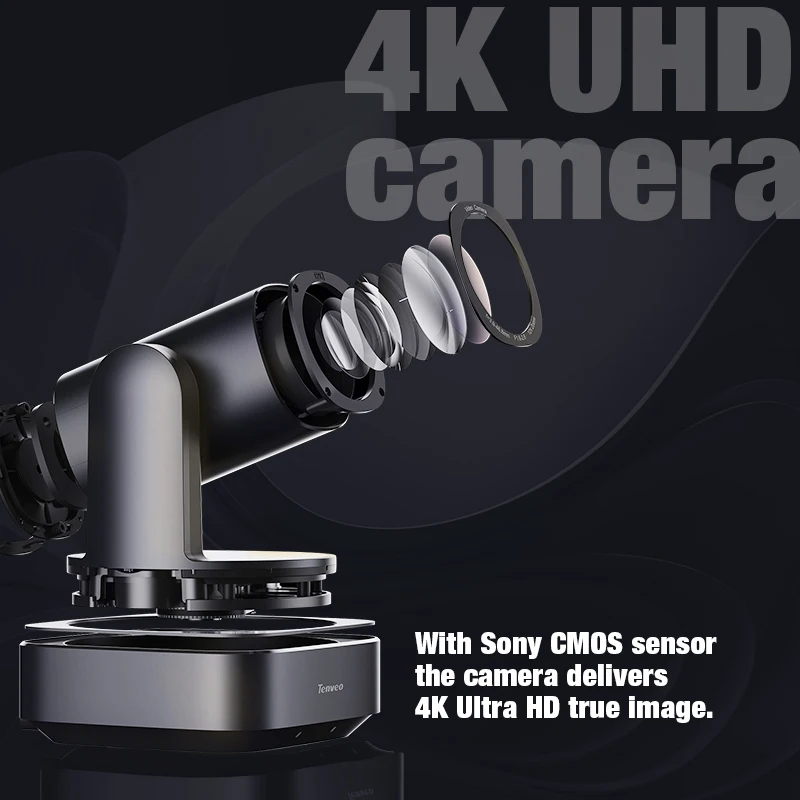

Sony 1/2.8 CMOS sensor delivers the 4k UHD image
Suitable for middle to large video conferencing

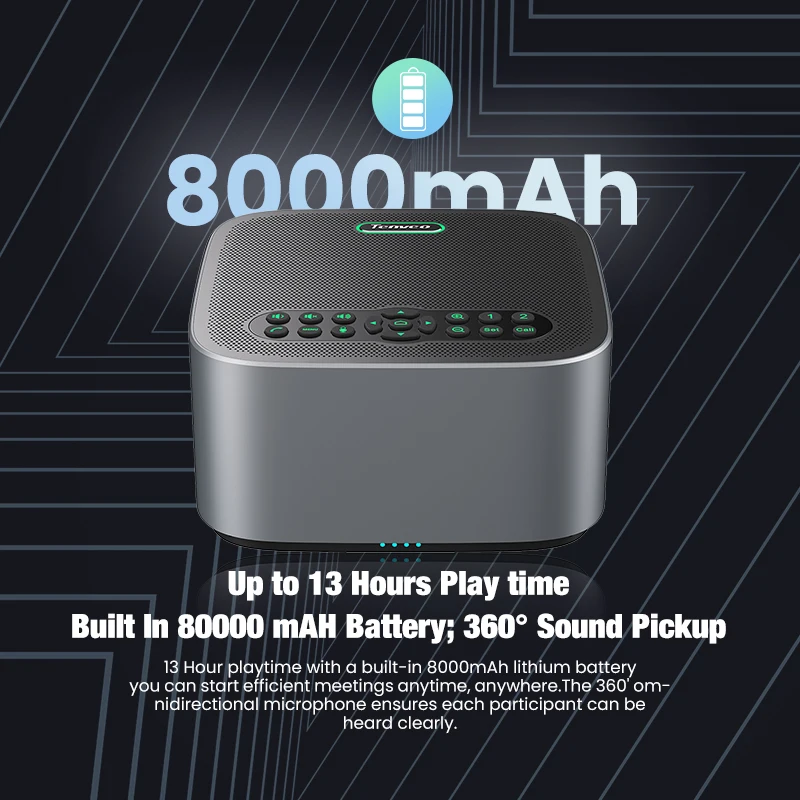

Up to 13 hours pplay time
Built in 8000mAh Battery
360 degree Sound pickup
You can start efficient meetings anytime and anywhere. The Omnidirectional microphone ensures each participant can be heard clearly.

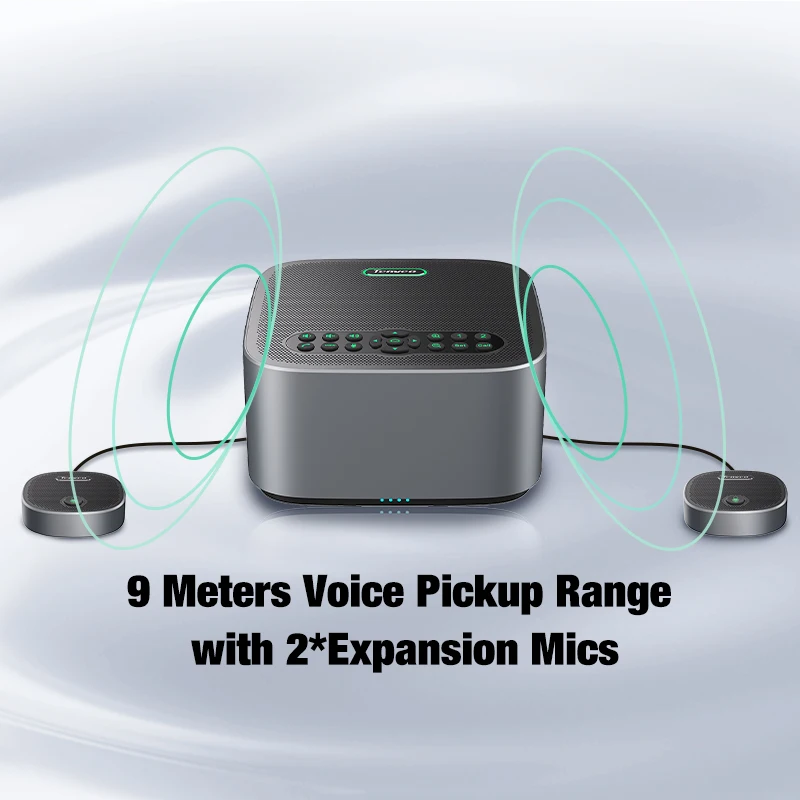

The 2 microphones connect to the main speakerphone of the group.
The pick up range can be reach up to 9 meters.
Tenveo Hub connection uses Dp port for more stable transmission.
Product Parameters
Item Name | TEVO-VA612A GROUP | |||
HD Conference Camera | ||||
Optical Zoom | 12x zoom | |||
Image Sensor | 1/2.8" SONY CMOS | |||
Effective Pixels | 8.29MP | |||
Lens | f=3.9mm-46.8mm | |||
Aperture | F1.6-2.8 | |||
Video Format | 4KP@30fps,1080P@60/50/30/25fps, 720P@60/50/30/25fps | |||
H.264, H.265, MJPG, YUY2, NV12 | ||||
Horizontal Angle | 70.82°(W)-6.48°(T) | |||
Focus | Auto / Manual | |||
Digital Noise Reduction | 2D & 3D Noise Reduction | |||
Exposure | Auto / Manual | |||

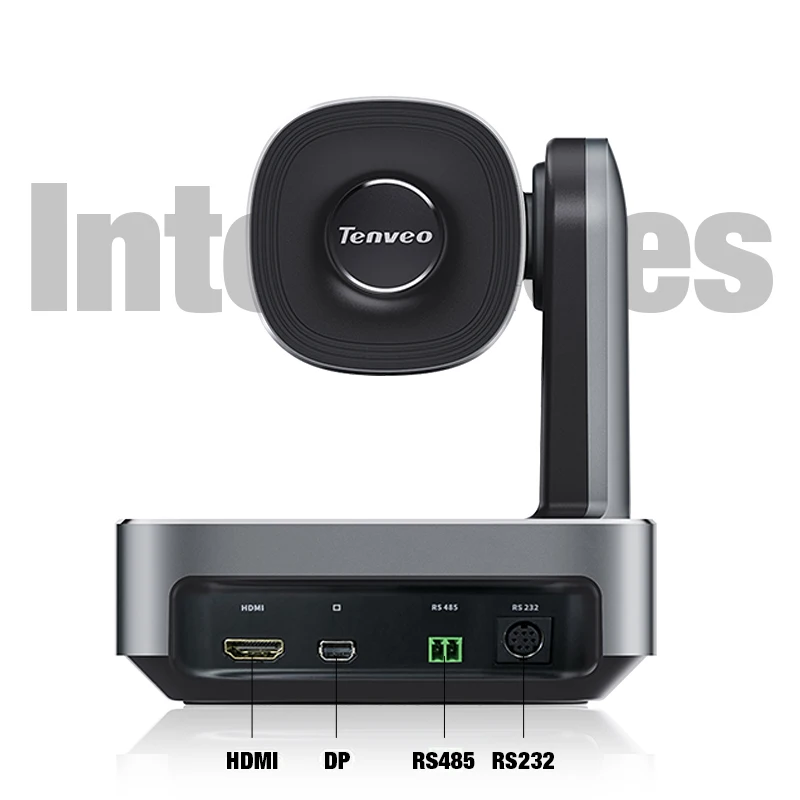

Video Interfaces | HDMI, DP | |||
Video Compression Format | H.264, H.265, MJPG, YUY2 | |||
Control Protocol | VISCA/Pelco-D/Pelco-P | |||
Baud Rate | 38400/9600/4800/2400 | |||
Control Interface | RS232 (input only), RS485, UVC1.1 | |||
Pan/Tilt Rotation | ±175°, -90°～+90° | |||
Pan Control Speed | 0.1 -80°/sec | |||
Tilt Control Speed | 0.1-60°/sec | |||
Preset Number | User can set up to 255 presets (10 presets by IR remote) | |||
Speakerphone | ||||
Acoustic Echo Cancellation(AEC): | ＞65dB | |||
Speaker Power | 5W | |||
Speaker Volume | 110dB | |||
Response | 100Hz-20KHz | |||
Pickup Range | 6m(Radius) | |||
Microphone Sensitivity | -38dBFS | |||
SNR(Signal to Noise Ratio) | 62dB | |||
Interface | DP interface；2x3.5mm Jack扩展麦口 | |||
Hub | ||||

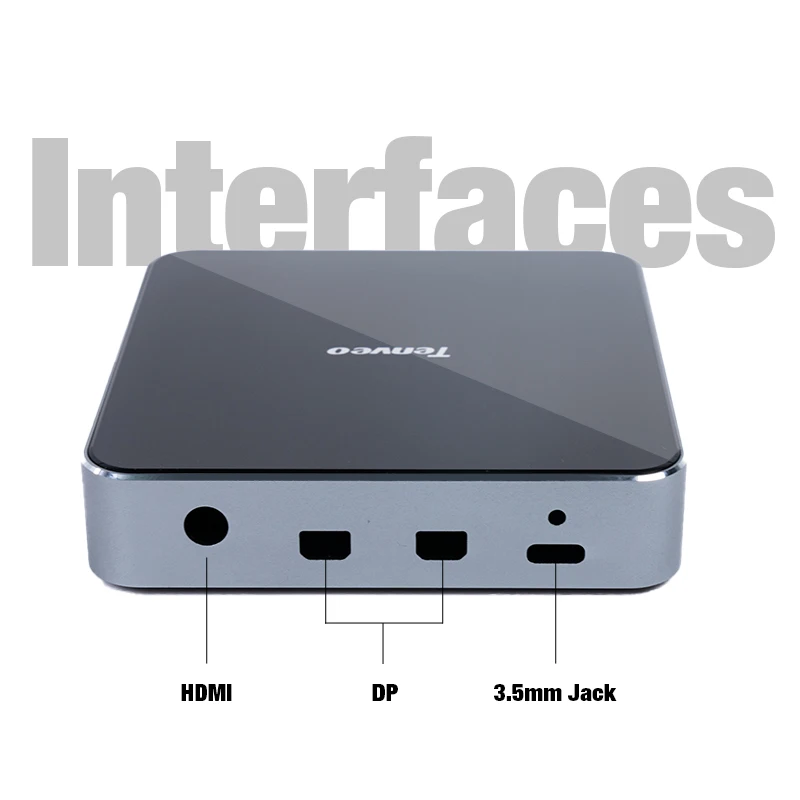

Interface | DP*2; Power interface*1; USB Type-C*1 | |||
Power Supply | DC 12V | |||
USB Cable | 3m USB cable*1 | |||
Connection Cable | 5m DP cable*2 | |||
General Parameter | ||||
Operation Systems | Windows 7 or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.) | |||
Application Support | Compatible with Zoom, MS Teams, Skype and etc. | |||
Input Voltage | DC 12V | |||
Input Current | 2.0A(Max) | |||
Store Temperature | -10℃～+60℃ | |||
Store Humidity | 20%～90% | |||
Working Temperature | -10℃～+50℃ | |||
Working Humidity | 20%～80% | |||
Dimension（W*H*D） | Camera: 171.6*192.6*171.6mm; Speakerphone: 143mm*143mm*75mm; Hub: 98*98*20mm | |||
N.W. / G.W | 2.77kg/4kg(net / gross weight) | |||

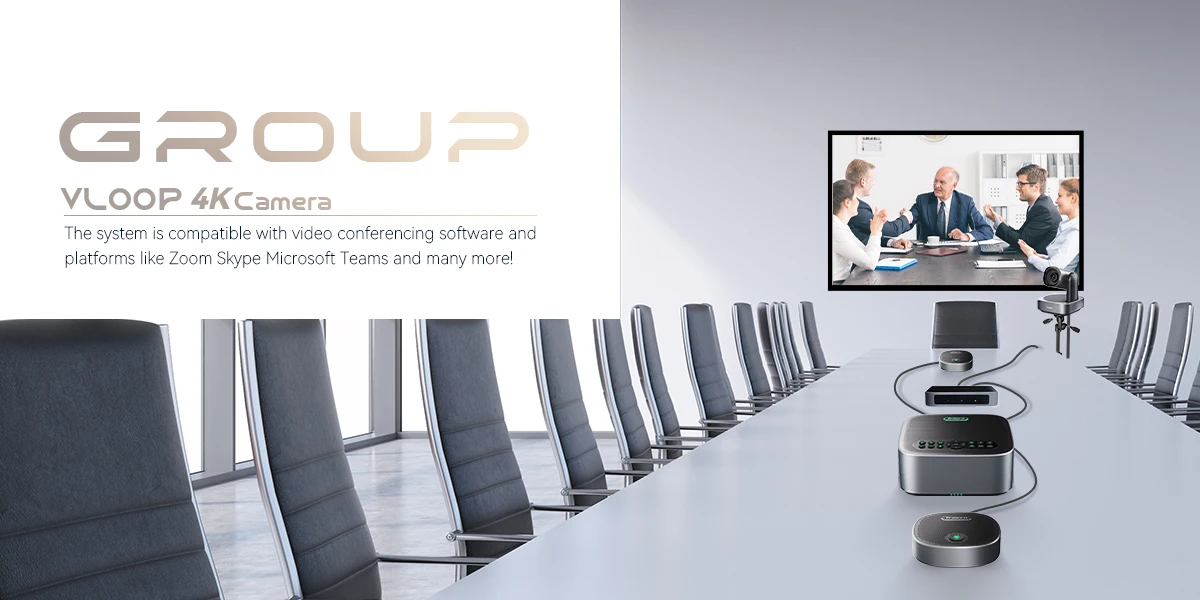

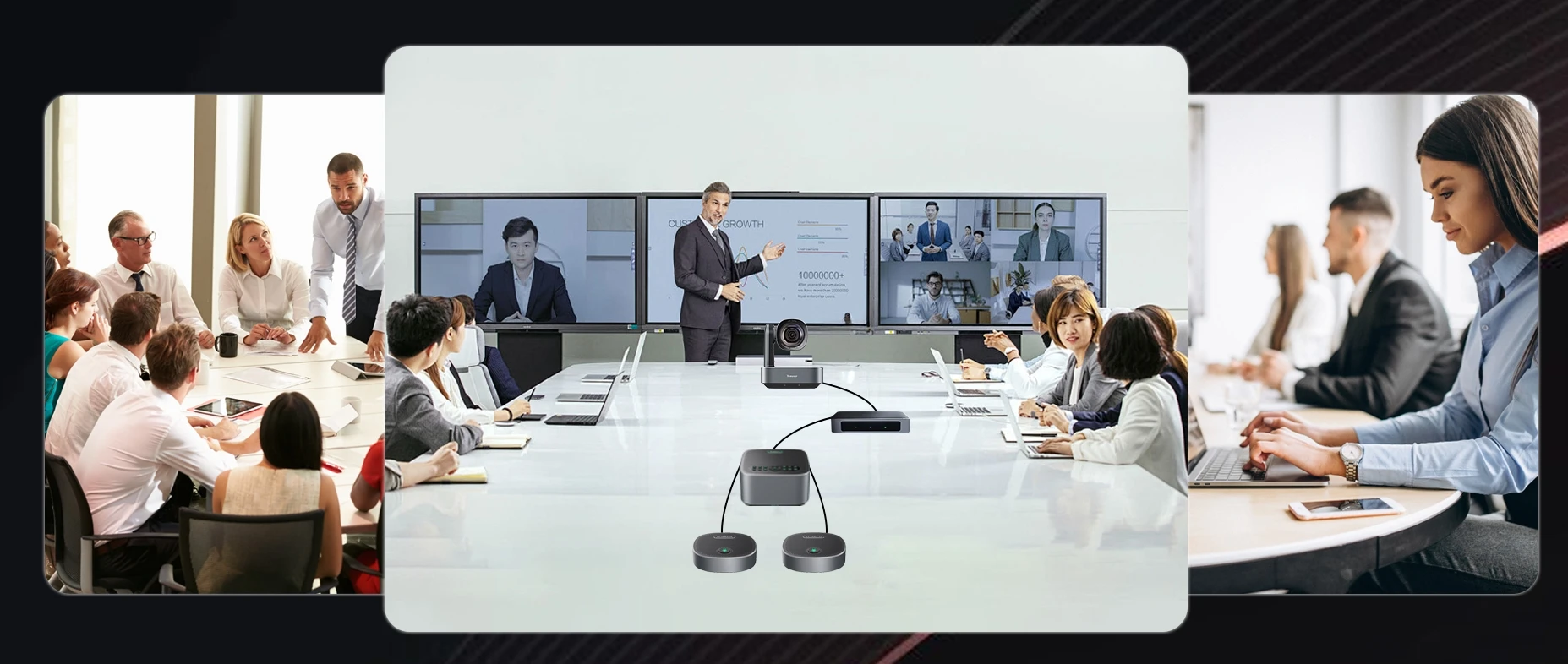

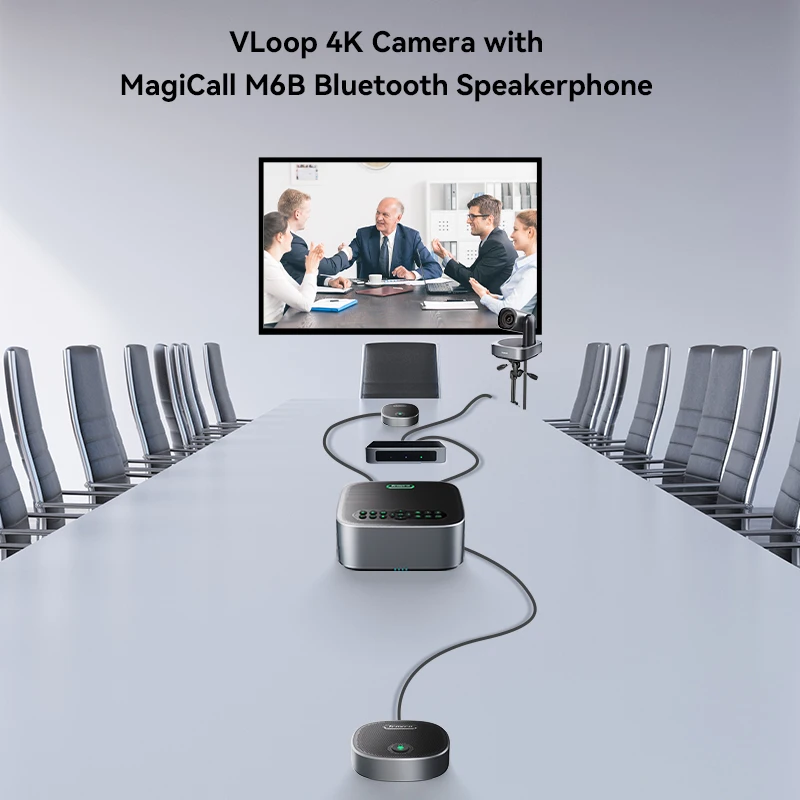

Application Scenarios & Installations
Company Profile
ABOUT US
SZ Tenveo Video Technology Co., Ltd, which was founded in 2011, is one of the leading providers of audio and video conferencing products in China. Tenveo has been at the forefront of audio conference speakerphone, HD video conference camera and web conferencing webcams. We design, mold, produce and sale the products directly in order to ensure the most possible competitive price and excellent quality. Our products are widely used in Video conference system, Audio conference system, Network conference system, Education system, Tele-medicine system, Live streaming, Broadcasting and recording, Courtrooms, Financial facility, Churches, Schools and Customs systems.
WHY CHOOSE US?
1.Strictly QC process
Four times strict 100% inspection Raw Material Inspection + Semi-finished product inspection + Finished product inspection + Customer commissioned inspection (AQL 2.5 Standard) -- 72 hours of pre-delivery aging test.
2.Warranty
2.Warranty
We provide 36 months warranty guarantee, replacement within 3 months, and 36 months free maintenance. Enjoy lifetime technical support service. (firmware upgrade service)
3. Qualified Certificates.
Our products are produced in strict compliance with international standards ( CE, FCC, RoHS, VCCI, ISO9001, etc.).
3. Qualified Certificates.
Our products are produced in strict compliance with international standards ( CE, FCC, RoHS, VCCI, ISO9001, etc.).
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years for the camera and speakerphone, 1 year for the accessories.
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo, label, package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years for the camera and speakerphone, 1 year for the accessories.
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo, label, package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
