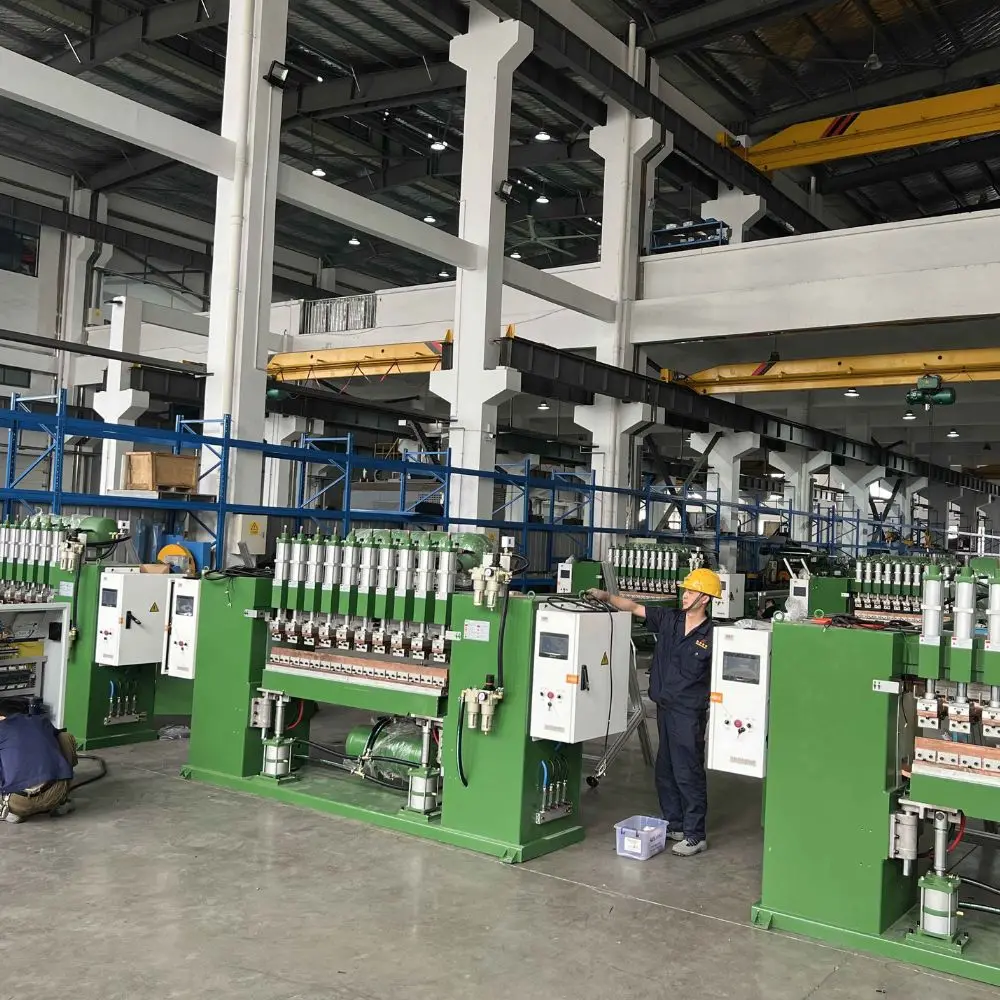

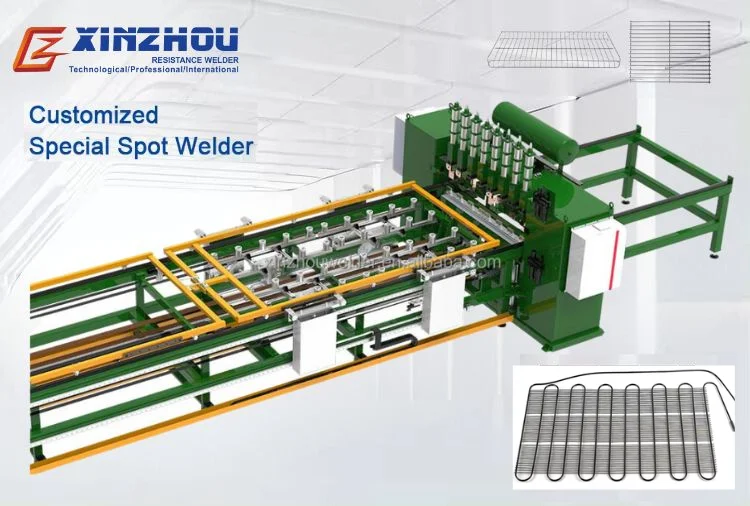

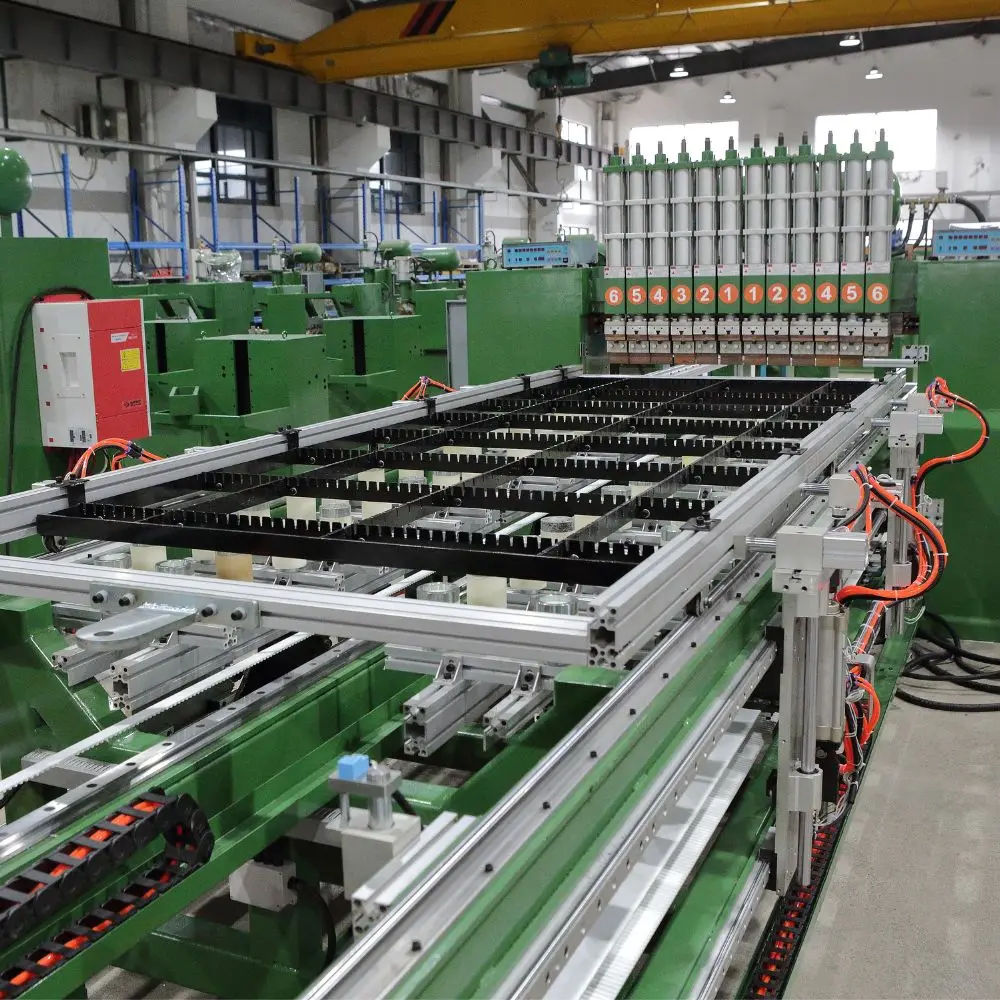

Gantry Type Wire On Tube Condenser Automatic Welding Making Machine
- Category: >>>
- Supplier: Ningbo Xinzhou Welding Equipment Co. Ltd.Ningbo Ltd.
Share on (1601239040050):
Product Overview
Description
Product Description
Gantry Type Wire On Tube Condenser /Reinforcing full automatic stainless steel welded wire mesh
Refrigerator Wire Shelf Production Line Machine Steel Wire Mesh Spot Welding Machine is H-type wire mesh multi-head automatic welding machine. It adopts ten electrodes and equips with automatic feeding system. The wire will be dropped to the fixture automatically to achieve full automatic loading. After that it will automatically execute the feeding and welding. Its one-way and double-layer feeding device can move forward and back automatically to finish the welding and the welding distance can be set at random .It is suitable for the batch production of wire mesh with multiple-points welding.
Refrigerator Wire Shelf Production Line Machine Steel Wire Mesh Spot Welding Machine is H-type wire mesh multi-head automatic welding machine. It adopts ten electrodes and equips with automatic feeding system. The wire will be dropped to the fixture automatically to achieve full automatic loading. After that it will automatically execute the feeding and welding. Its one-way and double-layer feeding device can move forward and back automatically to finish the welding and the welding distance can be set at random .It is suitable for the batch production of wire mesh with multiple-points welding.
The welding manner is one-way double-layer automatic stepping feeding with 10 welding heads. The effective welding width is 1200mm while the effective welding length is 1000mm. This machine is composed of main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.
Intelligent welding control system
Automatic welding by inputting coordinate data of welding position, welding current and other data.
Automatic welding by inputting coordinate data of welding position, welding current and other data.

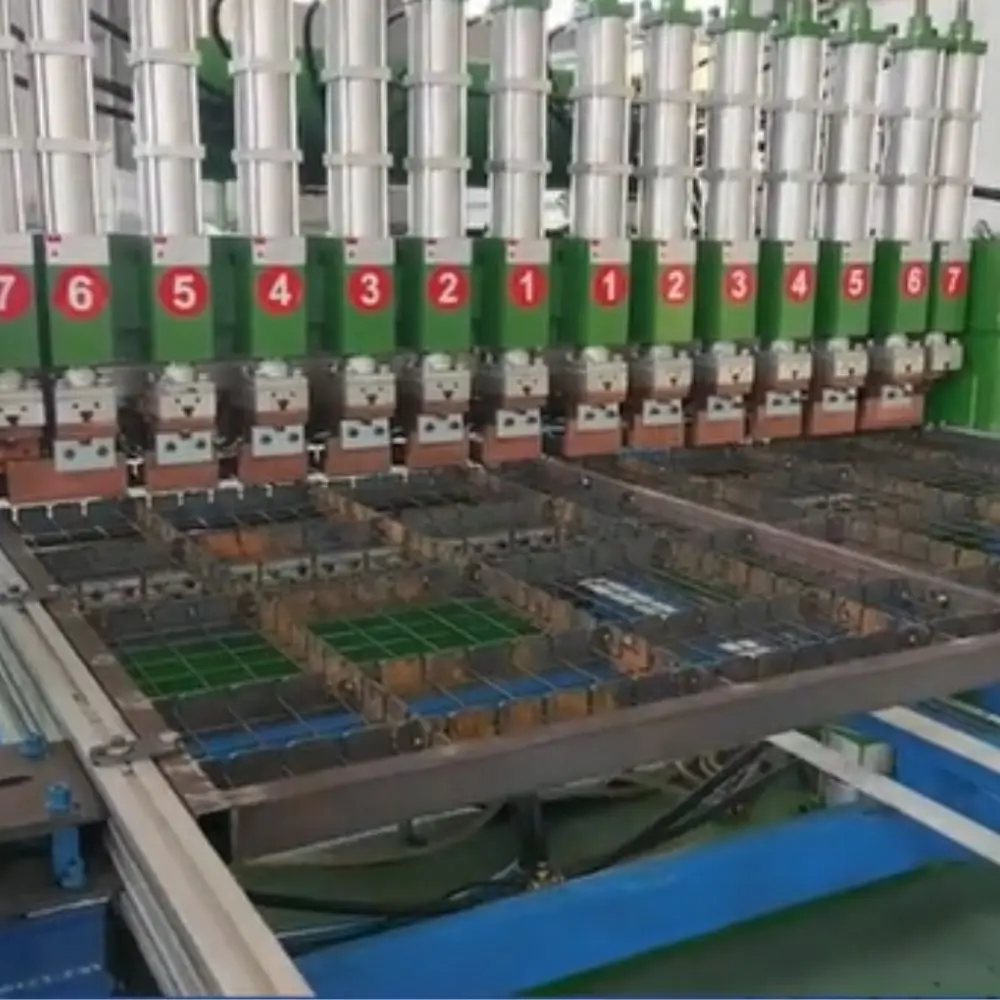

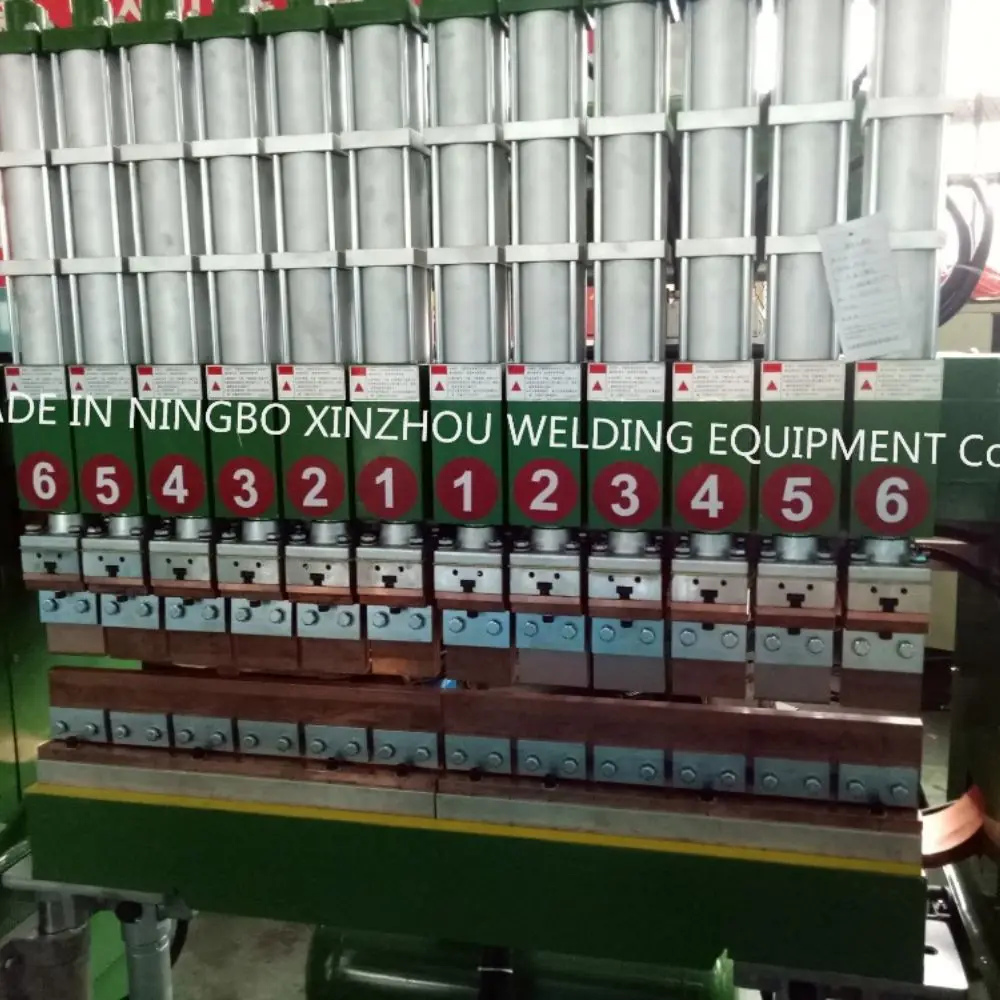

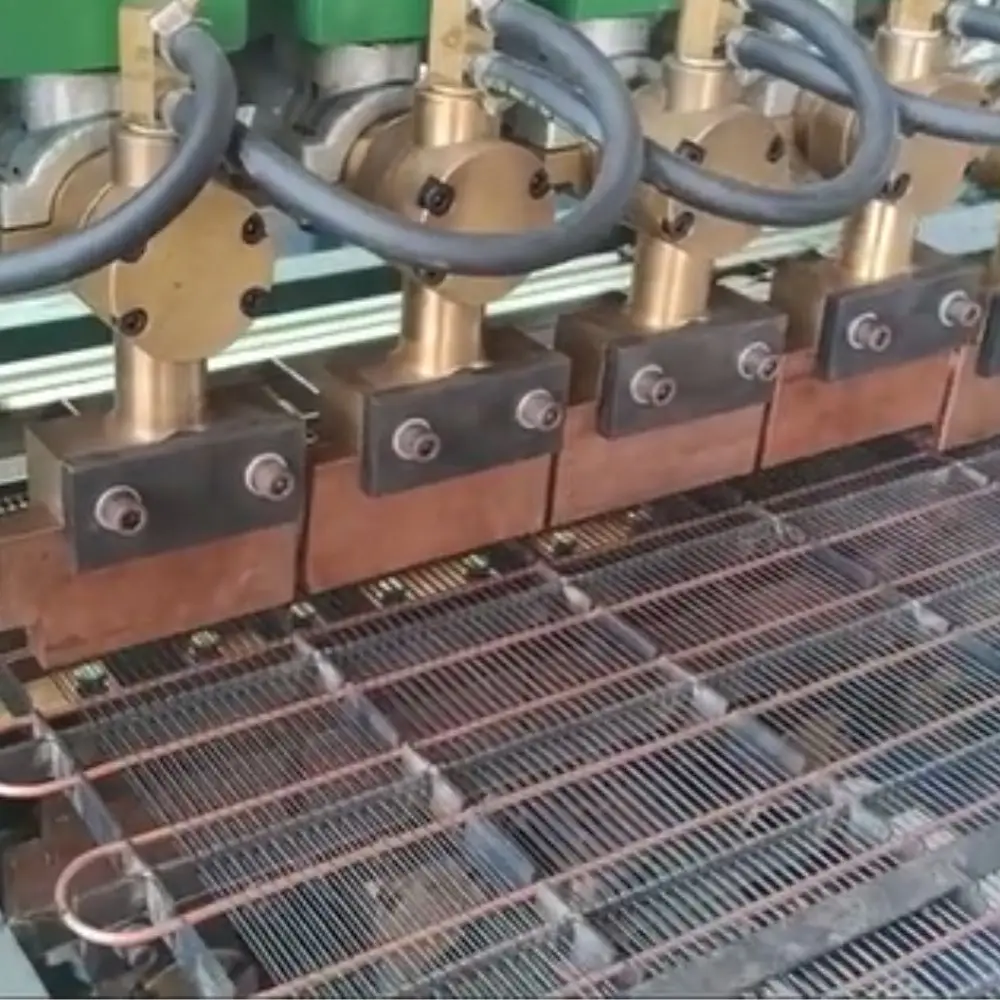

Welding Heads and Fixtures
Processing and design according to the drawings of each wire shelf product. (customized)
Processing and design according to the drawings of each wire shelf product. (customized)
Automatic Wire Filling System
You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture
automatically. It helps to increase the working efficiency and reduce labor force.
You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture
automatically. It helps to increase the working efficiency and reduce labor force.
Automatic Double-layer Feeder
When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time.
When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.
When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time.
When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.

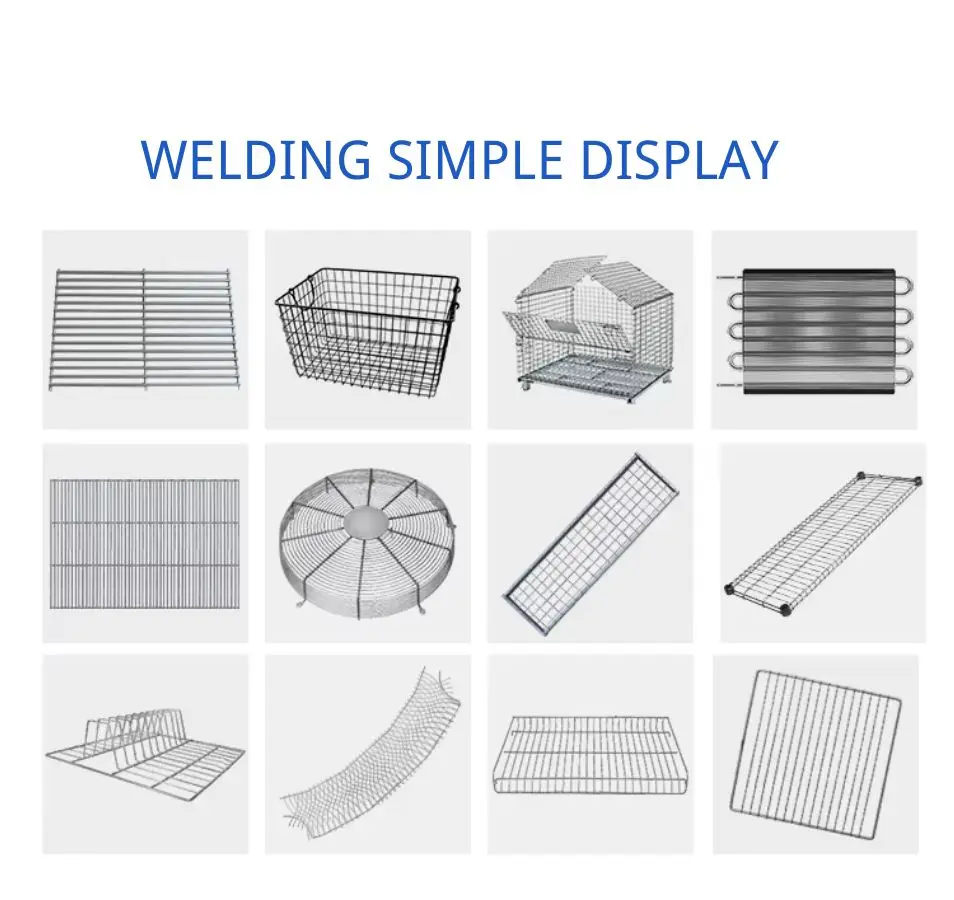

Welding Simple Display
Functions Options
1. Power Supply:Type: Three-phase MF DC power supply system OR two-phase AC power supply system Quantity: One set of power supply system OR two sets of power supply system (double efficiency)
2. Feeder: Double-layer automatic feeder (cycle working, accurate
stepping position via servo motor) OR manual feeder
stepping position via servo motor) OR manual feeder
3. Unloading Device: Automatic unloading device OR manual unloading device
4.Automatic Bending device
5. Automatic Straightening and Cutting Machine We can customize the machine according to your
requirement, if you need more detailed information about the above functions, please contact us.
requirement, if you need more detailed information about the above functions, please contact us.
Detailed Description
1.This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more y wire and less x wire
2.The welding power source is three-phase. The welding manner is one-way double-layer automatic stepping feeding with
12 welding heads. (adjustable according to your product)
12 welding heads. (adjustable according to your product)
3.The effective welding width is 1200mm while the effective welding
length is 3000mm. (adjustable according to your product)
length is 3000mm. (adjustable according to your product)
When you need this kind of machine, please kind send your wire mesh drawing first clearly showing:
1. wire diameter;
2. the distance between lines;
3. the total length and width of the wire mesh;
4. production capacity;
5. cost budget.
Then we can custom design and manufacture for you based on your requirements. Also we will give our suggestions base on our experience.
FEATURES
❥Automatic dual-layer machine interchanges feeding and welding simultaneously
❥Configuration allows you to change fixtures quickly and easily
❥Perfect for high volume production environments
❥Customization available to suit your application
❥Microprocessor-based welding control with touch-screen interface makes programming simple.
xinzhou Service First Policy guarantees superior quality and value backed by xinzhoumachinery
xinzhou Service First Policy guarantees superior quality and value backed by xinzhoumachinery
APPLICABLE AREA
Automatic welding machine for welding wire mesh , basket wire mesh, cage wire mesh, wire mesh fence, welded wire mesh panel, wire mesh cable tray, welded wire mesh, chicken wire mesh, aluminium wire mesh, welded wire mesh fencing, galvanized wire mesh,fencing net, concrete wire mesh, concrete reinforcing welded wire mesh, galvanized welded wire mesh panel, wire display rack, bbq wire rack, wire shelving rack, wire storage rack, kitchen wire basket, kitchen cabinet wire basket, refrigeration condenser and so on.
Automatic welding machine for welding wire mesh , basket wire mesh, cage wire mesh, wire mesh fence, welded wire mesh panel, wire mesh cable tray, welded wire mesh, chicken wire mesh, aluminium wire mesh, welded wire mesh fencing, galvanized wire mesh,fencing net, concrete wire mesh, concrete reinforcing welded wire mesh, galvanized welded wire mesh panel, wire display rack, bbq wire rack, wire shelving rack, wire storage rack, kitchen wire basket, kitchen cabinet wire basket, refrigeration condenser and so on.
Construction industry：Concrete steel mesh, highway fence mesh |
Animal Containment: Cages and Enclosures... |
Display Equipment: Display Racks, Stands... |
Wire Mesh Products: Wire Grid, Mesh Decks, Wire Baskets for closets, Shop Fittings, Computer Enclosures... |
Storage and Warehousing: Wire Storage Baskets, Mesh Stillage, |
Pallet Cages, Box Trailer Sides, Pallet Boxes, Storage Shelving, Storage Containers, Tool Racks... |
Other Related Machines
Production line supporting machine
GT6-12 High speed straightening and cutting machine
GT4-8 hydraulic straightening and cutting machine
Wire Frame Butt Welding Machine
Wire Frame Bending Machine
Company Introduction
Ningbo Xinzhou Welding Equipment Co., Ltd. was founded in 1998, is a company mainly engaged in researching, designing, manufacturing and selling automation welding equipment, which is also a national high-new tech enterprises in China.
Its products are widely used in home appliances,hardware, auto parts production, petrochemical, liquid packaging, nuclear power station，hydropower station, steel structure platform, expressway, high-speed railway, rail transit and other large-scale infrastructure construction and precast constructions. With excellent quality and perfect service, the company has been widely recognized and unanimously praised by customers, products sell well in more than 30 countries and regions, and cooperate with a number of well-known enterprises to establish a long-term strategic partnership.
Exhibition
Certificate
Certificate of compiance
qualty management syatem
factory production control
Packing&Shipping
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
Q4: What is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us
thefollowing information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical
proposal and price for you.
Q5: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra
cost.
Q6: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty
period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new
parts, we will send engineer to your factory to help fixing the machine.
Q7: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q8: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you
need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the
machine.
Q9: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
Technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more
detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the
manufacturing process.
Q10: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you
can apply the complaint on alibaba.com. )
Q11: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide
you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary,
visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us
thefollowing information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical
proposal and price for you.
Q5: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra
cost.
Q6: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty
period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new
parts, we will send engineer to your factory to help fixing the machine.
Q7: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q8: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you
need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the
machine.
Q9: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
Technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more
detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the
manufacturing process.
Q10: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you
can apply the complaint on alibaba.com. )
Q11: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide
you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary,
visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
