Roller Shutter Garage Door Profile Roll Forming Machine rolling up door slats making machine
- Category: >>>
- Supplier: Botou Golden Integrity Roll Forming Machine Co. Ltd.
Share on (1601239698562):
Product Overview
Description
Roller Shutter Garage Door Profile Roll Forming Machine rolling up door slats making machine

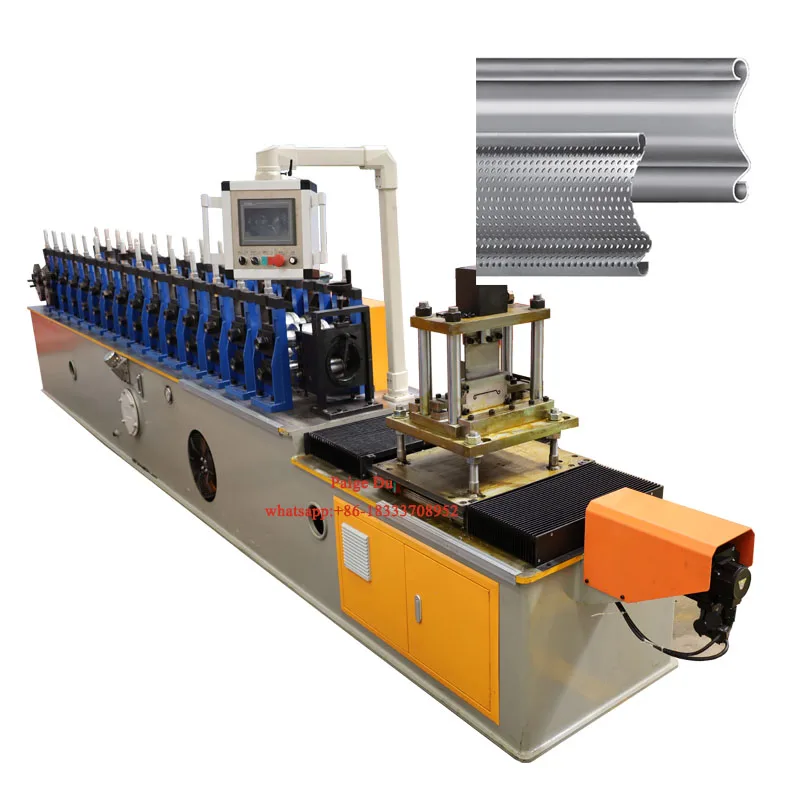

Roller Shutter Garage Door Profile Roll Forming Machine picture

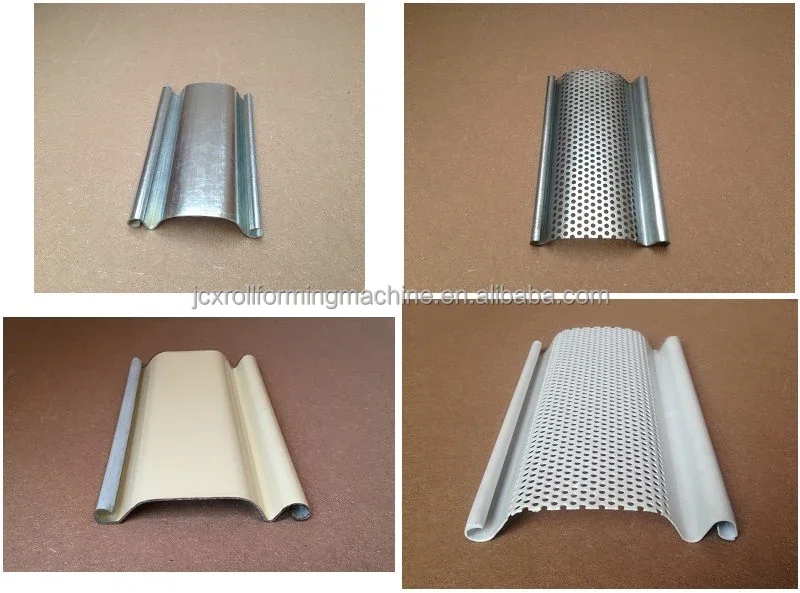

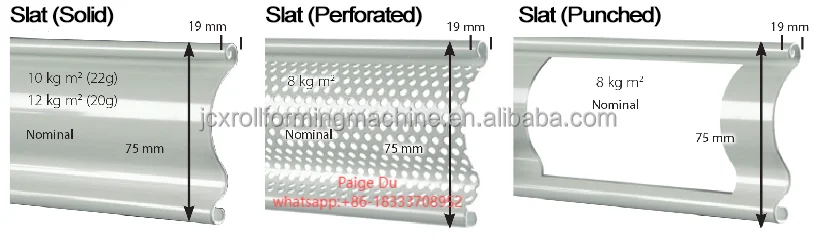

Different types of shutter garage door slats forming machine
Product Description

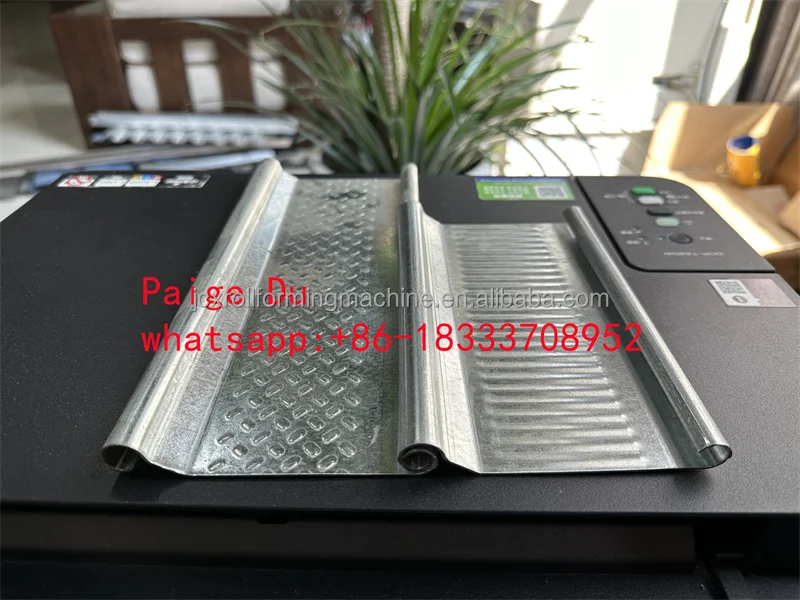

One shutter garage door slat machine can make two different embossing of slats
Embossing rollers:
Specifications
Roof ridge cap roll forming machine | ||||||
Profile Type | roof ridge cap | Operation System: | PLC | |||
Standard Speed | 0-15m/min | Main motor power | 5.5kw | |||
Product Accuracy | 0.5mm | Total power | 9.5kw | |||
Coil width | As per model | Hydraulic volumn | 120L | |||
Steel thickness | 0.3-0.8mm | Machine weight | 2200KG | |||
Product Details

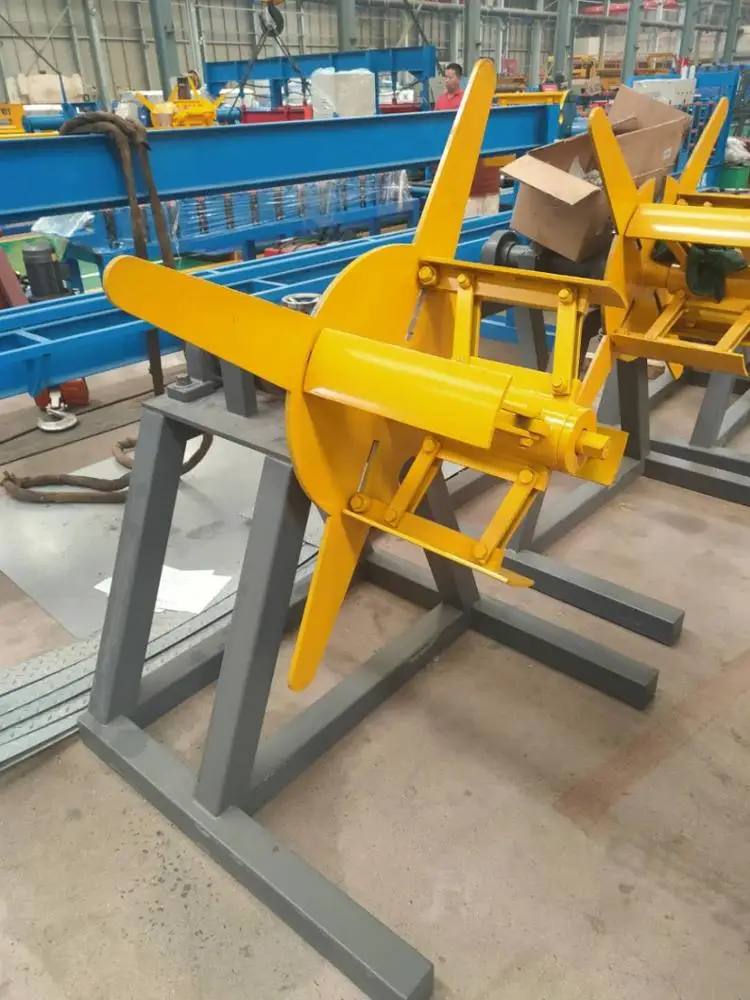

3tons Decoiler
1. Driven method: Passive
3. Load capacity: 3.0T
3. ID range: 430-590mm Max OD：1300mm
3. Load capacity: 3.0T
3. ID range: 430-590mm Max OD：1300mm

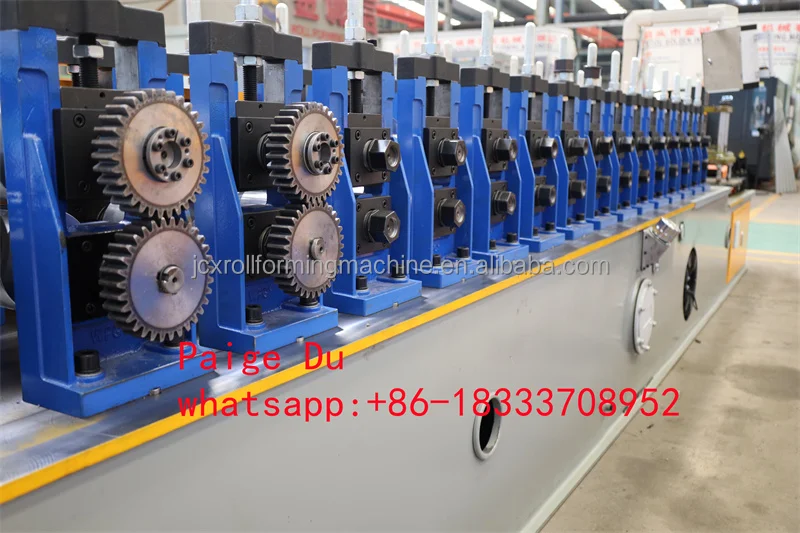

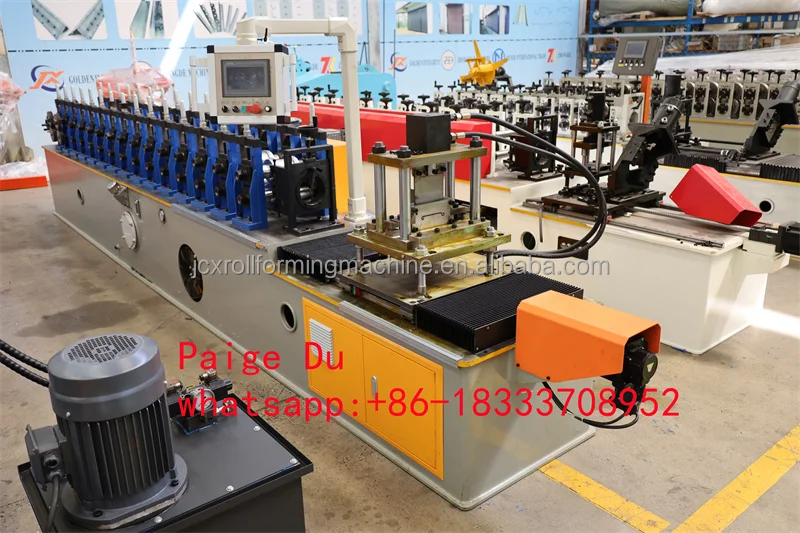

Main forming machine
High grade Cr12
14 forming stands as per design
60 full solid shafts
Driving: by gear

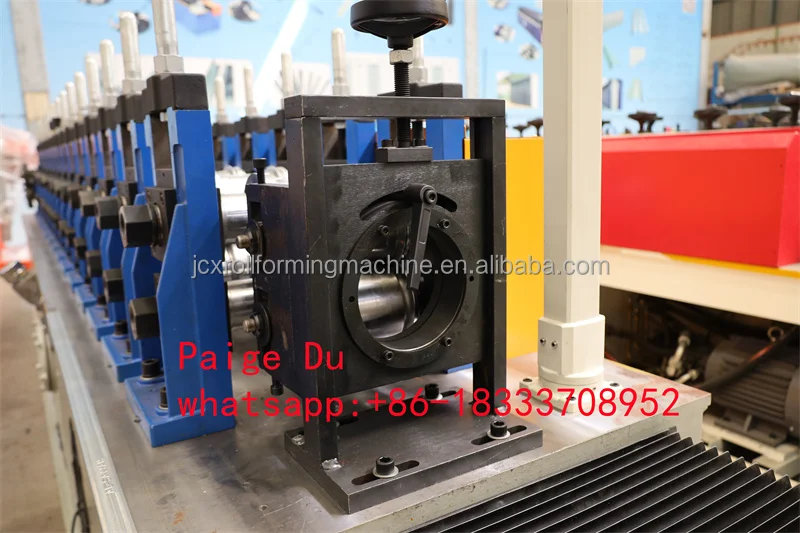

Turkish head of Straighten head
Cast iron structrue,
One-whole plate, no welding,
to gain higher precision.
Cutting system:
Control by 1.5kw servo motor
Non-stop flying cutting system
Speed: 30m/min
Cutter moves together with channel.

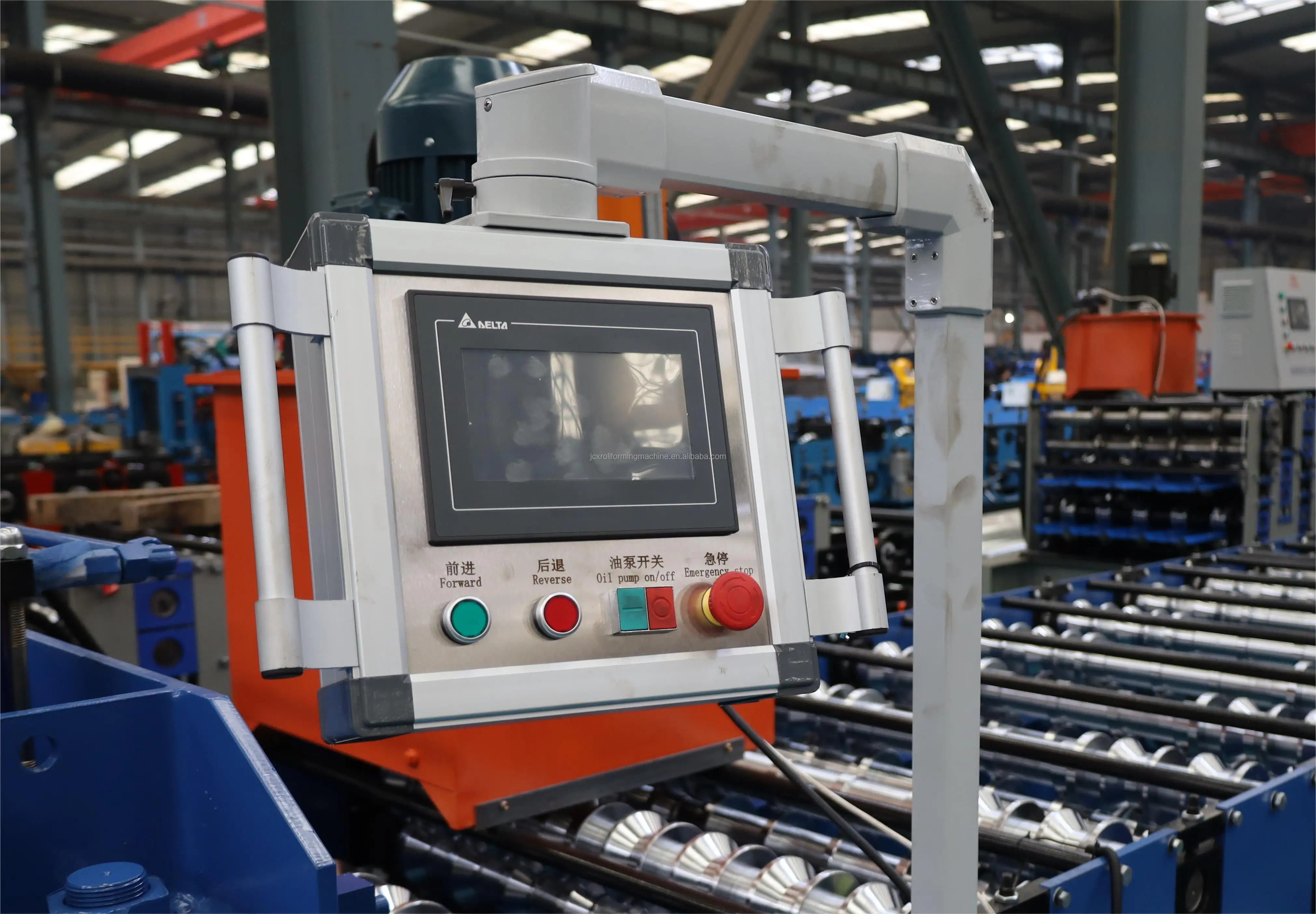

1). 7 inches touch Screen:Delta
2). PLC and Inverter by Delta.
3). Automatic length measurement
4). Automatic quantity measurement
5). Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is
achieved
6). Length inaccuracy can be amended easily
7).Language:Chinese--English
2). PLC and Inverter by Delta.
3). Automatic length measurement
4). Automatic quantity measurement
5). Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is
achieved
6). Length inaccuracy can be amended easily
7).Language:Chinese--English

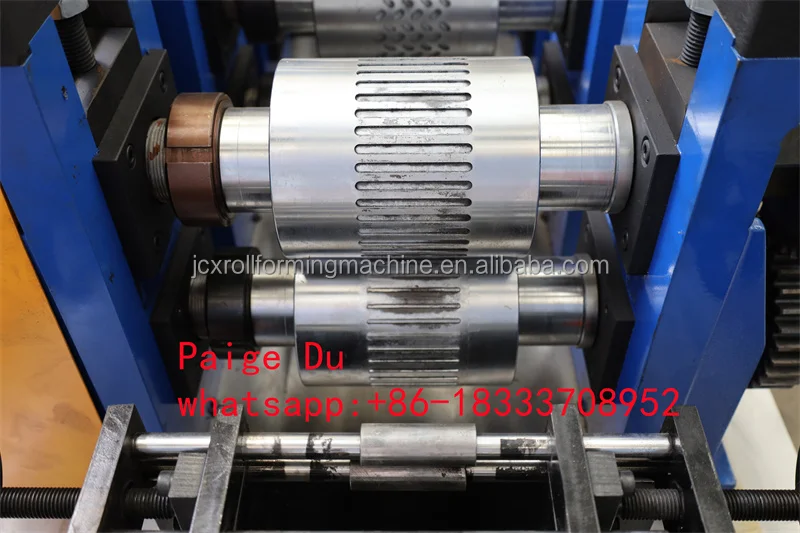

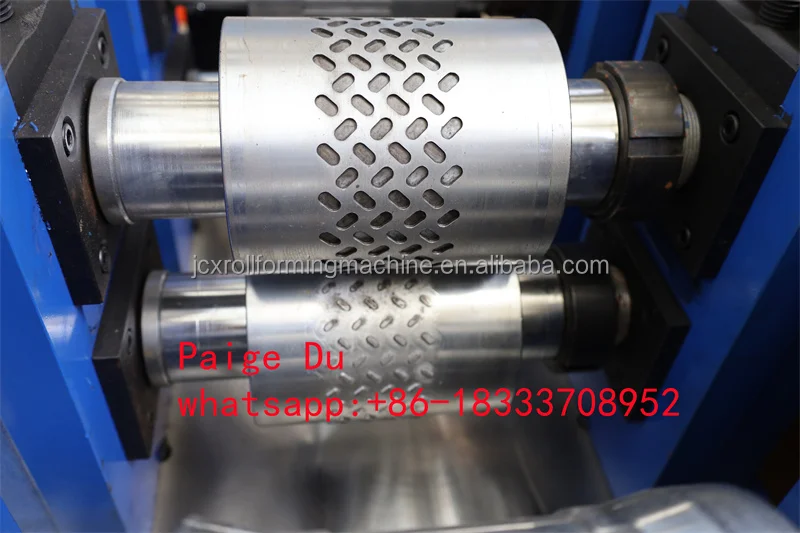

Embossing rollers
To make required embossed slats
It can be customized with other patterns.

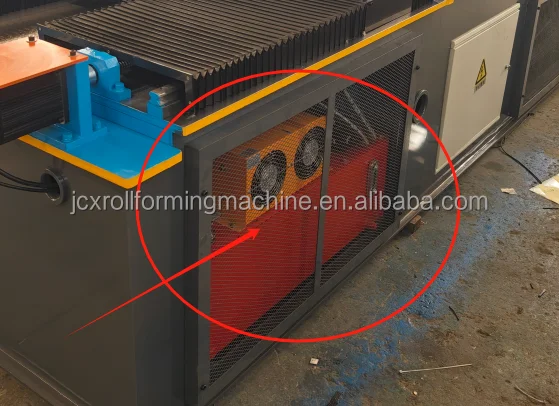

Hydraulic station
Built-in hydraulic station
Save space,
Good apperance
Feedback from Customer

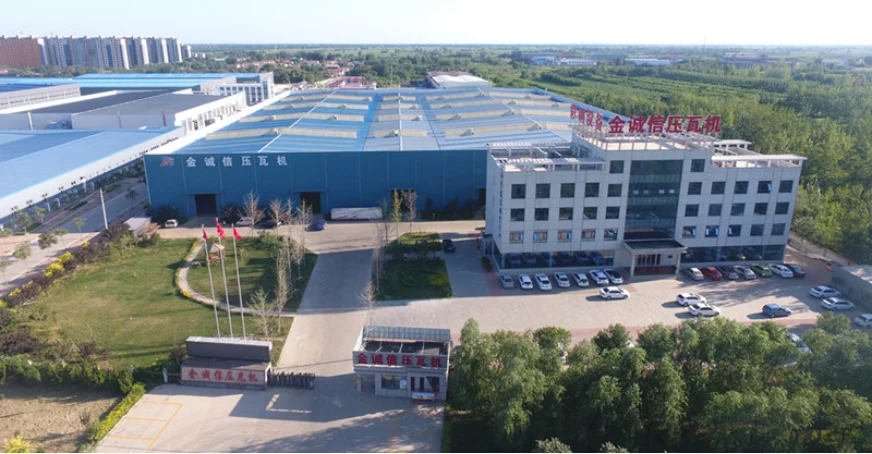

Company Profile
Botou Golden Integrity Roll forming Machine Co.,Ltd.We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 20 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
Technicians can be sent to install and train the workers in the clients'factories.
OEM /ODM service is available upon request.
Technicians can be sent to install and train the workers in the clients'factories.
OEM /ODM service is available upon request.
Certifications
Product packaging
