Kato Vision New Arrival PTZ Camera controller 3D Joystick Controller RS232 RS485 POE for Video Conference System
- Category: >>>
- Supplier: Shenzhen KATO Vision Co. Limited
Share on (1601240051398):
Product Overview
Description
Product Parameters

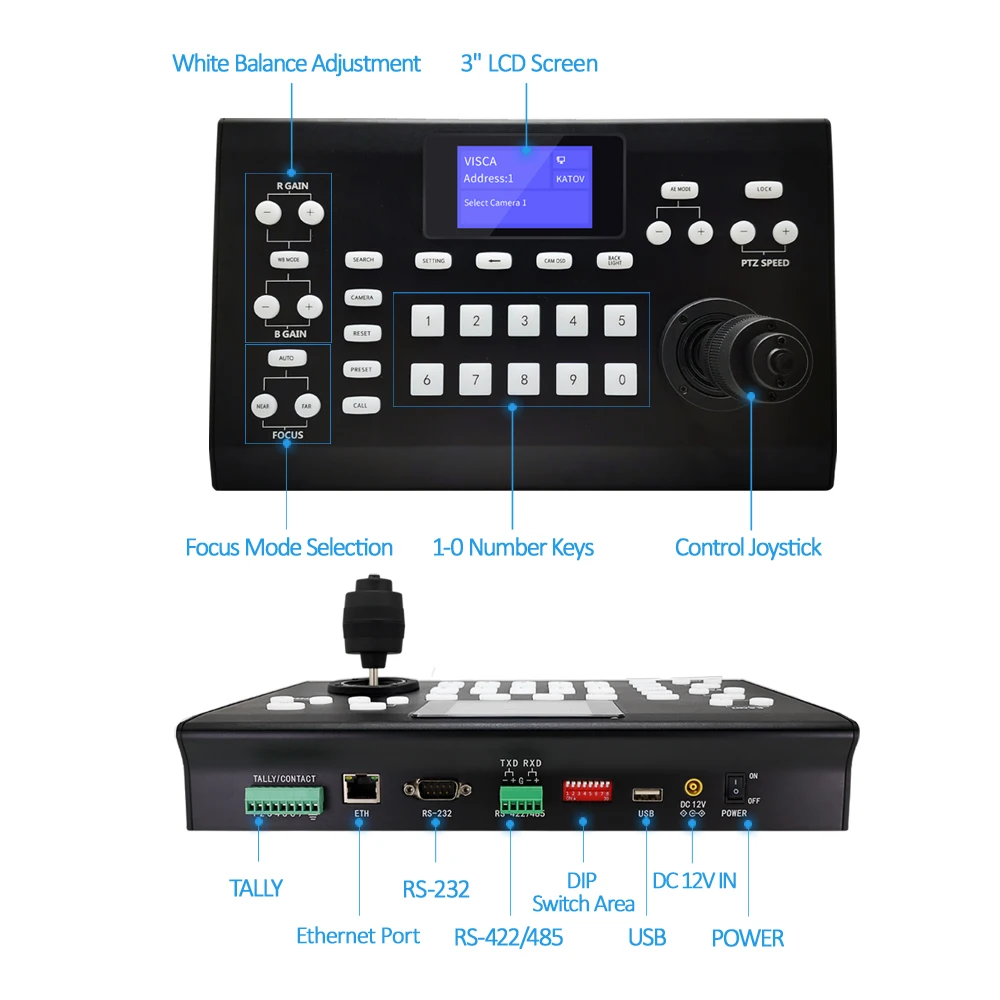

KT-610CN PTZ Camera Joystick Controller Selling Points:

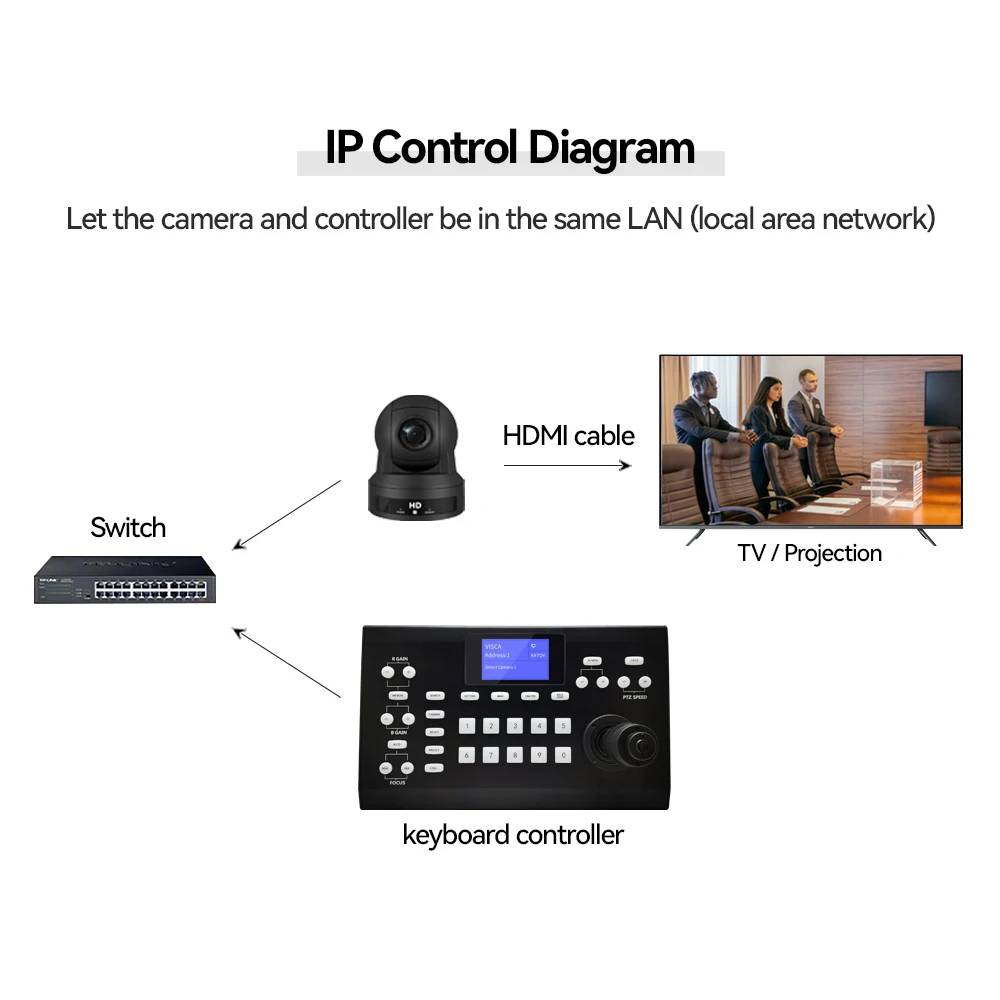

1.Support multiple connection methods: LAN/RS232/RS422/RS485 at the same time.
2.Network protocol support VISCA Over IP, ONVIF, NDI.
3.Serial port protocol support VISCA, Pelco D, Pelco P.
4.Support multiple baud rates: 2400, 4800, 9600, 19200, 38400, 115200.
5.VISCA protocol supports automatic address allocation and can display the number of cascaded cameras in serial connection.
6.Quickly control the camera focus, exposure, WBC, backlight compensation and other functions through panel buttons.

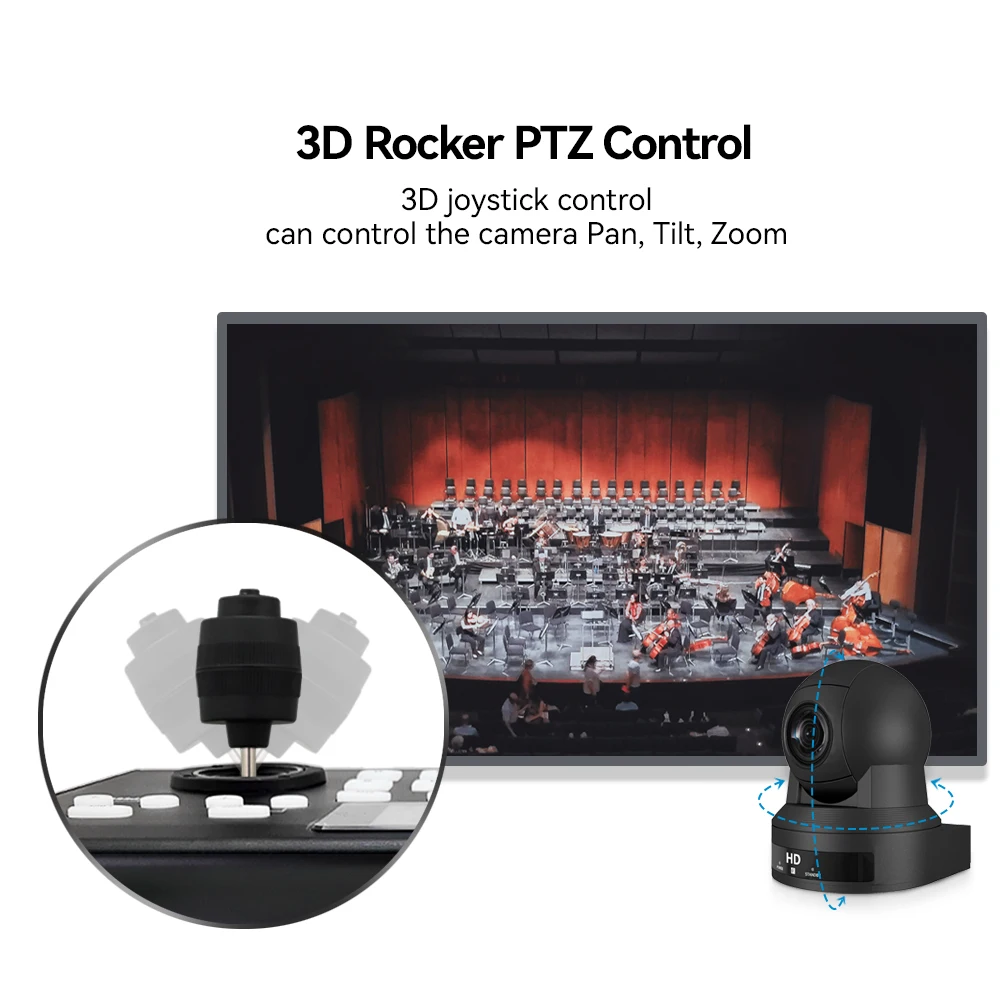

7.Integrated 3D joystick, can control the camera : Pan, Tilt, Zoom.
8.Integrated 3” LCD screen to visually display the current status.
9.Integrated Tally interface.
1.Support multiple connection methods: LAN/RS232/RS422/RS485 at the same time.
2.Network protocol support VISCA Over IP, ONVIF, NDI.
3.Serial port protocol support VISCA, Pelco D, Pelco P.
4.Support multiple baud rates: 2400, 4800, 9600, 19200, 38400, 115200.
5.VISCA protocol supports automatic address allocation and can display the number of cascaded cameras in serial connection.
6.Quickly control the camera focus, exposure, WBC, backlight compensation and other functions through panel buttons.
7.Integrated 3D joystick, can control the camera : Pan, Tilt, Zoom.
8.Integrated 3” LCD screen to visually display the current status.
9.Integrated Tally interface.
Product Name | JT-610C New PTZ Camera Controller |
Input And Output | RS*232: DB9 x1; RS422" 5pin x1; LAN: RJ45 x1 |
Serial Port Baud Rate | 2400/4800/9600/19200/38400/115200 (Apply to RS-232/RS-422) |
Speed Control | 2 buttons (corresponding to PTZ, zoom) |
3D Joystick | Yes, support PTZ control |
Maximum Control Quantity | IP: 255 , VISCA: 7 , Pelco P/D : 255 |
Control Protocol | IP: Visca Over IP, Onvif, NDI (Optional)RS-232/RS-422/485: Visca, Pelco P/D |
Size | 296mm x 180mm x 115mm |
Weight | 1.5kg |
Details Images
Qualification Honor
Exhibition Cases
Buyer Reviews
Company Profile
Our Advantages
FAQ
Q1.What's your payment term?
A:Our payment term is TT in advance before shipment.
Q2.What's your warranty period?
A:The warranty period is 3 years and start from the purchase date.
Q3.Do you offer remote assistance when facing a technical problem?
A:Yes, surely. We have very professional technical team, and it is our responsibility to help our clients when meet with any technical problem.
Q4.Could I put my own logo products?
A:Sure, we have our R&D department, we can do ODM and OEM.
Q5.How do you guarantee the quality?
A:We have our own QC to inspect all our goods before packing. And also, we have CE/FCC/RoHS/ISO.
Q6.I'm buying with yours company at the first time,how can I trust you?
A:We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or our factory anytime you like. You can also choose trade assurance for your order.
