Headlight focusing machine calibration beam aligner vehicle headlight tester NHD-8000 adjusting aiming headlight alignment tool

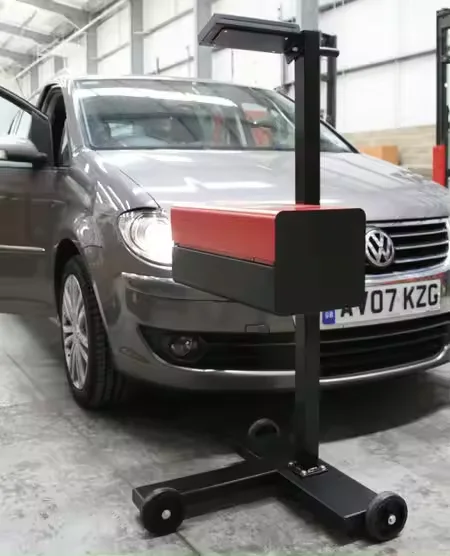

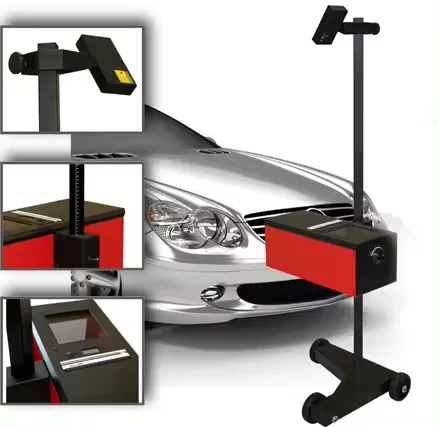

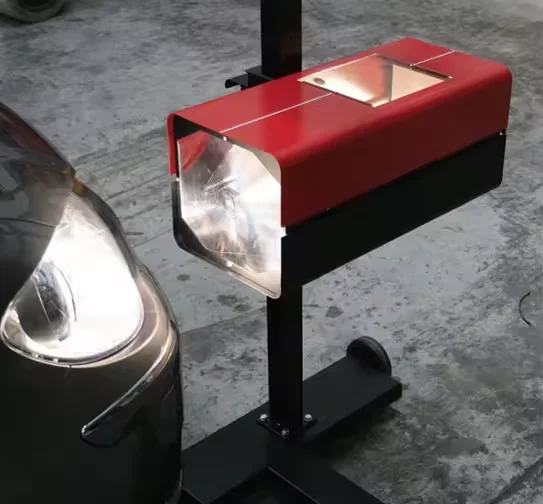

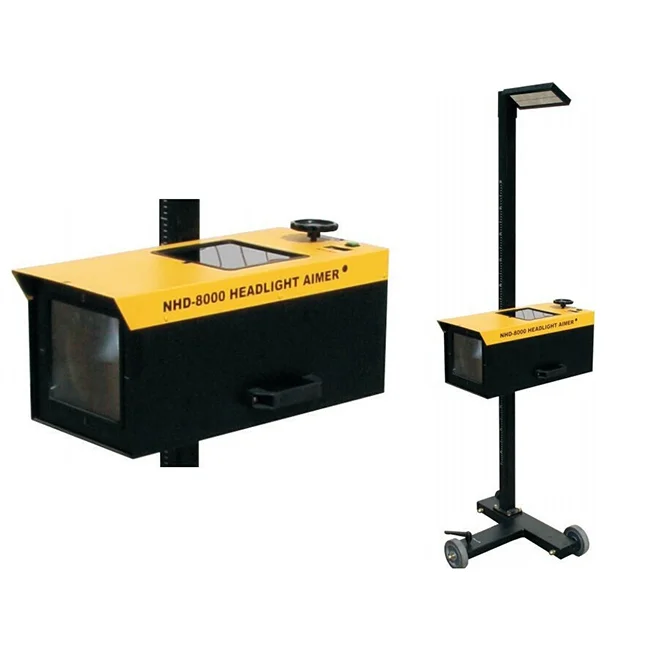

NHD-8000 Headlight Tester is used for testing the luminous intensity, headlight height and optic axis deviation of theheadlights on automobiles and motorcycles. Equipped with LC screen and the feature of direct battery operation and easy to be moved, it isvery suitable for automotive maintenance and repair shops.

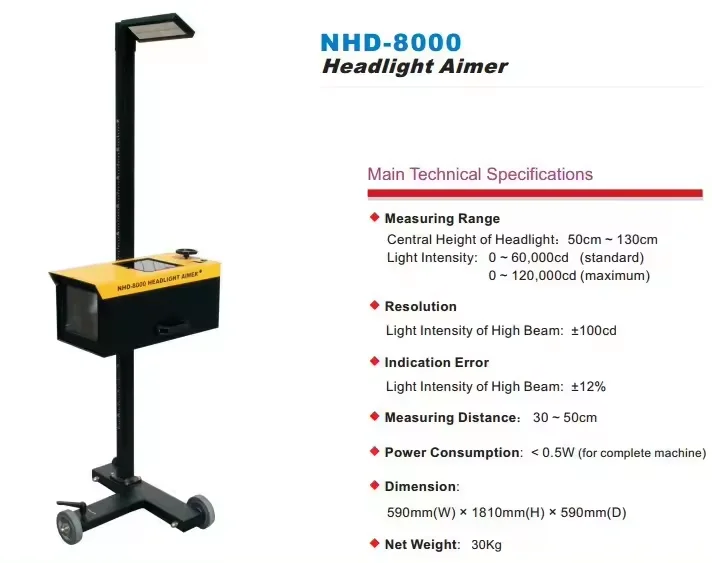

Main technical performance:
Operation Conditions
Ambient Temperature: 5 ~40'C: Relative humidity: less than 95%:Atmospheric pressure:70.0~106.0KPaPower supply:1 pcs of DC9V battery (Can be provided by cigarette lighter or storage battery, allowed max. input voltage 25V)Floor: The instrument and the vehicle must be placed at the same surface and the floor horizontal error shall not exceed 3%
Measuring range
Central height ofthe headlight: 30cm-130cm; Luminous intensity: 0 ~ 100,000cd
Optic axis deviation of high beam and low beam
Left-Right:L4%/10m~R4%/10m(L40cm/10m~R40cm/10m)Up-Down:U2%/10m~D4%/10m(U20cm/10m ~D40cm/10m)
ndication error
luminous intensity ofhigh beam: +12%
optic axis deviation ofhigh beam and low beam: +0.5%/10m (5cm/10m)Center height of headlight: +lcm
30-50cmeasuring distance:
e Power consumption:<0.5W(for complete set of the instrument)
oNet Weight: 2lkg
