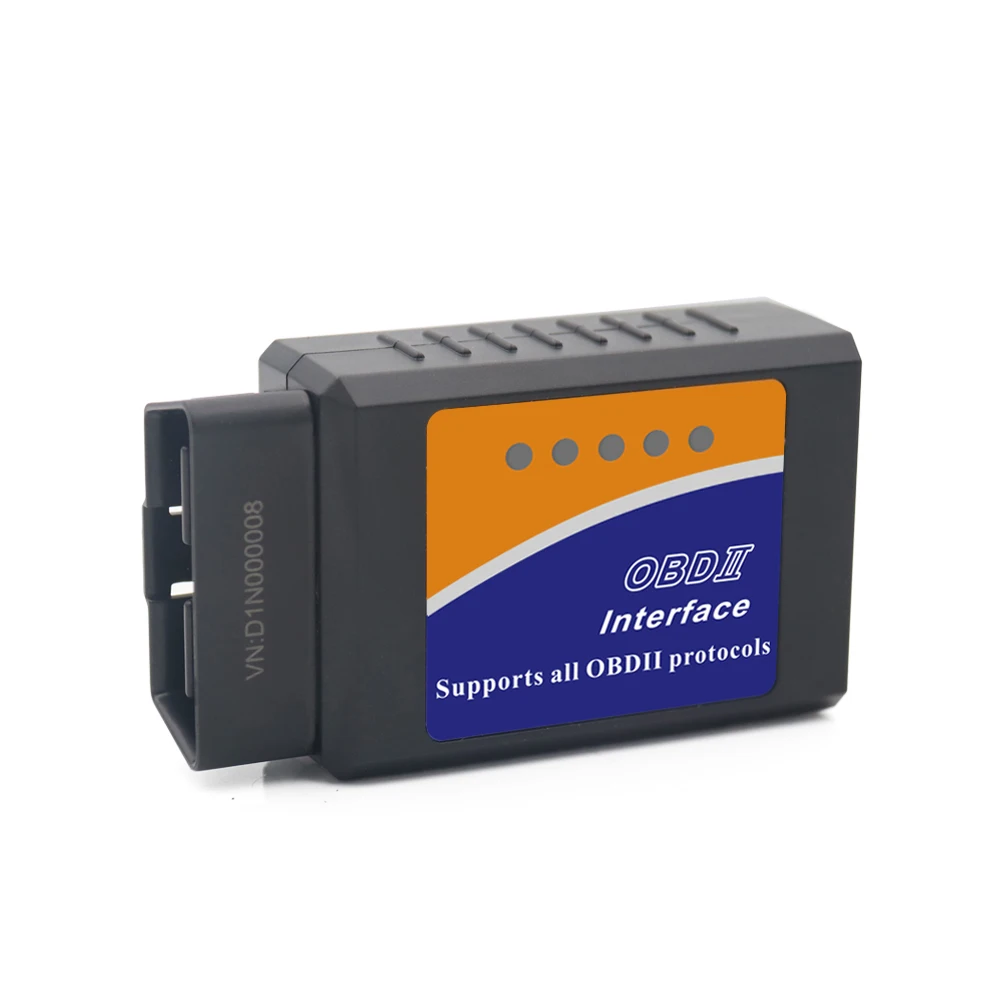

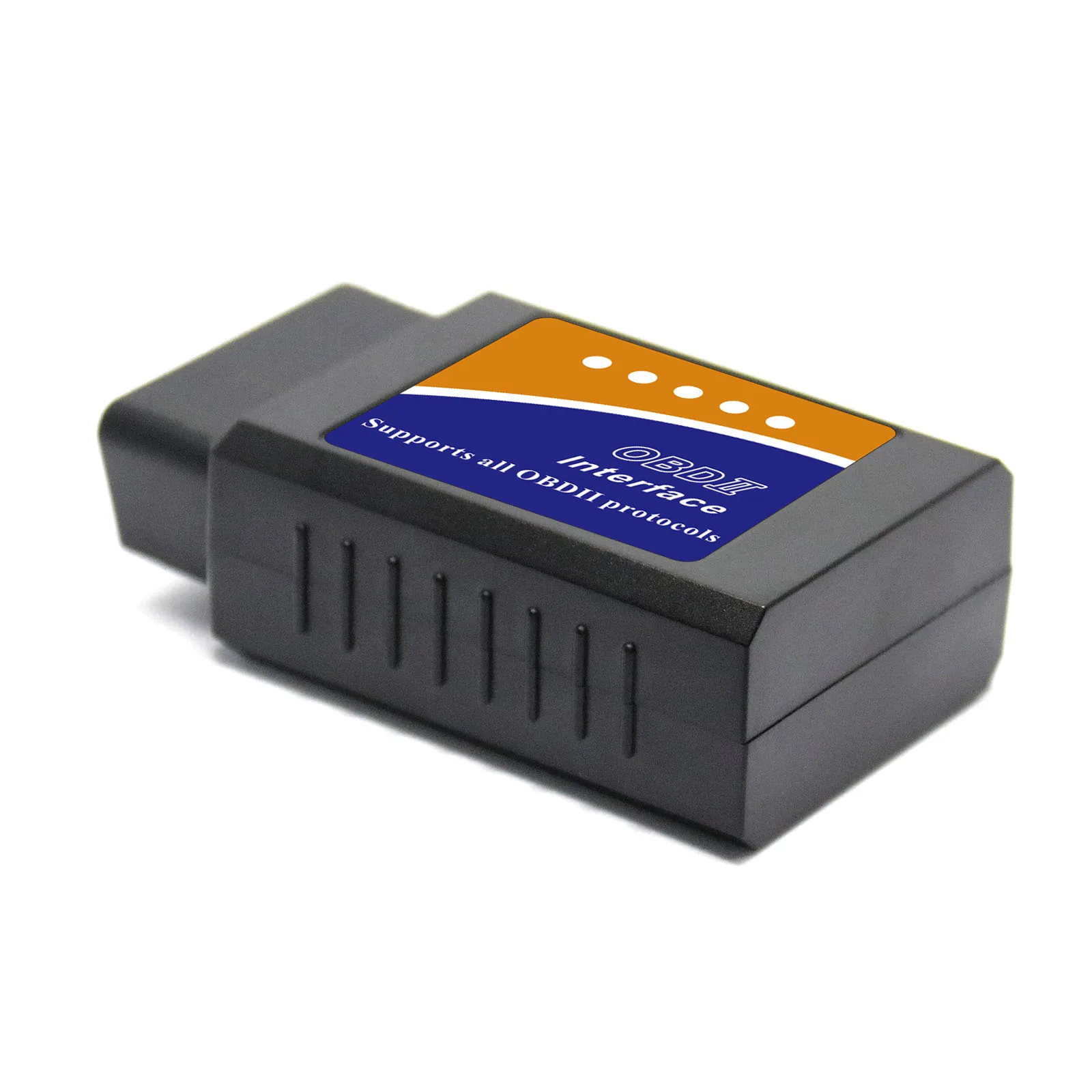

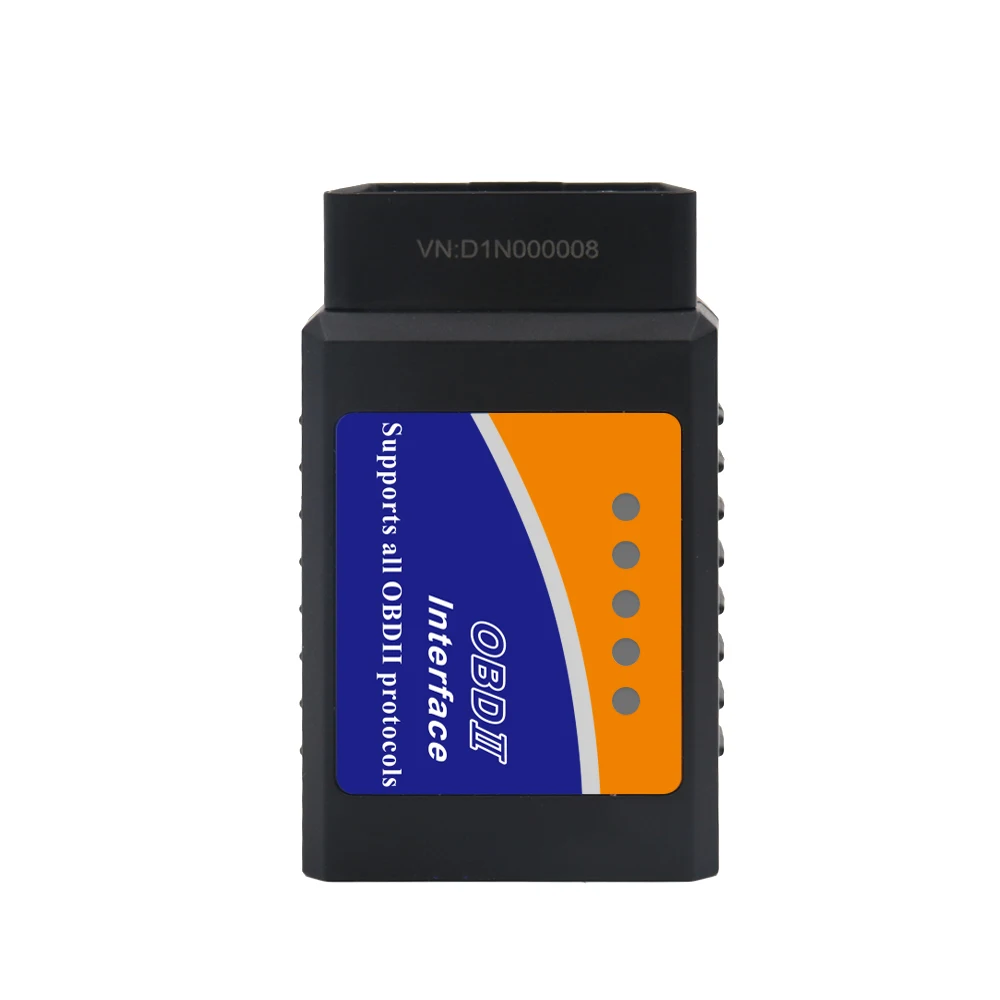

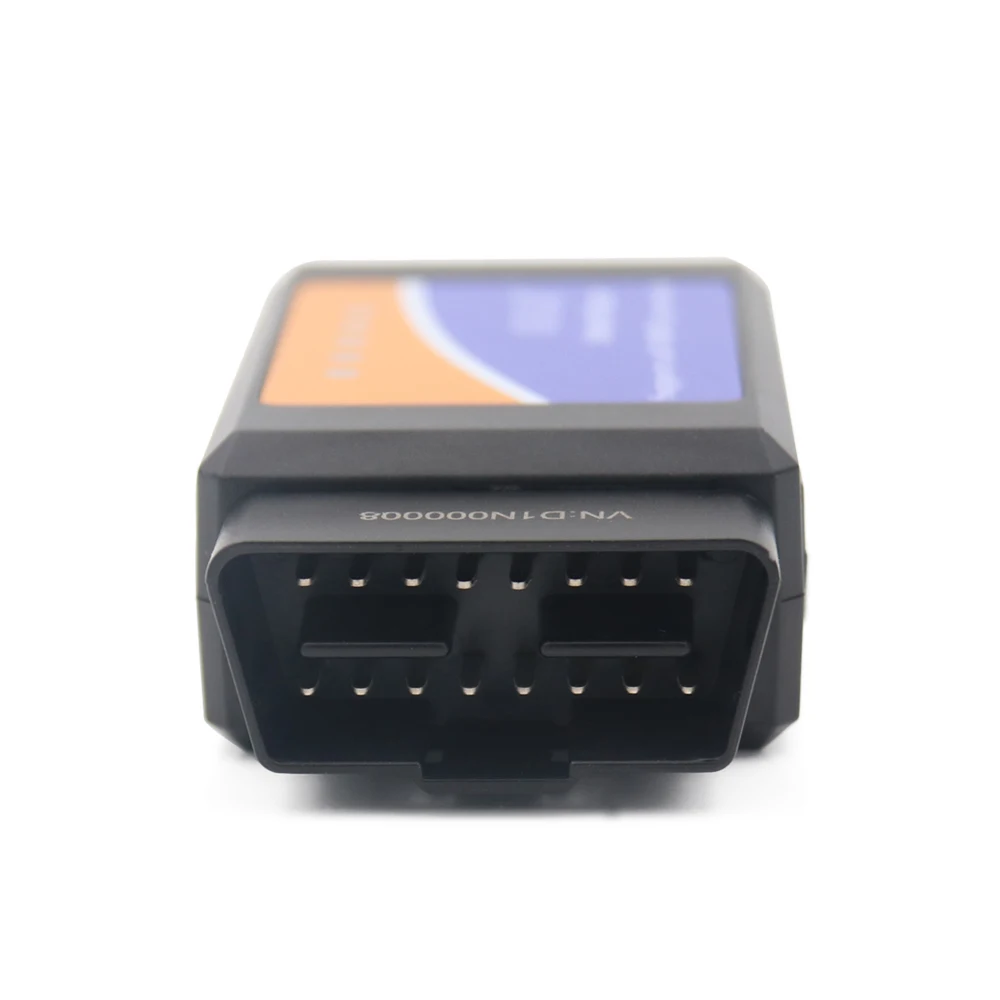

Source Factory V03H4 ODB 2 BLE 4.0 elm327 Auto scanner With Multi languages Support All OBD2 Functions Auto Diagnostic Scanner

Share on (1601240535113):


Price:$1.15 - $1.39

Quantity:


Product Overview

Description













Product Description




Product Specifics:
Communication method: Bluetooth 4.0
Master chip: No master chip.
Compatible platform: Android / iOS/Windows
Firmware version: V 1.5
Operating voltage: 9V~16V
Operating current: 16mA
Operating temperature: -40°C~85°C
Storage temperature: -30°C~80°C
Operating humidity: <60%
OBDII protocols supported: OBDII 9 protocols
OEM/ODM: Yes
Shell material:ABS
Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)


Compatible Software & Platform:
√ Compatible software:
For Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, Car Scanner ELM OBD2, OBD dash;

For Android version: Torque, inCarDoc, DashCommand, EOBD, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;
For iOS version: inCarDoc, DashCommand, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;

For Symbian version: OBDScope.

√ Compatible platform:
Support System: Windows XP, Windows 7/8, Windows 10, Android, iOS, Symbian.




 Product Features:
The program helps you perform the following
operations:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code
definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND many others...


 Other Information:

Packing list
1 x Bluetooth 4.0 OBDII

1 x Static Bag

Warranty
Certified CE, FCC, RoHS compliant

Warranty: 1 year

        Support          OEM&ODM (optional)
Bluetooth name
Product label
Packing box, manual
Product shell silk-screen
Product shell color / shape
Product firmware development, feature upgrade..


Payment
Alibaba Trade Assurance, Paypal, West Union, T/T and Bank Transfer are acceptable. Kindly note that a few transaction fee will be
charged by Paypal.



Delivery
For small order, products will be delivered with 1-3 working days after payment.
For OEM order, please check the shipping time with us.
We can send out goods by expressUPS/DHL/TNT/FDEX/EMS,ocean shipping are Available.


Details Images






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.






















FAQ


Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: If customization order,T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. If ready-to-ship order, 100% payment done well before shipping.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDP,DAP,CPT.

Q4. How about your delivery time?

A: Generally, it will take 3 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
