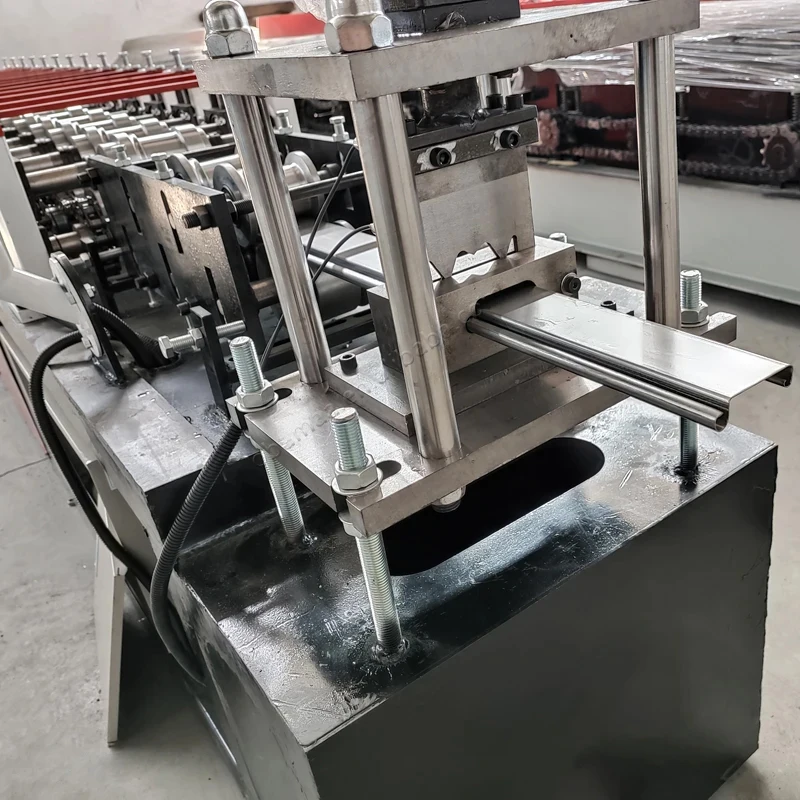

hydraulic galvanized roller shutter door machine production line / cold roll forming machine
- Category: >>>
- Supplier: Henan Jane Machinery Co. Ltd.
Share on (1601240708935):
Product Overview
Description
Products Description

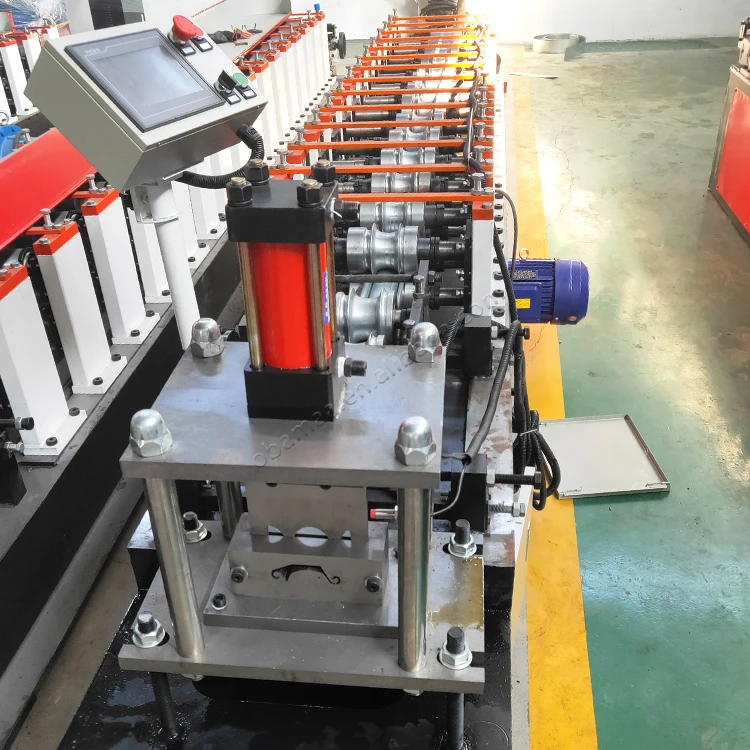

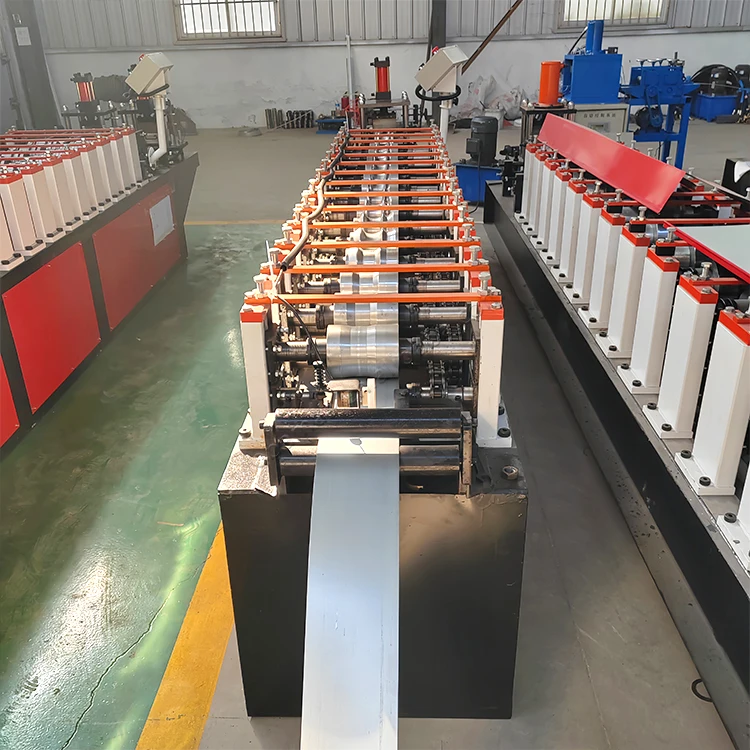

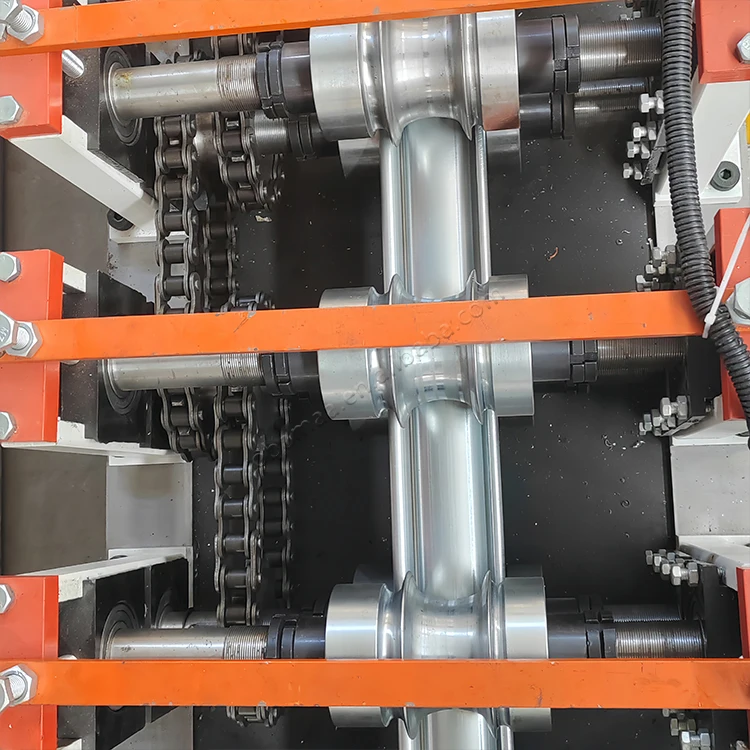

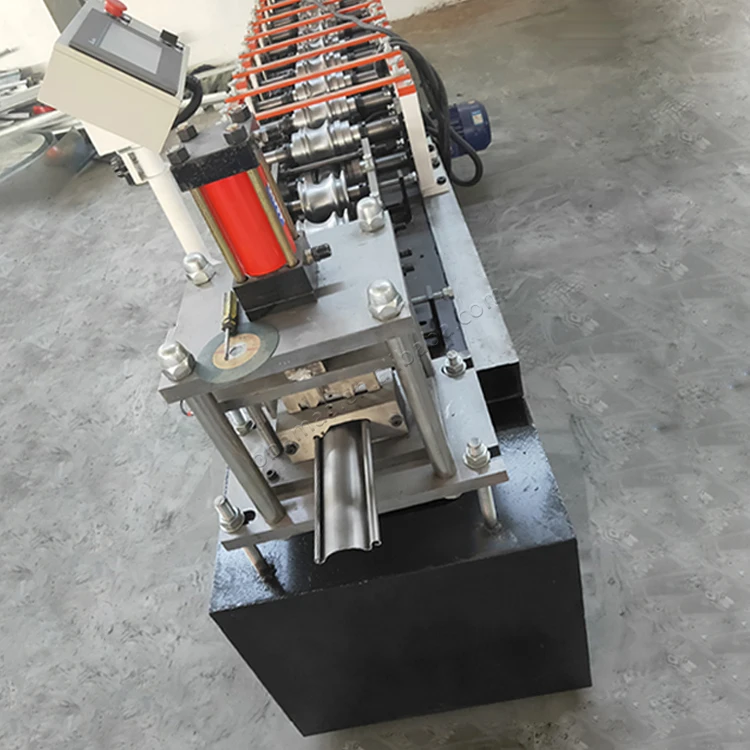

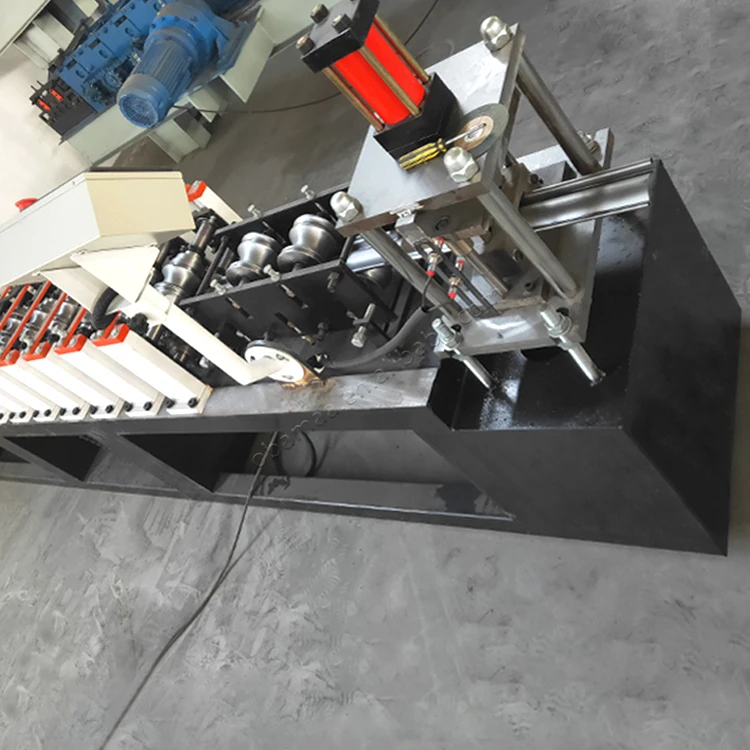

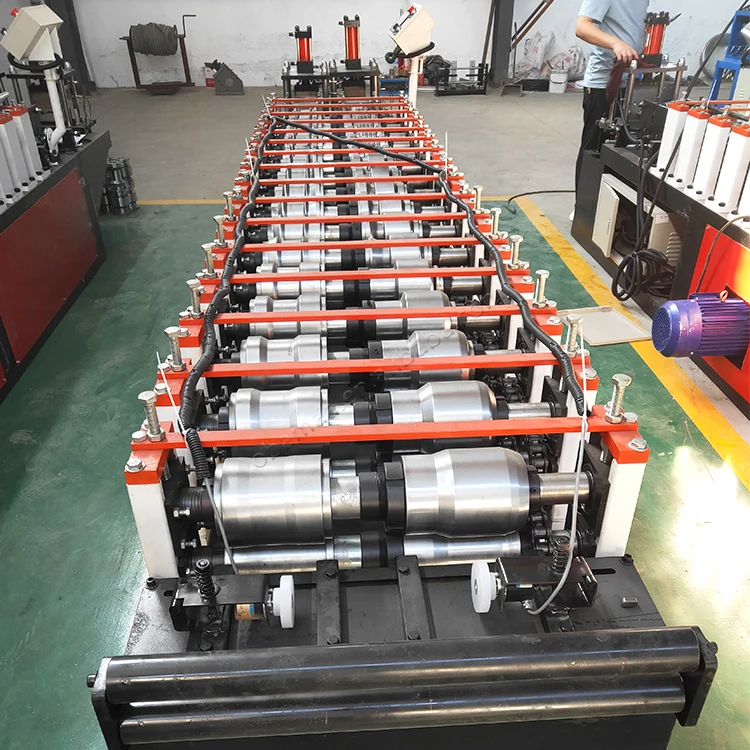

Rolling shutter door machine
The metal rolling shutter door rolling forming machine is mainly used for producing shutter doors, suitable for places such as garages, workshops, warehouses, etc. We produce and supply various roller shutter forming machines.
Our fully automated machine is a compact and fast operator that can continuously reduce space and increase production.

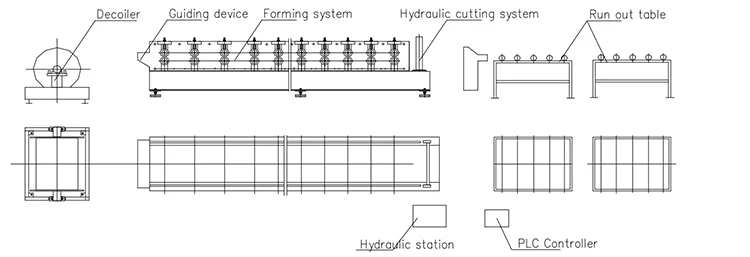

Work processing
Specification
Rolling shutter door machine | ||||||
SN | Part details | Item Name | Specification | |||
1 | Material | Raw material | Steel | |||
Thickness | 0.7-1.2 mm | |||||
2 | Puncher | Punching capacity | 25T, Automatic working | |||
3 | Machine | Roller station | 14 | |||
Shaft diameter | 55 mm | |||||
Solid shaft material | High grade 45# steel | |||||
Roller material hardness 30-40 HRC | Cr 12 | |||||
Machine size | 4200*800*1000mm | |||||
Machine weight | About 2.5 ton | |||||
Machine color | As customer' request | |||||
Working speed | 8-20 m/min | |||||
4 | Cutter | Operate | Hydraulic cutting | |||
Material | Cr 12 | |||||
Hardness | 50-65 HRC | |||||
Cutting tolerance | ± 1 mm | |||||
5 | Power | Main power | 4 kw | |||
Pump power | 3 kw | |||||
Driving way | Chain 1 inch | |||||
Voltage | Customize as customer' request | |||||
6 | Control system | Language | English or add language as customer need | |||
PLC brand | Delta or customize as customer' request | |||||
Screen | Touchable screen | |||||
7 | Decoiler | Operation | Manual | |||
Weight capicatity | 3 tons or 5 tons | |||||
Price | Free as gift | |||||
8 | Receiving table | Operation | Manual | |||
Length | 3 m | |||||
Price | Free as gift | |||||

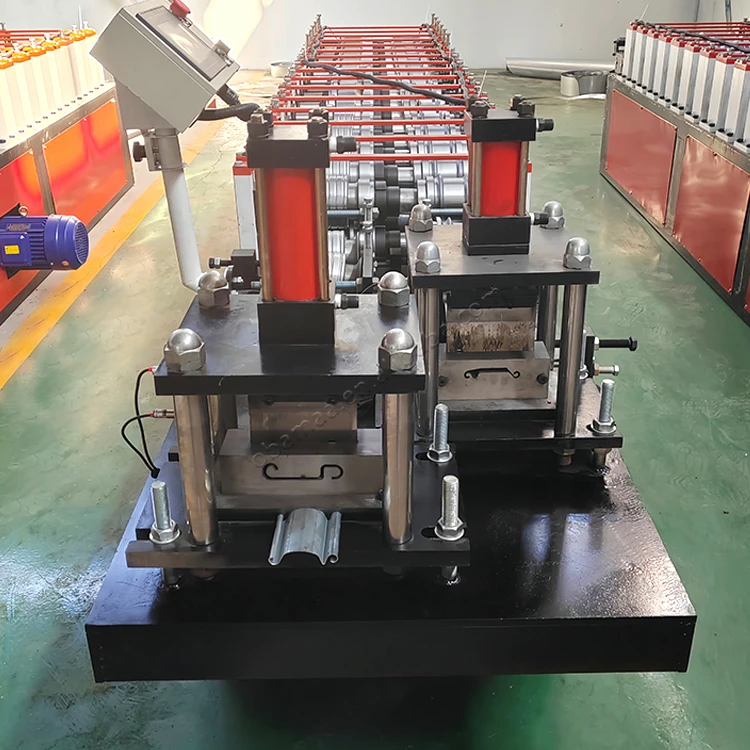

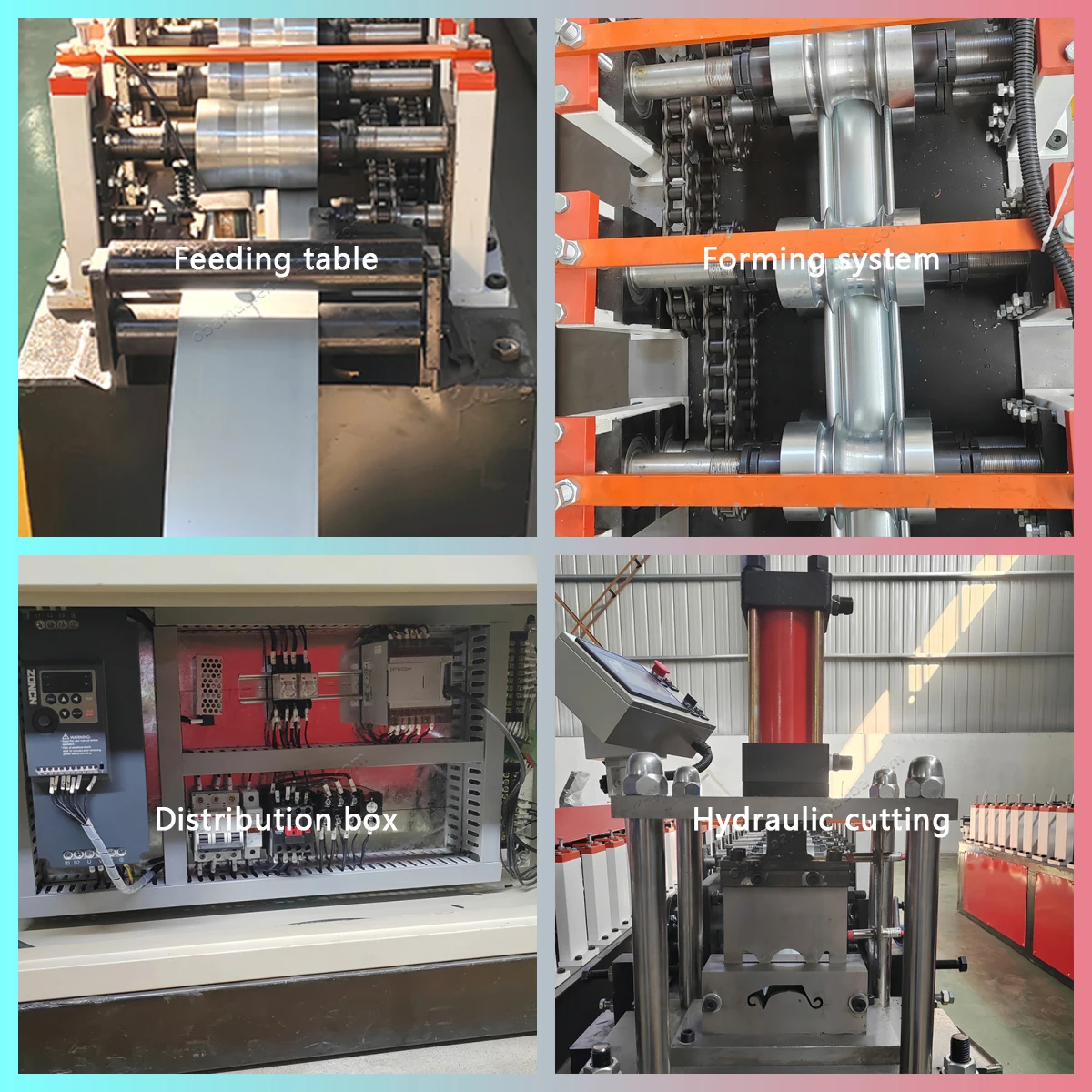

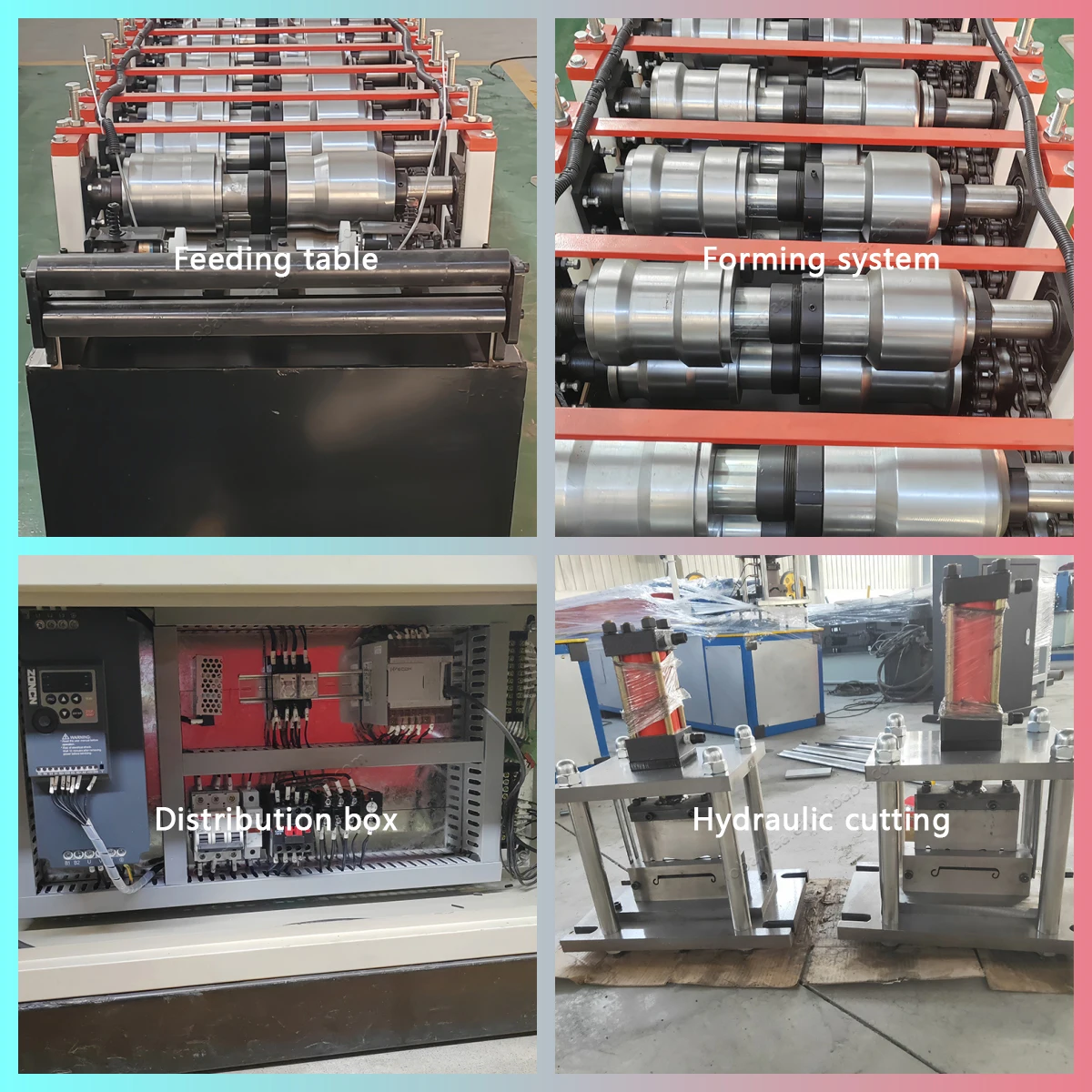

Product Details
Sample Room

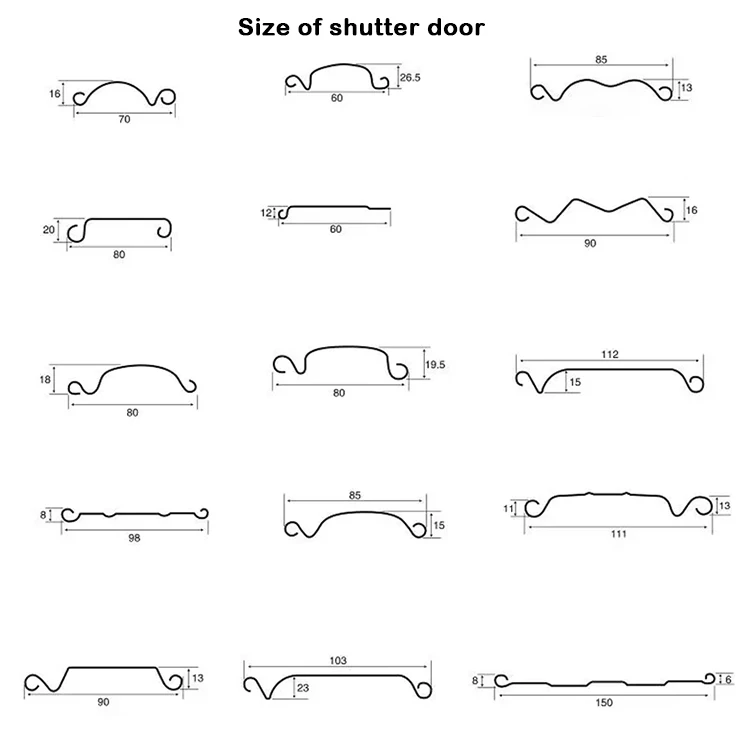

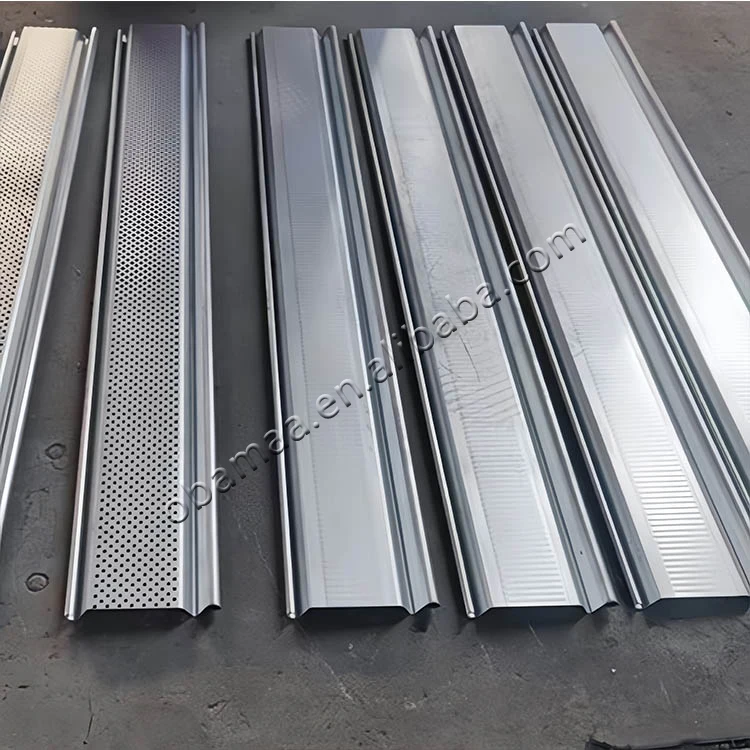

Finished product effect for your reference.
The following are the products produced by our machine. Please check the rolling forming effect.

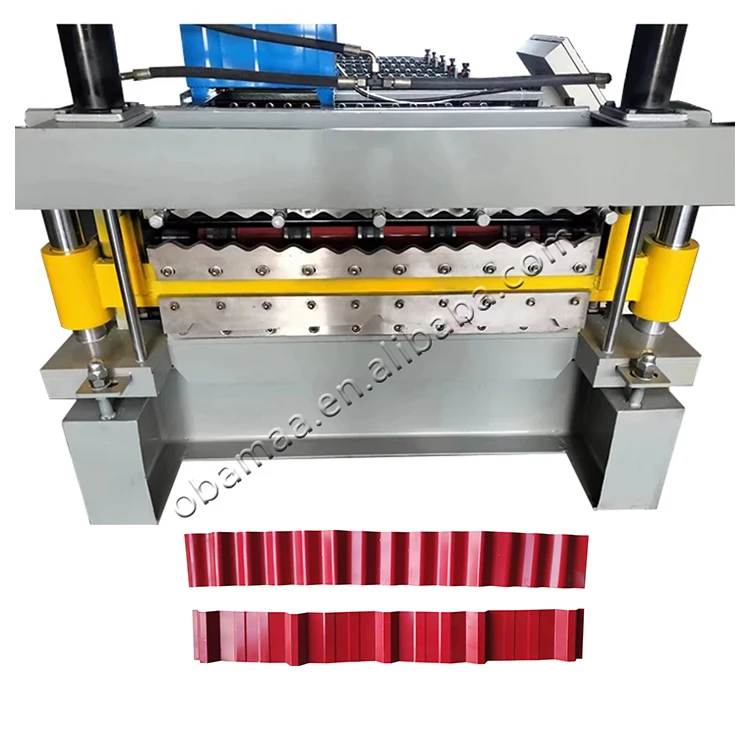

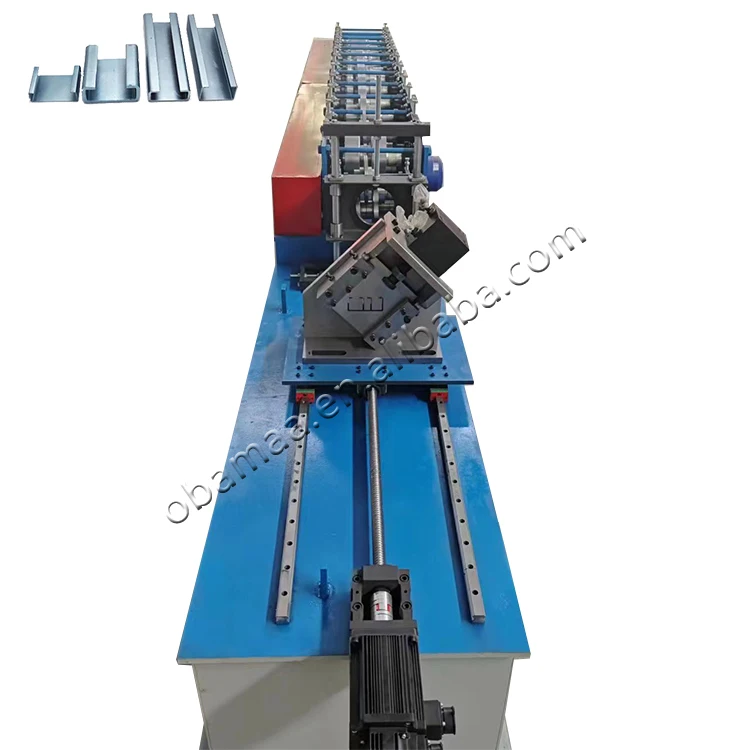

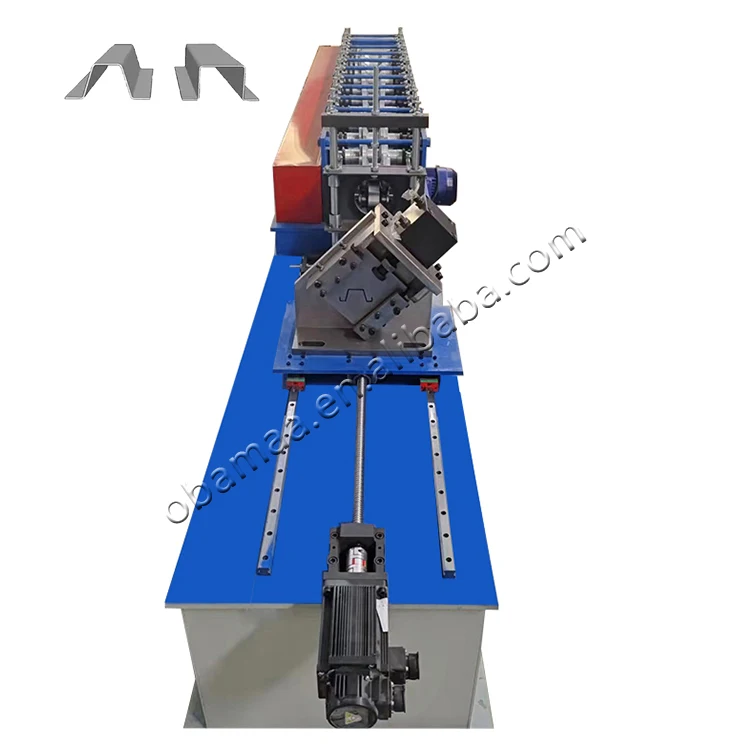

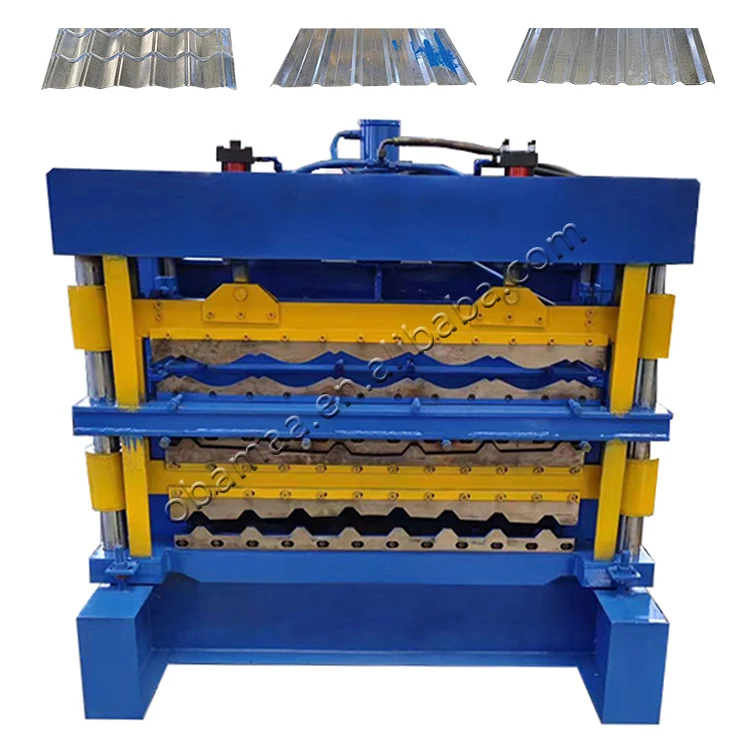

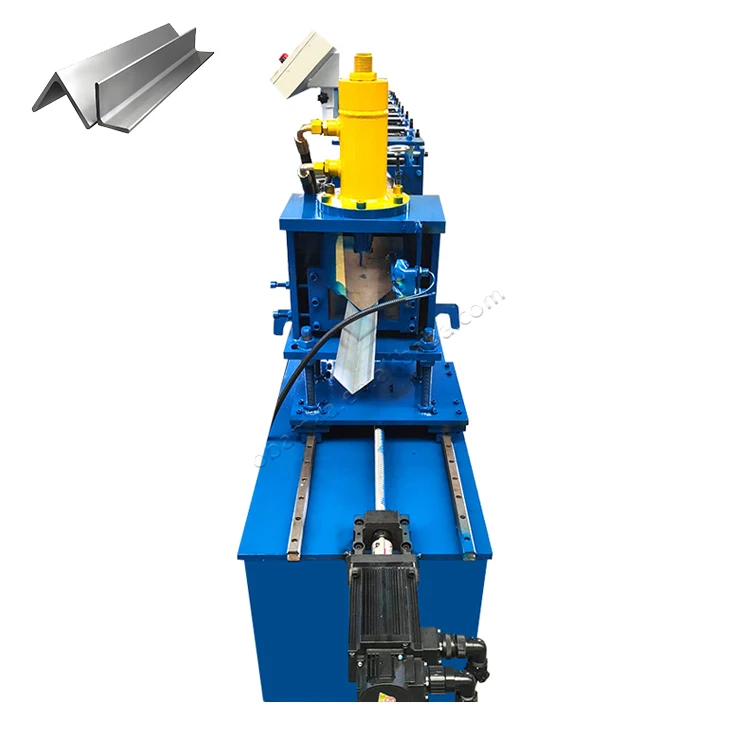

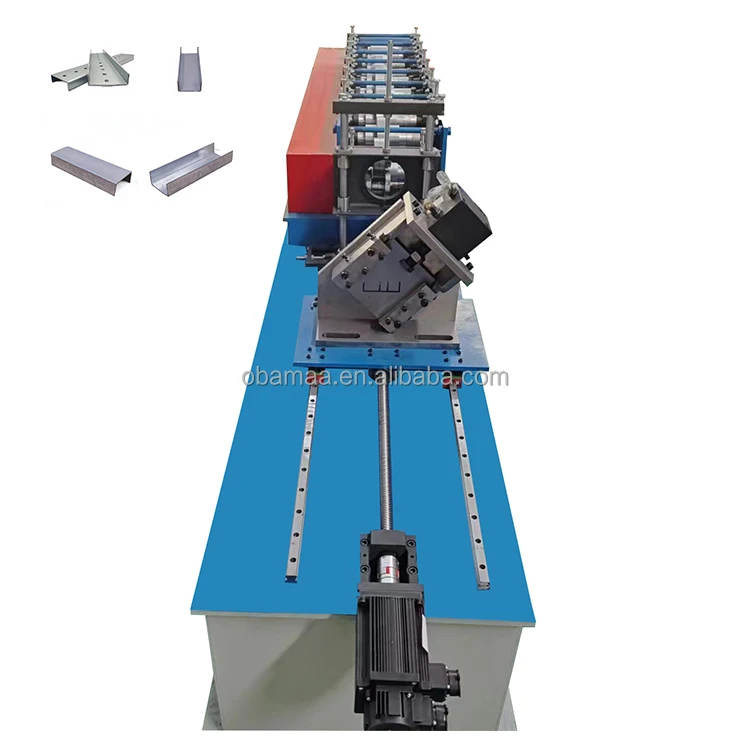

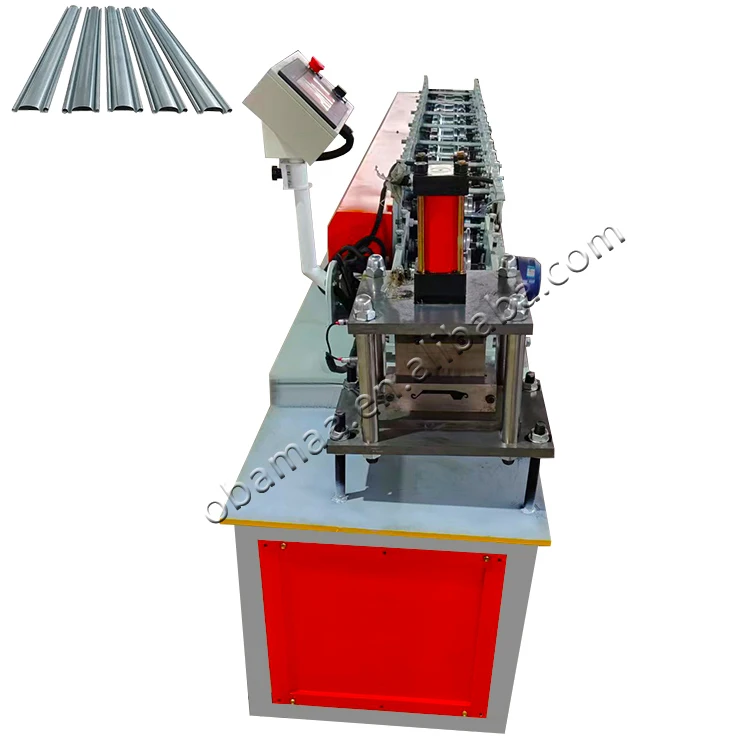

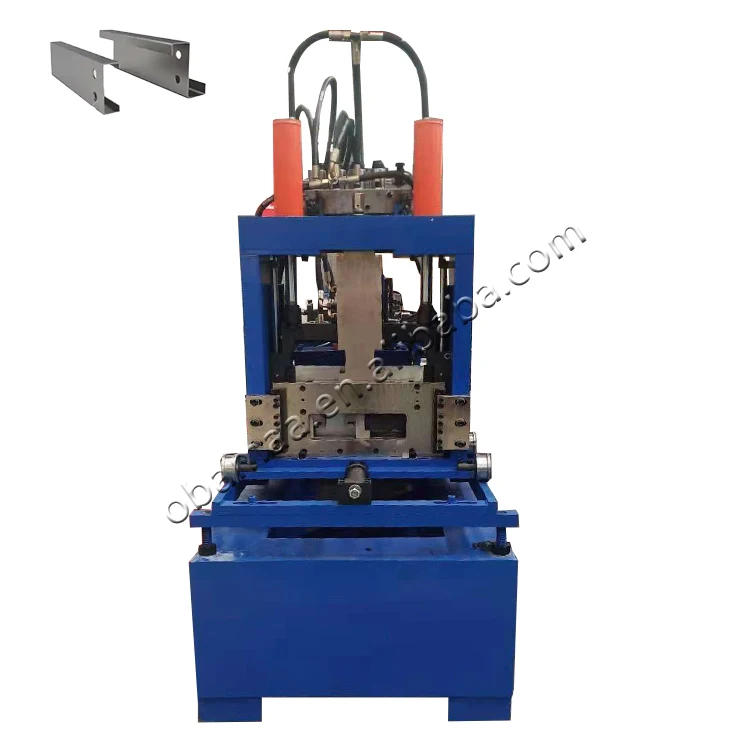

Other Product

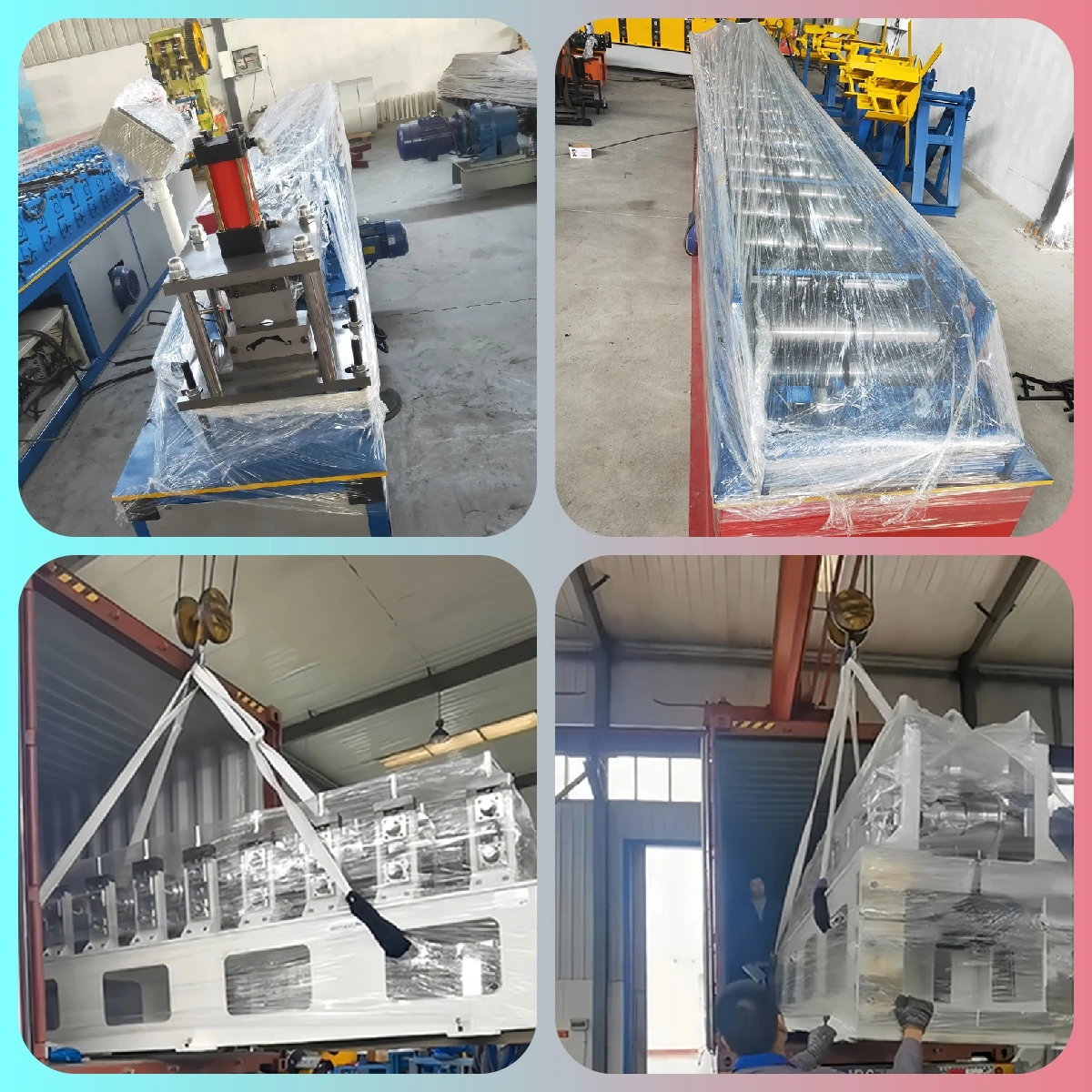

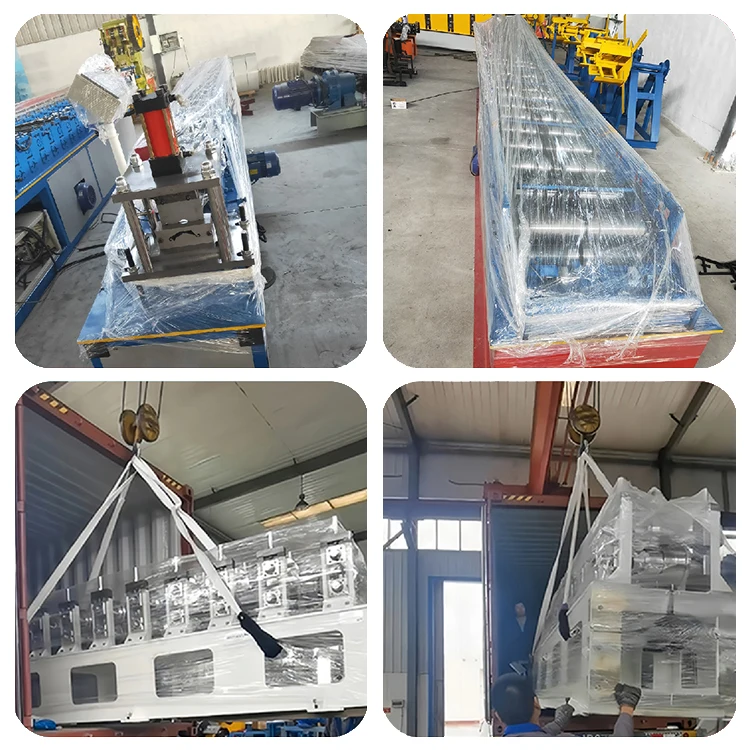

Packing&Delivery

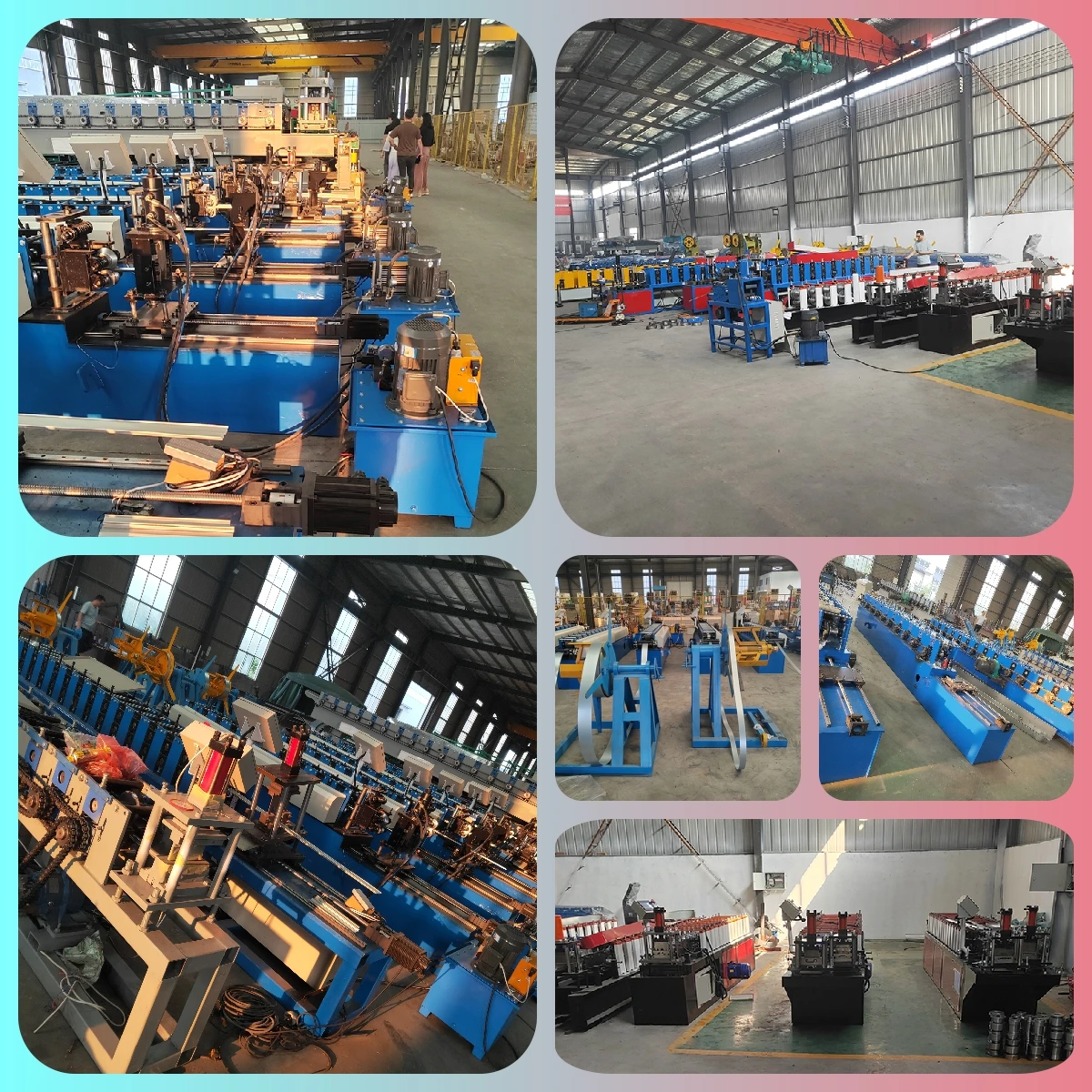

Company Profile
Henan Jane Machinery Co., Ltd. is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,
South America, Australia and so on.
We specialized in manufacturing metal roofing roll forming machine, cz c z u purlin producing line,Glazed tile roll forming machine, floor tile making machine, rolling shutter machine, metal stud roll forming machine,highway guardrail roll forming machine,steel door frame making machines, gutter machine,no beam roof tile machine, pipe welding machine.
FAQ
Q1. How do I choose the right machine for me?
Q2. You don't show the product I need, can you manufacture it?
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 20 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
1. A machine doesn't just provide a few photos to prove what they can produce .
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Q2. You don't show the product I need, can you manufacture it?
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 20 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate,and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, to be a service company that you have the strength to guarantee.
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we canrecommend some models according to your local market standard.
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate,and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, to be a service company that you have the strength to guarantee.
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we canrecommend some models according to your local market standard.
