MATEK PDB HEX 2 12S 5A 5V/9V/12V BEC Power Distribution Board PDB Outputs High Precision Current Sense for FPV Racing Drone
- Category: >>>
- Supplier: Shenzhen Xinjiaguo Technology Co. Ltd.
Share on (1601241369170):
Product Overview
Description
Product Description

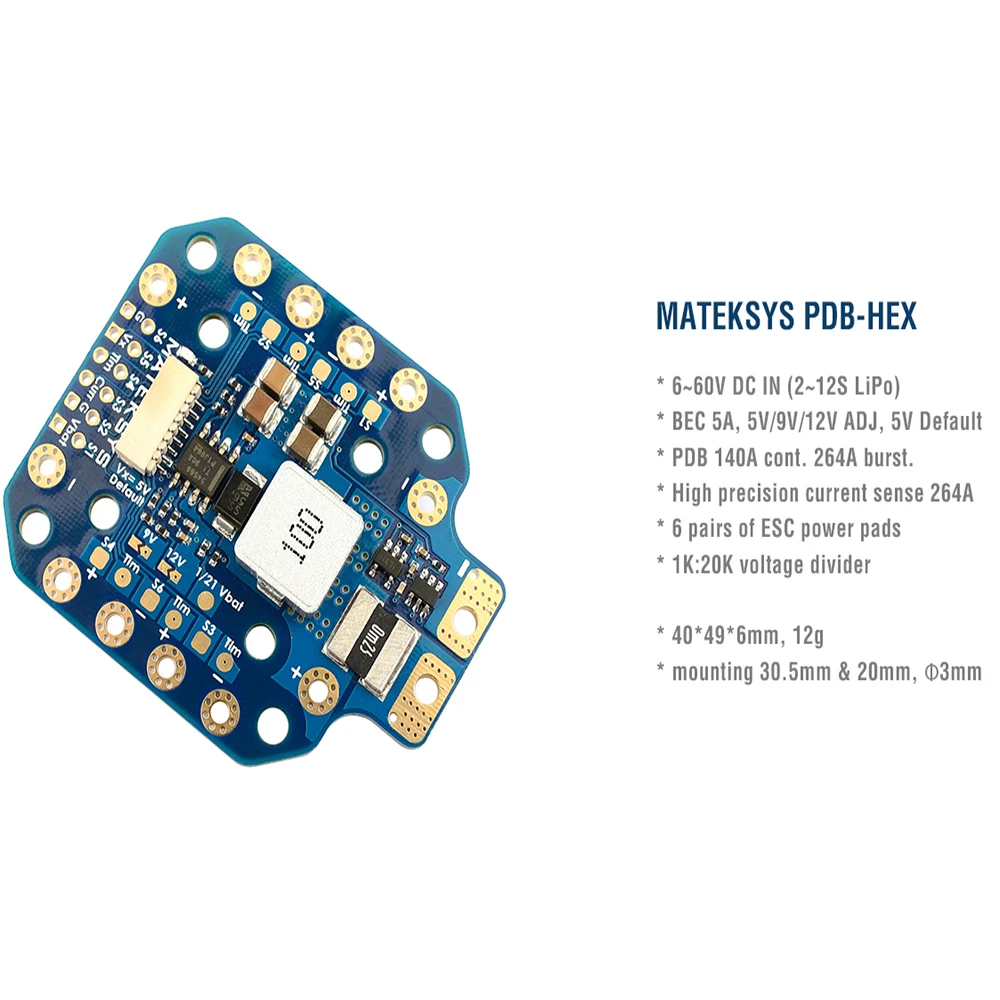

Matek PDB-HEX 12S Supports 6 ~ 60V DC Input 5A Controller with 5V / 9V / 12V Outputs High Precision Current Sense for FPV Racing Drone
PDB
Input voltage range: 6 ~ 60V (2 ~ 12S LiPo)
PDB / current sense resistance: 140A cont, 264A burst.
ESC power pads: 60A cont. 100A burst
6x ESC power / signal / telemetry pads
Current Senor: 264A, 3.3V ADC
Current scale 125 (INAV / BF), BATT_AMP_PERVLT 80 (ArduPilot)
JST-SH-8P connectors and pads
Vbat: battery voltage
G: floor
Curr: current signal
Tlm: Duplicate Tlm pads for ESC telemetry
S1 / S2 / S3 / S4 / S5 / S6: ESC signal
Vx: controller output

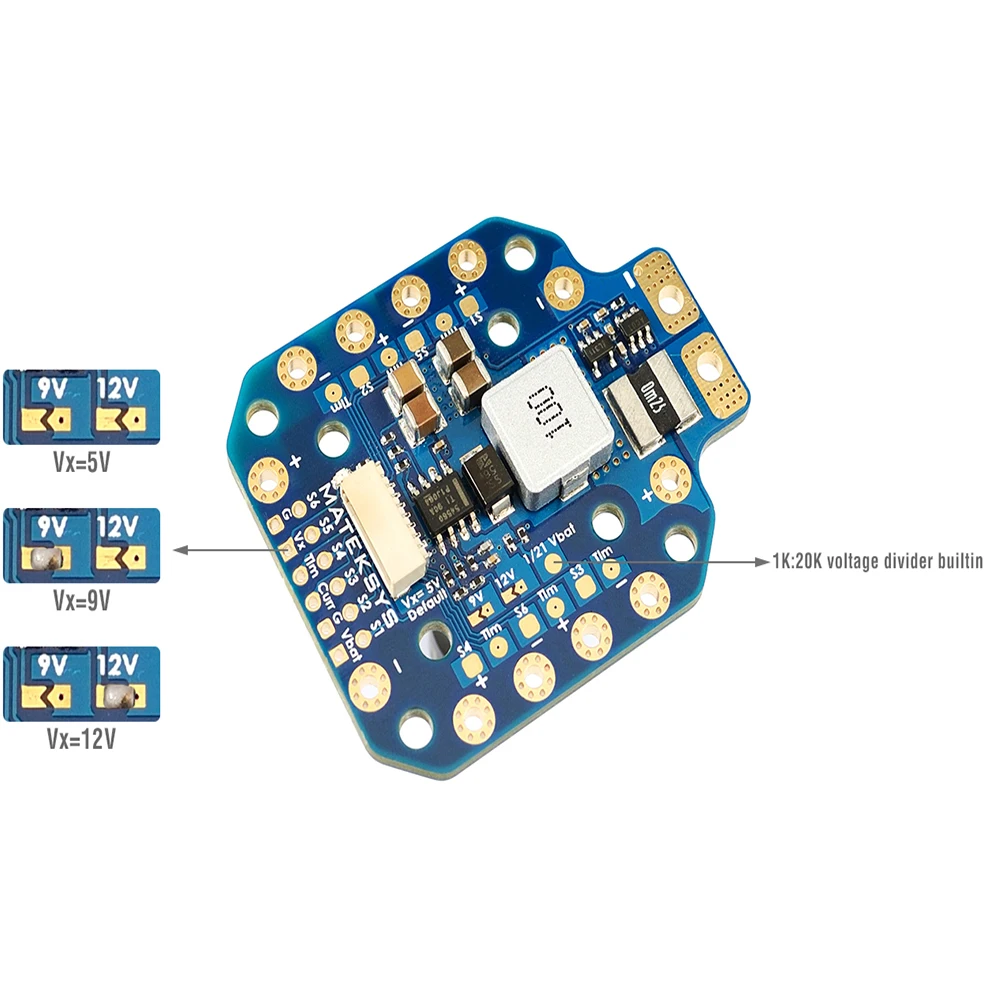

BEC Vx output (5V standard)
Vx = 5V through standard, continuous 5 amps
Bridge 9V jumper, Vx = 9V, Continuous 4 Amps, Max 5A
Bridge 12V jumper, Vx = 12V, Continuous 4 Amps, Max 5A
Output short-circuit tolerant (1 second)
Overcurrent protection & self-recovery
Voltage divider
1K: 20K resistors
Output 1/21 Vbat voltage

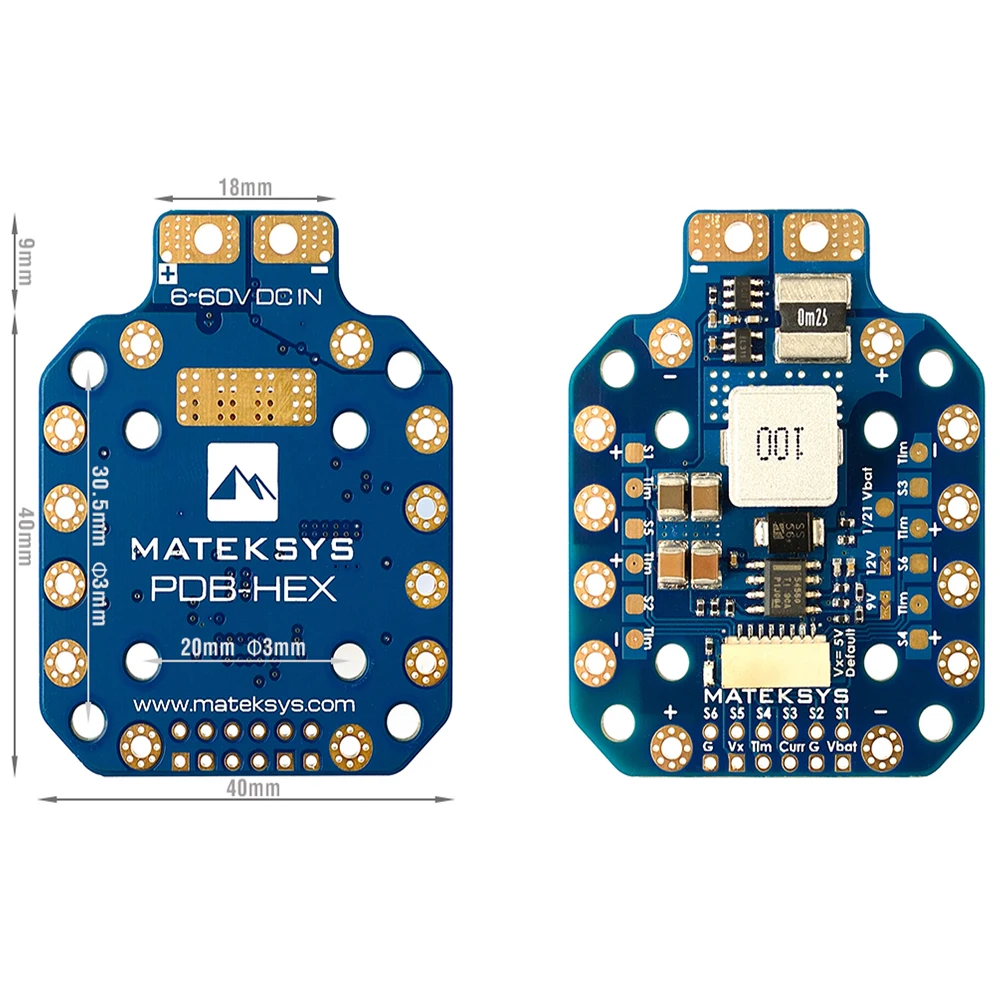

Physical
Mounting: 30.5x30.5mm, 20x20mm, Φ3mm
Dimensions: 49x40x6mm
Weight: 12g
Including
1x PDB-HEX

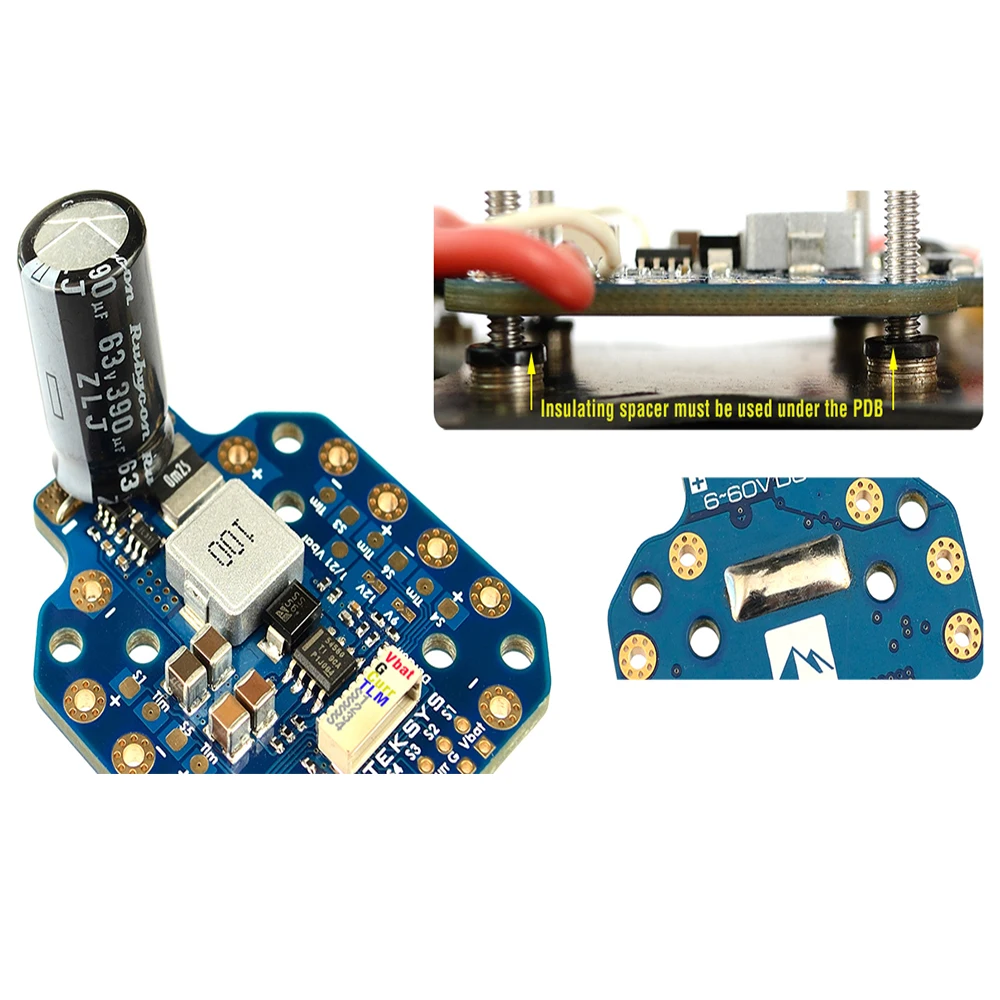

1x Rubycon ZLJ 63V 390uF
1x JST-SH1.0_8pin cable, 5cm
2x JST-SH1.0_8pin connectors
PDB
Input voltage range: 6 ~ 60V (2 ~ 12S LiPo)
PDB / current sense resistance: 140A cont, 264A burst.
ESC power pads: 60A cont. 100A burst
6x ESC power / signal / telemetry pads
Current Senor: 264A, 3.3V ADC
Current scale 125 (INAV / BF), BATT_AMP_PERVLT 80 (ArduPilot)
JST-SH-8P connectors and pads
Vbat: battery voltage
G: floor
Curr: current signal
Tlm: Duplicate Tlm pads for ESC telemetry
S1 / S2 / S3 / S4 / S5 / S6: ESC signal
Vx: controller output
BEC Vx output (5V standard)
Vx = 5V through standard, continuous 5 amps
Bridge 9V jumper, Vx = 9V, Continuous 4 Amps, Max 5A
Bridge 12V jumper, Vx = 12V, Continuous 4 Amps, Max 5A
Output short-circuit tolerant (1 second)
Overcurrent protection & self-recovery
Voltage divider
1K: 20K resistors
Output 1/21 Vbat voltage
Physical
Mounting: 30.5x30.5mm, 20x20mm, Φ3mm
Dimensions: 49x40x6mm
Weight: 12g
Including
1x PDB-HEX
1x Rubycon ZLJ 63V 390uF
1x JST-SH1.0_8pin cable, 5cm
2x JST-SH1.0_8pin connectors
Specification
Product Model | ACM0064 |
MOQ | 2PCS |
