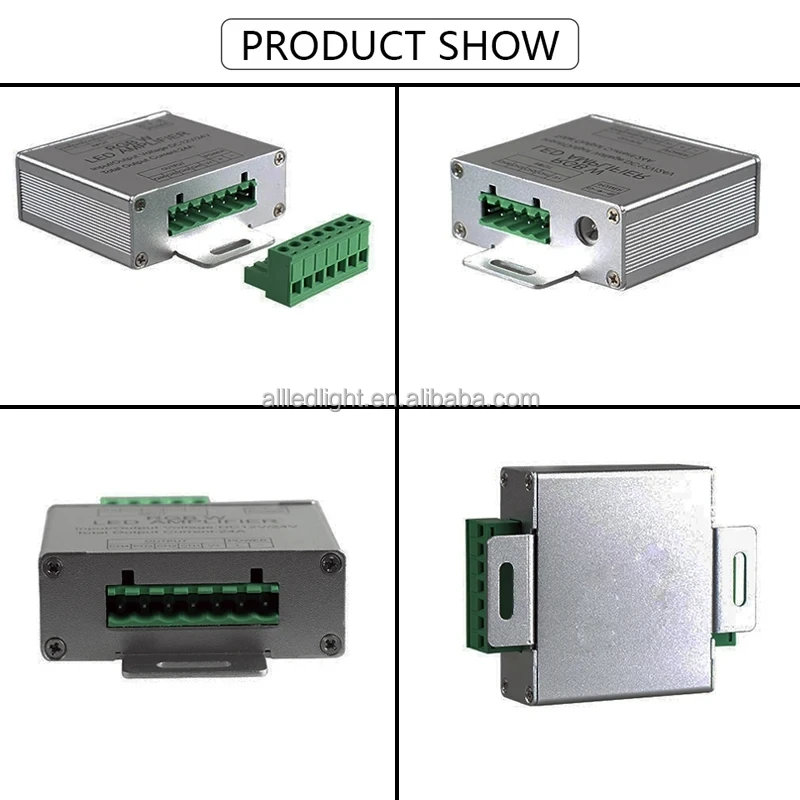

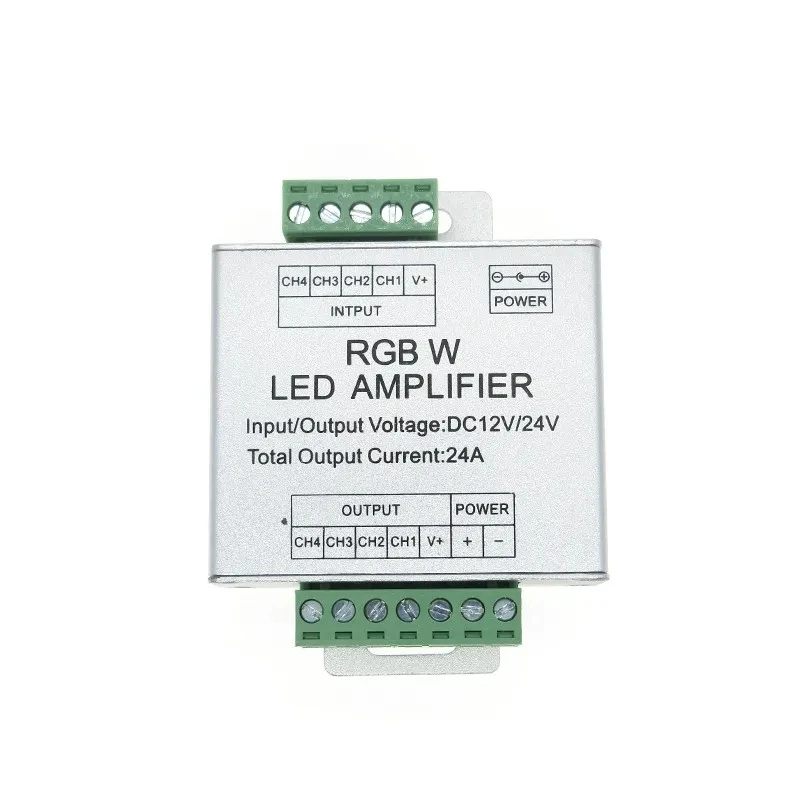

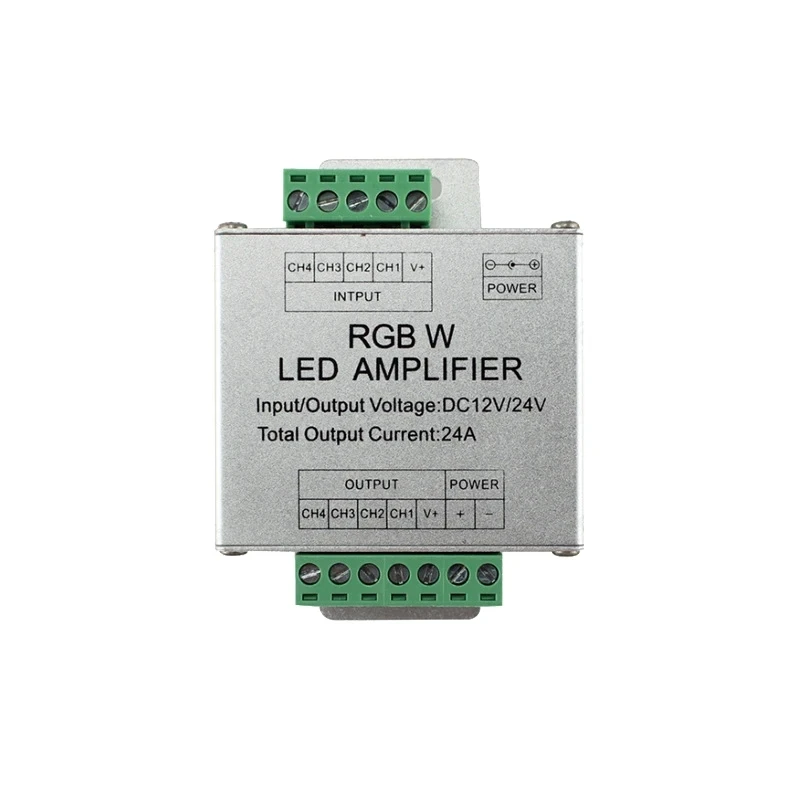

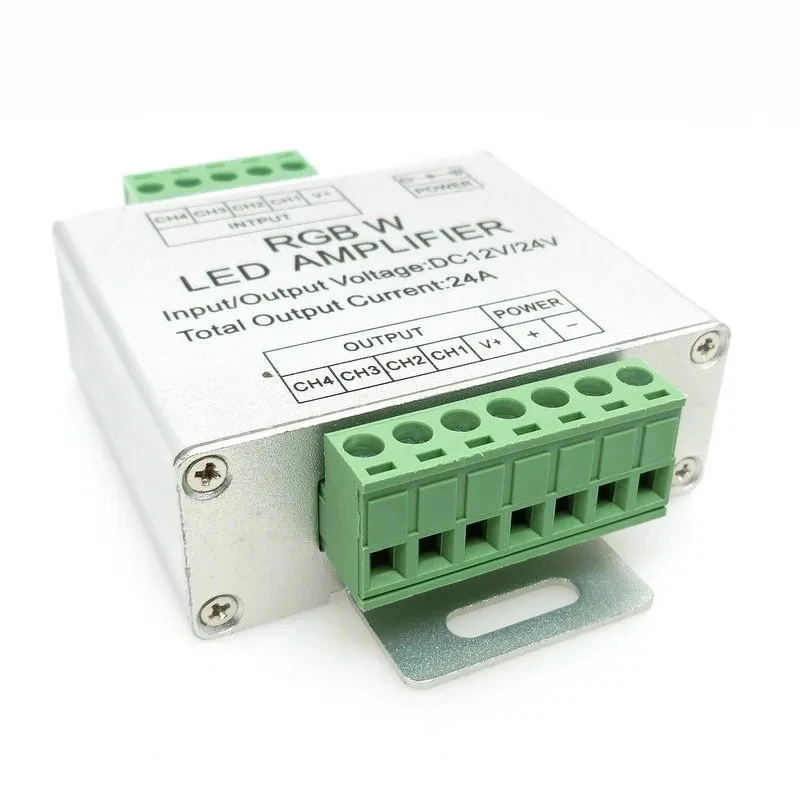

RGBW Amplifier DC 12V 24V 24A Aluminium case LED PWM Signal Repeater Extender for 5050 2835 COB Strip Lights Dimmer Controller

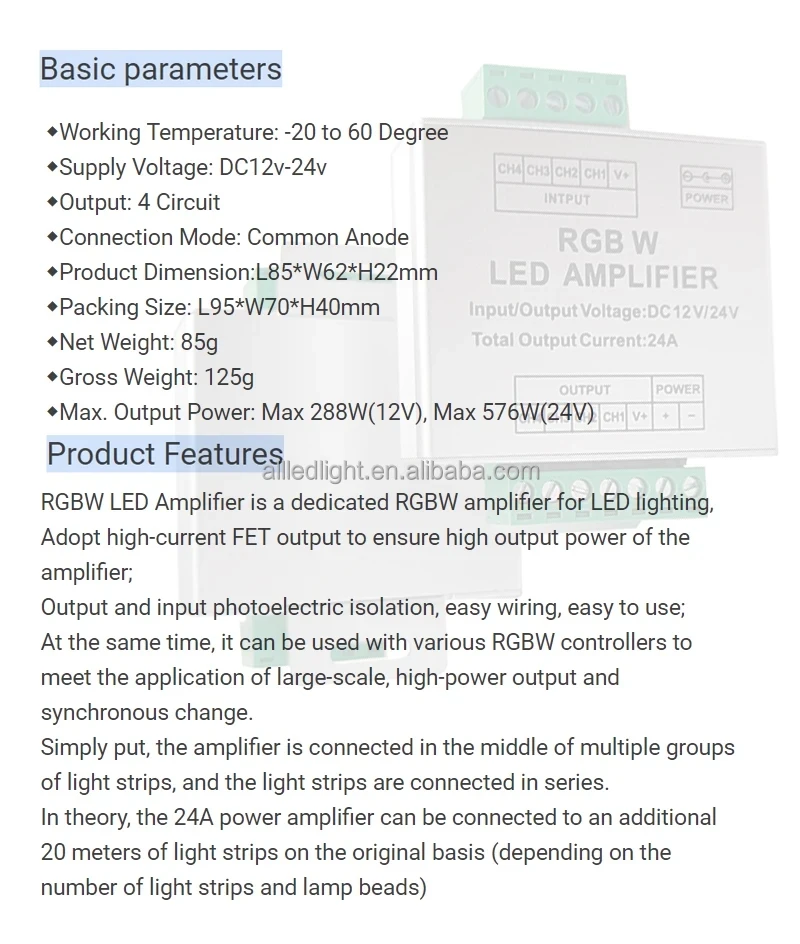

Product name: RGBW LED power amplifier
Applicable: LED light source RGBW lamp
Rated voltage: 12V / 24V DC
Signal mode: PWM
Output channel: 4CH (R, G, B, W)
Load current: 24A (6A*4CH)
Maximum power: 12V≤288W; 24V≤576W
Operating temperature: -20-70°C
Connection method: common anode
Control mode: manual wiring
Material; Aluminum (Shell)

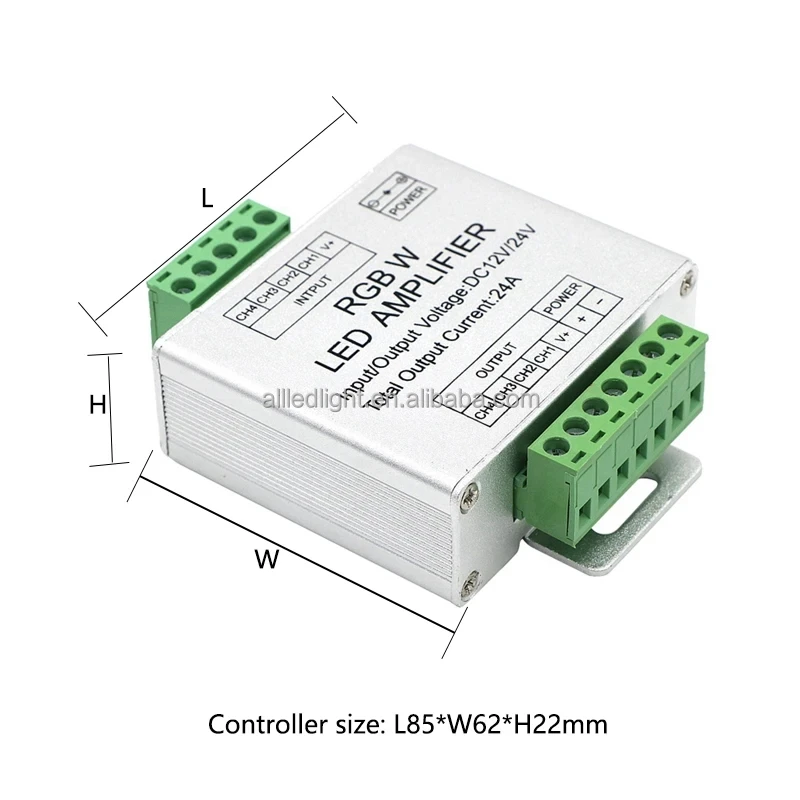

Controller size: L85*W62*H22 (mm)
Weight: about 85g

RGBW Amplifier Introduction:

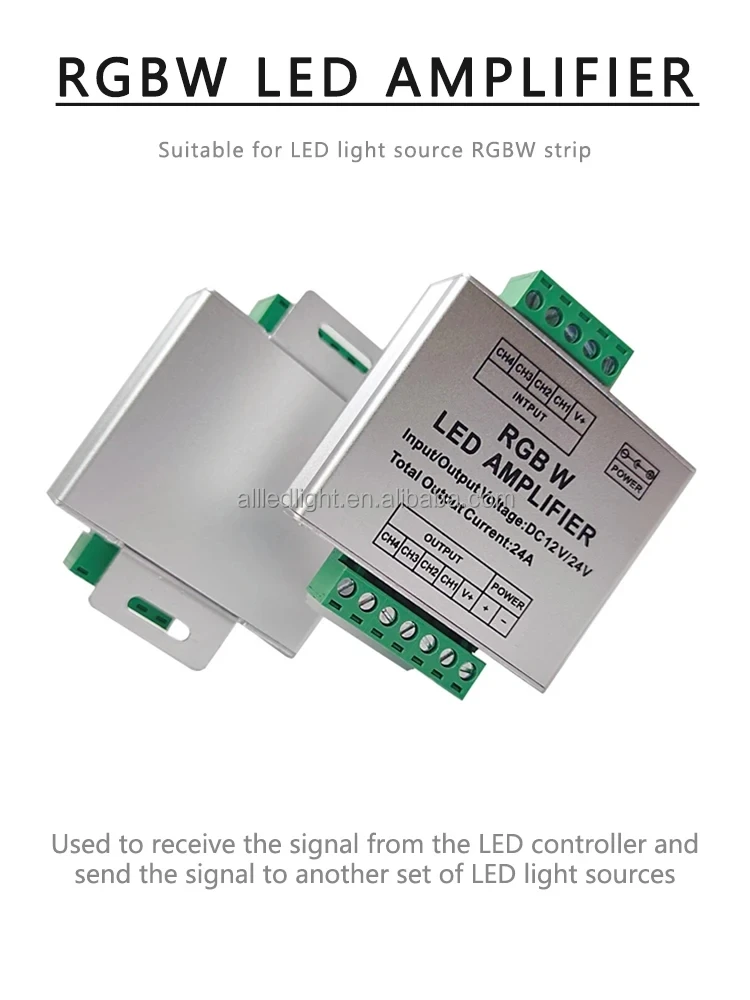

Amplifier is used to receive the signal from the LED RGBW controller and send the signal to another set of LED RGBW light sources

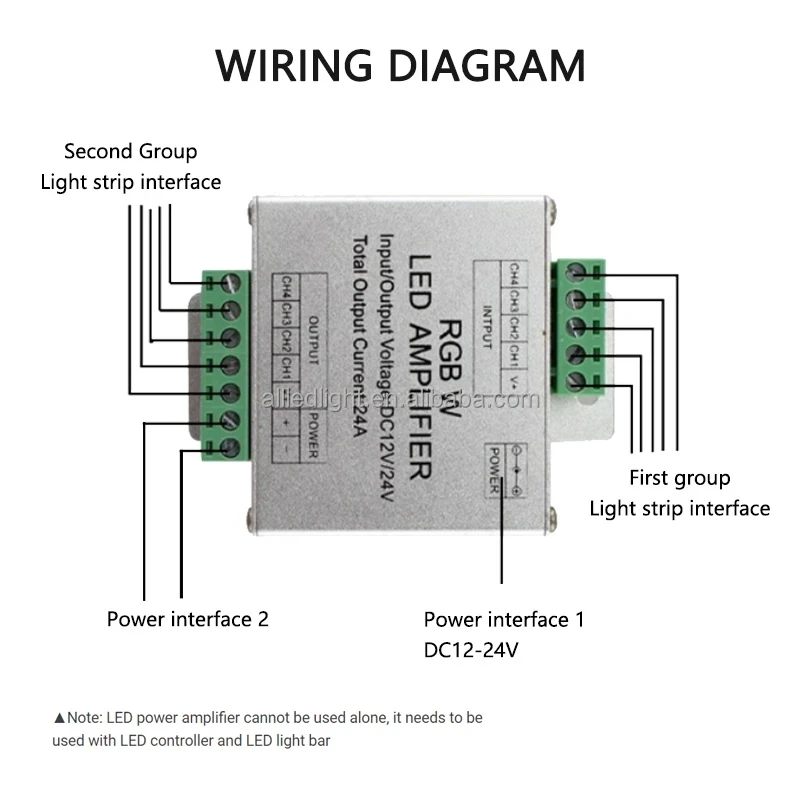

LED power amplifier cannot be used alone, it needs to be used together with LED controller and LED RGBW light

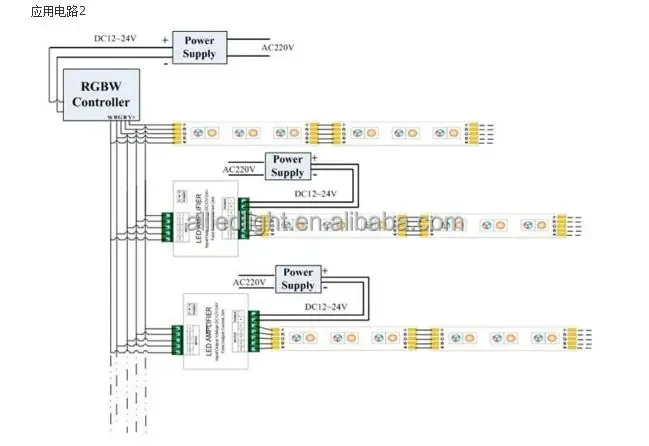

The power amplifier is connected in the middle of multiple sets of lamps, and the lamps are connected in series
Connect a separate power supply for the power amplifier, the effect will be better
It can meet the application of large-scale, high-power output, synchronous change requirements and other occasions
Widely used in LED RGBW light source products, such as 5050, 2835 LED RGBW lights

RGBW Amplifier  Package
1 * LED Amplifier
1 * User Manual
