Roofing Roll Forming Lock Standing Seam Metal Roof Rolling Machine
- Category: >>>
- Supplier: Botou Tongnuo Mechanical Equipment Manufacturing Co. Ltd.
Share on (1601242393528):
Product Overview
Description
The Stand Seaming Roll Forming Machine is a specialized piece of equipment designed for efficiently manufacturing metal products with precise seam formations. It utilizes a series of precision-engineered rollers arranged in a stand-mounted configuration, allowing for continuous and automated shaping of metal sheets into desired profiles. The machine feeds metal coils or sheets through its rollers, progressively bending and folding the material to create strong, seamless joints or intricate seam patterns.This process ensures consistent quality and dimensional accuracy, ideal for producing components such as roofing panels, siding,gutters, and other architectural metalwork. The stand seaming mechanism provides added strength to the finished product by tightly locking the edges together, enhancing its durability and esistance to weathering.Operators can adjust the machine settings to accommodate different material thicknesses and seam specifications, ensuring versatility across various production needs. Additionally, the automated nature of the roll forming process significantly reduces labor costs and increases production speed, making it an essential tool for modern metal fabrication facilities.
Product Paramenters
Portable full automatic SSR Standing seam metal roof sheet roll forming machine for sale price | ||||||||
1.Formed Material | PPGI,GI,AI | Thickness:0.4-0.8mm Width:as the profile drawing | ||||||
2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||||||
3.Main body | Roller station | 12 rows (Design as the profile drawing) | ||||||
Diameter of shaft | 70mm solid shaft | |||||||
Material of rollers | 45# steel, hard chrome plated on the surface | |||||||
Machine body frame | 350 H steel | |||||||
Drive | Chain transmission | |||||||
Dimension(L*W*H) | 5500*1600*1600(customize) | |||||||
Weight | 3.5T | |||||||
4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||||||
5.Power | Motor Power | 5.5KW | ||||||
Hydraulic system power | 4KW | |||||||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||||||
7.Control system | Electric Box | Customized(famous brand) | ||||||
Language | English(Support multiple languages) | |||||||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||||||
18.Forming Speed | 15-20m/min | The speed is adjustable as customer's request | ||||||
Products Description
Details Images
Hand wheel feed platform
The Hand Wheel Feed Platform is an essential component of our roll forming machine, allowing users precise control over material feeding, ensuring accurate and efficient production processes.
Chrome treated shaft and wheel
The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.

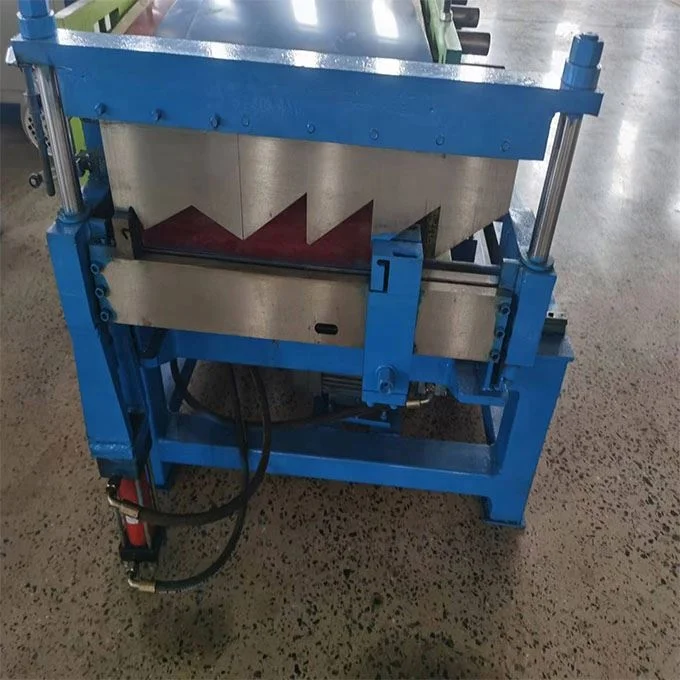

Cutting System
Material of the cutting:Cr12Movwith quenched treatment.It can decide cut panel dimensionacoording to the hydraulic drive andPLC computer control system.easy quick change CZ size withoutchanging mould
Roller System
Material of the roller:High grade Gcr15 forged steel.Roller station: 18 rows.Thickness of feeding material:1.5-3.0mm
Roller System
This wheel is designed to be more beautiful for every aspect of the product
Computer Control Cabine and quantity
Computed mode has two modes: automatic and manual one.Programmable setting of profile lengthLanguage:English, Chinese,Spanish and RussianThe system is easy to operate and use
