Standing Seam Roll Forming Machinery Pipe Ridge and Drip Edge Metal Double Layer Roll Forming Machine
Standing Seam Roll Forming Machinery Pipe Ridge and Drip Edge Metal Double Layer Roll Forming Machine
Standing Seam Roll Forming Machinery Pipe Ridge and Drip Edge Metal Double Layer Roll Forming Machine
Standing Seam Roll Forming Machinery Pipe Ridge and Drip Edge Metal Double Layer Roll Forming Machine
Standing Seam Roll Forming Machinery Pipe Ridge and Drip Edge Metal Double Layer Roll Forming Machine
Standing Seam Roll Forming Machinery Pipe Ridge and Drip Edge Metal Double Layer Roll Forming Machine
Standing Seam Roll Forming Machinery Pipe Ridge and Drip Edge Metal Double Layer Roll Forming Machine

Standing Seam Roll Forming Machinery Pipe Ridge and Drip Edge Metal Double Layer Roll Forming Machine

Share on (1601242517215):


Price:$11,000.00

Quantity:


Product Overview

Description

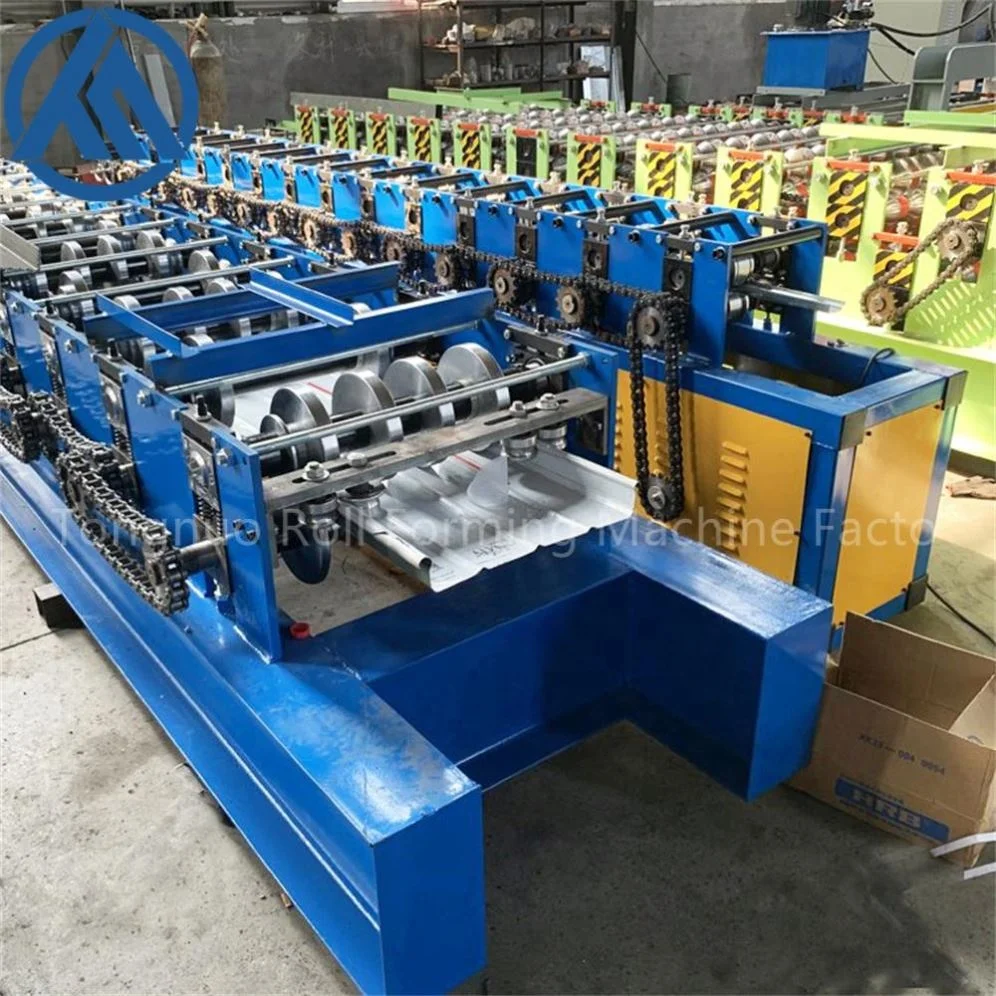

The Stand Seaming Roll Forming Machine is a specialized piece of equipment designed for efficiently manufacturing metal products with precise seam formations. It utilizes a series of precision-engineered rollers arranged in a stand-mounted configuration, allowing for continuous and automated shaping of metal sheets into desired profiles. The machine feeds metal coils or sheets through its rollers, progressively bending and folding the material to create strong, seamless joints or intricate seam patterns.This process ensures consistent quality and dimensional accuracy, ideal for producing components such as roofing panels, siding,gutters, and other architectural metalwork. The stand seaming mechanism provides added strength to the finished product by tightly locking the edges together, enhancing its durability and esistance to weathering.Operators can adjust the machine settings to accommodate different material thicknesses and seam specifications, ensuring versatility across various production needs. Additionally, the automated nature of the roll forming process significantly reduces labor costs and increases production speed, making it an essential tool for modern metal fabrication facilities.


Product Paramenters


Portable full automatic SSR Standing seam metal roof sheet roll forming machine for sale price
1.Formed Material
PPGI,GI,AI

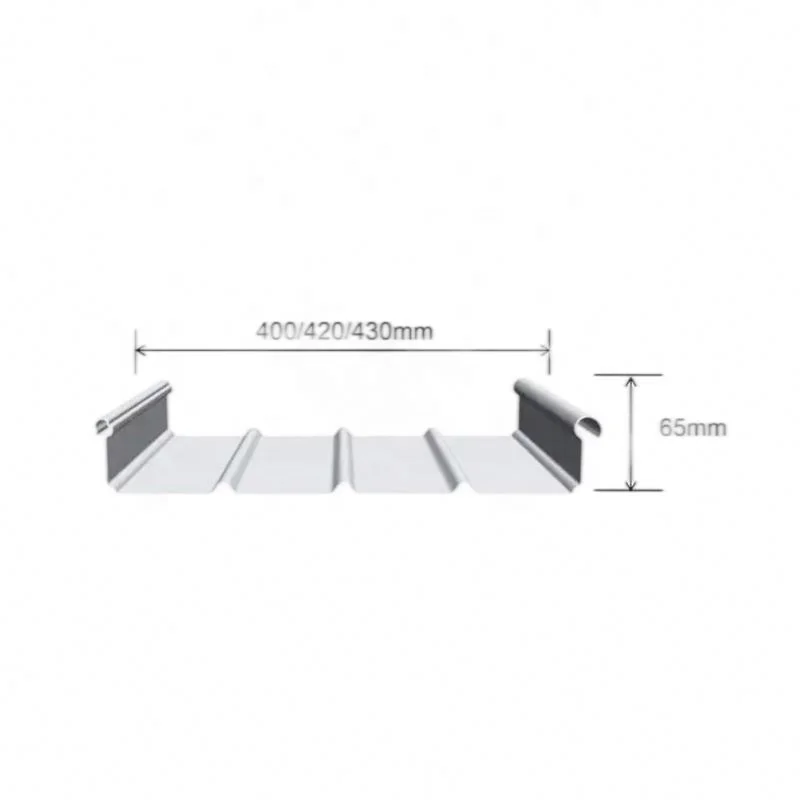

Thickness:0.4-0.8mm Width:as the profile drawing
2.Decoiler
Hydraulic automatic decoiler
Manual decoiler(will give you as free）
3.Main body
Roller station
12 rows (Design as the profile drawing)
Diameter of shaft
70mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Chain transmission
Dimension(L*W*H)
5500*1600*1600(customize)
Weight
3.5T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
5.5KW
Hydraulic system power
4KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed
15-20m/min
The speed is adjustable as customer's request


Products Description




Details Images


Hand wheel feed platform
The Hand Wheel Feed Platform is an essential component of our roll forming machine, allowing users precise control over material feeding, ensuring accurate and efficient production processes.
Chrome treated shaft and wheel
The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.

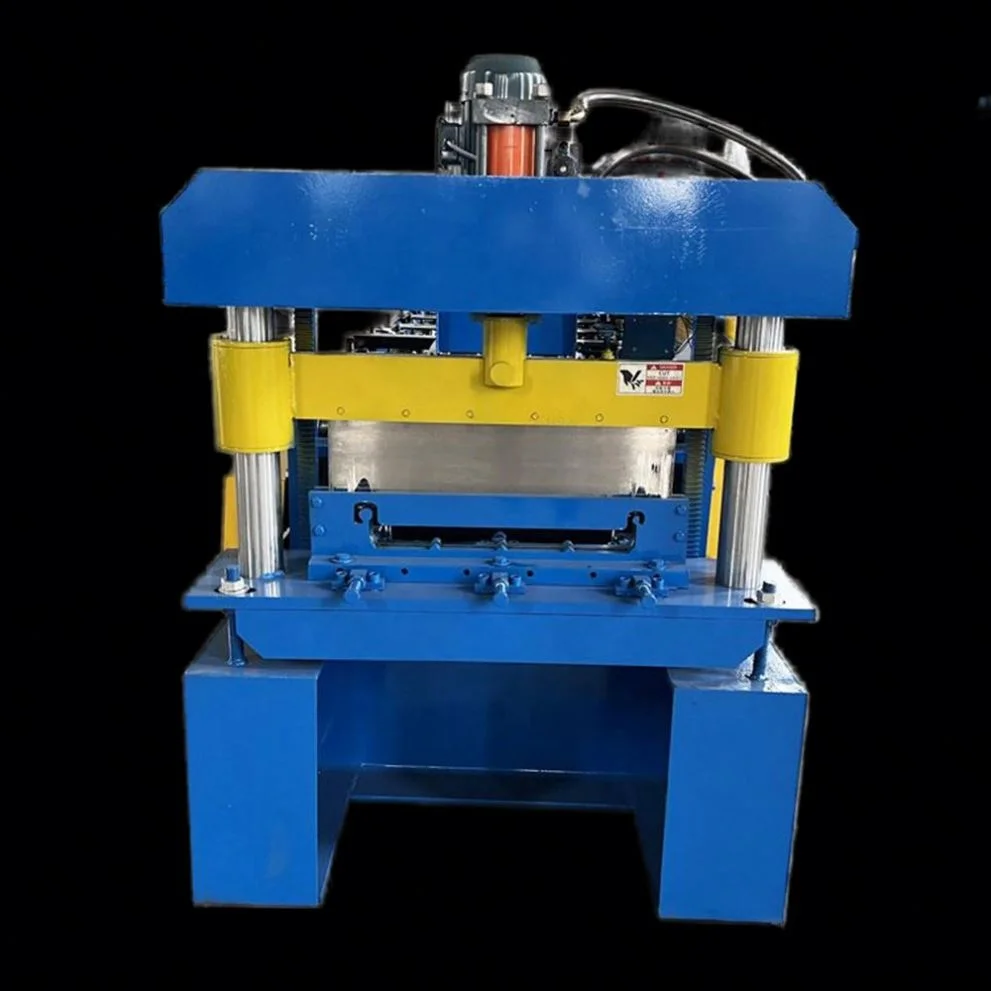

Cutting System
Material of the cutting:Cr12Movwith quenched treatment.It can decide cut panel dimensionacoording to the hydraulic drive andPLC computer control system.easy quick change CZ size withoutchanging mould

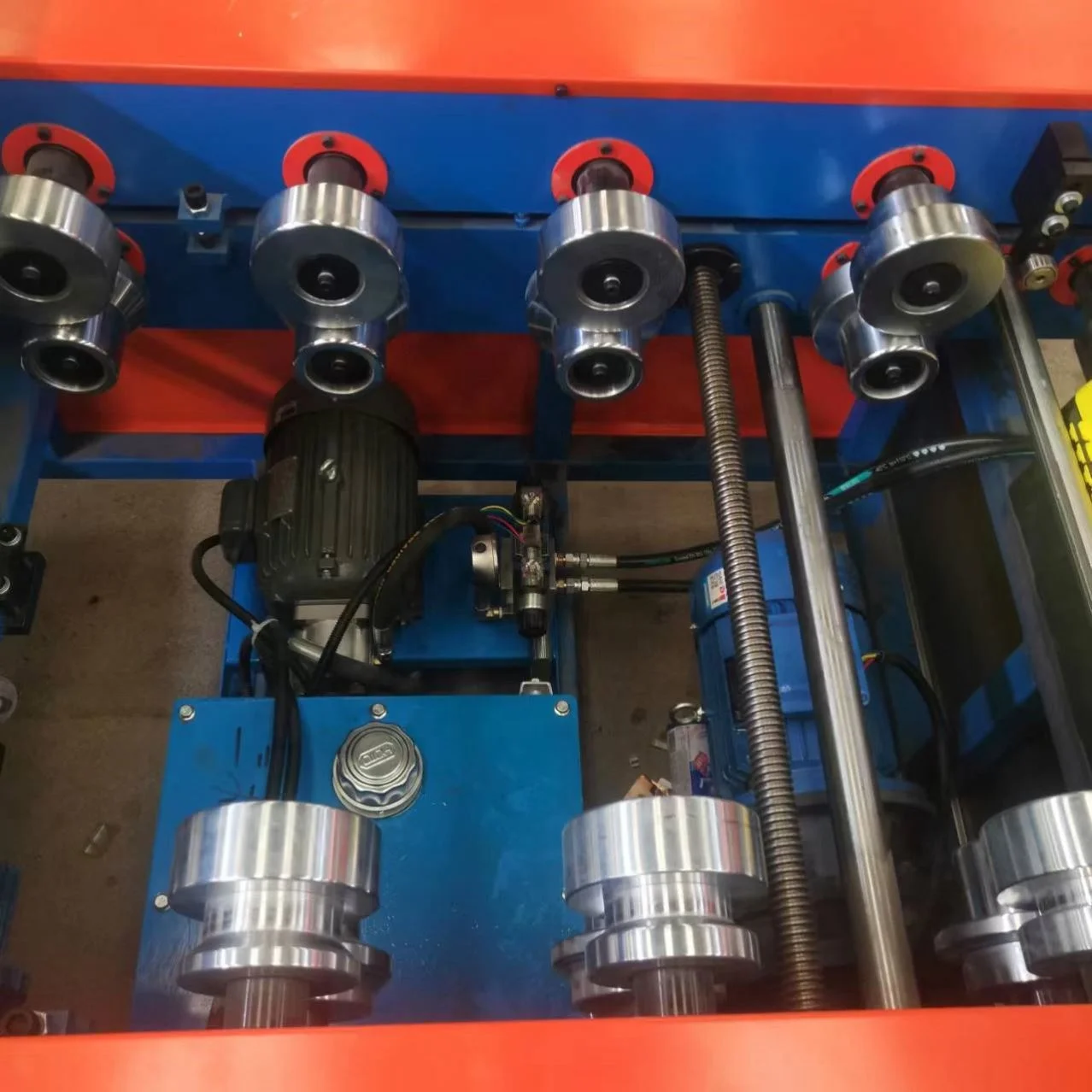

Roller System
Material of the roller:High grade Gcr15 forged steel.Roller station: 18 rows.Thickness of feeding material:1.5-3.0mm


Roller System
This wheel is designed to be more beautiful for every aspect of the product
Computer Control Cabine and quantity
Computed mode has two modes: automatic and manual one.Programmable setting of profile lengthLanguage:English, Chinese,Spanish and RussianThe system is easy to operate and use
