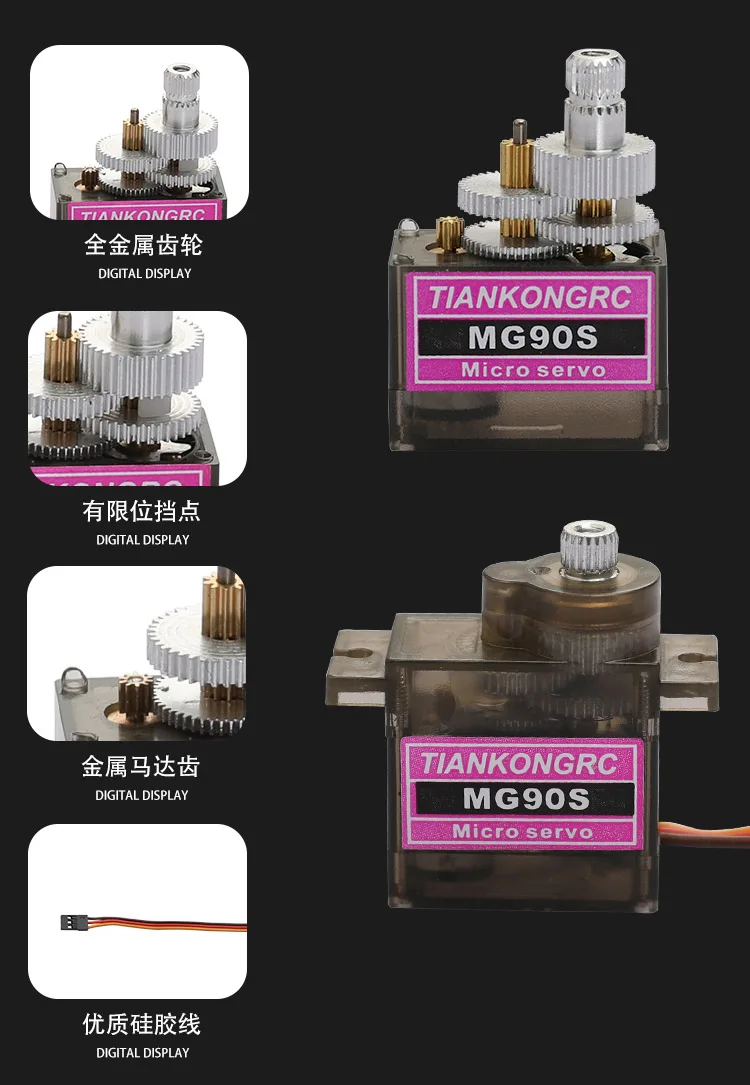

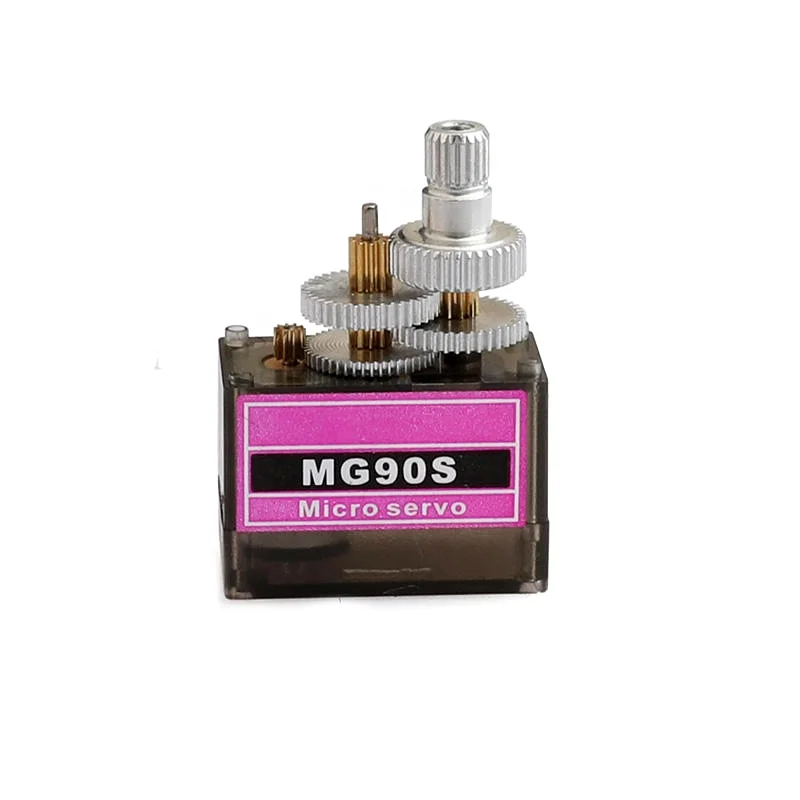

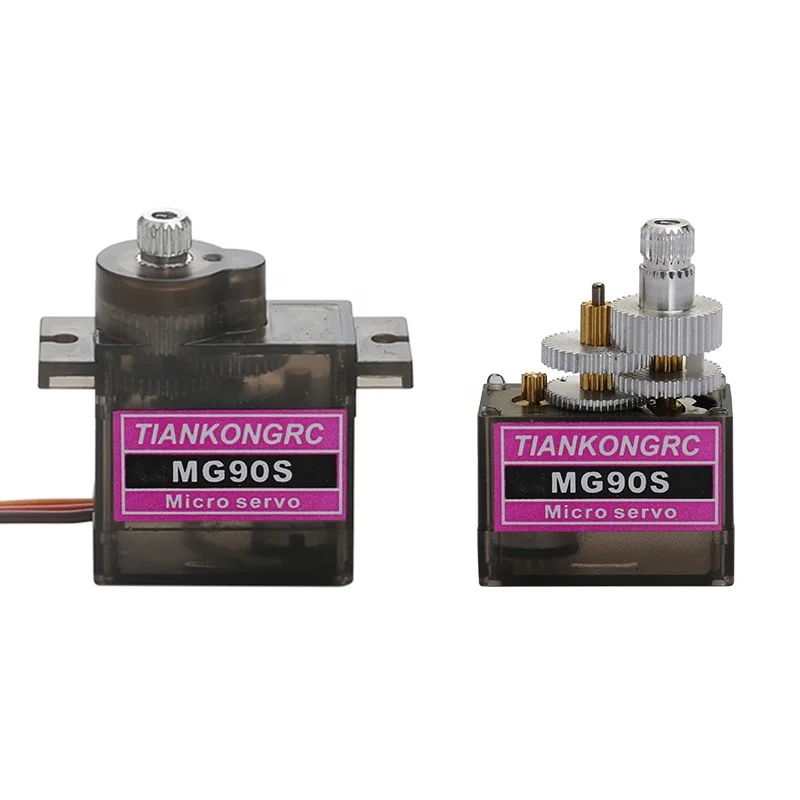

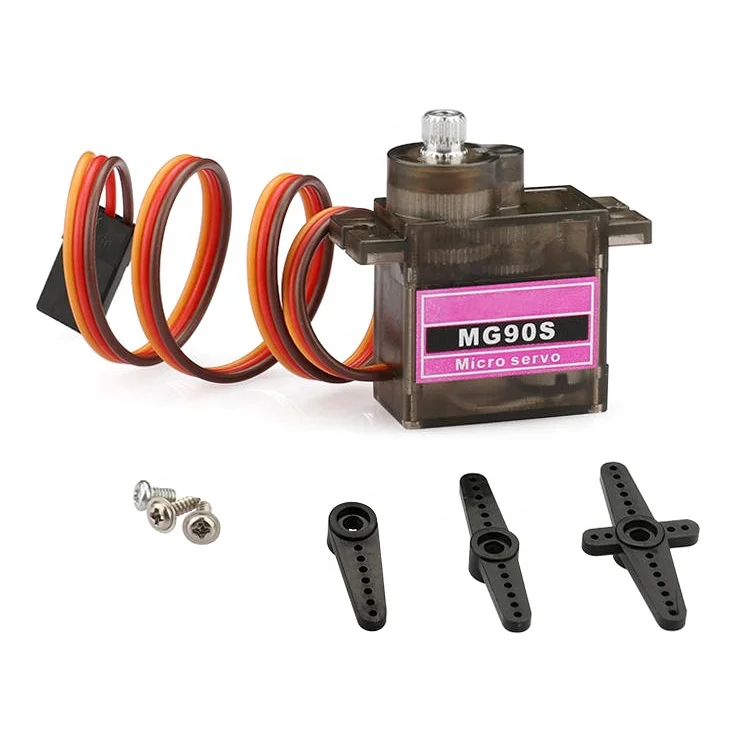

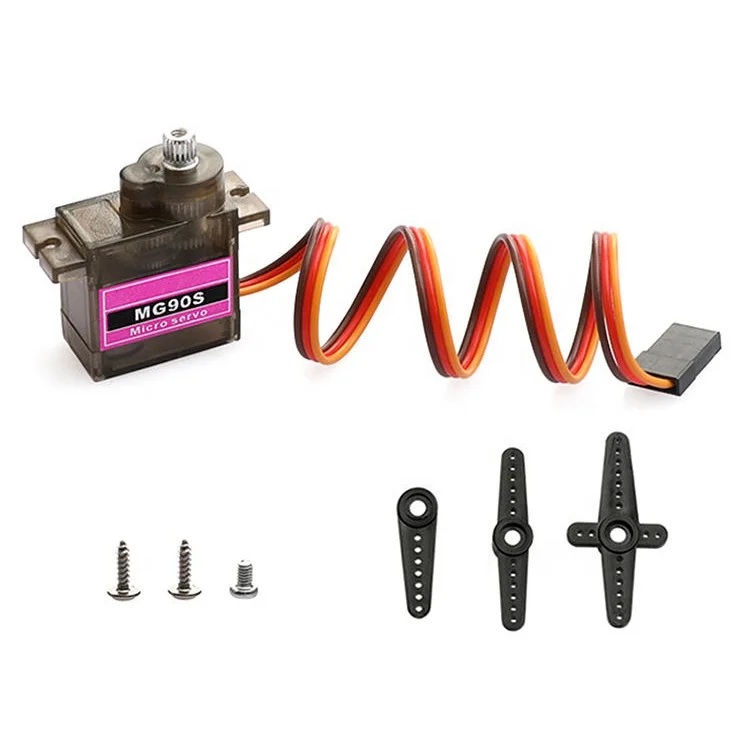

Micro MG90 9g Metal Gear Servo Analog Servo Motor 4.8V 6V Tower Pro MG90S For RC Helicopter Planes Aircraft Boat Car

Share on (1601243666046):


Price:$0.95 - $1.35

Quantity:


Product Overview

Description





Product Description










Specification

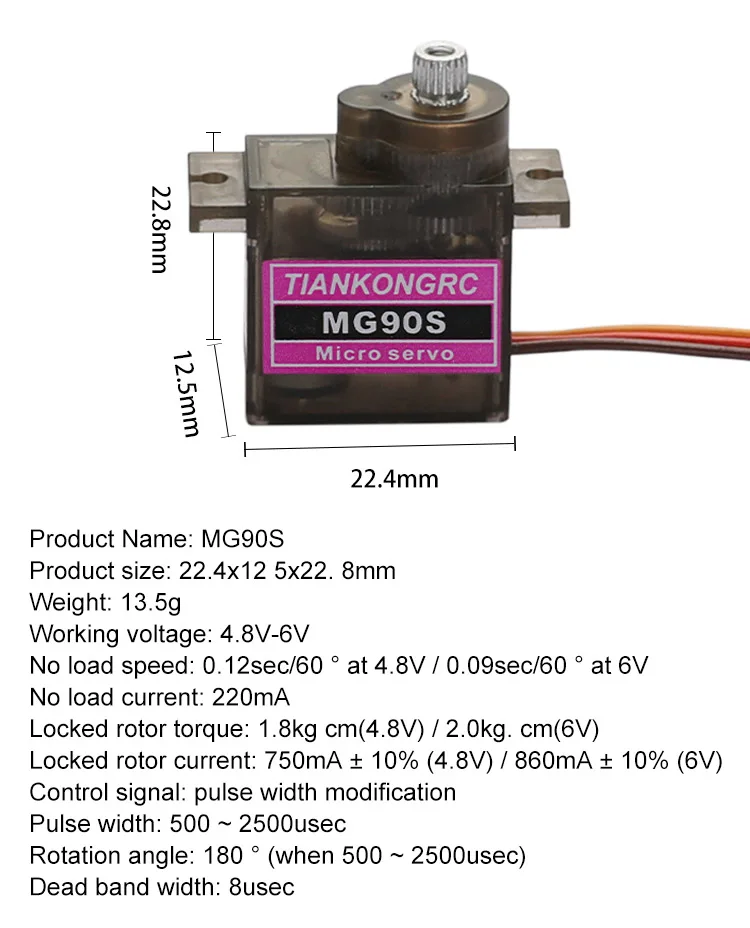

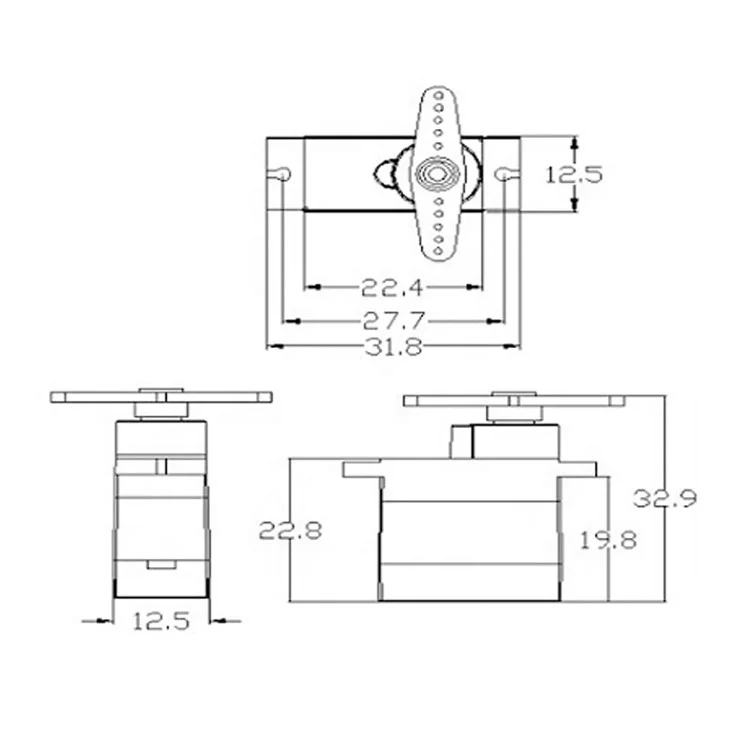

Product Name: Mg90s servo 9g Product size: 22.4x12 5x22. 8mm Weight: 13.5g Working voltage: 4.8v-6v No load speed: 0.12sec/60 ° (4.8V) / 0.09sec/60 ° (6V) No load current: 220mA Locked rotor torque: 1.8kg cm(4.8V) / 2.0kg. cm(6V) Locked rotor current: 750mA ± 10% (4.8V) / 860mA ± 10% (6V) Control signal: pulse width modification Pulse width: 500 ~ 2500usec Rotation angle: 180 ° (when 500 ~ 2500usec) Dead band width: 8usec



180 degree and 270 degree control mode:


180 degrees or 270 degrees correspond to the pulse width of 500-2500us, and the angle can be controlled arbitrarily.


The 180-degree or 270-degree remote controller corresponds to the pulse width of 1000-2000us, and the angle can be controlled arbitrarily.


360 degree control mode:


360 degrees continuous rotation, corresponding pulse width 500-2500us,stop signal 1450-1500us,1500-500us rotation in the positive direction, 1500-2500us rotation in the opposite direction, can control the speed, can not control the angle











\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t

\t\t\t
Product name

\t\t\t

\t\t\t
MG90S Metal Gear Servo

\t\t\t

\t\t\t
Size

\t\t\t

\t\t\t
23x12x29mm

\t\t\t

\t\t\t
Weight

\t\t\t

\t\t\t
13.5g/pcs

\t\t\t

\t\t\t
Packing

\t\t\t

\t\t\t
100pcs/lot

\t\t\t



































































































0.0184 s.
