video conference system TEVO VL12U(2pcs) KB200PRO 12x zoom USB3.0 /HDMI/RJ45 joystick controller for ptz camera
- Category: >>>
- Supplier: Sz Tenveo Video Technology Co. Ltd.
Share on (1601243714623):
Product Overview
Description
Product Description

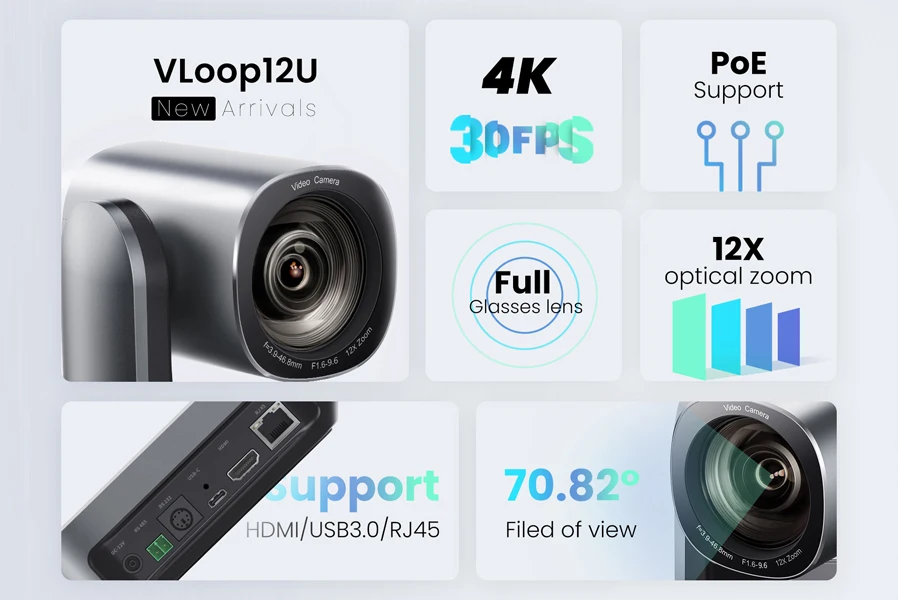

* 4K resolution

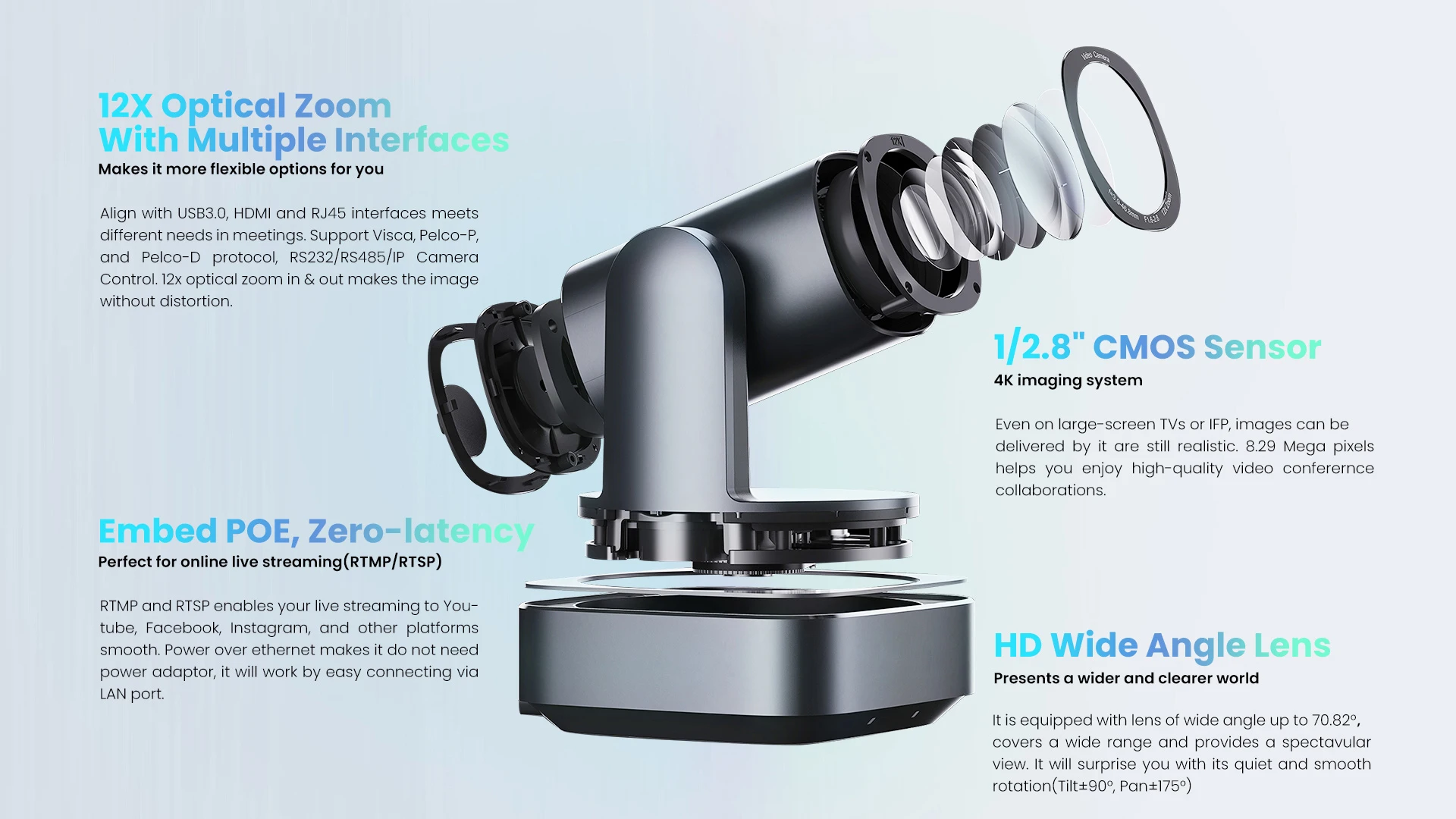

* 12x lossless optical zoom lens supports framing adjustment

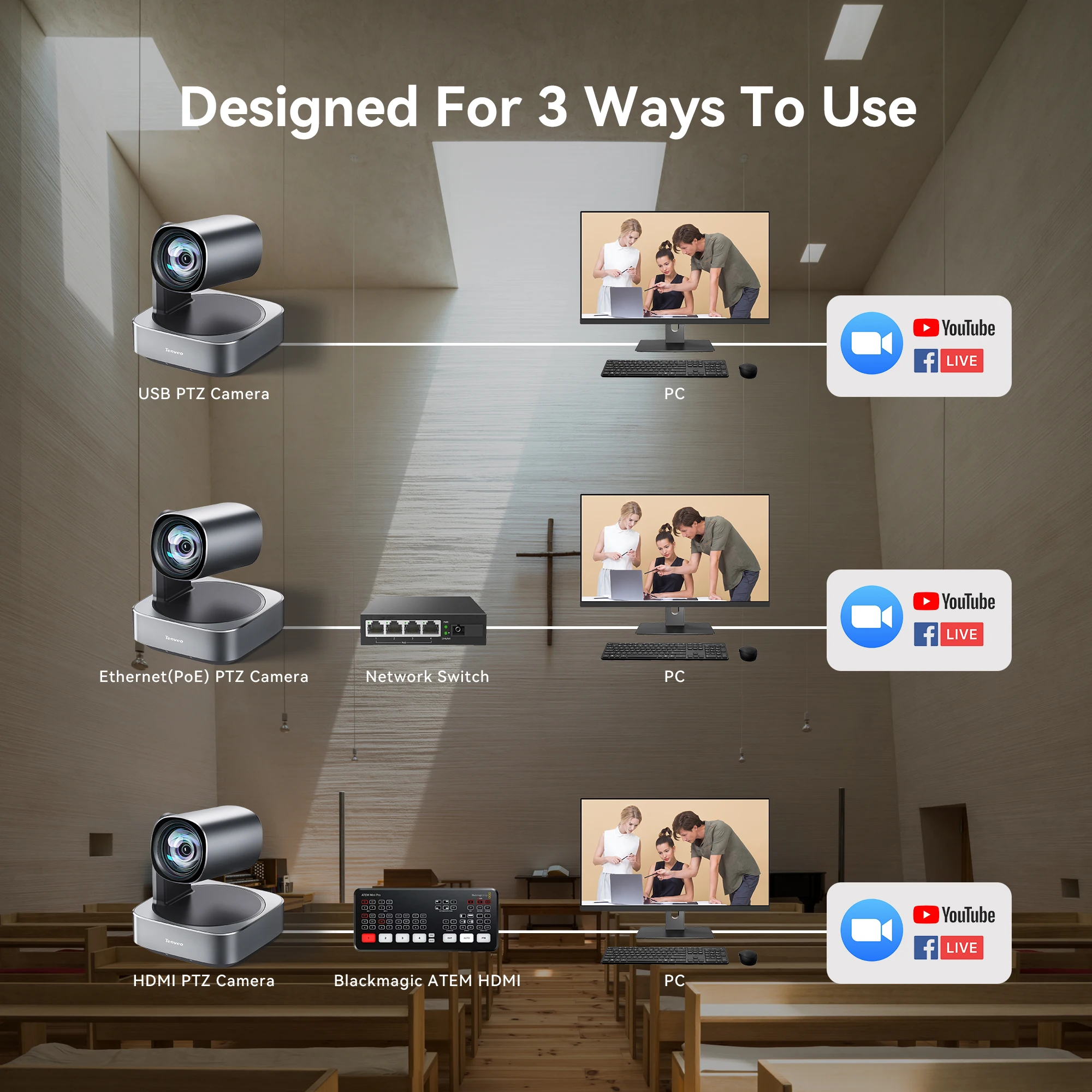

* USB 3.0/HD-MI/LAN video output(POE Version is optional)
* Support H.265/H.264 encoding, making the picture smoother and clearer under low bandwidth.
* RTSP, RTMP, GB28181; Support VISCA Over IP
* Pan 340°, tilt 180°; achieve fast, quiet and precise pan-tilt movement
* Multiple presets setting, 10 presets via infrared remote control, 255 presets via RS232 control
* Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
* USB 3.0/HD-MI/LAN video output(POE Version is optional)
* Support H.265/H.264 encoding, making the picture smoother and clearer under low bandwidth.
* RTSP, RTMP, GB28181; Support VISCA Over IP
* Pan 340°, tilt 180°; achieve fast, quiet and precise pan-tilt movement
* Multiple presets setting, 10 presets via infrared remote control, 255 presets via RS232 control
* Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
4D Joystick Keyboard Controller + 20X NDI Camera

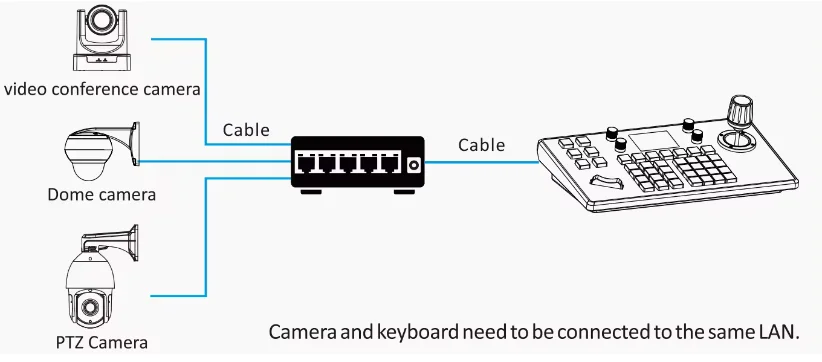

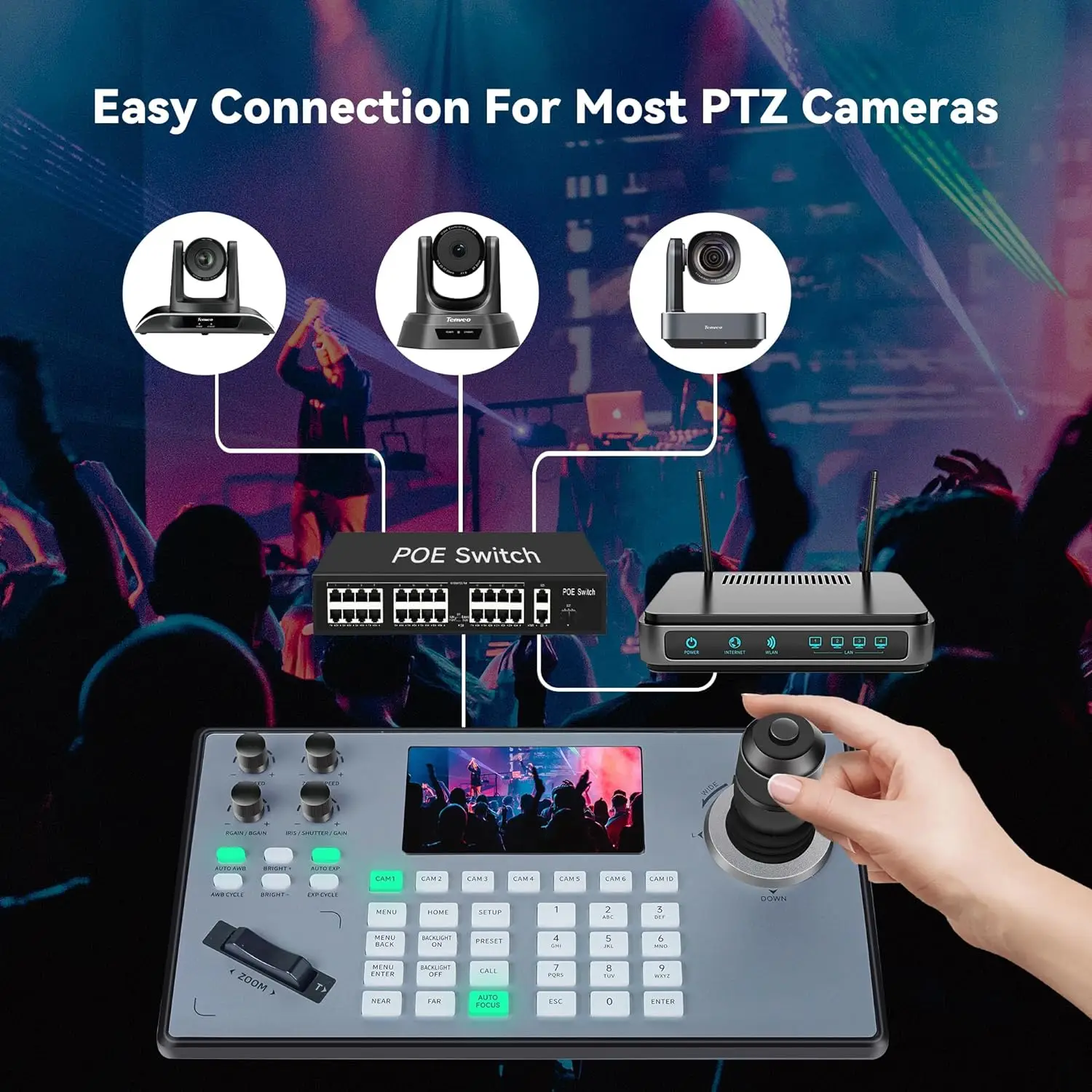

This combination of Joystick keyboard controller and camera works well for church live streaming, studio broadcasting, video conferencing. Camera and keyboard need to be connected to the same LAN.
* Support IP version and Analog version at same time * Support full VISCA, ONVIF, PELCO-P, PELCO-D protocl
* Support control the software function of the conference camera

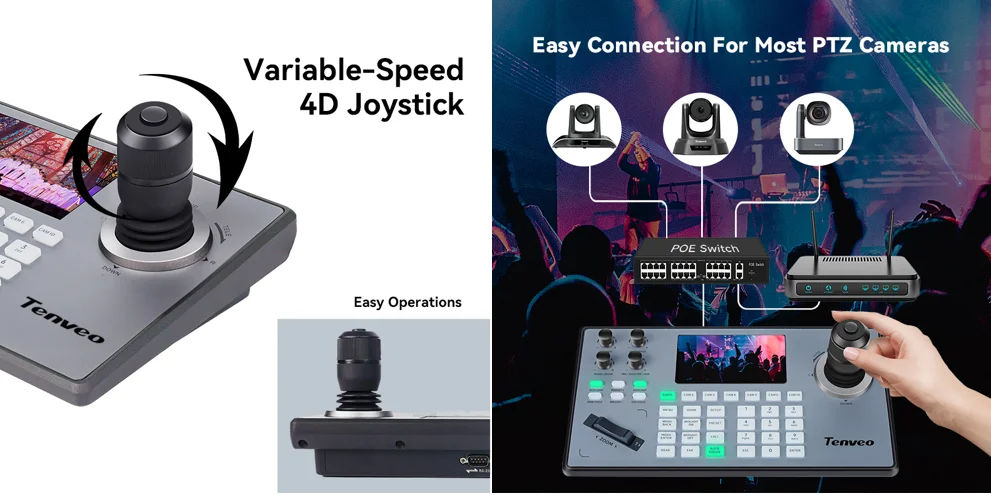

* Support 4D joystick control ptz function
* Seesaw switch control zoom speed
* Support IE web setting
* Support 7 buttons for CAM1 to CAM7 ,fast switch easily
* Support POE
* Support control the software function of the conference camera
* Support 4D joystick control ptz function
* Seesaw switch control zoom speed
* Support IE web setting
* Support 7 buttons for CAM1 to CAM7 ,fast switch easily
* Support POE
Details Images
Product Parameters
4D Joystick Controller | ||

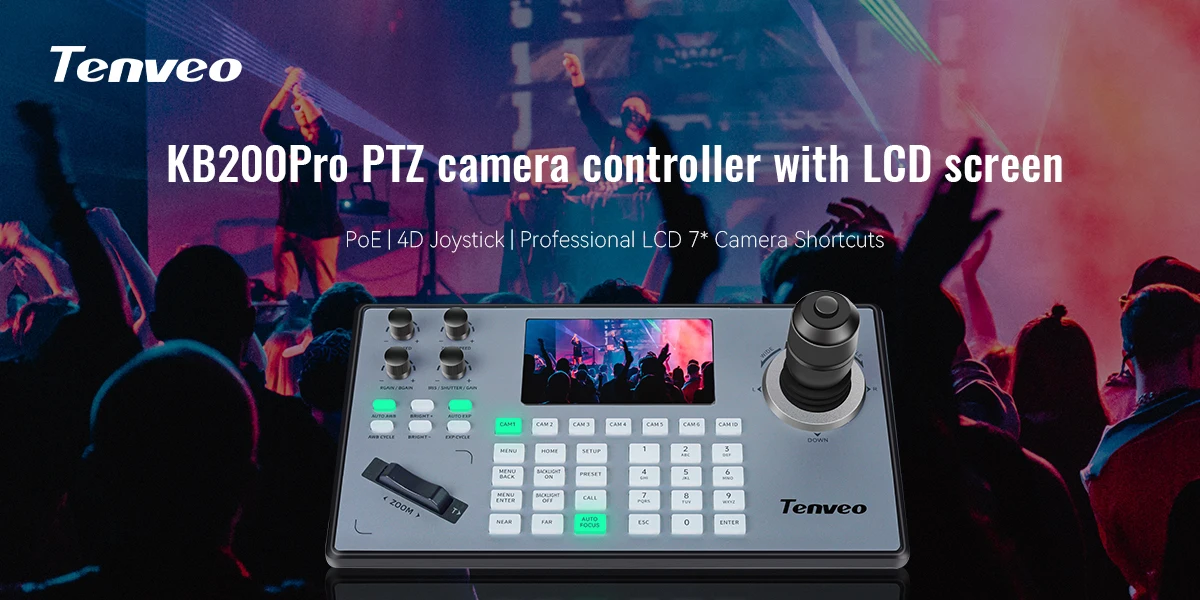

Product Model No. | KB200Pro | |
CHIP | HIS3536DV100 | |
SYSTEM | Linux | |
Max equipment | 999 | |
Decoding | H.265, H.264 | |
RESOLUTION | MAX 1080P for 1 channel:1920*1080@30fps | |
PROTOCOL | VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF | |
Camera Control | Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES | |
User Interfaces | Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6 | |
Joystick | 4D | |

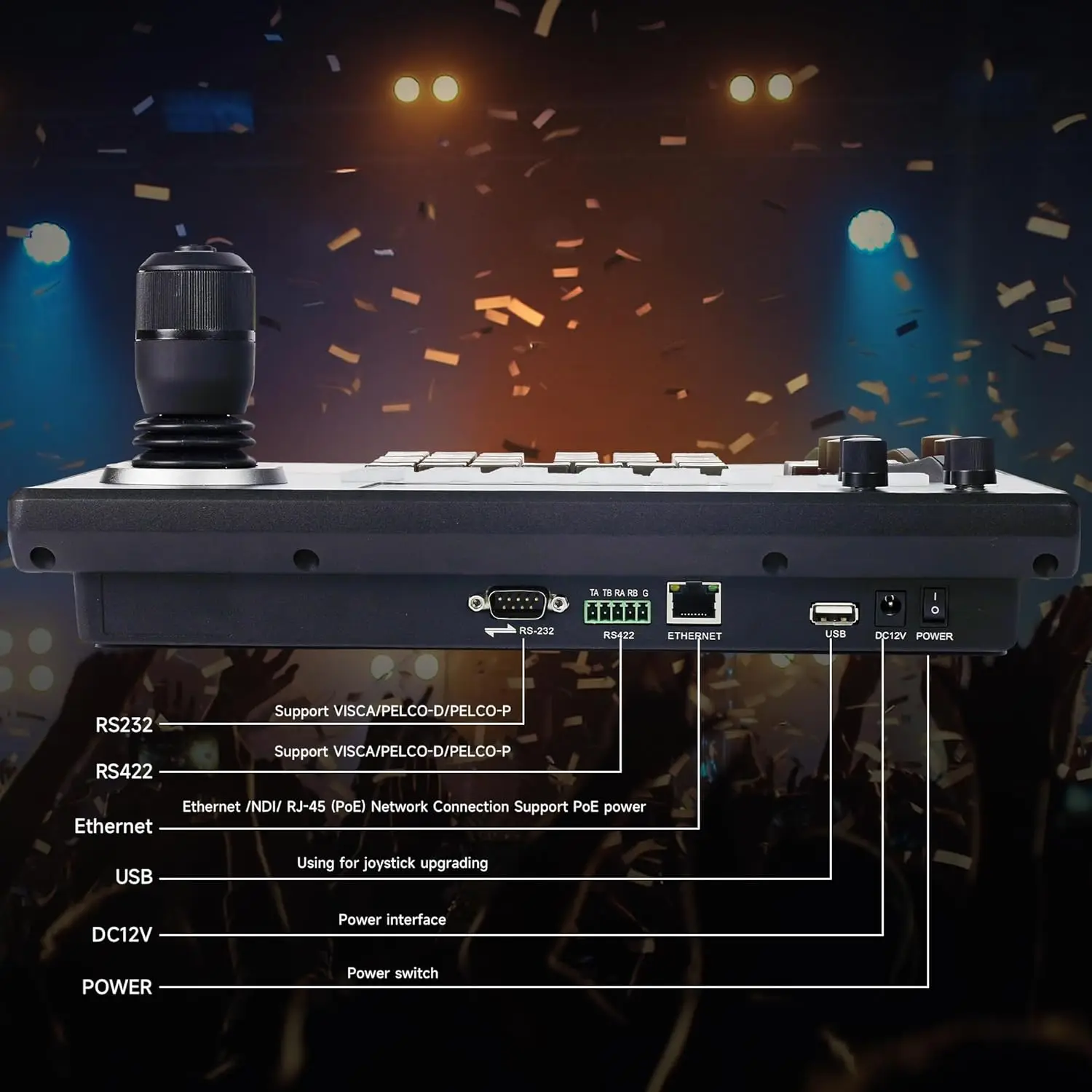

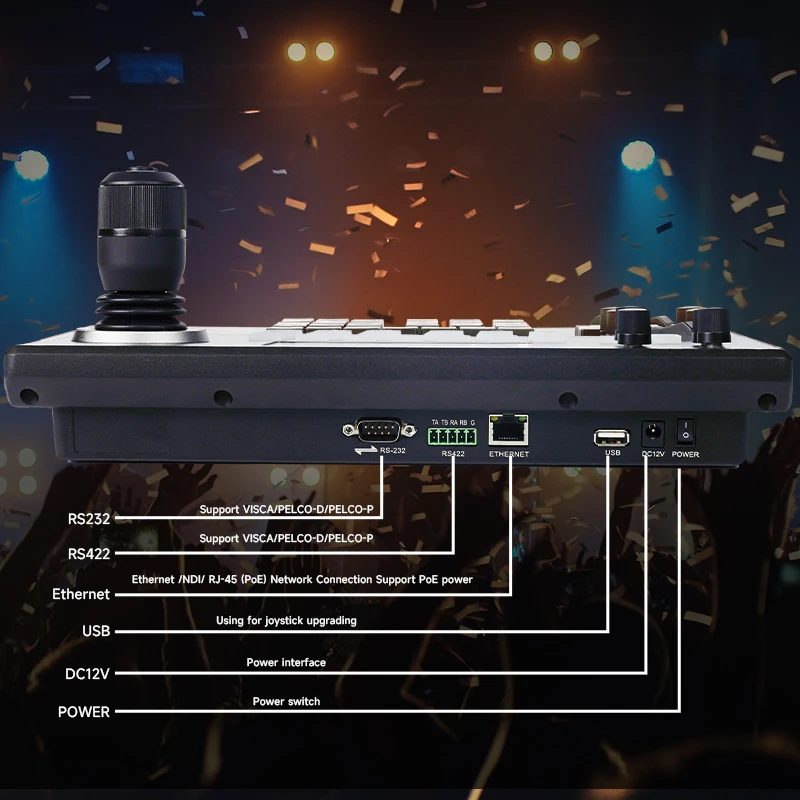

Output | RS232, RS422, RJ45 | |
Accessories | Knob, Silicone button | |
Beep | On/off | |
Display | TFT LCD 720*1280 | |
Max camera control | Max 255 | |
Power consumption | ≤5W | |
POWER | DC12V-2A POE | |
Product Size | 321*181*116mm/354*221*135mm (before/after packing) | |
Product Weight | 1.83kg/2.45kg( (net / gross weight)) | |
CAMERA | USB3.0/HDM1 PTZ camera with 12x zoom | |

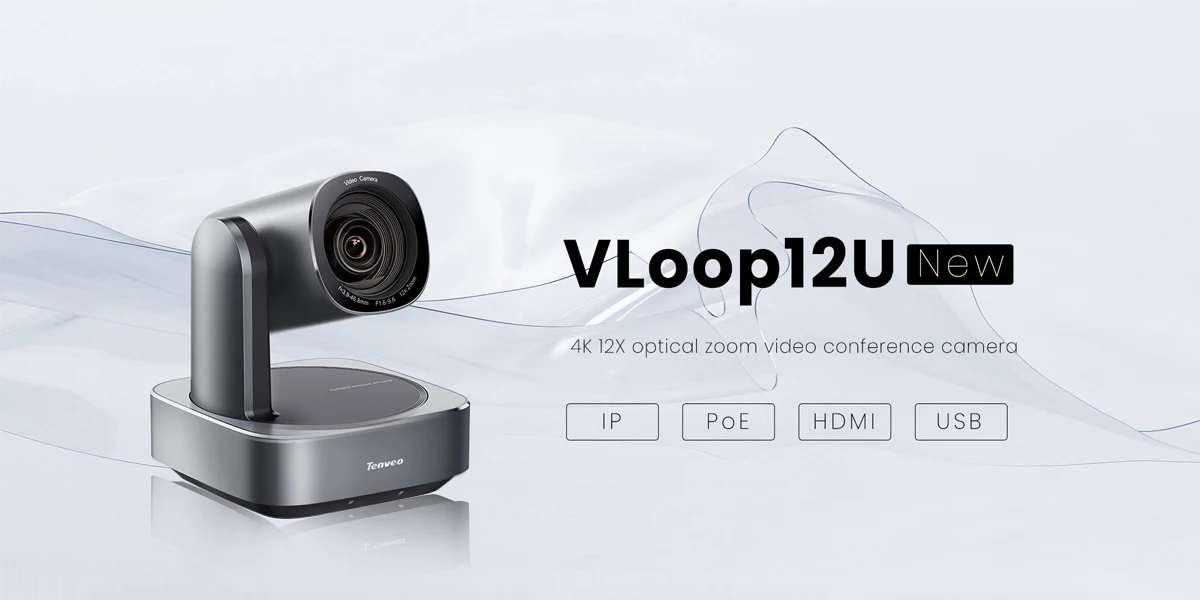

Tenveo Vloop 4K camera | TEVO-VL12U | |
Image Sensor | SONY IMX415 1/2.8'' CMOS | |
Effective pixels | 8.29MP, 16:9 | |
Lens | f=3.9-46.8mm | |
Aperture | F1.6-F9.6 | |
Video Format | NDI®|HX(3840*2160@15-30;1920*1080@15-60; 1280*720@15-60;1024*576@15-60;640*360@15-30)(low bandwidth mode) | |
HDMI(4KP@30/25fps,1080P@60/50/30/25fps,720P@60/50/30/25fps) | ||
USB3.0(3840*2160P@30fps,2560*1440P@30fps,1920*1080P@30fps,1280*720P@30fps) | ||
Optical zoom | 12x optical zoom | |
Horizontal Angle | 70.82°(W)-6.48°(T) | |
Vertical Angle | 47.72°(W)-73.66°(T) | |
Diagonal Angle | 78.58°(W)-7.42°(T) | |
Backlight Compensation | Support | |
PTZ Parameter | ||
Pan/Tilt Rotation | ±175°， -90°~+90° | |
Pan Control Speed | 0.1-80°/Sec | |
Tilt Control Speed | 0.1-60°/Sec | |
Preset Number | 255 presets by Pelco D, 32 presets by Pelco-P, 7 presets by Visca(10 presets by remote controller) | |
SNR | >50dB | |
Focus | Auto/Manual | |
General Parameter | ||
Operation Systems | Windows 7/8.1/10/11; Andriod, Mac OS 10.10 or higherLinux(Require to support UVC) | |
Input Voltage | DC 12V | |
Input Current | 1.0A(max.) | |
Power Consumption | 13W(max.) | |
Store Temperature | -10℃~+60℃ | |
Store Humidity | 20%~90% | |
Working Temperature | -10℃~+50℃ | |
Working Humidity | 20%~80% | |

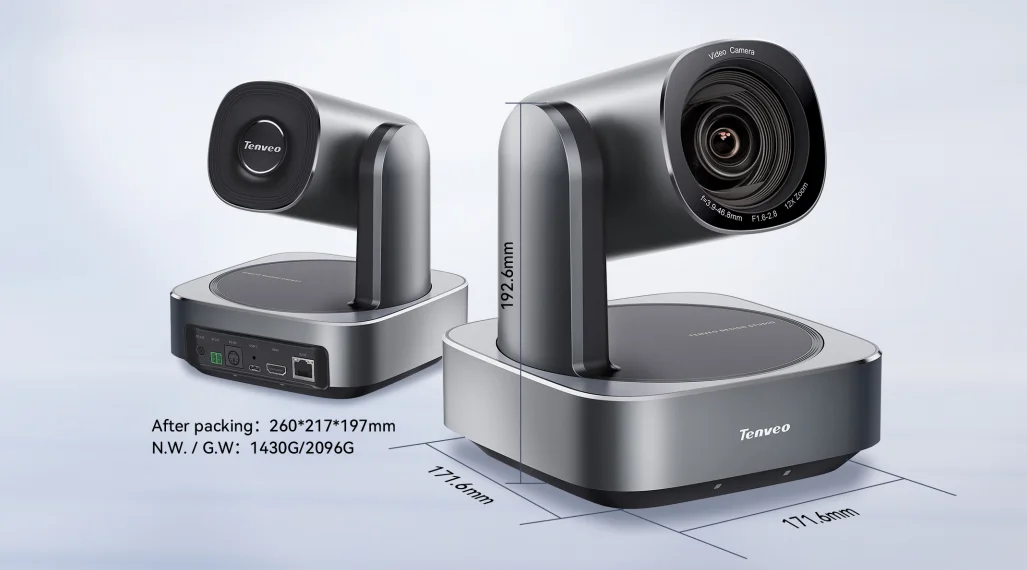

Dimension | 260*217*197mm(After Packing) | |
N.W./G.W. | 1.5kg/2.5kg | |

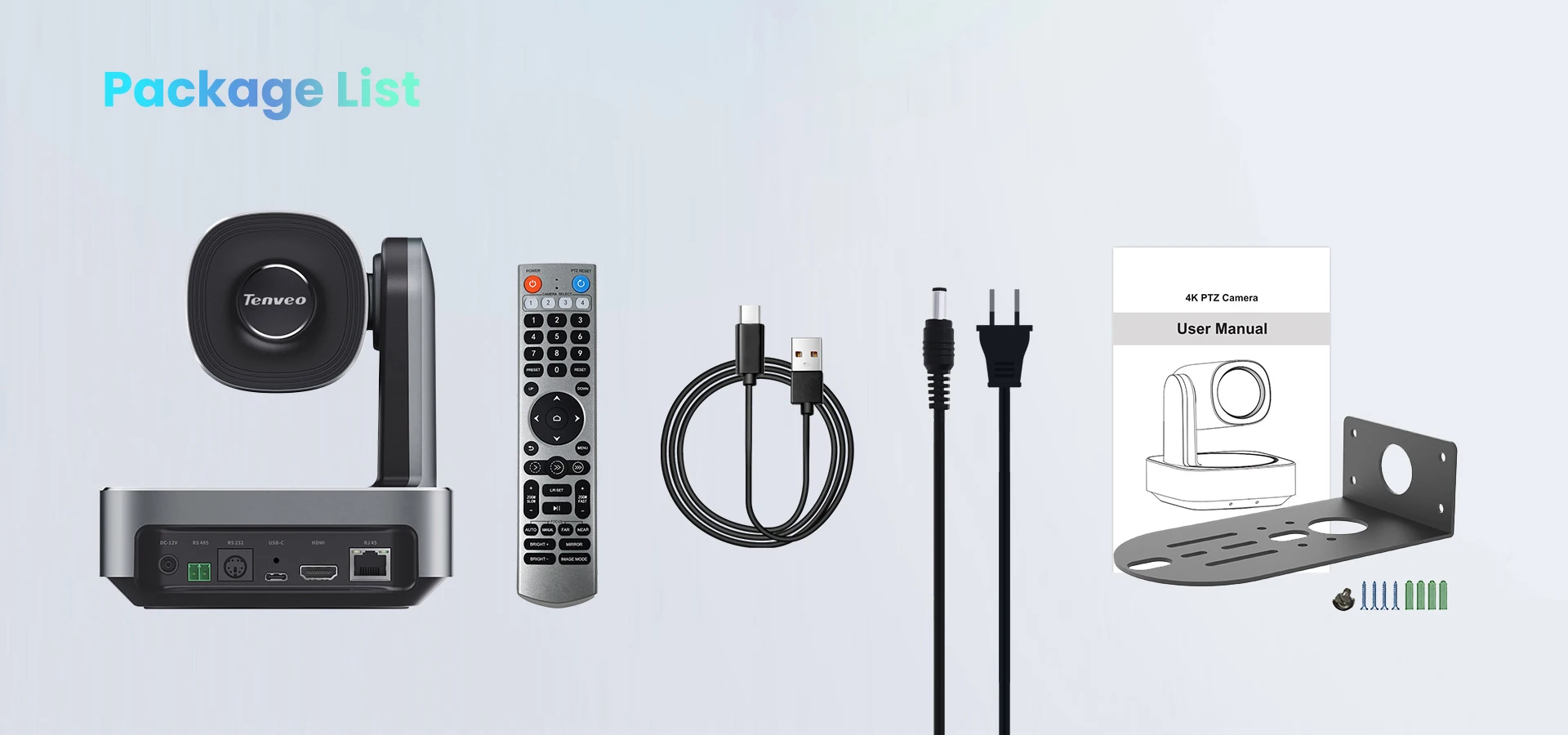

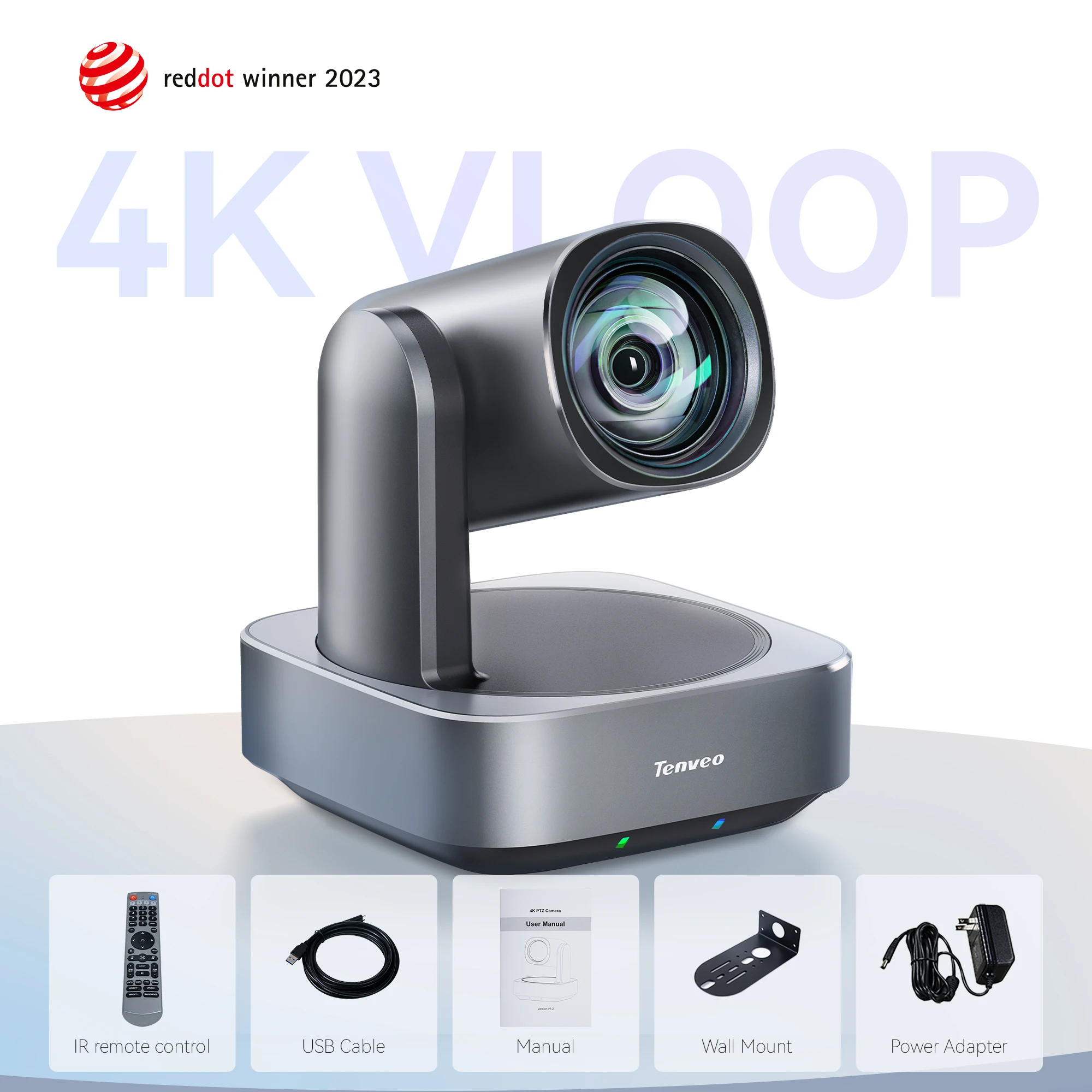

Accessory | 1*camera, 1*USB cable, 1* powder adapter, 1*wall mount, 1* manual | |
Warranty | 3 years | |
I/O Interface | ||
Video interfaces | HDM1, Type-C, Ethernet | |
Video Compression Format | H.264, H.265, MJPG, YUV2, NV12 | |
LAN | 10M/100M adaptive Ethernet port, Support POE IEEE802.3af | |
Network Protocol | RTSP, RTMP, ONVIF, GB28181, Support Visca Over IP | |
Control Protocol | VISCA/Pelco-D, Pelco-P; Baud Rate: 9600/4800/38400/2400 | |
Control Interface | RS232(Input & Output), RS485, Type-C(UVC1.1) | |
Digital Noise Reduction | 2D&3D Noise Reduction | |
Exposure | Auto/Manual | |

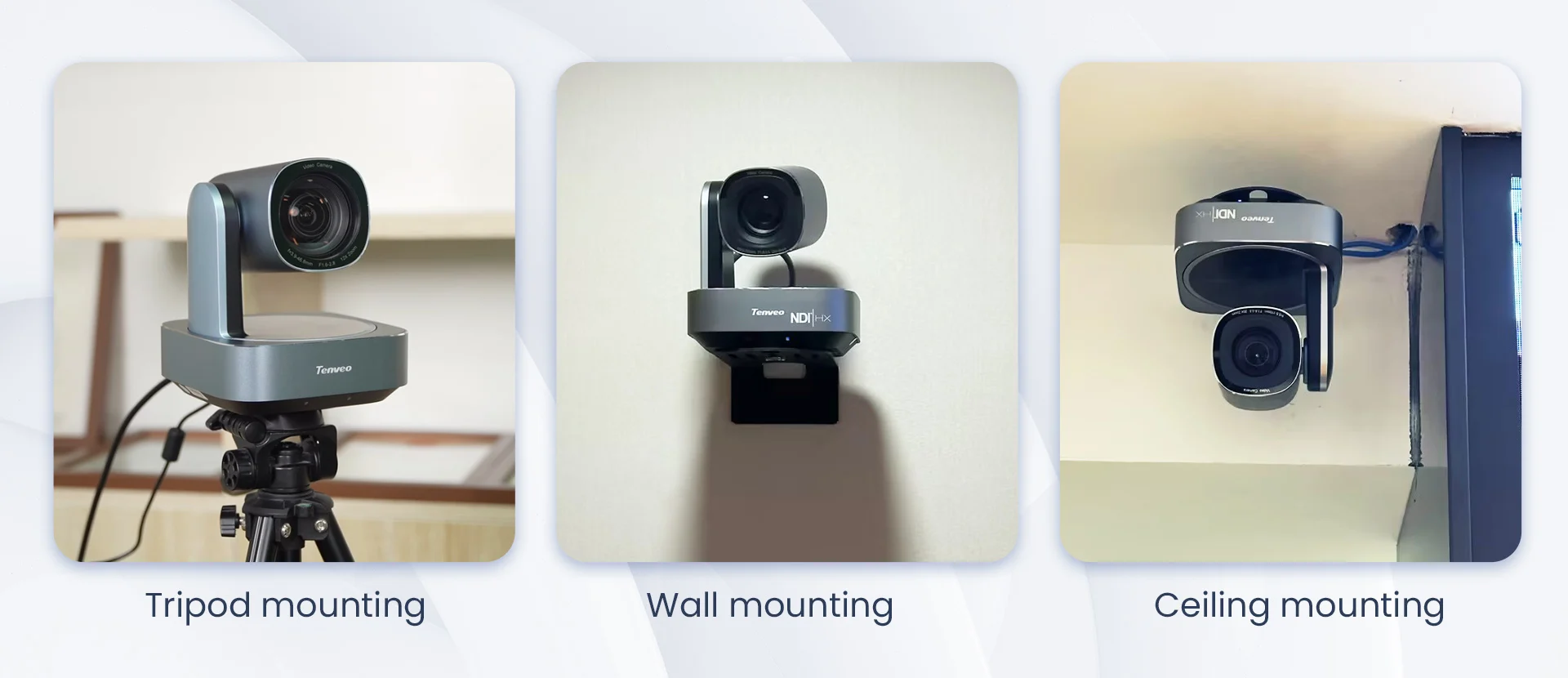

Application Scenarios & Installations
Product Packaging & Shipping
Product Packaging & Shipping
Company Profile
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,label,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,label,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
