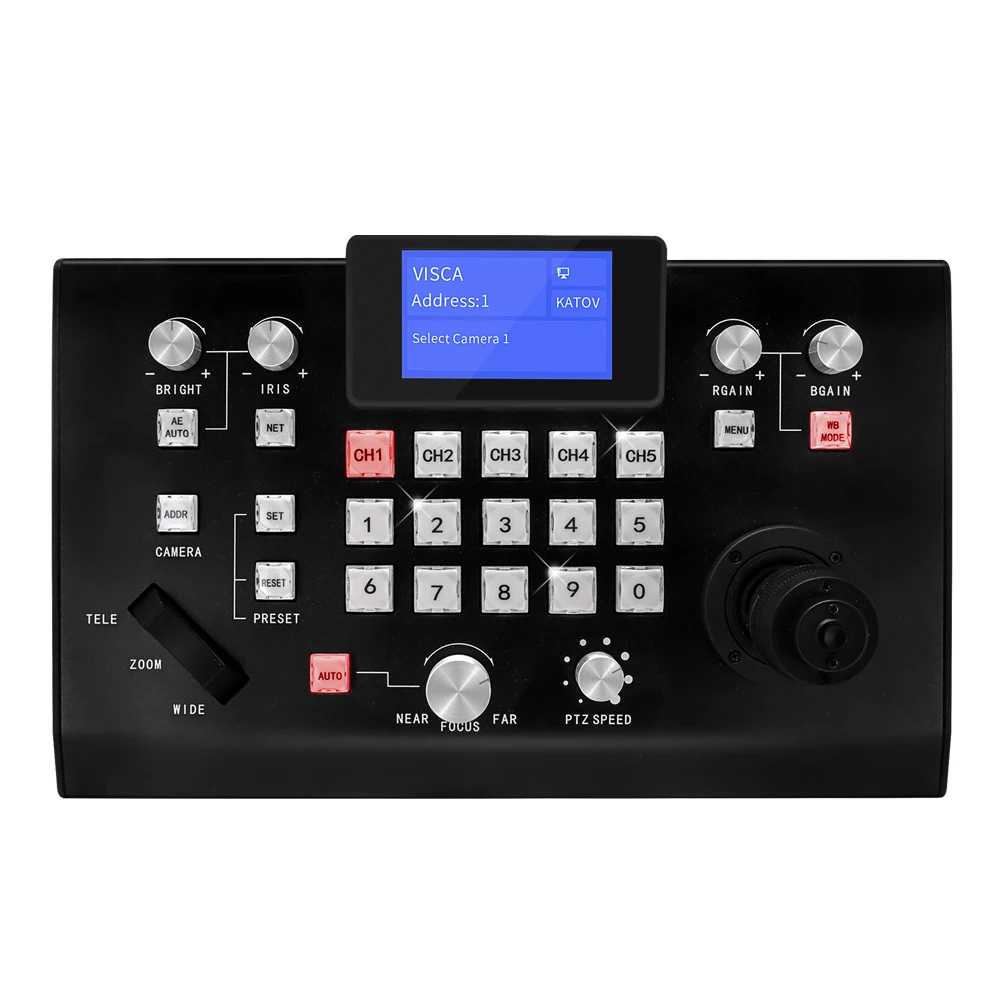

New optical 3D joystick IP ptz keyboard controller 5 Channels IP joystick controller for live streaming church,sports, concerts
- Category: >>>
- Supplier: Shenzhen KATO Vision Co. Limited
Share on (1601243720997):
Product Overview
Description
Recommend Products
Product Parameters

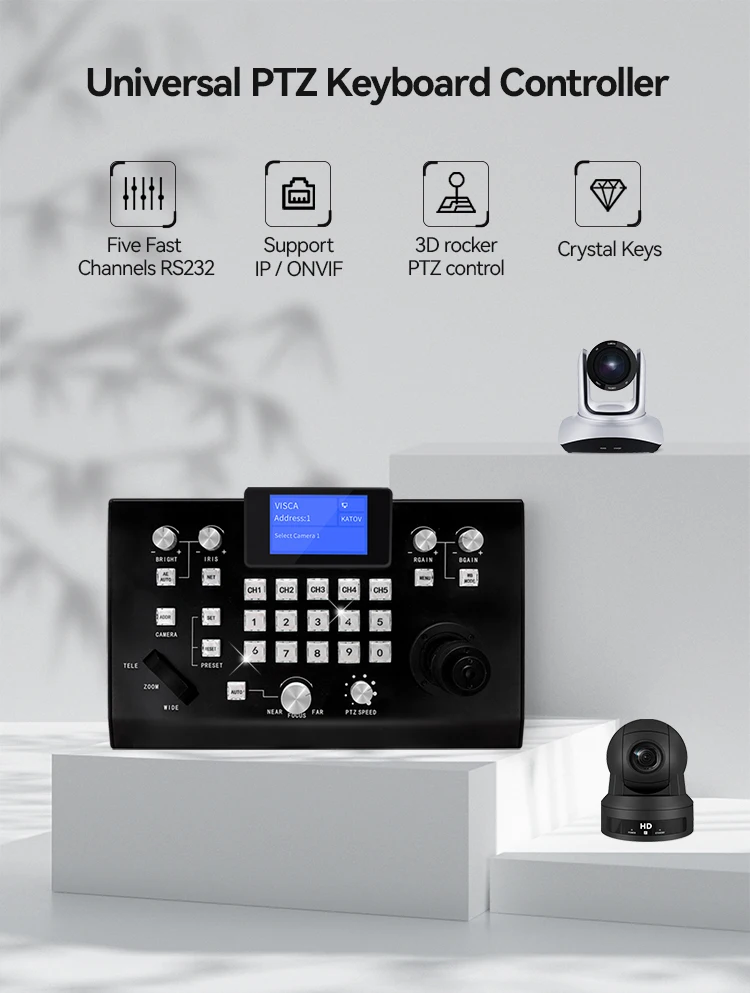

KT-510C Universal PTZ Keyboard Controller Selling Points：

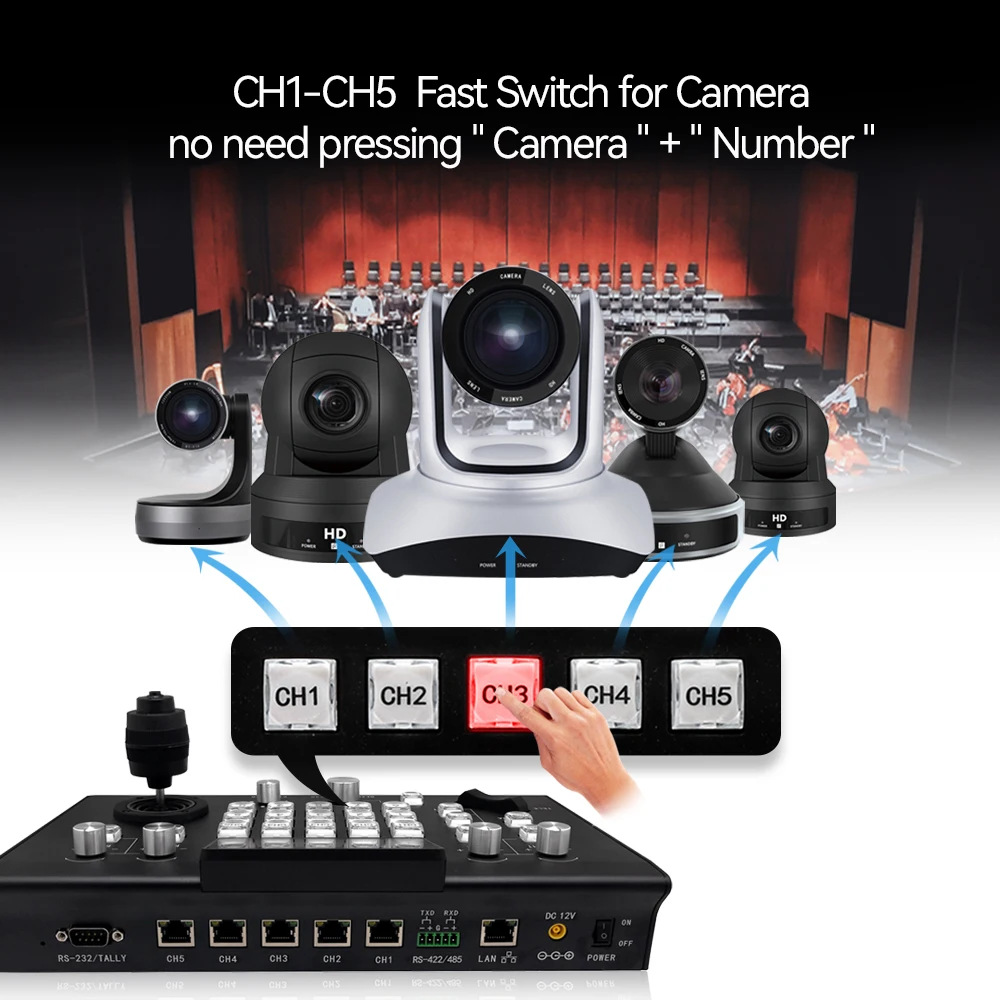

1.5 channels RS232, 5 channels IP shortcut, fast camera selection, support multiple connection methods: LAN / RS232 / RS422 /RS485 at the same time.
2.Network protocol support VISCA Over IP, ONVIF(NDI optional).
3.Serial port protocol support VISCA, Pelco D, Pelco P.
4.Support multiple baud rates: 2400, 4800, 9600, 19200, 38400, 115200.
5.VISCA protocol supports automatic address allocation and can display the number of cascade cameras.
6.Quickly control the camera focus, exposure, white balance, backlight compensation and other functions by professional broadcast knobs.

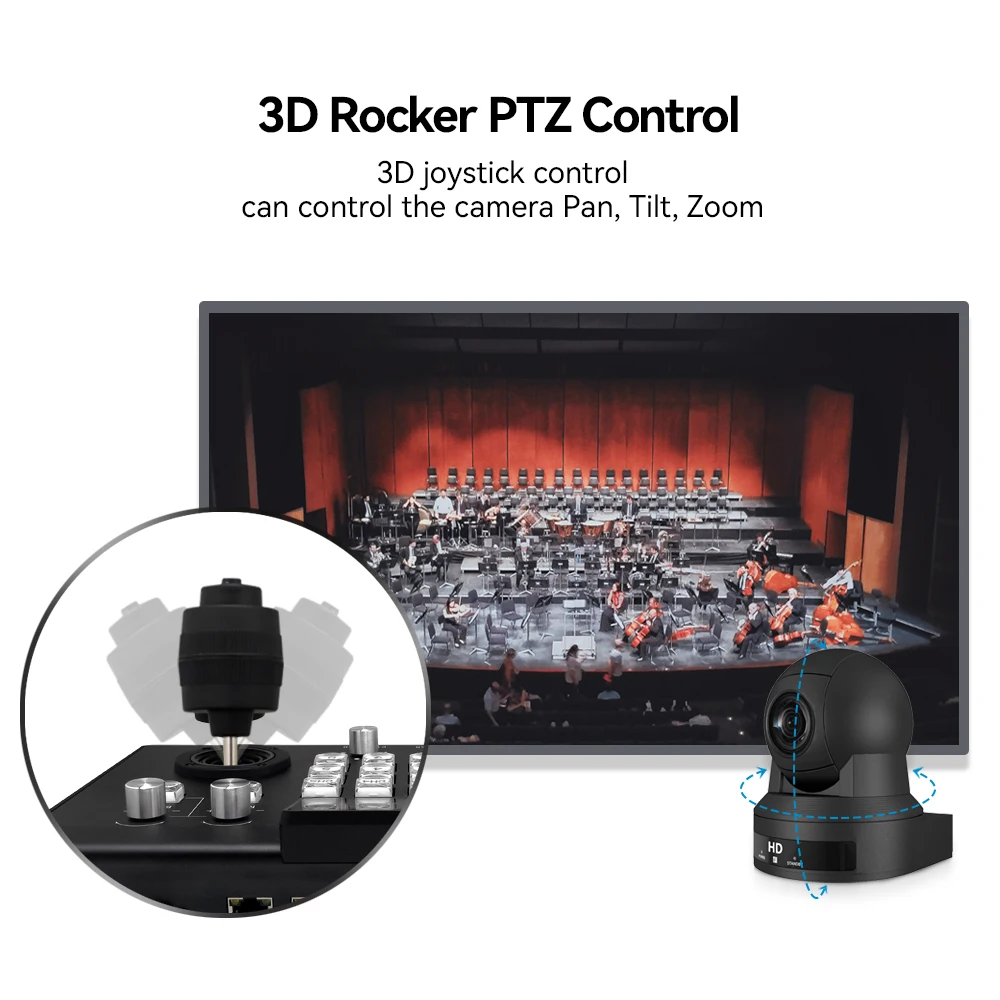

7.Integrated 3D joystick, can control the camera: Pan, Tilt, Zoom.
8.Integrated 3” LCD screen to visually display the current status.
9.Integrated Tally interface.
1.5 channels RS232, 5 channels IP shortcut, fast camera selection, support multiple connection methods: LAN / RS232 / RS422 /RS485 at the same time.
2.Network protocol support VISCA Over IP, ONVIF(NDI optional).
3.Serial port protocol support VISCA, Pelco D, Pelco P.
4.Support multiple baud rates: 2400, 4800, 9600, 19200, 38400, 115200.
5.VISCA protocol supports automatic address allocation and can display the number of cascade cameras.
6.Quickly control the camera focus, exposure, white balance, backlight compensation and other functions by professional broadcast knobs.
7.Integrated 3D joystick, can control the camera: Pan, Tilt, Zoom.
8.Integrated 3” LCD screen to visually display the current status.
9.Integrated Tally interface.
Product Name | KT-510C Advanced PTZ Camera Controller |
Input And Output | RS232/485: RJ45 x5(CH1-CH5)RS-232: D89 x1 RS422: 5pin x1 LAN: RJ45 x1 |
Speed Control | Buttons control(corresponding to PTZ, zoom) |
3D joystick | Yes, support PTZ control |
Maximum Control Quantity | IP：255, VISCA: 7 x5, Pelco P/D: 10 x5 |
Control Protocol | IP: Visca Over IP, Onvif, NDI(optional) RS-232/RS-422/485: Visca, Pelco P/D |
Dimensions | 296mm x 180mm x 115mm |
Weight | 1.5kg |
KATO VISION OEM Service | Description |
Firmware Customization | 1. Booting logo |
2. UI | |
3. Language | |
Logo Customization | 1. Logo silkprint |
Customization | 1. Inner box |
2. User manual | |
3. Accessories |
KATO VISION ODM Service | Description |
Physical design | 1.Customer drawing design 2.Color |
Hardware development | 1.PCB/PCBA development 2.Replace/adding hardware |
Software development | Architecture, Driver, System, Application etc |
Qualification Honor
Exhibition Cases
Buyer Reviews
Company Profile
Our Advantages
FAQ
Q1.What's your payment term?
A:Our payment term is TT in advance before shipment.
Q2.What's your warranty period?
A:The warranty period is 3 years and start from the purchase date.
Q3.Do you offer remote assistance when facing a technical problem?
A:Yes, surely. We have very professional technical team, and it is our responsibility to help our clients when meet with any technical problem.
Q4.Could I put my own logo products?
A:Sure, we have our R&D department, we can do ODM and OEM.
Q5.How do you guarantee the quality?
A:We have our own QC to inspect all our goods before packing. And also, we have CE/FCC/RoHS/ISO.
Q6.I'm buying with yours company at the first time,how can I trust you?
A:We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or our factory anytime you like. You can also choose trade assurance for your order.
