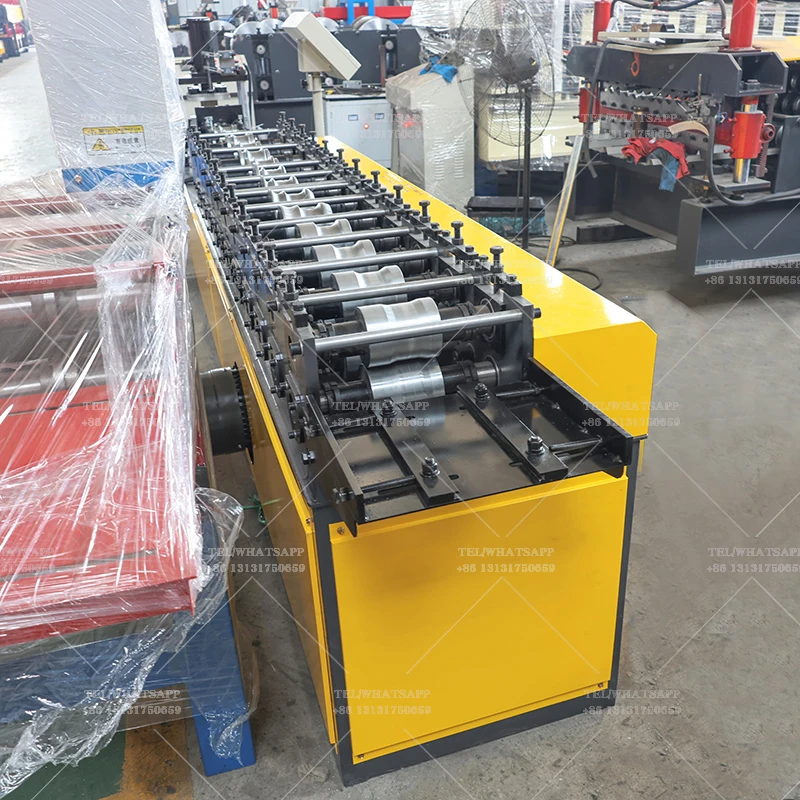

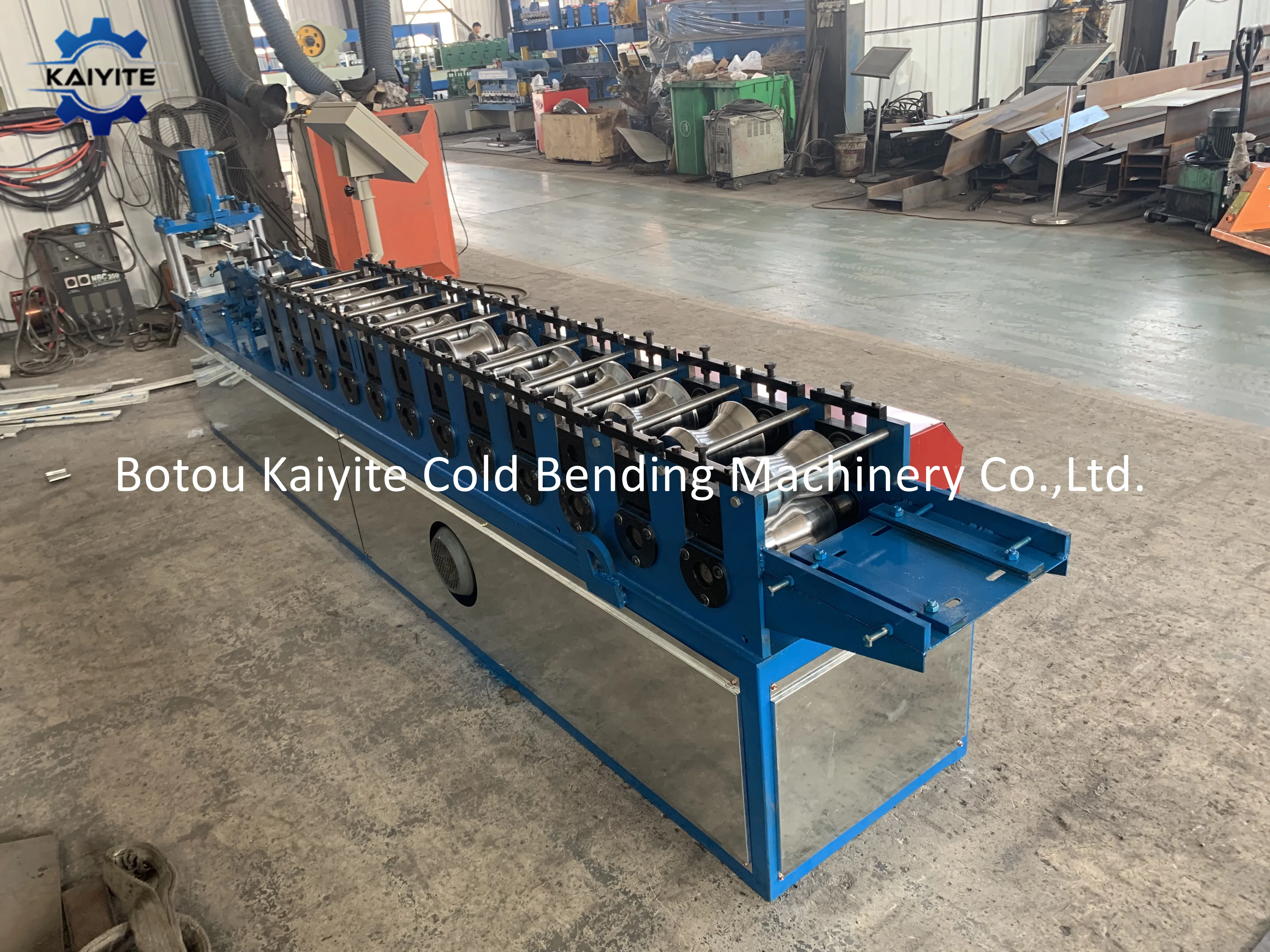

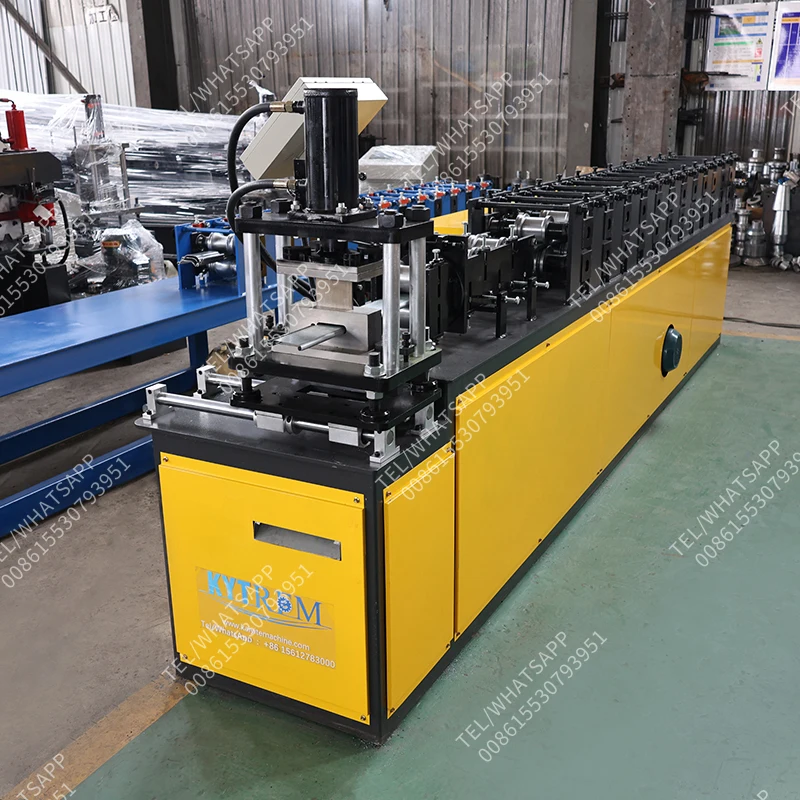

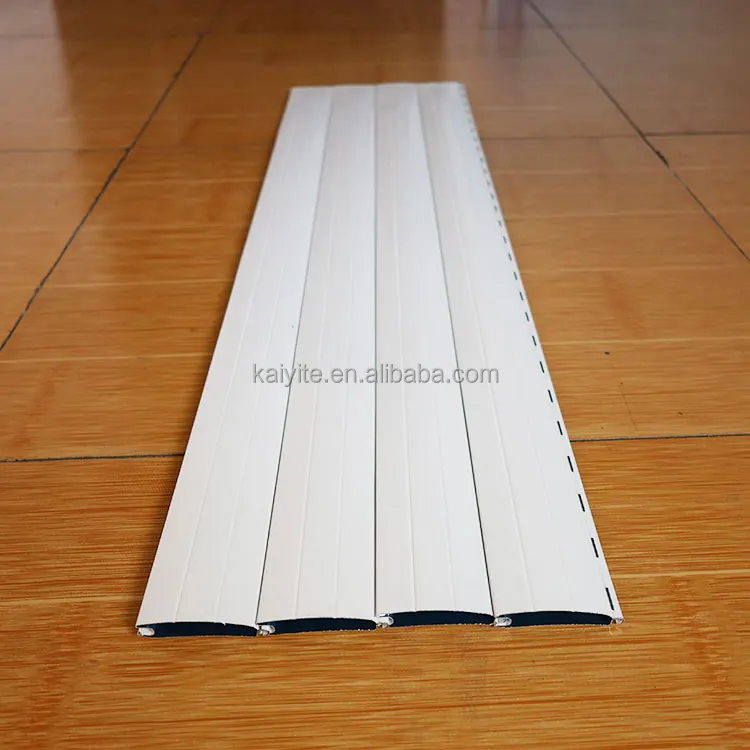

Roll Up shutter Door cold roll forming machine
Shutter door roll forming machine is a type of machine that is used to produce shutter doors .The machine consists of several components, including a decoiler, a feeding unit, a roll forming unit, a punching unit, a cutting unit, a control system, and a hydraulic system.
Specification
The price is only a reference, specific to the actual parameters, different speed, thickness, row number and other factors will lead to different prices.
NO. | TYPE | SPECIFICATION | ||||
1 | Raw Material | Type | Colored steel plate | |||
Feeding width | According to client's request | |||||
Thickness | 0.8-1.2mm | |||||
2 | Main Body | Shaft material | High grade 45#steel | |||
Roller material | High grade 45#steel,hard treatment and polishing (plated chrome on surface) | |||||
Working speed | 8-12m/min | |||||
Size(L*M*H) | According to client's request | |||||
Weight | 2000kg | |||||
3 | Power | Power | 3kw | |||
Voltage | 380v 50Hz or as customized | |||||
4 | PLC Control System | Language | English and Chinese or as your requirement | |||
Operation | Manual and Automatic | |||||
5 | Cutting Device | Cutting type | Hydraulic Cutting | |||
Processing Flow
Uncoiling → Feeding And Leveling →Punching/Pre-Shearing→Roll Forming → Auto Cutting →Products Receiving Table
Component Of Machine

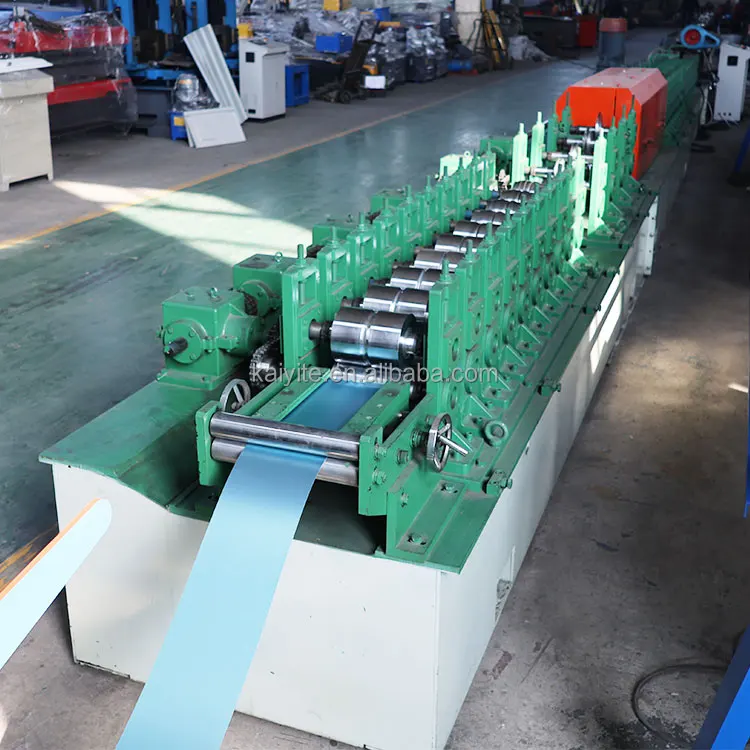

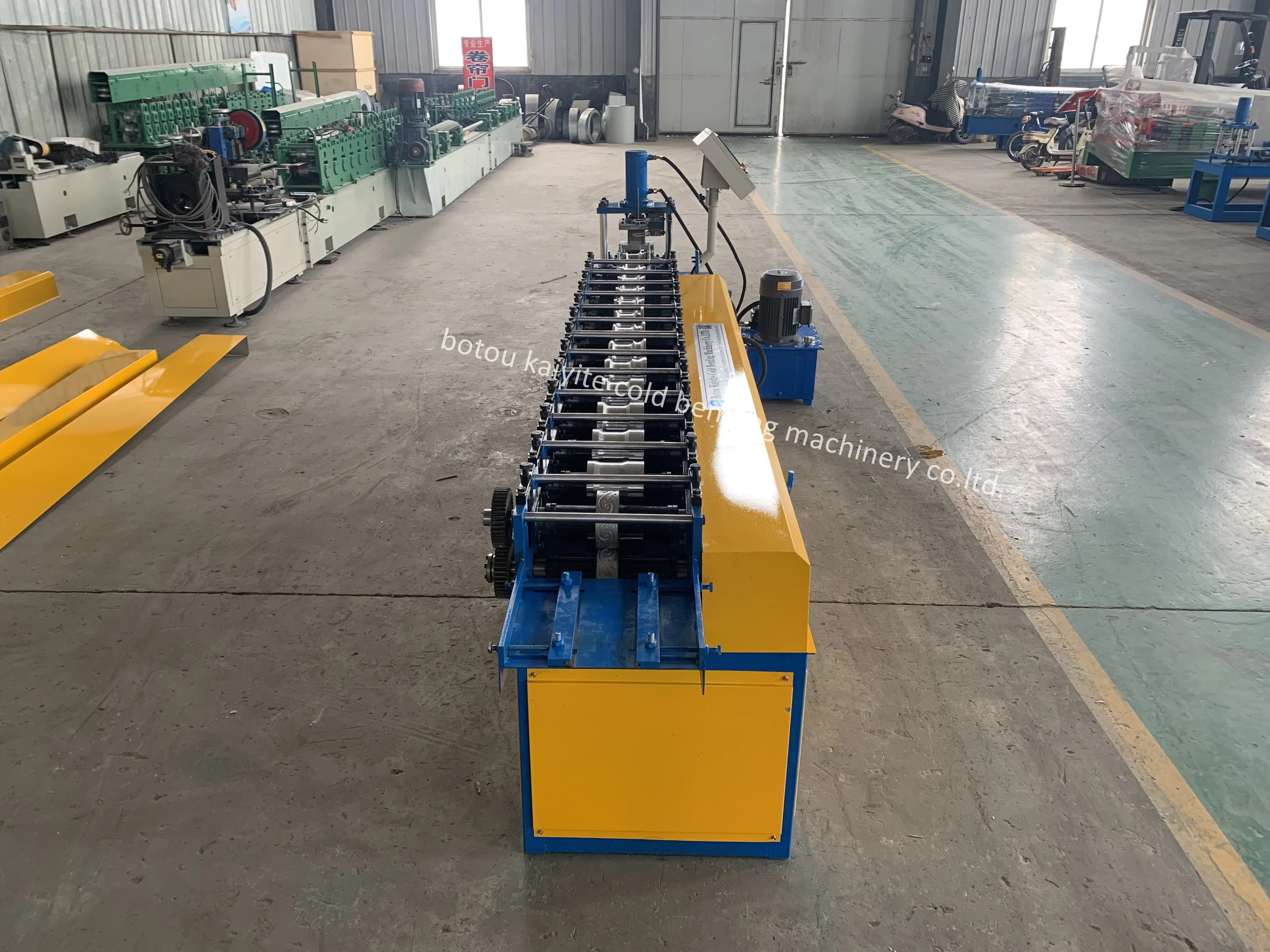

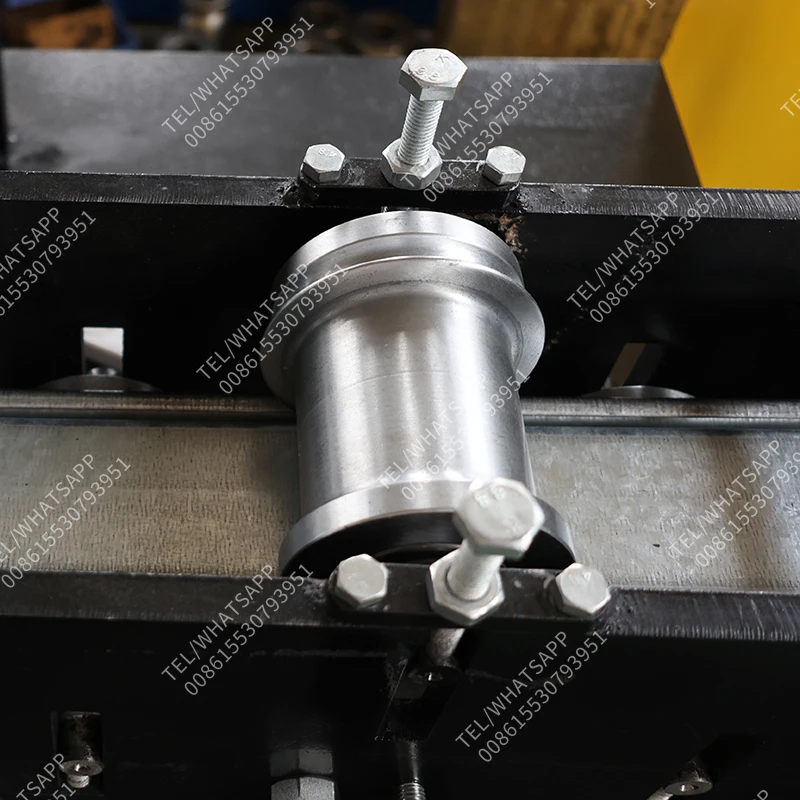

Main Forming Machine
After being forged, polished, heat-treated and finally chromeplated, they are very solid and not easy to wear. At the same time,the roof tiles are smooth without burrs

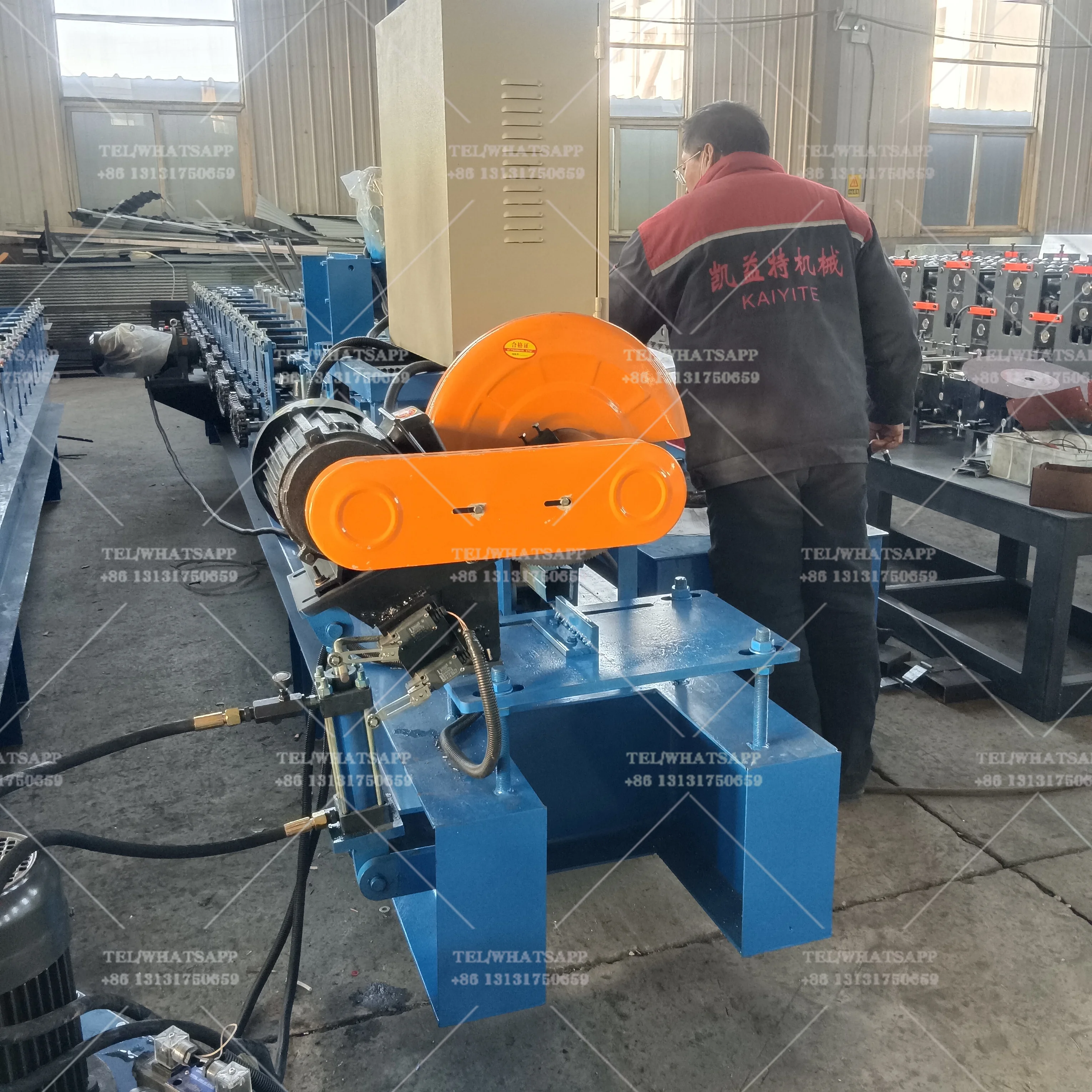

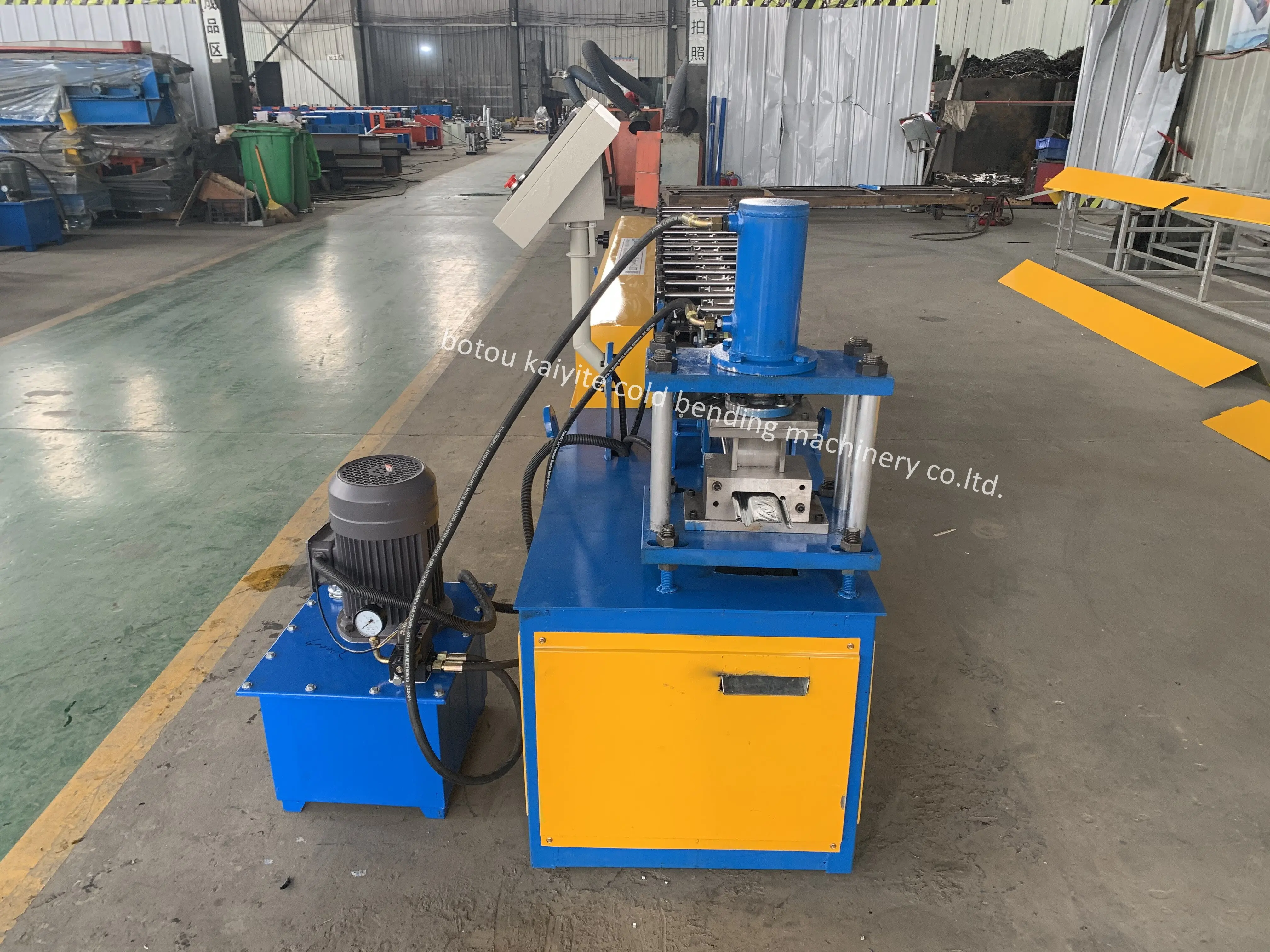

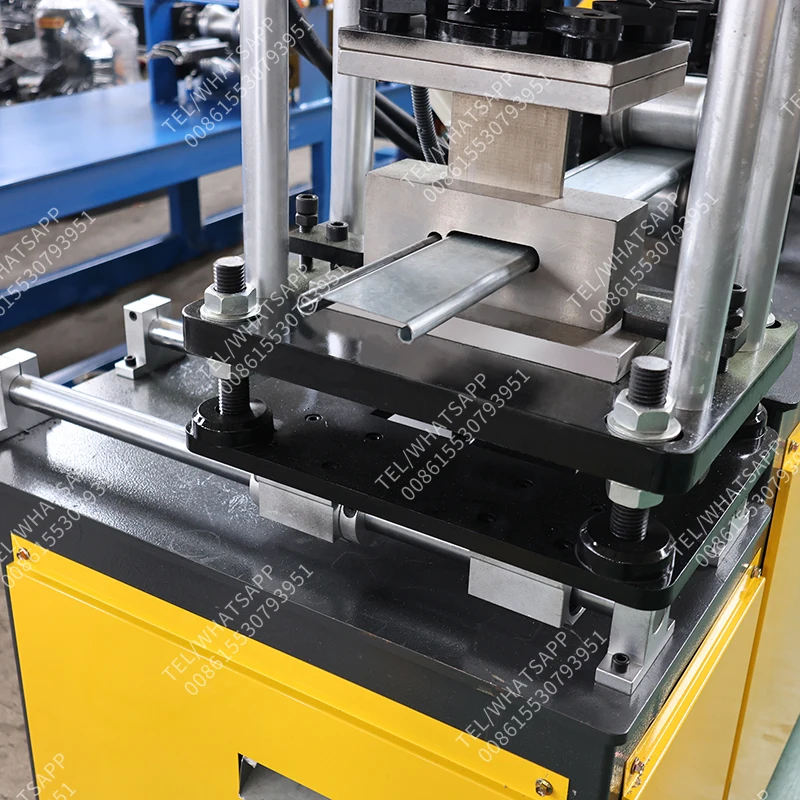

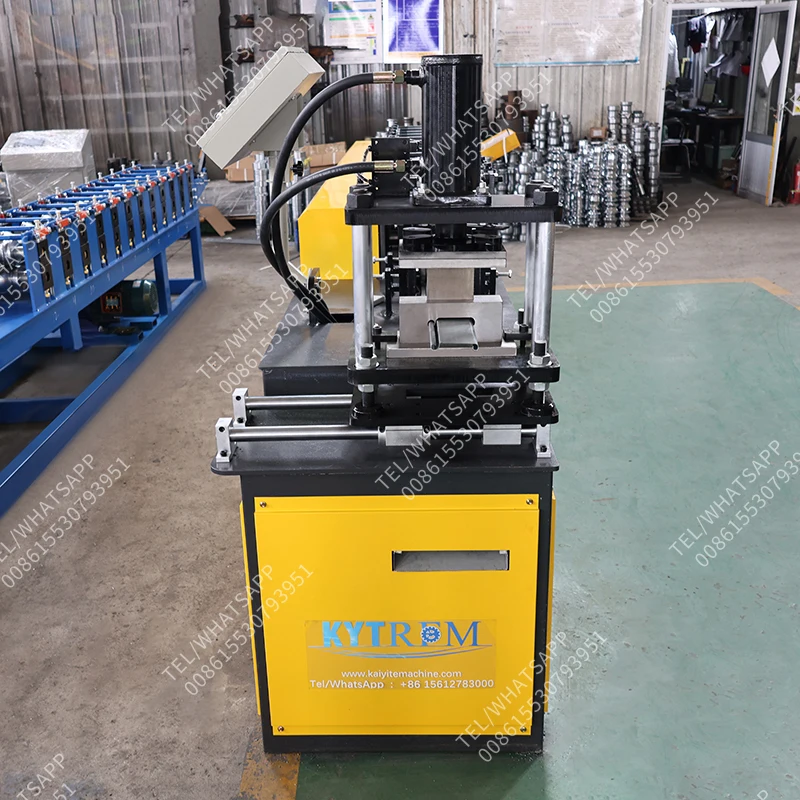

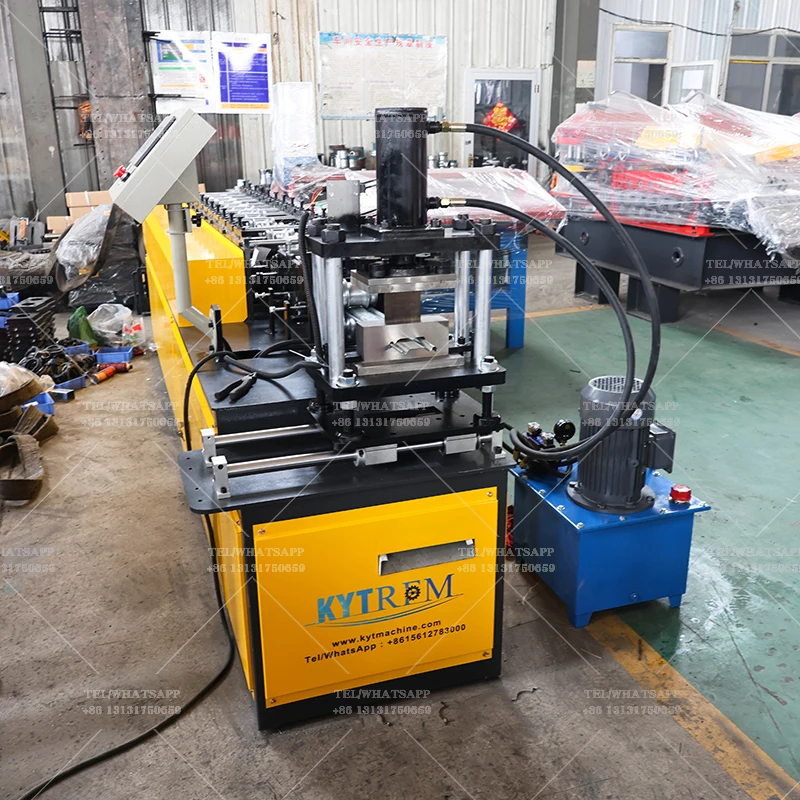

Hydraulic cutting
Once the metal strip has been formed into the desired profile, a cut-off system is used to separate the finished product from the remaining strip. stable cutting with high speed and low noise.
Decoiler
Mainly used to support steel coils, and manually uncoil and straighten the coil into the feeding table.
Oil Pump
Oil pumps are typically powered by an electric motor and connected to a tank that stores the oil. The pump draws oil from the tank and distributes it to various parts through fittings.
Receiving Table
Receiving table is to catch the pressed steel plate to prevent collision caused by the steel plate directly falling to the ground.

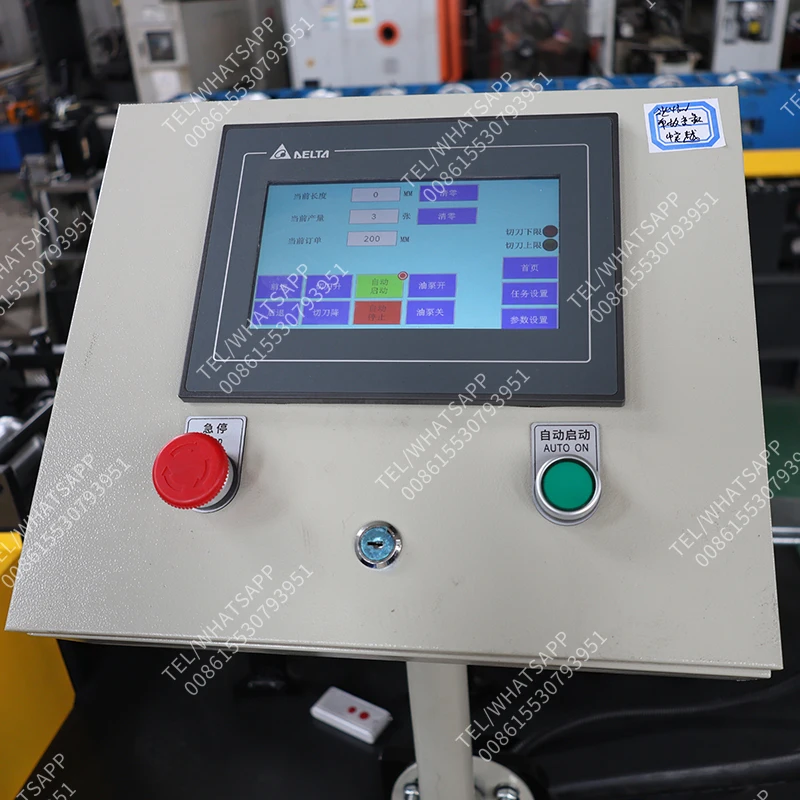

PLC Control System
It facilitates fully automatic production of machines and can set up different language systems according to customer needs
Related products

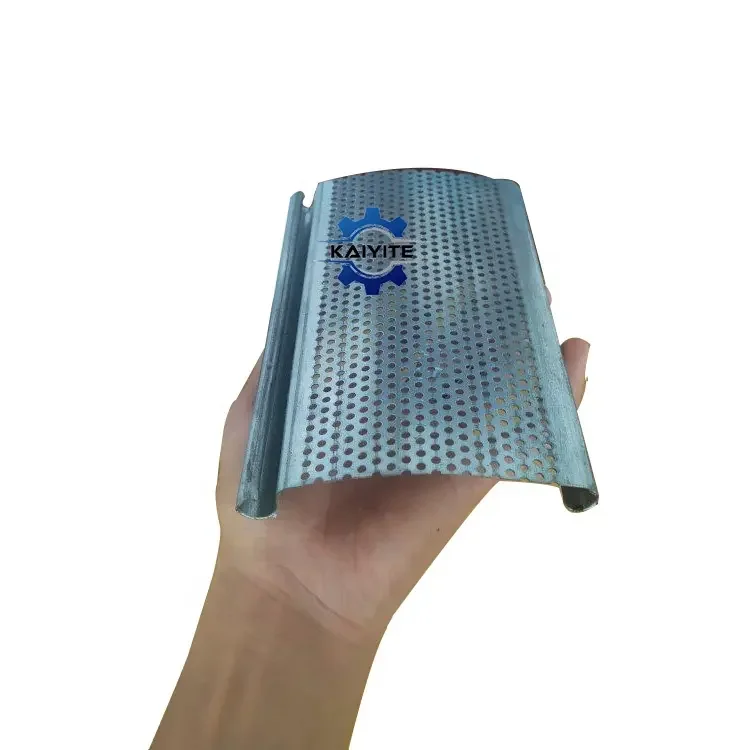

Shutter door roll forming machine with punching
This kind of machine used to produce shutter door with holes,general holes can be installed with molds on the machine. Small holes like the ones in the picture below require a punching machine to complete.

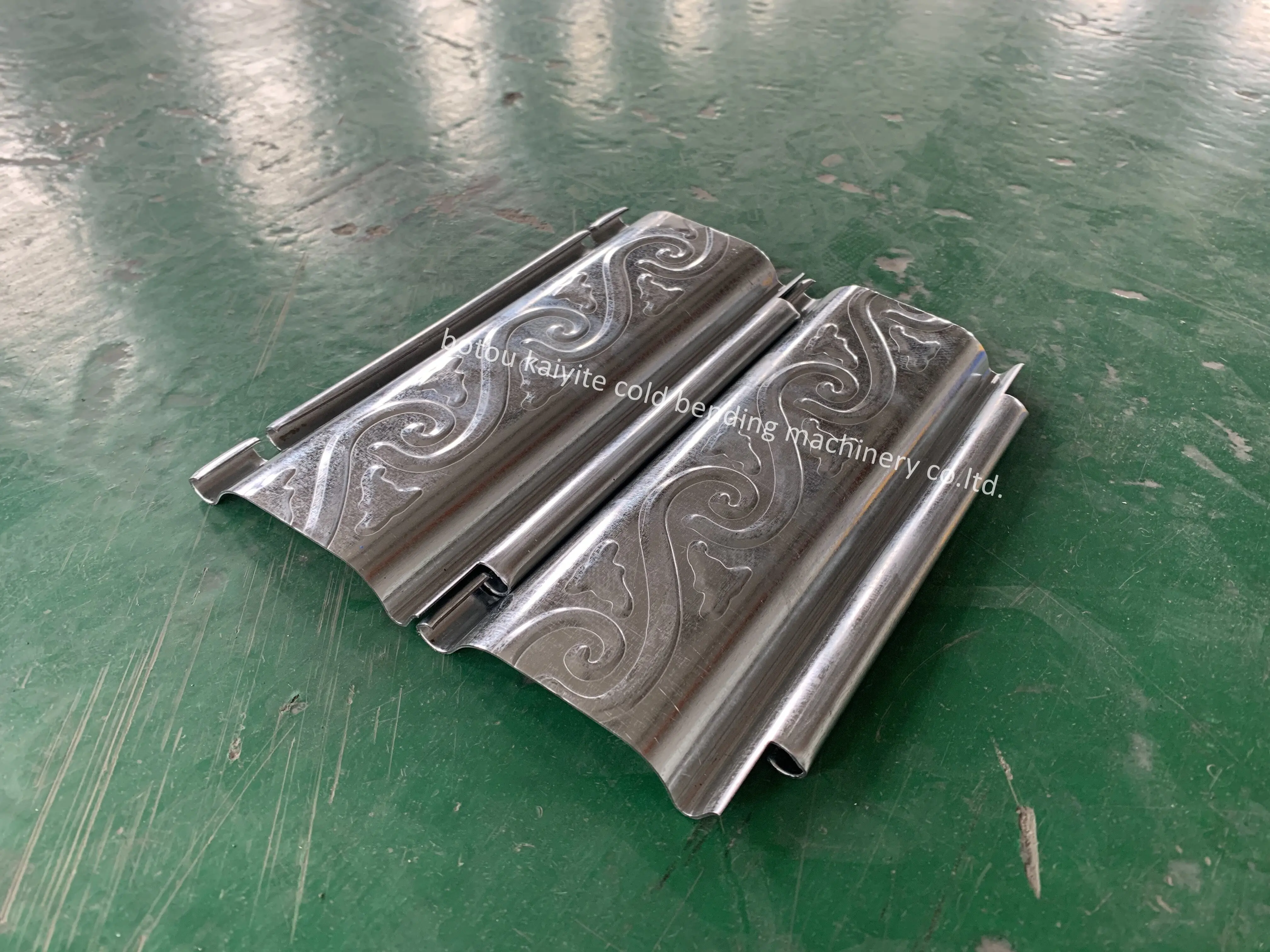

Shutter door roll forming machine with embossing
This kind of machine used to produce shutter door with embossing,the required patterns can be customized according to customer needs, and it can be completed by simply installing a set of wheels on the machine.

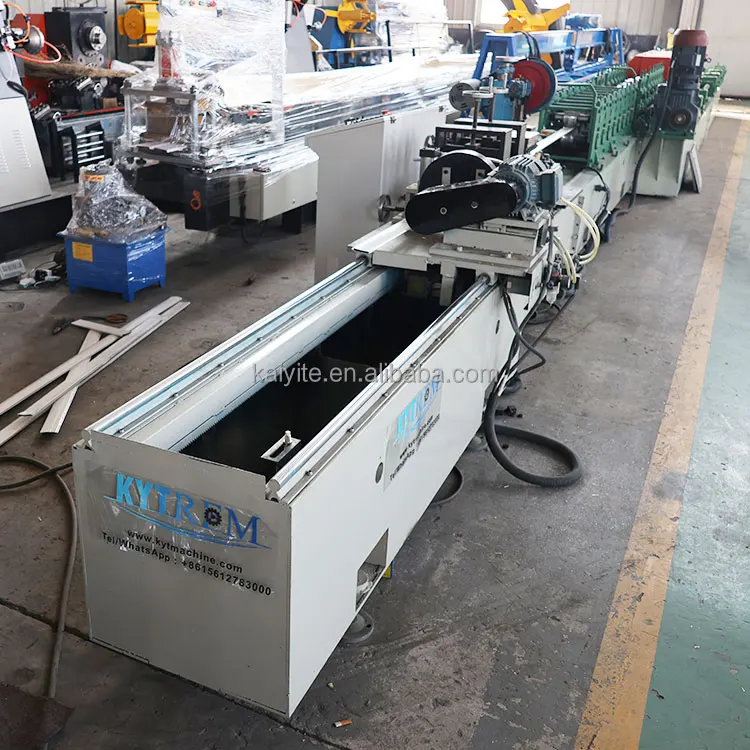

PU foam shutter door roll forming machine
This machine can produce composite doors. Materials can be added while producing the doors to provide fire protection and wind resistance.

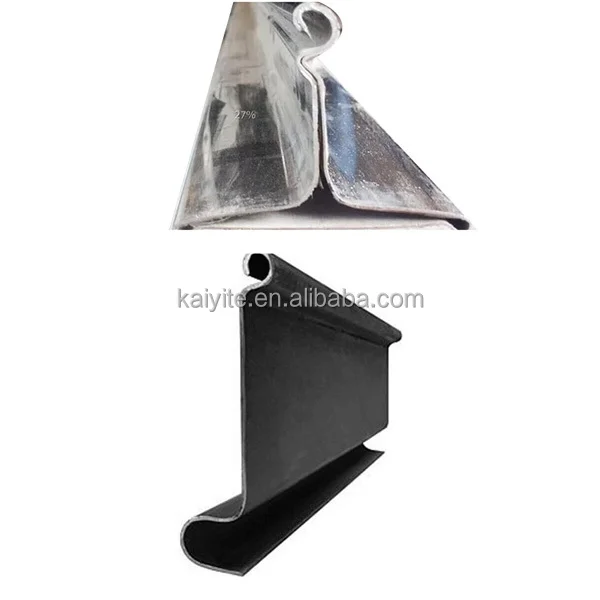

Australia style shutter door roll forming machine

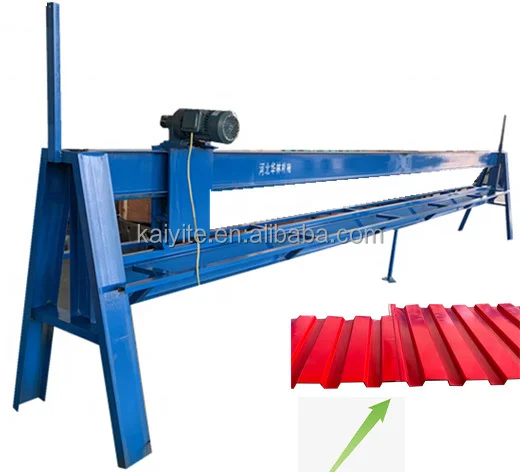

This machine usually used with a seaming machine,make the two slats better connected together.

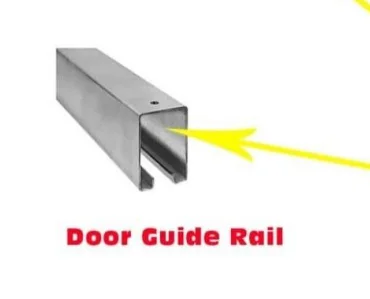

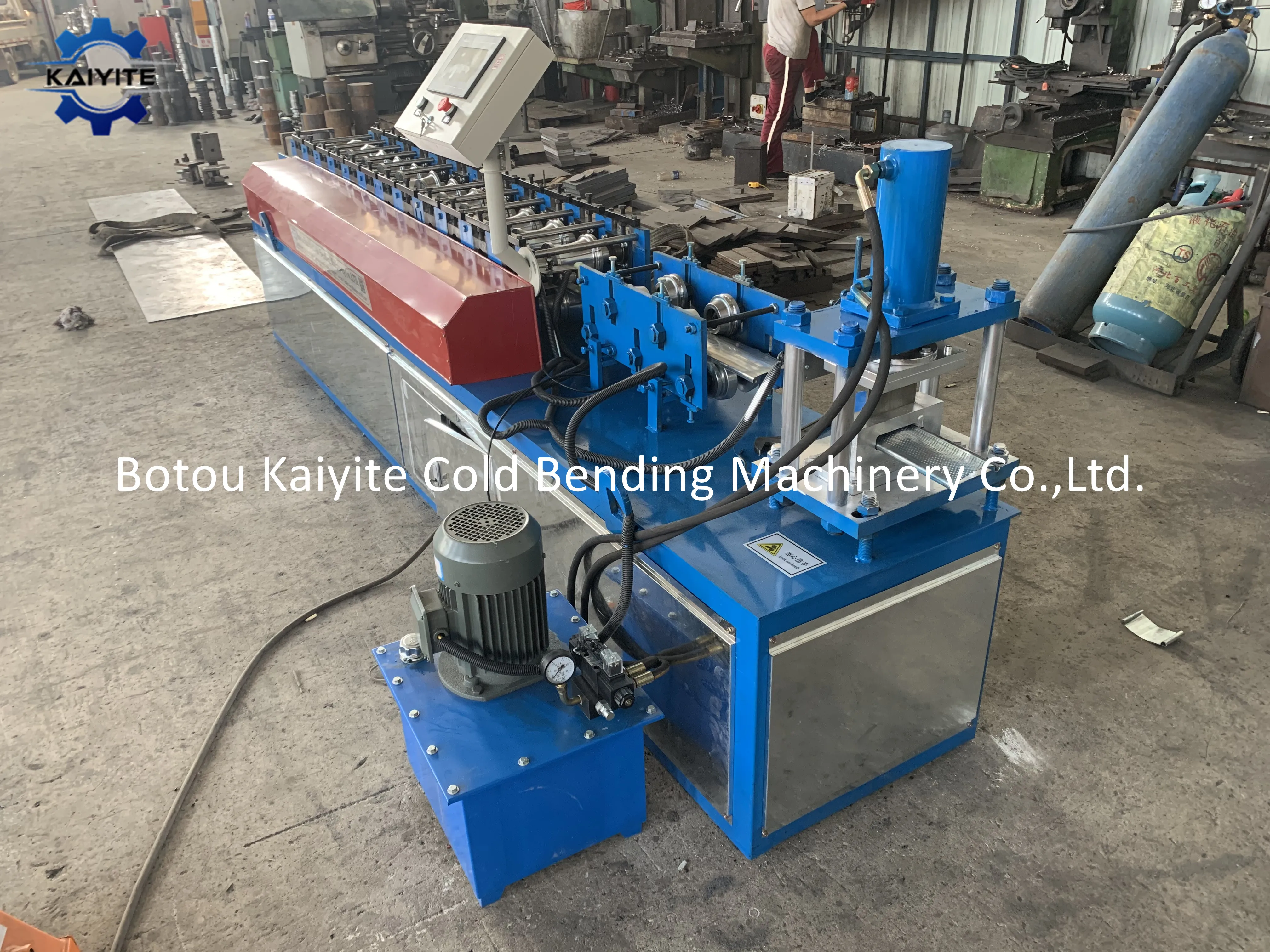

Guide rail roll forming machine
This machine produce guide rail,guide rail are used on both sides of the rolling shutter door to help the rolling shutter door slide better.
Bottom strip of shtter door roll forming machine
The bottom rail is used at the bottom of the rolling shutter door to better fix the rolling shutter door.
PACKING & DELIVERY
Packing list
1.We will wipe anti rust oil for the whole machine .
2.PLC controller will be covered by foam film
3.Spare parts are some small parts are packed in a wooden case.
4.All components are fixed well by steel wire with container.
