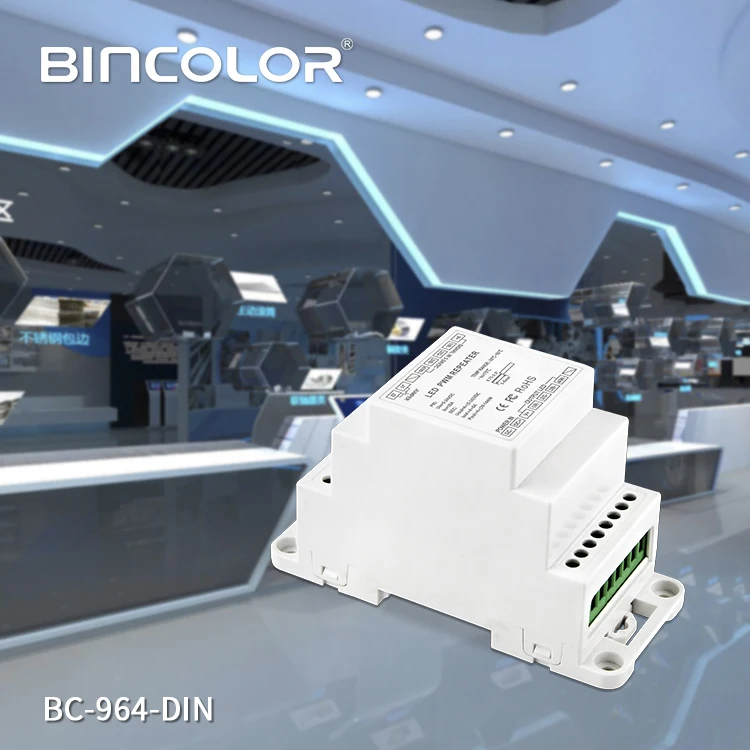

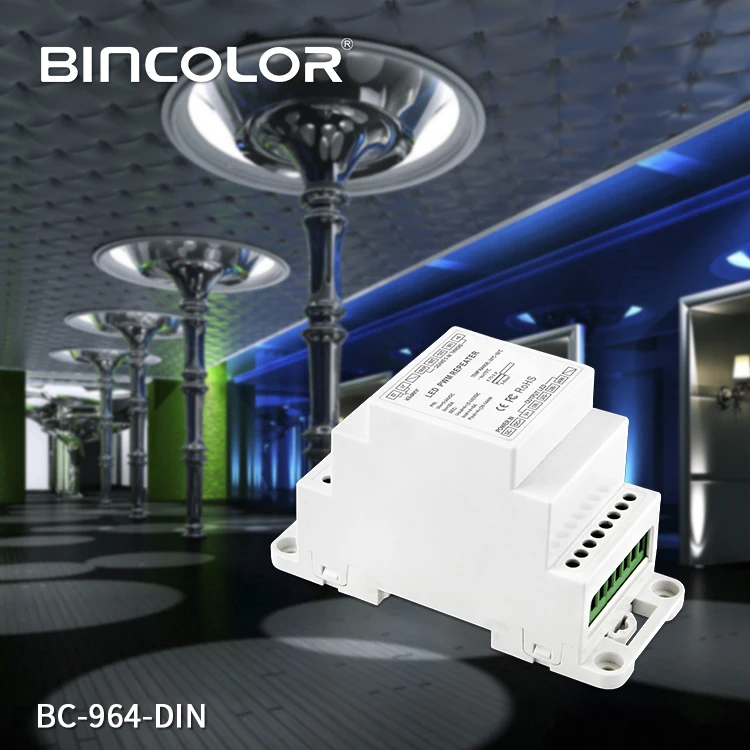

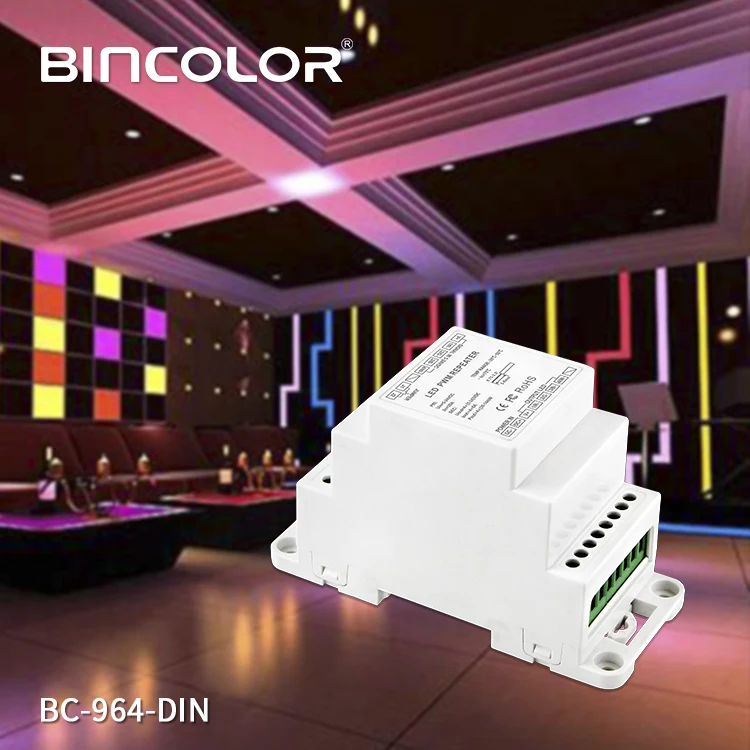

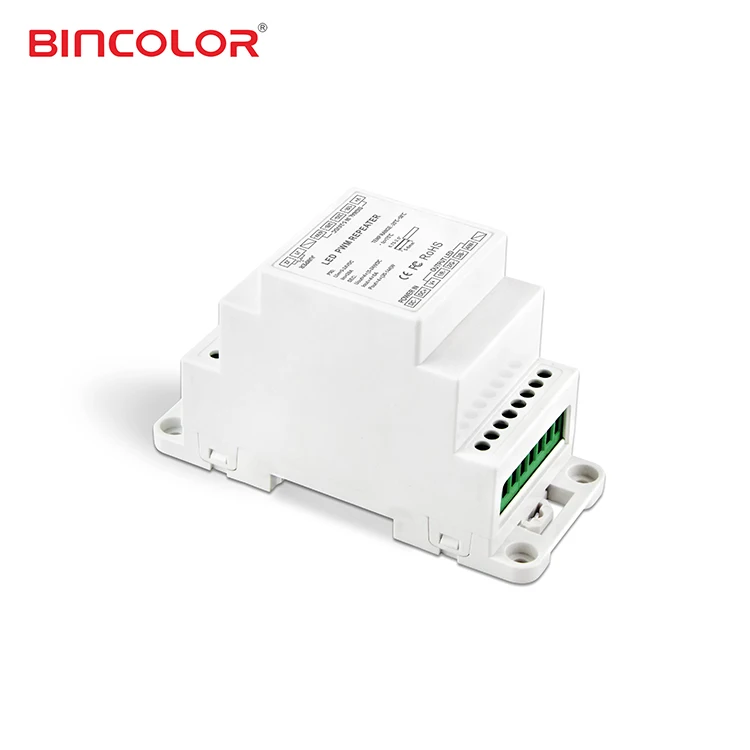

BC 964 DIN Suitable for synchronous control of different LED lamps DIN RAIL 4CH Power Repeater
- Category: >>>
- Supplier: Zhuhai Bincolor Electronic Technology Co. Ltd.
Share on (1601244771583):
Product Overview
Description
DIN Rail LED Power Repeater is suitable for all BINCOLOR power-output style controllers' power expansion, it accepts PWM SIGNAL, unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of constant voltage model and constant current model could be connected freely, Suitable for synchronous control of different LED lamps.
Feature function:
1. Common anode input and output.
2. Sustain high frequency common anode PWM input signal.
3. Work with LED controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.
4. Over current protection and short circuit protection.
5. Optical isolation function, controller damage will not affect the repeater.
6. Output channels can be output independently or synchronously.
7. The DIN rail style facilitates the installation of large-scale projects.
Click here to send us your enquiry!!!

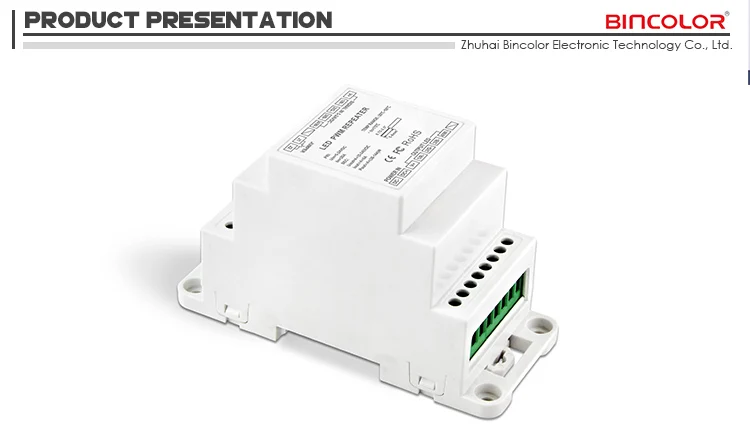

Product Description
Specifications
Model | 4CH Power Repeater |
Input voltage | DC5V-DC24V |
Max Load Current | 6A×4CH |
Output signal | Constant voltage PWM |
Max output power | 120W/288W/576W(5V/12V/24V) |
Product Dimension | L111×W46×H66(mm) |
Gross Weight | 130g |

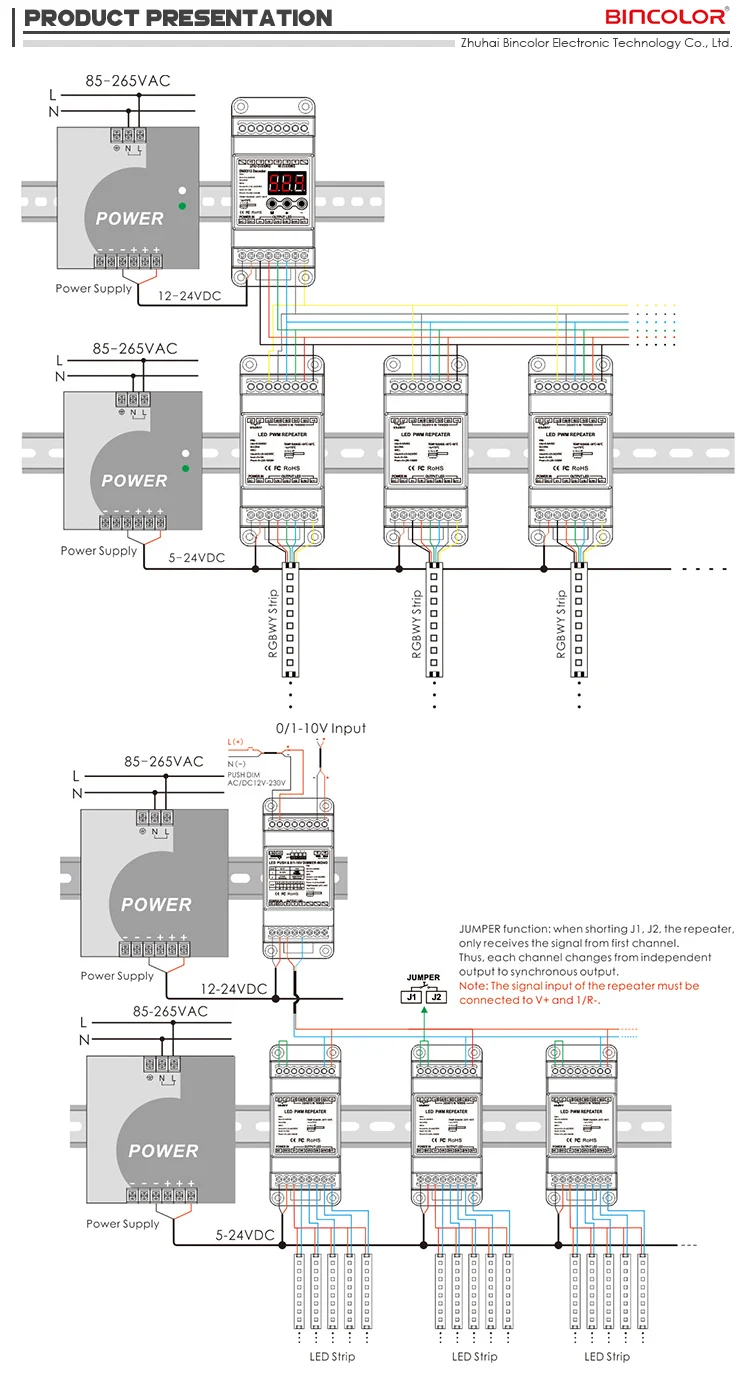

WIRING DIAGRAM
PRODUCT CATEGORIES
Company Information
WORKSHOP
APPLICATION
Packaging & Shipping
After inspection the goods are packed in white inner box and then carefully packed in cartons.
Shipping
INTERNATIONAL AIR MAIL
Payment
Fast Delivery
FAQ
1. How many years warranty of Bincolor items?
3 years warranty.
2. What kinds of export certifications of Bincolor items?
All Bincolor items pass CE, RoHS and FCC.
3. Could you provide the OEM or ODM service?
Bincolor have rich experience in OEM and ODM service, R&D the products completely according to customers’ demands.
4. Do all items design by your company?
All of our products are independent research and development production.
5. How long is the delivery time?
Within 1-3 working days for routine quantity, goods usually can be sent out on the same day or the next day. Within 20 working days for large quantity. Accurate time is according to the actual inventory.
