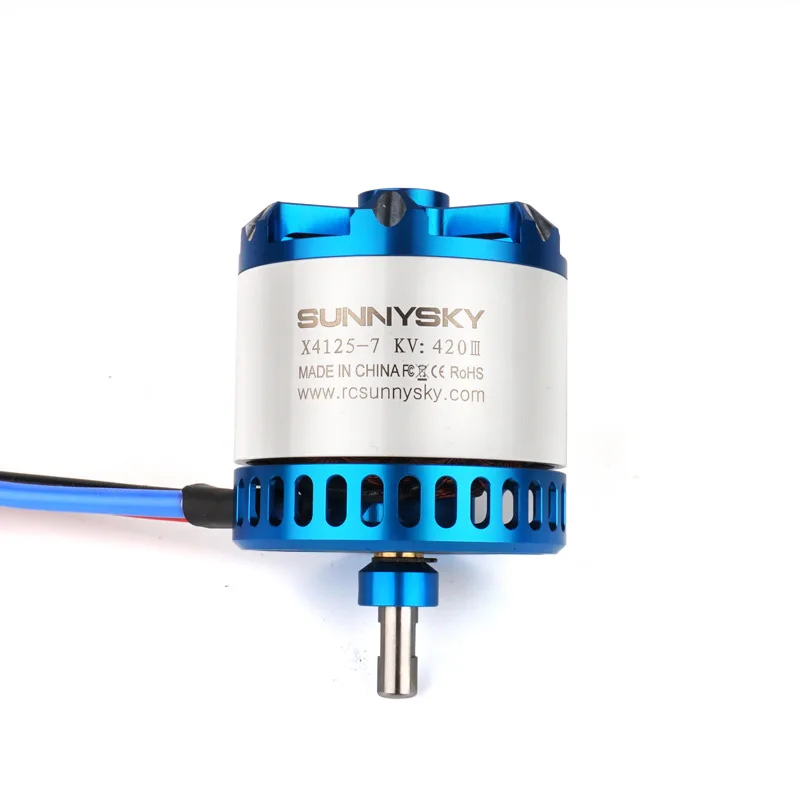

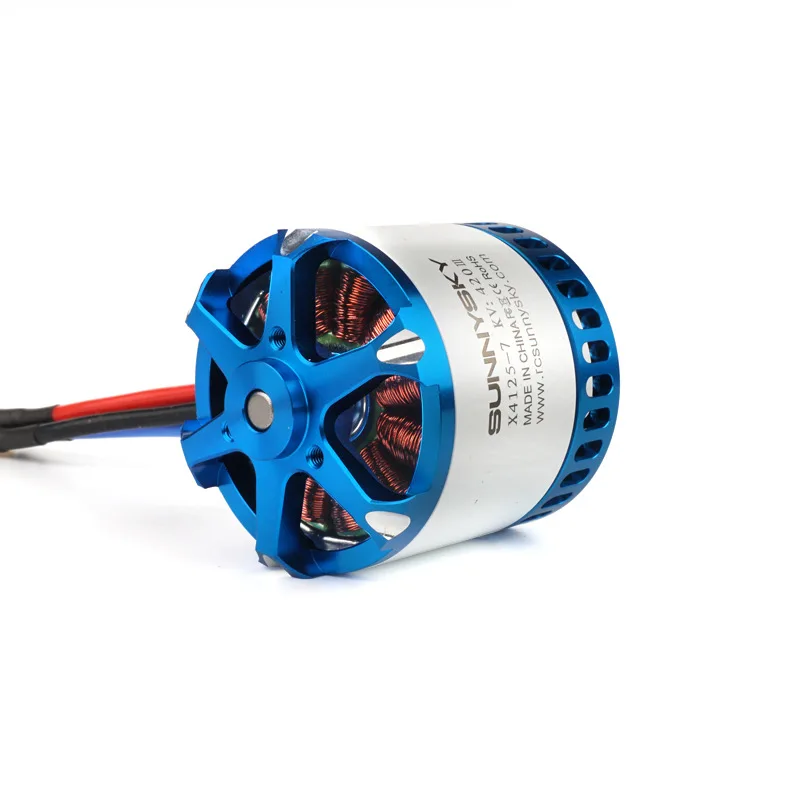

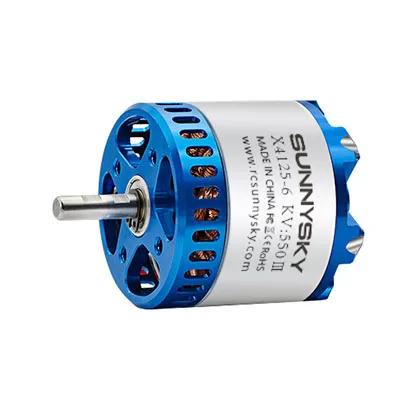

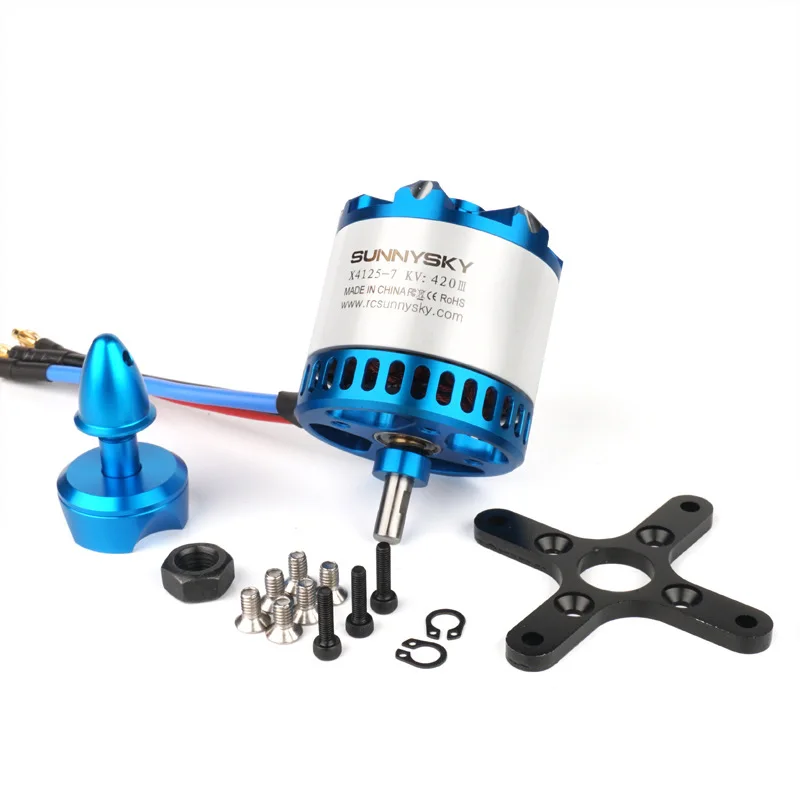

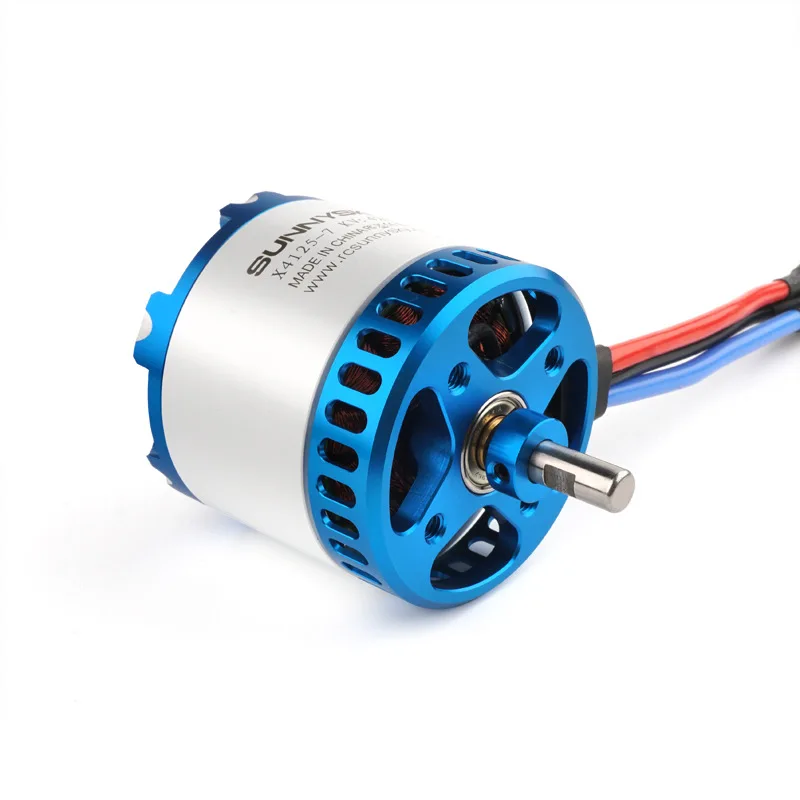

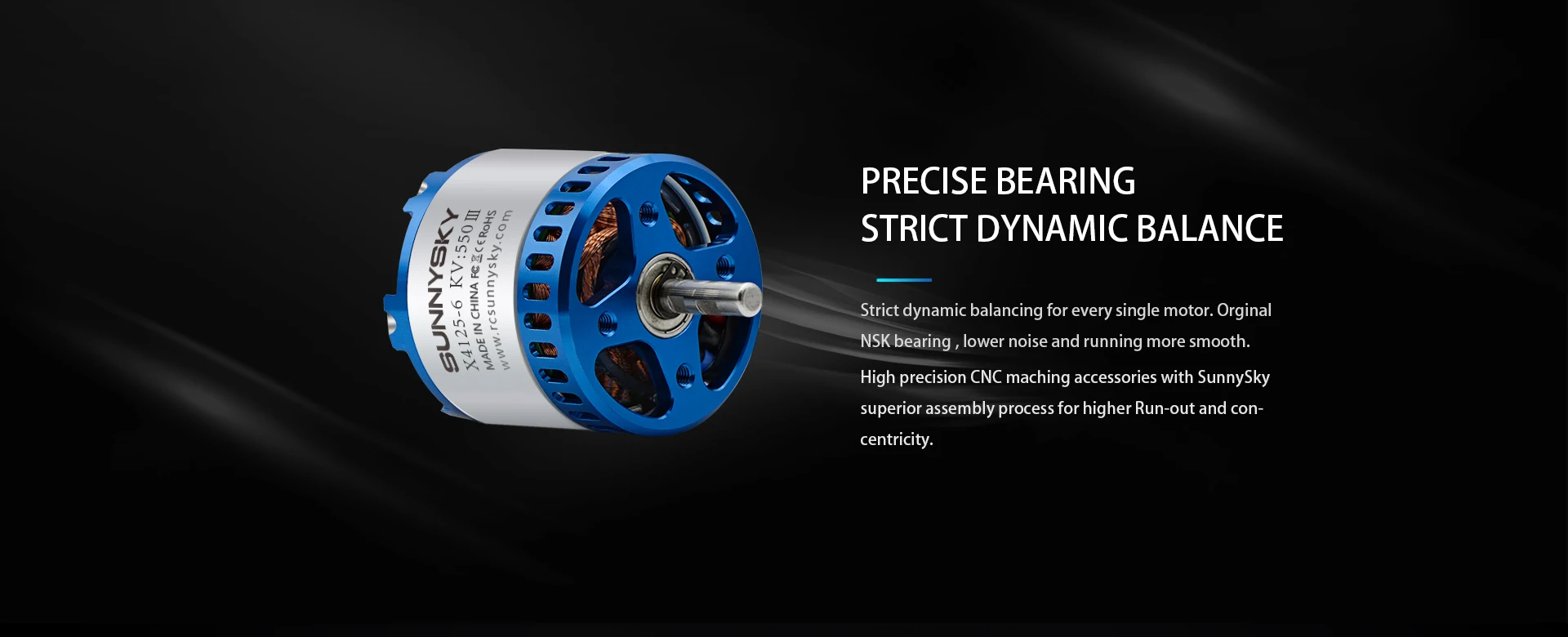

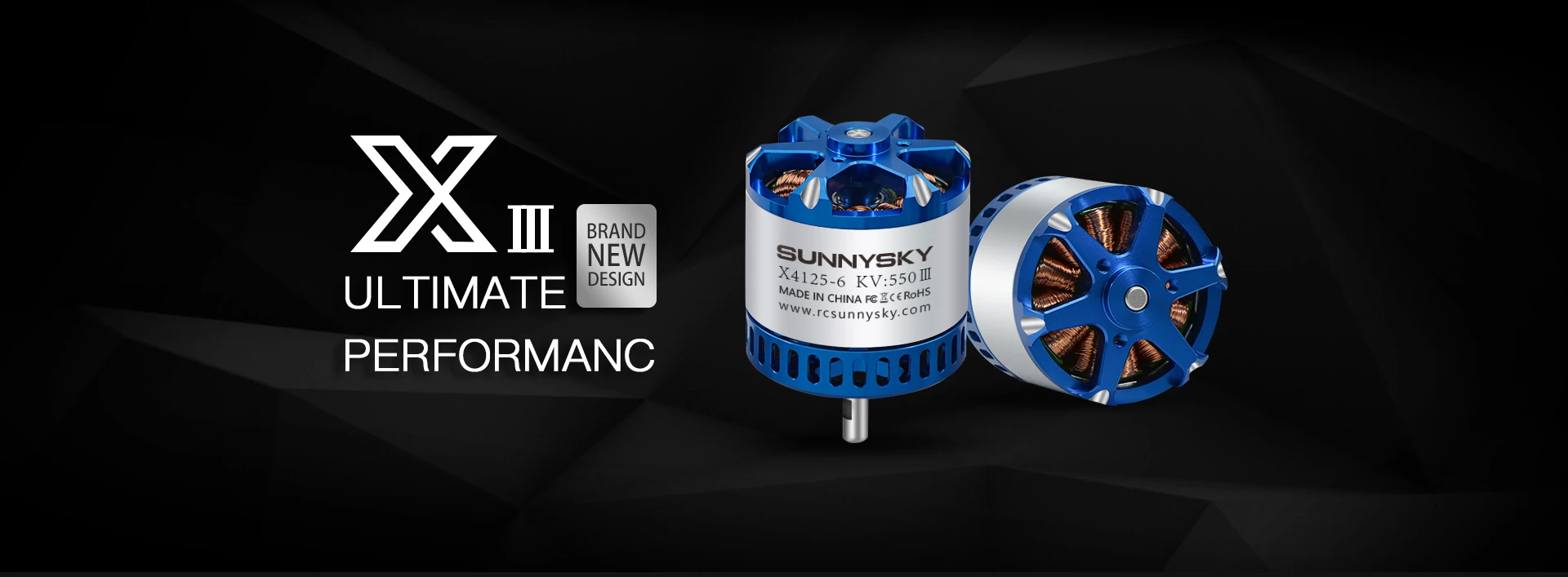

Sunnysky X4125 KV420 KV440 KV480 KV515 KV610 Drone BLDC for RC Airplane
- Category: >>>
- Supplier: Shenzhen Edge Smart Drive Technology Co. Ltd.
Share on (1601246345869):
Product Overview
Description
Product Description
| Motor Model / KV | X4125-Ⅲ/ KV420 | X4125-Ⅲ/ KV440 | X4125-Ⅲ/ KV480 | X4125-Ⅲ/ KV610 |
|---|---|---|---|---|
| Stator/Rotor Poles | 12N14P | 12N14P | 12N14P | 12N14P |
| Internal resistance | 20.5mΩ | 18.2mΩ | 14.3mΩ | 9.7mΩ |
| Motor size | φ49.7*75.0mm | φ49.7*75.0mm | φ49.7*75.0mm | φ49.7*75.0mm |
| Shaft diameter | 6.0mm | 6.0mm | 6.0mm | 6.0mm |
| AWG | 20AWG 110mm | 20AWG 110mm | 20AWG 110mm | 20AWG 110mm |
| Motor weight(wire included) | 351g | 344g | 355g | 355g |
| Motor weight(wire excluded) | No data | No data | No data | No data |
| Rated operational voltage | 6S | 6S | 6S | 5-6S |
| No-load current | 1.4A/10V | 1.45A/10V | 1.8A/10V | 2.5A/10V |
| Maximum continuous power | 2250W | 2430W | 2750W | 2760W |
| Maximum continuous current | 90A/30s | 97A/30s | 110A/30s | 120A/30s |
| ESC recommended use | 80-100A | 80-100A | 100A | 100-130A |
| Propeller size recommended use | 6S(EOLO15*8/15*10/16*8/16*10) | 6S(EOLO15*8/15*10/16*8/16*10) | 6S(EOLO15*8/15*10/16*8) | 5S(EOLO15*8/15*10/16*8/16*10) 6S(EOLO13*7/14*7/14*8) |
