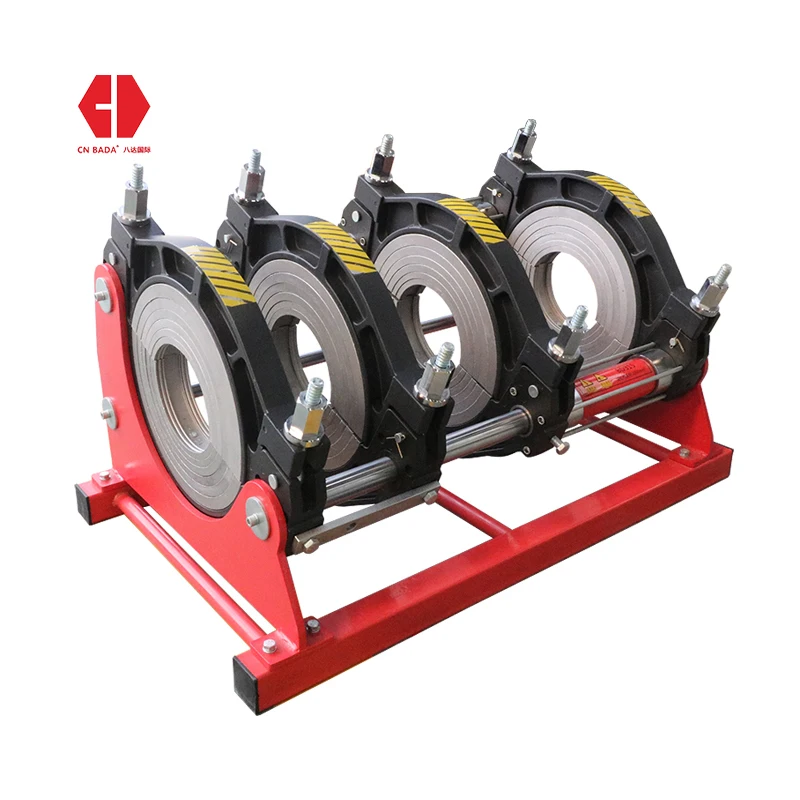

bada hdpe pipe 315 160mm hydraulic butt fuse machine mesin las hdpe pe pipe butt fusion welder 315 maquina termofusora hdpe
- Category: >>>
- Supplier: Jinan Bada Plastic Pipe Welding Equipment Co. Ltd.
Share on (1601246384391):
Product Overview
Description

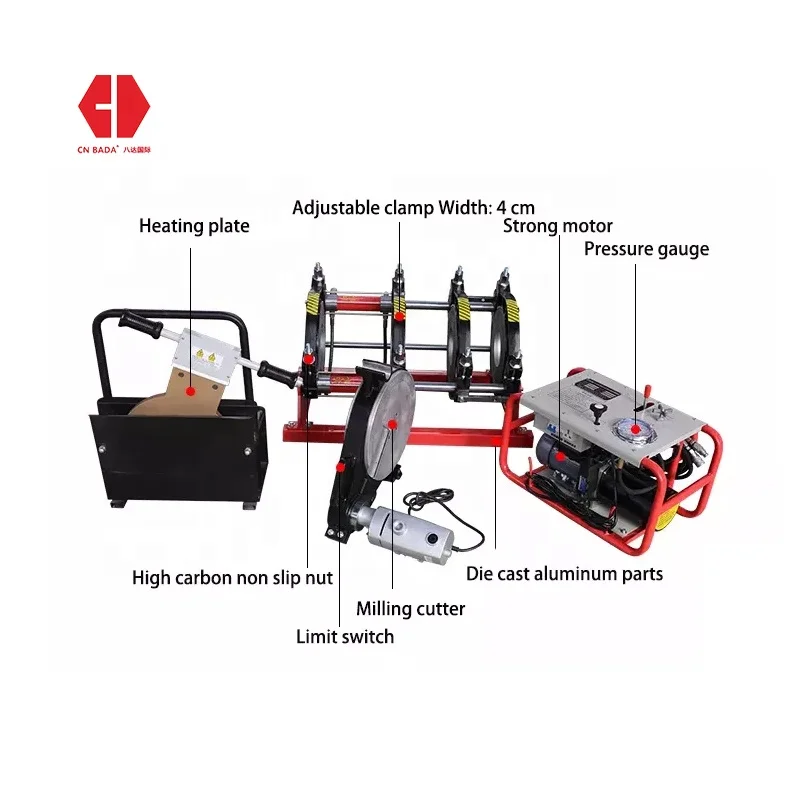

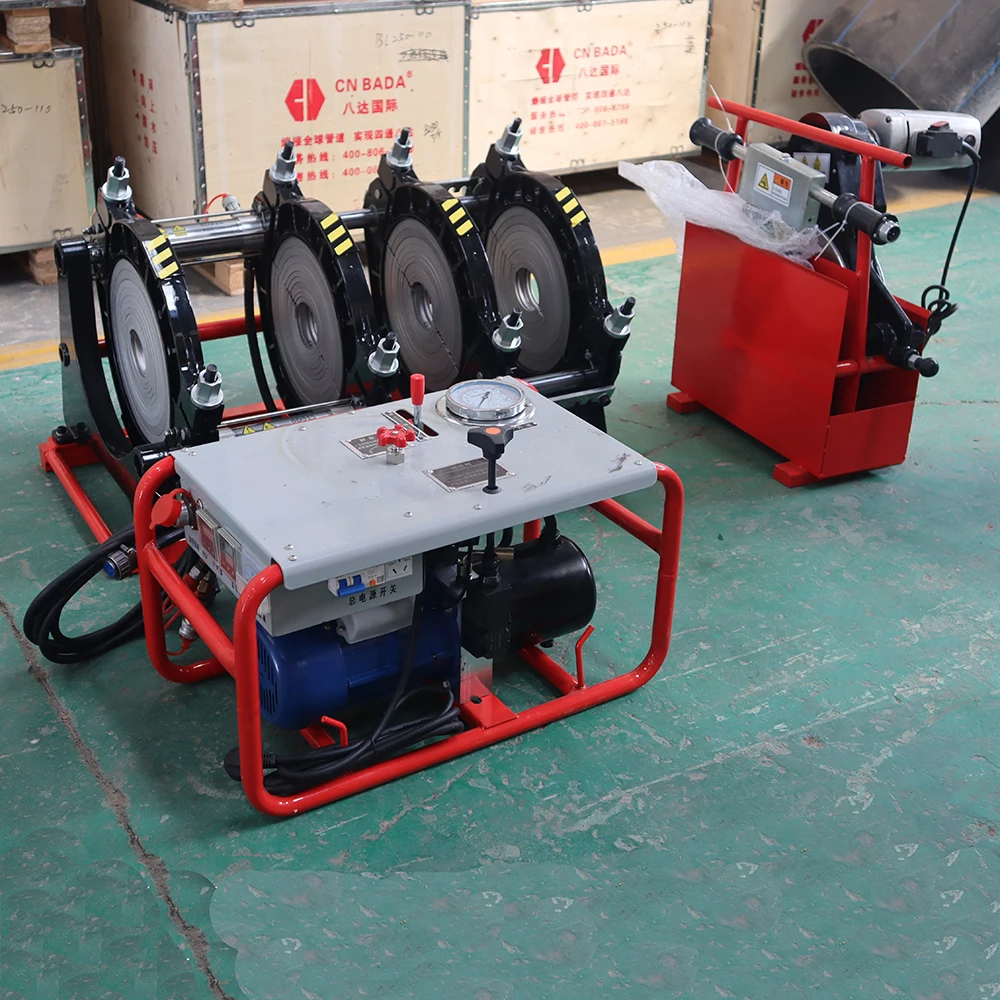

This High quality multifunctional plastic 160-315 hdpe pipe butt fusion welding machine for hdpe pipe is able to weld pipes and fittings with material pe pipe，hdpe pipe , operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
BADA 160-315MM Hydraulic Butt Fusion Welding Machine (SDBD 160-315 ) | ||||||
Welding diameters (mm) | 315-160MM | Working Voltage | 220V, 50Hz | |||
Heating plate temperature | 270°C | Heating plate power | 3.1KW | |||
Heating plate surface temperature(170-250°C) | <±5°C | Milling cutter power | 1.36KW | |||
Pressure adjustment range | 0-10MPa | Hydraulic station power | 0.75KW | |||
Cross-sectional area of the cylinder | 2000 mm² | Total Power | 5.21KW | |||
Base frame
Lightweight and strong
It is one of the best materials for machines.
Planing tool
The electric heating plate adopts a polytetrafluoroethylene coating, which has good stability, and an independent temperature control system, which can control the temperature difference within the minimum range of domestic machines.
Heating plate
The quick connector adopts a flat type, which is more environmentally friendly and durable; the milling cutter adopts a powerful motor and a special material blade to make the cutting effect more perfect.

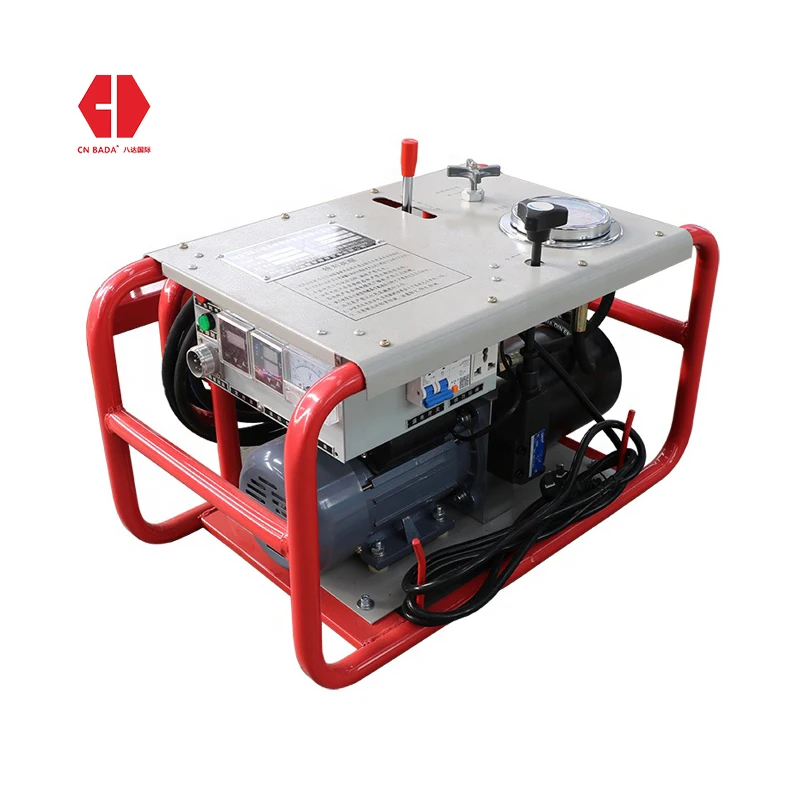

Hydraulic unit
The hydraulic sealing system adopts imported products. The large dial, high-precision shockproof pressure gauge, clearer reading, independent dual-channel timer, can record the two time periods of heat absorption and cooling, and automatically alarm when the timing ends
When our welds pipe together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. Data Logger can store up to 1000 welding cycles and sum them into a encrypted EXCEL file. This report can be transferred to a PC/Laptop through a USB port.
Successful Project
Project in Southeast Asia
Project in Southeast Asia
Project in Russia

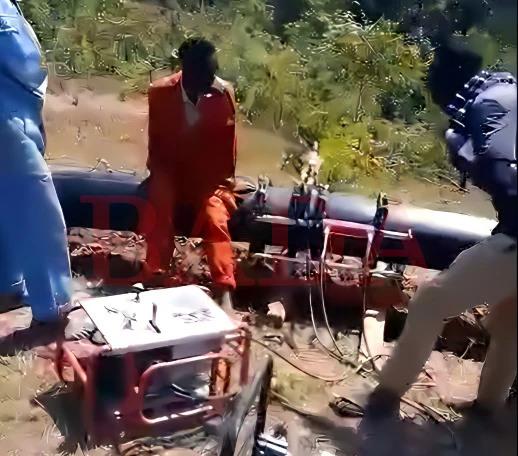

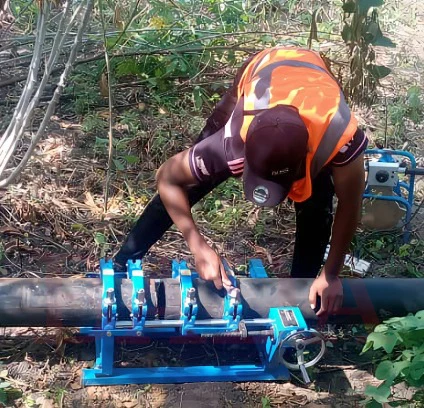

BADA manual butt welding machine in Africa

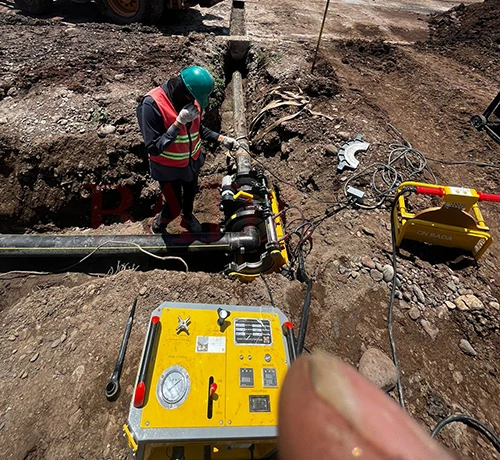

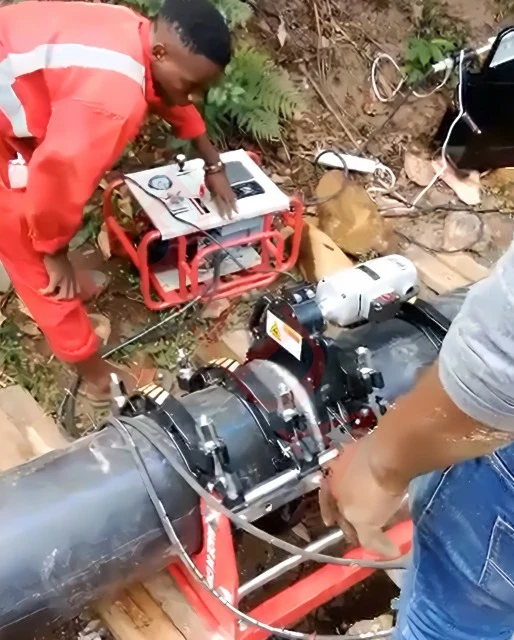

Use of BADA hydraulic butt welding machine in gas pipeline engineering
Use of BADA hydraulic butt welding machine in water supply engineering

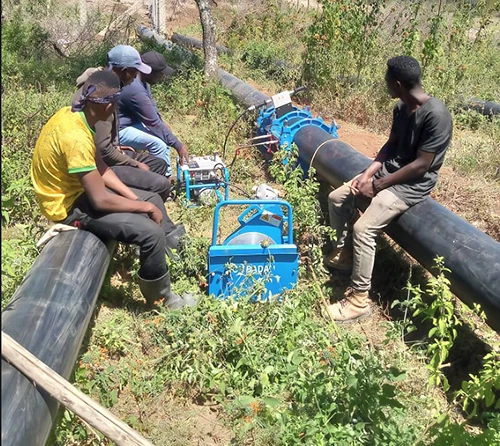

Use of blue hydraulic butt welding machine in water supply engineering.
Use of 315 hydraulic butt welding machine in water supply engineering

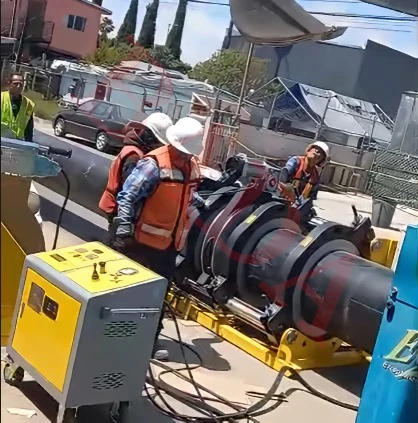

Use of bada butt welding machine in urban pipeline engineering
Related Products
1.The shipping: 3 days after received payment
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
FAQ
1. Q:What is your payment terms ?
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
3.Q:How about your Guarantee and Service ?
A:All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007)
International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
4.Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
